Dimethylplatinum (II) complexes with isocyanocoumarin ligands: The crystal structure of cis-dimethylbis-(7-diethylamino-3-isocyanocoumarin)platinum(II)

Article abstract of DOI:10.1016/j.jorganchem.2004.09.007

Platinum complexes that contain isocyanocourmarin ligands have been prepared. [Pt₂Me₄(μ-SMe₂)₂] and [PtPh₂(SMe₂)₂] react with ligands L, (L = 7-diethylamino-3-isocyanocoumarin, I

Full text of DOI:10.1016/j.jorganchem.2004.09.007

Journal of Organometallic Chemistry 690 (2005) 168–176
www.elsevier.com/locate/jorganchem
Dimethylplatinum (II) complexes with isocyanocoumarin
ligands: the crystal structure of cis-
dimethylbis-(7-diethylamino-3-isocyanocoumarin)platinum(II)
a,
b
c
a
Craig Anderson *, Daniel A. Freedman , Michael Jennings , Brenda Gray
a
Department of Chemistry, Bard College, 30 Campus Road, Annandale-on-Hudson, NY 12504, USA
Department of Chemistry, State University of New York at New Paltz, New Paltz, NY 12561, USA
b
c
Department of Chemistry, University of Western Ontario, London, Ont., Canada N6A 5B7
Received 29 June 2004; accepted 2 September 2004
Available online 7 October 2004
Abstract
Platinum complexes that contain isocyanocourmarin ligands have been prepared. [Pt2Me4(l-SMe2)2] and [PtPh2(SMe2)2] react
with ligands L, (L = 7-diethylamino-3-isocyanocoumarin, Idc; 7-isocyano-4-methylcoumarin, Mic; 7-isocyano-4-trifluoromethyl-
coumarin, Tic; 3-chloro-4-methyl-7-isocyanocoumarin, Cmic), to give PtR2L2, monomers in high yield. The NMR and IR spectra
of these complexes are consistent with cis stereochemistry. The UV–Vis absorption spectra of the complexes show bands assigned to
ligand-centered transitions. Excitation into the absorption bands of the Idc complexes gives emission at room temperature in meth-
ylene chloride solution. The oxidative addition reaction of two of these complexes with methyl iodide has been studied. Platinum
(IV) species with fac geometry have been isolated and characterized. Cis-dimethylbis-(7-diethylamino-3-isocyanocoumarin)plati-
num(II) was characterized by X-ray diffraction.
ꢀ 2004 Elsevier B.V. All rights reserved.
Keywords: Platinum; Oxidative addition; Photochemistry; Isocyanide; Coumarin
1. Introduction
where CNR is an isocyanocoumarin ligand (7-diethyl-
amino-3-isocyanocoumarin, Idc; 7-isocyano-4-methyl-
coumarin, Mic; 7-isocyano-4-trifluoromethylcoumarin,
Tic; 3-chloro-4-methyl-7-isocyanocoumarin, Cmic).
The preparation of three of the isocyanocoumarin lig-
ands and the Mo(CO)4L2 complexes of the ligands was
recently reported [2]. The molybdenum complexes dis-
played intense visible absorption and emission bands
that were assigned to MLCT transitions. The assign-
ment was, in part, based on the similarities between
the isocyanocoumarin complexes and analogous
Mo(pp)(CO)4 complexes (pp = polypyridyl) which have
very well characterized emissive MLCT excited states
[3]. It seems reasonable that MLCT excited states should
also be observed for Pt–isocyanocoumarin complexes.
We also report the preparation of a new isocyanocou-
marin ligand, Idc, which differs from the other isocyano-
Square-planar platinum (II) complexes with metal-to-
ligand charge transfer (MLCT) excited states have been
the subject of considerable interest due to their interest-
ing photophysical properties, their potential applica-
tions as light emitting diodes, and as devices for solar
energy conversion and hydrogen production [1]. The
vast majority of these studies have focused on Pt(II)
complexes of polypyridyl-type ligands. We thought it
would be interesting to examine other Pt(II) complexes
also likely to exhibit MLCT excited states. Therefore,
in this work we describe the synthesis and characteriza-
tion of a series of R2Pt(CNR)2 (R = Me, Ph) complexes
*
Corresponding author. Tel.: +845 758 7293; fax: +845 758 7628.
E-mail address: canderso@bard.edu (C. Anderson).
0022-328X/$ - see front matter ꢀ 2004 Elsevier B.V. All rights reserved.
doi:10.1016/j.jorganchem.2004.09.007

C. Anderson et al. / Journal of Organometallic Chemistry 690 (2005) 168–176
169
O
NO2
O
H
i
O2N
+
OEt
OH
Et2N
Et2N
O
O
O
C
NO2
H
N
N
ii
H
iii
Et2N
O
Et2N
Et2N
O
O
O
O
O
Scheme 1. (i) Reflux in toluene with piperidine. (ii) Reflux with Sn in toluene/formic acid. (iii) Stir with POCL3/Net3 in CH2Cl2.
coumarin ligands in that it contains an intramolecular
charge transfer (ICT) chromophore which generates in-
tense visible absorption and emission bands. There is
considerable evidence in the literature that platinum
complexes with isocyanide ligands should be stable
and display interesting properties. Recent reports on
Pt(II)–isocyanide complexes have explored their liquid
crystal properties [4], their use as probes for important
intermediates in platinum catalyzed reactions [5], and
their use as vapochromic sensors [6]. Coumarins and
their derivatives [7] are of interest in natural products
chemistry [8], have been shown to bond with DNA [9],
and have exciting photochemical and photophysical
properties of their own [10].
solution is dominated by an intense band at 420 nm.
Also shown in Fig. 1 is the intense emission centered
at 490 nm generated by excitation into the absorption
band. Both the absorption and emission bands are con-
sistent with what has been observed for other 7-amino-
coumarin compounds [2]. The emissive excited state
can be represented by the resonance structure on the
right shown below (Fig. 2) where charge has been trans-
ferred from the amine to the unsaturated lactone ring.
3. Synthesis and characterization of the PtR2(CNR)2
complexes, R = Me or Ph
Pt(CH3)2(CNR)2 complexes were readily prepared
from [Pt(CH3)2(l-SMe2)]2 and PtPh2(CNR)2 complexes
were prepared from PtPh2 (SMe2)2 by displacement of
the sulfide ligand with an isocyanocoumarin ligand
(Chart 1) by mixing the appropriate ligand with the me-
tal complex. Complexes were isolated in high yield as
light yellow (Mic, Tic, Cmic complexes) or yellow-or-
ange (Idc complexes) powders (Chart 1 and Reactions
(1) and (2)).
2. Preparation and characterization of 7-diethylamino-3-
isocyanocoumarin (Idc)
Idc is easily prepared in the three steps shown in
Scheme 1. Idc was fully characterized by elemental anal-
ysis, and by NMR, IR, UV–Vis, and emission spectros-
copies. The absorbance spectrum (Fig. 1) in CH2Cl2
5.0
4.0
3.0
2.0
1.0
0
2000
1500
1000
500
250
350
450
550
650
Wavelength (nm)
Fig. 1. Absorption and emission spectra of Idc in methylene chloride solution.

170
C. Anderson et al. / Journal of Organometallic Chemistry 690 (2005) 168–176
C
C
methyl [18]. The platinum carbon bond for the isocy-
N
N
anocoumarin ligand is slightly shorter than in a related
complex, Mo(CO)4(Tic)2 [2], partially attributable to
the CNR ligand being trans to methyl groups which
are known to be stronger r donors and weaker p acids
than CO. Examination of the bond angles between adja-
cent atoms around the platinum (87ꢁ, 88ꢁ, 88ꢁ and 98ꢁ)
shows the platinum center to be roughly square planar.
The largest angle (98ꢁ) is between the coumarin rings as
anticipated from a strictly steric consideration. A plane
defined by the platinum atom and its four coordinated
O
O
Et2N
Et2N
O
O
Fig. 2. Resonance structures for Idc.
½PtðCH3Þ ðl-SMe2Þꢀ þ 4CNR
! cis ꢁ ½PtðCH3Þ ðCNRÞ ꢀ
2
2
ð1Þ
2
2
˚
atoms has a mean deviation of 0.0305 A. Both coumarin

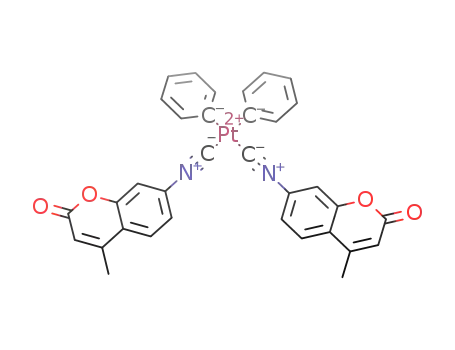

Ph2Pt(SMe2)2
+
2 CNR, CNR = Idc, Mic
rings are twisted with respect to the platinum square
plane. The C1–O13 coumarin is twisted 8.9ꢁ from the
platinum square plane and the C21–O31 coumarin is
twisted 32.4ꢁ from the platinum plane. Each coumarin
ring forms loose stacks with the rings of adjacent mole-
cules in a head-to-tail fashion. The C1–O13 coumarin
ring completely eclipses itself, as does the C21–O31 cou-
marin ring. This full-eclipse puts the two coumarin rings
CNR
Pt
ð2Þ
CNR
o
p
m
˚
at a perpendicular distance of 3.51(1) A for C1–O13 and
˚
The complexes were characterized by elemental analysis
and IR, NMR, UV–Vis and emission spectroscopies.
The infrared spectra of the complexes display two iso-
cyanide stretches, consistent with cis geometry. The pro-
ton NMR spectra of the complexes with R = Me shows
one peak for the methyl ligands with platinum satellites
with coupling constants of 74 Hz, consistent with the
JMe–Pt values for two other cis-dimethylplatinum(II)–
isocyanide complexes already reported [11,12]. This
indicates that the trans influence of the isocyanocouma-
rins ligands is similar to other isocyanide ligands and
intermediate between bipy and phosphine ligands [13–
17]. The geometry was confirmed by the crystal structure
of the [Pt(CH3)2(Idc)2] (see below). The 1H NMR peaks
assigned to the isocyanocoumarin ligands are shifted
slightly, but are otherwise nearly identical to the analo-
gous peaks observed for the free ligands.
3.52(1) A for C21–O31. It is assumed that pp interaction
governs this contact distance. Thus the coumarin rings
appear to pack in an orderly manner up the diagonal
with the left ‘‘wing’’ eclipsing the ‘‘wing’’ below it and
the right ‘‘wing’’ being eclipsed by the ‘‘wing’’ above
it. There is some partial overlap of the coumarin rings
as these extended, full-eclipse chains pack together.
The C1–O13 manages to get within a perpendicular dis-
˚
tance of 3.19(1) A of itself. The C21–O31 stays further
˚
apart, 3.99(1) A. Fig. 4 shows the two molecules in the
unit cell that are in full-eclipse.
5. Oxidative addition study and platinum (IV) species
Dimethylplatinum(II) complexes are highly reactive
towards oxidative addition [19,20]. In order to deter-
mine any effect that a change in oxidation state might
have on the ligand-centered emission, the PtMe2(Idc)2
complex was reacted with methyl iodide to obtain a
six-coordinate platinum (IV) complex. Reaction of
Pt(CH3)2(Idc)2 (reaction (3)) with an excess of methyl
iodide
4. X-ray crystallography
X-ray quality crystals of PtMe2(Idc)2 were grown
from a concentrated methylene chloride solution by
slow diffusion of methanol. The crystal structure is com-
posed of discrete molecules separated by van der Waals
forces. A view of the molecule showing the labeling
scheme is seen in Fig. 3. The molecule adopts a cis con-
figuration as expected from the Pt precursor used and
consistent with the IR and NMR data. Selected bond
lengths and angles are given in Table 1.
Bond lengths in the coordination sphere of platinum
are in the usual range and not significantly different than
those reported for the similar complex, dimethylbis–
(dimethylisocyanide)platinum (II) and are approxi-
mately the sum of the covalent radii for Pt (II) and sp3
cis ꢁ ½PtðCH3Þ ðCNRÞ ꢀ þ MeI
2
2
! fac-½PtðCH3Þ ðCNRÞ Iꢀ
ð3Þ
3
2
gave a yellow-orange solid. The reaction was complete
within 24 h under the above conditions and can be
approximated to be on the slower end of the range for
similar dimethylplatinum complexes containing nitrogen
ligands and comparable to cis-dimethylbis-(o-tolylisocy-
anide) [11,20]. It is generally accepted that oxidative
addition of alkyl halides to platinum (II) compounds
give trans stereochemistry, although cis isomers can be
