1410
E. Riego et al. / Tetrahedron 61 (2005) 1407–1411
n-Butyllithium (0.16 mL of 1.6 M solution in hexane,
0.25 mmol) was then added dropwise to a K78 8C stirred

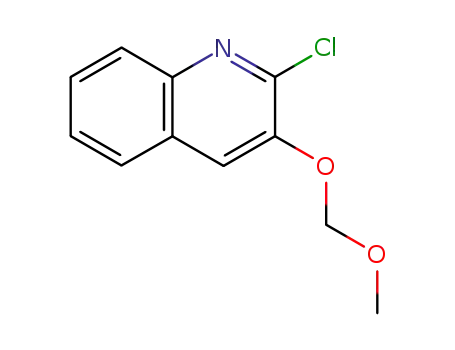

solution of protected quinoline (46.3 mg, 0.21 mmol) in dry
THF (1 mL). The solution was stirred for 2 h at the same
temperature. Carbon dioxide was bubbled for 2 min, and the
reaction mixture was allowed to warm to room temperature.
Stirring was continued for 0.5 h and 2 N HCl (1 mL) was
then added. After usual work up, 2-chloro-3-hydroxyquino-
line-4-carboxylic acid 5 was isolated in 87% yield: 1H NMR
(DMSO-d6, 400 MHz) d 8.47 (1H, d, JZ8.3 Hz), 7.86 (1H,
d, JZ7.8 Hz), 7.62–7.55 (2H, m); 13C NMR (DMSO-d6,
100 MHz) d 168.7 (C), 147.8 (C), 143.7 (C), 140.7 (C),
128.3 (CH), 128.2 (CH), 127.0 (CH), 125.0 (C), 124.3 (CH),
119.5 (C); MS, m/z 225 (MCC2, 19), 223 (MC, 54), 207
(44), 205 (100), 179 (23), 177 (56), 151 (12), 149 (36), 114
(60); HRMS calcd for C10H6ClNO3: 223.0036, found:
223.0040.
for 1 h, the mixture was treated with a saturated aqueous
solution of NH4Cl (5 mL) and extracted with dichloro-
methane (3!15 mL). The combined organic layers were
dried (Na2SO4), filtered, and concentrated in vacuo. The
residue was dissolved in acetone (2 mL) and treated with an
aqueous solution of ammonium cerium (IV) nitrate (3.89 g
in 10 mL) for 30 min. The mixture was extracted with
dichloromethane (3!15 mL) and dried over Na2SO4, and
the filtrate was concentrated under reduced pressure to give
0.63 g (88%) of an orange syrup, which was used without
1
further purification: H NMR (CDCl3, 400 MHz) d 7.98
(1H, dd, JZ8.2, 0.9 Hz), 7.68 (1H, dd, JZ8.2, 1.2 Hz), 7.61
(1H, s), 7.54 (1H, ddd, JZ8.2, 7.0, 1.2 Hz), 7.43 (1H, ddd,
JZ8.2, 7.0, 0.9 Hz), 5.33 (2H, s), 3.52 (3H, s), 2.68 (3H, s);
13C NMR (CDCl3, 75 MHz) d 152.3 (C), 149.8 (C), 134.8
(C), 131.5 (CH), 129.6 (CH), 128.2 (CH), 127.6 (CH), 123.8
(C), 121.7 (CH), 95.7 (CH2), 57.2 (CH3), 16.7 (CH3);
HRMS calcd for C12H13NO2: 203.0946, found: 203.0943.
4.1.2. 3-(Methoxymethoxy)quinoline (8). Methoxymethyl
chloride (0.80 mL, 10.6 mmol) was slowly added to a
solution of 3-hydroxyquinoline 7 (1.02 g, 7.1 mmol) and
diisopropyl ethylamine (1.4 mL, 8.5 mmol) in dry dichloro-
methane (4 mL) at 0 8C. The solution was warmed to room
temperature overnight, and then water (5 mL) was added.
The product was extracted with dichloromethane (3!
10 mL), washed with 2 M sodium hydroxide (10 mL), and
water (10 mL), and dried over Na2SO4. Removal of the
solvent gave 0.86 g (67%) of a red oil, which was used
without further purification: 1H NMR (CDCl3, 400 MHz) d
8.72 (1H, d, JZ2.8 Hz), 8.05 (1H, dd, JZ8.1, 1.5 Hz), 7.73
(1H, dd, JZ8.2, 1.1 Hz), 7.68 (1H, d, JZ2.8 Hz), 7.57 (1H,
ddd, JZ8.2, 7.0, 1.5 Hz), 7.50 (1H, ddd, JZ8.1, 7.0,
1.1 Hz), 5.31 (2H, s), 3.53 (3H, s); 13C NMR (CDCl3,
75 MHz) d 150.4 (C), 144.5 (CH), 144.0 (C), 129.0 (CH),
128.6 (C), 127.0 (CH), 126.9 (CH), 126.8 (CH), 116.5 (CH),
94.6 (CH2), 56.2 (CH3); MS, m/z 189 (MC, 67), 159 (19),
128 (18), 116 (31), 101 (13), 89 (19), 63 (13), 45 (100);
HRMS calcd for C11H11NO2: 189.0790, found: 189.0793.
4.1.5. 3-Hydroxyquinoline-2-carboxylic acid (1). Sele-
nium dioxide (0.36 g, 3.3 mmol) was added to a solution of
10 (0.63 g, 3.1 mmol) in dry 1,4-dioxane (30 mL). The
reaction mixture was refluxed for 1 h and then cooled to
room temperature and filtered through a pad of Celite. The
filtrate was evaporated to give a residue which was
dissolved in formic acid (1 mL) and cooled to 0 8C.
Hydrogen peroxide (1.7 mL of 30% solution in water,
15.5 mmol) was slowly added and the mixture was allowed
to stand overnight between 0 and 10 8C. A precipitate
formed and was collected by filtration, washed with cold
water, and dried to give 3-hydroxyquinaldic acid as a yellow
1
solid (0.41 g, 70%): mp 187–190 8C (decomp.); H NMR
(CDCl3, 400 MHz) d 8.22 (1H, dd, JZ8.6, 1.2 Hz), 8.01
(1H, s), 7.83 (1H, dd, JZ8.4, 1.6 Hz), 7.70 (1H, ddd, JZ
8.6, 7.0, 1.6 Hz), 7.64 (1H, ddd, JZ8.4, 7.0, 1.2 Hz), 3.27
(1H, br s); 13C NMR (DMSO-d6, 100 MHz) d 166.7 (C),
152.2 (C), 138.1 (C), 137.9 (C), 130.7 (C), 128.8 (CH),
128.4 (CH), 126.6 (CH), 126.2 (CH), 122.3 (CH); IR (KBr)
3449, 1681; MS, m/z 189 (MC, 91), 171 (39), 145 (70), 143
(100), 117 (63), 115 (91), 89 (52); HRMS calcd for
C10H7NO3: 189.0426, found: 189.0428.
4.1.3. 3,30-Bis-methoxymethoxy-2,20-biquinoline (9).
n-Butyllithium (0.27 mL of 1.6 M solution in hexane,
0.43 mmol) was added at 0 8C to a stirred solution of
2,2,6,6-tetramethylpiperidine (73 mL, 0.44 mmol) in dry
THF (1.2 mL). After 10 min, a solution of 8 (55.2 mg,
0.29 mmol) in dry THF (0.5 mL) was added dropwise, and
the reaction was stirred at room temperature for 6 h.
Saturated aqueous solution of NH4Cl (5 mL) was added
and the aqueous layer was extracted with dichloromethane
(3!10 mL). Removal of the solvent followed by purifi-
cation by flash chromatography (3/1 hexane/ethyl acetate)
provided pure compound 9: 1H NMR (CDCl3, 400 MHz) d
8.16 (2H, dd, JZ7.9, 1.5 Hz), 7.89 (2H, s), 7.81 (2H, dd,
JZ8.0, 1.3 Hz), 7.60 (2H, ddd, JZ8.2, 8.0, 1.5 Hz), 7.54
(2H, ddd, JZ8.2, 7.9, 1.3 Hz), 5.21 (4H, s), 3.40 (6H, s); 13C
NMR (CDCl3, 100 MHz) d 151.0 (C), 149.6 (C), 143.8 (C),
129.6 (CH), 129.1 (C), 127.3 (CH), 127.1 (CH), 126.7 (CH),
117.2 (CH), 95.0 (CH2), 56.1 (CH3); MS, m/z 376 (MC, 16),
331 (100), 301 (25), 285 (40).
Acknowledgements
This work was partially supported by CICYT (BQU2003-
0089) and Barcelona Scientific Park. The authors are
grateful to Greg Qushair (University of Barcelona), Drs.
´
´
´
Andres Francesch and Juan Jose Gonzalez (PharmaMar)
for previous work carried out towards the preparation of
3-hydroxyquinoline-2-carboxylic acid. E. R. thanks to
Principado de Asturias for a postdoctoral fellowship.
References and notes
1. Takahashi, K.; Koshino, H.; Esumi, Y.; Tsuda, E.; Kurosawa,
K. J. Antibiot. 2001, 54, 622–627.
4.1.4. 3-Methoxymethoxy-2-methylquinoline (10). To a
stirred solution of 8 (0.67 g, 3.6 mmol) in dry THF (10 mL)
at 0 8C was added methyllithium (2.8 mL of 1.5 M solution
in diethyl ether, 4.2 mmol) dropwise. After stirring at 0 8C
2. Boger, D. L.; Chen, J.-H. J. Am. Chem. Soc. 1993, 115,
11624–11625.
3. (a) Romeo, F.; Espliego, F.; Baz, J. P.; de Quesada, T. G.;
