Synthesis, Structure, and Spectroscopy of an Oxodiiron(II) Complex
Nathan A. Eckert,† Sebastian Stoian,‡ Jeremy M. Smith,† Emile L. Bominaar,*,‡ Eckard Mu¨nck,*,‡ and
Patrick L. Holland*,†
Departments of Chemistry, UniVersity of Rochester, Rochester, New York 14627, and Carnegie Mellon UniVersity,
Pittsburgh, PennsylVania 15213
Received October 18, 2004; Revised Manuscript Received May 23, 2005; E-mail: holland@chem.rochester.edu
Diiron units with bridging oxygen ligands (i.e. O2-, OH-, or
H2O) are present in metalloenzymes such as methane monooxy-
genase, ∆9-desaturase, and ribonucleotide reductase.1 In these
enzymes, the Fe2 unit is bridged by one or two oxygen-based
ligands.1 As these enzymes activate O2 and transfer oxygen atoms
to various substrates, the iron centers pass through several oxidation
states from FeIIFeII to FeIVFeIV.1
To better understand the mechanisms of these enzymes, chemists
have synthesized oxo-bridged diiron complexes in a variety of
oxidation states.2,3 Oxodiiron(III) complexes are very common,

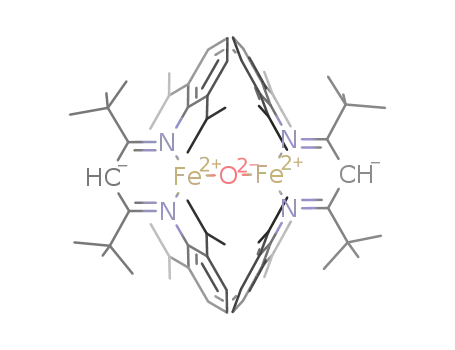

Figure 1. Thermal ellipsoid plot of [LtBuFe]2O‚OEt2 (50% probability
ellipsoids), viewed along the C2 axis. Hydrogen atoms and unassociated
diethyl ether are omitted for clarity. Relevant distances (Å) and angles
(deg): Fe-O 1.7503(4), Fe-N1 2.005(2), Fe-N2 1.966(2), Fe-O-Fe
167.55(14), N1-Fe-N2 98.22(7).
while their reduced analogues (i.e. FeIIFeIII or FeIIFeII) are rare.2
For example, there are only two isolable and fully characterized
FeIIFeIII oxo compounds.4 Others have been inferred from electro-
chemical studies.5 There is no published oxodiiron(II) compound
that is stable under ambient conditions.6 Here we report the
synthesis, structure, and spectroscopic properties of [LtBuFe]2O (LtBu
) ArNC(tBu)CHC(tBu)Ar-, where Ar ) 2,6-diisopropylphenyl),
an isolable oxo-bridged diferrous compound. Although the trigonal
planar coordination of the iron atoms in this compound is different
from the geometries in iron enzymes,1 the ability to stabilize this
unusual oxidation level is notable because it demonstrates a new
direction in oxodiiron chemistry.
Solid-state FTIR spectra of [LtBuFe]2O show an intense band at
868 cm-1 that shifts to 833 cm-1 when H218O is used to prepare
the oxo complex (Figure 2). The 35 cm-1 shift is consistent with
that expected for an Fe-O harmonic oscillator. We assign this peak
to the asymmetric stretching vibration of the Fe-O-Fe core, on
the basis of the correlation between Fe-O-Fe stretching frequen-
cies and Fe-O-Fe bond angles in oxodiiron(III) complexes.14 No
isotope-sensitive bands are observed in solution resonance Raman
spectra, despite excitation into electronic absorptions at 380 and
560 nm.
The zero-field Mo¨ssbauer spectrum of solid [LtBuFe]2O at 4.2 K
(Figure 3A) exhibits a quadrupole doublet with ∆EQ ) 1.42(2)
mm/s and δ ) 0.64(2) mm/s (vs Fe metal at 298 K). In frozen
toluene solution we observe ∆EQ ) 1.44(2) mm/s and δ ) 0.79(2)
mm/s.15 Given the low coordination numbers, the iron(II) sites are
expected to be high-spin, like the three-coordinate Fe(II) diketimi-
nate complexes reported previously.16
7
The reaction of equimolar amounts of [LtBuFeH]2 and H2O in
THF gives orange-red [LtBuFe]2O in 71% yield.8 The same com-
pound can also be accessed in 53% yield by adding 1 equiv of
Me3NO to LtBuFeNNFeLtBu.9 The solid-state structure of [LtBuFe]2O
is shown in Figure 1.8 There is a crystallographically imposed C2
axis that renders the two LtBuFe units equivalent. The molecule is
planar at iron (sum of bond angles ) 359.4(1)°), as found in other
three-coordinate iron diketiminate compounds.7,9,10 The Fe-O-Fe
angle of 167.55(14)° is only slightly bent, and the two diketiminate
planes are nearly perpendicular (dihedral angle of 70.09(4)°).
The Fe-O distance of 1.7503(4) Å is difficult to put into context
because the only iron(II) compounds with oxo ligands are part of
mixed-valence dimers that do not have localized valence on the
crystallographic time scale.4 However, there are many examples
of crystallographically characterized oxodiiron(III) compounds (Fe-
O, av 1.774 Å, std dev 0.029 Å).11 Because the ionic radius of FeII
(0.77 Å) is substantially larger than that of FeIII (0.63 Å),12 it is
noteworthy that the two Fe-O bonds in [LtBuFe]2O are as short as
those observed for Fe(III)-oxo bridges. They are substantially
shorter than the Fe-O distances in iron(II) hydroxides.4b,c,13 Density-
functional calculations show that reduction from the hypothetical
diiron(III) complex [LtBuFe]2O2+ to diiron(II) places two electrons
2
in dz orbitals, where the z axes are oriented normal to the
diketiminate planes. As these orbitals have nonbonding character
with respect to the ligands, the Fe-O distances calculated for the
diiron(II) species (Fe-O ) 1.76 Å) are very close to those
calculated for diiron(III) (Fe-O ) 1.77 Å).
Figure 2. Infrared spectra of KBr pellets of [LtBuFe]2O and its 18O iso-
topomer. Vertical scaling of the subtraction has been increased for clarity.
