Semi-empirical absorption correction from equivalents was applied
might work if a radical mechanism takes place (as reported by
Trammell et al.)[11] but not if a copper bis(μ-oxido) complex is
formed. Furthermore, with two different mechanisms at place
for ligand hydroxylation we now would like to add a third
possible reaction pathway starting from simple copper(II)
complexes in the presence of air and moisture. While this type
of reaction is well known since a long time, to the best of our
knowledge it has not been really applied in the context of
selective ligand hydroxylation. Our results show how sensitive
the oxygenation reaction is towards small changes in the whole
system that can lead either (depending on the mechanism) to
β- or γ- hydroxylation of the substrate or completely suppress
the reaction. With the new findings we now hope to design a
system that would allow its application in synthetic chemistry.
Once such a complex system is identified it could be optimized
e.g. by immobilization (and chemical reactivation) or by
reactivating it through electrochemistry or photochemistry. Our
goal still remains to identify simple copper complexes that can
be used to selectively oxidize organic substrates in good yields
with dioxygen from air. That this is possible has been
demonstrated previously by Lumb and co-workers who showed
that they could catalytically oxidize phenols and derivatives
with dioxygen.[26]
using SADABS-2016/2[29] and the structures were solved by direct
methods using SHELXT2014/5.[30] Refinement was performed
against F2 on all data by full-matrix least squares using
SHELXL2018/3.[31] All non-hydrogen atoms were refined anisotropi-
cally and CÀ H hydrogen atoms were positioned at geometrically
calculated positions and refined using a riding model. The isotropic
displacement parameters of all hydrogen atoms were fixed to 1.2×
or 1.5× (CH3) the Ueq value of the atoms they are linked to.
Ligand syntheses

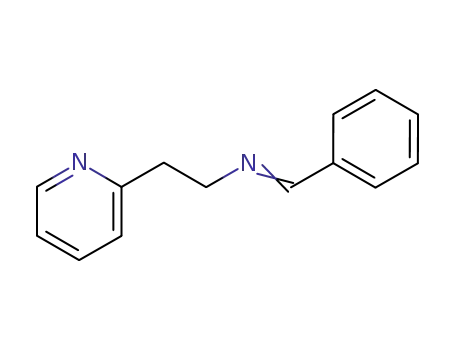

General procedure for the syntheses of ligands 1–15: The
substrate (aldehyde or ketone functionalized) and the ligand
backbone (amine functionalized) were dissolved in diethyl ether
and stirred over sodium sulfate for one hour at room temperature
and were kept for another hour under reflux. After the reaction
mixture was filtered the solvent was removed using a rotary
evaporator. Finally, the product was dried under oil pump vacuum.
The general procedure is based on the ligand synthesis of BDED (1)
published previously.[6] Amounts of reactants, yields, analyses and
notes (in case that ligand synthesis deviates from the general
procedure) are listed for each ligand in the supporting information.
Ligand hydroxylation
General procedure for ligand hydroxylation: Depending on the
ligand 1.00 mmol (1–3 and 6–15) or 0.10 mmol of ligand (4–5) were
dissolved in 5–10 ml solvent (absolute dichloromethane, acetone,
methanol or acetonitrile) and added to a solution of 377 mg
(1.00 mmol, for 1–3 and 6–15) or 37.7 mg (0.10 mmol, for 4–5)
[Cu(MeCN)4]OTf in 5–10 ml solvent in a Schlenk tube. Subsequently
dioxygen was passed through the solution for 15 min. For the
workup 10 ml hydrochloric acid (1 molLÀ 1) were added and stirred
for one hour at room temperature and additionally for one hour
under reflux. After cooling the organic solvent was removed and
the remaining reaction mixture extracted three times with dichloro-
methane. The combined organic phases were dried over sodium
sulfate, filtered and concentrated using a rotary evaporator for GC-
MS analysis. The conversion rate was estimated on the basis of the
integrals of the different fractions of hydroxylated product and
reactant.
Experimental Section
Materials and methods
Solvents and reagents used were of commercially available reagent
1
quality. 13C-NMR and H-NMR spectra were measured on a Bruker
Avance II 400 MHz and Avance III 400 MHz HD spectrometer.
Electrospray-ionization MS (ESI-MS) measurements were performed
on a Bruker micro-TOF mass spectrometer. All measurements under
inert conditions were carried out in argon or nitrogen atmosphere
by standard Schlenk techniques or working in a glove box (MBraun,
Garching, Germany). For these experiments extra dry solvents were
distilled under an argon atmosphere with a drying agent and
transferred into the glove box. For gas chromatography with
coupled mass spectrometry (GC-MS) a HP-GC 5890 Series II with
coupled HP 5972 Series mass detector and Agilent Technologies
5977B MSD with 7820 A GC system was used. For gas chromatog-
raphy (GC) a 5890 Series II GC was used. For low-temperature
stopped-flow measurements HI-TECH Scientific SF-61SX2 instru-
ment (TgK Scientific, Bratford on Avon, UK) was used. Setup and
kinetic measurements procedure were described in detail
previously.[27] Kinetic data were analysed with the integrated
software Kinetic Studio (Version 5.02 Beta, TgK Scientific). For the
reactions of copper(I) complex solutions with dioxygen a gastight
syringe was filled with argon saturated solvent and saturated with
dioxygen by bubbling a dioxygen stream through the solvent for
Low-temperature stopped-flow measurements
[Cu(CyonDED)]OTf with dioxygen in acetone: 96 mg (0.25 mmol)
[Cu(MeCN)4]OTf and 50 mg (0.25 mmol) CyonDED (12) were dis-
solved in 10 ml of absolute acetone. The solution was diluted to a
complex concentration of 0.50 mmolLÀ 1 and filled into a gastight
°
syringe. Measurements were performed between À 94 C and
°
À 55 C
[Cu(CyonDED)]OTf with dioxygen in dichloromethane: 107 mg
(0.283 mmol) [Cu(MeCN)4]OTf and 56 mg (0.28 mmol) CyonDED (12)
were dissolved in 10 ml absolute dichloromethane. The solution
was diluted to a complex concentration of 0.56 mmolLÀ 1 and filled
into a gastight syringe. Measurements were performed between
15 min
(cmax(O2)=11.44 mmolLÀ 1
in
acetone,
cmax(O2)=
11.08 mmolLÀ 1 in dichloromethane).[28] Due to the mixing of the
complex and dioxygen solutions in the stopped-flow instrument,
the maximum concentrations have to be divided by two resulting
in c(O2)=5.72 mmolLÀ 1 in acetone and c(O2)=5.54 mmolLÀ 1 in
dichloromethane. Diffraction data for all samples were collected at
low temperatures (100 K) using ϕ- and ω-scans on a BRUKER D8
Venture system equipped with dual IμS microfocus sources, a
PHOTON100 detector and an OXFORD CRYOSYSTEMS 700 low
°
°
À 93 C and À 39 C.
[Cu(CyonDiPED)]OTf with dioxygen in acetone: 92 mg (0.24 mmol)
[Cu(MeCN)4]OTf and 55 mg (0.24 mmol) CyonDiPED (13) were
dissolved in 10 ml absolute acetone. The solution was diluted to a
complex concentration of 0.96 mmolLÀ 1 and filled in a gastight
°
syringe. Measurements were performed between À 92 C and
temperature system. MoÀ Kα radiation with
a wavelength of
°
À 49 C.
0.71073 Å and a collimating Quazar multilayer mirror were used.
