4702
T. Toyokuni et al. / Bioorg. Med. Chem. Lett. 15 (2005) 4699–4702
R.; Mann, J. J. Abstract of Papers, 50th Annual Meeting
(20:25:55 v/v/v) at 5 mL/min. The elution was monitored
using a UV detector (254 nm) and a c detector. The
chemically and radiochemically pure fraction (ꢀ10 mL; tR
ꢀ25 min) was collected, diluted with H2O (60 mL), and
passed through a Waters Sep-Pak C-18 cartridge (1 mL).
After washing the cartridge with H2O (20 mL), the
product was eluted with EtOH (1 mL) to a sterile vial
through a Millipore Millex-GS filter (0.22 lm) to give
1-18F as a 1-mL EtOH solution (ꢀ80 mCi). The chemical
and radiochemical purity, as well as chemical identity, was
confirmed using analytical HPLC (Phenomenex Aqua
C-18, 5 lm, 250 · 4.6 mm) with MeCN–H2O (1:1 v/v)
containing 0.01% TFA at 1 mL/min by reference to the
non-radioactive 1 (tR ꢀ 10 min). The radiochemical purity
was ascertained further by radio-TLC on silica gel (Rf
0.45; hexanes–EtOAc 1:1 v/v). The total synthesis time was
ꢀ120 min from EOB and the decay-corrected radiochem-
ical yield was ꢀ40%. The specific activity was determined
to be ꢀ2000 Ci/mmol at EOS based on the UV absorption
and concentration standard curve.
of the Society of Nuclear Medicine, New Orleans, LA;
Society of Nuclear Medicine: VA, 2003; Abstract 1110.
13. OÕHagan, D.; Rzepa, H. S. Chem. Commun. 1997, 645.
14. Gierse, J. K.; Hauser, S. D.; Creeley, D. P.; Koboldt, C.;
Rangwala, S. H.; Isakson, P. C.; Seibert, K. Biochem. J.
1995, 305, 479.
15. (a) Reddy, S. T.; Herschman, H. R. J. Biol. Chem. 1994,
269, 15473; (b) Wadleigh, D. J.; Reddy, S. T.; Kopp, E.;
Ghosh, S.; Herschman, H. R. J. Biol. Chem. 2000, 275,
6259.
16. 1H NMR (360 MHz; CD3OD, TMS) d 5.45 (2H, d,
J = 47 Hz, CH2F), 7.36–7.48 (7H, m) and 7.89–7.95 (2H,
m) (Ar). HRMS (EI): calcd for C16H13FN2O3S ([M]+)
332.0631, found 332.0624.
17. 1H NMR (360 MHz; CD3OD, TMS) d 3.23 (2H, dt,
J = 25, 5.8 Hz, CH2CH2F), 4.74 (2H, dt, J = 47, 5.8 Hz,
CH2CH2F), 7.32–7.44 (7H, m) and 7.89–7.93 (2H, m)
(Ar). HRMS (EI): calcd for C17H15FN2O3S ([M]+)
346.0780, found 346.0780.
18. Talley, J. J.; Brown, D. L.; Carter, J. S.; Graneto, M. J.;
Koboldt, C. M.; Masferrer, J. L.; Perkins, W. E.; Roger,
R. S.; Shaffer, A. F.; Zhang, Y. Y.; Zweifel, B. S.; Seibeert,
K. J. Med. Chem. 2000, 43, 775.
19. Talley, J. J. U.S. Patent 5,859,257, 1999; Chem. Abstr.
1999, 130, 110269.
24. The product was kept in EtOH until ready for use. For
in vivo applications, the solution was diluted with normal
saline such that the alcohol concentration was <5%.
25. De[18F]fluorination was monitored by radio-TLC on silica
gel, where [18F]fluoride stays at the origin. The non-
radioactive 1 was stable in PBS (pH 7.4).
20. Kumar, J. S. D.; Ho, M. M.; Leung, J. M.; Toyokuni, T.
Adv. Synth. Catal. 2002, 344, 1146.
26. A PET scanner for small animals. See: Chatziioannou,
A. F. Eur. J. Nucl. Med. Mol. Imaging 2002, 29, 98.
27. The mouse was anesthetized by xylazine (10 mg/kg) with
ketamine (200 mg/kg) and placed in the microPET scanner
(Concorde Microsystems Inc., Knoxville, TN). The mouse
was then injected via tail vein with 1-18F (200–300 lCi in
200 lL saline containing <5% EtOH). Dynamic data
acquisition commenced in a list mode at the time of
injection to obtain a time-dependent organ distribution of
radioactivity (frame times and sequence: 10 · 90 s and
21 · 300 s). The data were acquired in a 3-D mode with an
axial span of ꢀ8 cm. The images were reconstructed using
well-characterized 3-D filtered back-projection methods.
The bony skeleton was visible in 15 min post-injection.
28. The monkey, fasted after 9 PM on the evening prior to the
PET study, was anesthetized with ketamine (15–20 mg/kg)
and maintained anesthetically by inhalant isofluorane
techniques (1–2%). The animal was placed supine in the
scanner bed. The i.v. injection of 1-18F (ꢀ10 mCi) was
followed by the data collection, as described in Ref. 27,
except that a series of bed positions was used to cover the
entire animal with each position (300-s frames) repeated
3–6 times. The bone structure became visible in 45 min
post-injection.

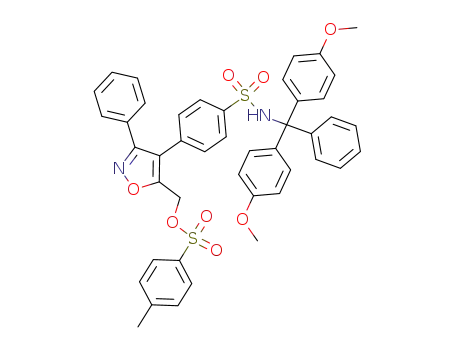

21. 1H NMR (360 MHz; CDCl3, TMS) d 2.43 (3H, s, PhMe),
3.75 (6H, s, OMe), 5.11 (2H, s, CH2), 5.80 (1H, br s, NH),
6.70 (4H, d, J = 7.2 Hz), 6.94 (2H, d, J = 7.2 Hz), 7.16–
7.45 (18H, m) and 7.79 (2H, d, J = 7.2 Hz) (Ar). HRMS
(FAB): calcd for C44H39N2O8S2 ([M+H]+) 787.2148,
found 787.2147.
22. 1H NMR (360 MHz; CDCl3, TMS) d 3.75 (6H, s, OMe),
4.75 (2H, s, CH2), 5.85 (1H, s, NH), 6.68 (4H, d,
J = 7.2 Hz), 7.05 (2H, d, J = 7.2 Hz) and 7.15–7.45 (16H,
m) (Ar). HRMS (EI): calcd for C37H32N2O6S ([M]+)
632.1981, found 632.1977.
23. No-carrier-added [18F]fluoride (ꢀ500 mCi; specific activi-
ty: >10,000 Ci/mmol) was produced by 18O(p,n)18F nucle-
ar reaction of 95% [18O]H2O. The radioactivity
(ꢀ500 mCi) was transferred to a glass reaction vessel
containing azacrown ether Kryptofix 222 (10 mg) and
K2CO3 (1.0 mg) in MeCN–H2O (25:1 v/v, 1 mL). After
removal of H2O at 110 ꢁC with a stream of N2, the residue
was dried further by the azeotropic distillation with
MeCN (1.0, 0.5 and 0.5 mL). A solution of 8 (5 mg) in
MeCN (1 mL) was added and the mixture was heated at
90 ꢁC for 5 min. A 40% solution of trichloroacetic acid in
MeCN (0.5 mL) was added and the mixture was kept at
90 ꢁC for an additional 5 min. After partial neutralization
with saturated aq NaHCO3 (0.7 mL), the mixture was
diluted with H2O (7.3 mL) and passed through a Waters
Sep-Pak C-18 cartridge (1 mL). The cartridge was washed
successively with H2O (4 mL) and with 50 mM aq
NH4OAc (2 · 4 mL). The crude product was subsequently
eluted with MeOH (1.8 mL). The MeOH eluate was
purified by HPLC (Phenomenex Aqua C-18, 5 lm,
250 · 10 mm) with THF–MeOH–10 mM aq NH4OAc
29. (a) Yuan, J. J.; Yang, D.-C.; Zhang, J. Y.; Bible, R., Jr.;
Karim, A.; Findlay, J. W. A. Drug Metab. Dispos. 2002,
30, 1013; (b) Zhang, J. Y.; Yuan, J. J.; Wang, Y.-F.; Bible,
R. H., Jr.; Breau, A. P. Drug Metab. Dispos. 2003, 31,
491–501.
30. Barrio, J. R.; Satyamurthy, N.; Huang, S.-C.; Keen, R. E.;
Nissenson, C. H. K.; Hoffman, J. M.; Ackermann, R. F.;
Bahn, M. M.; Mazziotta, J. C.; Phelps, M. E. J. Cerebral
Blood Flow Metab. 1989, 9, 830.
31. Stabin, M. G. J. Nucl. Med. 1996, 37, 538.
