Ruthenium(II) Bipyridyl Complexes as Photolabile Caging Groups for
Amines
Leonardo Zayat, Marcelo Salierno, and Roberto Etchenique*
Departamento de Qu´ımica Inorga´nica, Anal´ıtica y Qu´ımica F´ısica, INQUIMAE, Facultad de
Ciencias Exactas y Naturales, UniVersidad de Buenos Aires, Ciudad UniVersitaria Pabello´n 2,
AR1428EHA Buenos Aires, Argentina
Received August 1, 2005
The synthesis and characterization of a series of ruthenium bis(bipyridine) complexes where the inorganic moiety
acts as a photolabile protecting group is described. Complexes of the type [Ru(bpy)2L2]+ where bpy
2,2
bipyridine and L butylamine, -aminobutyric acid, tyramine, tryptamine, and serotonin were studied by nuclear
)
′-
)
γ
magnetic resonance, cyclic voltammetry, and electronic absorption spectroscopy. In all cases, ligands are coordinated
by the amine group. The complexes are stable in water for several days and deliver one molecule of ligand upon
irradiation with visible light (450 nm). These properties make them suitable for their use as biological caged
compounds.
Introduction
blocker 4-aminopyridine (4AP) caged compound [Ru(bpy)2-
(4AP)2]2+. The coordination bond between the ruthenium and
the aromatic nitrogen of 4AP is water-stable and can be
broken with visible light around 470 nm. The bipyridines
provide easy chemical derivatization. The general relevance
of the advantages conveyed by inorganic caged compounds
relies on the diversity of biomolecules that may be coordi-
nated to the metal center.
On this occasion, we show that ruthenium polypyridines
can also act as protecting groups for amines, extending the
scope of action for this class of caged compounds. We report
the synthesis and characterization of ruthenium bis(bipyri-
dine) caged compounds of the neurotransmitters serotonin
(5HT) and γ-aminobutyric acid (GABA), together with those
of the analogues tryptamine, butylamine, and tyramine (see
Chart 1).
Caged compounds are powerful experimental tools in
physiology since they provide a means for rapid and localized
delivery of bioactive substances.1 In the last few years, a
number of photolabile protecting groups have been developed
for the caging of a variety of biomolecules.2 Chemical bonds
established between bioactive ligands and proper protecting
groups should be strong enough to be water-stable and weak
enough to be broken with low-energy, tissue-innocuous
photons. Most available caged compounds are based on the
use of nitrobenzyls or nitrophenyls as protecting groups.2
These caged compounds show releasing wavelengths below
350 nm, which can damage living tissue. It is also desirable
for protecting groups to be easily derivatizable in order to
allow versatile interaction with inorganic or organic structures
such as polymers or cell membranes.
In a recent work, we presented the use of metal complexes
as photolabile protecting groups for biomolecules, giving
birth to a new family of inorganic caged compounds.3 The
first member of that family was the potassium channel
Experimental Section
All reagents were commercially available and used as received.
Ru(bpy)2Cl2 was synthesized according to the literature.4 The UV-
vis spectra were taken with a HP8452A diode-array spectrometer.
NMR spectra were obtained using a 500 MHz Bruker AM-500.
Fluorescence measurements were made with a PTI Quantamaster
spectrofluorometer.
* To whom correspondence should be addressed. E-mail:
rober@qi.fcen.uba.ar.
(1) Adams, S. R.; Tsien, R. Y. Annu. ReV. Physiol. 1993, 55, 755.
(2) (a) McCray, J. A.; Trentham, D. R. Annu. ReV. Biophys. Chem. 1989,
18, 239. (b) Wilcox, M.; Viola, R. W.; Johnson, K. W.; Billington,
A. P.; Carpenter, B. K.; McCray, J. A.; Guzikowski, A. P.; Hess, G.
P. J. Org. Chem. 1990, 55, 1585. (c) Shembekar, V. R.; Chen, Y.;
Carpenter, B. K.; Hess, G. P. Biochemistry 2005, 44, 7107.
(3) Zayat, L.; Calero, C.; Albores, P.; Baraldo, L.; Etchenique, R. J. Am.
Chem. Soc. 2003, 125, 882.
Voltagrams were obtained in CH3CN/0.1M TBAPF6 using a
three-electrode potentiostat based on an operational amplifier TL071
(4) Sullivan, B. P.; Salmon, D. J.; Meyer, T. J. Inorg. Chem. 1978, 17,
3334.
1728 Inorganic Chemistry, Vol. 45, No. 4, 2006
10.1021/ic0512983 CCC: $33.50
© 2006 American Chemical Society
Published on Web 01/14/2006

Ruthenium(II) Bipyridyl Complexes as Caging Groups for Amines

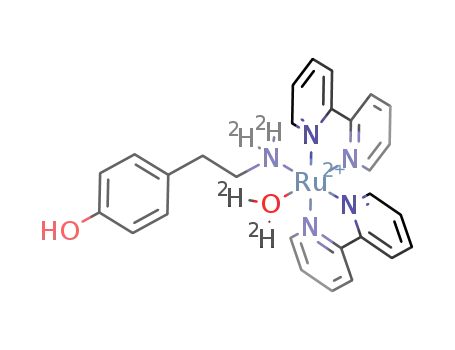

Chart 1. Ligands Used in This Work
