Anilinopyridine-metal complexes for the selective chromogenic sensing of
cyanide anion
BEATRIZ LOZANO-TORRESa,b,c,d, M. DOLORES MARCOSa,b,c,d, TERESA PARDOa,b,c,d
FÉLIX SANCENÓNa,b,c,d, RAMÓN MARTÍNEZ-MÁÑEZ*a,b,c,d and KNUT RURACKe
,
aInstituto Interuniversitario de Investigación de Reconocimiento Molecular y Desarrollo Tecnológico (IDM),
Universitat Politècnica de València, Universitat de València. Spain
bCIBER de Bioingeniería, Biomateriales y Nanomedicina (CIBER-BBN), Spain
cUnidad Mixta de Investigación en Nanomedicina y Sensores. Universitat Politècnica de València,
Instituto de Investigación Sanitaria La Fe, Valencia, Spain
dUnidad Mixta UPV-CIPF de Investigación en Mecanismos de Enfermedades y Nanomedicina, Valencia,
Universitat Politècnica de València, Centro de Investigación Príncipe Felipe, Valencia Spain
eChemical and Optical Sensing Division, Bundesanstalt für Materialforschung und –prüfung (BAM),
Richard-Willstätter-Strasse 11, 12489 Berlin, Germany
Probe 1, which contains an anilinopyridine chromophore and an aza-oxa macrocyclic subunit,
presented an absorption band centered at 340 nm in acetonitrile. Addition of Fe(III), Cr(III) and
Hg(II) induced growth of a new absorption band centered at ca. 430 nm (with a concomitant
color change from colorless to yellow), whereas in the presence of Cu(II), Zn(II) and Pb(II) less
marked changes were observed. The prominent color changes observed upon addition of Fe(III),
Cr(III) and Hg(II) were ascribed to the formation of 1:1 stoichiometry complexes with probe 1.
Coordination of Fe(III), Cr(III) and Hg(II) with the pyridine fragment of 1 induced an
enhancement of the charge transfer character accompanied with a marked bathochromic shift that
was reflected in a color change from colorless to yellow. The strength of the interaction between
probe 1 and Fe(III) cation was modulated upon interaction with selected anions. Moreover, of all
the anions tested, only cyanide was able to induce the bleaching of the yellow 1·Fe(III) complex
solution. This bleaching was ascribed to the formation of 1·Fe(III)-CN complex that restored, to
some extent, the optical features of the free probe allowing the chromogenic sensing of cyanide;
1·Fe(III) complex was used to detect cyanide in acetonitrile-water 90:10 v/v mixtures with good
recoveries (in the 73-90% range).
*Corresponding author. Email: rmaez@qim.upv.es
1

Keywords: Anilinopyridine; Charge-transfer; Fe(III) Complex; Chromogenic; Cyanide
Anions play vital roles in biological systems but abnormal concentrations can cause several
diseases [1]. Inside the vast realm of anions, cyanide is one of the most toxic and dangerous for
the environment [2]. Concentrations of this anion in the 0.5–3.5 mg/kg body weight interval are
lethal to humans. At these concentrations, cyanide strongly binds to the cytochrome c active sites
resulting in inhibition of oxygen transport and cellular respiration with subsequent central
nervous system damage [3]. However, despite its toxicity, cyanide is extensively used in the
chemical industry. For instance, cyanide derivatives are used in metal mining processes
(isolation of gold and silver from its ores), organic chemical industries (fabrication of nylon and
other synthetic fibers and resins), wastewater treatment facilities and iron and steel plants. All
these industries can potentially be sources of water contamination with cyanide. The World
Health Organization (WHO) established a permissive concentration of cyanide in drinking water
of 1.9 µM while in industrial effluents this level is fixed below 1 µM [4].
Taking into account the above mentioned facts, easy and affordable detection methods
for cyanide are of interest. Currently, cyanide detection is achieved using colorimetric, titrimetic
and electrochemical methods [5]. Among them, chromo-fluorogenic protocols for the detection
of cyanide has attracted attention due to the high degree of selectivity usually achieved and the
use of common and simple instrumentation or the visual detection to the naked eye [6]. In fact
chromo-fluorogenic protocols are not time consuming and do not require trained personnel.
Traditionally, chromo-fluorogenic sensors for anions have been developed using the “binding
site-signaling unit” paradigm. In this approach a binding site, designed by taking into account the
chemical features of the guest in order to achieve a high complementarity degree, is covalently
linked with a signaling unit that is expected to transform the coordination event into an easily
measurable optical macroscopic signal [7]. Another approach, developed by Anslyn and co-
workers, is the use of a competition assay between a chromophore bounded to a receptor and a
certain anion [8]. In a first step a sensing ensemble between a synthetic receptor and a
dye/fluorophore was formed. In the presence of a target anion its coordination with the synthetic
receptor displaced the dye/fluorophore to the solution. If the optical properties of the
dye/fluorophore alone are different to that presented in the sensing ensemble an output signal is
2

observed. Finally, the use of anion-induced chemical reactions coupled with color and/or
emission changes have been extensively explored (chemodosimeter approach) [9].
Here we report the synthesis and chromogenic behavior of probe 1 that contains an
aza-oxa macrocycle embedded in an anilinopyridine conjugated chromophore [10]. This
chemosensor forms colored complexes with several metal cations that were characterized by the
presence of a charge transfer band in the visible zone. Moreover, the 1.Fe(III) complex is able to
detect CN-; only the presence of cyanide induced a clear color change from yellow to colorless
allowing the “naked eye” detection of this dangerous anion.
O
O
O
O
N
N
O
O
t-BuOK, 
+
O
NH4OH/acetone
1a
1b
N
1

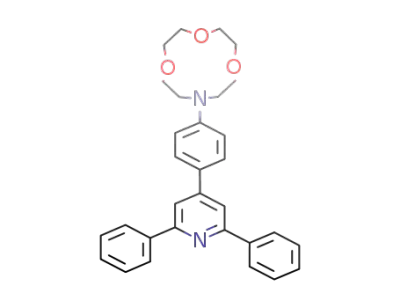

Scheme 1. Synthesis and structure of chemosensor 1.
The synthesis of probe 1 was previously published [11]. However we used here a slightly
modified procedure in order to enhance the yields for the preparation of 1b and 1. Briefly, an
electrophilic aromatic substitution of 2,6-diphenylpyrylium perchlorate (1a) with 10-phenyl-10-
aza-1,4,7-trioxacyclododecane (1b) in DMF at 150 C was used to obtain 1. Subsequent
treatment with ammonium hydroxide and column chromatography with aluminum oxide
afforded the desired receptor in 70% yield as a pallid yellow solid (see scheme 1). 1H and
13C NMR, mass spectra and elemental analyses were in accord with the proposed formulation.
The chemical structure of 1 consists of a chromophore composed of an aniline donor unit
(D) and a pyridine acceptor moiety (A) endowing charge transfer character to the probe [12].
Moreover, 1 contains two nitrogens with potential metal cation coordination ability. One
nitrogen is located in the 2,6-diphenylpyridine subunit and the other in the aniline group. In spite
of the fact that simple aniline derivatives weakly coordinate certain transition metal cations, the
donor site of probe 1 was additionally functionalized with a small aza trioxa macrocycle as
3

“shielding group” [10]. This modification inhibits interaction with the aniline donor group and
led to preferential coordination of metal cations with the pyridine unit (vide infra).
Acetonitrile solutions of probe 1 (9.0 × 10-5 M) show an absorption band centered at
343 nm with charge transfer features (see figure 1a). In fact, certain solvatochromism was
observed for the probe. The absorption band of 1 was found at 333, 337 and 343 nm in hexane,
diethyl ether and acetonitrile, respectively [11]. Figure 1b shows the color changes observed
upon addition of one eq. of selected metal cations (Fe(III), Cr(III), Ni(II), Zn(II), Cu(II), Cd(II),
Hg(II) and Pb(II)) to acetonitrile solutions of probe 1. As could be seen, addition of Fe(III),
Cr(III) and Hg(II) induced a bright yellow color due to the growth of a new absorption band
centered at ca. 440 nm with molar absorptivities of 22450, 22110 and 21440 M-1 cm-1 for Fe(III),
Cr(III) and Hg(II), respectively (see figure 1a). Other metal cations such as Cu(II), Zn(II) and
Pb(II) changed the color of the solution to pale yellow, whereas Ni(II) and Cd(II) did not induce
any noticeable color change (see also figure 1b). The color changes observed and the remarkable
bathochromic shift of the absorption band, upon addition of Fe(III), Cr(III) and Hg(II), were
ascribed to a preferential coordination of these metal cations with the 2,6-diphenylpyridine
acceptor subunit of probe 1. This coordination induced an increase in the charge transfer
character of the band due to the higher electron deficiency of the pyridine acceptor subunit in the
formed complexes. The pale yellow color observed in the presence of Cu(II), Zn(II) and Pb(II)
indicated less affinity of these cations to probe 1. Titration experiments of 1 with Fe(III), Hg(II),
Cu(II), Zn(II) and Pb(II) clearly indicated the formation of 1:1 probe-metal stoichiometry
complexes. From the titration data the log K values for the complex formation of probe 1 with
the corresponding cations were calculated and are shown in table 1. The obtained log K values
are similar to that found in the literature for other pyridine derivatives with transition metal
cations [13].
Interference studies of the response of probe 1 toward Fe(III), Hg(II) and Cr(III) in the
presence of the other selected cations was tested. The obtained results in the presence of one eq.
of Ni(II) and Cd(II) are shown in figure 2. As could be seen, Ni(II) and Cd(II) were unable to
modify the chromogenic response of probe 1 in the presence of Fe(III), Hg(II) and Cr(III)
cations.
In a second step, the ability to chromogenically detect anions using the 1·M+n complexes
as probes was tested. For this purpose, potential color changes of acetonitrile solutions of 1·M+n
4

complexes (9.0 × 10-5 M) were studied in the presence of selected anions (i.e. fluoride, chloride,
bromide, iodide, acetate, benzoate, cyanide, nitrate, dihydrogenphosphate and hydrogensulfate).
Complexes 1·Cu(II), 1·Pb(II) and 1·Zn(II) presented low levels of selectivity (data not shown).
For instance yellow solutions of 1·Cu(II) turned colorless in the presence of fluoride, acetate,
cyanide and dihydrogenphosphate. Moreover, yellow acetonitrile solutions of 1·Pb(II) and
1·Zn(II) became colorless with fluoride, chloride, acetate, benzoate, cyanide,
dihydrogenphosphate and hydrogensulfate. In contrast, a more selective response was obtained
with 1·Hg(II) and 1·Fe(III) complexes. Figure 3 shows the UV-vis spectra and the color changes
observed upon addition of selected anions to acetonitrile solutions of 1·Fe(III) (9.0 × 10-5 M). Of
all the anions tested, only cyanide was able to induce a nearly complete disappearance of the
charge-transfer band of the 1·Fe(III) complex (figure 3a). This fact was reflected in a complete
bleaching of the yellow 1·Fe(III) complex solution (figure 3b). A similar behavior, in terms of
UV-visible and color changes, was observed for the 1·Hg(II) complex in the presence of selected
anions. Titration experiments of acetonitrile solutions of 1·Fe(III) with cyanide showed the
formation of 1:1 stoichiometry adducts. Log K value for the 1·Fe(III).CN- adduct formation,
calculated through nonlinear least-squares treatment of the titration profile, was 6.6 ± 0.2.
In order to understand the chromogenic behavior observed in the presence of cyanide
with 1·Hg(II) and 1·Fe(III) complexes, 1H NMR studies were performed. 1H NMR in the
presence of Fe(III) cannot be carried out due to the paramagnetic character of the iron cation, but
a similar coordination behavior with cyanide to that shown by Hg(II) complex was expected to
occur. 1H NMR studies on the 1·Hg(II) system clearly showed that metal cation coordinated with
the 2,6-diphenylpyridine acceptor moiety. At this respect, the singlet of the pyridine protons
centered at 7.72 ppm was shifted downfield to 7.85 ppm whereas the ortho protons of the
monosubstituted benzene rings were shifted upfield from 8.16 to 7.90 ppm. Besides the other
protons of the monosubstituted benzene were shifted by +0.10 ppm. The observed changes
together with the fact that macrocycle protons suffers negligible shifts (between 0.01 and
0.03 ppm) pointed to a preferential coordination of Hg(II) cation with the pyridine ring. Upon
addition of cyanide, the 1H NMR of 1 is not completely retrieved, suggesting that cyanide
coordinates with the cation, forming a ternary molecular adduct, without completely removing
Hg(II) from the pyridine heterocycle [11]. Coordination of cyanide with the metal bounded with
probe 1 diminished the strength of the cation-pyridine interaction with subsequent reduction of
5

the charge transfer character in the final adduct (see scheme 2). This reduction in the charge
transfer character was the responsibility of the hypsochromic shift observed upon cyanide
addition to solutions of 1·Hg(II) and 1·Fe(III) complexes.
M+n
M+n
D
A
D
A
CT
CT
O
A-n
N
N
O
O
1
M+n
A-n
D
A
CT
Scheme 2. Signaling protocol for chromogenic cyanide recognition using coordinative
complexes of probe 1 with metal cations. D is the donor part of the probe (aniline) whereas A
designed the acceptor region (pyridine). CT indicated the charge transfer nature of the electronic
transition in the free probe and in the complexes. The strength of the CT is indicated by a colored
arrow (orange for a weak CT and red for a stronger CT).
Finally, in order to test the potential utility of 1·Fe(III) complex for the selective
detection of cyanide in water further experiments were carried out [14]. Although the above
described selective chromogenic behavior was not perceived in pure water it was still observed
in acetonitrile-water 90:10 v/v mixtures. Therefore we used calibration curves for cyanide in
acetonitrile-water 90:10 v/v solutions (see figure 4) for cyanide determination in water. From
figure 4 a limit of detection for cyanide in acetonitrile-water 90:10 v/v solutions was calculated
to be 3.16 × 10-5 M. The limit of detection concurs with the inflection point of the two slopes
observed for the concentration range studied. In a typical experiment for the detection of
cyanide, 0.5 mL of water containing a certain amount of cyanide was mixed with 4.5 mL of an
acetonitrile solution containing the 1·Fe(III) complex. Cyanide solution in water also contained
other typically water-present anions (chloride, nitrate, sulfate, sodium and potassium in
6

concentration ranges 1.0 × 10-4 – 8.0 × 10-4 M). Using the calibration curve shown in figure 4 the
concentration of cyanide was determined quite accurately in different water samples (see table 2)
with recoveries in the 73-90% range.
In summary, we have shown herein the synthesis and characterization of new
chromogenic cyanide sensors based on Fe(III) and Hg(II) complexes of an anilinopyridine-
containing derivative (1). The method uses a colorless probe that is switched ON (yellow color)
in the presence of certain metal cations. This produces the colored 1·Fe(III) and 1·Hg(II)
complexes that are selectively bleached (switched OFF) by the cyanide anion. Further studies
will be carried out to determine the applicability of this simple method for the determination of
cyanide in a large range of locations.
Experimental
Materials and methods
Commercially available reagents were used without purification. Air/water-sensitive reactions
were performed in flame-dried glassware under argon. Acetonitrile was dried with CaH2 and
distilled prior to use. Perchlorate salts of Cr(III), Pb(II), Fe(III), Ni(II), and Cd(II) and triflate
salts of Hg(II) and Zn(II) were purchased from Aldrich, whereas the triflate salt of Cu(II) was
purchased from Acros. The selected anions (fluoride, chloride, bromide, iodide, acetate,
benzoate, cyanide, nitrate, dihydrogenphosphate and hydrogensulfate) were used as
tetrabutylammonium salts and were purchased from Aldrich. UV-visible spectra were recorded
with a JASCO V-650 spectrophotometer. 1H and 13C-NMR spectra were acquired in a BRUKER
AVANCE III (400 MHZ), where mass spectra were carried out in a TRIPLETOF T5600
(ABSciex, USA) spectrometer.
Synthesis of 10-phenyl-10-aza-1,4,7-trioxacyclododecane (1b)
In a typical procedure N,N-phenyldiethanolamine (1 g, 5.5 mmol) was dissolved in anhydrous
acetonitrile (100 mL) in an inert atmosphere (Ar). Then, potassium tert-butoxide (1.54 g,
13.7 mmol) was added at room temperature in small portions during 180 min. Afterward the
crude solution was heated to reflux and 3-oxapentane-1,5-dimethanesulfonate (1.44 g, 5.5 mmol)
was slowly added during 10 h. The reaction was refluxed overnight. The crude was filtered off
and concentrated in a rotary evaporator to give an orange oil. This oil was then purified through
7

column chromatography using aluminium oxide and dichloromethane as eluent to give
10-phenyl-10-aza-1,4,7-trioxacyclododecane (1b) as a pale yellow oil (0.83 g, 3.3 mmol, 60%
yield). 1H NMR (400 MHz, CDCl3) δ 3.55 (t, 4H), 3.64 (m, 8H), 3.83 (t, 4H), 6.68 (t, 2H), 6.70
(d, 1H), 7.18 (t, 2H). 13C NMR (101 MHz, CDCl3) δ 52.4, 69.6, 69.8, 71.5, 112.2, 116.0, 129.0,
148.4. HRMS-EI m/z: calcd for C14H21NO5 251.1521; found: 252.1603 (M+H+).
Synthesis of probe 1
10-Phenyl-10-aza-1,4,7-trioxacyclododecane (1b, 350 mg, 1.39 mmols) and
2,6-diphenylpyrylium perchlorate (1a, 925 mg, 2.78 mmols) were dissolved in anhydrous
dimethylformamide (15 mL) and heated at 150 C for six hours. Then, and at room temperature,
diethyl ether (60 mL) was added and the crude reaction was stirred overnight. A magenta oil
precipitate was separated by decantation. This magenta oil was dissolved in dry acetone and
excess of ammonium hydroxide were added. The crude was concentrated in a rotary evaporator
and then purified through column chromatography using dichloromethane-hexane 1:1 v/v as
eluent. Probe 1 was obtained as pale yellow solid (468 mg, 0.97 mmol, 70% yield). 1H NMR
(400 MHz, CDCl3) δ 3.62 (m, 12H), 3.90 (t, 4H), 6.84 (d, 2H), 7.41 (t, 3H), 7.47 (t, 3H), 7.63 (d,
2H), 7.72 (s, 2H), 8.16 (d, 4H). 13C NMR (101 MHz, CDCl3) δ 53.1, 70.1, 70.5, 72.1, 113.2,
116.5, 127.7, 128.4, 129.2, 129.4, 140.6, 150.0, 150.4, 157.9. HRMS-EI m/z: calcd for
C31H32N2O3 480.2413; found: 481.2489 (M+H+).
Stability constants of selected metal ion complexes of 1
The intensity of the 440 nm band of 9.0 × 10–5 M solutions of 1 in acetonitrile was monitored
during a titration with increasing amounts of the metal ions Fe(III), Hg(II), Cu(II), Zn(II) and
Pb(II), which allowed us to determine the complex stability constants. In these three cases, the
formation of 1:1 ligand-to-metal complexes was found and the calculated logK values, through
nonlinear least-squares fitting of the titration profiles, are provided in table 1.
Interaction of 1 with metal cations
The interaction of 1 with certain cations was studied by UV-Vis spectrophotometry. Receptor 1
consists of an anilino-type donor moiety attached through a single bond to a
2,6-diphenylpyridine acceptor group, exhibiting  electron delocalization over the entire
8

chomogenic system. As a consequence, 1 shows an intramolecular charge transfer band, typical
for such donor-acceptor-substituted dyes, centered at 340 nm in acetonitrile. Upon addition of
different metal cations to 1 in acetonitrile, three different behaviors were observed.
- The addition of the metal cations Fe(III), Cr(III) and Hg(II) induced the development of a
new band at ca. 430 nm with the corresponding change of the solution from colorless to yellow.
This bathochromic shift of the charge transfer band is consistent with a coordination-induced
increase in the acceptor strength of the pyridine unit and thus attributed to coordination of the
metal ions to the pyridine group. Less marked color changes were observed upon addition of
Cu(II), Zn(II) and Pb(II), indicating a weaker affinity of these cations for probe 1.
- Several other first row transition metal cations, such as Ni(II) and Cd(II), are unable to
change the UV-Vis spectral profile of receptor 1 distinctly at micromolar concentrations,
suggesting that no coordination takes place.
Cyanide detection using 1·Fe(III) complex
In a typical experiment 0.5 mL of water containing cyanide (0.80, 2.35 and 3.54 ppm) was mixed
with 4.5 mL of an acetonitrile solution containing the 1·Fe(III) complex. Cyanide solution in
water also contained other typically water-present anions (chloride, nitrate, sulfate, sodium and
potassium in concentration ranges 1.0 × 10-4 – 8.0 × 10-4 M). Then, the absorbance of the
resulting mixture was measured and the concentration of cyanide measured using the calibration
curve shown in figure 3. Cyanide was determined quite accurately in the different water samples
with recoveries in the 73-90% range.
Acknowledgements
The authors thank the Spanish Government (projects MAT2015-64139-C4-1-R and AGL2015-
70235-C2-2-R (MINECO/FEDER)) and the Generalitat Valenciana (project
PROMETEOII/2014/047) for support.
References
[1]
G.D. Muir, Hazards in Chemical Laboratory, The Royal Chemical Society, London
(1997).
9

[2]
[3]
(a) R. Gracia, G. Shepherd. Pharmacotherapy, 24, 1358 (2004). (b) D.W. Boening, C.M.
Chew. Water Air Sol. Pollut., 109, 67 (1999).
(a) Y. Chen, L.J. Deterding, K.B. Tomer, R.P. Mason. Biochemistry, 39, 4415 (2000).
(b) T. Tylleskar, W.P. Howlett, H.T. Rwiza, S. Aquilonius, E. Stalberg, B. Linden,
A. Mandahl, H.C. Larsen, G.R. Brubaker, H. Rosling. J. Neurol. Neurosurg. Psychiatry,
56, 638 (1993).
[4]
[5]
(a) WHO, Guidelines for drinking-water quality, World Health Organisation, Geneva,
Switzerland (2011), p. 342. (b) E. Gail, S. Gos, R. Kulzer, J. Lorosch, A. Rubo, M. Sauer,
R. Kellens, J. Reddy, N. Steier, W. Hasenpusch, Cyano Compounds, Inorganic, in
Ullmann’s Encyclopedia of industrial Chemistry, Wiley VCH, New York (2011).
(a) Standard Methods for the Examination of Water and Wastewater, 22nd Edition,
American Public Health Association, Washington DC, USA (2012). (b) T. Suzuki, A.
Hioki, M. Kurahashi. Anal. Chim. Acta, 476, 159 (2003). (c) A. Safavi, N. Maleki, H.R.
Shahbaazi. Anal. Chim. Acta, 503, 213 (2004). (d) V.K. Rao, S.R. Suresh, N.B.S.N. Rao,
P. Rajaram. Bull. Electrochem., 13, 327 (1997).
[6]
(a) Z. Xu, X. Chen, H.N. Kim, J. Yoon. Chem. Soc. Rev., 39, 127 (2010). (b) F. Wang, L.
Wang, X. Chen, J. Yoon. Chem. Soc. Rev., 43, 4312 (2014). (c) W.C. Lin, S.K. Fang,
J.W. Hu, H.Y. Tsai, K.Y. Chen. Anal. Chem., 86, 4648 (2014). (d) L. Wang, L. Zhu, D.
Cao. New J. Chem., 39, 7211 (2015). (e) P. Singh, L.S. Mittal, S. Kumar, G. Bhargava, S.
Kumar. J. Fluoresc., 24, 909 (2014). (f) K. Hong, H. Yoon, W. Jang. Chem. Commun.,
51, 7486 (2015). (g) R.M.F. Batista, E. Oliveira, S.P.G. Costa, C. Lodeiro, M.M.M.
Raposo. Supramol. Chem., 26, 71 (2014). (h) P.A. Gale, C. Caltagirone. Chem. Soc. Rev.,
44, 4212 (2015). (i) Y, Shiraishi, M. Nakamura, T. Kogurea, T. Hirai. New J. Chem., 40,
1237 (2016). (j) K.S. Bejoymohandas, A. Kumar, S. Sreenadh, E. Varathan, S.
Varughese, V. Subramanian, M.L.P. Reddy. Inorg. Chem., 55, 3448 (2016). (k) S.
El Sayed, M. Licchelli, R. Martínez-Máñez, F. Sancenón. Chem. Asian J., 12, 2670
(2017).
[7]
(a) R. Martínez-Máñez, F. Sancenón. Chem. Rev., 103, 4419 (2003). (b) M.E. Moragues,
R. Martínez-Máñez, F. Sancenón. Chem. Soc. Rev., 40, 2593 (2011). (c) L.E. Santos-
Figueroa, M.E. Moragues, E. Climent, A. Agostini, R. Martínez-Máñez, F. Sancenón.
Chem. Soc. Rev., 42, 3489 (2013).
10

[8]
[9]
(a) S.L. Wiskur, H. Ait-Haddou, J.J. Lavigne, E.V. Anslyn. Acc. Chem. Res., 34, 963
(2001). (b) B.T. Nguyen, E.V. Anslyn. Coord. Chem. Rev., 250, 3118 (2006).
(a) J. Du, M. Hu, J. Fan, X. Peng. Chem. Soc. Rev., 41, 4511 (2012). (b) K. Kaur, R.
Saini, A. Kumar, V. Luxami, N. Kaur, P. Singh, S. Kumar. Coord. Chem. Rev., 256, 1992
(2012).
[10] B. García-Acosta, X. Albiach-Martí, E. García, L. Gil, R. Martínez-Máñez, K. Rurack, F.
Sancenón, J. Soto. Chem. Commun., 774 (2004).
[11] B. García-Acosta, R. Martínez-Máñez, F. Sancenón, J. Soto, K. Rurack, M. Spieles, E.
García-Breijo, L. Gil. Inorg. Chem., 46, 3123 (2007).
[12] (a) J. Chen, W. Liu, J. Ma, H. Xu, J. Wu, X. Tang, Z. Fan, P. Wang. J. Org. Chem., 77,
3475 (2012). (b) J.W. Verhoeven. Top. Fluoresc. Spectrosc., 9, 249 (2005). (c) K.
Rurack. Spectrochim. Acta, Part A, 57, 2161 (2001).
[13] (a) M. Kurihara, T. Kawashima, K. Osutzumi. Z. Naturforsch. B, 55, 277 (2000).
(b) D.A. Thornton. Coord. Chem. Rev., 104, 251 (1990).
[14] Z. Xu, X. Chen, H.N. Kim, J. Yoon. Chem. Soc. Rev., 39, 127 (2010).
Table 1. Values of the logarithm of the stability constant for
formation of metal complexes with probe 1. Values in parentheses
are standard deviation of the last digit.
Fe(III)
6.90(2)
Hg(II)
Cu(II)
Zn(II) Pb(II)
4.30(1) 3.81(1)
5.11(1) 6.40(2)
11

Table 2. Concentration of cyanide (in ppm) in different samples of water.
Concentration of cyanide was determined using the calibration curve in figure 3.
Real concentration (ppm)
Determined using 1.Fe(III) (ppm) Recovery (%)
0.80
2.35
3.54
0.72
1.72
2.83
90
73
80
a)
1 + Fe(III)
1 + Cr(III)
1 + Hg(II)
2.0
1.5
1.0
0.5
0.0
1 + Cu(II)
1 + Zn(II)
1
250
300
350
400
450
500
550
Wavelength (nm)
b)
1
Fe(III)
Zn(II)
Cr(III) Ni(II)
Cu(II) Cd(II) Hg(II) Pb(II)
Figure 1. a) UV-visible spectra of probe 1 (9.0 × 10-5 M in acetonitrile) alone and in the presence
of one eq. of selected metal cations. b) Color changes observed upon addition of one eq. of
selected metal cations to acetonitrile solutions of probe 1 (9.0 × 10-5 M).
12

2.0
1.5
1.0
0.5
0.0
Figure 2. Absorbance at 440 nm of acetonitrile solutions of probe 1 (9.0 × 10-5 M) in the presence
of one eq. of selected metal cations.
a)
1·Fe(III)
1·Fe(III) + other anions (F-, Cl-, Br-,
I-, NO3-, AcO-, BzO-, HSO4-, H2PO4-)
2.0
1.5
1.0
0.5
1·Fe(III) + CN-
0.0
300
350
400
450
500
b)
Wavelength (nm)
1:Fe(III) F-
Cl-
I-
Br-
AcO-
CN- NO3
BzO-
- H2PO4
HSO4
-
-
Figure 3. a) UV-visible spectra of complex 1·Fe(III) (9.0 × 10-5 M in acetonitrile) alone and in
the presence of one eq. of selected anions. b) Color changes observed upon addition of one eq. of
selected anions to acetonitrile solutions of complex 1·Fe(III) (9.0 × 10-5 M).
13

0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-6.0
-5.5
-5.0
-4.5
log [CN-]
-4.0
-3.5
-3.0
Figure 4. Absorbance at 440 nm for 1·Fe(III) complex (1.0 × 10-4 M) in acetonitrile-water
90:10 v/v mixture upon addition of increasing quantities of cyanide.
Graphical abstract
Fe+3
CN-
Fe+3
CN-
14
