Selective deoxygenation of styrene oxides under a CO atmosphere using silver nanoparticle catalyst

Article abstract of DOI:10.1016/j.tetlet.2010.08.031

Deoxygenation of styrene oxide derivatives into the corresponding alkenes was efficiently catalyzed by inorganic materials of hydrotalcite-supported silver nanoparticles (Ag/HT) using CO/H₂O as a reductant. The Ag/HT catalyst was reusable without loss of activity or selectivity.

Full text of DOI:10.1016/j.tetlet.2010.08.031

Tetrahedron Letters 51 (2010) 5466–5468
Contents lists available at ScienceDirect
Tetrahedron Letters
journal homepage: www.elsevier.com/locate/tetlet
Selective deoxygenation of styrene oxides under a CO atmosphere using silver
nanoparticle catalyst
a
a
a
a
a
Yusuke Mikami , Akifumi Noujima , Takato Mitsudome , Tomoo Mizugaki , Koichiro Jitsukawa ,
a,b,
⇑
Kiyotomi Kaneda
a
Department of Materials Engineering Science, Graduate School of Engineering Science, Osaka University, 1-3 Machikaneyama, Toyonaka, Osaka 560-8531, Japan
Research Center for Solar Energy Chemistry, Osaka University, 1-3 Machikaneyama, Toyonaka, Osaka 560-8531, Japan
b
a r t i c l e i n f o
a b s t r a c t
Article history:
Deoxygenation of styrene oxide derivatives into the corresponding alkenes was efficiently catalyzed by
Received 2 July 2010
Revised 31 July 2010
Accepted 10 August 2010
Available online 14 August 2010
inorganic materials of hydrotalcite-supported silver nanoparticles (Ag/HT) using CO/H
The Ag/HT catalyst was reusable without loss of activity or selectivity.
2
O as a reductant.
Ó 2010 Elsevier Ltd. All rights reserved.
Keywords:
Deoxygenation
Epoxide
Carbon monoxide
Silver nanoparticles
Metal nanoparticles (NPs) often show unique catalytic proper-
ties that can dramatically differ from those of metal complex cata-
lysts. Among the various metal NPs, silver nanoparticles (Ag NPs)
have a distinguished catalytic ability for the industrial production
production of a large amount of waste and/or the need for inert
reaction conditions. Therefore, effective catalytic methodology for
the deoxygenation of epoxides into the corresponding alkenes
has been desired from an environmental standpoint, but these re-
1
12,13
of ethylene oxide from ethylene in the gas phase . However, Ag
ports have been few.
NPs are less active catalysts for other organic reactions under
liquid phase conditions. Recently, we re-evaluated the catalytic
potential of Ag NPs and discovered that inorganic materials-sup-
ported Ag NPs exhibited significantly unique and higher catalytic
activities than other NPs for several functional transformations,
We attempted to extend our deoxygenation methodology using
Ag NPs catalyst with CO/H
ygenation of epoxides. We herein report that inorganic materials of
hydrotalcite [HT; Mg Al (OH)16CO ]-supported Ag NPs exhibited
2
O as a reductant to the selective deox-
6
2
3
catalytic ability for the selective deoxygenation of styrene oxide
derivatives into the corresponding alkenes (Scheme 1). This cata-
lyst system has the following advantages: (1) excellent selectivities
2
such as dehydrogenation of alcohols, aqueous oxidation of silanes
3
to silanols, and hydration of nitriles to amides under liquid phase
4
conditions. Notably, we found the outstanding reduction ability of
2
for alkenes; (2) CO as the sole byproduct, which can be easily re-
Ag NPs for the deoxygenation of nitroaromatic compounds to ani-
moved from the reaction system; (3) no need for additives; and (4)
reusability of the Ag/HT catalyst.
Ag/HT was prepared according to our previous Letter. Initially
Ag/HT was examined for deoxygenation of trans-stilbene oxide (1)
5
lines using CO/H
2
O as a reducing reagent. For example, 3-nitrosty-
5
rene was chemoselectively reduced to 3-vinylaniline in over 99%
selectivity without reduction of the C@C double bond. In the deox-
ygenation, a Ag-hydride species was generated in situ from the
at 110 °C in the presence of H
was converted into trans-stilbene (2) in 99% yield for 3 h accompa-
nied by the generation of CO without formations of 1,2-diphenyl-
2
O under 9 atm of CO. Compound 1
2
reaction of H O with CO, which led to the highly chemoselective
reduction.
2
Epoxides are regarded as efficient protecting groups for alkene
ethane, 1,2-diphenylethanol, or benzyl phenyl ketone through the
hydrogenation and/or isomerization of 1 (Table 1, entry 1).
6,7
functionalities in organic synthesis. The deprotection of epoxides
has been achieved by stoichiometric reactions using an excess of
8
9
10
various reducing reagents, such as phosphines, silanes, iodides,
1
1
and heavy metals. These reaction systems have suffered from the
⇑
Corresponding author.
E-mail address: kaneda@cheng.es.osaka-u.ac.jp (K. Kaneda).
2
Scheme 1. Catalytic deoxygenation of epoxide using Ag/HT with CO/H O.
0
040-4039/$ - see front matter Ó 2010 Elsevier Ltd. All rights reserved.
doi:10.1016/j.tetlet.2010.08.031

Y. Mikami et al. / Tetrahedron Letters 51 (2010) 5466–5468
5467
Table 1
Table 2
a
a
Deoxygenation of trans-stilbene oxide
Deoxygenation of various epoxides using Ag/HT
O
R2
R1
R1
R2
Time Conv.b,c Sel.b (%)
Conv.b (%)
Sel.b (%)
Entry Substrate
Product
Entry
1
Catalyst
Solvent
(
h)
(%)
Ag/HT
Ag/HT
Ag/HT
Ag/HT
Ag/HT
Ag/HT
Ag/HT
THF
THF
THF
Toluene
Water
1,4-Dioxane
DMA
THF
THF
THF
THF
THF
THF
THF
THF
THF
99
99
99
95
92
10
0
62
33
25
39
4
>99
>99
>99
>99
>99
>99
—
>99
>99
>99
>99
>99
—
c
2
3
d
O
1
2
3
99 (95) >99
4
5
e
O
6
7
8
9
>
99
3
99 (94)
(E/Z = 4/1)
Ag/Al
2
O
3
Ag/MgO
O
O
10
11
12
13
14
15
16
Ag/TiO
Ag/TiO
2
2
f
3
4
5
3
2
2
99 (94) >99
99 (92) >99
95 (90) >99
Ag/SiO
HT
2
0
0
0
0
AgNO
Ag
Ag powder
3
—
—
—
2
O
O
a
Reaction conditions: trans-stilbene oxide (0.5 mmol), catalyst (metal:
.037 mmol), solvent (5 mL), H O (0.1 mL), 110 °C CO (9 atm), 3 h.
0
2
O
b
Determined by LC using internal standard technique.
Reuse 1.
Reuse 2.
Water (4 mL), 150 °C, 3 h.
6
7
8
9
1
1
2
2
92 (87) >99
90 (85) >99
92 (88) >99
91 (86) >99
99 (85) >99
85 (80) >99
c
d
e
f
F
F
O
2 3
Na CO (1.5 mmol) was added.
Cl
Cl
O
O
O
O
O
O
O
OEt
OEt 12
Notably, 2 was not hydrogenated even when the reaction time was
extended beyond the complete conversion of 1.14 Among the vari-
ous solvents tested, THF and toluene afforded the excellent yields
of 2 while 1,4-dioxane and DMA inhibited the reaction (entries 1
and 4 vs 6 and 7). Interestingly, Ag/HT could be used under aque-
ous conditions without organic solvent. Thus, the deoxygenation of
O
O
12
0
1
NH2
NH2 12
1
using Ag/HT in water gave 2 in 92% isolated yield (entry 5). The
O
effect of supports on the catalytic activity of Ag NPs was investi-
gated in the deoxygenation of 1 using a series of inorganic sup-
12
NC
NC
ports, such as Al
best support, followed by other base supports of Al
entries 8 and 9), whereas Ag/TiO and Ag/SiO
2 2
2
O
3
, MgO, SiO
2
, and TiO
2
. HT was found to be the
and MgO
had low activities
entries 10 and 12). Interestingly, the addition of Na CO as a base
reaction system improved the yield of 2 (en-
try 10 vs 11). The parent HT or the silver compounds of AgNO
Ag O, or Ag powder did not promote the deoxygenation at all (en-
O
O
2 3
O
1
1
2
3
24
24
Trace
Trace
—
—
(
(
2
3
to the above Ag/TiO
2
1
5
a
3
,
Reaction conditions: Ag/HT (Ag: 0.037 mmol), substrate (0.5 mmol), THF (5 mL),
O (0.1 mL), 110 °C, CO (9 atm).
Determined by GC and LC using internal standard technique.
H
2
b
2
tries 13–16). These results indicate that a combination of Ag NPs
and base support of HT is essential to obtain high catalytic activity
for the deoxygenation of 1.
c
Values in parentheses are the yields of the isolated products.
The catalyst was filtered off from the reaction mixture after 50%
conversion of 1. Further stirring of the filtrate under identical reac-
tion conditions did not afford any products. ICP analysis of the fil-
trate confirmed that the leaching of Ag species into the solution
was not detected (detection limit: 0.007 ppm). The above phenom-
enon confirms that the present reaction proceeds on the solid Ag/
HT catalyst. The Ag/HT catalyst was separated from the reaction
mixture by simple filtration after the deoxygenation of 1, and then,
product 2 could be easily isolated by evaporation of the solvent.
The recovered Ag/HT was reusable without any loss of its high cat-
alytic activity or selectivity: 99% yields were obtained in the two
recycling reactions of 1 (entries 2 and 3). EXAFS and TEM analysis
of Ag/HT revealed that the size and oxidation state of the Ag NPs on
HT did not change significantly; the particle sizes of fresh and re-
used Ag/HTs were 9.5 nm and 9.8 nm, respectively,17 which is con-
sistent with the retention of the catalytic activity of Ag/HT during
the reuse experiments.
The scope and limitations of the Ag/HT-catalyzed deoxygen-
ation of epoxides were explored next (Table 2). Styrene oxides
substituted with electron-donating or electron-withdrawing
groups were completely converted into the desired alkenes (en-
tries 5–7). Notably, epoxides bearing other reducible functional-
ities were chemoselectively deoxygenated. The ester, ketone,
amide, and cyano moieties remained intact during the deoxygen-
ation of epoxides (entries 8–11). Benzylic and aliphatic epoxides
did not show any reactivity (entries 12 and 13). This high activity
of Ag/HT toward the aromatic oxirane ring was in contrast to that
1
2
of previous catalyst systems. In addition, Ag/HT was also applica-
ble for a preparative scale deoxygenation reaction, for example,
40 mmol of 1 was smoothly converted into 2 in 95% isolated yield
(Scheme 2).
In conclusion, we have developed a highly efficient catalytic
deoxygenation using HT-supported silver nanoparticles with CO/
H O as a reducing reagent. Various styrene oxide derivatives were
2

5
468
Y. Mikami et al. / Tetrahedron Letters 51 (2010) 5466–5468
3
4
5
6
.
.
.
.
Mitsudome, T.; Arita, S.; Mori, H.; Mizugaki, T.; Jitsukawa, K.; Kaneda, K. Angew.
Chem., Int. Ed. 2008, 47, 7938.
Mitsudome, T.; Mikami, Y.; Mori, H.; Arita, S.; Mizugaki, T.; Jitsukawa, K.;
Kaneda, K. Chem. Commun. 2009, 3258.
Mikami, Y.; Noujima, A.; Mitsudome, T.; Mizugaki, T.; Jitsukawa, K.; Kaneda, K.
Chem. Lett. 2010, 39, 223.
(a) Wu, F.-L.; Ross, B. P.; McGeary, R. P. Eur. J. Org. Chem. 2010, 1989; (b)
Kocienski, P. J. Protecting Groups, 3rd ed.; Thieme: Stuttgart, Germany, 2005; (c)
Wuts, P. G. M.; Greene, T. W. Greene’s Protective Groups in Organic Synthesis, 4th
ed.; John Wiley & Sons: Hoboken, New York, 2006.

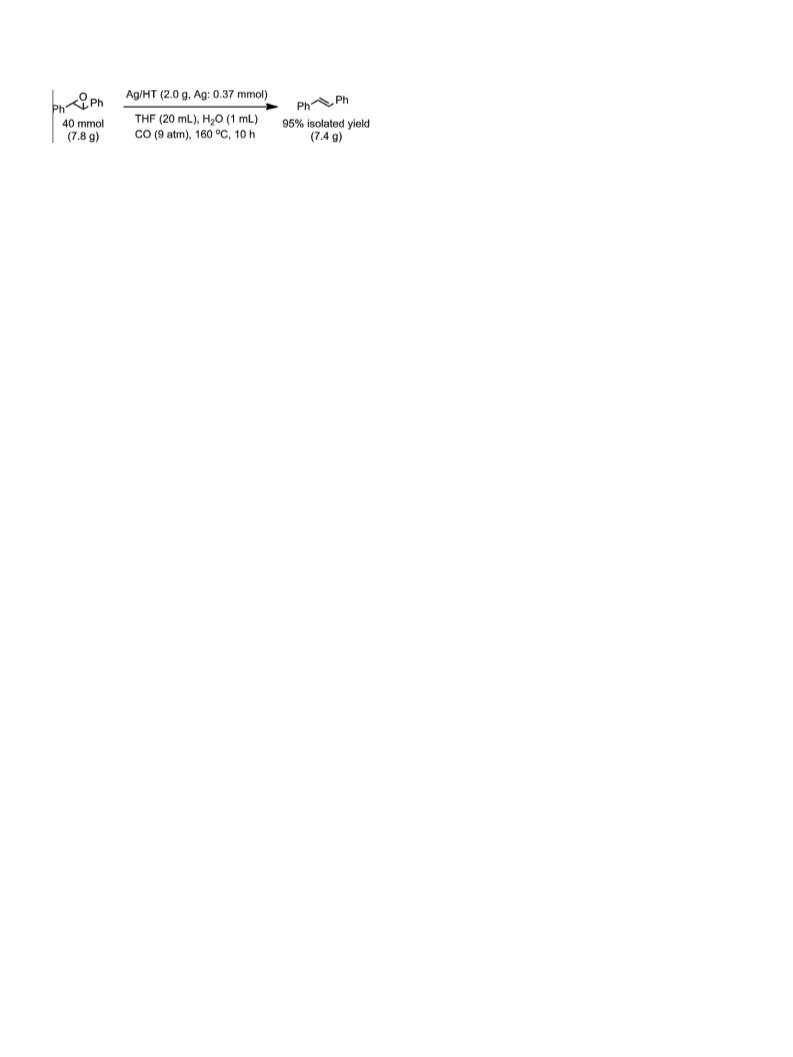

Scheme 2. A 40 mmol-scale deoxygenation of trans-stilbene oxide using Ag/HT.
smoothly converted into the corresponding alkenes in high yields
without reduction of other reducible functionalities. Ag/HT was
easily separated from the reaction mixture and was reusable with
retention of its activity and selectivity. This chemoselective deoxy-
genation system using Ag/HT as a heterogeneous catalyst promises
to be a useful methodology for the deprotection of epoxides into
alkenes.
7.
(a) Corey, E. J.; Su, W. G. J. Am. Chem. Soc. 1987, 109, 7534; (b) Kraus, G. A.;
Thomas, P. J. J. Org. Chem. 1988, 53, 1395; (c) Johnson, W. S.; Plummer, M. S.;
Reddy, S. P.; Bartlett, W. R. J. Am. Chem. Soc. 1993, 115, 515.
8. (a) Vedejs, E.; Fuchs, P. L. J. Am. Chem. Soc. 1973, 95, 822; (b) Bissing, D. E.;
Speziale, A. J. J. Am. Chem. Soc. 1965, 87, 2683; (c) Clive, D. L. J.; Menchen, S. M. J.
Org. Chem. 1980, 45, 2347.
9
.
(a) Mangette, J. E.; Powell, D. R.; Firman, T. K.; West, R. J. Organomet. Chem.
1996, 521, 363; (b) Mangette, J. E.; Powell, D. R.; Calabrese, J. C.; West, R.
Organometallics 1995, 14, 4064.
1
0. (a) Righi, G.; Bovicelli, P.; Sperandio, A. Tetrahedron 2000, 56, 1733; (b)
Acknowledgments
Antonioletti, R.; Bovicelli, P.; Fezzolari, E.; Righi, G. Tetrahedron Lett. 2000, 41,
9
4
315; (c) Firouzabadi, H.; Iranpoor, N.; Jafarpour, M. Tetrahedron Lett. 2005, 46,
107; (d) Girard, P.; Kagan, H. B. J. Am. Chem. Soc. 1980, 102, 2693; (e) Caputo,
This investigation was supported by a Grant-in-Aid for Scien-
tific Research from the Ministry of Education, Culture, Sports, Sci-
ence, and Technology of Japan. This work was also supported by
a Grant-in-Aid for Scientific Research on Priority Areas (No.
R.; Mangoni, L.; Neri, O.; Palumbo, G. Tetrahedron Lett. 1981, 22, 3551; (f)
Sonnet, P. E. J. Org. Chem. 1978, 43, 1842.
11. (a) Sharpless, K. B.; Umbreit, M. A.; Nieh, M. T.; Flood, T. C. J. Am. Chem. Soc.
972, 94, 6538; (b) Atagi, L. M.; Over, D. E.; McAlister, D. R.; Mayer, J. M. J. Am.
Chem. Soc. 1991, 113, 870; (c) Oh, K.; Knabe, W. E. Tetrahedron 2009, 65, 2966;
d) Kupchan, S. M.; Maruyama, M. J. Org. Chem. 1971, 36, 1187; (e) Mahesh, M.;
1
1
8065016, ‘Chemistry of Concerto Catalysis’) from the Ministry of
(
Education, Culture, Sports, Science, and Technology, Japan. TEM
analyses were carried out at Institute for NanoScience Design, Osa-
ka University. We thank Dr. Uruga, Dr. Tanida, Dr. Honma, Dr. Tan-
iguchi, and Dr. Hirayama (SPring-8) for XAFS measurements. Y.M.
and A.N. thank the JSPS Research Fellowships for Young Scientists.
They also express their special thanks to The Global COE (Center of
Excellence) Program ‘Global Education and Research Center for
Bio-Environmental Chemistry’ of Osaka University.
Murphy, J. A.; Wessel, H. P. J. Org. Chem. 2005, 70, 4118; (f) Schobert, R. Angew.
Chem., Int. Ed. Engl. 1988, 27, 855; (g) RajanBabu, T. V.; Nugent, W. A. J. Am.
Chem. Soc. 1994, 116, 986; (h) RajanBabu, T. V.; Nugent, W. A.; Beattie, M. S. J.
Am. Chem. Soc. 1990, 112, 6408; (i) McMurry, J. E.; Fleming, M. P. J. Org. Chem.
1975, 40, 2555; (j) McMurry, J. E.; Silvestri, M. G.; Fleming, M. P.; Hoz, T.;
Grayston, M. W. J. Org. Chem. 1978, 43, 3249; (k) Giering, W. P.; Rosenblum, M.;
Tancrede, J. J. Am. Chem. Soc. 1972, 94, 7170; (l) Rosenblum, M.; Saidi, M. R.;
Madhavarao, M. Tetrahedron Lett. 1975, 46, 4009; (m) Partra, A.;
Bandyopadhyay, M.; Mal, D. Tetrahedron Lett. 2003, 44, 2355.
12. For previous reports on the catalytic deoxygenation of epoxides, see: (a) Zhu,
Z.; Espenson, J. H. J. Mol. Catal. A 1995, 103, 87; (b) Gable, K. P.; Brown, E. C.
Synlett 2003, 2243; (c) Arterburn, J. B.; Liu, M.; Perry, M. C. Helv. Chim. Acta
2002, 85, 3225; (d) Itoh, T.; Nagano, T.; Sato, M.; Hirobe, M. Tetrahedron Lett.
Supplementary data
1989, 30, 6387; (e) Isobe, H.; Branchaud, B. P. Tetrahedron Lett. 1999, 40, 8747.
1
3. We recently reported a successful example of the catalytic deoxygenation of
epoxides using alcohols as reducing reagents, see: Mitsudome, T.; Noujima, A.;
Mikami, Y.; Mizugaki, T.; Jitsukawa, K.; Kaneda, K. Angew. Chem., Int. Ed. 2010,
Supplementary data associated with this article can be found, in
the online version, at doi:10.1016/j.tetlet.2010.08.031.
4
9, 5545.
1
4. The time profile for the reduction of 1 is shown in Fig. 1S in Supplementary
References and notes
data.
1
5. We previously reported that the positive effect of the additional base and base
support was attributed to promote the formation of a metal-hydride species;
see: Refs. 13,16.
1
2
.
.
Mayer, D.; Aktiengesellschaft, H.. In Ullman’s Encyclopedia of Industrial
Chemistry; Wiley: New York, 2000; Vol. 12. p 609.
Mitsudome, T.; Mikami, Y.; Funai, H.; Mizugaki, T.; Jitsukawa, K.; Kaneda, K.
Angew. Chem., Int. Ed. 2008, 47, 138.
16. Kaneda, K.; Hiraki, M.; Imanaka, T.; Teranishi, S. J. Mol. Catal. 1981, 12, 385.
17. See Supplementary data for details.
