FULL PAPER
ported versus the SCE reference electrode. The GC-FID chromato-
grams were obtained with a SRI 8610C chromatograph equipped
with a CP-Sil 8CB capillary column. Nitrogen was used as the car-
rier gas. The identification of reaction products was confirmed by
GC–MS (Varian 4000 Performance).
internal standard method. After each reaction cycle, the catalysts
were washed, dried and characterized. The catalytic activity of
homogeneous [Mn(salen)Cl] was also tested; the amount of neat
complex was equivalent 0.50% Mn relative to alkene.
Computational Details: All the calculations were performed in the
gas phase and the corresponding relative energies were calculated
by the one-layer, single method, and two-layer, ONIOM method,[36]
by using B3LYP[37] for the high-level calculations and PM6[38] for
the low-level calculations. The geometry of the neat [Mn(salen)Cl]
complex was characterized by a quantum mechanical method
based on DFT. The B3LYP Becke’s three-parameter exchange-cor-
relation hybrid functional with non-local correlation corrections
provided by Lee, Yang and Parr was used.[37] The double-zeta Pople
basis set 6-31G(d,p) was employed, which ensures a superior elec-
tronic description by adding polarization functions of the p-, d-
and, especially, f-type for all the hydrogen atoms and non-hydrogen
atoms and metal ions, respectively. When encapsulated in the NaY
zeolite cage, the geometry of the [Mn(salen)Cl] complex was opti-
mized by using the two-layer ONIOM [B3LYP/6-31G(d,p):PM6]
method in which the B3LYP/6-31G(d,p) method was used for the
high-level calculation for the [Mn(salen)Cl] complex and the semi-
empirical PM6 method was used for the low-level calculation for
the zeolite framework. The geometry of the NaY zeolite, faujasite-
type structure, was taken from the database of the Structure Com-
mission of the International Zeolite Association (IZA).[39] The vi-
brational frequencies of these optimized structures were predicted
by using the same basis set. No imaginary frequencies were ob-
tained, which confirms that the molecular structures were opti-
mized at stationary positions on the potential energy surface. Usu-
ally, the harmonic frequencies calculated at the B3LYP/6-31G(d,p)
level have to be scaled,[40] however, the agreement between theoreti-
cal and experimental results was so satisfactory in this work that
further scaling of the calculated frequencies seemed unnecessary.
All geometry optimizations and energy and frequency calculations
were performed by using the Gaussian 09 package of programs.[41]
Graphical representations of the optimized structures and the mo-
lecular orbitals were produced with the MOLEKEL 4.3[42] and
Gauss-View molecular visualization programs.[43]
Acknowledgments
I. K.-B. thanks the Fundação do Ministério de Ciência e Tecnolo-
gia (FCT) for a contract under the program Ciência 2007. The
authors thank the FCT and the Fundo Europeu de Desen-
volvimento Regional (FEDER)) [COMPETE-QREN-EU, grant
number PEst-C/QUI/UI0686/2011 (FCOMP-01-0124-FEDER-
022716)] for financial support to the Research Centre at the Centro
de Química, Universidade do Minho.
[1] a) S. J. Blanksby, G. B. Ellison, Acc. Chem. Res. 2003, 36, 255–
263; b) E. C. McLaughlin, H. Choi, K. Wang, G. Chiou, M. P.
Doyle, J. Org. Chem. 2009, 74, 730–738.
[2] Q.-H. Fan, Y.-M. Li, A. S. C. Chan, Chem. Rev. 2002, 102,
3385–3466.
[3] a) J. P. Collman, V. J. Lee, C. J. Kellenn-Yuen, X. Zhang, J. A.
Brauman, J. Am. Chem. Soc. 1995, 117, 692–703; b) D.
Gournis, M. Louloudi, M. A. Karakassides, C. Kolokytha, K.
Mitopoulou, N. Hadjiliadis, Mater. Sci. Eng. 2002, C22, 113–
116.
[4] a) D. Chatterjee, A. Mitra, J. Mol. Catal. A 1999, 144, 363–
367; b) P. Das, I. Kuz´niarska-Biernacka, A. R. Silva, A. P. Car-
valho, J. Pires, C. Freire, J. Mol. Catal. A 2006, 248, 135–143;
c) I. Kuz´niarska-Biernacka, A. R. Silva, A. P. Carvalho, J.
Pires, C. Freire, J. Mol. Catal. A 2007, 278, 82–91; d) I. Kuz´ni-
arska-Biernacka, A. R. Silva, R. Ferreira, A. P. Carvalho, J.
Pires, M. B. de Carvalho, C. Freire, B. de Castro, New J. Chem.
2004, 28, 853–858.
[5] A. M. Fonseca, S. Gonçalves, P. Parpot, I. C. Neves, Phys.
Chem. Chem. Phys. 2009, 11, 6308–6314.
[6] H. Figueiredo, B. Silva, C. Quintelas, M. M. M. Raposo, P.
Parpot, A. M. Fonseca, A. E. Lewandowska, M. A. Bañares,
I. C. Neves, T. Tavares, Appl. Catal. B 2010, 94, 1–7.
[7] R. J. Correa, G. C. Salomao, M. H. N. Olsen, L. C. Car-
dozo Fihlo, V. Drago, C. Fernades, O. A. C. Antunes, Appl. Ca-
tal. A 2008, 336, 35–39.
[8] L. Saikia, D. Srinivas, P. Ratnasamy, Microporous Mesoporous
Mater. 2007, 104, 225–235.
[9] F. Bedioui, E. Labbe, S. Guitierrez-Granados, J. Devynck, J.
Electroanal. Chem. 1991, 301, 267–274.
[10] a) F. Minutolo, D. Pini, P. Salvadori, Tetrahedron Lett. 1996,
37, 3375–3378; b) K. G. Gupta, A. K. Sutar, C. C. Lin, Coord.
Chem. Rev. 2009, 253, 1926–1946; c) I. Tchepournaya, S. Vasili-
eva, S. Logvinov, A. Timonov, R. Amadelli, D. Bartak, Lang-
muir 2003, 19, 9005–9012.
[11] T. Luts, W. Suprun, D. Hofman, O. Klepel, H. Papp, J. Mol.
Catal. A 2007, 261, 16–23.

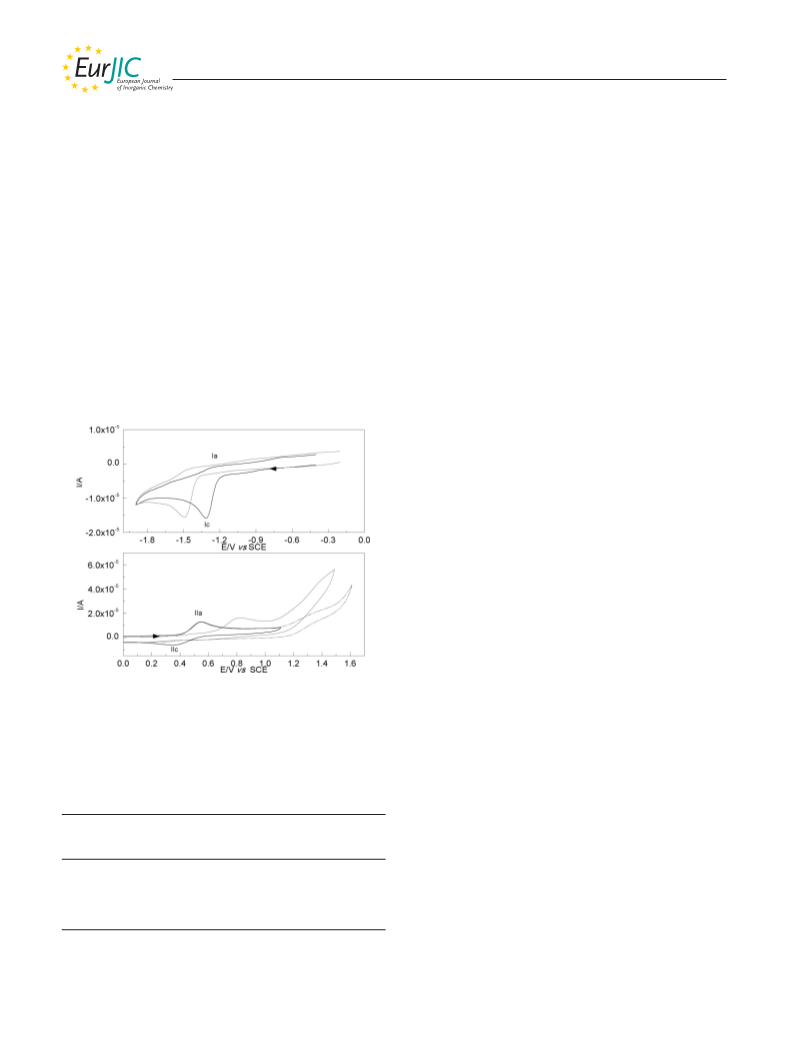

Preparation of Zeolite-Modified Electrodes: The preparation of the
zeolite-modified electrodes was based on a previous established
procedure.[5] To prepare the zeolite-modified electrodes, 20 mg of
the heterogeneous catalyst was suspended in a Nafion/water solu-
tion (120 μL Nafion/120 μL ultra-pure water). The resulting solu-
tions were homogenized by using an ultrasound bath and deposited
on Carbon Toray paper with an area of 2ϫ 2 cm2. The carbon was
used to increase the area of electrical conductor in direct contact
with the zeolite. Finally, the Carbon Toray paper was glued to the
platinum electrode by using conductive carbon cement (Quintech)
and dried at room temperature for 24 h.
[12] a) J.-C. Moutet, A. Ourari, Electrochim. Acta 1997, 42, 2525–
2531; b) G. Cauquis, S. Cosnier, A. Deronzier, B. Galland, D.
Limosin, J. C. Moutet, J. Bizot, D. Deprez, J. P. Pullicani, J.
Electroanal. Chem. 1993, 352, 181–195; c) P. Guo, K. Y. Wong,
Electrochem. Commun. 1999, 1, 559–563; d) S. H. Lau, V. Caps,
K.-W. Yeung, K.-Y. Wong, S. C. Tsang, Microporous Mesopo-
rous Mater. 1999, 32, 279–285.

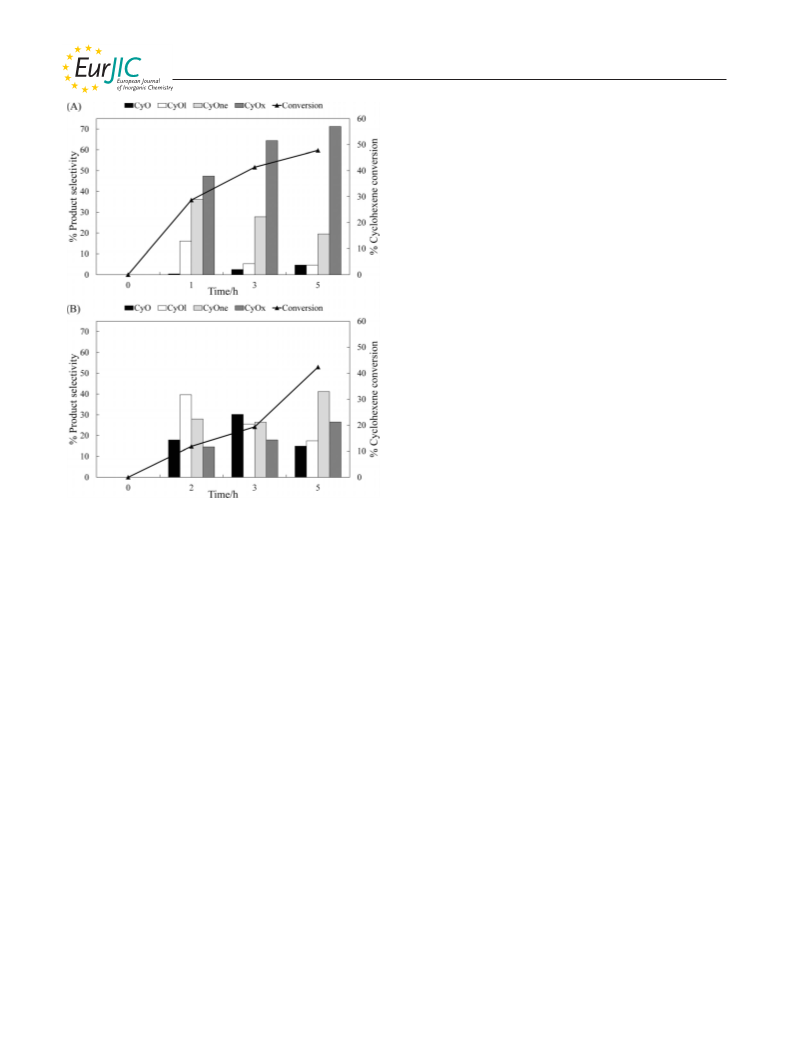

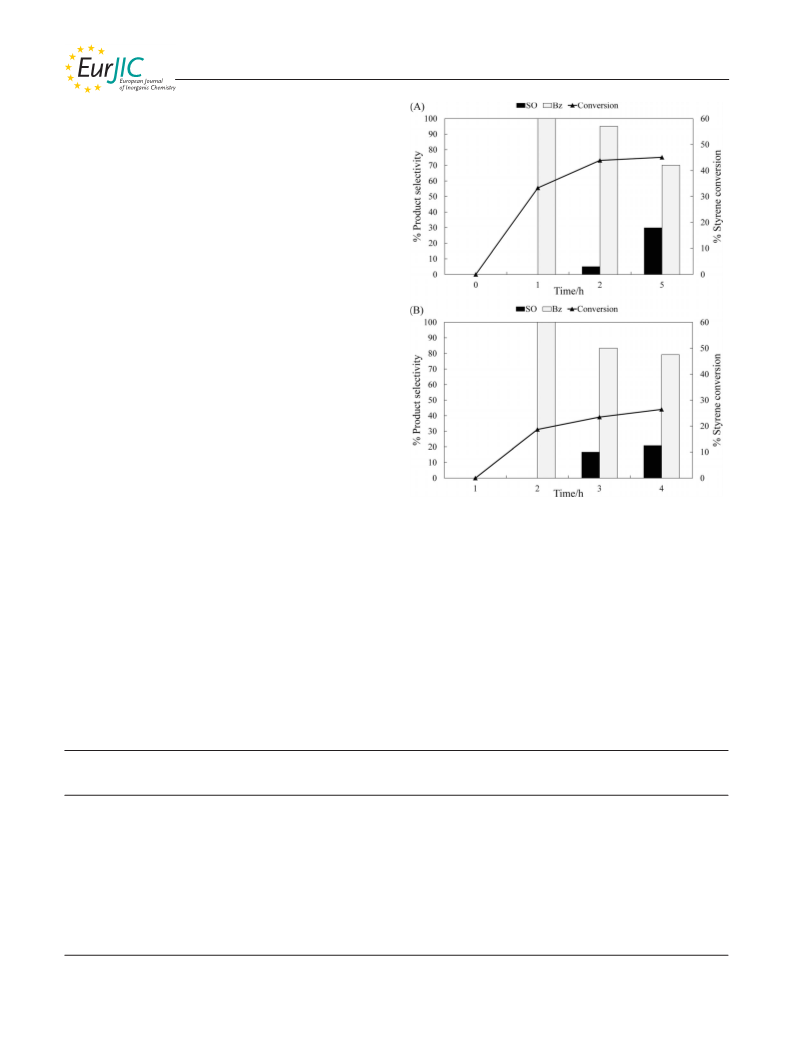

Catalytic Oxidation Reactions: The oxidation of cyclohexene and
styrene was studied under argon with constant stirring at room
temperature. The composition of the reaction medium was alkene
(0.1 g, 1.0 mmol), internal standard (0.1 g, 1.0 mmol) and hetero-
geneous catalyst (0.10 g) in different solvents (5.0 mL), acn, dcm
and decane. tBuOOH (0.3 mL, 1.65 mmol, 5.5 m in decane solu-
tion) was progressively added to the reaction medium at a rate of
0.05 mLmin–1. The progress of the reaction was monitored as a
function of time by withdrawing samples at fixed time intervals
and analysing them by gas chromatography. The identities of the
products were confirmed by comparison with authentic samples or
by GC–MS. The products were quantitatively determined by the
[13] A. Corma, H. Garcia, Eur. J. Inorg. Chem. 2004, 6, 1143–1164.
[14] R. A. Sheldon, I. W. C. E. Arends, A. Dijksman, Catal. Today
2000, 57, 157–166.
[15] I. Kuzniarska-Biernacka, K. Biernacki, A. L. Magalhães,
´
A. M. Fonseca, I. C. Neves, J. Catal. 2011, 278, 102–110.
[16] D. E. DeVos, M. Dams, B. F. Sels, P. A. Jacobs, Chem. Rev.
2002, 102, 3615–3640.
