Electrochemical Evaluation of Catalytic Activity of Various Types of LDH/Mo10V2-Pd: Application of FeNi/Mo10V2-Pd as an Efficient and Reusable Nano Catalyst in the Heck Coupling Reactions

Article abstract of DOI:10.1016/j.electacta.2017.09.035

Palladium nano particles deposited on various forms of layered double hydroxide intercalated 10-molybdovanado phosphate (M(III)M(II)/Mo₁₀V₂-Pd) were synthesized. Their electrocatalytic behavior and collaboration of all components of synthesized catalysts were evaluated in Heck coupling reaction. According to the obtained results from electrochemical and catalytic investigations, FeNi/Mo₁₀V₂-Pd was chosen as the best in term of productivity. The structural features of FeNi/Mo₁₀V₂-Pd were characterized by SEM, EDX, TEM, FT-IR, XRD, ICP-AES, LSV, chronoamperometry and CV analyses. The presence of Mo₁₀V₂ improved the catalytic activity of FeNi-Pd in the Heck coupling reaction. Also collaboration of Pd and Mo₁₀V₂ with FeNi LDH as a support was studied. This reusable solid catalyst exhibited excellent activity and the methodology is applicable to diverse substrates providing good to excellent yields of desired products. This method has advantages of high yields, low reaction times, elimination of ligand and base, heterogeneous reusable catalysts and simple methodology.

Full text of DOI:10.1016/j.electacta.2017.09.035

Accepted Manuscript
Title: Electrochemical Evaluation of Catalytic Activity of
Various Types of LDH/Mo V -Pd: Application of
1
0
2
FeNi/Mo V -Pd as an Efficient and Reusable Nano Catalyst
1
0
2
in the Heck Coupling Reactions
Authors: Ezzat Rafiee, Masoud Kahrizi, Fatemeh Farjami,
Parisa Dorraji
PII:
S0013-4686(17)31905-9
DOI:
Reference:
http://dx.doi.org/10.1016/j.electacta.2017.09.035
EA 30234
To appear in:
Electrochimica Acta
Received date:
Revised date:
Accepted date:
30-5-2017
26-7-2017
6-9-2017
Please cite this article as: {http://dx.doi.org/
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

Electrochemical Evaluation of Catalytic Activity of Various Types of LDH/Mo10
2
V -Pd: Application of
FeNi/Mo10 -Pd as an Efficient and Reusable Nano Catalyst in the Heck Coupling Reactions
V
2
Ezzat Rafieea,b*, Masoud Kahrizi , Fatemeh Farjami , Parisa Dorraji
a
c
a
aFaculty of Chemistry, Razi University, Kermanshah, 67149, Iran
bInstitute of Nano Science and Nano Technology, Razi University, Kermanshah, 67149, Iran
Department of Chemistry, Marvdasht Branch, Islamic Azad University, Marvdasht, Iran
c
*
Corresponding author: Tel/Fax: +98 83-34274559; E-mail: e.rafiei-razi.ac.ir, Ezzat_rafiee-yahoo.com
1

Abstract
Palladium nano particles deposited on various forms of layered double hydroxide intercalated 10-molybdovanado
phosphate (M(III)M(II)/Mo10 -Pd) were synthesized. Their electrocatalytic behavior and collaboration of all
components of synthesized catalysts were evaluated in Heck coupling reaction. According to the obtained results from
electrochemical and catalytic investigations, FeNi/Mo10 -Pd was chosen as the best in term of productivity. The
structural features of FeNi/Mo10 -Pd were characterized by SEM, EDX, TEM, FT-IR, XRD, ICP-AES, LSV,
chronoamperometry and CV analyses. The presence of Mo10 improved the catalytic activity of FeNi-Pd in the Heck
coupling reaction. Also collaboration of Pd and Mo10 with FeNi LDH as a support was studied. This reusable solid
V
2
V
2
V
2
V
2
V
2
catalyst exhibited excellent activity and the methodology is applicable to diverse substrates providing good to excellent
yields of desired products. This method has advantages of high yields, low reaction times, elimination of ligand and
base, heterogeneous reusable catalysts and simple methodology.
Keywords: Layered double hydroxide; ; ; ; , Polyoxometalate, Palladium, Cyclic voltammetry, Linear sweep
voltammetry.
1
.
Introduction
Recently, layered double hydroxides (LDH) intercalated by POM have attracted a lot of attention as a potentially
important class of materials [1-3]. The general formula for LDH is [M2+(1-x)M3+
(OH) ] A x/n.mH O, in which
x+ n-
x 2 2
divalent cations are partially substituted for trivalent ones. The layers have positive charges that are balanced by the
interlayer anions. The most unique characteristics of LDH are their anion exchange features so that a wide variety of
interlamellar anions can exchange with other anions which are in LDH structures [4].
Polyoxometalates (POM) are a unique class of molecular metal-oxygen clusters which have remarkable behaviors
in various fields including catalysis, electrocatalysis, medicine and material sciences [5-7]. Most POMs are structures
constituted of early transition-metal elements in their highest oxidation states. Their anionic forms, due to their
electron and proton transfer and/or storage abilities, can be an efficient donors or acceptors of several electrons without
any changes in their structural features. This charge transfer ability makes POMs as ideal candidates for electron
exchange reactions. Their redox behaviors depend on their structure and other components which are in contact with
them. POMs are reported to adsorb in or on various solid materials and this property has recently been exploited for
study on the collaboration comport of POM and these solid materials [8-14].
Exchange of interlayer anions with POMs to prepare POM-LDH intercalates is very important because the
products find unusual properties which make them ideal options in various field of science specially in catalyst
2

industry. These interesting materials have properties of both POM anions and LDH and can present amazing properties
as efficient catalysts in many organic reactions.
One of the most important fields of organic transformations is cross coupling reactions which are generally
considered to be homogeneous reaction most commonly catalyzed by soluble Pd (II) species with a variety of ligands,
such as palladium-phosphine complexes [15], oxime palladacycles [16], palladium-salen complexes [17], or
palladium-N-heterocyclic carbine complexes [18]. However, separation of the expensive catalyst from the product for
reusing is often problematic in these homogeneous systems. Moreover, aggregation and precipitation of palladium
metal in the homogeneous systems always leads to lost activity of the catalysts. Thus heterogeneous catalysts are
highly desirable, especially in large-scale synthesis, from both environmental and economic aspects. Much efforts has
been paid to developing heterogeneous catalytic systems that can be efficiently reused [19].
Today, growing studies have been performed on the use of POMs in the cross coupling reactions [9, 20, 21]. The
electronic structure of Pd is one of the main factors that influences on the catalytic activity of Pd catalysts in the
coupling reactions [22-25]. The oxidative addition and reductive elimination steps of coupling cycles are intensively
impressed by the electrocatalytic properties of Pd catalyst. Therefore, the presence of species that affects the electronic
properties of Pd can change the electrocatalytic properties of Pd and its efficiency in the coupling reaction. Because
of the electron transfer ability of POMs [26-28], these compounds can act as efficient donors or acceptors of several
electrons to/from Pd species [29]. Such reversible charge transfer ability of POMs with Pd, cause influence on the
catalytic activity of the Pd in the coupling reactions. The unique results for coupling reactions catalyzed by palladium
and POM systems encourage us to investigate the collaboration of the systems composed of Pd and POM species.
In order to develop a green and efficient protocol based on the use of POMs in organic synthesis [11-14] and
emanating from the interest in Pd catalyzed cross-coupling reactions [14, 30, 31] the present study evaluates the
catalytic activity and electrochemical behavior of M(III)M(II)/Mo10
FeNi/Mo10 -Pd shows the best catalytic activity. A low amount of FeNi/Mo10
which reduces costs because of recyclability and increase efficiency in Heck reaction.
V
2
-Pd in Heck coupling reaction. In this system,
V
2
V
2
-Pd is used as an efficient catalyst,
2
.
Experimental Section
2
.1. General remarks
All of the reagents were commercially available and purchased from Merck, Fluka, and Aldrich chemical
companies. Transmission electron microscopy (TEM) analyse was investigated using a TEM microscope Philips CM
1
20 KV Netherland. Scanning electron diffraction microscopy (SEM) was performed using an SU3500 microscope
3

with scanning range from 0 to 20 keV. Electron dispersive X-ray spectroscopy (EDX) measurements were made with
an IXRF model 550i attached to SEM. SEM/EDX samples were prepared by coating of solid particles into a
conductive layer. X-ray diffraction (XRD) patterns were recorded on Inel French, EQUINOX 3000 model X-ray
diffractometer using Cu-K radiation. Fourier transform infrared spectroscopy (FT-IR) spectra were recorded with KBr
pellets using a Bruker ALPHA FT-IR spectrometer. The Pd and Mo contents were evaluated using inductively coupled
plasma atomic emission spectroscopy (ICP-AES) on a Spectro Ciros CCD spectrometer. The electrochemical
behaviors of the catalyst were measured using computer controlled m-Autolab modular electrochemical system
(
(
SAMA500 ElectroAnalyzer system). Thin layer chromatography (TLC) on precoated silica gel Fluorescent 254 nm
0.2 mm) on aluminum plates was used for monitoring the reactions. The cross coupling products were characterized
1
by their H NMR spectra.
2
.2. Preparation of M(III)M(II) LDH
2 3
To prepare M(III)M(II) LDH, an aqueous solution of NaOH and Na CO (100 ml alkaline solution, 0.32 g
Na
2 3
CO , 0.48 g NaOH)) was slightly added to a mixture of M(III) and M(II) metal nitrate aqueous solution
−1
(
M(II)/M(III) = 3.0 mol mol ) at 70°C under vigorous stirring and N atmosphere. The addition of alkaline solution
2
was continued until the solution pH was adjusted to 10.0. The resulting material was then aged at 90°C for 12 h. The
obtained precipitate was cooled to room temperature and separated by filtration, then washed with distilled water
several times and dried at 100°C for 24 h.
2
.3. Preparation of M(III)M(II)-Pd
2
In order to prepare M(III)M(II)-Pd, 255 ml PdCl aqueous solution (0.008 M) was prepared. Then 0.5 g
M(III)M(II) LDH was added into mentioned solution and its pH was adjusted to 10.0 by addition of 0.1 M NaOH.
The solution was heated to 80°C in water bath under stirring for 1 h. The resulting slurry was separated, followed by
-
washing with deionized water until no Cl remained and dried at 60°C for 24 h to produce M(III)M(II)-Pd.
2
.4. Preparation of M(III)M(II)/Mo10
The anion exchange reactions with [PMo10
solution (0.0035 M) to a suspension of M(III)M(II)-Pd (1.00 g) under N
2
V -Pd
5-
V
2
O
40] (Mo10
V
2
) anions were done with addition of 50 mL of Mo10
V
2
2
2
atmosphere. The mixture was kept under N
and refluxed in the temperature range of 90-95°C for 10 h. The resulting solid was filtered and washed with boiling
water three times, and then dried in vacuum.
2
.5. Electrode Preparation
4

LDH based structure modified carbon paste electrodes (CPE) were fabricated by mixing powder graphite, LDH
based structure, and paraffin oil thoroughly until a paste was obtained. The resulting paste was loaded into the tip of
a micropipette (4 cm long, 0.01 cm diameter) with Cu wire serving as an electrical connection. Each time an
experiment was performed, the electrode was refreshed by forcing out the used paste, loading a fresh paste and
smoothening the surface by polishing on a weighing paper. To investigate electrochemical features of synthesized
catalysts, the prepared electrode was inserted in three electrodes chemical cell composed of saturated calomel
electrode (SCE) and platinum counter electrode.
2
.6. General procedure for the Heck coupling reaction
In a typical procedure, a reaction vessel was charged with aryl halide (4.0 mmol), styrene (4.0 mmol),
tetrabutylammonium bromide, TBAB (4 mmol), 0.02 g of FeNi/Mo10
2
V -Pd (mmol Pd/mmol Substrate: 0.0035) and
5
mL dimethyl formamide (DMF). The resulting mixture was refluxed at 120°C under dry nitrogen atmosphere for
appropriate time. Progress of the reaction was monitored by TLC. Upon completion of the reaction, the solution was
allowed to cool, and catalyst was separated by centrifuging, washed with diethyl ether (2×10 mL), water (2×10 mL),
and then dried under vacuum for reusing. The residual mixture was extracted with diethyl ether and the organic phase
1
separated. The solvent was evaporated and the crude products were characterized by H NMR spectroscopy.
.
3
.
Results and Discussion
2
A series of M(III)M(II)/Mo10V -Pd was synthesized and used as nano catalyst for the Heck coupling reaction under
base and ligand free conditions.

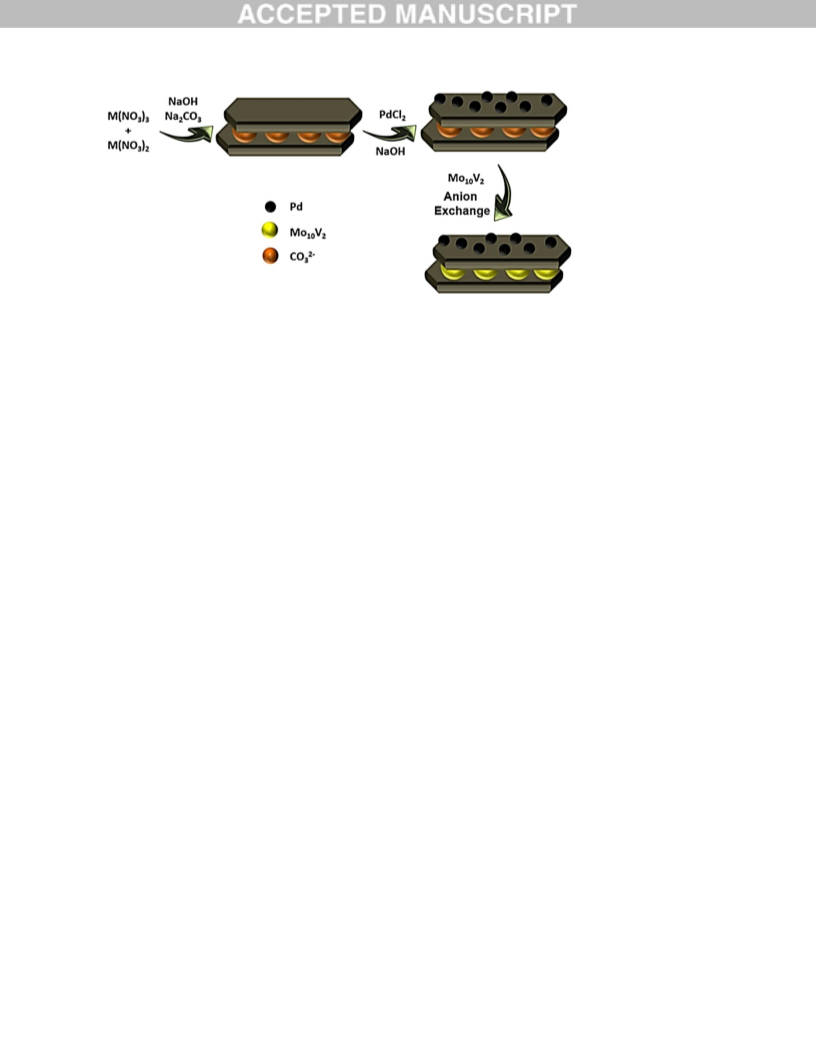

The synthetic route for the synthesis of the designed heterogeneous catalysts is presented in Scheme 1. The
M(III)M(II)/Mo10 -Pd was synthesized by using a method that comprise the separated synthesis of M(III)M(II) LDH,
deposition of Pd nano particles on M(III)M(II) LDH and intercalation of Mo10 in M(III)M(II)-Pd structure.
A series of catalysts including FeNi/Mo10 -Pd, AlCo/Mo10 -Pd, AlNi/Mo10 -Pd, AlZn/Mo10
FeZn/Mo10 -Pd and FeNiPd/Mo10 was applied to the transformation of bromobenzene and styrene into
V
2
V
2
V
2
V
2
V
2
2
V -Pd,
V
2
V
2

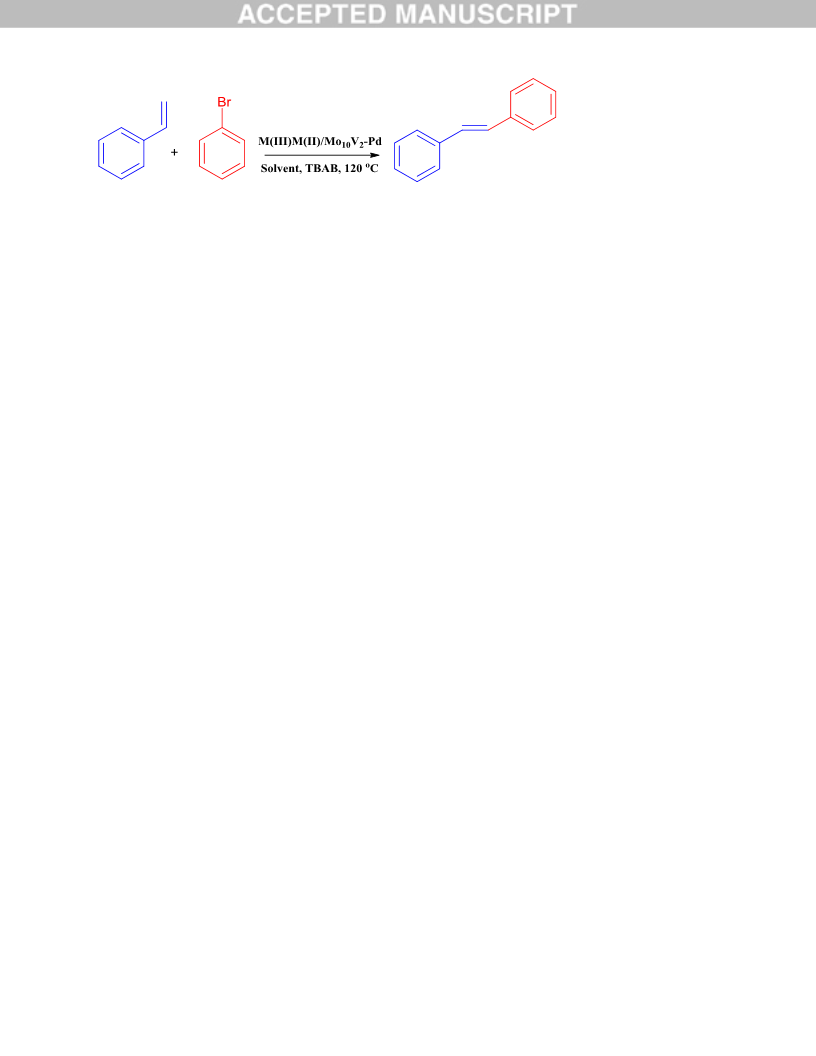

corresponding product (Scheme 2 and Table 1).
2
According to the obtained results from Table 1, FeNi/Mo10V -Pd (entry 1) can catalyze the Heck reaction
efficiently and the corresponding product was obtained in excellent yield at short reaction time. To compass the reason
of better performance of FeNi/Mo10 -Pd compare with other catalysts and relationship between LDH, Pd and Mo10V
2
V
2
species in the Heck coupling reactions the electrochemical behavior of aforementioned catalysts were investigated.
5

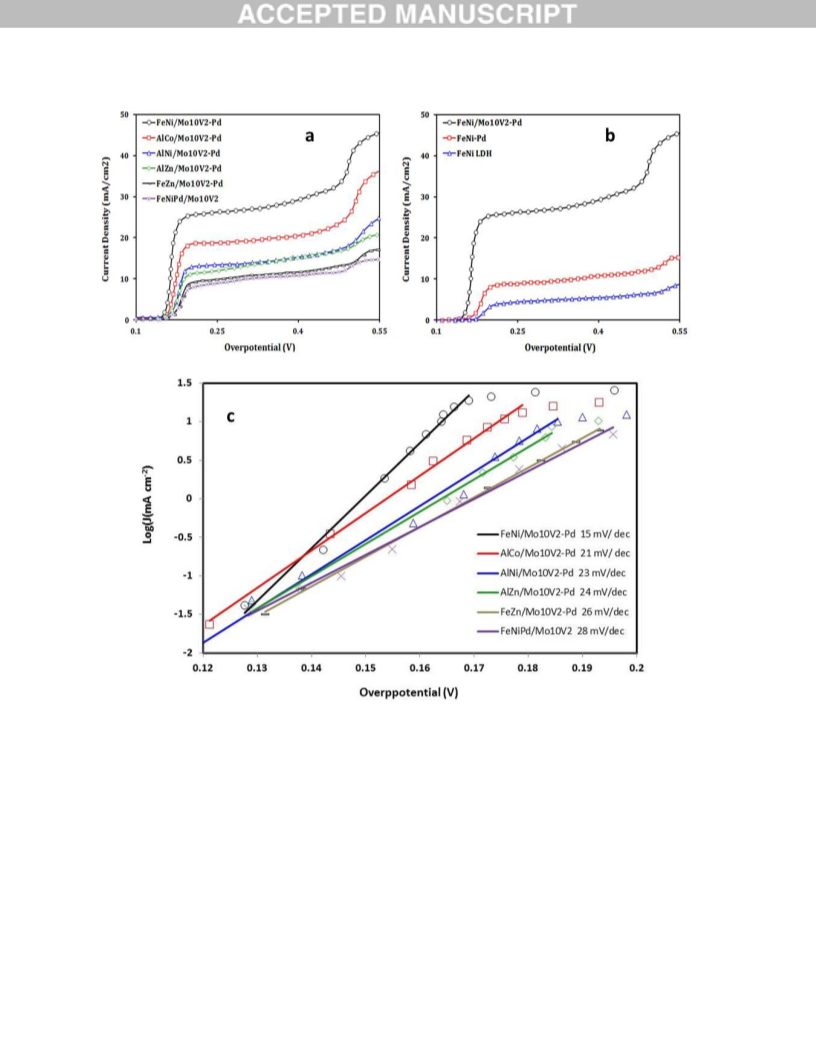

The linear sweep voltammetry (LSV) curves in Fig. 1a confirm the electrocatalytic performance of series of
synthesized LDHs. As shown in Fig. 1a, the onset overpotential of FeNi/Mo10 -Pd is 0.155 V while it is 0.163, 0.167,
.169, 0.174 and 0.178 V for AlCo/Mo10 -Pd, AlNi/Mo10 -Pd, AlZn/Mo10 -Pd, FeZn/Mo10 -Pd and
FeNiPd/Mo10 respectively. The current density at 0.19 V for FeNi/Mo10 -Pd is 23.94 mA, which is higher than
that for other catalysts. In comparison to FeNi-Pd and FeNi LDH, FeNi/Mo10 -Pd delivers substantially higher
electrocatalytic activity showing that the synergistic effect of Mo10 , FeNi LDH and Pd species which can greatly
improve the electrocatalytic activity of Pd (Fig. 1b). As resulted from Fig. 1b, the onset overpotential of FeNi/Mo10
Pd negatively shifts to lower potentials, which is significantly smaller than FeNi-Pd and FeNi LDHs. Thus, the
presence of Mo10 in the FeNi/Mo10 -Pd structure cause improves the electrocatalytic activity of the catalyst in
V
2
0
V
2
V
2
V
2
V
2
V
2
V
2
V
2
V
2
2
V -
V
2
V
2
terms of both the onset overpotential and current density, highlighting the importance of the presence of Mo10
2
V in
catalyst structure.
The Tafel slope is often used as a primary activity parameter in determining the catalytic activity. A catalyst with
a high charge transfer ability should possess a low Tafel slope value [32]. As shown in Fig 1c, the low Tafel slope of
-
1
1
5 mV dec obtained for FeNi/Mo10
V
2
-Pd catalyst. Obviously, the Tafel slope for FeNi/Mo10
V
2
-Pd catalyst is smaller
than other slopes which means that more facile electron transfer through the layer of FeNi/Mo10
occurred.
V
2
-Pd catalyst was
To understand the reason behind the variation of catalytic performance of LDH based catalysts in Heck coupling
reaction, electrochemical active surface areas (ECSA) of synthesized catalysts were investigated using cyclic
voltammetry (CV) in pH=5 of 0.1 M phosphate buffer solution (PBS). In order to evaluate the ECSA of a series of the
synthesized catalysts, the attributed palladium redox peaks as a main catalyst were used. The typical CV curves of the
c a
catalysts with different scan rates are presented in Fig. 2. By plotting the ΔJ=(J -J ) which corresponded to catalysts
versus SCE against the scan rate, the linear slope can be used to represent the attributed ECSA [33-35]. ECSA is a
very important factor for catalysts in electrochemical reactions, as it is well known that an increase of active surface
area often leads to enhancement of the catalytic activity.
−2
ECSA of FeNi/Mo10
FeNi/Mo10 -Pd has a more electroactive surface than others (Fig. 2). This can contribute to enhancement of catalytic
activity of FeNi/Mo10 -Pd in Heck coupling reactions presented in Table 1.
2
Also, in order to investigate the effect of Mo10 on the catalytic activity of FeNi/Mo10V -Pd, the electrocatalytic
2
V -Pd is 0.0628ꢀmAꢀcm , while other catalysts have a lower linear slope which means
V
2
V
2
V
2
behaviors of FeNi/Mo10
V
2
-Pd and FeNi-Pd were investigated in 0.1 M pH=5.0 PBS by CV (Fig. 3). The cyclic
6

voltammogram of FeNi LDH shows the redox current peaks in the potential range of 0.05 to 0.3 V, which correspond
to the reversible reactions of Ni(II)/Ni(III or IV) for all the LDH samples [36]. After deposition of Pd nanoparticles
on the surface of FeNi LDH, in the potential range of 0.1 to 0.4 V, the Pd(0)/Pd(II) redox waves are well-separated
from FeNi LDH redox waves in -0.02 to 0.1 V. After intercalation of Mo10
were observed for FeNi/Mo10 -Pd modified electrode. It can be attributed to electron-transfer reaction of
Mo(V)/Mo(IV), Mo(IV)/Mo(III), and V(V)/V(IV) couples. Mo10 with reversible charge transfer ability to/from Pd
species cause influence on the catalytic activity of the Pd. The obtained results from the comparison of cyclic curves
of FeNi/Mo10 -Pd and FeNi-Pd demonstrated that the presence of Mo10 not only enhanced the oxidation peak
current of FeNi-Pd but also decreased its oxidation peak potential from 0.34 to 0.25 V, suggesting that the
electrochemical oxidation strength of FeNi-Pd was facilitated by presence of Mo10 . The reproducibility of
differences was tested by consecutive scans at constant conditions. The RSD for all differences was evaluated below
.0%. These results demonstrate that all of the measurements are nearly identical with constant response, indicating
that the amount of differences has extraordinary reproducibility.

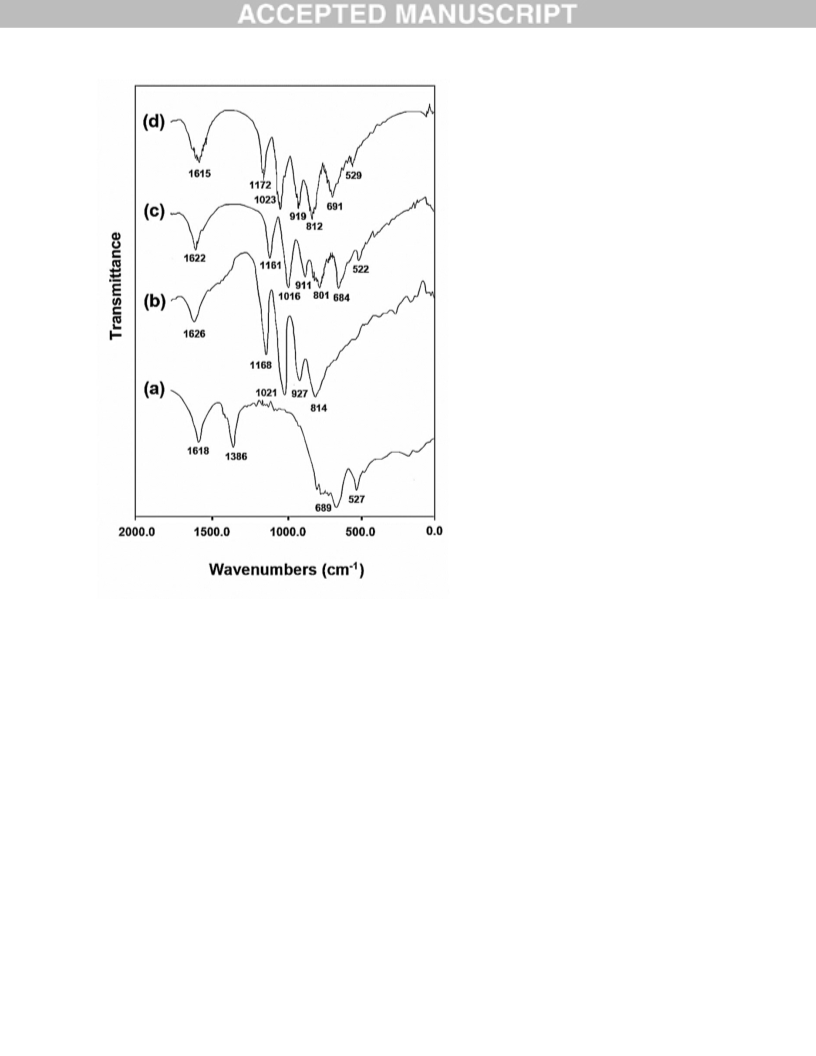

The FT-IR spectra of FeNi LDH, Mo10 , FeNi/Mo10 -Pd and recovered FeNi/Mo10
The absorption bands at 527 and 689 cm attributed to the M-O vibration modes of LDH structure (curve a). The
2
V in the catalyst, three pairs of redox peaks
V
2
V
2
V
2
V
2
V
2
6
V
2
V
2
2
V -Pd illustrated in Fig. 4.
-
1
-
1
infrared band around 1618 cm can be attributed to the hydroxyl deformation mode of the interlayer water molecules.
-
1
2-
Also, the characteristic absorption around 1386 cm , corresponding to intercalated CO
3
was observed. The existence
(curve b). The
2
occurred at 1168, 1021, 927 and 814 cm . FT-IR spectra of
of Mo10
bands for the Keggin structure of neat Mo10
FeNi/Mo10 -Pd in addition of FeNi LDH peaks at 522 and 684 cm , shows the presence of Keggin-type structure at
161, 1016, 911 and 801 cm which is in agreement with the results reported previously (curve c) [14]. It is notable
V
2
in the catalyst structure was investigated by presentation of FT-IR spectrum of the Mo10V
2
-
1
V
-
1
V
2
-
1
1
-
1
that, the peaks at about 1386 cm which confirm the presence of carbonates in LDH structure disappeared in the
FeNi/Mo10 -Pd sample, suggesting that the anion exchange was complete.
V
2

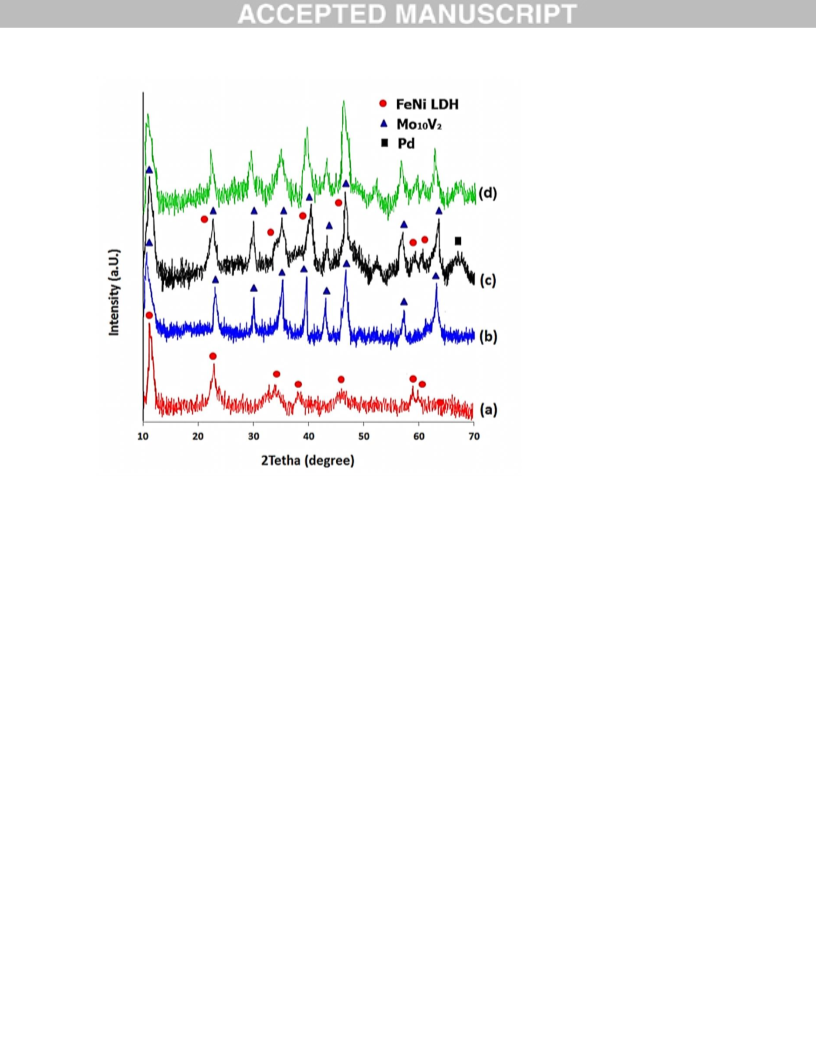

In XRD pattern of FeNi LDH, reflexion peaks at 2θ of 11.2, 22.1, 33.9, 38.7, 46.02, 59.3 and 60.01° can be
indexed to (003), (006), (009), (015), (018), (110) and (113) facets of LDH which are characteristics of FeNi LDH
(
Fig. 5. pattern a) [37]. The presence of Mo10
of the Mo10 (pattern b). After pillaring of Mo10
Pd (pattern c) shows a characteristic band of LDH layer in addition of Mo10
V
2
inthe catalyst structure was confirmed by presentation of XRD pattern
into the LDH structure, the reflexion pattern of the FeNi/Mo10
reflexions. Moreover, pattern c, after
V
2
V
2
2
V -
V
2
the Pd immobilization processes indicates the presence of Pd nano particles on the layers of LDH. Pd(0) nano particles
7

in the catalyst have crystalline structure with peak appearing at 67.92° attributed to the (220) planes of Pd crystalline
structure {JCPDS-05-0681}.
The structure morphology of the fabricated FeNi/Mo10
SEM images show that the fresh FeNi/Mo10 -Pd has well developed with layered structures (Fig. 6a-c, e). The SEM
images of the catalyst demonstrated that, Pd nano particles are deposited on layers of the catalyst. Also the EDX
mapping analysis of FeNi/Mo10 -Pd is shown in Fig. 6f-i, which indicated that the Pd nano particles are deposited
on the surface of the FeNi LDH structure and Mo10 are homogeneously distributed throughout the layers of LDH
structure. Elementary analysis of the surface is further studied by using EDX. EDX pattern of the FeNi/Mo10 -Pd is
shown in Fig. 6k. EDX pattern of the catalyst shows major peaks of Ni, Fe, Mo and V. These results confirm the
presence of FeNi LDH, Mo10 and Pd nano particles on the surface of the synthesized catalyst.
The amount of Pd content on the surface of FeNi/Mo10 -Pd as a main catalyst was 7.49 wt%, which was
determined using ICP-AES measurement. Also according to the obtained results from ICP-AES measurement the
content of Mo was 7.19 23.64 wt% indicated that the amount of Mo10 in FeNi/Mo10 -Pd structure was 42.81 wt%.
The detailed morphology and structure of FeNi/Mo10 -Pd were further studied using TEM, as shown in Fig. 7.
2
V -Pd was characterized by SEM-EDX analyses (Fig. 6).
V
2
V
2
V
2
V
2
V
2
V
2
V
2
V
2
V
2

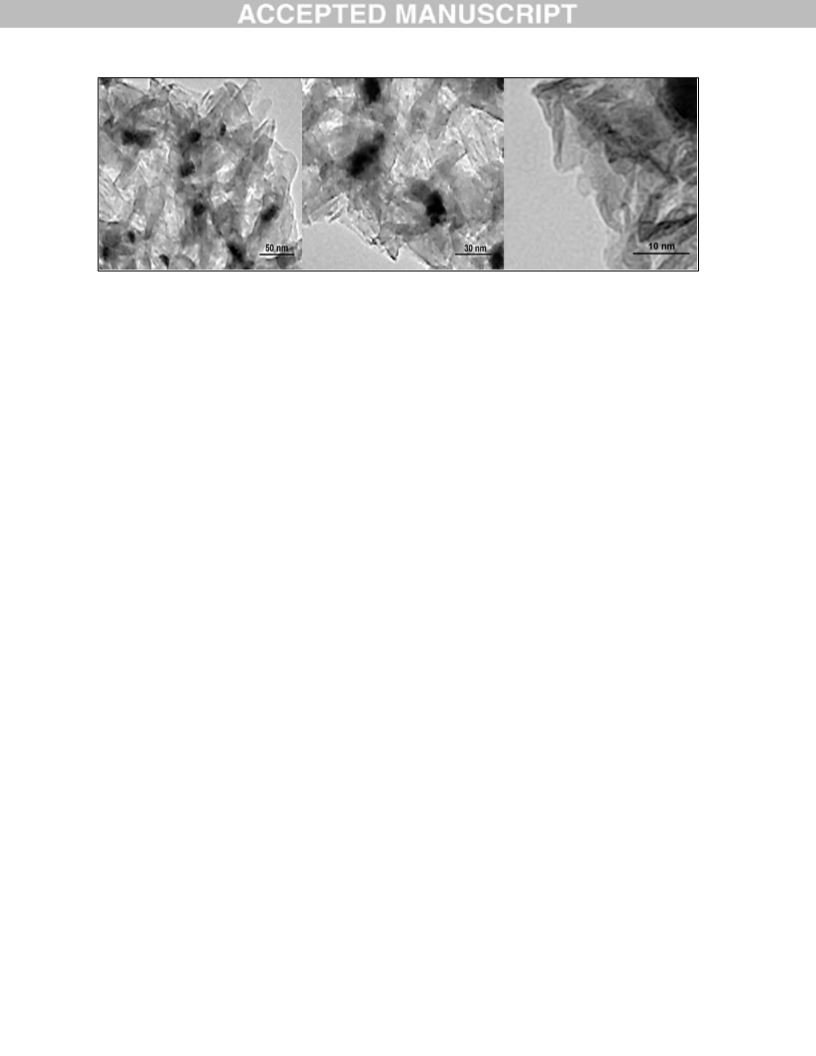

The TEM images of catalyst show the characteristic thin nano sheet of FeNi LDH structure. In addition, the TEM
investigations indicated that the Pd nano particles were deposited on the surface of LDH nano sheets with nanometer
size range smaller than 40 nm.
In the Heck coupling reaction a variety of parameters, such as catalyst amount and solvent can influence on the
reactivity of the reactions. In this study, the FeNi/Mo10
reaction of bromobenzene, and styrene (Scheme 2). So, initially, the reaction was performed in the presence of various
solvents, such as H O, dimethyl acetamid (DMAc), dimethyl formamide (DMF) and mixture of DMF and H O. (Table
, entries 1-4). DMF at 120°C is the best choose in terms of yield and reaction time (entry 1).
It is notable that, the presence of TBAB in the Heck reaction is necessary. One of the most effective ways to
increase the Heck reaction yield is applying the Jeffery conditions, i.e. introduction of TBAB to the reaction medium
38]. In the Heck coupling reaction TBAB can act as stabilizers of Pd colloids, preventing their aggregation to the
2
V -Pd was investigated as catalyst in the model Heck coupling
2
2
2
[
bigger size particles, usually inactive or less active [39, 40]. Also the TBAB can role as phase-transfer agents in this
coupling reaction [38, 41, 42].
One of the most important factors that affected on catalysts efficiency in electrochemical reactions is their
2
electrostability. As expected, the current density of FeNi/Mo10V -Pd is larger than other catalysts. In addition, the slop
8

of current decadence for FeNi/Mo10
indicated that FeNi/Mo10 -Pd has better electrochemical catalytic activity and stability. As shown in Fig. 8b,
FeNi/Mo10 -Pd exhibited a slower current decay over time than the FeNi-Pd and FeNi LDH. It is notable that the
presence of Mo10 in catalyst structure, significantly improves its electrocatalytic activity, as well as stability.
Next, different amounts of FeNi/Mo10 -Pd, were employed to improve the productivity of the reaction. An
excellent yield was found with 0.02 g of FeNi/Mo10 -Pd (Table 2, entry 1) at 120°C after 9 h. Using less amount of
FeNi/Mo10 -Pd led to lower yield and further increasing in the catalyst quantity showed no improvement on the
2
V -Pd is lower than that for other LDH based catalysts (Fig. 8a). These results
V
2
V
2
V
2
V
2
V
2
V
2
reaction time and yield (Table 2, entries 5, 6).
One of the purposes for designing this heterogeneous system is the ability of recycling of the catalyst for reusing
in subsequent reaction runs. To study the recyclability of the catalyst, the reaction of bromobenzene with styrene as a
2
model reaction in the presence of 0.02 g FeNi/Mo10V -Pd was used. After the completion of the reaction, the mixture
from the first-run reaction was centrifuged, and the obtained solid was washed alternately with suitable solvent. After
drying, the recovered catalyst was then reused in the same reaction under identical conditions. The catalyst revealed
a remarkable activity and was reused up to at least four consecutive cycles without any significant decrease in the
catalytic activity of the catalyst. At the fourth reaction runs, the yield of the product decreased from 89 to 78% after
fourth runs.
2
The structural changes of FeNi/Mo10V -Pd after the reaction process were studied using FT-IR, XRD and SEM
techniques. The obtained results demonstrated that the structure of the catalyst was retained unchanged after the
reaction cycle and reusing process (Fig. 4d, Fig. 5d and Fig. 6d).
4
.
Conclusion
2
The present study reported the synthesis and utilization of a series of LDH based catalysts including FeNi/Mo10V -
Pd, AlCo/Mo10
reaction. Among aforementioned catalysts, FeNi/Mo10
reaction. The presence of Mo10 in the catalyst structure is essential for obtaining high performances of the catalyst;
most probably it can activate precursors of the reaction and transfer the electron to Pd species that facilitate the
regeneration of Pd species in the reductive elimination step. The structure of FeNi/Mo10 -Pd was characterized by
V
2
-Pd, AlNi/Mo10
V
2
-Pd, AlZn/Mo10
V
2
-Pd, FeZn/Mo10
2 2
V -Pd and FeNiPd/Mo10V in the Heck coupling
V
2
-Pd seems more efficient than others in Heck coupling
V
2
V
2
FT-IR, XRD, ICP-AES, TEM, SEM, EDX, CV, LSV and chronoamperometry analyses techniques. Of significant
practical importance are the findings of excellent activity and the ability to readily recover and reuse the catalyst with
no apparent loss of activity.
9

Acknowledgment
The authors thank the Razi University Research Council and Iran National Science Foundation (INSF) for support of
this work.
References
[
1] T. Kwon, T.J. Pinnavaia, Pillaring of a layered double hydroxide by polyoxometalates with Keggin-ion structures,
Chem. Mater. 1 (1989) 381-383.
[
2] S.K. Yun, T.J. Pinnavaia, Layered double hydroxides intercalated by polyoxometalate anions with Keggin (α-
406-), Dawson (α-P 626-), and Finke (Co 10-) structures, Inorg. Chem. 35 (1996) 6853-
H
2
W
12
O
2
W
18
O
4 2 2 9 34 2
(H O) (PW O )
6
860.
3] M.R. Weir, J. Moore, R.A. Kydd, Effects of pH and Mg: Ga ratio on the synthesis of gallium-containing layered
double hydroxides and their polyoxometalate anion exchanged products, Chem. Mater. 9 (1997) 1686-1690.
4] A. De Roy, C. Forano, K. El Malki, J. Besse, M. Occelli, H. Robson, Synthesis of microporous materials, Expanded
Clays and other Microporous Stystems 2 (1992) 108-169.
5] C.L. Hill, Introduction: polyoxometalates multicomponent molecular vehicles to probe fundamental issues and
practical problems, Chem. Rev. 98 (1998) 1-2.
6] B. Keita, L. Nadjo, Polyoxometalate-based homogeneous catalysis of electrode reactions: Recent achievements,
J. Mol. Catal. A: Chem. 262 (2007) 190-215.
[
[
[
[
[
[
7] M.T. Pope, Heteropoly and isopoly oxometalates, Springer Verlag1983.
8] K.C. Pereira, A.L. Porter, S. Potavathri, A.P. LeBris, B. DeBoef, Insight into the palladium-catalyzed oxidative
arylation of benzofuran: heteropoly acid oxidants evoke a Pd(II)/Pd(IV) mechanism, Tetrahedron 69 (2013) 4429-
435.
9] S. Pathan, A. Patel, Heck coupling catalyzed by Pd exchanged supported 12-tunstophosphoric acid-an efficient
ligand free, low Pd-loading heterogeneous catalyst, RSC Adv. 2 (2012) 116-120.
10] S.K. Jana, Y. Kubota, T. Tatsumi, Cobalt-substituted polyoxometalate pillared hydrotalcite: Synthesis and
catalysis in liquid-phase oxidation of cyclohexanol with molecular oxygen, J. Catal. 255 (2008) 40-47.
11] E. Rafiee, S. Sahraei, G.R. Moradi, Extractive oxidative desulfurization of model oil/crude oil using KSF
montmorillonite-supported 12-tungstophosphoric acid, Pet. Sci. 13 (2016) 760-769.
12] E. Rafiee, S. Eavani, Heterogenization of heteropoly compounds: a review of their structure and synthesis, RSC
Adv. 6 (2016) 46433-46466.
4
[
[
[
[
1
0

[
13] E. Rafiee, M. Khodayari, Two new magnetic nanocomposites of graphene and 12-tungestophosphoric acid:
characterization and comparison of the catalytic properties in the green synthesis of 1, 8-dioxo-octahydroxanthenes,
RSC Adv. 6 (2016) 36433-36440.
[
14] E. Rafiee, M. Kahrizi, Mechanistic investigation of Heck reaction catalyzed by new catalytic system composed
of Fe @OA–Pd and ionic liquids as co-catalyst, J. Mol. Liq. 218 (2016) 625-631.
15] I.P. Beletskaya, A.V. Cheprakov, The Heck reaction as a sharpening stone of palladium catalysis, Chem. Rev.
3
O
4
[
1
00 (2000) 3009-3066.
[
16] M. Shibasaki, E. Vogl, The palladium-catalysed arylation and vinylation of alkenes-enantioselective fashion, J.
Organomet. Chem. 576 (1999) 1-15.
17] J. Mo, L. Xu, J. Ruan, S. Liu, J. Xiao, Regioselective Heck arylation of unsaturated alcohols by palladium
catalysis in ionic liquid, Chem. Commun. (2006) 3591-3593.
18] W.A. Herrmann, C. Brossmer, K. Öfele, C.P. Reisinger, T. Priermeier, M. Beller, H. Fischer, Palladacycles as
Structurally Defined Catalysts for the Heck Olefination of Chloro‐and Bromoarenes, Angew. Chem. Int. Ed. (English)
4 (1995) 1844-1848.
19] W.A. Herrmann, V.P. Böhm, C.-P. Reisinger, Application of palladacycles in Heck type reactions, J. Organomet.
Chem. 576 (1999) 23-41.
20] E. Rafiee, S. Eavani, H
recoverable catalyst for three-component Mannich-type reactions in water, Green Chem. 13 (2011) 2116-2122.
21] E. Rafiee, S. Eavani, B. Malaekeh-Nikouei, 12-Tungstophosphoric Acid Immobilized on γ-Fe @SiO
Shell Nanoparticles: An Effective Solid Acid Catalyst for the Synthesis of Indole Derivatives in Water, Chem. Lett.
1 (2012) 438-440.
22] C. Amatore, A. Jutand, Anionic Pd (0) and Pd (II) intermediates in palladium-catalyzed Heck and cross-coupling
reactions, Acc. Chem. Res. 33 (2000) 314-321.
23] M. Lohan, B. Milde, S. Heider, J.M.u. Speck, S. Kraube, D. Schaarschmidt, T. Rꢁffer, H. Lang, Synthesis,
[
[
3
[
[
3 2 3
PW12O40 supported on silica-encapsulated γ-Fe O nanoparticles: a novel magnetically-
[
2
O
3
2
Core-
4
[
[
electrochemistry, spectroelectrochemistry, and solid-state structures of palladium biferrocenylphosphines and their
use in C-C cross-coupling reactions, Organomet. 31 (2012) 2310-2326.
[
24] P.-W. Wang, M.A. Fox, A polymer-bound bidentate-phosphine-palladium complex as a catalyst in the Heck
arylation, J. Org. Chem. 59 (1994) 5358-5364.
1
1

[
25] J.-F. Lefebvre, J.-F. Longevial, K. Molvinger, S. Clément, S. Richeter, Porphyrins fused to N-heterocyclic
carbene palladium complexes as tunable precatalysts in Mizoroki–Heck reactions: How the porphyrin can modulate
the apparent catalytic activity?, C. R. Chim. 19 (2016) 94-102.
[
(
[
26] M. Sadakane, E. Steckhan, Electrochemical properties of polyoxometalates as electrocatalysts, Chem. Rev. 98
1998) 219-238.
27] B. Keita, I.M. Mbomekalle, Y.W. Lu, L. Nadjo, P. Berthet, T.M. Anderson, C.L. Hill, Electron Transfer Behavior
of Multi‐Iron Sandwich‐Type Polyoxometalates and Electrocatalytic Reduction Reactions, Eur. J. Inorg. Chem. 2004
(
[
2004) 3462-3475.
28] A.M. Khenkin, G. Leitus, R. Neumann, Electron Transfer− oxygen transfer oxygenation of sulfides catalyzed by
the H
5 2
PV Mo10O40 polyoxometalate, J. Am. Chem. Soc. 132 (2010) 11446-11448.
[
29] R.N. Biboum, B. Keita, S. Franger, C.P. Nanseu Njiki, G. Zhang, J. Zhang, T. Liu, I.-M. Mbomekalle, L. Nadjo,
0
Pd @ polyoxometalate nanostructures as green electrocatalysts: illustrative example of hydrogen production,
Materials 3 (2010) 741-754.
[
30] M. Joshaghani, M. Daryanavard, E. Rafiee, J. Xiao, C. Baillie, A highly efficient catalyst for Suzuki coupling of
aryl halides and bromoarylphosphine oxides, Tetrahedron lett. 48 (2007) 2025-2027.
31] M. Joshaghani, E. Faramarzi, E. Rafiee, M. Daryanavard, J. Xiao, C. Baillie, Efficient Suzuki cross-coupling
reactions using bulky phosphines, J. Mol. Catal. A: Chem. 259 (2006) 35-40.
32] S. Anantharaj, S.R. Ede, K. Sakthikumar, K. Karthick, S. Mishra, S. Kundu, Recent trends and perspectives in
[
[
electrochemical water splitting with an emphasis on sulfide, selenide, and phosphide catalysts of Fe, Co, and Ni: a
review, ACS Catal, 6 (2016) 8069-9097.
[
33] C.C. McCrory, S. Jung, J.C. Peters, T.F. Jaramillo, Benchmarking heterogeneous electrocatalysts for the oxygen
evolution reaction, J. Am. Chem. Soc. 135 (2013) 16977-16987.
34] F. Song, X. Hu, Exfoliation of layered double hydroxides for enhanced oxygen evolution catalysis, Nat. Commun.
(2014).
35] W. Ma, R. Ma, C. Wang, J. Liang, X. Liu, K. Zhou, T. Sasaki, A superlattice of alternately stacked Ni–Fe
hydroxide nanosheets and graphene for efficient splitting of water, ACS Nano 9 (2015) 1977-1984.
36] X. Long, J. Li, S. Xiao, K. Yan, Z. Wang, H. Chen, S. Yang, A strongly coupled graphene and FeNi double
hydroxide hybrid as an excellent electrocatalyst for the oxygen evolution reaction, Angew. Chem. 126 (2014) 7714-
718.
[
5
[
[
7
1
2

[
37] T. Iwasaki, H. Yoshii, H. Nakamura, S. Watano, Simple and rapid synthesis of Ni–Fe layered double hydroxide
by a new mechanochemical method, Appl. Clay Sci. 58 (2012) 120-124.
38] T. Jeffery, J.-C. Galland, Tetraalkylammonium salts in Heck-type reactions using an alkali metal hydrogen
carbonate or an alkali metal acetate as the base, Tetrahedron lett. 35 (1994) 4103-4106.
39] H. Bönnemann, R. Brinkmann, R. Köppler, P. Neiteler, J. Richter, A general approach to NR 4⊖‐stabilized metal
colloids in organic phases, Adv. Mater. 4 (1992) 804-806.
40] S. Klingelhöfer, W. Heitz, A. Greiner, S. Oestreich, S. Förster, M. Antonietti, Preparation of palladium colloids
in block copolymer micelles and their use for the catalysis of the Heck reaction, J. Am. Chem. Soc. 119 (1997) 10116-
0120.
41] T. Jeffery, On the efficiency of tetraalkylammonium salts in Heck type reactions, Tetrahedron 52 (1996) 10113-
0130.
[
[
[
1
[
1
1
3

Table 1. Heck coupling reaction in the presence of various catalystsa.
Entry
Catalyst
FeNi/Mo10
AlCo/Mo10
Time (h)
Yield (%)b
1
2
3
4
5
6
V
2
-Pd
9
89
71
42
58
49
17
V
2
-Pd
-Pd
-Pd
-Pd
12
24
24
24
24
FeZn/Mo10
AlNi-Mo10
AlZn/Mo10
V
2
2
2
V
V
FeNiPd/Mo10V
2
aReaction conditions: Styrene (4 mmol), bromobenzene (4 mmol), TBAB (4 mmol), DMF (5 mL) under N
atmosphere
2
at 120°C.
bIsolated yield.
1
4

Table 2. Optimization of Heck coupling reaction conditions.a
Entry
Amount of the Catalyst (g)
Solvent
DMF
Time (h)
Yield (%)b
1
2c
3
0.02
0.02
0.02
0.02
0.01
0.03
9
89
H
2
O
24
24
12
12
9
24
DMAc
62
4
2
DMF/H O (5:1)
71
5
DMF
DMF
68
91
6
aReaction conditions: styrene (4 mmol), bromobenzene (4 mmol), TBAB (4 mmol) under N
bIsolated yield.
atmosphere at 120°C.
2
cThe reaction was proceeded in the reflux condition.
1
5

Table 3. Heck reaction of various aryl halides with styrene.a
Entry
1
Aryl halide
Time (h)
9
Yield (%)b
89
2
3
4
5
8
8
94
88
73
76
14
12
6
7
14
14
64
76
8
14
86
56
9
24
aReaction conditions: styrene (4 mmol), bromobenzene (4 mmol), TBAB (4 mmol), DMF (5 mL) under N
atmosphere
2
at 120°C.
bIsolated yield.
1
6

Figure Captions
2 2
Fig. 1. LSV curves of a) a series of synthesized M(III)M(II)/Mo10V -Pd, b) FeNi/Mo10V -Pd, FeNi-Pd and FeNi
LDH, 40 mV/S.
Fig. 2. Typical CV curves of M(III)M(II)/Mo10
rates and their ΔJ (=J −J ) plotted against scan rates.
Fig. 3. CV curves of FeNi/Mo10 -Pd and FeNi-Pd carbon paste electrode in pH=5 of PBS, 40 mV/S.
Fig. 4. FT-IR spectra of a) FeNi LDH, b) Mo10 , c) FeNi/Mo10 -Pd and d) recovered FeNi/Mo10 -Pd.
Fig. 5. XRD patterns of a) FeNi LDH, b) Mo10 , c) FeNi/Mo10 -Pd and d) recovered FeNi/Mo10 -Pd.
Fig. 6. SEM images of a, c) fresh FeNi/Mo10 -Pd, b) recovered FeNi/Mo10 -Pd, d-g) mapping results of
FeNi/Mo10 -Pd h) EDX images and i) elemental analysis of FeNi/Mo10 -Pd.
Fig. 7. The TEM images of FeNi/Mo10 -Pd.
Fig. 8. Chronoamperometry curves at 0.19 V vs. SCE of a) a series of synthesized M(III)M(II)/Mo10
FeNi/Mo10 -Pd, FeNi-Pd and FeNi LDH.
Fig. 9. Reusability of FeNi/Mo10 -Pd in the model reaction.
Scheme 1. Synthetic route of M(III)M(II)/Mo10 -Pd.
Scheme 2. Reaction of styrene and bromobenzene as a model reaction.
2
V -Pd carbon paste electrode in pH=5 of PBS with different scan
c
a
V
2
V
2
V
2
V
2
V
2
V
2
V
2
V
2
V
2
V
2
V
2
V
2
2
V -Pd and b)
V
2
V
2
V
2
1
7

Fig. 1. LSV curves of a) a series of synthesized M(III)M(II)/Mo10
0 mV/s, c) Tafel plots of synthesized M(III)M(II)/Mo10 -Pd, all of the measurements were performed in 0.1 M
PBS.
2 2
V -Pd, b) FeNi/Mo10V -Pd, FeNi-Pd and FeNi LDH,
4
V
2
1
8

Fig. 2. Typical CV curves of M(III)M(II)/Mo10
2
V -Pd carbon paste electrode in pH=5 of PBS with different scan
rates and their ΔJ (=J −J ) plotted against scan rates.
c
a
1
9

Fig. 3. CV curves of FeNi LDH, FeNi-Pd and FeNi/Mo10
V
2
-Pd carbon paste electrode in pH=5 of PBS, 40 mV/S.
2
0

2 2 2
Fig. 4. FT-IR spectra of a) FeNi LDH, b) Mo10V , c) FeNi/Mo10V -Pd and d) recovered FeNi/Mo10V -Pd.
2
1

2 2 2
Fig. 5. XRD patterns of a) FeNi LDH, b) Mo10V , c) FeNi/Mo10V -Pd and d) recovered FeNi/Mo10V -Pd.
2
2

Fig. 6. SEM images of a-c, e) fresh FeNi/Mo10
FeNi/Mo10 -Pd, j) elemental analysis of FeNi/Mo10
0.0 KV.
V
2
-Pd, d) recovered FeNi/Mo10
V
2
-Pd, f-i) mapping results of
-Pd was performed in
V
2
V
2
-Pd and k) EDX image of FeNi/Mo10V
2
1
2
3

2
Fig. 7. The TEM images of FeNi/Mo10V -Pd.
2
4

Fig. 8. Chronoamperometry curves at 0.19 V vs. SCE of a) a series of synthesized M(III)M(II)/Mo10
2
V -Pd and b)
FeNi/Mo10 -Pd, FeNi-Pd and FeNi LDH.
V
2
2
5

100
8
6
4
2
0
0
0
0
0
1
2
3
4
Run
2
Fig. 9. Reusability of FeNi/Mo10V -Pd in the model reaction.
2
6

2
Scheme 1. Synthetic route of M(III)M(II)/Mo10V -Pd.
2
7

Scheme 2. Reaction of styrene and bromobenzene as a model reaction.
2
8

[
(
42] T. Jeffery, M. David, [Pd/Base/QX] catalyst systems for directing Heck-type reactions, Tetrahedron lett. 39
1998) 5751-5754.
2
9
