Preparation and catalytic property of Pb-Zr mixed oxides for methyl phenyl carbonate disproportionation to synthesize diphenyl carbonate

Article abstract of DOI:10.1016/j.jallcom.2018.09.222

Pb-Zr mixed oxides with 15.2 wt% PbO loading were prepared by four different preparation processes, and their catalytic performances for the disproportionation of methyl phenyl carbonate (MPC) to synthesize diphenyl carbonate (DPC) were evaluated. Physicochemical characterizations including X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), X-ray fluorescence spectroscopy (XRF), BET surface area measurement, H₂-temperature programmed reduction (H₂-TPR), ammonia temperature programmed desorption (NH₃-TPD) and infrared spectroscopy of pyridine adsorption (Py-IR), as well as catalytic tests of MPC disproportionation reaction showed that catalyst preparation process exerted significant influence on the composition, structural property, catalytic performance of obtained catalysts, and the catalyst prepared by co-precipitation method (PbZr-CP) demonstrated better dispersion of active phase, larger specific surface area and more Lewis acid sites on the surface due to the strong interaction of Pb and Zr, and thus exhibited higher catalytic activity than those prepared by other processes.

Full text of DOI:10.1016/j.jallcom.2018.09.222

Accepted Manuscript
Preparation and catalytic property of Pb-Zr mixed oxides for methyl phenyl carbonate
disproportionation to synthesize diphenyl carbonate
Songlin Wang, Hongying Niu, Jianji Wang, Tong Chen, Gongying Wang
PII:
S0925-8388(18)33462-5
10.1016/j.jallcom.2018.09.222
JALCOM 47641
DOI:
Reference:
To appear in: Journal of Alloys and Compounds
Received Date: 16 February 2018
Revised Date: 9 August 2018
Accepted Date: 18 September 2018
Please cite this article as: S. Wang, H. Niu, J. Wang, T. Chen, G. Wang, Preparation and catalytic
property of Pb-Zr mixed oxides for methyl phenyl carbonate disproportionation to synthesize diphenyl
carbonate, Journal of Alloys and Compounds (2018), doi: https://doi.org/10.1016/j.jallcom.2018.09.222.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT

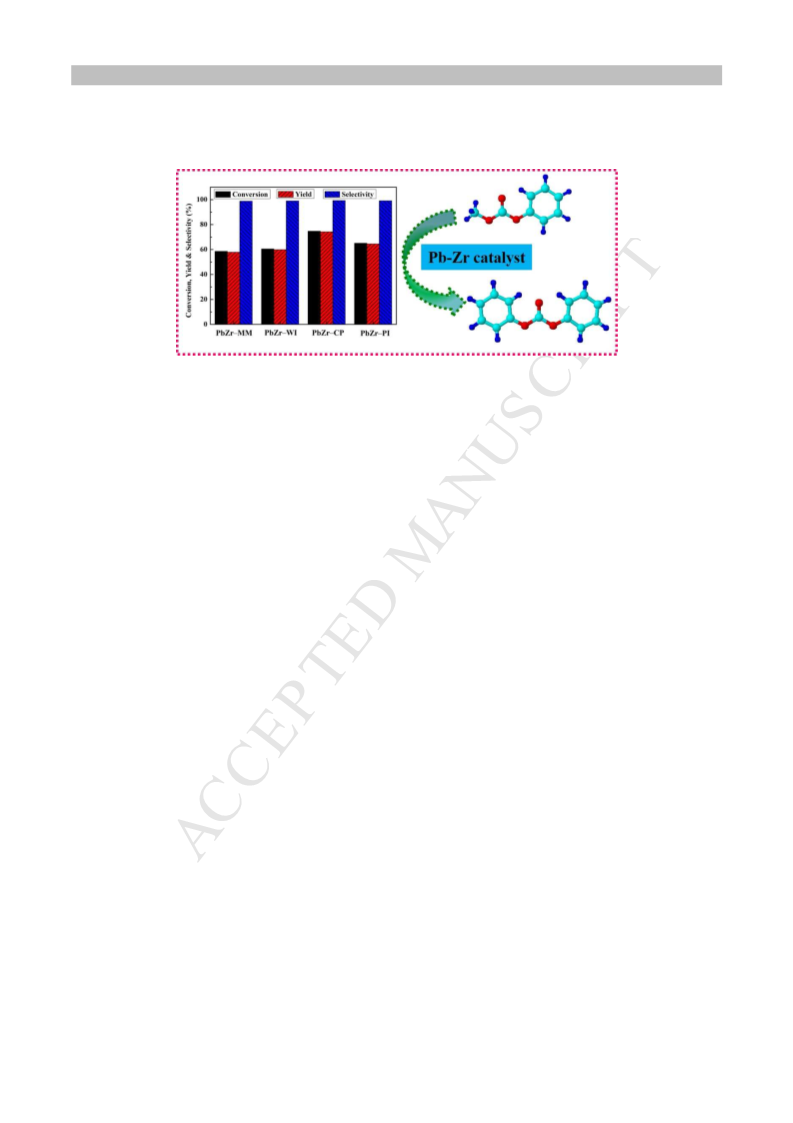

Graphical Abstract

ACCEPTED MANUSCRIPT
Preparation and catalytic property of Pb-Zr mixed oxides for methyl
phenyl carbonate disproportionation to synthesize diphenyl
carbonate
a, b
a
b
c, ∗
c
Songlin Wang , Hongying Niu , Jianji Wang , Tong Chen , Gongying Wang
a
Postdoctoral Research Base, School of Chemistry and Chemical Engineering, Henan
Institute of Science and Technology, Xinxiang 453003, China
b
Postdoctoral Programs, School of Chemistry and Chemical Engineering, Henan
Normal University, Xinxiang 453007, China
c
Chengdu Institute of Organic Chemistry, Chinese Academy of Sciences, Chengdu
6
10041, China
Corresponding author. Tel.: +86 028 85250005; fax: +86 028 85220713.
E–mail: chentongw@sina.com.cn (Tong Chen)
Abstract: Pb-Zr mixed oxides with 15.2 wt% PbO loading were prepared by four
different preparation processes, and their catalytic performances for the
disproportionation of methyl phenyl carbonate (MPC) to synthesize diphenyl
carbonate (DPC) were evaluated. Physicochemical characterizations including X-ray
diffraction (XRD), X-ray photoelectron spectroscopy (XPS), X-ray fluorescence
spectroscopy (XRF), BET surface area measurement, H -temperature programmed
2
reduction (H -TPR), ammonia temperature programmed desorption (NH -TPD) and
2
3
infrared spectroscopy of pyridine adsorption (Py-IR), as well as catalytic tests of MPC
disproportionation reaction showed that catalyst preparation process exerted
significant influence on the composition, structural property, catalytic performance of
obtained catalysts, and the catalyst prepared by co-precipitation method (PbZr-CP)
demonstrated better dispersion of active phase, larger specific surface area and more
Lewis acid sites on the surface due to the strong interaction of Pb and Zr, and thus
exhibited higher catalytic activity than those prepared by other processes.
Keywords: diphenyl carbonate; methyl phenyl carbonate; disproportionaton; Pb-Zr
catalyst
1

ACCEPTED MANUSCRIPT
1
. Introduction
Diphenyl carbonate (DPC), an important and eco-friendly chemical intermediate,
was mainly used for the phosgene-free preparation of polycarbonates (PC) by a melt
polymerization process, and also was often utilized in the synthesis of various organic
compounds and polymer materials [1-4]. Nowadays, the transesterification of
dimethyl carbonate (DMC) and phenol has attracted a great deal of attention as one of
the most promising and suitable approach for DPC commercial production, due to no
employment of the hazardous phosgene [5, 6]. Generally, this route has been
recognized to be a two-step process. Firstly, methyl phenyl carbonate (MPC) was
generated by the transesterification of phenol and DMC (Scheme 1, Eq. (1)). Secondly,
DPC was produced by the disproportionation of MPC (Scheme 1, Eq. (2)) or the
further transesterification of phenol and MPC (Scheme 1, Eq. (3)), but the equilibrium
o
–5
o
constants K (0.19, 25 C) and K (1.2×10 , 25 C) showed that DPC was mainly
2
3
generated through MPC disproportionation rather than the further transesterification
7-10]. For the two-step reaction, the first step was the rate-controlling step, owing to
[
–
5
o
K (6.3×10 , 25 C) much smaller than K , even at elevated temperatures. Therefore,
1
2
many efforts have especially been made on the first-step transesterification reaction
[
[
11-15], while few works have been paid to the second-step disproportionation yet
16-18]. In fact, MPC must undergo the disproportionation, and then can transfer into
DPC. Moreover, it was found that the second-step disproportionation reaction could
not process thoroughly for the most part, greatly restricting the generation of target
product DPC. Thus, the second-step MPC disproportionation reaction was also
regarded as the key step to synthesize DPC. To improve the yield of target product
DPC, it would be of great significance to further study on the second-step MPC
disproportionation.
2

ACCEPTED MANUSCRIPT
Scheme 1. Transesterification reaction of DMC and phenol to produce DPC.
As a crucial part of our recent work, the development of attractive catalysts plays a
vital role in the catalytic reaction. Previous research showed that the catalysts
exhibited good catalytic performance in the first-step transesterification, whereas
many of them suffered from low catalytic activities for MPC disproportionation [16,
1
7]. Hence, development of highly efficient catalysts for MPC disproportionation is
quite desirable and useful. Mechanistic studies indicated that this process was Lewis
acid catalysis because Brönsted acid often caused MPC decarboxylation into anisole
[
19, 20], and therefore some homogeneous or heterogeneous catalysts with Lewis acid
properties had been preliminarily explored by our group. The results showed that
homogeneous catalysts like organo-tin/titanium compounds displayed excellent
catalytic performance [1, 21], while they were not easy to recover and recycle, as well
as the product separation and/or purification was also very difficult. Subsequently,
several heterogeneous catalysts have been developed including metal oxides,
MoO /SiO and Pb-Zr mixed oxide catalyst [22-24]. Among them, Pb-Zr catalyst
3
2
provided high conversion and yield, easy recovery, recyclability and long use
lifetimes. However, for mixed metal oxide catalysts, it was well known that the
preparation process had significant influences on the structural and textural properties
of the catalysts, such as the dispersion of active species, specific surface area and the
strength of interaction between active component and support, and these properties
concomitantly determined the performance of the catalysts [25-32]. Therefore, as our
continuous work for exploiting highly efficient reusable catalyst in practical
3

ACCEPTED MANUSCRIPT
application, a systematic study of the influence on the preparation process of Pb-Zr
mixed oxide catalyst would be very interesting to understand the relationship between
the structure property of the catalyst and its catalytic performance.
Our group was always dedicated to the transesterification of DMC and phenol for
the green synthesis of DPC and considering the fact that Pb-Zr mixed oxide appeared
to be promising alternative catalyst for MPC disproportionation. The aim of the
present work was to investigate the influence of preparation process on the structural
properties and catalytic performances of Pb-Zr mixed oxide catalyst in detail, and it
was conductive to screen a simple, facile and suitable method. Herein, Pb-Zr mixed
oxide was prepared by four different methods and was employed to catalyze MPC
disproportionation. Meanwhile, the obtained catalysts were evaluated by powder
X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), X-ray
fluorescence spectroscopy (XRF), BET surface area measurement, H -temperature
2
programmed reduction (H -TPR), ammonia temperature programmed desorption
2
(
NH -TPD) and infrared spectroscopy of pyridine adsorption (Py-IR).
3
2
2
. Experimental
.1. Catalyst preparation
Zirconyl chloride octahydrate (ZrOCl ·8H O, ≥99%), lead nitrate (Pb(NO ) , ≥
2
2
3 2
9
9%) and ammonia hydroxide (28-30%) were purchased from Sigma-Aldrich
Chemical Reagent Company and used without further purification. Deionized water
was used during the catalyst synthesis process.
The Pb-Zr mixed oxides were prepared with mechanical milling method, incipient
wetness impregnation method, co-precipitation method and precipitation-
impregnation method, respectively. The loading amount of PbO (wt%) in the mixed
oxide was 15.2%, which was calculated by the stoichiometric molar ratio of Pb to Zr.
2
.1.1 Mechanical mill method
Firstly, pure ZrO was prepared by precipitation method. Typically, a required
2
amount of zirconyl chloride octahydrate were dissolved in distilled water and heated
4

ACCEPTED MANUSCRIPT
to 90 °C. Thereafter, ammonium hydroxide aqueous was added drop-wise into the
solution under magnetic stirring until the pH was controlled at 9-10. The resulting
suspensions were aged for 24 h and then filtered, washed with distilled water. Finally,
the sample was dried at 110 °C overnight and calcined at 600 °C for 5 h to obtain
ZrO . Subsequently, ZrO and lead nitrate were mixed in a certain molar ratio and
2
2
o
milled uniformly, and then calcinated at 600 C for 5 h. The as-prepared catalyst was
denoted as PbZr-MM.
2
.1.2 Incipient wetness impregnation method
Likewise, pure ZrO was also prepared using the same precipitation process.
2
Thereafter, ZrO was impregnated with appropriate amount aqueous solution of lead
2
nitrate, and then the mixture was kept at ambient temperature for 24 h. Afterwards,
o
the mixture was dried at 110 °C overnight, followed by calcination in air at 600 C for
5
2
h. The obtained catalyst was denoted as PbZr-WI.
.1.3 Co-precipitation method
A desirable amount of lead nitrate and zirconyl chloride octahydrate were added
into deionized water, and then the aqueous mixture was heated to 90 °C completely
dissolving the solids. Subsequently, an aqueous solution of ammonia was added
drop-wise into the above solution until the solution pH was adjusted at 9-10. The
resulting solution was aged at 60 °C with rigorous stirring for 24 h. The sediment was
vacuum filtered, washed with distilled water until the absence of chlorides, and then
dried at 110 °C overnight and calcinated at 600 °C in air for 5 h. The obtained catalyst
was named as PbZr-CP.
2
.1.4 Precipitation-impregnation method
A certain amount of zirconyl chloride octahydrate was added into deionized water,
and then heated to 90 °C to dissolve the solids under rigorous stirring. Afterwards, the
aqueous solution of ammonia was added drop-wise into the solution until the pH
constant was 9-10. The resulting white slurry was stirred at 60 °C for 24 h. The
as-prepared solids were vacuum filtered, washed with distilled water, and then dried at
5

ACCEPTED MANUSCRIPT
1
00 °C overnight to form the precipitate Zr(OH) . Thereafter, the sample was
4
impregnated with appropriate amount aqueous solution of lead nitrate. The mixture
was kept at ambient temperature for 24 h, and then dried and calcinated as described
in the co-precipitation method. Finally, the obtained catalyst was referred to PbZr-PI.
In addition, pure PbO was also prepared by the similar precipitation process
described above for comparison, and the sample would be used as reference when
discussing some of the characterization results.
2
.2. Catalyst characterization
Powder X-ray diffraction (XRD) patterns of the catalysts were collected on a
X’pert PRO MPD diffractometer (Philip) with Cu Kα (λ=1.54056 Å) radiation in the
2
4
theta range from 5 to 90°. The operating voltage and current of X-ray tube were at
0 kV and 45 mA with a scanning rate of 1.2°/min. The crystalline phases were
identified by comparison with the reference data from International Center for
Diffraction Data (ICDD) files, and the crystallite sizes were calculated by
Debye-Scherrer formula.
Temperature-programmed reduction (H -TPR) experiments were conducted by
2
using a chemisorption analyzer (Micro TP-5076, Xianquan Industry and Trade
Development Co., Ltd., Tianjin, China). Before the reduction, about 50 mg catalyst
was pretreated in N flow (99.999%, 20 mL/min) at 400 °C for 1 h, and then cooled
2
down to the ambient temperature. Thereafter, the baseline was stabilized at 30 °C in
the flowing H -N mixture gas (10 vol.% H /N ). After that, the reactor was carried
2
2
2
2
out by heating the samples from 50 to 800 °C at a ramp rate of 10 °C/min. The H2
consumption as a function of the reduction temperature was continuously detected
with a thermal conductivity detector (TCD).
The ammonia temperature programmed desorption (NH -TPD) was carried out
3
using the same chemical adsorption instrument (described above). Prior to the
analysis, the catalyst (100 mg) was previously treated under flowing N at 400 °C for
2
1
h and then cooled down to 50 °C, followed by saturating with flowing NH (10
3
6

ACCEPTED MANUSCRIPT
mL/min) for 30 min. The physically adsorbed NH was purged under a N flow for 1 h
3
2
to remove physically bound ammonia until the TCD baseline was stabilized, and then
the desorption experiment of NH was performed from 50 to 800 °C with a heating
3
rate of 10 °C/min. All the profiles were simulated by Gaussian functions, and the
quantification of the acid sites was calculated from the area of deconvolution peaks.
X-ray photoelectron spectroscopy (XPS) analyses were detected using a Kratos
Model XSAM 800 apparatus with an Al Kα=1486.6 eV exciting X-rays source (15 kV,
1
2 mA). The lines were recorded with a narrow sweep width in the range of 5-7 eV
and an energy pass of 50 eV. The sample charge effect was compensated by
calibrating the binding energy with adventitious C1s peak at 284.6 eV as internal
standard.
The chemical element composition was determined by X-ray fluorescence
spectroscopy equipped with Pd anode using an EDX1800B instrument (Jiangsu
Skyray Instrument Co., Ltd., China).
Textural properties of the catalysts were evaluated by N adsorption/desorption at
2
-196 °C using automatic JW-BK200C adsorption analyzer (Beijng JWGB Sci. & Tech.
Co., Ltd, China). Prior to each measurement the samples were treated under high
vacuum at 300 °C for 5 h. The total specific surface area was calculated by
multi-point Brunauer-Emmett-Teller (BET) method, and the porous distribution was
determined by Barrett-Joyner-Hallenda (BJH) method.
The numbers of Lewis and Brønsted acid sites on the catalysts were quantified by
pyridine-adsorbed infrared spectroscopy (Py-IR). Generally, the samples were pressed
2
into disks (30-40 mg, 2 cm disk size). After the sample was pretreated at 200 °C for 2
h under vacuum and then cooled down to room temperature at which pyridine (99.5%)
as probe molecule was adsorbed for 1 h. Subsequently, sample was vacuumed for 1 h
and flushed with flowing He for 1 h at 50 °C to remove the physic-adsorbed pyridine
before the analysis. Finally, Py-IR was tested on Thermo Nicolet 380 to measure the
amount of acid sites.
7

ACCEPTED MANUSCRIPT
2
.3. Catalyst tests
At present, there is no high purity MPC reagent on sale in the market. To our
delight, MPC was synthesized and then purified in the laboratory, and its purity was
9.8% determined by high performance liquid chromatography. A detailed process
9
was as follows: firstly, MPC was synthesized facilely by a reversible reaction of DMC
o
and DPC, due to low equilibrium constant K2 (0.19, 25 C) of MPC
disproportionation. Subsequently, the separation and purity of MPC was conducted by
reduced pressure distillation and rectification respectively, and then was identified by
1
13
GC-MS, H-NMR and C-NMR spectral techniques. Finally, the purity of MPC was
analyzed quantitatively by high performance liquid chromatography.
The MPC disproportionation was carried out in a glass reactor. In a typical run, 150
mmol MPC and an appropriate amount of catalyst were added into a 100 mL three
necked round bottom flask fitted with a fractionation column connected to a liquid
dividing head under nitrogen atmosphere. The reaction mixture was gradually heated
to desired temperature with a constant stirring rate in an oil bath and subsequently was
kept at the desired temperature. During the reaction procedure, DMC distillate was
slowly distilled out and collected continuously by the liquid dividing head attached to
a receiver flask to break the equilibrium limit to promote the reaction towards the
desired product formation of DPC.
After the reaction, the reactor was cooled to room temperature. All the reaction
products were detected by GC-MS instrument with a HP-5 capillary chromatography
packed column (30 m × 0.25 mm × 0.25 um) on a HP-6890/5973 system. The
products were quantitatively analyzed with a gas chromatograph (Agilent
Technologies 7820A) equipped with a flame ionization detector (FID) and a DB-35
capillary chromatography packed column (30 m × 0.32 mm × 0.25 ꢀm).
3
3
3
. Results and discussion
.1 Catalyst characterization
.1.1 XRD analysis
8

ACCEPTED MANUSCRIPT
The composition of Pb-Zr mixed oxides prepared by different processes is
determined by powder XRD, and the XRD patterns are shown in Fig. 1. As shown in
Fig. 1, ZrO mainly existed the monoclinic crystalline phases (2θ=24.8, 28.2, 31.5,
2
o
3
4.1 and 50.4 , JCPDS No. 37-1484), and only the few tetragonal crystalline phases
o
appeared (2θ=30.2, 35.1, 50.2 and 60.2 , JCPDS No. 27-997) [33, 34]. The
introduction of Pb by different preparation processes resulted in the great change of
ZrO crystalline structure. PbZr-MM and PbZr-WI mostly displayed the existence of
2
monoclinic ZrO crystalline phases, and there were also a few PbO crystalline phase
2
o
appearances at ca. 31.9, 35.6, 45.7, 48.6, 54.7 and 59.9 [35, 36], probably related to
the accumulation of partial PbO on the surface. However, for PbZr-CP and PbZr-PI
samples, there was mostly the existence of tetragonal ZrO crystalline phases, and no
2
diffraction peak assigned to PbO crystalline phase was observed, which indicated
that PbO was highly dispersed or amorphous type. The XRD results suggested that
the dispersions of PbO in PbZr-CP and PbZr-PI were relatively higher than those in
PbZr-MM and PbZr-WI. Besides, the average crystallite sizes of the samples were
calculated by Scherrer equation, which were about 38, 45, 65 and 68 nm for
PbZr-CP, PbZr-PI, PbZr-WI and PbZr-MM based on their maximum intensity
diffraction peaks, respectively.

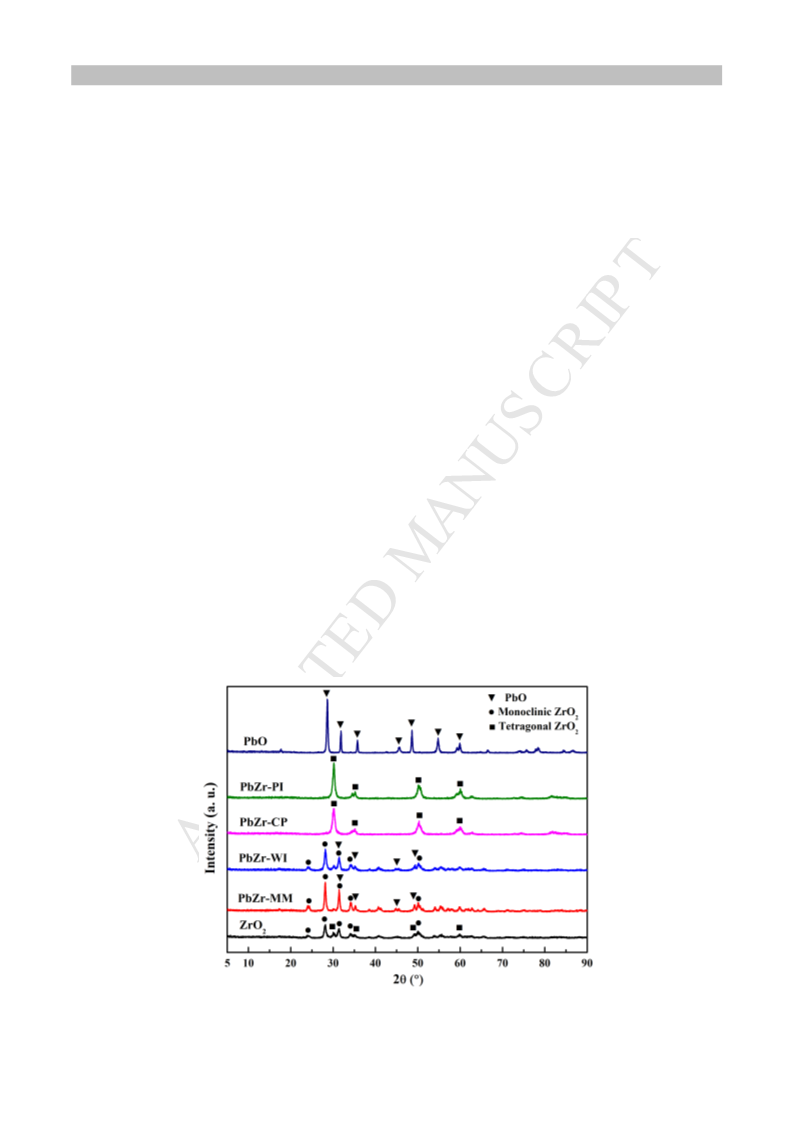

Fig. 1. XRD patterns of Pb-Zr catalysts prepared by different processes.
9

ACCEPTED MANUSCRIPT
3
.1.2 H -TPR analysis
2

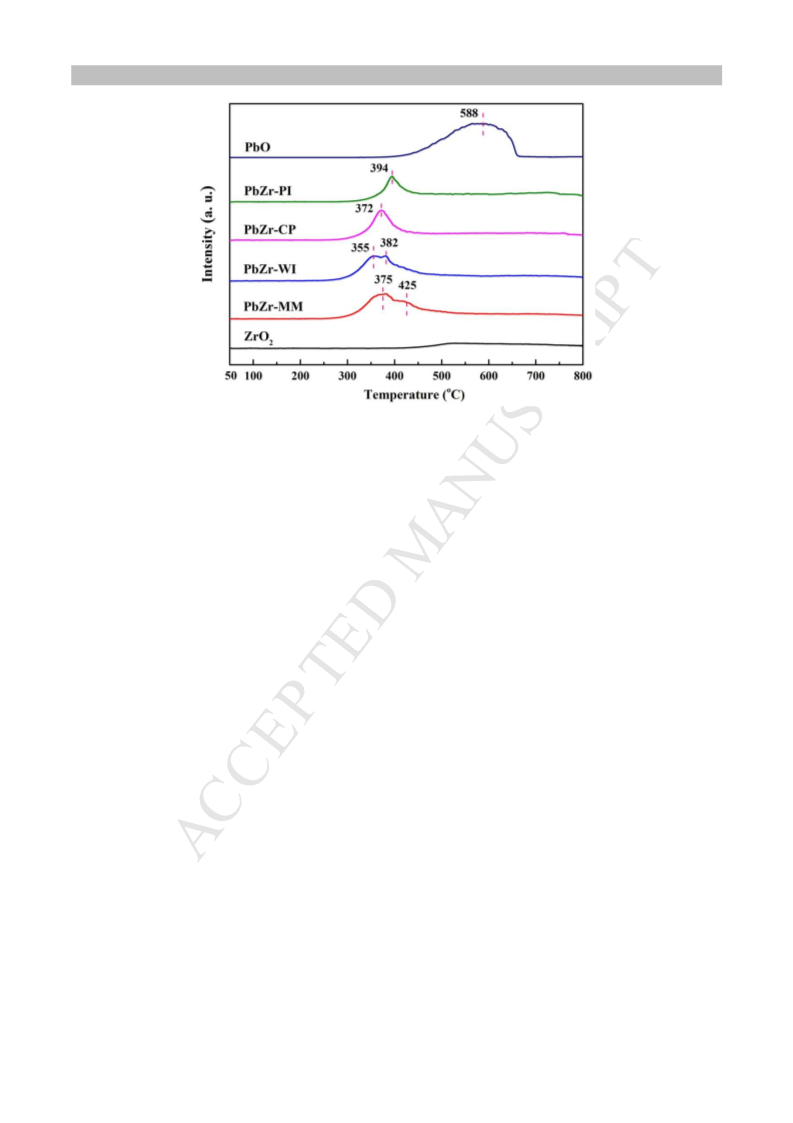

The H -TPR profiles of all the catalysts are shown in Fig. 2. As shown in Fig. 2,
2
PbO showed a remarkable hydrogen reduction peak at 588 °C, which was attributed to
the reduction of PbO species, and the reduction peak over ZrO was very weak in the
2
range of 450-600 °C and could hardly be observed. Compared with PbO, the
reduction peaks of Pb-Zr catalysts were significantly shifted to lower temperatures,
which indicated that there was strong or weak interaction of PbO with support [37,
3
8], but these peak shifts were clearly different. For PbZr-MM and PbZr-WI samples,
PbZr-MM with a broad peak range exhibited two reduction peaks at around 375 and
25 °C, and a similar behavior was observed for PbZr-WI, which exhibited also two
4
reduction peaks at around 355 and 382 °C in a broad peak range. The former shoulder
peak was assigned to the reduction of highly dispersed lead species, and the latter
reduction peak was presumably due to the reduction of bulk lead oxide. Such low
reduction temperature range usually corresponded to a low dispersed metallic phase
with a large crystallite size and low interaction with the support. However, for
PbZr-CP and PbZr-PI samples, there was only a corresponding reduction peak
appearance at 372 and 394 °C respectively, related to the reduction of highly
dispersed lead species strongly interacting with the support, this was in accordance
with the XRD results, whereas the comparison of reduction temperature implied that
the interaction strength in PbZr-CP was greater than that in PbZr-PI. Thus, according
to the reduction nature of PbO species, PbZr-PI exhibited the lowest reduction
temperature and therefore possessed the strongest interaction between Pb and Zr, and
the interaction strength among them was in the following order of PbZr-CP >
PbZr-PI > PbZr-WI > PbZr-MM.
1
0

ACCEPTED MANUSCRIPT
Fig. 2. H -TPR profiles of all the catalysts.
2
3
.1.3 XPS analysis
XPS analysis was also performed, in order to elucidate the surface nature and
composition of various elements over the catalyst surface. The XPS spectra of Zr 3d ,
5
/2
Pb 4f7/2 and O 1s of the catalysts are shown in Fig. 3. The binding energy (BE) of Zr
d5/2 in ZrO was 179 eV. As shown in Fig. 3(A), the BE of Zr 3d5/2 increased, but the
3
2
peak position shifts were different and PbZr-CP exhibited the biggest shift, and the
order was PbZr-CP > PbZr-PI > PbZr-WI = PbZr-MM. The BE of Pb 4f in PbO was
7
/2
1
37 eV. As shown in Fig. 3(B), the BE of Pb 4f7/2 also increased, and the variation
trend was basically in accordance with that of Zr 3d . The BEs of O 1s in ZrO and
5
/2
2
PbO are 530.2 eV and 531.3 eV. As shown in Fig. 3(C), for a clear observation, O 1s
band was resolved by two Gaussian component peaks, which were assigned to the
surface absorbed oxygen (531.0–532.1 eV) and lattice oxygen (529.2–530.3 eV) [39],
respectively. The BE for lattice oxygen at around 529.8 eV was shifted to lower value
and PbZr-CP gave the largest shift, and the shift order was inconsistent with those of
Zr 3d5/2 and Pb 4f . A shift towards lower BE in XPS was usually associated with an
7/2
increased electron density or reduction to a lower oxidation state [40]. Thus, the above
result indicated the flow of electron density from Zr and Pb to O by forming the
Pb−O−Zr linkages due to higher electronegativity of O than those of Zr and Pb,
11

ACCEPTED MANUSCRIPT
resulting in a rich electron state of O and a deficient electron state of Zr and Pb.
However, these changes of BEs were remarkably different over the catalysts,
suggesting that the interaction intensity between Zr and Pb through the Pb−O−Zr
bonds was also different. Among them, PbZr-CP provided the maximum changes for
the BEs of Zr 3d , Pb 4f and O 1s, illustrating the strongest interaction between Pb
5
/2
7/2
and Zr. Combined with the analysis of XRD and H -TPR, it could be inferred that the
2
strong interaction between Pb and Zr species was in favor of inhibiting the
crystallization of PbO phase and promoting the dispersion of PbO, thus it was
beneficial to improving the activity of the catalyst.

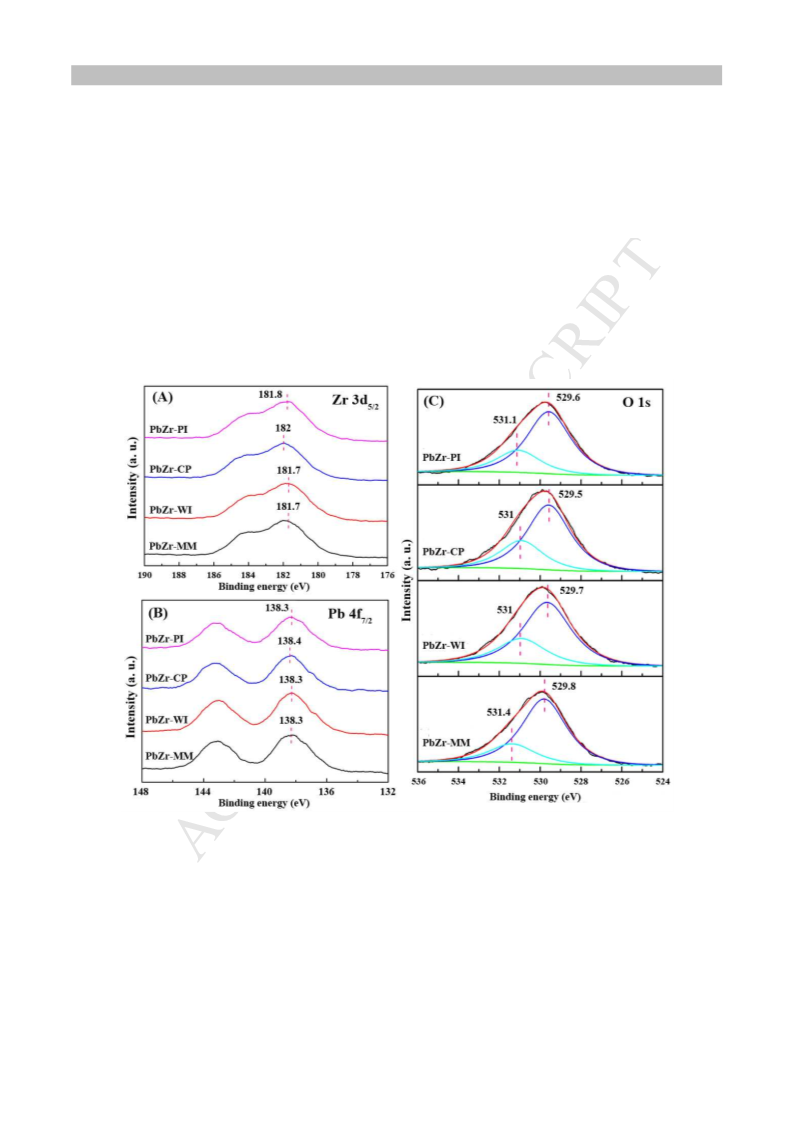

Fig. 3. Binding energies of Zr 3d5/2 (A), Pb 4f7/2 (B) and O 1s (C) of all the catalysts.
3
.1.4 BET analysis

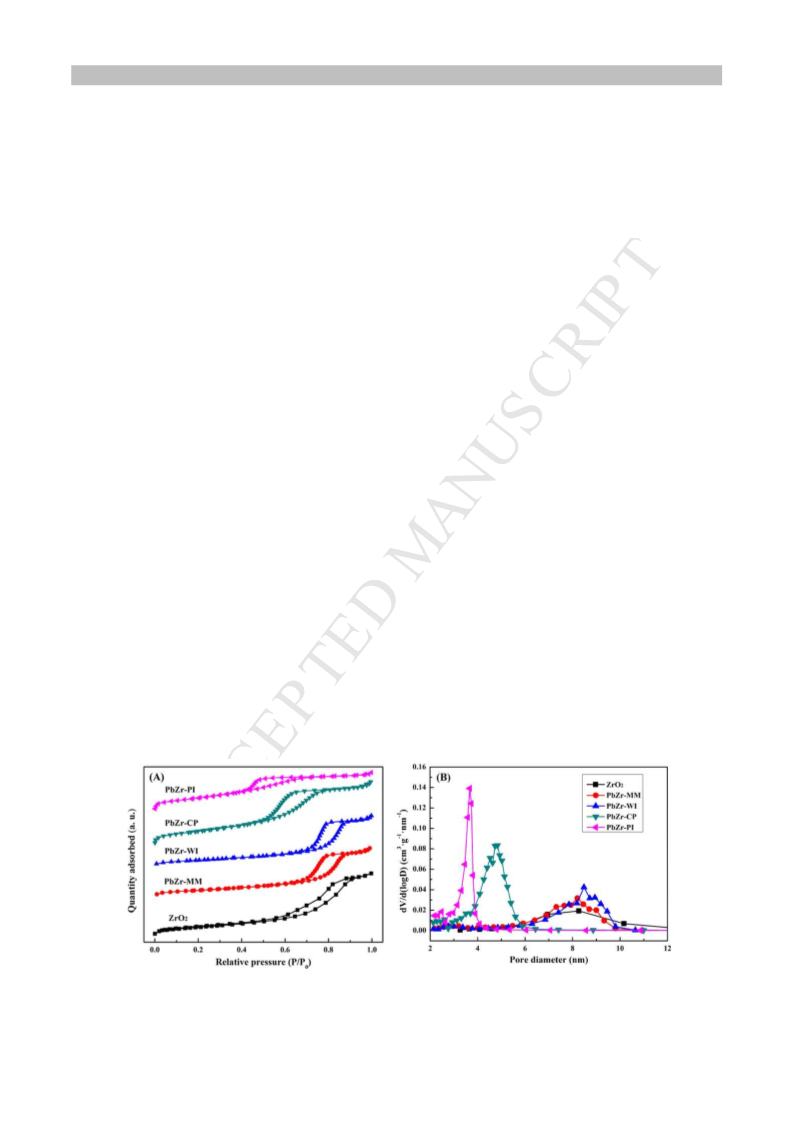

The N adsorption-desorption isotherms and their corresponding pore size
2
distribution of all the catalysts are shown in Fig. 4. Fig. 4(A) showed that all the
catalytic samples presented typical IV isotherms with noticeable hysteresis loops at
higher relative pressure, suggesting that mesoporous frameworks were formed for
1
2

ACCEPTED MANUSCRIPT
them. Fig. 4(B) showed that the pore size distribution of pure ZrO mainly
2
concentrated at 8.0 nm, and the pore sizes of PbZr-MM and PbZr-WI were similar to
that of ZrO support, retaining the average mesoporous size of the support, due to the
2
weak interaction between PbO and ZrO as described above. Evidently, for PbZr-CP
2
and PbZr-PI, the strong interaction between Pb and Zr resulted in the appearance of
new channels, and shifted the pores into the small distribution, exhibiting the narrow
and smaller pore diameter ranges. Table 1 summarized the textural properties of all
2
-1
the samples. PbZr-CP displayed the largest BET specific surface area of 62 m ·g and
3
-1
pore volume of 0.110 cm ·g , which was beneficial to the exposure of more active
sites, resulting in improvement of the catalytic ability, and their surface areas were in
the following sequence: PbZr-CP > PbZr-PI > PbZr-WI > PbZr-MM. Moreover, the
surface composition of all the catalysts was determined by XRF technique, and the
results were listed in Table 1. As shown in Table 1, the molar ratios of surface Pb to Zr
over PbZr-CP and PbZr-PI were close to the bulk value estimated by theoretical
calculation. Nevertheless, the molar ratios of surface Pb to Zr over PbZr-MM and
PbZr-WI were far higher than the bulk value, suggesting the accumulation of PbO on
the surface. The results further suggested that the dispersions of PbO over PbZr-CP
and PbZr-WI were much better, and the crystalline PbO over PbZr-PI and PbZr-MM
might be aggregated due to the low surface area, thus leading to poor dispersion. It
was in accordance with the results of XRD measurement shown above, since high
surface area was beneficial for the dispersion of PbO.
Fig. 4. N adsorption-desorption isotherms (A) and pore diameter distributions (B) of all the
2
1
3

ACCEPTED MANUSCRIPT
catalysts.
Table 1 The textural properties of all the catalysts.
BET surface Pore volume Mean pore
a
b
Catalyst
Pb/Zr Pb/Zr
2
–1
3
–1
area (m ·g ) (cm ·g )
diameter (nm)
PbZr-CP
PbZr-PI
PbZr-WI
62
58
35
0.110
0.067
0.088
0.083
0.123
5.0
3.8
8.3
7.9
8.0
0.099 0.111
0.099 0.115
0.099 0.122
0.099 0.131
PbZr-MM 28
ZrO2 53
-
-
a
Pb/Zr estimated by theoretical calculation.
Pb/Zr determined by XRF.
b
3
.1.5 NH -TPD and Py-IR analysis
3
The acid property of all the catalysts is carried out by NH -TPD technique, and the
3
amount of desorbed NH which is reflected by the peak area, is proportional to the
3
amounts of acidic sites. Fig. 5 showed the NH -TPD profiles of all the catalysts. As
3
shown in Fig. 5, all the profiles contained two NH desorption peaks that the peak
3
around 160 °C was assigned to weakly adsorbed NH , and the peak above 400 °C was
3
regarded as NH coordinated to strong acid sites. Meanwhile, the acidity of all
3
samples was summarized in Table 2. It could be seen that this preparation process
apparently affected the acidic properties, and the adsorption amount of NH was the
3
most for PbZr-CP and the total number of acidic sites from large to small was as
follows: PbZr-CP > PbZr-PI > PbZr-WI > PbZr-MM, indicating that PbZr-CP owned
more acidic sites formed on the surface. Furthermore, above-mentioned discussion
acknowledged that PbZr-CP had the highest specific surface area, and this was also
beneficial for exposing more acidic sites, which would promote the adsorption and
activation of MPC reactant molecules and enhance the catalytic performance.
1
4

ACCEPTED MANUSCRIPT
Fig. 5. NH -TPD profiles of all the catalysts.
3
Table 2 The surface acid properties of all the catalysts.
-1
Acid strength (°C) Acid amount (mmol·g ) Total acid
Catalyst
L/B ratio
-
1
Weak
PbZr- CP 290
Strong
702
Weak
0.094
0.058
0.055
0.044
Strong
0.018
0.029
0.015
0.013
(mmol·g )
0.112
0.087
0.070
0.057
0.466
0.453
0.286
0.227
PbZr- PI
PbZr-WI
268
303
685
703
PbZr-MM 322
652
The amount of Lewis and Brønsted acid sites on the catalysts is quantified by FT-IR
spectroscopy using pyridine as probe molecule. Fig. 5 showed FT-IR spectra of
pyridine adsorbed on all the catalysts and the corresponding ratios of Lewis to
Brønsted acid were presented in Table 2. All the samples displayed remarkable
-1
absorption peaks at 1436 and 1580 cm , which were assigned to Lewis acidity and
Brønsted acidity, respectively [29, 33, 41]. Furthermore, PbZr-CP and PbZr-PI also
-1
exhibited weak absorption peak at 1480 cm and it was attributed to combination of
both Brønsted (B) and Lewis (L) acid sites. As could be seen from the results in Table
2
, the L/B ratio for PbZr-CP was obviously higher than others, and the sequence from
high to low was as follows: PbZr-CP > PbZr-PI > PbZr-WI > PbZr-MM. Combined
1
5

ACCEPTED MANUSCRIPT
with the results of NH -TPD, it is obvious that PbZr-CP had more Lewis acidic sites,
3
which was advantageous to catalyze MPC disproportionation.
Fig. 6. FT-IR spectra of pyridine adsorbed on all the catalysts.
3
.2 Catalytic performance of all the catalysts for MPC disproportionation
The catalytic performances of all the catalysts for disproportionation of MPC to
DPC were given in Fig. 7. The slight byproduct was mainly anisole. Noticeably, Pb-Zr
mixed oxides prepared with different processes had remarkable catalytic activities,
and the selectivities of DPC were more than 98.0%. Nevertheless, the catalytic
activities were also evidently influenced by different preparation processes. It was
clear that the best catalytic activity with MPC conversion of 74.7% and DPC
selectivity of 99.3% was obtained over PbZr-CP, and the order of the activities was as
follows: PbZr-CP > PbZr-PI > PbZr-WI > PbZr-MM. This trend was in agreement
with the orders of the dispersion of PbO, specific surface area and Lewis acid sites.
Based on the results of XRD, BET, NH -TPD and Py-IR analysis, PbZr-CP exhibited
3
better dispersion of PbO and a higher specific surface area than other catalysts,
meaning that it had more Lewis acid sites on its surface. Consequently, the superior
catalytic activity of PbZr-CP should be ascribed to the presence of the higher specific
surface area and the higher dispersion of PbO, which was as a result of the stronger
interaction between Pb and Zr. PbZr-CP presented the strongest interaction between
1
6

ACCEPTED MANUSCRIPT
Pb and Zr, resulting in the noticeable changes of ZrO pore structure, which was
2
advantageous to highly disperse PbO and expose more active sites. Therefore, the
strong interaction between Pb and Zr over PbZr-CP not only led to large surface area
but also high dispersion of PbO, both of which accounted for the high catalytic
activity in this system. The result suggested that Pb-Zr mixed oxide prepared by
co-precipitation method was better than others, thus exhibiting higher catalytic
activity.
Fig. 7. Catalytic performance of all the catalysts for MPC disproportionation. Reaction conditions:
temperature 200 ºC, reaction time 2.5 h, catalyst 1.2 g, MPC 150 mmol.
4
. Conclusions
Pb-Zr mixed oxides prepared by different processes have been evaluated for MPC
disproportionation. The synthesis process significantly affected the catalytic
performance, and PbZr-CP catalyst prepared via co-precipitation method was more
active than others, and the order of the conversion of MPC was PbZr-CP > PbZr-PI >
PbZr-WI > PbZr-MM. XRD, XPS, H -TPR, BET, NH -TPD and Py-IR were
2
3
employed to characterize the catalysts, and the results revealed that well-dispersed
PbO, high specific surface area and more Lewis acid sites were responsible for the
excellent catalytic performance of PbZr-CP, owing to the existence of strong
interaction between Pb and Zr. In summary, this work provided a promising
1
7

ACCEPTED MANUSCRIPT
technology for Pb-Zr catalyst preparation towards economic and efficient process to
transform MPC disproportionation into DPC.
Acknowledgments
We gratefully acknowledge the National High Technology Research and
Development Program of China (863 program, No. 2013AA031703), the Project
funded by China Postdoctoral Science Foundation (2018M632782), the Key Project
of Science and Technology Program of Henan Province (182102210050), the Key
Scientific Research Project of Colleges and Universities in Henan Province
(17A150026), the Science Research Start-up Fund of Henan Institute of Science and
Technology (2015031), the Project funded by Postdoctoral Science Foundation of
Henan Province, and the Postdoctoral Start-up Fund of Henan Institute of Science and
Technology for their financial support to this research.
References
[
1] S.L. Wang, T. Chen, G.Y. Wang, C.X. Cui, H.Y. Niu, C.G. Li, Influence of
coordination groups on the catalytic performances of organo-titanium compounds
for disproportionation of methyl phenyl carbonate to synthesize diphenyl
carbonate, Appl. Catal. A: Gen. 540 (2017) 1–6.
[
[
[
[
2] Y.M. Qu, S.L. Wang, T. Chen, G.Y. Wang, Zn-promoted synthesis of diphenyl
carbonate via transesterification over Ti-Zn double oxide catalyst, Res. Chem.
Intermediat. 42 (2017) 2725–2735.
3] L.F. Zhang, Y.C. He, X.J. Yang, H. Yuan, Z.P. Du, Y.X. Wu, Oxidative
carbonylation of phenol to diphenyl carbonate by Pd/MO-MnFe O magnetic
2
4
catalyst, Chem. Eng. J. 278 (2015) 129–133.
4] R. Kanega, H. Ogihara, I. Yamanaka, Electrosynthesis of diphenyl carbonate
2
+/0
catalyzed by Pd (in situ NHC) redox catalyst promoted at Au anode, Res.
Chem. Intermed. 41 (2015) 9497–9508.
5] Q. Wang, C.H. Li, M. Guo, S.J. Luo, C.W. Hu, Transesterification of dimethyl
carbonate with phenol to diphenyl carbonate over hexagonal Mg(OH) nanoflakes,
2
1
8

ACCEPTED MANUSCRIPT
Inorg. Chem. Front. 2 (2015) 47–54.
[
[
6] S.H. Huang, B. Yan, S.P. Wang, X.B. Ma, Recent advances in dialkyl carbonates
synthesis and applications, Chem. Soc. Rev. 44 (2015) 3079–3116.
7] P.X. Wang, S.M. Liu, F. Zhou, B.Q. Yang, A.S. Alshammari, Y.Q. Deng,
Efficient synthesis of diphenyl carbonate from dibutyl carbonate and phenol using
square-shaped Zn-Ti-O nanoplates as solid acid catalysts, RSC Adv. 5 (2015)
8
4621–84626.
[
[
[
[
[
[
[
[
8] J.L. Gong, X.B. Ma, S.P. Wang, Phosgene-free approaches to catalytic synthesis
of diphenyl carbonate and its intermediates, Appl. Catal. A: Gen. 316 (2007)
1
–21.
9] F.M. Mei, Z. Pei, G.X. Li, The transesterification of dimethyl carbonate with
phenol over Mg-Al-hydrotalcite catalyst, Org. Process Des. Dev. 8 (2004)
3
72–375.
10]Z.H. Li, B.W. Cheng, K.M. Su, Y. Gu, P. Xi, M.L. Guo, The synthesis of diphenyl
carbonate from dimethyl carbonate and phenol over mesoporous
MoO /SiMCM-41, J. Mol. Catal. A: Chem. 289 (2008) 100–105.
3
11]Y.M. Qu, H. Yang, S.L. Wang, T. Chen, G.Y. Wang, High selectivity to diphenyl
carbonate via transesterification between dimethyl carbonate and phenol with
C60-doped TiO , Chem. Res. Chinese U. 33 (2017) 804–810.
2
12]H. Yang, Z.L. Xiao, Y.M. Qu, T. Chen, Y. Chen, G.Y. Wang, The role of RGO in
TiO -RGO composites for the transesterification of dimethyl carbonate with
2
phenol to diphenyl carbonate, Res. Chem. Intermediat. 44 (2018) 799–812.
13]A. Dibenedetto, A. Angelini, L. di Bitonto, E. De Giglio, S. Cometa, M. Aresta,
Cerium-based binary and ternary oxides in the transesterification of dimethyl
carbonate with phenol, ChemSusChem 7 (2014) 1155–1161.
14]S. Wang, R.X. Bai, F.M. Mei, G.X. Li, Pyroaurite as an active, reusable and
environmentally benign catalyst in synthesis of diphenyl carbonate by
transesterification, Catal. Commun. 11 (2009) 201–205.
15]M. Cao, Y.Z. Meng, Y.X. Lu, Synthesis of diphenyl carbonate from dimethyl
carbonate and phenol using O -promoted PbO/MgO catalysts, Catal. Commun. 6
2
1
9

ACCEPTED MANUSCRIPT
(2005) 802–807.
[
[
[
[
[
16]Z.H. Fu, Y. Ono, Two-step synthesis of diphenyl carbonate from dimethyl
carbonate and phenol using MoO /SiO catalysts, J. Mol. Catal. A: Chem. 118
3
2
(1997) 293–299.
17]W.B. Kim, J.S. Lee, A new process for the synthesis of diphenyl carbonate from
dimethyl carbonate and phenol over heterogeneous catalysts, Catal. Lett. 59
(1999) 83–88.
18]S.L. Wang, F. Ma, J.G. Li, G. Zhai, T. Chen, G.Y. Wang, Progresses in research on
disproportionation of methyl phenyl carbonate to diphenyl carbonate, Petrochem.
Technol. (Chinese) 42 (2013) 928–935.
19]W.B. Kim, Y.G. Kim, J.S. Lee, The role of carbon deposition in the gas phase
transesterification of dimethylcarbonate and phenol over TiO /SiO catalyst, Appl.
2
2
Catal. A: Gen. 194-195 (2000) 403–414.
20]P. Tundo, F. Trotta, G. Moraglio, F. Ligorati, Continuous-flow processes under
gas-liquid phase-transfer catalysis (GL-PTC) conditions: the reaction of dialkyl
carbonates with phenols, alcohols, and mercaptans, Ind. Eng. Chem. Res. 27
(1988) 1565–1571.
[
[
[
[
[
21]S.L. Wang, Y.Z. Zhang, Y. Chen, R.Z. Tang, T. Chen, G.Y. Wang, Organotin
compounds as catalysts for disproportionation of methyl phenyl carbonate to
diphenyl carbonate, Chem. J. Chinese U. 35 (2014) 2177–2181.
22]Z. Luo, Y. Wang, Y. Zhang, D. Wei, J. Jiang, G.Y. Wang, β-PbO catalyst for
disproportionation of methyl phenyl carbonate, Fine Chemicals (Chinese) 25
(2008) 813–816.
23]S.L. Wang, Y.Z. Zhang, T. Chen, G.Y. Wang, Preparation and catalytic property of
MoO /SiO for disproportionation of methyl phenyl carbonate to diphenyl
3
2
carbonate, J. Mol. Catal. A: Chem. 398 (2015) 248–254.
24]S.L. Wang, C.G. Li, Z.L. Xiao, T. Chen, G.Y. Wang, Highly efficient and stable
PbO-ZrO catalyst for the disproportionation of methyl phenyl carbonate to
2
synthesize diphenyl carbonate, J. Mol. Catal. A: Chem. 420 (2016) 26–33.
25]X.J. Yao, L. Chen, T.T. Kong, S.M. Ding, Q. Luo, F.M. Yang, Support effect of
2
0

ACCEPTED MANUSCRIPT
the supported ceria-based catalysts during NH -SCR reaction, Chinese J. Catal.
3
3
8 (2017) 1423–1430.
[
26]A. Łamacz, K. Matus, B. Liszka, J. Silvestre-Albero, M. Lafjah, T. Dintzer, I.
Janowska, The impact of synthesis method of CNT supported CeZrO and
2
Ni-CeZrO on catalytic activity in WGS reaction, Catal. Today 301 (2018)
2
1
72–182.
[
[
[
27]J. Granados-Reyes, P. Salagre, Y. Cesteros, Effect of the preparation conditions
on the catalytic activity of calcined Ca/Al-layered double hydroxides for the
synthesis of glycerol carbonate, Appl. Catal. A: Gen. 536 (2017) 9–17.
28]X.X. Cao, R. Zhou, N. Rui, Z.Y. Wang, J.J. Wang, X.T. Zhou, C.J. Liu,
Co O /HZSM-5 catalysts for methane combustion: the effect of preparation
3
4
methodologies, Catal. Today 297 (2018) 219–227.
29]F. Saad, J.D. Comparot, R. Brahmi, M. Bensitel, L. Pirault-Roy, Influence of
acid-base properties of the support on the catalytic performances of Pt-based
catalysts in a gas-phase hydrogenation of acetonitrile, Appl. Catal. A: Gen. 544
(2017) 1–9.
[
30]A. Salehirad, S.M. Latif, Effect of synthesis method on physicochemical and
catalytic properties of Cu-Zn-based mesoporous nanocatalysts for water-gas shift
reaction, Res. Chem. Intermed. 43 (2016) 3633–3649.
[
[
31]C.P. Cui, X.W. Zhu, S.L. Liu, Q. Li, Effect of nano-sized ZrO on the
2
recrystallization of Mo alloy, J. Alloys Compd. 768 (2018) 81–87
32]F. Tao, S.S. Yang, P. Yang, Z.N. Shi, R.X. Zhou, Effects of support property on
the catalytic performance of CeO -ZrO -CrOx for 1, 2-dichloroethane oxidation,
2
2
J. Rare Earths 34 (2016) 381–389.
[
33]S.R. Ginjupalli, S. Mugawar, N.P. Rajan, P.K. Balla, V.R.C. Komandur, Vapour
phase dehydration of glycerol to acrolein over tungstated zirconia catalysts, Appl.
Surf. Sci. 309 (2014) 153–159.
[
[
34]Z.H. Li, K.M. Su, The direct reaction between CO and phenol catalyzed by
2
bifunctional catalyst ZrO , J. Mol. Catal. A: Chem. 277 (2007) 180–184.
2
35]H.L. An, Z. Gao, X.Q. Zhao, Y.J. Wang, MgO-PbO catalyzed synthesis of
2
1

ACCEPTED MANUSCRIPT
diethylene glycol bis(allyl carbonate) by transesterification route, Ind. Eng. Chem.
Res. 50 (2011) 7740–7745.
[
[
[
[
[
[
36]H.L. An, X.Q. Zhao, L. Guo, C.Y. Jia, B.G. Yuan, Y.J. Wang, Synthesis of diethyl
carbonate from ethyl carbamate and ethanol over ZnO-PbO catalyst, Appl. Catal.
A: Gen. 433-434 (2012) 229–235.
37]X.Y. Pang, H.C. Zeng, J.C. Wu, K. Li, Catalytic decomposition of nitrous oxide
N O: a study for p-block-element lead in PbO-ZrO /Al O systems, Appl. Catal.
2
2
2
3
B: Environ. 9 (1996) 149–165.
38]C.M. Lu, Y.M. Lin, I. Wang, Naphthalene hydrogenation over Pt/TiO -ZrO and
2
2
the behavior of strong metal-support interaction (SMSI), Appl. Catal. A: Gen. 198
2000) 223–234.
(
39]Y.K. Duan, Q.L. Zhang, Z.X. Song, J. Wang, X.S. Tang, Q.X. Liu, T.F. Zhang,
Effect of preparation methods on the catalytic activity of Co O for the
3
4
decomposition of N O, Res. Chem. Intermed. 43 (2017) 7241–7255.
2
40]Z.M. Liu, J.Z. Zhu, J.H. Li, L.L. Ma, S.I. Woo, Novel Mn-Ce-Ti mixed-oxide
catalyst for the selective catalytic reduction of NOx with NH , ACS Appl. Mater.
3
Interfaces 6 (2014) 14500–14508.
41]Z. Vajglová, N. Kumar, K. Eränen, A. Tokarev, M. Peurla, J. Peltonen, D.Y.
Murzin, T. Salmi, Influence of the support of copper catalysts on activity and 1,
2
-dichloroethane selectivity in ethylene oxychlorination, Appl. Catal. A: Gen. 556
(2018) 41–51.
2
2

ACCEPTED MANUSCRIPT
Highlights
►
Preparation process exerts significant influence on structural property and catalytic
performance of Pb-Zr mixed oxide.
►
►
Pb-Zr mixed oxide prepared by co-precipitation is more active.
Well-dispersed PbO and large specific surface area are formed on Pb-Zr catalyst prepared
by co-precipitation.
This work provides an effective technology for Pb-Zr catalyst preparation to transform
MPC into DPC.
►
