Copper supported on MWCNT-guanidine acetic acid@Fe3O4: Synthesis, characterization and application as a novel multi-task nanocatalyst for preparation of triazoles and bis(indolyl)methanes in water

Article abstract of DOI:10.1039/c5ra23294e

The synthesis of a new supported copper (Cu) nanocatalyst, with highly dispersed particles, based on magnetic guanidine acetic acid (GAA) functionalized multi-wall carbon nanotubes (MWCNT), Cu/MWCNT-GAA@Fe₃O₄, is reported. The synthe

Full text of DOI:10.1039/c5ra23294e

View Article Online
View Journal
RSC Advances
This article can be cited before page numbers have been issued, to do this please use: A. Shaabani, R.
Afshari, S. E. Hooshmand, A. Tavousi Tabatabai and F. Hajishaabanha, RSC Adv., 2016, DOI:
1
0.1039/C5RA23294E.
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
Accepted Manuscripts are published online shortly after
acceptance, before technical editing, formatting and proof reading.
Using this free service, authors can make their results available
to the community, in citable form, before we publish the edited
article. This Accepted Manuscript will be replaced by the edited,
formatted and paginated article as soon as this is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes
to the text and/or graphics, which may alter content. The journal’s
standard Terms & Conditions and the Ethical guidelines still
apply. In no event shall the Royal Society of Chemistry be held
responsible for any errors or omissions in this Accepted Manuscript
or any consequences arising from the use of any information it
contains.
www.rsc.org/advances

Page 1 of 20
RSC Advances
View Article Online
DOI: 10.1039/C5RA23294E
RSC Advances
Paper
Copper Supported on MWCNT-Guanidine Acetic Acid@Fe O :
3
4
Synthesis, Characterization and Application as a Novel Multi-
Task Nanocatalyst for Preparation of Triazoles and
Bis(indolyl)methanes in Water
IGH5UYD2ECite this: DOI:
10.1039/x0xx00000x
Received 00th January 2015,
Accepted 00th January 2015
Ahmad Shaabani,* Ronak Afshari, Seyyed Emad Hooshmand, Azadeh Tavousi Tabatabaei
and Fatemeh Hajishaabanha
DOI: 10.1039/x0xx00000x
Faculty of Chemistry, Shahid Beheshti University, G. C., P. O. Box 19396-4716, Tehran, Iran Email: a-shaabani@sbu.ac.ir
Electronic supplementary information (ESI) available. See DOI: 10.1039/x0xx00000x
www.rsc.org/
The synthesis of a new supported copper nanocatalyst, with highly dispersed particles, based on
magnetic guanidine acetic acid (GAA) functionalized multi-wall carbon nanotube (MWCNT), Cu/MWCNT-
3 4
GAA@Fe O , has been reported. The synthesized nanocatalyst has been characterized by means of X-ray
diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), energy
dispersive X-ray (EDX), elemental analysis (CHN), thermogravimetric analyses (TGA) and Fourier
3 4
transform infrared (FT-IR). The catalytic activity of Cu/MWCNT-GAA@Fe O was investigated in 1,3-
dipolar cycloaddition and condensation reactions in water. The results show a wide ranges of 1,2,3-
triazoles and bis(indolyl)methanes have been synthesized in good to excellent yields in a short time. The
nanocatalyst can be recovered by applying an external magnetic field which results in easy separation of
the catalyst without filtration and reused for several runs without loss of its significant activity.
Keywords: Copper nanoparticles, Multi-wall carbon nanotube, Guanidine acetic acid, Click chemistry,
Bis(indolyl)methane, Nanocatalyst
Introduction
Carbon materials such as carbon nanotubes (CNTs) and graphene oxides (GOs) demonstrate great capabilities to serve as promising
1
-4
substitutes for conventional catalyst supports owing to their large surface area and outstanding electronic conductivity. Besides, catalysis
by metal based nanocomposites is a powerful method of accelerating a large number of organic reactions. Very recently, the
heterogenization of metals onto a support constitutes gained increasing attention in the context of the development of sustainable
5
organometallic chemistry. In this regard, CNTs are one of the main selections for the preparation of multi-task heterogeneous metallic-
based catalysts which are a novel class of catalysts able to be involved in at least two consecutive reactions having a different mechanism
due to their considerable advantages. However the limited solubility of CNTs has severely impacted their use therefore, functionalization
must be developed for improving their solubility, efficiently introducing chemically active sites for use in catalytic reactions and also acting
6
, 7
as anchoring sites for deposition of metal nanoparticles.
Nowadays, the most promising materials for functionalization of CNTs are
8
9
10, 11
polymers such as DNA/RNA, poly porphyrin and chitosan
that can decorate CNTs surface to ameliorate their insolubility. Moreover,
This journal is © The Royal Society of Chemistry 2013
RSC. Adv., 2015, 00, 1-3 | 1

RSC Advances
Page 2 of 20
View Article Online
ARTICLE
5RA23294E
DOI: 10.1039Jo/Curnal Name
immobilized magnetic molecular complexes or nanoparticles onto a support can be recovered from the reaction mixture by an external
1
2
magnet and their recovery and reuse are additional beneficial attributes. Additionally, the nm size range of these particles facilitates the
13
catalysis process, as an increased surface area is available for the reactions.
The vast majority of the novel heterogeneous catalysts are based on CNT supports, due to the fact that organic groups can be robustly
anchored to the CNT surface to provide catalytic centers via metal-ligand cooperation. Among the variety of catalytically active metal
complexes the transition metals bearing N, O-donor ligands are of great interest and several works have been devoted to consider their
1
4, 15
catalytic activity in various catalytic organic reactions.
One of this N, O-donor ligands is guanidine acetic acid. Guanidine acetic acid
(
GAA), the essential precursor of creatine, belongs to the class of guanidino compounds which are characterized by the presence of a basic
16
guanidino group, HN=C(NH )-NH-. Due to the unique properties, this amino acid is involved in many important biological processes, such
2
1
7
18
19
18
as creatine deficiency, renal metabolism, thyroid dysfunction, epileptic seizures, hepatic encephalopathy and insulin regulation. Also,
20
the complexation of GAA with Cu(II) for its role in superoxide dismutase was studied. Therefore, guanidine acetic acid with the N, O-
donor’s ability as a bifunctional ligand can create a novel class of heterogeneous catalyst that can have sufficient properties.
21
As “point and shoot” coupling tools, click reactions are charming to researchers since its birth, and have been widely used in many hot
research fields. However, because of the high activation energy, these cycloadditions generally require high temperatures and long
reaction times and usually afford a mixture of the 1,4- and 1,5-regioisomers. The copper catalysts could facilitate the cycloaddition in a
22
regiospecific manner to give only 1,4-disubstituted triazoles and it was reported by Sharpless. This reaction has been reported using the
2
3
24
25
26
catalysts in the form of Cu(I) salts, CuSO -ascorbate system, immobilized Cu(I) onto polymers, copper nanoparticles, and
4
27
nanostructured copper oxide. Therefore, we inferred heterogeneous magnetic Cu/MWCNT catalyst system, in the presence of guanidine
acetic acid as the ligand, Cu/MWCNT-GAA@Fe O could catalyses this reaction and give rise to click chemistry. Further, for investigating
3
4,
the multi-task capability of a new synthesized nanocatalyst, there catalytic activity has been examined in condensation reaction and
interestingly has also been found to be an efficient and reliable catalyst for the facile synthesis of bis(indolyl)methanes in water which
constitutes an active area of investigation in pharmaceutical and organic synthesis. Bis(indolyl)methanes, which contain two indole units in
28, 29
a molecule, were found in various natural products possessing important biological activity
and as an important component has diverse
30, 31
pharmaceutical properties.
One of the most applied procedures for synthesis of bis(indolyl)methanes is based on the electrophilic
32-36
substitution reaction of indoles with various aldehydes and ketones in the presence of heterogeneous and homogeneous acid catalysts.
3
7-40
As part of our ongoing program related to the developing new heterogeneous catalysts for organic transformations,
and based on our
herein we report the synthesis and characterize a new supported copper nanocatalyst on
magnetic guanidine acetic acid (GAA) functionalized multi-wall carbon nanotube (MWCNT), Cu/MWCNT-GAA@Fe O . The as-prepared
41-45
previous investigations on graphene,
3
4
nanocatalyst showed a high catalytic activity towards azide-alkyne 1,3-dipolar cycloaddition reactions for the synthesis of 1,2,3-triazoles
and condensation reaction for the synthesis of bis(indolyl)methanes in the presence of water as a green solvent, yielding catalytic efficiency
over several cycles. (Scheme 1).
2
| RSC Adv., 2015, 00, 1-3
This journal is © The Royal Society of Chemistry 2012

Page 3 of 20
Journal Name
RSC Advances
View Article Online
ARTICLE
DOI: 10.1039/C5RA23294E

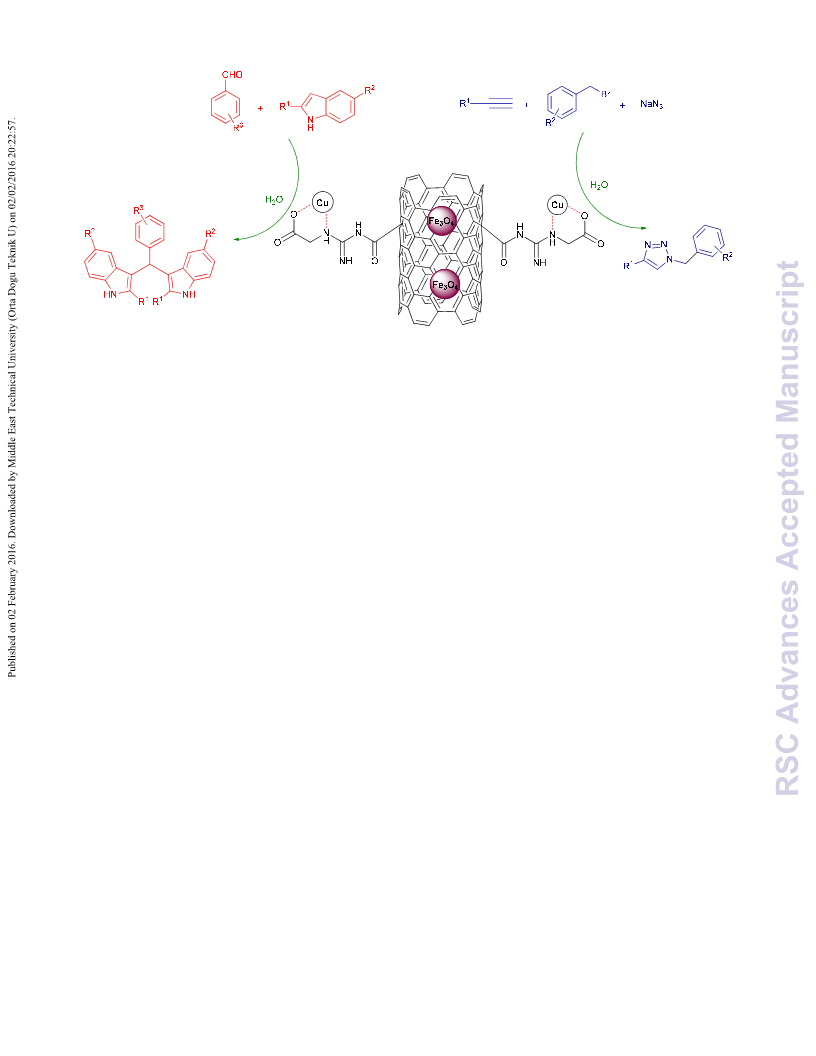

Scheme 1. Synthesis of 1,2,3 triazole and bis(indolyl)methane derivatives by Cu/MWCNT-GAA@Fe O catalyst
3
4
Materials and methods
General
1
.
The materials were purchased from Merck and Aldrich and used without further purification. Carboxyl multi wall carbon nanotubes
2
(
purity> 95 %, -COOH content: 2.00 wt%, outer diameter: 10-20 nm, inner diameter: 5-10 nm, length: 30μm, special surface area: 220 m
/
g) was purchased from Atoor Sanat Abtin, Tehran, Iran. Products were analyzed using a Varian 3900 GC. X-ray diffraction (XRD) pattern of
catalyst was recorded on a STOE STADI P with scintillation detector, secondary monochromator using Cu Kα radiation (λ = 0.1540 nm).
Copper(II) determination was carried out on an FAAS (Shimadzu model AA-680 flame atomic absorption spectrometer) with a Cu hollow
cathode lamp at 324.7 nm, using an air-acetylene flame. Transmission Electron Microscopy (TEM) was performed using a transmission
microscope Philips CM-30 with an accelerating voltage of 150 Kv. Scanning electron microscopy (SEM) observations were carried out on an
electron microscopy Philips XL-30 ESEM. Thermogravimetric analysis (TGA) was carried out using STA 1500 instrument at a heating rate of
−
1
1
0 ºC min in air. Melting points were measured on an Electrothermal 9100 apparatus and are uncorrected. IR spectra were recorded on a
1
13
C
Shimadzu IR-470 spectrometer. The elemental analyses were performed with an Elementar Analysensysteme GmbH VarioEL. H and
NMR spectra were recorded on a BRUKER DRX-300 AVANCE spectrometer at 300.13 and 75.47 MHz. NMR spectra were obtained in DMSO-
d and CDCl .
6
3
1
2
Preparation of catalyst
.1 Preparation of MWCNT-COCl
The carboxylic acid group of MWCNT–COOH was converted to formyl chloride via reaction with thionyl chloride. In a round bottom flask,
an excess amount of SOCl (30 ml) was added to MWCNT–COOH (0.100 g). The suspension was refluxed for 48 h at 75 °C. Thereafter, the
2
sample was evaporated under reduced pressure, followed by a complete removal of unreacted SOCl on a rotary evaporator with a vacuum
2
pump. The remaining solid (MWCNT–COCl) was washed out three times with anhydrous tetrahydrofuran (THF) and dried in an oven at 60
°C for 5 h.
2
.2 Preparation of MWCNT-GAA
This journal is © The Royal Society of Chemistry 2012
RSC Adv., 2015, 00, 1-3 | 3

RSC Advances
Page 4 of 20
View Article Online
ARTICLE
5RA23294E
DOI: 10.1039Jo/Curnal Name
In a typical procedure, 0.080 g MWCNT-COCl was dispersed in 25 ml DMF and sonicated for 30 min then mixed with 0.060 g (0.001 mol)
GAA. The mixture was stirred for 5 h under N atmosphere at room temperature. Then the solvent was evaporated, remaining solid
2
washed with acetone and the precipitate dried in vacuum at 60 °C to afford MWCNT-GAA.
2
.3 Preparation of Cu/MWCNT-GAA
MWCNT-GAA (0.500 g) was dispersed in water, CuCl . 2H O ( 0.043 g, 0.00025 mmol) which was dissolved in 5 ml water added dropwise,
2
2
then ascorbic acid (50 mL ,0.025M) was added, temperature of mixture was increased to 80 °C and stirring continued at 80 °C for 24 h. The
solvent was evaporated, and the remaining solid was washed three times with deionized water and ethanol. Finally the precipitate was
dried in vacuum at 60 °C overnight to give Cu/MWCNT-GAA.
2
.4 In situ preparation of Cu/MWCNT-GAA@Fe O
3 4
46
The next step in the accomplishment of catalyst preparation was synthesis of the magnetic Fe O using co-precipitation technique. The
3
4
Fe O NPs (1.000 g) was dispersed in water (15 mL) and sonicated for 15 min then MWCNT-GAA (1.000 g) added and sonication continued
3
4
for 2 h at room temperature. Then, a solution of CuCl .2H O (0.043 g, 0.00025 mmol) in 5 mL water was added dropwise to the reaction
2
2
mixture, followed by addition of ascorbic acid (50 mL, 0.025M). The reaction mixture was stirred on magnetic heater stirrer at 80 °C for 24
h. Finally, by applying an external magnet, Cu/MWCNT-GAA@Fe O nanoparticles were collected and washed three times with deionized
3
4
water/ethanol and the magnetic precipitate was dried in vacuum at 60 °C.
General procedure for the synthesis of 1,2,3-triazoles
3
.
Alkynes (1 mmol), benzyl bromide derivatives (1 mmol) and sodium azide (1 mmol, 0.065 g) were added to a 10 ml round bottom flask
fitted with a magnetic stirrer containing a suspension of catalyst (0.400 mol%, 0.020 g) in water (5 mL). The resultant mixture was heated at
5
0 °C. The progress of the reaction was followed by thin layer chromatography (TLC) (ethyl acetate/n-hexane). Upon completion, the
mixture cooled to room temperature and the catalyst separated using an external magnet and the product was extracted with chloroform.
The solvent was removed in vacuum to afford the pure product. If necessary the purification was performed by recrystallization from ethyl
acetate or ethanol.
4
.
General procedure for the synthesis of bis(indolyl)methanes
In a 10 mL round bottom flask equipped with magnetic stir bar an indole (1 mmol), an aldehyde (0.5 mmol) and water (5 mL) were added.
The catalyst (0.200 mol%, 0.01 g) was added and the mixture was stirred at 70 °C for 40-80 min. Progress of reaction was monitored by TLC
(
ethyl acetate/n-hexane). Then chloroform (2 × 5 mL) was added to the reaction mixture and the catalyst was separated using an external
magnet. The chloroform layer was separated, evaporated under reduced pressure to give the crude product which was purified via
recrystallization in ethanol–water mixture.
Results and discussion
Through the synthesis of the novel catalyst, Cu nanoparticles has been anchored to the side walls of MWCNT via guanidine acetic acid as a
47
linker. The schematic pathway for preparation of Cu/MWCNT-GAA@Fe O is shown in Scheme 2.
3
4
4
| RSC Adv., 2015, 00, 1-3
This journal is © The Royal Society of Chemistry 2012

Page 5 of 20
Journal Name
RSC Advances
View Article Online
ART94ICLE
DOI: 10.1039/C5RA232 E
O
O
O
NH
HN
SOCl2
GAA
OH
HN
Cl
DMF, N2
OH
O
MWCNT-GAA
O
FeCl .6H O
3
2
NH4OH/H2O
1h, 60 °C
1. MWCNT-GAA, 2h, rt
NH
HN
HN
FeCl .4H O
2. CuCl2. 2H2O, 24h, 80 °C
2
2
O
Fe O
3
4
O
Cu
Cu/MWCNT-GAA@Fe O4
3
Scheme 2. Preparation steps for fabricating heterogeneous Cu/MWCNT-GAA@Fe O nanocomposite
3
4
Cu/MWCNT-GAA@Fe O was prepared by chemical functionalization of MWCNT with guanidine acetic acid and the GAA content in the
3
4
nanocatalyst was calculated to be 2.62 mmol/g, according to the nitrogen content measured by CHN. The FAAS method was used for
determining Cu content of the nanocatalyst and the weight percentage of Cu was determined 1.2%. FT-IR spectra of the MWCNT-COOH,
MWCNT-COCl, MWCNT-GAA and Cu/MWCNT-GAA@Fe O are shown in Fig. 1. FT-IR peaks for MWCNT–COOH show a broad peak at 3443
3
4
-
1
-1
-1
cm due to the stretching vibration of –OH bond, 1720 cm peak attributed to the presence of carbonyl groups and peak at 1382 cm
-1
corresponds to O–H bond in carboxylic group. A peak at 1221 cm is assigned to C–O bond stretching (Fig. 1, I-a). FT-IR spectra of MWCNT–
-1
COCl confirmed the conversion of C–OH groups to C–Cl by the absence of broad peak of –OH and presence of sharp peak at 801 cm which
-1
indicated C–Cl bonding and the slight shift in the C=O stretching to 1729 cm (Fig. 1 ,I-b). Immobilization of the GAA on the MWCNT-COCl
can be inferred from FT-IR spectroscopy (Fig. 1, II -c). As a result, the carboxylic bonds of CNT have been converted into amide bonds (NH–
−
1
C=O). The interaction is noticed by the disappearance of C–Cl peak and appearance of C–N stretching at 1394 cm . In addition, the FT-IR
−
1
spectrum of MWCNT-GAA has some bands at 3363, 2935 and 1692 cm corresponded to the N–H, C-H, C=O stretches respectively which
−
1
did not observe for CNT. Finally, FT-IR spectrum of Cu/MWCNT-GAA@Fe O exhibits a broad band at 580 cm corresponding to the
3
4
48
stretching vibration of the Fe–O bonds which is assigned to the spinel form of iron oxide (Fe O ). The slight shift in the C=O stretching
3
4
-
1
bonds to 1620 and 1577 cm may be due to the chelation of Cu nanoparticles on the surface of MWCNT-GAA@Fe O (Fig. 1, II -d).
3
4
Fig. 1 FT-IR spectra of: (I-a) MWCNT-COOH; (I-b) MWCNT-COCl; (II-c) MWCNT-GAA and (II-d) Cu/MWCNT-GAA@Fe O4
3
This journal is © The Royal Society of Chemistry 2012
RSC Adv., 2015, 00, 1-3 | 5

RSC Advances
Page 6 of 20
View Article Online
ARTICLE
5RA23294E
DOI: 10.1039Jo/Curnal Name
Selected images of scanning electron microscopy (SEM) and transmission electron microscopy (TEM) have been used to study the structure
and morphology of the catalyst. The SEM and TEM images of MWCNT-COCl show the nanotube structure of this particle with low dispersity
(
Fig. 2a and d). Shape and structure of MWCNTs were constantly remained after functionalization with GAA and caused the higher
dispersion of nanotubes (Fig. 2e). After functionalization of the MWCNT-COCl via GAA and immobilization of Cu and Fe O NPs, the ligand
3
4
and immobilized NPs can act as an obstacle in agglomeration of nanocatalyst so it could be used as a suitable catalyst for any reaction. To
confirm the formation of Cu nanoparticles through the preparation of nanocatalyst, the Cu/MWCNT-GAA has been synthesized by similar
2+
3+
procedure in the absence of Fe and Fe . The white dots represent anchored Cu NPs, having a spherical-like shape, with a diameter of ~20
nm that dispersed over the side walls of MWCNT-GAA which directly visualized by SEM and TEM images (Fig. 2, b and f). The SEM and TEM
images of Cu/MWCNT-GAA@Fe O show that Fe O NPs are well incorporated on the surface of Cu/MWCNT-GAA with semi-spherical
3
4
3 4
morphology. Also, Cu NPs can easily be recognized as it appears brighter than Fe O NPs in the TEM (Fig. 2, c and g). The nanoparticles
3
4
attached to the side walls of the MWCNT-GAA with an average size in the range of 8-25 nm related to Fe O and Cu NPs, respectively. The
3
4
components of Cu/MWCNT-GAA and Cu/MWCNT-GAA@Fe O were analysed by using an energy dispersive spectrometer. The EDX
3
4
spectrum shows the elemental composition (Cu) of Cu/MWCNT-GAA (Fig. 2h) and (O, Fe and Cu) of Cu/MWCNT-GAA@Fe O (Fig. 2i).
3
4
6
| RSC Adv., 2015, 00, 1-3
This journal is © The Royal Society of Chemistry 2012

Page 7 of 20
Journal Name
RSC Advances
View Article Online
ART94ICLE
DOI: 10.1039/C5RA232 E
h
i

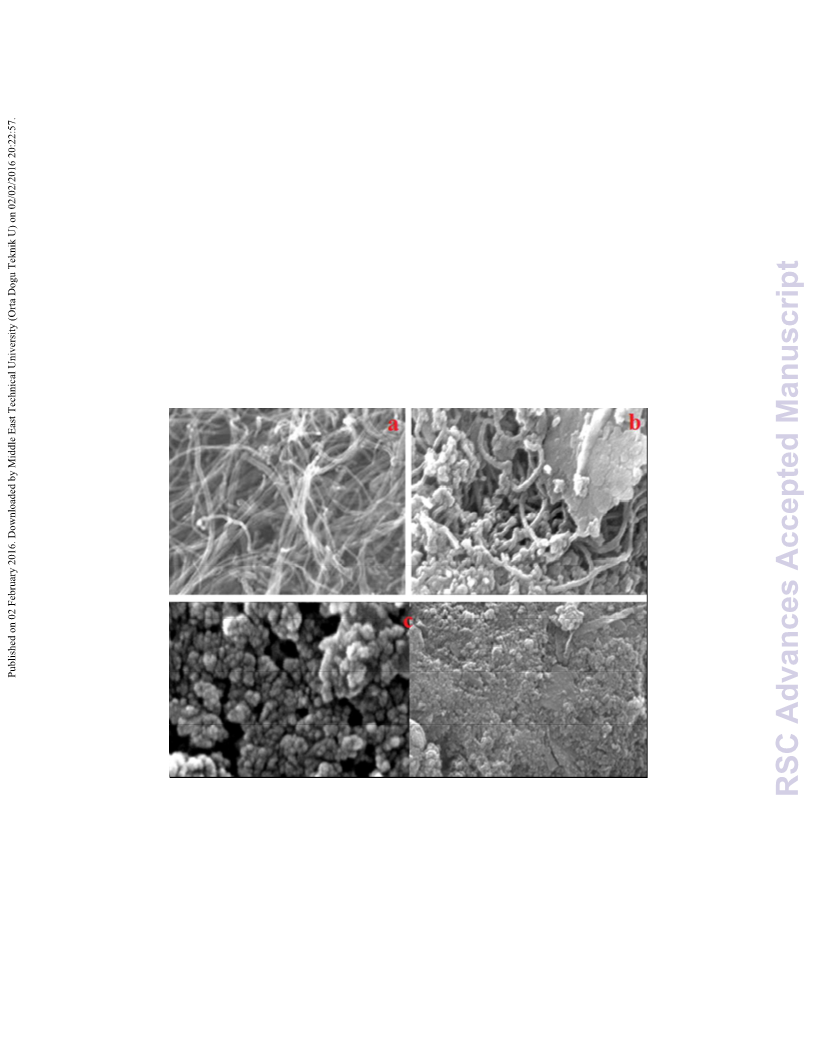

Fig. 2 SEM images of: (a)MWCNT-COCl. (b) Cu/MWCNT-GAA. (c) Cu/MWCNT-GAA@Fe O . TEM imagse of the: (d) MWCNT-COCl (e)
3
4
MWCNT-GAA (f) Cu/MWCNT-GAA (g) Cu/MWCNT-GAA@Fe O . EDXS spectrum of the: (h) Cu/MWCNT-GAA (i) Cu/MWCNT-GAA@Fe O
3 4
3
4
The XRD patterns of MWCNT-COCl, MWCNT-GAA and Cu/MWCNT-GAA@Fe O are shown in Fig. 3. The diffraction peaks at 2θ = 25.53°,
3
4
4
2.28° were associated with the (002), (100) corresponding to the hexagonal graphite structure of MWCNT that were appeared in all
patterns. In the case of MWCNT-GAA there is no obvious change in the structure of MWCNT after functionalization with GAA. After
formation of Cu and Fe O NPs onto the surface of functionalized MWCNT, the pattern shows the new peaks. The peaks at 43.3°, 50.26°
3
4
49
and 74.56° were assigned with the (111), (200) and (220) demonstrating the formation of Cu NPs also 30.87°, 35.30°, 42.93°, 53.35°,
5
7.00°, and 62.66° peaks corresponding to the (220), (311), (400), (422), (511), and (440) was obtained due to the cubic spinel structure of
50
Fe O NPs. In brief, this XRD patterns show that the structure of MWCNT support was uniformly maintained through the reaction process
3
4
also, Cu and Fe O NPs were formed successfully.
3
4
This journal is © The Royal Society of Chemistry 2012
RSC Adv., 2015, 00, 1-3 | 7

RSC Advances
Page 8 of 20
View Article Online
ARTICLE
5RA23294E
DOI: 10.1039Jo/Curnal Name
A
B
C
1
0
20
30
40
50
60
70
80
2θ (°)
Fig. 3 XRD patterns of MWCNT-COCl (A), MWCNT-GAA (B), and Cu/MWCNT-GAA@Fe O (C).
3
4
In order to obtain information on the thermal stability, TGA experiments are carried out by heating MWCNT-COOH, MWCNT-GAA and
Cu/MWCNT-GAA@Fe O up to 700 °C under air at a heating rate of 10 °C/min (Fig. 4). The TGA curves showed the initial weight loss up to
3
4
2
00 °C due to the removal of moisture and physically adsorbed solvent. In the TGA curve of the MWCNT-COOH a second weight loss
occurred between 550-700 °C, which related to the oxidation of the purified MWCNTs. The MWCNT–GAA showed same initial weight loss
and two new stages appeared for weight loss consisting of deformation of functional groups and decomposition of organic linker along by
MWCNTs oxidation in the range of 220-550 and 550-700 °C, respectively. However, in the case of Cu/MWCNT-GAA@Fe O clearly observed
3
4
three temperature ranges of initial weight diminution same as the previous case with difference in amounts of weight losses. The residual
weight of MWCNT-COOH, MWCNT-GAA and Cu/MWCNT-GAA@Fe O were 62%, 17% and 58%, respectively. Decreases the amounts of
3
4
residual weight of MWCNT-GAA compared to MWCNT-COOH related to the tethered of GAA to MWCNT. The amounts of the GAA attached
to MWCNT can be calculated from the difference in weight loss of the MWCNT-COOH and MWCNT-GAA hybrids and is 50 wt% at 700 °C.
However, the residual weight of Cu/MWCNT-GAA@Fe O confirmed the addition of Cu and Fe O NPs to the recent functionalized
3
4
3 4
nanocomposite.
8
| RSC Adv., 2015, 00, 1-3
This journal is © The Royal Society of Chemistry 2012

Page 9 of 20
Journal Name
RSC Advances
View Article Online
ARTICLE
DOI: 10.1039/C5RA23294E
1
20
00
1
8
6
4
2
0
0
0
0
0
MWCNT-COOH
MWCNT-GAA
Cu/MWCNT-GAA@Fe3O4
4
0
140
240
340
440
540
640
Temperature (°C)
Fig. 4 TG curves recorded in air at a heating rate of 10 °C/min
To show the efficiency of the newly synthesized nanocatalyst, the catalytic activity of Cu/MWCNT-GAA@Fe O was evaluated in a click
3
4
reaction for the synthesis of substituted 1,2,3-triazoles. These triazole compounds are the most important heterocycles, owing to their
5
1
unique chemical and structural properties and various synthetic methods have been developed for their construction. Recently, the
52
53
applications of this building block have been extended into various research fields, such as biological science, material chemistry and
54
medicinal chemistry. Our investigation began with the evaluation of Cu/MWCNT-GAA@Fe O as a heterogeneous catalyst in the reaction
3
4
of phenylacetylene (1 mmol, 0.102 ml), benzyl bromide (1 mmol, 0.118 ml) and sodium azide (1 mmol, 0.065 g) as a model reaction. It was
found that a yield of 99 % of the cycloaddition product, 1-benzyl-4-phenyl-1H-1,2,3- triazole, has been obtained for the coupling between
benzyl bromide and phenylacetylene (Table 1, entry 1). Then, we explored the versatility of the catalyst for the 1,3-dipolar cycloaddition of
structurally diverse benzyl bromides and alkynes, and the results are summarized in Tables 1. All the substrates produced the expected
cycloaddition product in water with very good to excellent yields.
Table 1. Three-component 1,3-dipolar azide–alkyne cycloaddition catalysed by Cu/MWCNT-GAA@Fe O using organic halides as the azide
3
4
a
precursors
b
Entry
1
2
Triazoles
Time/h
Yield (%)
This journal is © The Royal Society of Chemistry 2012
RSC Adv., 2015, 00, 1-3 | 9

RSC Advances
Page 10 of 20
View Article Online
ARTICLE
5RA23294E
DOI: 10.1039Jo/Curnal Name
1
1
99
Br
Br
Br
Br
N
N
N
2
3
4
2
95
Br
Br
Br
N
N
O N
2
N
NO2
2
89
90
86
N
N
I
I
N
2
N
Br
N
N
Br
5
6
7
2
2
3
N
N
N
F3C
F3C
100
O N
N
2
N
N
NO2
92
N
N
I
I
N
1
0 | RSC Adv., 2015, 00, 1-3
This journal is © The Royal Society of Chemistry 2012

Page 11 of 20
Journal Name
RSC Advances
View Article Online
ARTICLE
DOI: 10.1039/C5RA23294E
8
7
8
8
9
89
92
92
93
Br
N
N
N
N
N
N
N
9
Br
N
N
N
N
Br
Br
1
0
Br
N
N
N
N
O N
2
NO2
1
1
Br
HO
N
HO
N
N
1
1
1
2
3
4
10
89
93
86
Br
Br
HO
HO
N
N
HO
Br
N
Br
8
N
HO
O N
2
N
N
NO2
7
Br
HO
N
N
HO
N
This journal is © The Royal Society of Chemistry 2012
RSC Adv., 2015, 00, 1-3 | 11

RSC Advances
Page 12 of 20
View Article Online
ARTICLE
5RA23294E
DOI: 10.1039Jo/Curnal Name
1
1
1
5
6
7
8
6
8
82
89
87
HO
N
HO
N
N
NO2
Br
Br
HO
N
HO
N
N
Br
a
b
The reaction was carried out using 1 (1mmol) and 2 (1 mmol) and 3 (1 mmol) in the presence of catalyst (0.020 g) at 50 °C, Isolated yield
It is well known that water is considered as a green solvent for various chemical and biological reactions, by considering both an economic
and an environmental aspect also during the course of our studies toward the development of new routes to the synthesis of organic
55-58
compounds using water as a green medium,
it was decided to used water as an environment friendly solvent. The results show that the
click reaction successfully carried out in water with good to excellent yield. As a result, there was no need to solvent optimization.
The efficiency of the synthesized catalyst in comparison with other reported catalysts is given in Table 2. The results show, in the case of
Cu/MWCNT-GAA@Fe O the reaction yield is increased at the relatively shorter reaction times. The better rate of this reaction
3
4,
could be translated due to high surface area and suitable interaction of nanocomposite with substrates by the electrostatic and
dipole-dipole interactions. Additionally, interactions between d-orbital of metal and ᴨ electron of unsaturated linker and
MWCNT can effect on the delocalization of the electron density over both metal and unsaturated structures of
nanocomposite. This might be affected on the electrochemical activity of Cu NPs. These data thus show that the Cu NPs
activity is significantly enhanced in the presence of magnetic MWCNT. Therefore, this metallic nanocomposite catalysed click
reaction in excellent yields under mild thermal conditions in water.
Table 2. Comparison of literature catalysts and this work for the synthesis of 1-benzyl-4-phenyl-1H-1,2,3- triazole.
Entry
Catalyst
Reaction conditions
Time (h)
Yield (%)
Ref.
1
2 | RSC Adv., 2015, 00, 1-3
This journal is © The Royal Society of Chemistry 2012

Page 13 of 20
Journal Name
RSC Advances
View Article Online
ARTICLE
DOI: 10.1039/C5RA23294E
1
PVP coated Cu–Fe O NPs
3
t-BuOH:H O(1:3)/r.t.
2
3
55
59
4
2
3
4
5
Cu-pABA
H O/r.t.
2
3
97
93
91
99
60
Cu@Fe NPs
H O/r.t.
2
12
3
61
SiO -Cu
2
t-BuOH:H O(1:3)/r.t.
2
62
Cu/MWCNT-GAA@Fe O
3
H O/50°C
2
1
This work
4
To optimize the required amount of catalyst the synthesis of 1-benzyl-4-phenyl-1H-1,2,3- triazole was performed as a model reaction and
the results are summarized in Table 3. Optimization of amount of catalyst showed that the 0.400 mol% of catalyst is needed to provide the
best results. The optimum conditions were 0.400 mol% Cu/MWCNT-GAA@Fe O and H O as the solvent for click reaction.
3
4
2
a
Table 3. Effect of amount of catalyst and temperature on click reaction
b
Yield (%)
Entry
Amount of catalyst (mol%)
Temperature
1
2
3
4
5
6
None
0.1
50°C
50°C
50°C
50°C
50°C
25°C
<5
25
43
63
99
60
0.2
0.3
0.4
0.4
a
Reaction conditions: phenylacetylene (1 mmol), benzyl bromide (1 mmol)
b
and sodium azide (1 mmol), water (5 ml), 1 h. Isolated yield
One of the advantages of this active heterogeneous nanomagnetic catalyst is its ability to perform as a recyclable reaction medium. To
evaluate the level of reusability and stability of the catalyst, we examined click experiments with phenylacetylene, benzyl bromide and
sodium azide using the recycled Cu/MWCNT-GAA@Fe O catalyst under the mentioned conditions (Table 1, Entry 1). After the carrying out
3
4
of the first reaction, the catalyst was concentrated on the sidewall of the reaction flask using an external magnet and the catalyst washing
with acetone (2 × 5 mL) and subsequently dried at 60 °C and then reused. Only minor decreases in the reaction yield were observed after
four repetitive cycles for this reaction (Fig. 5a).The decanted solution was collected for determination of copper leaching. The Cu leaching
of the catalyst was determined to be 0.002 wt% based on the FAAS analysis. Fig. 5b showed FT-IR spectra of recovered catalyst after four
run, no significant differences were observed in the peaks before and after using the nanocatalyst. Also, TEM image proved the presence of
the Cu NPs. As it is shown in Fig. 5c the structure of Cu/MWCNT-GAA@Fe O nanocomposite has remained quite stable and there is no
3
4
evidence of any agglomeration or defected on MWCNT structure.
This journal is © The Royal Society of Chemistry 2012
RSC Adv., 2015, 00, 1-3 | 13

RSC Advances
Page 14 of 20
View Article Online
ARTICLE
5RA23294E
DOI: 10.1039Jo/Curnal Name
1
00
8
6
4
2
0
0
0
0
0
a
b
1
2
3
4
Cycles
th
Fig. 5 (a) Reusability of the catalyst for the click reaction, (b) FT-IR spectra, (c) TEM image of recovered catalyst after 4 run

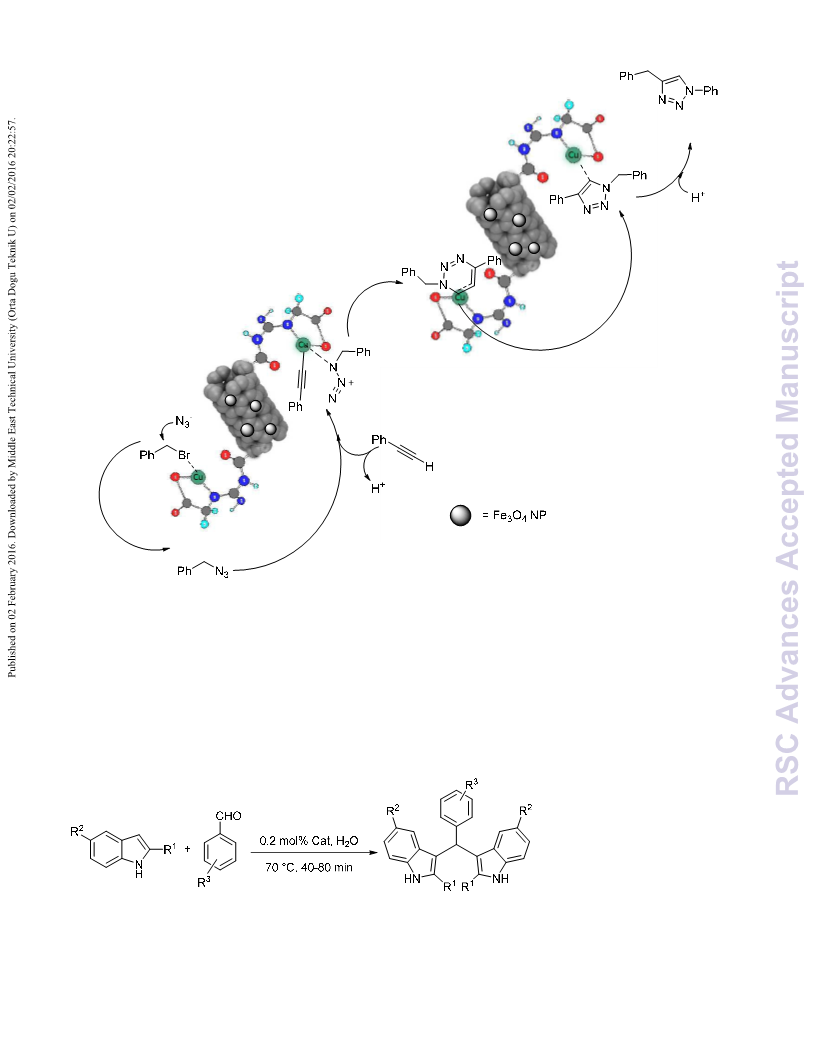

Mechanistically, we proposed that the reaction might proceed on the surface of the Cu/MWCNT-GAA@Fe O nanocatalyst by initial dipole-
3
4
dipole and ionic interaction between the catalyst surface and reagents. In the first step, benzyl azide was formed through the nucleophilic
substitution reaction of azide ion with benzyl bromide. Afterward, the supported Cu NPs can readily insert into terminal alkynes for
polarization of the terminal triple bonds. This phenomenon was catalysed the cycloaddition reaction of phenyl azide and alkyne for
producing the target molecule (Scheme 3).
1
4 | RSC Adv., 2015, 00, 1-3
This journal is © The Royal Society of Chemistry 2012

Page 15 of 20
Journal Name
RSC Advances
View Article Online
ARTICLE
DOI: 10.1039/C5RA23294E
Scheme 3. Proposed mechanism of click reaction with Cu/MWCNT-GAA@Fe O nanocomposite
3
4
Along with a growing demand on multi-task catalysts for a wide range of reactions and because of the click reaction has been carried out
successfully using the prepared nanocatalyst, therefore the usability of these catalytic system has been examined for the one of the
considerable condensation reactions toward the synthesis of bis(indolyl)methanes. Interestingly, it was found that Cu/MWCNT-
GAA@Fe O was proved to be an efficient catalyst not only for producing 1,2,3-triazoles, but also has a great catalytic role in the synthesis
3
4
of bis(indolyl)methanes using water as a solvent. Results of this reaction summarized in Table 4.
Table 4. Synthesis of bis(indolyl)methanes catalyzed by Cu/MWCNT-GAA@Fe O using indole derivation and various benzaldehyde in water
3
4
This journal is © The Royal Society of Chemistry 2012
RSC Adv., 2015, 00, 1-3 | 15

RSC Advances
Page 16 of 20
View Article Online
ARTICLE
5RA23294E
DOI: 10.1039Jo/Curnal Name
1
2
3
a
Yield (%)
o
M.p. ( C) (L)
Entry
R
R
R
3
3
3
3
1
2
3
4
5
6
7
H
H
H
H
H
88
96
94
86
84
92
90
86
150-152 (148–149)
215-218 (216–217)
4-NO2
4-Cl
3
3
H
H
78-79 (75–78)
94-97 (94–95)
177-178
3
3
H
H
4-CH3
2-propargyl
H
H
H
3
3
Me
Me
H
H
188-190 (185–188)
3
3
H
2-Cl
216-219 (220–221)
3
3
8
Br
4-NO2
297-300 (294–297)
a
Isolated yield
63-66
The efficiency of various Cu catalysts
was examined for synthesis of bis(indolyl) methanes, and the results are shown in Table 5. Among
these Cu catalysts, Cu-modified MWCNT-GAA@Fe O is superior, compared to literature data, with respect to the catalyst, solvent and
3
4
yield. The results showed that Cu/MWCNT-GAA@Fe O nanocomposite can acts as a powerful catalyst for activation of carbonyl functional
3
4
groups and consequently have an interesting role in the synthesis of bis(indolyl)methanes.
Table 5. Comparison of literature catalysts and this work for the synthesis of bis(indolyl) methanes
Entry
Catalyst
Solvent
Time (min)
Yield (%)
Ref
63
64
65
66
1
2
3
4
5
CuBr2
CH CN
15
10
93
83
92
82
96
3
Cu1.5PMo O
ionic liquid
CH Cl
12
40
Cu(BF ) ·SiO
75
4
2
2
2
2
Cu(NO ) .3H O
CH CN
330
40
3
3
2
3
Cu/MWCNT-GAA@Fe O
water
This
3
4
work
A possible mechanism for the reaction between indole and benzaldehyde derivatives in the presence of Cu/MWCNT-GAA@Fe O has been
3
4
shown in Scheme 4. It seems that the Cu/MWCNT-GAA@Fe O nanocomposite activates the benzaldehyde 1 toward electrophilic attack of
3
4
indole 2 to generate indolyl carbinol which further converts to azafulvenium intermediate 3. The intermediate 3 can undergo further
addition with a second indole molecule to produce bis(indolyl) methanes 4.
1
6 | RSC Adv., 2015, 00, 1-3
This journal is © The Royal Society of Chemistry 2012

Page 17 of 20
Journal Name
RSC Advances
View Article Online
ART94ICLE
DOI: 10.1039/C5RA232 E

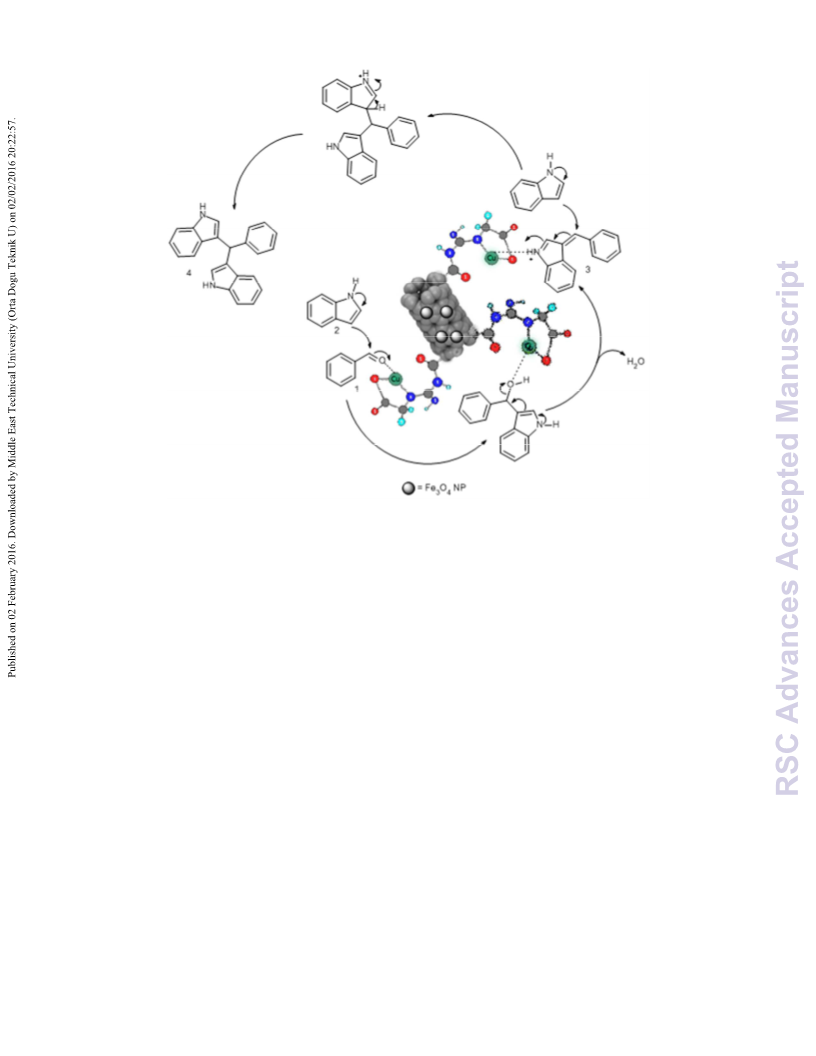

Scheme 4. Plausible reaction mechanism for the formation of bis(indolyl) methanes by Cu/MWCNT-GAA@Fe O nanocomposite
3
4
Conclusions
In conclusion, we have introduced Cu-modified MWCNT-GAA@Fe O nanocatalyst for the first time which can expeditiously acts as a
3
4
catalyst in organic synthesis. With this attractive and novel catalyst, we have developed a simple and efficient method for the 1,3-dipolar
cycloaddition of terminal alkynes with azides and bis(indolyl)methanes in water as a green solvent. The advantages of applied of this
catalyst are short times, easy of handling, high atom economy and simple work-up also all the products were obtained in good to excellent
yield and the catalyst was reusable up to four times without much loss in catalytic activity. Our multi-task heterogeneous metallic-based
catalyst was able to be involved in at least two consecutive reactions having a different mechanism and represents the merger of two
ubiquitous green chemistry themes: magnetic nanoparticles as easily recoverable catalysts and aqueous medium for organic reactions.
These results thus broaden the scope of this catalyst in the other organic chemistry.
Spectral data for new derivatives of 1,2,3-triazoles
o
1
1
-(4-Nitrobenzyl)-4-(4-(trifluoromethyl)phenyl)-1H-1,2,3-triazole (Table 1, Entry 6). White powder; m.p.: 215-218 C, H NMR (300 MHz,
13
CDCl ) δ (ppm) 5.74 (2H, s), 7.47-7.50 (2H, m), 7.68-7.71 (2H, m), 7.84 (1H, s), 7.94-7.96 (2H, m), 8.26-8.29 (2H, m); C NMR (75 MHz,
3
CDCl ) δ (ppm) 53.1, 118.1, 120.0, 120.5, 121.8, 124.9, 125.2, 127.7, 132.5, 140.1, 147.2.
3
This journal is © The Royal Society of Chemistry 2012
RSC Adv., 2015, 00, 1-3 | 17

RSC Advances
Page 18 of 20
View Article Online
ARTICLE
5RA23294E
DOI: 10.1039Jo/Curnal Name
o
1
1
-(3-Iodobenzyl)-4-p-tolyl-1H-1,2,3-triazole (Table 1, Entry 7).white powder; m.p. 178-181 C; H NMR (300 MHz, CDCl ) δ (ppm) 2.38 (3H,
3
13
s), 5.51 (2H, s), 7.09-7.14 (1H, m), 7.22-7.27 (3H, m), 7.62-7.72 (5H, m); C NMR (75 MHz, CDCl ) δ (ppm) 21.3, 53.2, 94.7, 118.85, 119.25,
3
1
19.58, 125.63, 127.51, 12950, 129.63, 130.77, 136.80, 136.97, 137.86, 138.16, 148.49, 158.53.
Spectral data for new derivative of bis(indolyl)methane
-((1H-Indol-3-yl)(2-(prop-2-ynyloxy)phenyl)methyl)-1H-indole (Table 2, Entry 5). Dark red powder; m.p. 177-178 C; H NMR (300 MHz,
o
1
3
1
3
DMSO-d ) δ (ppm) 3.58 (1H, s), 4.87 (2H, s), 6.23 (1H, s), 6.76-6.86 (4H, m), 7.13-7.36 (10H, m), 10.79 (2H, brs); C NMR (75 MHz, DMSO-
6
d6) δ (ppm) 31.9, 56.2, 78.5, 80.1, 111.8, 113.8, 118.0, 118.5, 119.4, 121.3, 123.9, 124.0, 127.1, 127.2, 129.8, 133.7, 136.8, 137.0, 154.6;
Anal. Calcd. (%) for C H N O: C, 82.95; H, 5.35; N, 7.44. Found: C, 82.90; H, 5.42; N, 7.21.
26 20 2
Acknowledgements
We gratefully acknowledge financial support from the Iran National Science Foundation (INSF), the Research Council of Shahid Beheshti
University and Catalyst Center of Excellence (CCE) at Shahid Beheshti University.
Appendix A. Supplementary data
Supplementary data associated with this article can be found, in the online version.
References
1
2
3
4
5
6
.
.
.
.
.
.
Y. Yan, J. Miao, Z. Yang, F.-X. Xiao, H. B. Yang, B. Liu and Y. Yang, Chem. Soc. Rev., 2015, 44, 3295-3346.
D. R. Dreyer, H. P. Jia and C. W. Bielawski, Angew. Chem., 2010, 122, 6965-6968.
J. Pyun, Angew. Chem. Int. Ed., 2011, 50, 46-48.
S. Liao, F. Peng, H. Yu and H. Wang, Appl. Catal., A, 2014, 478, 1-8.
M. B. Gawande, A. K. Rathi, I. D. Nogueira, R. S. Varma and P. S. Branco, Green Chem., 2013, 15, 1895-1899.
I. Kalinina, Y. F. Al-Hadeethi, E. Bekyarova, C. Zhao, Q. Wang, X. Zhang, A. Al-Zahrani, F. Al-Agel, F. Al-Marzouki and R. C. Haddon, Mater. Lett.,
2
015, 142, 312-316.
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
.
Z. Liu, X. Fu, S. Tang, Y. Cheng, L. Zhu, L. Xing, J. Wang and L. Xue, Catal. Commun., 2014, 56, 1-4.
A. Ishibashi, Y. Yamaguchi, H. Murakami and N. Nakashima, Chem. Phys. Lett., 2006, 419, 574-577.
A. Satake, Y. Miyajima and Y. Kobuke, Chem. Mater., 2005, 17, 716-724.
.
.
0.
1.
2.
3.
4.
5.
6.
7.
8.
9.
0.
1.
2.
3.
4.
L. Yang, B. Yang, D. Zeng, D. Wang, Y. Wang and L.-M. Zhang, Carbohydr. Polym., 2011, 85, 845-853.
R. Afshari, S. Mazinani and M. Abdouss, NANO, 2015, 10, 1550010.
M. B. Gawande, P. S. Branco and R. S. Varma, Chem. Soc. Rev., 2013, 42, 3371-3393.
R. N. Baig and R. S. Varma, Green Chem., 2013, 15, 398-417.
J. Andrez, G. Bozoklu, G. Nocton, J. Pécaut, R. Scopelliti, L. Dubois and M. Mazzanti, Chem. Eur. J., 2015, 21, 15188-15200.
Q.-Z. Yang, A. Kermagoret, M. Agostinho, O. Siri and P. Braunstein, Organomet., 2006, 25, 5518-5527.
J. L. de Miranda and J. Felcman, Polyhedron, 2003, 22, 225-233.
J. Ilas, A. Mühl and S. Stöckler-Ipsiroglu, Clin. Chim. Acta, 2000, 290, 179-188.
M. Kuroda, Nephron, 1993, 65, 605-611.
J. Verhelst, J. Berwaerts, B. Marescau, R. Abs, H. Neels, C. Mahler and P. De Deyn, Metabolism, 1997, 46, 1063-1067.
R. Osman and H. Basch, J. Am. Chem. Soc., 1984, 106, 5710-5714.
J. F. Lutz, Angew. Chem. Int. Ed., 2007, 46, 1018-1025.
H. C. Kolb, M. Finn and K. B. Sharpless, Angew. Chem. Int. Ed., 2001, 40, 2004-2021.
V. D. Bock, H. Hiemstra and J. H. Van Maarseveen, Eur. J. Org. Chem., 2006, 2006, 51-68.
S. Röper, H. C. Kolb, W. Jahnke and D. Erlanson, Click chemistry for drug discovery, Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany,
2
006.
2
2
2
2
2
5.
6.
7.
8.
9.
H. Nandivada, H. Y. Chen, L. Bondarenko and J. Lahann, Angew. Chem. Int. Ed., 2006, 45, 3360-3363.
F. Alonso, Y. Moglie, G. Radivoy and M. Yus, Org. Biomol. Chem., 2011, 9, 6385-6395.
J. Kim, J. Park and K. Park, Chem. Commun., 2010, 46, 439-441.
M. Bandini and A. Eichholzer, Angew. Chem. Int. Ed., 2009, 48, 9608-9644.
M. G. Russell, R. J. Baker, L. Barden, M. S. Beer, L. Bristow, H. B. Broughton, M. Knowles, G. McAllister, S. Patel and J. L. Castro, J. Med. Chem.,
2
001, 44, 3881-3895.
1
8 | RSC Adv., 2015, 00, 1-3
This journal is © The Royal Society of Chemistry 2012

Page 19 of 20
Journal Name
RSC Advances
View Article Online
ARTICLE
DOI: 10.1039/C5RA23294E
3
3
3
3
3
3
3
0.
1.
2.
3.
4.
5.
6.
D. Maciejewska, M. Rasztawicka, I. Wolska, E. Anuszewska and B. Gruber, Eur. J. Med. Chem., 2009, 44, 4136-4147.
D. Kumar, V. Arun, N. Maruthi Kumar, G. Acosta, B. Noel and K. Shah, ChemMedChem, 2012, 7, 1915-1920.
M. Shiri, M. A. Zolfigol, H. G. Kruger and Z. Tanbakouchian, Chem. Rev., 2009, 110, 2250-2293.
A. Z. Halimehjani, S. E. Hooshmand and E. V. Shamiri, RSC Adv., 2015, 5, 21772-21777.
D. Sun, G. Jiang, Z. Xie and Z. Le, Chin. J. Chem., 2015, 33, 409-412.
Z. Xiang, Z. Liu, X. Chen, Q. Wu and X. Lin, Amino acids, 2013, 45, 937-945.
D. Chandam, A. Mulik, P. Patil, S. Jagdale, D. Patil, S. Sankpal and M. Deshmukh, J. Mol. Liq., 2015, 207, 14-20.
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
7.
8.
9.
0.
1.
2.
3.
4.
5.
6.
7.
8.
9.
0.
1.
2.
M. Mahyari, M. S. Laeini and A. Shaabani, Chem. Commun., 2014, 50, 7855-7857.
A. Shaabani and Z. Hezarkhani, Cellulose, 2015, 22, 3027-3046.
A. Shaabani, S. Keshipour, M. Hamidzad and S. Shaabani, J. Mol. Catal. A: Chem., 2014, 395, 494-499.
S. Keshipour and A. Shaabani, Appl. Organomet. Chem., 2014, 28, 116-119.
A. Shaabani and M. Mahyari, J. Mater. Chem. A, 2013, 1, 9303-9311.
M. Mahyari and A. Shaabani, Appl. Catal., A, 2014, 469, 524-531.
M. Mahyari, A. Shaabani and Y. Bide, RSC Adv, 2013, 3, 22509-22517.
A. Shaabani, M. Mahyari and F. Hajishaabanha, Res. Chem. Intermed., 2014, 40, 2799-2810.
M. Mahyari and A. Shaabani, J. Mater. Chem. A, 2014, 2, 16652-16659.
Y. Liu, P. Liu, Z. Su, F. Li and F. Wen, Appl. Surf. Sci., 2008, 255, 2020-2025.
J. Felcman and J. L. d. Miranda, J. Brazil. Chem. Soc., 1997, 8, 575-580.
N. Arsalani, H. Fattahi and M. Nazarpoor, Express Polym. Lett., 2010, 4, 329-338.
M. Salavati-Niasari and F. Davar, Mater. Lett., 2009, 63, 441-443.
S. Sun and H. Zeng, J. Am. Chem. Soc., 2002, 124, 8204-8205.
V. V. Rostovtsev, L. G. Green, V. V. Fokin and K. B. Sharpless, Angew. Chem. Int. Ed., 2002, 41, 2596-2599.
M. S. Costa, N. Boechat, E. A. Rangel, F. d. C. Da Silva, A. M. De Souza, C. R. Rodrigues, H. C. Castro, I. N. Junior, M. C. S. Lourenço and S. M.
Wardell, Bioorg. Med. Chem., 2006, 14, 8644-8653.
5
5
5
5
5
5
5
6
6
6
6
6
6
6
3.
4.
5.
6.
7.
8.
9.
0.
1.
2.
3.
4.
5.
6.
H. Nandivada, X. Jiang and J. Lahann, Adv. Mater., 2007, 19, 2197-2208.
G. C. Tron, T. Pirali, R. A. Billington, P. L. Canonico, G. Sorba and A. A. Genazzani, Med. Res. Rev., 2008, 28, 278-308.
A. Shaabani, M. Seyyedhamzeh, N. Ganji, M. H. Sangachin and M. Armaghan, Mol. Divers., 2015, 19, 709-715.
A. Shaabani, E. Soleimani and H. R. Khavasi, Tetrahedron Lett., 2007, 48, 4743-4747.
A. Shaabani, A. Sarvary, S. Ghasemi, A. H. Rezayan, R. Ghadari and S. W. Ng, Green Chem., 2011, 13, 582-585.
A. Z. Halimehjani, S. E. Hooshmand and E. V. Shamiri, Tetrahedron Lett., 2014, 55, 5454-5457.
N. Joshi and S. Banerjee, Tetrahedron Lett., 2015, 56, 4163–4169.
R. U. Islam, A. Taher, M. Choudhary, M. J. Witcomb and K. Mallick, Dalton Trans., 2015, 44, 1341-1349.
R. Hudson, C.-J. Li and A. Moores, Green Chem., 2012, 14, 622-624.
P. Diz, P. Pernas, A. El Maatougui, C. R. Tubio, J. Azuaje, E. Sotelo, F. Guitián, A. Gil and A. Coelho, Appl. Catal., A, 2015, 502, 86–95.
L. P. Mo, Z. C. Ma and Z. H. Zhang, Synth. Commun., 2005, 35, 1997-2004.
N. Seyedi, H. Khabazzadeh and K. Saidi, Mol. Divers., 2009, 13, 337-342.
G. Meshram and V. D. Patil, Synth. Commun., 2009, 40, 29-38.
A. Nareen, R. Varala, S. R. Adapa, J. Heterocycl. Chem,. 2007, 44, 983.
This journal is © The Royal Society of Chemistry 2012
RSC Adv., 2015, 00, 1-3 | 19

RSC Advances
Page 20 of 20
View Article Online
DOI: 10.1039/C5RA23294E
2
76x156mm (72 x 72 DPI)
