T.D. Conesa et al. / Journal of Catalysis 252 (2007) 1–10
9
Table 8
Total conversion (X ) and product distribution (S ) in the microwave-assisted
under microwave heating exhibited a significant decrease in se-
lectivity to ε-caprolactam.
a
T
i
◦
Beckmann rearrangement of Cdox at 180 C using various micro-mesoporous
Quantitative oxime conversion was obtained for all ma-
terials in the gas-phase reaction. However, the selectivity to
ω-laurolactam was lower than that of ε-caprolactam. Liquid-
phase results of the Beckmann rearrangement of cyclodode-
canone oxime on SiAlP-X catalysts using conventional heat-
ing showed lower conversion and selectivity to ω-laurolactam
compared with microporous Beta25 zeolite. Interestingly, under
microwave heating, the catalytic activity of the SiAlP-X mate-
rials was found to be close to that of zeolite Beta25. Overall,
ε-caprolactam and ω-laurolactam were obtained on SiAlP-X
catalysts in both the gas and liquid phases.
b
materials
Catalyst
X
S
ω-l
S
Cdone
T
(mol%)
(mol%)
(mol%)
c
Blank
Beta25
SiAlP-6
SiAlP-4.5
SiAlP-3
SiAlP-2
–
–
>99
98
98
>99
>99
–
–
2
2
–
–
76
42
65
66
60
d
Beta25
100
79
>99
96
–
4
d
SiAlP-4.5
a
Dodecanenitrile and 11-dodecenenitrile (CN) were not detected.
20 mg Cdox, 3 mL chlorobenzene, 20 mg catalyst, 275 W, 15 min.
No reaction.
b
c
d
Acknowledgments
20 mg Cdox, 3 mL chlorobenzene, 40 mg catalyst, 275 W, 5 min.
This research was subsidized by grants from the Direc-
ción General de Investigación (projects CTQ2005-04080 and
CTQ2007-65754/PPQ), Ministerio de Ciencia y Tecnología,
FEDER funds, and the Consejería de Innovación, Ciencia y
Empresa (Junta de Andalucía, project FQM-191).
3.3.2. Microwave heating
The data obtained from catalytic tests performed under mi-
crowave heating, with chlorobenzene as solvent, are summa-
rized in Table 8. In general, the experiments provided very
good catalytic activities for SiAlP-X materials. This indicates
that the activity of the SiAlP-X materials is close to that of
Beta25 and greater than that of zeolite ZSM-5(30). Dodeca-
nenitrile and 11-dodecenenitrile were not detected in the re-
action products, and only traces of cyclododecanone were de-
tected. ω-Laurolactam was obtained in high yields and selectiv-
ities (>96%). The activity observed under microwave heating
differed from conventional heating where, although relatively
high conversion and selectivity values were observed at rela-
tively short reaction times (typically under 5 h), the activities
were much lower than those of the zeolites [ZSM-5(30) and
Beta25].
References
[1] C.T. Kresge, M.E. Leonowicz, W.J. Roth, J.C. Vartuli, J.S. Beck, Na-
ture 359 (1992) 710.
[2] A. Corma, Chem. Rev. 97 (1997) 2373.
[3] A. Taguchi, F. Schüth, Micropor. Mesopor. Mater. 77 (2005) 1.
[4] D. Zhao, Z. Luan, L. Kevan, Chem. Commun. (1997) 1009.
[5] T. Kimura, Y. Sugahara, K. Kuroda, Micropor. Mesopor. Mater. 22 (1998)
115.
[6] M. Tiemann, M. Fröba, Chem. Commun. (2002) 406.
[7] K. Lin, L. Wang, Z. Sun, Q. Yang, Y. Di, D. Zhang, D. Jiang, F.-S. Xiao,
Chem. Lett. 34 (2005) 516.
[8] X.S. Zhao, G.Q. (Max) Lu, Micropor. Mesopor. Mater. 44–45 (2001) 185.
[9] Z.-Y. Yuan, T.-H. Chen, J.-Z. Wang, H.-X. Li, Colloids Surf. A 179 (2001)
253.
[10] N.C. Masson, H.O. Pastore, Micropor. Mesopor. Mater. 44–45 (2001) 173.
[11] S.K. Mohapatra, P. Selvam, Chem. Lett. 33 (2004) 198.
[12] J.-M. Lü, K.T. Ranjit, P. Rungrojchaipan, L. Kevan, J. Phys. Chem. B 109
(2005) 9284.
[13] Ch. Subrahmanyam, B. Louis, B. Viswanathan, A. Renken, T.K. Varadara-
jan, Appl. Catal. A 282 (2005) 67.
[14] Y.Z. Khimyak, J. Klinowski, Phys. Chem. Chem. Phys. 3 (2001) 2544.
[15] X.S. Zhao, G.Q. Lu, A.K. Whittaker, J. Drennan, H. Xu, Micropor. Meso-
por. Mater. 55 (2002) 51.
The energy efficiency of the reaction was also studied by
changing the amount of catalyst used. Quantitative Cdox con-
version was found for the Beta25 after 5 min on doubling the
quantity of catalyst in the reaction. The SiAlP-4.5 material, in
contrast, gave 80% conversion with comparable high selectivity
to the lactam when the amount of catalyst used was doubled.
4. Conclusion
[16] H.O. Pastore, S. Coluccia, L. Marchese, Annu. Rev. Mater. Res. 35 (2005)
351.

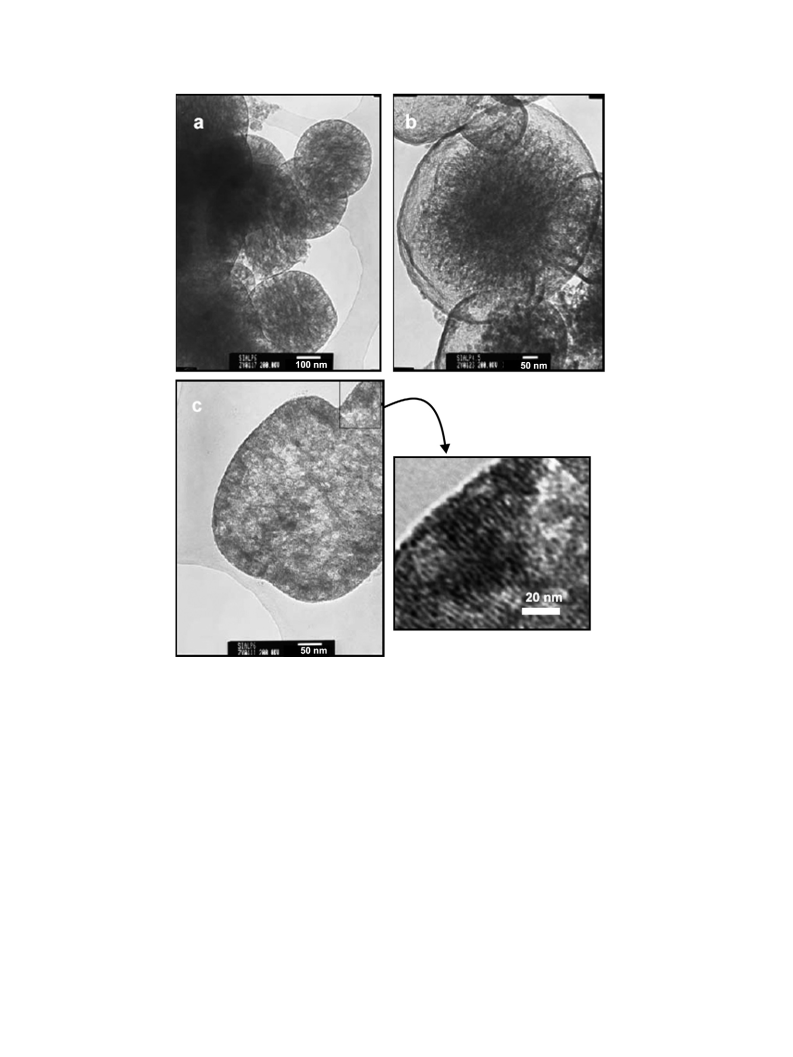

We have synthesized and characterized novel silicoalu-
minophosphate SiAlP-X materials and provided strong evi-
dence that the aluminophosphate units were incorporated into
the mesoporous aluminosilicate framework. XRD and N2 sorp-
tion studies revealed the partial loss of mesostructural order-
ing as the aluminophosphate content increased. A high den-
sity of acid sites was generated in the materials, resulting in
solid acids that are highly active and selective in the gas- and
liquid-phase Beckmann rearrangement of various oximes. The
SiAlP-X catalysts showed significant activity and selectivity
to ε-caprolactam in the gas-phase Beckmann rearrangement
of cyclohexanone oxime. Thermally regenerated and reused
SiAlP-X catalysts exhibit a higher selectivity to the lactam al-
though with decreased catalyst durability. Catalysis performed
[17] L. Forni, G. Fornasari, G. Giordano, C. Lucarelli, A. Katovic, F. Trifiro,
C. Perri, J.B. Nagy, Phys. Chem. Chem. Phys. 6 (2004) 1842.
[18] D. Mao, Q. Chen, G. Lu, Appl. Catal. A 244 (2003) 273.
[19] R. Maheswari, K. Shanthi, T. Sivakumar, S. Narayanan, Appl. Catal. A
248 (2003) 291.
[20] T.D. Conesa, J.M. Campelo, D. Luna, J.M. Marinas, A.A. Romero, Appl.
Catal. B 70 (2007) 567.
[21] N. Kuroda, J. Kawai, H. Shimomura, EP Patent 1 329 448 A1 (2003).
[22] L. García, M. Del Pino, ES Patent 2 048 098 (1994).
[23] J. Ollivier, US Patent 5 719 316 (1998).
[24] J. Ollivier, D. Drutel, WO Patent 9 901 424 (1999).
[25] J. Ollivier, EP Patent 0 798 290 A1 (1997).
[26] M. Hans, V. Heinz-Werner, US Patent 4 689 412 (1987).
[27] M.A. Camblor, A. Corma, H. García, V. Semmer-Herléndan, S. Valencia,
J. Catal. 177 (1998) 267.
[28] A. Corma, S. Iborra, M.-I. Rodriguez, WO Patent 2004037785 A1 (2004).
