Accepted Manuscript
Solution-processed organic light-emitting diodes with emission from a doublet exciton;
using (2,4,6-trichlorophenyl)methyl as emitter
Eric Neier, Renzo Arias Ugarte, Nader Rady, Swaminathan Venkatesan, Todd W.
Hudnall, Alexander Zakhidov
PII:
S1566-1199(17)30064-2
10.1016/j.orgel.2017.02.010
ORGELE 3966
DOI:
Reference:
To appear in: Organic Electronics
Received Date: 20 December 2016
Revised Date: 8 February 2017
Accepted Date: 9 February 2017
Please cite this article as: E. Neier, R. Arias Ugarte, N. Rady, S. Venkatesan, T.W. Hudnall, A. Zakhidov,
Solution-processed organic light-emitting diodes with emission from a doublet exciton; using (2,4,6-
trichlorophenyl)methyl as emitter, Organic Electronics (2017), doi: 10.1016/j.orgel.2017.02.010.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Solution-Processed Organic Light-Emitting Diodes with Emission from a Doublet Exciton;
Using (2,4,6-trichlorophenyl)methyl as Emitter
a
b
a
a
b*
Eric Neier , Renzo Arias Ugarte , Nader Rady , Swaminathan Venkatesan , Todd W. Hudnall ,
a
Alexander Zakhidov
*
hudnall@txstate.edu
a
Department of Physics, Texas State University, San Marcos, Texas 78666, USA
Department of Chemistry, Texas State University, San Marcos, Texas 78666, USA
b
Abstract
Neutral-π radical based open shell molecules foster new potential in light emitting diodes
because of their theoretical near-equity quantum efficiencies. In this study, we report organic
light emitting diodes (OLEDs) based on a novel open shell molecule (2,4,6-
trichlorophenyl)methyl (TTM) as the electroluminescent layer. The singly occupied molecular
orbital (SOMO) level and optical bandgap of TTM was calculated using cyclic voltammetry and
UV-visible absorption respectively. Thermogravimetric analysis showed a stable molecule
capable of sublimation. Two decidedly different approaches, thermal evaporation and solution
processing, were employed to deposit TTM:host blend thin films for OLED device fabrication.
OLED devices fabricated via thermal evaporation and solution processing yielded external
-2
-2
quantum efficiencies of 2.78% and 0.28% and luminances of 330 cdm and 78 cdm
respectively. Further, the effect of doping ratios of the host materials on OLED device
performance were investigated and optimal ratios were established. We report for the first time
solution processed open shell organic molecules for light emitting diode applications. Our results
elucidate the potential for low-cost and high efficiency optoelectronic devices.
1
.1 Introduction
After three decades of development, organic light-emitting diodes (OLEDs) have
undergone significant advances to become the preeminent technology for flat panel displays and
,
solid-state lighting applications.[1] [2] OLEDs offer many advantages due to their ease of
fabrication, low-cost, and mechanical robustness. Since their inception, several novel materials
and device structures have been reported to enhance optoelectronic performance of OLEDs. Yet,
until recently, mostly closed shell organic molecules were considered for OLED emitters. In the
ground state of a closed shell organic molecule two electrons with opposite spin occupy the

ACCEPTED MANUSCRIPT
highest occupied molecular orbital (HOMO) and once excited, one of the electrons transitions to
the lowest unoccupied molecular orbital (LUMO). Statistically, there is a 25% probability of
forming a singlet state and 75% probability of forming a triplet state in such systems[3]. Thus,
Pauli exclusion principle places a theoretical limit of 25% on the internal quantum efficiency of
the fluorescent emitters[4]. Much of the OLED research effort was focused on harvesting these
otherwise lost triplets by means of phosphorescent emitters[5], triplet fusion[6], and time delayed
fluoresce[7]. Another approach is to use neutral conjugated radical molecules with an open outer
shell where a transition from the singly unoccupied molecular orbital (SUMO) back down to the
ground singly occupied molecular orbital (SOMO) state is spin allowed[8,9]. Because of this
inherent property, open shell molecules have a theoretical upper limit of their internal quantum
efficiency of 100% which makes them attractive for low-cost and high performance luminescent
devices.
Several different device fabrication methods have been previously used to fabricate
OLEDs from closed shell molecules. These methods involve vacuum based methods i.e. vapor
jet[10] and thermal evaporation[11] and solution based techniques such as spin coating and
inkjet printing[12]. Vacuum based methods have shown higher performance in OLEDs,
although, solution processed techniques offer an alternative to further reduce fabrication costs
and complexities. While the current research on solution based processing is limited to closed
shell molecules, there has been no report for open shell molecules. Hence there is a need for low
cost alternative fabrication techniques in addition to exploring novel open shell molecules to
facilitate low cost and high efficiency OLEDs.
Since the first persistent triarylmethyl radical was reported by Gomberg[13], several
stable derivatives of this class of organic radicals have been reported.[14–19] Polychlorinated

ACCEPTED MANUSCRIPT
radicals such as tris(2,4,6-trichlorophenyl)methyl (TTM) radical[14] are particularly stable
owing to the unique steric protection afforded to the triarylmethyl carbon by the chlorinated
arene rings. Despite minor delocalization of the unpaired electron onto the ortho- and para-
positions of each aryl ring,[20] the presence of the chlorine atoms at these positions imparts
electronic shielding which kinetically stabilizes the TTM radical toward sigma dimerization and
also enhances the stability of the radical toward oxygen.[15] However polyhalogenated
triarylmethyl radicals are sensitive to electron transfer reactions, and easily undergo redox
chemistry in the presence of electron donor and acceptor species.[18,21–23] This rich redox
chemistry is also valuable in the areas of organic magnetic materials,[24–26] and recently for
organic light-emitting diodes.[8] For these reasons we chose the TTM framework as a scaffold to
support additional derivatization in an effort to tailor the photo-physical properties of this class
of stable organic radicals.
We report a stable TTM radical as the emitter of OLEDs using thermal evaporation
processes obtaining results comparable to the previous report.[8] Further we also show the
versatility of this TTM molecule for solution processed devices. Albeit solution processed
devices exhibit a lower performance, they provide processing advantages in their cost-
effectiveness and printability.
1
.2 Materials and Methods
Unless otherwise noted, all procedures were carried out using typical Schlenk techniques
under an atmosphere of nitrogen or in a nitrogen-filled glove box. Solvents were dried and
degassed by an Innovative Technology solvent purification system and stored over a 3 Å
molecular sieves in a nitrogen-filled glove box. n-Butylammonium hydroxide 40% water,
tetrabutylammonium perchlorate(anhydrous, TBAP), and magnesium sulfate (anhydrous

ACCEPTED MANUSCRIPT
powder) were purchased from T.C.I and J.T. Baker. Chloroform, hexanes and tetrahydrofuran
were dried under nitrogen over CaH and Na/K, respectively and distilled prior to use. Aluminium
trichloride (anhydrous) and 1,3,5-trichlorobenzene 98% were purchased from Sigma Aldrich and
Beantown Chemical and used as received. Hydrochloric acid (0.1N) was prepared from
concentrated hydrochloric acid. Melting points were recorded on a Mel-Temp apparatus in sealed
capillary tubes and are uncorrected. All other reagents were used as received. NMR spectra were
recorded on Bruker Avance 400 MHz/52mm spectrometer. Chemical shifts (δ) are given in ppm
1
13
3
and are referenced to the residual solvent peak in CDCl : H: 7.26 ppm; C: 77.0 ppm. All
column chromatography was performed using 20 cm column with silica gel (Aldrich), 700-230
3
mesh, 60 Å, and pore volume of 0.75 cm /g as the stationary phase. The synthesis of HTTM and
TTM have been modified slightly from those reported in the literature.[14,16]
1
.2.1 Synthesis of TTM
Synthesis of tris(2,4,6-trichlorophenyl)methane (HTTM)
In a nitrogen-filled glove box, a 50 mL pressure flask was charged with 1,3,5-
trichlorobenzene (13.68 g, 75.40 mmol), 0.67 mL of chloroform (1.00 g, 8.37 mmol), aluminum
trichloride (1.22 g, 9.14 mmol), and a magnetic stir bar. This mixture was heated to 90°C for 2 hr
under an atmosphere of nitrogen. After this time the mixture was allowed to cool to room
temperature and 20 ml of HCl (0.1N) was added drop-wise over this mixture which was cooled
in an ice bath. The purple suspension immediately turned into a yellow solution that was then
extracted from the aqueous byproducts using 50 mL of chloroform in a separatory funnel. The
organic layer was dried over magnesium sulfate for 1 hr and filtered over a scintillated glass frit.
The yellow solution was immediately concentrated under vacuum and the obtained oily material
was added to 40 mL of hexanes which resulted in the immediate precipitation of a white solid.

ACCEPTED MANUSCRIPT
The solid was collected on a frit, and washed with hexanes until the washings were colorless.
The white solid was dried under vacuum to get an 80% yield which was used in the next step
1
without further purification. m.p. 246-248oC. H NMR (400 MHz) (CDCl ): d 6.68 (s, 1H,
3
1
3
CHPh), 7.23-7.24(d, 3H, J = 2.3 Hz), 7.35-7.36(d, 3H, J = 2.3 Hz). C NMR (100.61 MHz): δ
9.80(CH), 128.43, 130.00, 133.78,133.82, 137.07, 137.90. The synthesis has been modified
4
slightly and the purification process as well. Characterization data of this compound is in
agreement with those reported in the literature.[16]

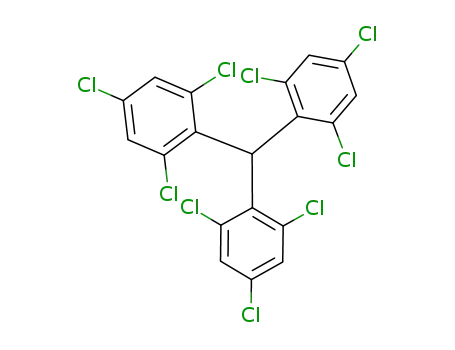

Synthesis of tris(2,4,6-trichlorophenyl)methyl radical (TTM)
In a nitrogen-filled glove box, a 100 mL Schlenk flask was covered with aluminum foil
and charged with HTTM (3 g, 5.41 mmol), and 4.60 mL of n-butylammonium hydroxide (4.56 g,
7
.03 mmol) in 50 mL of THF was added to afford a deep-red solution. The reaction was stirred
for 4 hr then p-chloranil (1.86 g, 7.57 mmol) dissolved in 25 mL of THF was added. The reaction
mixture was allowed to stir for 12 hr, and then the resulting purple solution was concentrated in
vacuo to give a purple dark solid. This solid was dissolved in 10 mL of dichloromethane and
silica gel (1.0 g) was added. The resulting suspension was then dried in vacuo to give a purple
solid that was loaded into the top of a silica gel-filled column, and the product was purified by
chromatography using hexanes as the eluent. After removal of the hexanes in vacuo, the TTM
radical was isolated as a red solid in 83% yield. Characterization data of this compound is in
agreement with those reported in the literature.[14,16]
Cyclic voltammetry was performed using a CH Instruments (Model 600D) analyzer using
a glassy platinum working electrode, and platinum wire counter electrode. The reference
electrode was built from a silver wire inserted into a small glass tube fitted with a porous frit and
3
filled with a AgNO solution in THF (0.01 M). Ferrocene was used for calibration, and all

ACCEPTED MANUSCRIPT
+
reduction potentials are reported with respect to the E1/2 of the Fc /Fc redox couple. All cyclic
voltammograms were recorded in dichloromethane using tetrabutylammonium
–1
perchlorate(TBAP) as the electrolyte (0.1M) at a scan rate of 100 mVs .
All electron paramagnetic resonance (EPR) spectra were recorded on an X-band Active
Spectrum Benchtop Micro-ESR spectrometer (9.5 GHz, 300 Gauss sweep range). Field
calibration was accomplished by using a standard of solid 2,2-diphenyl-1-picrylhydrazyl
(DPPH), g = 2.0036. Spectra were recorded at room temperature in dichloromethane.
Thermogravimetric analysis (TGA) were performed using TA Instruments TGA Q50.
Temperature was ramped up at a rate of 5.00 °C/min from room temperature to 800°C with argon
as carrier gas. UV-visible absorption spectra were obtained using a Shimadzu UV-2501PC UV-
visible spectrometer. Absorption spectra were obtained from 1000 nm to 300 nm.
Photoluminescence (PL) spectra were obtained using a quartz substrate and quartz cuvette from a
0
.74 m double spectrometer (Spex) using a He-Cd Laser (Kimmon) with an excitation
wavelength of 325 nm.
.2.2 Materials
Bathophenanthroline
NPB,99.5%) and 4,4-bis(carbozol-9-yl)biphenyl (CBP, 99.5%) were purchased from Jilin
1
(Bphen,
99.5%),
N,N’-di-1-naphthyl-N,N’-diphenylbenzidine
(
OLED Materials. Molybdenum trioxide (MoO , Puratronic 99.9995%) was purchased from Alfa
3
Aesar. Lithium fluoride (LiF, 99.995%) and anhydrous chlorobenzene were purchased from
Sigma-Aldrich. Aluminum pellets (Al, 99.999%) were purchased from Kurt J. Lesker.
1
.2.3 OLED Device Fabrication and Characterization (Evaporation)
The organic light-emitting diodes (OLEDs) were created by evaporating the materials on
glass substrates commercially pre-coated with an indium tin oxide (ITO)(110nm). The ITO

ACCEPTED MANUSCRIPT
coated glass substrates were cleaned in successive baths of detergent (Deconex OP 121), and
deionized water for 20mins in an ultrasonic cleaner then baked at 100°C for 10 min. The
substrates were then treated with air plasma for 10 min. The plasma cleaned substrates were
-8
loaded into a high vacuum evaporator (Travato 300C) and pumped down to ~ 10 Torr. The hole
injection layer (HIL) was deposited by evaporating molybdenum trioxide(MoO3)(.75nm)/N,N’-
di-1-naphthyl-N,N’-diphenylbenzidine(NPB)(40nm) onto the glass ITO substrate. Tris(2,4,6,-
trichlorophenyl)methyl(TTM) material was doped through evaporation processes into a 4,4-
bis(carbozol-9-yl)biphenyl(CBP) matrix: TTM: (CBP) (1wt%, 2wt%, 3wt%, 5 wt%, 10wt%,
1
5wt% ,20wt%, 40wt%, 40nm) forming the emissive layer of the OLED device. The electron
injection layer (EIL) was formed by gradually evaporating (4,7-diphenyl-1,10-
phenanthroline)(Bphen)(40nm)/lithium fluoride (LiF)(1nm) and aluminum(100nm) as a cathode.
The fabricated OLEDs were then encapsulated in a flowing high-purity nitrogen gas
environment. Luminance, current density, and external quantum efficiency characterization was
performed using a Thor Labs PDA100A calibrated Si photo detector coupled to Labsphere
model 2500 integrating sphere, and Agilent Technologies U3606B source meter unit.
1
.2.4 OLED Device Fabrication and Characterization (Solution Processed)
Solution processed OLEDs were created through spin deposition on glass substrates
commercially pre-coated with an indium tin oxide anode (110nm). The substrates were cleaned
as discussed previously. The hole injection layer (HIL) was formed by spin coating (poly(3,4-
ethylenedioxythiophene)poly(styrenesul-phonate), (Clevios AI 4083 PEDOT:PSS) on the
substrates at 4000 rpm for 30 seconds followed by baking at 145°C for 30 min in air. The
emissive layer was formed by spin coating a blend solution of TTM and Poly(9-vinyl-
carbozole)(PVK) dissolved in an anhydrous chlorobenzene solution with a concentration of

ACCEPTED MANUSCRIPT
1
0mg/ml as TTM:PVK (5wt%, 10wt%, 15wt%, 20wt%, 50wt%, 50nm) inside a flowing-high
purity nitrogen gas environment. The resulting TTM:PVK solution was spin coated onto PEDOT
at 1000 rpm for 30 s and annealed at 80°C for 30 min. The substrates were then loaded into the
evaporator for thermal evaporation of EIL as discussed before.
1
.3 Results and Discussion
Figure 1. (a) Chemical structure of TTM (b) Cyclic-voltammetry in dichloromethane (c) The
EPR spectrum in dichloromethane at room temperature (d) Thermogravimetric analysis spectrum
of TTM

ACCEPTED MANUSCRIPT
Figure 1a shows the chemical structure of the TTM molecule with the centralized neutral
radical surrounded by six chlorine atoms. The basis of the TTM molecule is the same as the one
reported by Peng et al. where the authors reported its carbazole derivative.[8] However, we
found that TTM without derivization is luminescent when coated as film and in solution (vide
infra). We also found that the TTM molecule is stable credited to the protection offered by
chlorinated arene rings, which help to shield the triarylmethyl carbon both electronically and
kinetically similar to the stability reported for the carbazole derivative of TTM.[8] Cyclic
voltammetry was utilized to measure the singly occupied molecular orbital (SOMO) level of
TTM as shown in Figure 1b. From the oxidation reaction onset at 1.14V, the SOMO level was
calculated as -5.54 eV measured with a ferrocene reference (4.5 eV). Furthermore, as seen in
Figure 1c, we experimentally obtained electron paramagnetic resonance (EPR) spectrum and the
spin resonance of the unpaired electron within the TTM organic radical, providing evidence of
proper material synthesis. To ensure thermal stability and to measure the sublimation
temperature of TTM, TGA was performed as shown in Figure 1d. A subsequent weight reduction
of 5% occurs at an induced temperature of 231°C. The TGA spectrum provides evidence that the
TTM material is capable of being evaporated at low temperatures and does not chemically
decompose as it sublimes.

ACCEPTED MANUSCRIPT
Figure 2. (a)UV-Visible absorption spectrum of evaporated TTM film, solution-processed TTM
film and TTM in dichloromethane solution (b) The photoluminescence spectrum of TTM in
dichloromethane solution and TTM evaporated as film.
The absorption spectra of evaporated and solution processed TTM thin films is shown in
Figure 2a. The initial absorption onset of TTM in solution occurs at wavelength of 590 nm, with
a secondary band centered at 525 nm representing energy gaps of 2.1 eV and 2.36 eV
respectively. In the absorption spectrum of the evaporated TTM film there is a band centered at
5
75 nm representing an energy gap of 2.16 eV. The absorption spectrum of the solution
processed sample shows a band centered at 563 nm representing an optical bandgap of 2.20 eV.
The small difference between the optical bandgap of the evaporation and solution-processed
devices could be due to the amorphous nature of the evaporated thin film compared to solvent
induced ordering/aggregation in spin-coated films. This energy band gap represents a spin
allowed transition from the SOMO to the SUMO of the doublet exciton. Unlike TTM in
solution, the evaporated and solution-processed samples do not exhibit a secondary absorption
band until near-UV possibly due to a forbidden energy transition. As seen in Figure 2b the PL

ACCEPTED MANUSCRIPT
spectrum for the evaporated TTM thin film is centered at 550 nm. A red shift occurs in the
photoluminescence spectrum for both the solution processed sample (580nm) and as the pristine
TTM material is dissolved in anhydrous chlorobenzene as solution (612nm).
Figure 3. Density functional theory (DFT) calculations for each of the orbital states.
Using density functional theory calculations, we were able to calculate the energy levels
of each of the orbital states: HOMO, SOMO, SUMO, and LUMO as -7.25eV, -5.91eV, -3.66eV,
-1.72eV respectively as seen in Figure 3. The differences between the calculated energy level of
the SOMO using CV and DFT data is due to the oxidation reaction of air. The optical bandgap,

ACCEPTED MANUSCRIPT
2
.25 eV, of TTM molecule calculated from absorption onset shows that the transition occurs
from SOMO to SUMO.
Figure 4 (a) Device structure of the TTM OLED. b) J-V-L characteristics of the TTM OLED
devices (c) External quantum efficiency of the OLED devices vs. voltage. d)
Electroluminescence of solution and evaporation based OLED devices. The inset shows an
evaporated OLED device operating at 10 V.
Because organic radicals themselves are not emissive due to aggregate caused quenching,
the TTM material must be doped into a matrix with a host material. Two distinct devices were
designed in an effort to study the optoelectronic characteristics of OLEDs. The evaporated

ACCEPTED MANUSCRIPT
OLED device structure was: ITO/MoO
3
(.75nm)/ NPB (40nm)/TTM:CBP (40nm)/Bphen
(40nm)/LiF (1nm)/Al (100nm) which is schematically depicted in Figure 4a. Various doping
ratios were investigated and the device with 5% TTM and 10% TTM doping ratios was found to
be optimal for solution and evaporated processed devices respectively. The doping levels for
evaporated devices were varied by adjusting the evaporation rate of TTM with respect to the
evaporation rate of the CBP matrix. For solution processed devices, different doping ratios were
obtained by mixing different volumes of PVK and TTM in chlorobenzene (10 mg/ml). The
emissive/electroluminescent layer was achieved by spin coating a TTM:PVK thin films from
chlorobenzene solution onto PEDOT:PSS coated substrates. The solution processed OLED
device structure was: ITO/PEDOT PSS (50nm)/TTM:PVK (50nm)/Bphen (40nm)/LiF (1nm)/Al
(100nm). Figure 4b shows the current density-voltage-luminance (J-V-L) plot of evaporated and
solution processed TTM OLEDs. Each of the evaporated TTM devices showed a relative low
turn on voltage of 7 V. The optimal current density-voltage-luminance (J-V-L) and external
quantum efficiency (ηEQE) results were obtained from the evaporated TTM:CBP (10 wt.%)
sample. Figure 4b shows the J-V-L characteristics of the evaporated and solution processed TTM
2
devices. The evaporated TTM devices exhibited maximum luminance of 330 cd/m and current
2
density of 48 mA/cm at 18 V bias voltage. On the other hand, solution processed devices
2
-2
showed a maximum luminance of 78 cd/m and current density below 10 mA/cm at 18 V bias
voltage. Figure 4c shows the external quantum efficiency (ηEQE) of each of the evaporate and
solution processed devices. The maximum external quantum efficiency obtained from
evaporated and solution processed devices were 2.78% at 12V and 0.28% at 10.5V respectively.
The evaporated devices showed better optoelectronic performance than for the reported TTM-
1
cz OLED devices i.e. higher ηEQE and luminance.[8,9] While the luminance and efficiency of

ACCEPTED MANUSCRIPT
evaporation processed devices were superior to that of solution processed devices, the ease of
solution-based processing points to advantages large scale OLED manufacturing. This type of
fabrication technique allows for printability; providing a low-cost alternative for use in high-
throughput OLED manufacturing. With further optimization of device fabrication protocols and
novel open shell molecular design, the efficiencies can be further improved.
Figure 5. Electroluminescence of evaporated TTM OLED devices with different doping
quantities.
It was found that the optimal doping ratio for each type of device architecture was
directly related to the opto-electrical properties of the matrix used to create the emissive layer:
CBP and PVK respectively. Figure 5 shows the electroluminescence (EL) of evaporated TTM
OLEDs. For solution processed devices emission was only observed for 5% doping ratio and
hence EL of the doping ratios were not compared. At low doping quantities, the majority of the
light emission is produced from the CBP matrix alone. The devices with pure CBP host emitted a
stable blue light with a peak at 436 nm which is the same blue band emission previously
reported.[8] As the quantity of the dopant TTM increased to 3%, another band emerges in EL

ACCEPTED MANUSCRIPT
spectra with a peak at 642 nm indicative of emission from TTM. With 5% doping the emission
from TTM was enhanced with a less dominant blue band emission from CBP. When the TTM
doping ratio was increased to 10% all emission was contributed by TTM dopant itself revealing
an orange light as observed in Figure 3d. Dopant ratios beyond 15% showed no luminance and
hence were not compared.
1
.4 Conclusions
In summary, we report a novel open shell neutral-π radical namely tris(2,4,6-
trichlorophenyl)methyl (TTM) for application in OLEDs. Unlike closed shell molecules, neutral
conjugated radicals have intrinsic advantages due to the radiative decay of the doublet exciton.
Thermal gravimetric analysis showed thermal stability and the sublimation temperature of TTM
was calculated at 231°C. Using DFT data, the HOMO, SOMO, SUMO and LUMO were found
to be -7.25eV, -5.91eV, -3.66eV and -1.72eV respectively. The nature of the unpaired electron’s
ability to take part in many opto-electrical processes was shown with an absorption band
centered at 563 nm, and a photoluminescence band centered at 580 nm representing optical
bandgaps of 2.20 eV and 2.14 eV respectively. Two techniques were used namely evaporation
and solution processing to fabricate TTM based OLED devices. The optimal TTM doping ratio
for evaporated devices was 10% which exhibited a maximum ηEQE of 2.78% and luminance of
2
3
30 cd/m Solution-processed devices with optimal doping ratio of 5% showed maximum ηEQE
.
2
of 0.28% and luminance of 78 cd/m . Our results provide insight and lay the framework for
novel open shell molecular design through derivitization. Further we show that solution
processing of these open shell molecules can enable facile and low cost high efficiency OLEDs
through systematic device optimization.

ACCEPTED MANUSCRIPT
Acknowledgements
This work was partially supported by ACS Petroleum Research Fund #56095-UNI6 (AZ,
Program Manager Askar Fahr). TWH is grateful to the National Science Foundation for their
generous support of this project (CHE-1552359). Special thanks to Randall Archer for assistance
with the TGA analysis.
References
[1]
[2]
[3]
S.R. Forrest, The path to ubiquitous and low-cost organic electronic appliances on plastic.,
Nature. 428 (2004) 911–918. doi:10.1038/nature02498.
R. Meerheim, B. Lüssem, K. Leo, Efficiency and Stability of p-i-n TypeOrganic Light
Emitting Diodes forDisplay and Lighting Applications, Proc. IEEE. 97 (2015) 1606–1626.
A.R. Brown, K. Pichler, N.C. Greenham, D.D.C. Bradley, R.H. Friend, A.B. Holmes,
Optical spectroscopy of triplet excitons and charged excitations in poly(p-
phenylenevinylene) light-emitting diodes, Chem. Phys. Lett. 210 (1993) 61–66.
doi:10.1016/0009-2614(93)89100-V.
[4]
[5]
[6]
[7]
M.A. Baldo, D.F. O’Brien, M.E. Thompson, S.R. Forrest, Excitonic singlet-triplet ratio in
a semiconducting organic thin film, Phys. Rev. B. 60 (1999) 14422–14428.
doi:10.1103/PhysRevB.60.14422.
C. Adachi, M.A. Baldo, M.E. Thompson, S.R. Forrest, Nearly 100% internal
phosphorescence efficiency in an organic light emitting device, J. Appl. Phys. 90 (2001)
5
048–5051. doi:10.1063/1.1409582.
D.Y. Kondakov, T.D. Pawlik, T.K. Hatwar, J.P. Spindler, Triplet annihilation exceeding
spin statistical limit in highly efficient fluorescent organic light-emitting diodes, J. Appl.
Phys. 106 (2009) 124510. doi:10.1063/1.3273407.
Q. Zhang, J. Li, K. Shizu, S. Huang, S. Hirata, H. Miyazaki, C. Adachi, Design of
Efficient Thermally Activated Delayed Fluorescence Materials for Pure Blue Organic
Light Emitting Diodes, J. Am. Chem. Soc. 134 (2012) 14706–14709.
doi:10.1021/ja306538w.
[
[
[
8]
Q. Peng, A. Obolda, M. Zhang, F. Li, Organic Light-Emitting Diodes Using a Neutral π
Radical as Emitter: The Emission from a Doublet., Angew. Chem. Int. Ed. Engl. 54
(2015) 7091–5. doi:10.1002/anie.201500242.
9]
A. Obolda, M. Zhang, F. Li, Evolution of emission manners of organic light-emitting
diodes: From emission of singlet exciton to emission of doublet exciton, Chinese Chem.
Lett. 27 (2016) 1345–1349. doi:10.1016/j.cclet.2016.06.030.
10] M. Shtein, P. Peumans, J.B. Benziger, S.R. Forrest, Direct mask-free patterning of
molecular organic semiconductors using organic vapor jet printing, J. Appl. Phys. 96
(2004) 4500. doi:10.1063/1.1791760.

ACCEPTED MANUSCRIPT
[11] H. Sasabe, J. Kido, Recent Progress in Phosphorescent Organic Light-Emitting Devices,
European J. Org. Chem. 2013 (2013) 7653–7663. doi:10.1002/ejoc.201300544.
[
12] S. Ho, S. Liu, Y. Chen, F. So, Review of recent progress in multilayer solution-processed
organic light-emitting diodes, J. Photonics Energy. 5 (2015) 57611.
doi:10.1117/1.JPE.5.057611.
[13] M. Gomberg, An instance of trivalent carbon: triphenylmethyl., J. Am. Chem. Soc. 22
(1900) 757–771. doi:10.1021/ja02049a006.
[
14] O. Armet, J. Veciana, C. Rovira, J. Riera, J. Castaner, E. Molins, J. Rius, C. Miravitlles, S.
Olivella, J. Brichfeus, Inert carbon free radicals. 8. Polychlorotriphenylmethyl radicals:
synthesis, structure, and spin-density distribution, J. Phys. Chem. 91 (1987) 5608–5616.
doi:10.1021/j100306a023.
[
[
[
[
[
15] M. Ballester, J. Castaner, J. Riera, A. Ibanez, J. Pujadas, Inert carbon free radicals. 2.
Monofunctionalized tetradecachlorotriphenylmethyl radicals and related compounds, J.
Org. Chem. 47 (1982) 259–264. doi:10.1021/jo00341a015.
16] M. Ballester, J. Riera, J. Castaner, C. Rovira, O. Armet, An Easy, High-yield Synthesis of
Highly Chlorinated Mono-, Di- and Triarymethanes., Synthesis (Stuttg). 1986 (1986) 64–
6
6.
17] M. Ballester, I. Pascual, C. Carreras, J. Vidal-Gancedo, Syntheses and Spectra of Some
Inert Triphenylmethyl Diradicals. A Concurrent Diradical Form, J. Am. Chem. Soc. 116
(1994) 4205–4210. doi:10.1021/ja00089a009.
18] J. Carilla, L. Fajarí, L. Juliá, J. Riera, L. Viadel, Two functionalized free radicals of the
tris(2,4,6-trichlorophenyl)methyl radical series. Synthesis, stability and EPR analysis,
Tetrahedron Lett. 35 (1994) 6529–6532. doi:10.1016/S0040-4039(00)78264-5.
19] V.M. Domingo, J. Castaner, J. Riera, A. Labarta, Inert Carbon Free Radicals. 11.
Synthesis and Magnetic Behavior of (4,4’-Dicarboxytridecachlorotriphenyl)methyl
Radical and Related Results, J. Org. Chem. 59 (1994) 2604–2607.
doi:10.1021/jo00088a052.
[20] I. Alcón, S.T. Bromley, Structural control over spin localization in triarylmethyls, RSC
Adv. 5 (2015) 98593–98599. doi:10.1039/C5RA19008H.
[21] M. Ballester, I. Pascual, J. Torres, Unique single-electron transfers between chemically
inert triphenylmethyl radicals and triphenylmethyl anions, J. Org. Chem. 55 (1990) 3035–
3
044. doi:10.1021/jo00297a017.
[
22] M. Steeger, S. Griesbeck, A. Schmiedel, M. Holzapfel, I. Krummenacher, H.
Braunschweig, C. Lambert, On the relation of energy and electron transfer in
multidimensional chromophores based on polychlorinated triphenylmethyl radicals and
triarylamines, Phys. Chem. Chem. Phys. 17 (2015) 11848–11867.
doi:10.1039/C4CP05929H.
[
23] S. Chopin, J. Cousseau, E. Levillain, C. Rovira, J. Veciana, A.S.D. Sandanayaka, Y.
Araki, O. Ito, [60]Fullerene–perchlorotriphenylmethide anion triads. Synthesis and study
of photoinduced intramolecular electron-transfer processes, J. Mater. Chem. 16 (2006)
1
12–121. doi:10.1039/B514882K.
[24] L. Teruel, L. Viadel, J. Carilla, L. Fajarí, E. Brillas, J. Sañé, J. Rius, L. Juliá, (4-Amino-

ACCEPTED MANUSCRIPT
2
,6-dichlorophenyl)- bis(2,4,6-trichlorophenyl)methyl Radical: A New Constituent of
Organic Magnetic Materials, J. Org. Chem. 61 (1996) 6063–6066.
doi:10.1021/jo960451v.
[
25] N. Roques, S. Perruchas, D. Maspoch, A. Datcu, K. Wurst, J.P. Sutter, C. Rovira, J.
Veciana, Europium (III) complexes derived from carboxylic-substituted
polychlorotriphenylmethyl radicals, Inorganica Chim. Acta. 360 (2007) 3861–3869.
doi:10.1016/j.ica.2007.03.021.
[
26] S. Castellanos, D. Velasco, F. López-Calahorra, E. Brillas, L. Julia, Taking Advantage of
the Radical Character of Tris(2,4,6-trichlorophenyl)methyl To Synthesize New
Paramagnetic Glassy Molecular Materials, J. Org. Chem. 73 (2008) 3759–3767.
doi:10.1021/jo702723k.

ACCEPTED MANUSCRIPT
•
•
•
Solution-processed open shell organic molecules for OLED applications
OLEDs based on (2,4,6-trichlorophenyl)methyl as the electroluminescent layer
Open shell molecular design through derivitization
