A magnetically recoverable nanocatalyst based on functionalized mesoporous silica

Article abstract of DOI:10.1016/j.molcata.2016.01.020

A magnetically separable 2D-hexagonally ordered thiol functionalized mesoporous silica material (Fe@TFMS) has been synthesized through co-condensation reaction of 3-mercaptopropyltriethoxysilane (MPTES) and tetraethylorthosilicate (TEOS) using cetyltrimethylammonium bromide (CTAB) as a cationic surfactant followed by immobilization of Fe₃O₄ nanocrystallies at the functionalized mesopore surface. Powder X-ray diffraction (XRD), N₂ adsorption/desorption analysis, FT-IR, TEM, FE-SEM, TGA/DTA, CHNS, XPS and NH₃-TPD tools are employed to characterize the materials. This functionalized mesoporous material exhibited high catalytic activity in the biodiesel production from a wide range of long chain fatty acids and soybean oil. The material showed high Lewis acidity of 1.02 mmolg^-1 with a good Brunauer-Emmett-Teller (BET) surface area of 411 m² g^-1. Fe@TFMS exhibited excellent catalytic efficiency for this esterification reaction using methanol as a solvent cum reactant under eco-friendly and mild reaction conditions (room temperature, 25 °C).

Full text of DOI:10.1016/j.molcata.2016.01.020

Accepted Manuscript
Title: A magnetically recoverable nanocatalyst based on
functionalized mesoporous silica
Author: Piyali Bhanja Tapas Sen Asim Bhaumik
PII:
S1381-1169(16)30020-6
DOI:
Reference:
http://dx.doi.org/doi:10.1016/j.molcata.2016.01.020
MOLCAA 9752
To appear in:
Journal of Molecular Catalysis A: Chemical
Received date:
Revised date:
Accepted date:
11-11-2015
24-12-2015
19-1-2016
Please cite this article as: Piyali Bhanja, Tapas Sen, Asim Bhaumik, A magnetically
recoverable nanocatalyst based on functionalized mesoporous silica, Journal of
Molecular Catalysis A: Chemical http://dx.doi.org/10.1016/j.molcata.2016.01.020
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

A magnetically recoverable nanocatalyst based on
functionalized mesoporous silica
a
b
a*
Piyali Bhanja , Tapas Sen , Asim Bhaumik msab@iacs.res.in
a
Department of Materials Science, Indian Association for the Cultivation of Science,
Jadavpur, Kolkata–700 032, India.
b
Nanobiomaterials Research Group, Centre for Materials Science, School of Physical
Sciences and Computing, University of Central Lancashire, Preston, PR1 2HE, UK.
*
Corresponding author.
1

Graphical Abstract
2

Highlights




Synthesis of a 2D-hexagonally ordered thiol functionalized mesoporous silica.
Magnetically recoverable nanocatalyst with high BET surface area.
Esterification/transesterification for the synthesis of biodiesels at room temperature.
Lewis acidity of the grafted Fe O nanoparticles
3
4
3

Abstract
A magnetically separable 2D-hexagonally ordered thiol functionalized mesoporous
silica material (Fe@TFMS) has been synthesized through co-condensation reaction of 3-
mercaptopropyltriethoxysilane (MPTES) and tetraethylorthosilicate (TEOS) using
cetyltrimethylammonium bromide (CTAB) as a cationic surfactant followed by
immobilization of Fe O nanocrystallies at the functionalized mesopore surface. Powder X-
3
4
ray diffraction (XRD), N adsorption/desorption analysis, FT-IR, TEM, FE-SEM, TGA/DTA,
2
XPS and NH -TPD tools are employed to characterize the materials. This functionalized
3
mesoporous material exhibited high catalytic activity in the biodiesel production from a wide
range of long chain fatty acids and soybean oil. The material showed high Lewis acidity of
-1
2 -1
1
.02 mmolg with a good Brunauer-Emmett-Teller (BET) surface area of 411 m g .
Fe@TFMS showed excellent catalytic efficiency for this esterification reaction using
methanol as a solvent cum reactant under eco-friendly and mild reaction conditions (room
temperature, 25 ºC).
Keywords: Functionalized mesoporous material; superparamagnetic material; bio-diesel
production; Lewis acidity; eco-friendly conditions.
4

1
. Introduction
In recent years biodiesel synthesis has attracted widespread interest in the context of
future energy demand. Limited reserve of our natural fossil fuels, environmental degradation
as a result of green-house gas emission from the burning of fossil fuels and other organic
resources has prompted the demand of biodiesels [1]. Biodiesel is produced from the long
chain fatty acids (animal fat and vegetable oil) through the esterification reaction with
methanol/ethanol [2] and these compounds have huge potential as alternative resource to
fossil fuels. The vegetable oil [3-5] and animal fats [6,7] are currently considered as the most
attractive and easily available feedstocks for biodiesel production due to their lower market
value in comparison with virgin oils. It is a sustainable, biodegradable, does not emit any
hazardous and toxic compounds (green energy), suitable for use in the actual compression
and ignition engine without any major purification, which could be produced very easily
through acid or base-catalyzed esterification and transesterification reactions [8,9]. Various
strategies have been employed to overcome the common problems faced in the synthesis of
biodiesels. Several insoluble solid acid catalysts like cation-exchange resin [10], combination
of cation-anion exchange resin [11], phase transfer catalyst [12], mixed oxides [13],
functionalized mesoporous silica [14], mesoporous carbon [15] and enzyme-immobilised
magnetic support [16] etc. are utilized for the esterification reactions, substituting the
homogeneous inorganic acid catalysts. However, efficiencies of many of the heterogeneous
acid catalysts are quite unsatisfactory. For example zeolites showed poor catalytic efficiency
due to the low densities and low accessibility of the acidic sites [17,18], whereas sulfated
zirconia [19,20] does not have high BET surface area. Besides, these catalysts require high
temperature reactivation. Further, diarryl ammonium incorporated catalyst support [21]
although showed good catalytic activity it needs the use of expensive triflic acid, high
temperature and pressure for the synthesis.
5

To fabricate a solid Lewis acid catalyst having good BET surface area substantial
efforts has been devoted, but there are some intrinsic problems due to less accessibility of the
active sites and enhanced diffusion limitation of reactant resulting in less catalytic activity
and poor selectivity of the product. In recent years, the solid porous materials have been
employed for biodiesel synthesis such as organically functionlized mesoporous silica material
[
22-24], metal organic frameworks (MOF) [25-27] and acid functionalized ionic liquids [28-
0] etc. In most of the cases biodiesel is synthesized under drastic conditions [31], which is
3
not eco-friendly. For the production of biofuel green synthetic pathways [32] are highly
desirable to avoid those drastic conditions. There are only few reports for the biodiesel
production at room temperature [33,34], though the main drawback of this reaction is the
reversibility of the esterification reaction. Although Tang et al have reported the Ca/Al/Fe O
3
4
magnetic composite as solid catalyst in the transesterification reaction [35] but the material
has very poor BET surface area. On the other hand the magnetically recyclable ionic liquid
immobilized mesoporous material FSS–IL can be used as an efficient catalyst for the
esterification of oleic acid with ethanol for high biodiesel yield of 93.5% [36], but it requires
elevated temperature for the reaction. During esterification reaction the product esters could
be easily hydrolyzed in the presence of water molecule. To overcome this problem we have
design a magnetically separable mesoporous heterogeneous catalyst, which can easily
accommodate the water molecule from the reaction mixture, facilitating the esterification
reaction at room temperature in the presence of minimum amount of methanol as a reagent
and solvent.
Herein we report the synthesis of magnetically recoverable superparamagnetic Fe O
3
4
nanoparticle immobilized functionalized mesoporous silica having considerably high surface
area with a tunable porosity and it displays excellent catalytic activity in the bio-diesel
6

production at room temperature. Thiol functionalized mesoporous MCM-41 is prepared using
-mercaptopropyltrimethoxysilanevia co-condensation reaction. The reaction between thiol
functionalized MCM-41 and dispersed Fe O in absolute ethanol medium offers the
3
3
4
formation of magnetically separable mesoporous material Fe@TFMS. The material has been
characterized through PXRD, N sorption, FESEM, XPS, FTIR spectroscopic tools, and
2
displayed very easy product/catalyst recovery and good recycling efficiency without any loss
of catalytic activity after five reaction cycles suggesting its future potential in large scale
biodiesel production.
2
. Experimental Section
2
.1. Chemicals
Cetyltrimethylammonium bromide (CTAB), tetraethyl orthosilicate (TEOS) and 3-
mercaptopropyl)triethoxysilane (MPTES, M = 196.34 g/mol)were purchased from Sigma
wt
Aldrich. Anhydrous ferrous chloride (M = 126.75 g/mol) and ferric chloride (M = 162.20
wt
wt
g/mol) was purchased from Merck, India. The solvents were used as received without further
purification.
2
.2. In-situ synthesis of thiol functionalized mesoporous silica (TFMS)
In a 100 ml cleaned plastic beaker 0.006 M (2.42 g) of CTAB was dissolved in 20 mL
distilled water. This is followed by the addition of 0.02 M (4.166 g) tetraethylorthosilicate
TEOS) and 0.005 M (0.981 g) MPTES. The resulting white gel was allowed to stir for 15
min and then aqueous solution of NaOH was added dropwise to maintain the alkaline pH
11.7) conditions. The slurry was kept under static condition in polypropylene bottle at 75 ºC
(
(
temperature for 3 days. After the thermal treatment the white solid product was washed
thoroughly with distilled water to get rid of extra template molecules (CTAB) and dried in air
for 24 h. Then 0.5 g of as-synthesized solid product was subjected for acid-ethanol extraction
7

to remove the template using 0.5 g of 1N HCl and 20 mL absolute ethanol solution mixture
for two times in each batch. Finally, the extracted solid product was filtered by simple
filtration technique and washed with distilled water for several times.
2
.3. Synthesis of Fe O nanoparticles
3 4
2
.86 g (0.017 mol) of anhydrous FeCl and 1.057 g (0.008 mol) of anhydrous FeCl
3 2
was dissolved in 60 mL distilled water taken in a 50 mL round bottom flask under inert
atmospheric conditions. Then the reaction mixture was allowed to keep in a pre-heated oil
bath at 80-85 ºC temperature for 2 h after drop wise addition of aqueous ammonia (25 %) to
it. The resulting black precipitate was collected through filtration and washed with distilled
water for several times to neutralize it. The black coloured solid product was dried in oven at
7
5 ºC temperature for about 2 h.
2
.4. Synthesis of Fe O immobilized thiol functionalized mesoporous silica (Fe@TFMS)
3
4
The thiol functionalized MCM-41 was dispersed into a cleaned 100 mL glass beaker
containing 25 mL absolute ethanol. Then, the brown coloured ethanolic suspension of Fe O
3
4
(0.1 g in 100 mL distilled water) was added drop by drop to the former solution and the
solution mixture was stirred continuously for 12 h at room temperature. The resulting dark
brown coloured solid product was filtered, washed thoroughly with ethanol and dried in air
for overnight. The schematic representation for the formation of Fe O nanoparticle grafted
3
4
thiol-funcionalized MCM-41 material (Fe@TFMS) is shown in Scheme 1 step by step. Here
the thiol functionalized MCM-41 material (TFMS) has been synthesized by co-condensation
of organosilanes in the presence of CTAB under hydrothermal conditions. This is followed
by the removal of the template and impregnation of Fe O NPs at the surface of TFMS to
3
4
obtain magnetic nanocatalyst Fe@TFMS.
8

3
. Characterization techniques
Nitrogen adsorption/desorption isotherms were obtained by using a Quantachrome
Autosorb 1-C surface area analyzer at 77 K. Prior to gas adsorption, samples were degassed
for 10-12 h at 453 K under high vacuum analysis. NLDFT theory was employed for pore size
distributions measurement from the nitrogen sorption isotherm using the oxygen/cylindrical
pore model. The powder X-ray diffraction patterns were recorded using Bruker D8 Advance
SWAX diffractometer operated at voltage of 40 kV and current 40 mA. The instrument was
calibrated with a standard silicon sample, using Ni-filtered Cu Kα (λ=0.15406 nm) radiation.
FT-IR spectra of the functionalized mesoporous samples were recorded using a Perkin-Elmer
spectrum 100 spectrophotometer. To analyze the morphology and particle size of the samples
JEOL JEM 6700 field emission scanning electron microscope (FE SEM) was used.
Transmission electron microscopic (TEM) images of the material were obtained using a
JEOL JEM 2010 transmission electron microscope operating at 200 kV. Thermogravimetric
analysis (TGA) and differential thermal analysis (DTA) of the sample were performed in a
TGA instrument thermal analyzer TA-SDT Q-600 under air flow. The carbon, hydrogen,
nitrogen and sulfur (CHNS) contents were determined in a Vario EL III elemental analysis
analyzer. The temperature-programmed desorption of ammonia (NH -TPD) experiment was
3
carried out on flow apparatus (Micrometrics TP-5080).The saturation magnetisation and
magnetisation curve measurements were carried out using a 6 kOe vibrating sample
magnetometer (VSM) at room temperature (RT).
4
. Results and Discussions
4
.1. Mesophase and nanostructure
The small angle X-ray diffraction patterns of pure MCM-41 (a), thiol functionalized
mesoporous silica (b) and Fe O nanoparticle immobilized functionalized mesoporous
3
4
9

material (Fe@TFMS) (c) are shown in Figure 1. As seen from the figure, each sample shows
the characteristic peaks in the region of 2 to 6 degrees of 2θ, is attributed to three distinct
planes 100 (strong), 110 (weak), 200 (weak), representing the ordered 2D hexagonal
mesoporous materials [37-39]. The strong peaks were observed at 2θ value of 2.35° and 2.37°
for thiol functionalized mesoporous silica (TFMS) and Fe O nanoparticle immobilized
3
4
mesoporous silica (Fe@TFMS), respectively. The decrease in d-spacing of 0.02 nm (from
.75 nm to 3.72 nm) and small shift of peak position towards higher 2θ value suggested
contraction of the unit cell during the immobilization of Fe O nanoparticles at the surface of
3
3
4
the thiol functionalized silica framework. On the other hand, the wide angle XRD pattern of

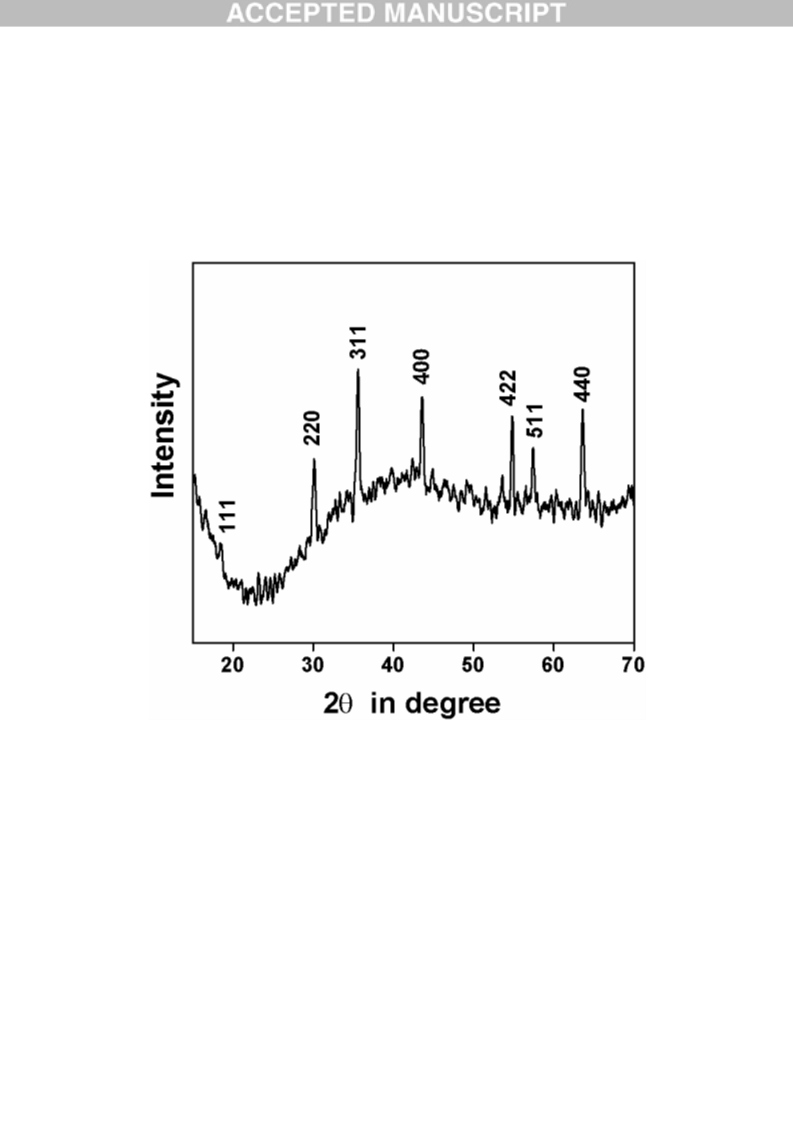

Fe@TFMS is shown in Figure 2. As seen from the figure, there are several sharp peaks which
match well with the Fe O nanocrystalline phases, suggesting the crystalline nature of the
3
4
material. So, the wide angle pattern of Fe O immobilized thiol functionalized material
3
4
resembled nicely with that of pure Fe O nanocrystals [40].
3
4
4
.2. Surface area and porosity of Fe@TFMS

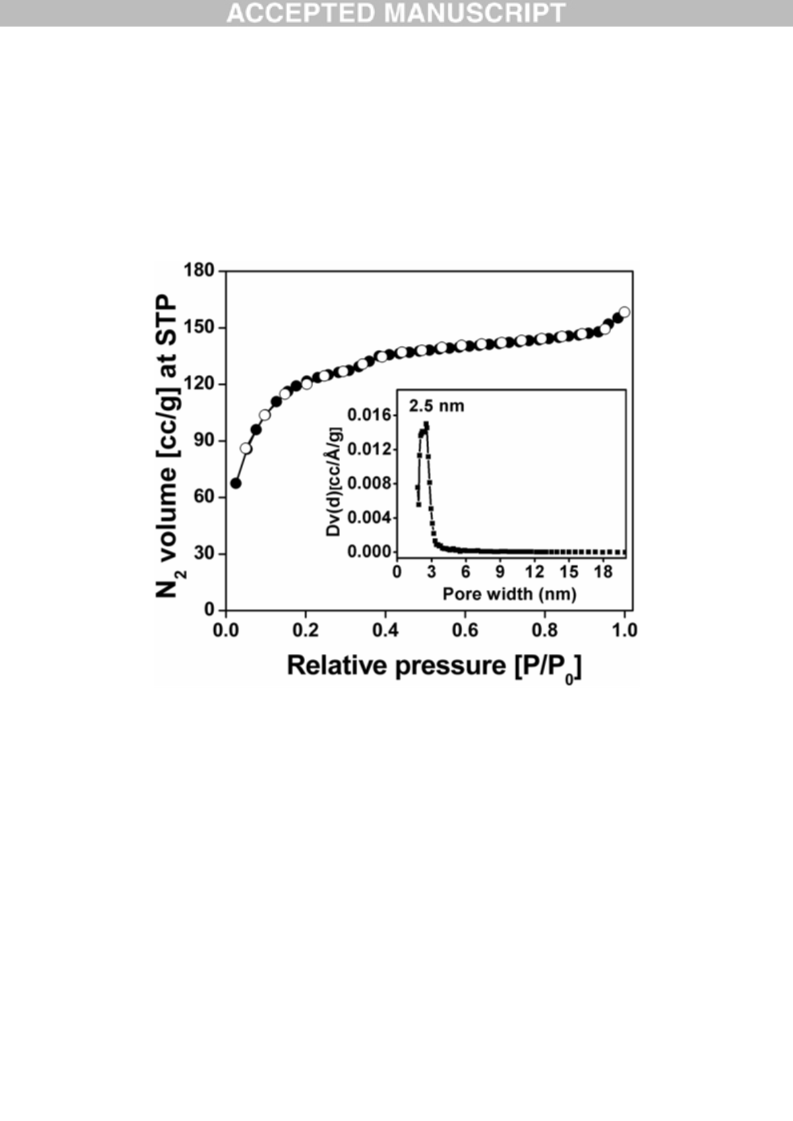

The nitrogen adsorption/desorption isotherm of Fe@TFMS is shown in Figure 3,
which displayed the typical type IV isotherm corresponding to that of the mesoporous
materials together with a steep capillary raise [38-40]. The BET (Brunauer-Emmett-Teller)
2
-1
surface area of (Fe@TFMS) material is 411 m g and corresponding pore volume is 0.1858
-1
ccg which confirms that the synthesized Fe O nanoparticles do not block the pores of
3
4
TFMS but the surface of TFMS material will be partially covered. Employing Non Local
Density Functional Theory (NLDFT) on the N sorption data points the pore size distribution
2
plot has been obtained and this is shown in the inset of Figure 3. The one sharp peak at 2.5
nm is observed in the pore size distribution plot of Fe@TFMS, suggesting the mesoporous
1
0

nature of the material. Decrease in surface area and average pore width from the conventional
MCM-41 material [41] suggested stepwise functionalization at the pore surface.
4
.3. Spectroscopic studies
The FTIR spectra of (a) Fe@TFMS and (b) TFMS materials are shown in Figure 4.
-1
The broad band at around 3420 cm , is attributed to the –OH stretching vibration of the
-1
-1
adsorbed water molecules. The two absorption bands at 1094 cm and 950 cm are assigned
to the Si–O and Si–OH vibrations, respectively in both cases. The distinct band is observed at
-1
5
83 cm in Figure 4a, can be attributed to the Fe-O spinel structure.
4
.4. Thermal stability

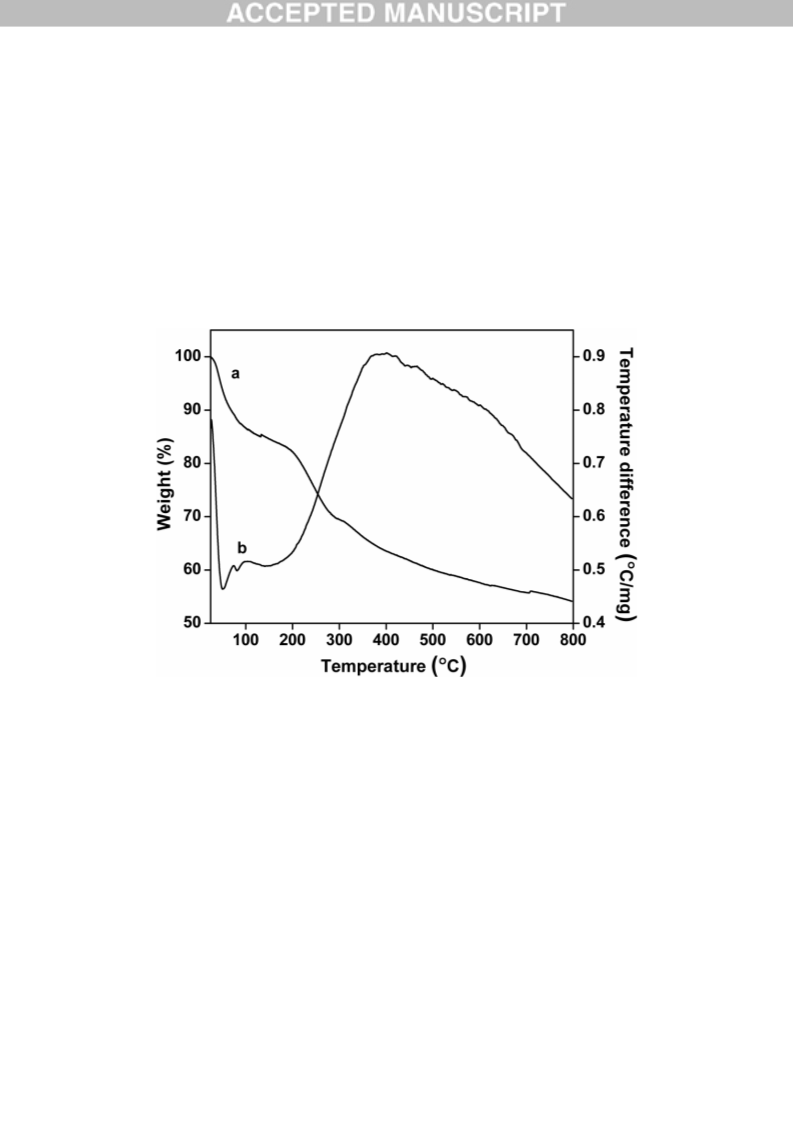

In order to understand the thermal stability of Fe@TFMS material, TGA/DTA
analysis has been carried out under air flow at 10 °C per minute temperature ramp. As seen
from the Figure 5, the first weight loss up to 95 °C, is attributed to evaporation of physically
adsorbed water molecule on the material surface. The second weight loss from 207 °C to 290
°
C could be assigned due to the decomposition of thiol functional groups. Further, from TGA
data it is noticed that the sample continued to lose weight after 300 °C due to decomposition
of organic fractions (cleavage of C-C and C-Si bonds) of Fe@TFMS as well as collapse of
the mesophase. So the thermal analysis data suggests that the material has considerably good
thermal stability upto 207 °C. The CHNS analysis data reveals the elemental composition of
Fe@TFMS material as: carbon = 14.2%, hydrogen = 4.1%, nitrogen = 0% and sulfur = 5.2%,
whereas the atomic adsorption spectroscopic (AAS) analysis data suggested 1.9 wt% Fe in
Fe@TFMS.
4
.5. Magnetic behaviour
1
1

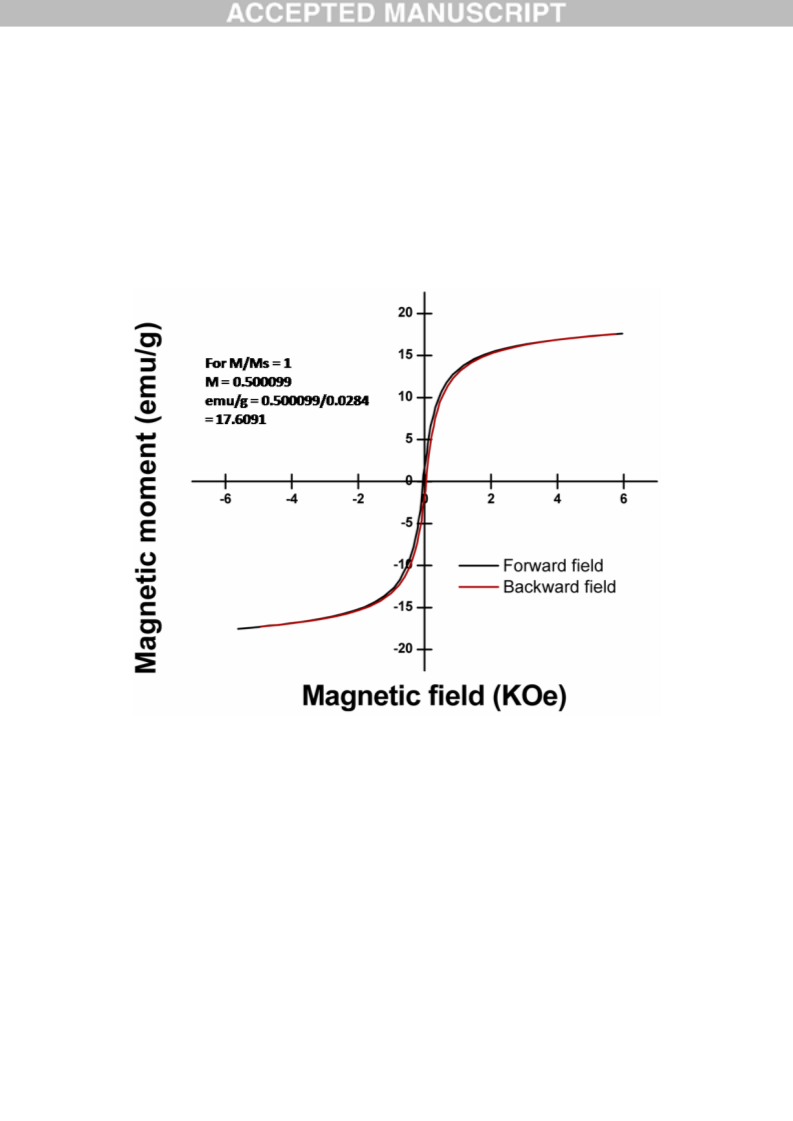

We have measured the low temperature magnetic moment of Fe@TFMS
nanocomposite and the results are shown in Figure 6. The observed saturation magnetization
of Fe@TFMS nanocomposite is around 17.6 emu/g with zero remittance, when the magnetic
field is zero. This is a clear indication of superparamagnetic nature of the composite
nanomaterial. In addition, the nanocomposite didn’t exhibit any hysteresis, suggesting that
the material is superparamagnetic in nature. The saturation magnetization of pure magnetite
is reported to be around 80 emu/g. However, we have previously reported [42,43] that the
saturation magnetization value could in the order of 15 to 40 emu/g due to the presence of
diamagnetic mesoporous silica framework functionalized with organic mercaptopropyl
group, which could be in the case of Fe@TFMS.
4
.6. X-ray photoelectron spectroscopy
To understand the electronic state of the metal ions present in Fe@TFMS, the X-ray
photoelectron spectroscopy (XPS) is often employed as a versatile surface analysis technique.
The XPS spectra of the Fe@TFMS material are shown in Figure 7. As seen from the figure,
the binding energy peaks are appeared at 44.0 eV due to Fe 3p (Figure 7a) and 706.4 and
7
29.9 eV, corresponding to the spin orbit splitting components of Fe 2p3/2 and Fe 2p1/2
(
Figure 7b). It is already reported that Fe 2p3/2 does not have any satellite peak [44] for Fe O
3
4
which is also absent in Figure 7b. Figure 7a represents the XPS spectrum of Fe 3p. On the
other hand the entire XPS profile for Fe 2p could be divided into two components: Fe 2p1/2
+
2
+3
and Fe 2p , where the ratio of Fe to Fe is 1:2 in Fe O as the stoichiometric balance can
3
/2
3
4
be expressed by the ratio of FeO and Fe O . The full scan of the XPS spectrum has been
2
3
demonstrated in Figure 8 which confirms the presence of other elements (C, O, Si, S) in the
mesoporous nanocomposite material. Further, presence of S2p /2p peaks at 174.0 and
1
/2
3/2
1
2

S2s1/2 peak at 231.9 eV suggested the -SH group has not been oxidized to –SO H group
3
(otherwise peak at 169-170 eV would appear) which is shown in Figure 7c and 7d [45].
4
.7. Surface acidity measurement
To measure the Lewis acidity of the Fe@TFMS material, temperature programmed
desorption (TPD) analysis has been carried out in the temperature range of 25 to 600 ºC. The
material is taken in an U-type glass cell and after completion of sample outgassing, helium
gas was purged through the sample for about 15 min to cool down at room temperature. For
saturation purpose NH gas was allowed to flow at 30ml/ min for 40 min and again helium
3
gas was purged for 30 min through the cell to flush out the excess amount of NH . The NH -
3
3
TPD desorption profile of the sample was acquired using a thermal conductivity detector
TCD) by raising the temperature at a ramp of 5 ºC per minute. In Figure 9 NH -TPD profile
(
3
of Fe@TFMS is plotted. As seen from this TPD profile that there are two peaks centred at 60
and 240 ºC. These peaks could be assigned to the existence of weak to medium strength
Lewis acidic sites [46] in Fe@TFMS. Total acidity corresponding to these NH desorption
3
-1
estimated as 1.02 mmolg . This acidity is considerably good and this has motivated us to
explore the potential of Fe@TFMS in esterification and transesterification reactions over long
chain fatty acids.
4
.8. Electron microscopic analysis
.
The solid Fe O nanoparticles have been characterized through electron microscopic
3 4
analysis to investigate the particle size, morphological features and particle size distributions.
The TEM images of Fe O nanoparticles itself are shown in the Figures 10a and 10b, which
3
4
revealed the size of the Fe O NPs of approximately 12-20 nm with a nanosphere like
3
4
morphology. The transmission electron microscopic images of Fe@TFMS material are
shown in Figure 10c and 10d indicating the ordered mesoporous structure with periodic
1
3

arrangement of pores of dimension of ca. 2.1 nm. Further, the FFT pattern of the material is
shown in the inset of Figure 10e. The black coloured spot throughout the specimen indicates
the presence of superparamagnetic Fe O nanoparticle in the framework. The selected area
3
4
electron diffraction (SAED) pattern of the Fe@TFMS is demonstrated in Figure 10f. On the
other hand Figure 10a and 10b represents the TEM images of Fe O nanoparticles itself. To
3
4
know the morphology of the material, the field emission scanning electron microscopy (FE-
SEM) analysis has been carried out. The SEM image of the Fe O immobilized functional
3
4
mesoporous material is shown in Figure 11, suggesting the Fe@TFMS material is composed
of very tiny spherical nanoparticle having an average dimension of ca. 47.0 nm. As seen from
this figure that the Fe@TFMS material is composed of uniformly distributed nanoparticles
ranged throughout the whole specimen.
4
.9. Catalysis
We have taken various types of long chain mono and bi-carboxylic acid as substrate
for the esterification reaction using methanol as solvent cum reactant. The product was
1
13
characterized through H NMR and C NMR. The yields are calculated by taking total
weight after proper drying it. In absence of any acid catalyst, the yield of esterification
product is very low (Table 1, 7%) where lauric acid is used as a model substrate. Generally
fatty acids are esterified in the presence of sulphuric acid as a homogeneous catalyst or
sulfonated solid acid catalysts at high temperature [47]. There is always a big challenge to
separate the catalyst from the reaction mixture in an easy way. Here our magnetically
separable heterogeneous acid catalyst could be very handy. As seen from the table 1,
Fe@TFMS material is more efficient for methyl ester production at room temperature using
methanol as reagent and solvent.
1
4

To understand the crucial role of methanol in esterification as well as trans-
esterification reactions, we have performed the controlled reaction at room temperature for
two times where lauric acid is used as a model substrate. Furthermore, it is pertinent to
mention that for esterification reaction we have used little bit excess amount of methanol. At
first, the ratio of long chain mono carboxylic fatty acid and methanol was maintained in a
stiochiometric ratio i.e 1:2 and resulting yield was estimated to be 76 mol%. However, when
we controlled the acid–methanol ratio (1:10), the product yield was increased up to 97 mol%
for the same representative substrate. In this context, Lin et al have reported the hollow
Fe/CASO H fibre as a catalyst for biodiesel production with 80% conversion of oleic acid
3
[
48]. Thus, our Fe@TFMS catalyst is very efficient over the related iron-containing catalysts.
We have also carried out the transesterification reaction of soybean oil with methanol
oil:MeOH=1:100) at room temperature and the resulting product yield was 62 %. Another
(
problem usually faced in this reaction is that after completion of reaction, the solution
mixture contains more amount of methyl ester product, very little amount of free fatty acid,
solid acid catalyst and methanol. Thus, after removal of solid acid catalyst magnetically,
chloroform was used for extraction purpose and the organic layer need to be washed for three
times with sodium bi-carbonate solution. The product is collected after vacuum evaporation
of solvent using rotary evaporator. Since, the boiling point of methanol is not very high thus
it is not convenient to maintain the stoichiometric ratio. The purification of the methyl ester
product is much easier in the presence of excess amount of methanol, which can act as
reagent and solvent. We have proposed a mechanism for this esterification reaction catalyzed
+
3
by Fe@TFMS and this is shown in Scheme 2. Highly Lewis acidic Fe sites present in the
Fe O NPs of the Fe@TFMS catalyst is responsible for this acid catalyzed transesterification
3
4
3
+
reaction [49]. At first protonation/electron donation to Fe sites of the acidic sites of the
catalyst with the carbonyl oxygen increase the electrophilicity of carbonyl carbon. Then the
1
5

reaction undergoes 1,2 addition of alcohol followed by proton transfer to one of the –OH
group. Subsequently, the water elimination leads to the formation of esterified product.
1
13
H and C NMR chemical shifts of various long chain fatty acid methyl esterified product
are given (the respective spectra are shown in ESI)
1
CH -(CH ) -COOMe : H NMR (500 MHz, CDCl ) δ = 3.62 (3H, s); δ = 2.25–2.30 (2H, t);
3
2 10
3
1
3
δ = 1.59 (2H,m); δ = 1.35 (16H, m); δ = 0.84 (3H, m); C NMR (125 MHz, CDCl ) δ =
3
1
75.1; 51.3; 34.2; 32.1; 29.6; 29.5; 29.4; 29.3; 29.2; 25.1; 22.7; 14.2.
1
CH -(CH ) -COOMe : H NMR (500 MHz, CDCl ) δ = 3.63 (3H, s); δ = 2.28 (2H, t); δ =
3
2 12
3
1
3
1
.50 (2H, m); δ = 1.25 (20H, m); δ = 0.86 (3H, t); C NMR (125 MHz, CDCl ) δ = 174.2;
3
5
1.3; 34.2; 32.1; 29.9; 29.8; 29.7; 29.5; 29.4; 29.3; 29.2; 25.1; 22.7; 14.2.
1
CH -(CH ) -COOMe : H NMR (500 MHz, CDCl ) δ = 3.71 (3H, s); δ = 2.26–2.24 (2H, t);
3
2 14
3
1
3
δ = 1.60–1.57 (2H, m); δ = 1.25–1.22 (24H, m); δ = 0.86 (3H, t); C NMR (125 MHz,
CDCl ) δ = 174.5; 51.5; 34.3; 32.2; 29.9; 29.8; 29.7; 29.6; 29.5; 29.4; 29.3; 25.2; 22.9; 14.3.
3
1
CH -(CH ) -COOMe : H NMR (500 MHz, CDCl ) δ = 3.65 (3H, s); δ = 2.28–2.25 (2H, t);
3
2 16
3
1
3
δ = 1.60–1.57 (2H, m); δ = 1.25 (28H, m); δ = 0.88 (3H, t); C NMR (125 MHz, CDCl ) δ =
3
1
74.6; 51.4; 34.2; 32.1; 29.8; 29.7; 29.7; 29.6; 29.5; 29.4; 29.3; 25.1; 22.8; 14.2.
1
CH (CH ) CH=CH(CH ) COOMe : H NMR (500 MHz, CDCl ) δ = 5.34 (2H, m); 3.63
3
2 7
2 7
3
(3H, s); 2.29 (2H, t); 2.03–1.95 (4H, m); 1.16–1.56 (2H, m); 1.28–1.23 (20H, m); 0.88 (3H,
1
3
m); C NMR (125 MHz, CDCl ) δ = 174.6; 130.0; 51.4; 34.2; 32.0; 29.8; 29.7; 29.6; 29.5;
3
2
9.4; 29.3; 29.2; 29.1; 27.3; 27.2; 25.7; 25.0; 22.7; 14.1.
1
MeOOC-(CH ) -COOMe : H NMR (500 MHz, CDCl ) δ = 3.65 (6H, s); δ = 2.30–2.35 (4H,
2
4
3
13
t); δ = 1.59–1.56 (4H, m); C NMR (125 MHz, CDCl ) δ = 174.7; 51.5; 33.7; 33.5; 24.4;
3
2
4.3; 24.2.
1
6

1
MeOOC-(CH ) -COOMe : H NMR (500 MHz, CDCl ) δ = 3.66 (6H, s); δ = 2.32–2.25 (4H,
2
8
3
1
3
t); δ = 1.54–1.51 (4H, m);δ = 1.30 (8H, s); C NMR (125 MHz, CDCl ) δ = 174.4; 51.3;
3
3
3.9; 28.9; 24.8.
4
.9.1. Dependence of catalyst loading
To optimize the utility of Fe@TFMS catalyst for the biodiesel production, the five
different sets of esterification reaction has been carried out by varying the catalyst amount
from 0 mg to 25 mg at room temperature using 1.0 mmol of lauric acid and 10 mL methanol.
From Figure 12, it is quite clear that with the increase in amount of catalyst loading the
product yield is increased, maximum up to 97 mol%. But with further increase in catalyst
amount in reaction mixture, no significant change is observed in product yield. So, 20 mg
catalyst is the best quantity for biodiesel synthesis using 1 mmol of lauric acid for 12 h at
room temperature.
4
.9.2. Catalyst dependent experiment
To carry out the control experiment 1.0 mmol of lauric acid and 10 mL methanol were
taken as a representative example. It has been observed from table 2 that no esterified product
was formed in absence of any catalyst at room temperature whereas 7% product yield was
obtained without any catalyst by raising the temperature at 65 ºC. We have also performed
the same reaction using TFMS at two different temperatures, varying the reaction time
duration. However, in this case no desired product was formed, the staring compound
remains unchanged. Due to these unsatisfactory results the reaction was carried out using
other two catalysts like anhydrous FeCl and Fe O . In the first case the product yield is 47%
3
3
4
coming from lewis acidic site but due to their homogeneous nature the catalyst is not reusable
furthermore. In second case the product yield was found to be 32% at room temperature as
because there was no surface area. But using Fe@TFMS catalyst the biodiesel product yield
1
7

was very high (97%) due to high surface area which facilitates the reactant molecule to enter
into the pore and come in close proximity to the acid active site of the material. This
experimental result surely proves that the high surface area and porosity have crucial roles for
production of biodiesel from free fatty acid at room temperature.
4
.9.3. Catalyst life time study
Magnetic separation is very simple and interesting technique, and also it can prevent
any loss of catalyst during recollection which also helps to increase the recycling ability.
After the reaction, when the stirring is stopped the Fe@TFMS nanocatalyst became stuck
onto the magnetic stirring bar due to their superparamagnetic behaviour. To check the
reusability of the material, the catalyst was repeatedly washed with methanol and acetone to
get rid of very trace amount of unreacted free long chain fatty acid. The catalyst is reused for
same reaction, after drying it in 75 °C oven for 24 h where lauric acid is chosen as a model
example. The recycling efficiency of the catalyst for five consecutive reactions has been
shown in Figure 13. It confirms that the Fe@TFMS catalyst can be reused for five reaction
cycle without any loss of catalytic activity. Then the reused catalysis is further characterized
through PXRD pattern, which suggest that the parent mesoporous structure and characteristic
sharp peak for Fe O nanocrystals have been retained.
3
4
4
.9.4. Heterogeneity test
In order to investigate the characteristic nature and also to examine the source of
catalytic activity of Fe@TFMS nanocatalyst, we have performed the leaching test
experiment. At first, the catalyst is isolated from the reaction mixture by simple magnetically
separation technique. Then, after addition of nitric acid solution (30 wt %) to the filtrate, the
solution is adjusted to 5 wt % nitric acid solution. The Fe content filtrate solution is analyzed
by atomic absorption spectrometric (AAS) analysis. The absence of iron in the filtrate
1
8

solution suggested no leaching of Fe from the catalyst surface and solution remains
colourless. The experimental analysis clearly signifies that Fe O NPs are bound strongly
3
4
with the thiol functionalized mesoporous MCM-41 and the Fe@TFMS catalyst is
heterogeneous in nature.
5
. Conclusion
We can conclude that magnetically recoverable heterogeneous Lewis acid catalyst
Fe O can be immobilized very efficiently over the thiol functionalized 2D-hexagonal
3
4
mesoporous silica material. Resulting nanomaterial have considerably high surface area of
2
-1
4
11 m g and this material is successfully employed for the biodiesel production from various
long chain fatty acids and soybean oil as a vegetable oil under very mild and eco-friendly
conditions. Due to superparamagnetic nature of the Fe O immobilized nanocatalyst, it is
3
4
very easy to separate the catalyst from the reaction mixture and it displays high recycling
efficiency. Thus, Fe O immobilized mesoporous nanocatalyst has open new opportunities
3
4
for the synthesis of biodiesels in larger scale.
Acknowledgement
PB wishes to thank CSIR, New Delhi for Junior Research Fellowships. Authors wishes to
thank DST, New Delhi and British Council, UK for financial supports through the UKIERI
project grant (IND/Cont (E) 14-15/055).
1
9

References
1] D. E. Lopez, J. G. Goodwin, D. A. Bruce, S. Furuta, Appl. Catal. A: Gen. 339 (2008)
6-83.
2] C. Pirola, F. Galli, C. L. Bianchi, D. C. Boffito, A. Comazzi, F. Manenti, Energy Fuels
8 (2014) 5236-5240.
[
7
[
2
[
[
(
[
3] R. Luque, J. H. Clark, ChemCatChem. 3 (2011) 594-597.
4] P. S. Sreeprasanth, R. Srivastava, D. Srinivas, P. Ratnasamy. Appl. Catal. A: Gen. 314
2006) 148-159.
5] C. Pirola, F. Galli, C. L. Bianchi, D. C. Boffito, A. Comazzi, F. Manenti, Energy Fuels
2
8 (2014) 5236-5240.
[
[
[
6] R. Chakraborty, H. Sahu, Appl. Energy 114 (2014) 827-836.
7] Zillillah, G. Tan, Z. Li, Green Chem. 14 (2012) 3077-3086.
8] A. Karmakar, M. F. C. G. da Silva, A. J. L. Pombeiro, Dalton Trans. 43 (2014) 7795-
7
810.
[
[
[
[
[
(
[
9] B. Ye, F. Qiu, C. Sun,Y. Li, D. Yang, Chem. Eng. Technol. 37 (2014) 283–292.
10] J. Fu, L. Chen, P.Lv, L. Yang, Z. Yuan, Fuel 154 (2015) 1-8.
11] B. He, Y. Shao, Y. Ren, J. Li, Y. Cheng, Fuel Process. Technol. 130 (2015) 1-6.
12] Y. Zhang, M. Stanciulescu, M. Ikura, Appl. Catal. A 366 (2009) 176-183.
13] L. Zatta, E. J. M. Paiva, M. L. Corazza, F. Wypych, L. P. Ramos, Energy Fuels 28
2014) 5834-5840.
14] S. Y. Chen, T. Yokoi, C. Y. Tang, L. Y. Jang, T. Tatsumi, J. C. C. Chan, S. F. Cheng,
Green Chem. 13 (2011) 2920-2930.
[
[
15] D. Zareyee, M. Serehneh, J. Mol. Catal. A: Chem. 391 (2014) 88-91.
16] T. Sen, I. J. Bruce, T. Mercer, Chem. Commun. 46 (2010) 6807-6809.
2
0

[
17] S. S. Vieira, Z. M. Magriotisa, M. F. Ribeirob, I. Graçab, A. Fernandesb, J. M. F. M.
Lopesb, S. M. Coelhoa, N. A. V. Santosa, A. A. Saczk, Microporous Mesoporous Mater. 201
(2015) 160-168.
[
18] D. E. López, J. G. Goodwin Jr., D. A. Bruce, E. Lotero, Appl. Catal. A 295 (2005) 97-
1
05.
[
[
[
19] A. A. Kiss, A. C. Dimian, G. Rothenberg, Energy Fuels 22 (2008) 598-604.
20] X. R. Chen, Y. H. Ju, C. Y. Mou, J. Phys. Chem. C 111 (2007) 18731-18737.
21] N. A. Zafiropoulos, H. L. Ngo, T. A. Foglia, E. T. Samulski, W. Lin, Chem. Commun.
3
5 (2007) 3670-3672.
[
[
[
[
22] F. Su, Y. Guo, Green Chem. 16 (2014) 2934-2957.
23] N. Pal, E. B. Cho, D. Kim, M. Jaroniec, J. Phys. Chem. C 118 (2014) 15892-15901.
24] G. M. Ziarani, N. Lashgari, A. Badiei, J. Mol. Catal. A: Chem. 397 (2015) 166-191.
25] H. Wan, C. Chen, Z. Wu, Y. Que, Y. Feng, W. Wang, L. Wang, G. Guan, X. Liu.
ChemCatChem 7 (2015) 441-449.
[
[
[
[
[
[
[
[
[
[
(
26] M. Pramanik, M. Nandi, H. Uyama, A. Bhaumik, Green Chem. 14 (2012) 2273–2281.
27] F. G. Cirujano, A. Corma, F. X. L. I. Xamena, Chem. Eng. Sci. 124 (2015) 52-60.
28] L. He, S. Qin, T. Chang,Y.Suna, X.Gao, Catal. Sci. Technol. 3 (2013) 1102-1107.
29] F. Liu, S. Zuo, W. Kong C. Qi, Green Chem. 14 (2012) 1342-1349.
30] D. Fang, J. Yang, C. Jiao, ACS Catal. 1 (2011) 42-47.
31] Z. Bi, B. B. He, A. G. McDonald, Energy Fuels 29 (2015) 5018-5027.
32] W. Thitsartarn, S. Kawi, Green Chem. 13 (2011) 3423-3430.
33] K. Y. Nandiwale, V. V. Bokade. Environ. Prog. Sustain. J. 34 (2015) 795-801.
34] S. Bhunia, B. Banerjee, A. Bhaumik, Chem. Commun. 51 (2015) 5020-5023.
35] S. Tang, L. Wang, Y. Zhang, S. Li, S. Tian, B. Wang, Fuel Process. Technol. 95
2012), 84-89.
2
1

[
36] H. Wan, Z. Wu, W. Chen, G. Guan, Y. Cai, C. Chen, Z. Li, X. Liu, J. Mol. Catal. A:
Chem. 398 (2015) 127-132.
37] J. J. Morrison, C. J. Love, B. W. Manson, I. J. Shannon, R. E. Morris, J. Mater. Chem.
2 (2002) 3208-3212.
[
1
[
[
38] S. K. Kundu, J. Mondal, A. Bhaumik, Dalton Trans. 42 (2013) 10515-10524.
39] M. Ilibi, T. B. de Queiroz, J. J. Ren, L. De Cola, A. S. S. de Camargo, H. Eckert,
Dalton Trans. 43 (2014) 8318-8330.
[
[
(
[
[
(
[
[
[
[
[
40] J. Mondal, T. Sen, A. Bhaumik, Dalton Trans. 41 (2012) 6173-6181.
41] C. T. Kresge, M. E. Leonowicz, W. J. Roth, J. C. Vartuli, J. S. Beck, Nature.359
1992) 710-712.
42] T. Sen, I. J. Bruce, Microporous Mesoporous Mater. 120 (2009) 246-251.
43] M. E. Sharifabad, B. Hodgson, M. Jellite, T. Mercer, T. Sen, Chem. Commun. 50
2014) 11185-11187.
44] M. Muhler, R. Schlögl, G. Ertl, J. Catal. 138 (1992) 413-444.
45] W. J. Liu, K. Tian, H. Jiang, H. Q. Yu, Sci. Rep. 3 (2013) 2419.
46] A. Q. Wang, X. Liu, Z. X. Su, H. W. Jing, Catal. Sci. Technol. 4 (2014) 71-80.
47] M. L. Savaliya, B. Z. Dholakiya, Appl. Catal. A: Gen. 494 (2015) 12-21.
48] L. Lin, H. Cui, S. Vittayapadung, Z. Xiao, W. Wu, A. Zhang, W. Mamdouh, C. Li,
Environ. Prog. Sustain. Energy 33 (2014) 1432-1437.
49] M. Pramanik, A. Bhaumik, Chem. Eur. J. 19 (2013) 8507-8514.
[
2
2

Figure Captions
Figure 1. Small angle powder XRD pattern of as synthesized TFMS (a), extracted TFMS (b)
and Fe@TFMS sample.
Figure 2. Wide angle powder XRD pattern of Fe@TFMS sample.
Figure 3. N adsorption/desorption isotherm of the mesoporous catalyst Fe@TFMS. Pore
2
size distributions determined by the NLDFT (Non Local Density Functional Theory) method
is shown in the inset.
Figure 4. FTIR spectra of Fe@TFMS (a) and TFMS (b) sample.
Figure 5. TGA/DTA curve for Fe@TFMS material.
Figure 6. Magnetisation curve of the Fe@TFMS nanocomposite.
Figure 7. XPS spectrum of Fe 3p (a), Fe 2p (b), S 2p (c) and S 2s(d) from the surface of
Fe@TFMS material.
Figure 8. XPS spectrum in full scan for Fe@TFMS material containing different element.
Figure 9. NH -TPD profile diagram of Fe@TFMS material.
3
Figure 10. UHR-TEM images of Fe O nanoparticle at high (a) and low resolution (b),
3
4
whereas (c) and (d) are UHR-TEM images for Fe@TFMS material. FFT pattern is shown in
the inset of (e) and SAED pattern in (f).
Figure 11. FE-SEM image of Fe@TFMS sample.
Figure 12. Dependence of methyl ester product yield (mol %) on catalyst loading amount in
esterification reaction of 1mmol lauric acid at room temperature, time 12 h.
Figure 13. Recycling ability of the catalyst Fe@TFMS in the esterification of lauric acid.
Scheme 1. Schematic representation for designing Fe O nanoparticle grafted thiol-funcionalized
3
4
MCM-41 material (Fe@TFMS) .
Scheme 2. Proposed mechanism for the esterification reaction over Fe@TFMS catalyst.
2
3

Figure 1 [Bhanja, Sen and Bhaumik]
2
4

Figure 2 [Bhanja, Sen and Bhaumik]
2
5

Figure 3 [Bhanja, Sen and Bhaumik]
2
6

Figure 4 [Bhanja, Sen and Bhaumik]
2
7

Figure 5 [Bhanja, Sen and Bhaumik]
2
8

Figure 6 [Bhanja, Sen and Bhaumik]
2
9
