Uranium Carbide Molecules UC and CUC
Multiple bonding between uranium and main group elements
1
1-17
has become of considerable interest.
numerous UdO bonds, but fewer UdNX and UdCX
are known. The imido (AndNX), phosphinidene (AndPX), and
Uranium forms
2
bonds
1
3-17
N-U-N molecular linkages have been prepared,
simple NHdUH , CH dUH , CH dUHX, CH
CHtUX molecules have been produced and identified in
matrix isolation experiments and characterized by density
and the
2
2
2
2
2
dUX , and
2
3
1
8-22
functional theory calculations.
Ligand-supported uranium
carbene complexes have been prepared, and the uranium-carbon
bond has been measured in uranium phosphoylide and nucleo-
philic carbene complexes, but the bond lengths are much longer
23,24
than computed for the above simple methylidene complexes.
Hence, the preparation and characterization of isolated binary
uranium carbon bearing molecules containing multiple bonds
is of practical and fundamental importance.

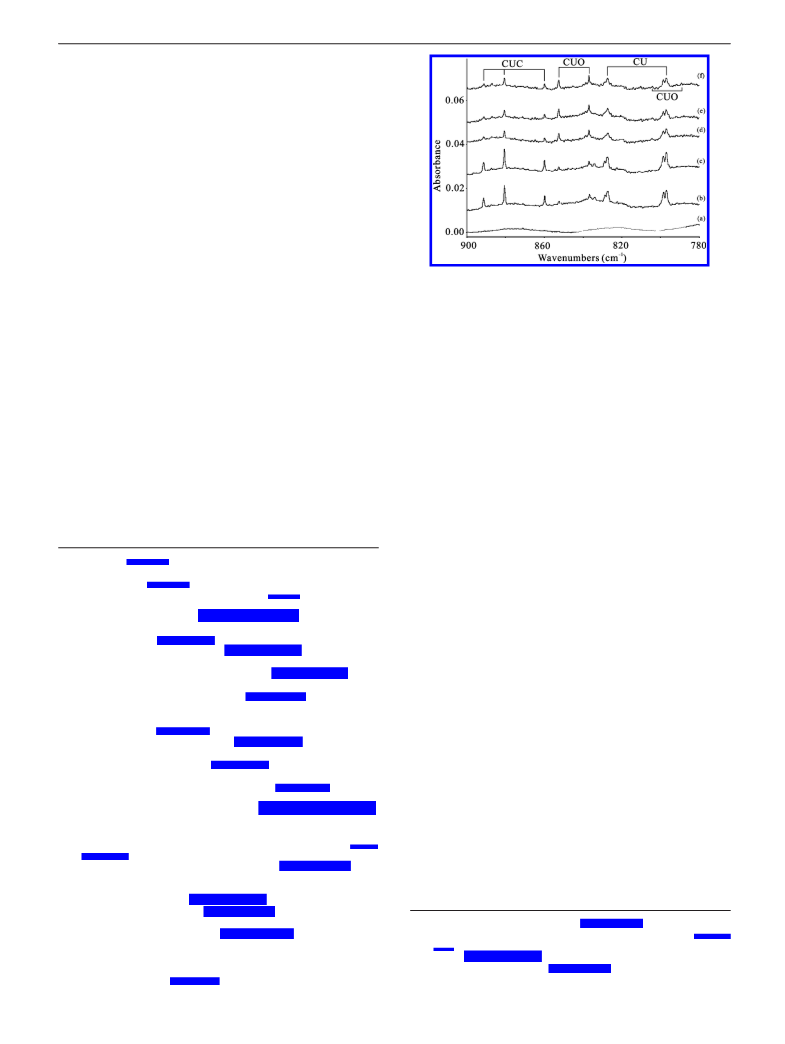

Figure 1. Infrared spectra of uranium and carbon atom reaction products
-
1
in the 900-780 cm region: (a) U and C from laser evaporation of alloy
1
2
13
Experimental Details
target [U/C ) 1/4, C/ C ) 1/1] codeposited in excess argon at 8 K for
0 min, (b) after annealing to 20 K, (c) after annealing to 30 K, (d) after
290 nm irradiation for 20 min, (e) after annealing to 30 K, and (f) after
6
>
The material evaporated from arc-melted, depleted uranium/
carbon alloy targets using a pulsed YAG laser, as described
annealing to 35 K.
2
5
previously for pure metals, was collected in a condensing argon
stream at 6-8 K. A standard arc furnace melting method was
employed for reacting cleaned uranium turnings and graphite
Although spark plasma sintering is commonly used to produce
dense metals, intermetallics, and ceramics, there are no reports on
the application of this technique to produce dense solids from
amorphous starting powders. This new treatment of solid carbon-
2
6
pieces, and alloy targets with U/C mole ratios of 1/2, 1/4, and
/7 were used to produce new infrared absorptions. Powder X-ray
patterns showed that these targets are mixtures of UC and graphite.
1
2
1
3 will find other applications that require stable isotopic substitu-
Unfortunately, this method did not work for amorphous carbon-13
powder, which is the only available form of pure solid carbon-13
tion in spectroscopy, intermetallics, and ceramics.
27
Results and Discussion
isotopic material. However, the spark plasma sintering technique
2
8
employed for ceramics was adapted to make a dense pellet of
solid carbon-13 from amorphous carbon-13 powder. This carbon-
Infrared spectra of the reaction products formed from ablated
material were recorded, and the freshly deposited sample reveals
very weak bands that increase on annealing to 20 and 30 K.
1
3 pellet was then arc melted with normal isotopic graphite and
cleaned uranium turnings to form the U/C-12/C-13 and U/C-13
pellets employed here (U/C mole ratios 1/4).
2
9-31
Weak C
1
3
, C
2
O, and UO bands
are observed at 2039.2,
-1
968.9, and 820.0 cm , and a moderate CO absorption appears
at 2138.5 cm in these experiments. Weak bands at 852.6 and
804.4 cm are in agreement with absorptions reported for the
-
1
(
(
11) Burns, C. J. Science 2005, 309, 1823–1824.
-
1
12) Hayton, T. W.; Boncella, J. M.; Scott, B. L.; Palmer, P. D.; Batista,
E. R.; Hay, P. J. Science 2005, 310, 1941–1943.
triplet state CUO molecule isolated in and interacting with
(
(
13) Evans, W. J.; Kozimor, S. A.; Ziller, J. W. Science 2005, 309, 1835–
9,10
argon.
8
Significant new reaction product bands appeared at
1
838.
-
1
91.4 and 827.4 cm , and the C
3
band also increased on
14) Gagliardi, L.; Pyykk o¨ , P. Angew. Chem., Int. Ed. 2004, 43, 1573–
1
576.
annealing. Ablation of a U/C-13 pellet produced these new
(
(
15) Ephritikhine, M. Dalton Trans. 2006, 2501–2516.
-1
13
-1
3
bands shifted to 859.9 and 797.0 cm with C at 1960.9 cm ,
16) Brennan, J. G.; Andersen, R. A. J. Am. Chem. Soc. 1985, 107, 514–
and 13
-1
2
C O at 1918.4 cm .
5
16.
(17) Arney, D. S.; Burns, C. J.; Schnabel, R. C. J. Am. Chem. Soc. 1996,
18, 6780–6781.
(18) Wang, X.; Andrews, L.; Marsden, C. J. Chem.sEur. J. 2005, 14, 9192–
(
The most important experiments were performed using the
target containing uranium with half carbon-12 and half carbon-
1
1
3, which is necessary to determine the carbon stoichiometry
9
201 (NH)UH ).
2
of the new product molecules from vibrational spectroscopy.
These spectra, shown in Figure 1 after sample deposition,
annealing, and >290 nm irradiation, contained carbon isotopic
19) (a) Lyon, J. T.; Andrews, L.; Malmqvist, P.-Å.; Roos, B. O.; Yang,
T.; Bursten, B. E Inorg. Chem. 2007, 46, 4917–4925. (b) Roos, B. O.;
Lindh, R.; Cho, H.-G.; Andrews, L. J. Phys. Chem A 2007, 111, 6420–
6
424 (CH
20) Lyon, J. T.; Andrews, L. Inorg. Chem. 2006, 45, 1847–1852
CH dUHX).
21) Lyon, J. T.; Andrews, L.; Hu, H.-S.; Li, J. Inorg. Chem. 2008, 47,
435–1442 (CH dUF ).
22) Lyon, J. T.; Hu, H.-S.; Andrews, L.; Li, J. Proc. Natl. Acad. Sci. U.S.A.
007, 104, 18919–18924 (CHtUX ). CHtUF has a 2.56 effective
UC bond order.
2 2
dUH ).
-
1
doublets for the first bands at 852.6, 837.0 cm and at 804.3,
(
(
(
-
1
(
2
789.1 cm for the CUO molecule containing a single carbon
9
,10
atom.
An isotopic doublet was observed at 827.4 and 797.0
1
2
2
-1
cm for the lower new product and a triplet at 891.4, 880.6,
and 859.9 cm for the higher new band. An isotopic doublet
was also observed at 2138.5 and 2091.4 cm for CO and
CO, respectively, with absorbances of 0.024 and 0.018. These
-
1
2
3
3
-
1
12
(
23) (a) Cramer, R. E.; Maynard, R. B.; Paw, J. C.; Gilje, J. W. J. Am.
Chem. Soc. 1981, 103, 3589. (b) Stevens, R. C.; Bau, R.; Cramer,
R. E.; Afzal, D.; Gilje, J. W.; Koetzle, T. F. Organometallics 1990,
13
CUO products are probably made here first on annealing by
reaction of UO evaporated from the alloy target surface with C
atoms in the matrix and on >290 nm photolysis as observed
9
, 694.
(
(
(
(
(
24) Cantat, T.; Arliguie, T.; Noel, A.; Thuery, P.; Ephritikhine, M.; Le
Floch, P.; Mezailles, N. J. Am. Chem. Soc. 2009, 131, 963–972.
25) Andrews, L.; Cho, H.-G. Organometallics 2006, 25, 4040–4053
(
review article).
(29) Weltner, W., Jr; McLeod, D., Jr. J. Chem. Phys. 1964, 40, 1305.
(30) (a) Jacox, M.; Milligan, D. E.; Moll, N. G.; Thompson, W. E. J. Chem.
Phys. 1965, 43, 3734. (b) DeKock, R. L.; Weltner, W., Jr; McLeod,
D., Jr. J. Am. Chem. Soc. 1971, 93, 7106.
26) Kruger, O. L.; Armstrong, J. L. ReV. Sci. Instrum. 1964, 35, 156 (arc
furnace).
27) Cambridge Isotope Laboratories, Cambridge, MA, www.isotope.
com.
(31) Hunt, R. D.; Andrews, L. J. Chem. Phys. 1993, 98, 3690 (UO, UO
2
28) Omori, M.; Hirai, T. New Ceram. 1994, 7, 23 (spark plasma sintering).
3
and UO ).
J. AM. CHEM. SOC. 9 VOL. 132, NO. 24, 2010 8485
