Composition Tunable Manganese Ferrite Nanoparticles for Optimized
6
7
T2 Contrast Ability
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Lijiao Yang1, Lengceng Ma2, Jingyu Xin1, Ao Li1, Chengjie Sun1, Ruixue Wei1, Bin W. Ren1, Zhong
Chen2, Hongyu Lin1, and Jinhao Gao1*
1State Key Laboratory of Physical Chemistry of Solid Surfaces, The MOE Key Laboratory of
Spectrochemical Analysis & Instrumentation, The Key Laboratory for Chemical Biology of Fujian
Province, and iChEM, College of Chemistry and Chemical Engineering, Xiamen University, Xiamen
361005, China.
2Department of Electronic Science, Fujian Key Laboratory of Plasma and Magnetic Resonance,
College of Physical Science and Technology, Xiamen University, Xiamen, 361005, China
*Email: jhgao@xmu.edu.cn
1
ACS Paragon Plus Environment

Chemistry of Materials
Page 2 of 33
1
2
3
4
ABSTRCT
5
6
7
8
9
Manganeseꢀdoped magnetite nanoparticles as magnetic resonance imaging (MRI) contrast agents
have been well developed in recent years due to their higher saturation magnetization and stronger
transverse (T2) contrast ability compared to parent magnetite. However, the underlying role that
manganese doping plays in altering the contrast ability of magnetite is still not thoroughly
understood. Herein, we investigate the effects of manganese doping on changes of ferrite crystal
structures, magnetic properties, and contrast abilities. We developed a successful oneꢀpot synthesis
of uniform manganeseꢀdoped magnetite (MnxFe3ꢀxO4) nanoparticles with different manganese
contents (x = 0 ~ 1.06). The saturation magnetization and T2 contrast ability of ferrite nanoparticles
increase along with rising manganese proportion, peak when the doping level of MnxFe3ꢀxO4 reaches
x = 0.43, while decrease dramatically as the manganese percentage continues to augment. At high
manganese doping level, the manganese ferrite nanoparticles may undergo lattice distortion
according to analysis of XRD patterns and lattice distances, which may result in low saturation
magnetization and eventually low T2 contrast ability. The MnxFe3ꢀxO4 nanoparticles (x = 0.43) with a
diameter of ~18.5 nm exhibit the highest T2 relaxivity of 904.4 mMꢀ1sꢀ1 at 7.0 T among all the
samples, and show a much stronger T2 contrast effect for liver imaging than other iron oxide contrast
agents. These results indicate that the optimized T2 contrast ability of manganese ferrite nanoparticles
could be achieved by tuning the manganese doping level. This work also opens a new field of vision
for developing highꢀperformance T2 contrast agents by modulating the metal composition of
nanoparticles.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2
ACS Paragon Plus Environment

Page 3 of 33
Chemistry of Materials
1
2
3
4
INTRODUCTION
5
6
7
8
9
Magnetite nanoparticles as T2 magnetic resonance imaging (MRI) contrast agents (CAs) have been
wellꢀestablished over the past two decades,1ꢀ4 but its low signal sensitivity is a major limitation and
still not able to meet clinical needs in diagnosis and therapy.5ꢀ7 Researchers have exploited a series of
methods to enhance their contrast abilities in MRI, such as tuning their morphologies and
compositions.8ꢀ11 This strategy has been used for metal doping ferrite MFe2O4 (M = Fe, Co, Ni, and
Mn) nanoparticles as well.12ꢀ14 In Fe3O4 inverse spinel structure, oxide anions form faceꢀcentered
cubic framework, while iron cations occupy part of the interstitial octahedral (Oh) and tetrahedral
(Td) sites.15 Fe3+ cations in Td and Oh sites are antiferromagnetic coupling, which leads to
cancellation of magnetic moments. Consequently, the final magnetic moment of Fe3O4 unit proves to
be the net magnetic moment of Fe2+ cation.16 By replacing Fe2+ (d6) with Mn2+ (d5), Co2+ (d7), or
Ni2+ (d8), the net magnetic moment of MFe2O4 unit can be engineered from 4 ꢁB to 5 ꢁB, 3 ꢁB, or 2
ꢁB, respectively.13 Accordingly, the magnetic properties of MFe2O4 nanoparticles could also be tuned
via replacing Fe2+ with other metal cations fully or partially.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Magnetic properties of nanoparticles are crucial for their performance in contrastꢀenhanced
MRI.17ꢀ19 According to quantum mechanical outer sphere theory, T2 contrast enhancement is mainly
related to the proton's effective diffusion and interaction with the magnetic dipolar moment: r2 =
(256π2γ2/405) V* Ms2 r2/ D (1+L/a), where Ms is saturation magnetization and r is effective radius of
magnetic nanostructure, D is the diffusivity of water molecules, L is the thickness of an impermeable
surface coating, and V* is the volume fraction, respectively.20ꢀ22 Nanoparticles with higher Ms values
generate stronger local magnetic field inhomogeneity for the water proton dephasing process around
themselves, which accelerates transverse (T2) relaxation of water protons.23 Thus their r2 values are
3
ACS Paragon Plus Environment

Chemistry of Materials
Page 4 of 33
1
2
3
4
5
6
7
8
9
highly dependent on their magnetic saturation magnetization. Types and amounts of metal dopants
play a significant role in the magnetic properties of ferrite nanoparticles,24ꢀ25 which can eventually
alter T2 contrast ability. The doping level of metal also has a great effect on crystal structures of
ferrite nanoparticles. For example, Zn2+ ions doping converts the inverse spinel structure of Fe3O4 to
the spinel structure of (ZnxFe1ꢀx)Fe2O4 according to the extended Xꢀray absorption fine structure
(EXAFS) analysis.9 Therefore, the influence of metal dopants on crystal structure and contrast ability
of MFe2O4 nanoparticles needs to be taken into account for the development of nanoparticleꢀbased T2
CAs.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Among the previously discussed nanoparticles, manganeseꢀdoped magnetite nanoparticles have
the highest magnetic susceptibility owning to the presence of five single unpaired electrons of Mn2+.
Besides, the net magnetic moment of MnFe2O4 unit is 5 ꢁB not matter whether Mn(II) ions occupy
octahedral or tetrahedral sites in the spinel structure of magnetite. As one of the most promising T2
MRI contrast agents in theory, the manganeseꢀdoped magnetite nanoparticleꢀbased CAs have been
developed in recent years.26ꢀ31 Nevertheless, the investigation on the mechanism of the underlying
role that manganese plays in magnetic properties and contrast abilities of magnetite is neglected.
Hence the relationships among manganese doping levels, crystal structures, magnetic properties, and
T2 contrast abilities need to be further clarified.
In this work, we synthesized manganeseꢀdoped magnetite (MnxFe3ꢀxO4) nanoparticles with varied
doping levels using a facile method and investigated their crystal structures, magnetic properties and
contrast abilities. We found that lattice distances and saturation magnetizations of MnxFe3ꢀxO4 are
enlarged gradually with manganese doping level increasing. When the ratio of Mn/Fe reaches to 1/7
(x = 0.43), MnxFe3ꢀxO4 nanoparticles maintained a typical ferrite structure with ultrahigh saturation
4
ACS Paragon Plus Environment

Page 5 of 33
Chemistry of Materials
1
2
3
4
5
6
7
8
9
magnetization (Ms) of 89.5 emu/g, which endows them with an extremely strong T2 contrast effect
with an r2 value of 904.4 mMꢀ1sꢀ1 at 7.0 T. When the doping amount of manganese continues to
increase, the crystal structure of MnxFe3ꢀxO4 is distorted and the Ms value of nanoparticles decreased,
resulting in diminishing r2 values. The MnxFe3ꢀxO4 nanoparticles (x = 0.43) with highꢀperformance
T2 contrast ability provides much higher signal sensitivity for imaging of living subjects compared
with other ironꢀoxideꢀbased CAs.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
EXPERIMENTAL SECTIONS
Materials. 1ꢀoctadecene (tech, 90%) were purchased from Acros Organics. Oleic acid (tech, 90%),
manganese chloride tetrahydrate (99%) were purchased from Alfa Aesar. Iron (III) chloride
anhydrous (>97%), sodium oleate, trisodium citrate dehydrate, hexane, and ethanol were purchased
from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China). All chemicals were used as received
without further purification.
Characterization. Transmission electron microscopy images (TEM) and highꢀresolution TEM
(HRTEM) were obtained by JEOL JEMꢀ2100 microscope with an accelerating voltage of 200 kV.
The Xꢀray powder diffraction (XRD) patterns of the nanoparticles were acquired on a Rigaku Ultima
IV system (with CuꢀKα radiation, 30mA, 40 kV, scan angle (20°ꢀ70°), Sampling .W = 0.02, DivSlit
(1/2 Deg), Div. HL. Slit = 10 mm). The energyꢀdispersive Xꢀray (EDX) element mapping was
performed on a Tecnai F30 microscope at 300 kV. The Xꢀray absorption spectra were recorded at
beamline BL14W1 of Shanghai Synchrotron Radiation Facility (SSRF, at Shanghai, China). The
hysteresis loops (MꢀH curves at 300 K) were performed by the superconducting quantum
interference device (SQUID). The hydrodynamic diameters of nanoparticles were measured with the
5
ACS Paragon Plus Environment

Chemistry of Materials
Page 6 of 33
1
2
3
4
5
6
7
8
9
dynamic light scattering (DLS) measurements (Malvern Zetasizer nano ZS instrument). The metal
concentration of the samples was measured with inductively coupled plasma atomic emission
spectroscopy (ICPꢀAES).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Synthesis of iron oleate and manganese oleate complex. A metal oleate complex was carried
out by reacting sodium oleate and metal chlorides according to a reported method with minor
modification. In a typical experiment, 0.811 g of iron chloride (5 mmol) and 4.567 g of sodium
oleate (15 mmol) were dissolved in a mixture of 20 mL ethanol, 15 mL distilled water and 30 mL
hexane. The resulting solution was heated to 70 °C and stirred at that temperature for 4 h. After
cooling to room temperature, the upper layer containing iron oleate was washed three times with
distilled water. The resulting red brownish iron oleate complex in a waxy solid form was obtained
after hexane was volatilized naturally in the dish. The manganese oleate complex (pink waxy solid)
was prepared in a similar way except using manganese chloride as precursors and reacting under N2
atmosphere. Then the manganese oleate complex was dissolved in ODE and sealed for further use.
Synthesis of Fe3O4 and MnxFe3-xO4 nanoparticles. A oneꢀpot synthetic route of MnxFe3ꢀxO4
nanoparticles (using x = 0.43 as example) is as follows: 0.903 g (1 mmol) of iron oleate (synthesized
in a typical method) and 0.104 g (0.167 mmol) manganese oleate were dissolved in 15mL of
1ꢀoctadecene, with the addition of 0.186 mL (0.584 mmol) of oleic acid. The solution was first kept
at 120 °C for 30 min in vacuum to remove air and other impurities then refluxed at 320 °C in N2 for
2 h before cooling to room temperature. The products were separated by centrifugation, washed three
times with ethanol, and dispersed in hexane for further use. The preparation of Fe3O4 nanoparticles is
similar to the procedure without the adding of manganese oleate.
6
ACS Paragon Plus Environment

Page 7 of 33
Chemistry of Materials
1
2
3
4
5
6
7
8
9
Transfer Fe3O4 and MnxFe3-xO4 nanoparticles into water. Briefly, sodium citrate in water and
the asꢀprepared nanoparticles in hexane were mixed with the adding of acetone to initiate a
ligandꢀexchange process. The MnxFe3ꢀxO4 nanoparticles were gradually transferred to aqueous media
by replacing oleic acid with sodium citrate, due to the fact that the chelation capability of the citrate
to the nanoparticles surface is stronger than that of the original carboxyl groups of oleic acid. The
sodium citrateꢀcoated Fe3O4 nanoparticles were obtained with similar procedures.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Cytotoxicity Assay. The cytotoxicity of sodium citrateꢀcoated MnxFe3ꢀxO4 nanoparticles (x = 0.09,
0.43 and 1.06) was assessed by 3ꢀ(4,5ꢀdimethylthiazolꢀ2ꢀy1)ꢀ2,5ꢀdiphenyltetrazolium bromide (MTT)
assay using SMMCꢀ7721 cells. Cells were firstly seeded into a 96ꢀwell plate with a density of 1 ×
104 cells/well in RPMI 1640/ DMEM, and incubated under 5% CO2 at 37 °C overnight. The cells
were then incubated with the sodium citrateꢀcoated MnxFe3ꢀxO4 nanoparticles (x = 0.09, 0.43 and
1.06) at different [Mn + Fe] concentrations (0.469, 0.938, 1.875, 3.75, 7.5, 15, 30, 60 and 120 ꢁg/mL)
for 24 h. Then 100 ꢁL of new culture media containing MTT (0.5 ꢁg/mL) was added to each well
and the cells were further incubated at 37 °C for 4 h. The OD492 value (Abs.) of each well was
measured using a MultiSkan FC microplate reader immediately. Cell viability was calculated from
OD492 values.
Cell uptake study. The SMMCꢀ7721 cells (1 × 106) were seeded in dishes for 12 h, washed twice
with PBS and incubated with 10 mL of RPMI 1640 containing MnxFe3ꢀxO4 nanoparticles (x = 0.43)
with different concentrations at 37 °C for 5 h. After harvesting the cells and washing them with PBS
buffer for three times, we transferred the cells into 0.6 mL graduated centrifuge tubes and collected
MR images on a 0.5 T MR scanner. We calculated the SNR by the equation: SNR = SI/SDnoise, where
7
ACS Paragon Plus Environment

Chemistry of Materials
Page 8 of 33
1
2
3
4
5
6
SI represents signal intensity and SD represents standard deviation. The SNR changes were
calculated by the equation: SNR = |SNRpost ꢀ SNRpre|/SNRpre.
7
8
9
Relaxivity and in vitro MRI phantom studies. The samples were firstly scanned using 0.5 T
NMI20ꢀAnalyst NMR system. T1ꢀ and T2ꢀweighted phantom images were acquired by a 2D
multiꢀslice spinꢀecho (MSE) sequence: TR/TE = 200/2 ms (T1), TR/TE = 2000/40 ms (T2), 512 × 512
matrices. The relaxivities and MRI phantom images at 1.5 T were recorded by HTꢀMICNMRꢀ60
system. T1ꢀ and T2ꢀweighted phantom images were acquired by a spinꢀecho (SE) sequence: TR/TE =
100/8.3 ms (T1), TR/TE = 5000/37 ms (T2), 128 × 128 matrices, thickness = 0.8 mm, slice = 1. The
relaxivities and MRI phantom images at 7 T (Varian 7T micro MRI) were recorded using a T2ꢀ
weighted fast spinꢀecho multiꢀslice sequence (fSEMS) (TR/TE = 2500/40 ms, FOV = 80 × 80 mm,
thickness = 2 mm, slice = 1).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
In vivo liver MRI. In vivo MR imaging of liver was performed with BALB/c mice as a model. All
animal experiments were carried out according to the protocol approved by Institutional Animal Care
and Use Committee of Xiamen University. After intravenous injection of Fe3O4, MnxFe3ꢀxO4 (x =
0.43 and x =1.06) and Feraheme at a dose of 1 mg Fe/kg of mouse body weight, we obtained the
coronal and transverse plane MR images using an fSEMS sequence. The parameters are: TR/TE =
2500/32.8 ms, thickness = 1 mm, averages = 4, FOV = 40 × 40 mm (transverse plane) and FOV = 40
× 40 mm (coronal plane) on a Varian 7T micro MRI scanner.
RESULTS AND DISCUSSION
Synthesis and characterization. We used a simple and straightforward method to fabricate
8
ACS Paragon Plus Environment

Page 9 of 33
Chemistry of Materials
1
2
3
4
5
6
7
8
9
MnxFe3ꢀxO4 nanoparticles by thermal decomposition of iron oleate and manganese oleate as
precursors and oleic acid as surfactant in 1ꢀoctadecene. We produced MnxFe3ꢀxO4 nanoparticles (x
from 0.09 to 1.06) with different manganese contents by tuning the ratios of two precursors and
prepared Fe3O4 nanoparticles of similar size. Transmission electron microscopy (TEM) images
(Figure 1) show that the asꢀsynthesized MnxFe3ꢀxO4 nanoparticles are of uniform spherical shape and
narrow size distribution (about 18.5 nm in diameter, see Figure S1). We chose MnxFe3ꢀxO4
nanoparticles (x = 0.43) to further characterize their structure. TEM images show they are uniform
and high resolution TEM (HRTEM) images reveal good crystallinity with a lattice spacing distance
of 0.30 nm (Figure 2a), which corresponds to (220) planes of inverse spinel magnetite. Selected area
electron diffraction (SAED) also shows a crystalline nature of magnetite (Figure 2b). As shown in
Xꢀray photoelectron spectroscopy (XPS) spectra (Figure S2), the peaks of 710.6 eV and 724.1 eV are
assigned to Fe 2p3/2 and Fe 2p1/2 of magnetite,32ꢀ33 while the peaks of 641.4 eV (Mn 2p3/2) and 653.1
eV (Mn 2p1/2) indicate the oxidation state of Mn(II).34ꢀ35 The energyꢀdispersive Xꢀray line scanning
analysis (EDX) (Figure 2c) and element mapping (Figure 2d) suggest that Mn(II) ions are
homogeneously distributed in iron oxide nanoparticles.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Structures and properties. Xꢀray diffraction (XRD) patterns of MnxFe3ꢀxO4 nanoparticles (Figure
3) show the diffraction peaks of inverse spinel structures of magnetite (JCPDS no. 01ꢀ089ꢀ0691).
However, we found that all the peaks had varying degrees of shift compared to those of magnetite.
The peak of (220) gradually shifted from 30.3 (x = 0) to 29.2 (x = 1.06). Similarly, the peak of (300)
shifted from 35.5 to 34.7, (400) shifted from 42.9 to 42.0, (511) shifted from 57.0 to 56.2, and (440)
shifted from 62.5 to 61.4. The shifting distances of the peaks are not the same, indicating that the
shifts are not caused by baseline drift during data collection. It is probably due to the doping of
9
ACS Paragon Plus Environment

Chemistry of Materials
Page 10 of 33
1
2
3
4
5
6
7
8
9
Mn(II) ions which partially change the structure of iron oxides. Since the radius of Mn(II) ions (67
pm) is larger than those of Fe(II) ions (61 pm) and Fe(III) ions (55 pm), Mn(II) ions occupying either
octahedral or tetrahedral interstitial sites in the inverse spinel structure of magnetite may cause lattice
distance bigger than that of pure magnetite. According to Bragg’s law nλ = 2dsinθ, since λ is a
constant determined by CuꢀKα radiation and n is the same, θ would diminish as d increases, in other
words, the peaks of MnxFe3ꢀxO4 nanoparticles in XRD patterns should display left shifting. This

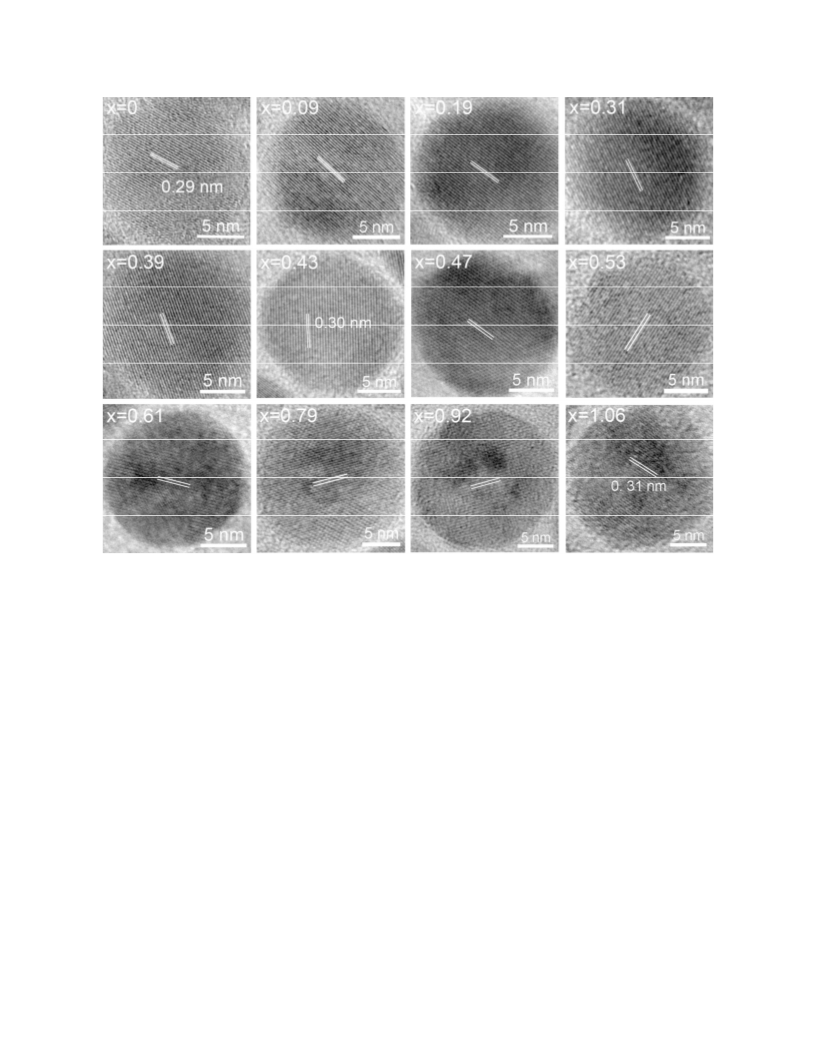

phenomenon is further confirmed by the analysis of HRTEM images of MnxFe3ꢀxO4 nanoparticles
with different manganese doping levels (Figure 4). The distances of crystal lattice are increased from
0.29 nm (x = 0, Fe3O4) to 0.30 nm (x = 0.43, MnxFe3ꢀxO4), and finally is 0.31 nm (x = 1.06,
MnxFe3ꢀxO4). To analyze the tiny but significant change, we also measured the lattice distance of
these nanoparticles by counting a large number of HRTEM images to make an average (the method
and the details are showed in Table S1). This result indicates that the lattice distance gradually
increases as manganese doping level is elevated. The calculated spacing from XRD analysis is close
to the lattice distance obtained from HRTEM images, confirming the augment tendency of lattice
distance as manganese doping level increases. It is also noteworthy that when the doping level is less
than 0.43, the peaks in XRD show small shifts compared to those of Fe3O4, while the peaks shift
significantly when the doping level is higher than 0.47. This result indicates that high doping level of
manganese would disturb the original structure of MnxFe3ꢀxO4 greatly. Meanwhile, the lattice fringes
become unclear and disturbed when manganese doping level is higher than 0.47, finally the lattice
fringe is considerably distorted in the case of x = 1.06. All these results indicate that as manganese
doping level increases, the crystal structure change of MnxFe3ꢀxO4 nanoparticles becomes significant,
which is reflected by the increment in lattice distances and the disturbed lattice fringes.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
10
ACS Paragon Plus Environment

Page 11 of 33
Chemistry of Materials
1
2
3
4
5
6
7
8
9

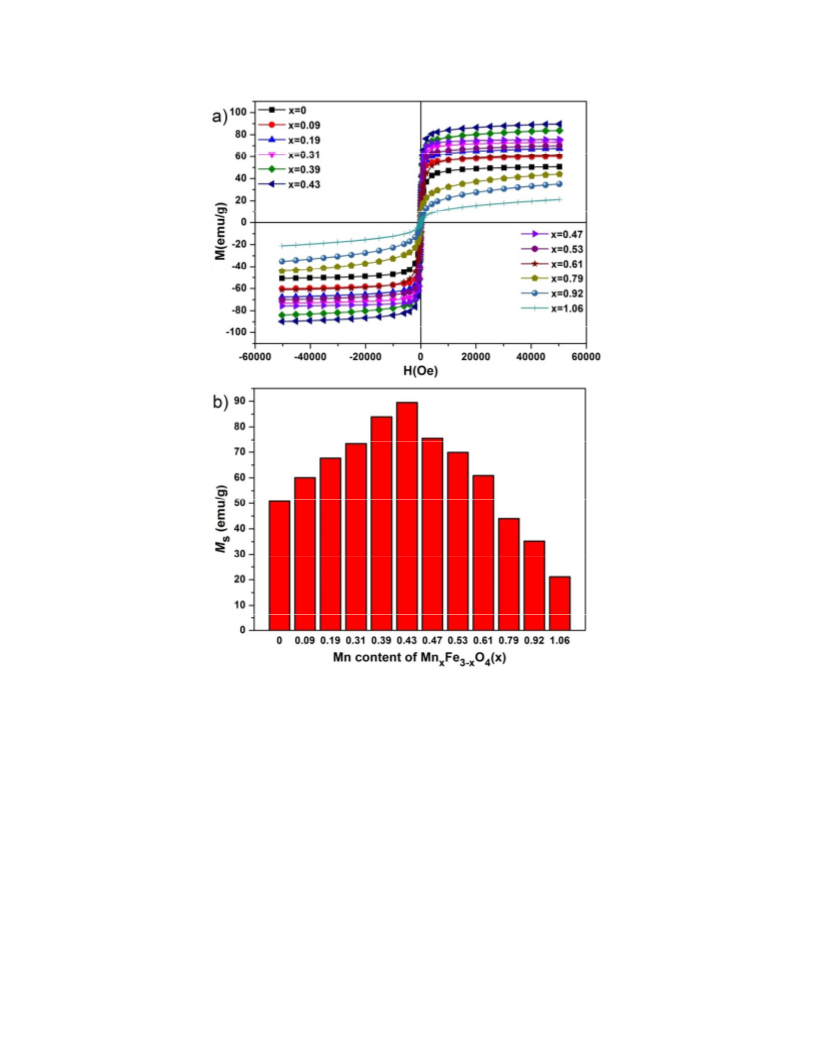

Magnetic Properties. We measured the magnetic properties of MnxFe3ꢀxO4 nanoparticles at a
magnetic field of 5 T at 300 K. Fieldꢀdependent magnetization (MꢀH) curves (Figure 5a) indicate that
MnxFe3ꢀxO4 nanoparticles show different magnetic properties as manganese doping level changes.
The coercivity in hysteresis loops is negligible at 300 K for all the samples. However, the
MnxFe3ꢀxO4 nanoparticles exhibit typical superparamagnetic behaviors when the manganese doping
level is less than 0.61, while gradually become partially paramagnetic as the doping level increases.
The magnetizations of the three samples (x = 0.79, 0.93, and 1.06) tend to be unsaturated even at the
maximal applied magnetic field of 5 T, indicating that these three samples exhibit partially
paramagnetic behaviors at room temperature. This is probably attributed to the doping manganese
ions which disturb the longꢀrange order of magnetic spins in magnetite and interrupt the magnetic
dipolar coupling. The Ms values (Table S4) of MnxFe3ꢀxO4 nanoparticles are 50.8, 60.1, 67.7, 73.3,
83.9, 89.5, 75.6, 69.9, 60.9, 44.0, 35.2 and 21.1 emu/g (emu/mass of Fe and O atoms in total) for x
from 0 (Fe3O4) to 1.06, respectively. The Ms increases from 50.8 emu/g to 89.5 emu/g as manganese
doping level rises from x = 0 to x = 0.43 (Figure 5b). This is because Mn(II) ions have five single
electrons, which is the same as Fe(III) ions, and one more than Fe(II) ions. With an external
magnetic field, the magnetic spins in Oh sites align parallel and those in Td sites align antiparallel
with the direction of the external magnetic field.13 Therefore, with the assumption that Mn ions
prefer Td sites, the net magnetic spins of MnxFe3ꢀxO4 unit is calculated to be (4+x) ꢁB (for x>1, it is
always 5 ꢁB), higher than that of Fe3O4 unit with 4 ꢁB, which explains that magnetic susceptibility of
MnxFe3ꢀxO4 is enhanced as manganese doping level increases. However, as the doping level further
augments, the Ms shows a stepwise decrease to 21.1 emu/g (x = 1.06), which may be due to the fact
that the crystal structure is disturbed severely by a large amount of manganese doping. According to
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
11
ACS Paragon Plus Environment

Chemistry of Materials
Page 12 of 33
1
2
3
4
5
6
7
8
9
XRD patterns and lattice distances analysis, manganese ferrite nanoparticles undergo lattice
distortion at high manganese doping level, which interrupts the magnetic dipolar coupling and results
in low saturation magnetization.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Relaxivity Measurements. Coating methods have been well developed in recent years for magnetic
nanoparticles as contrast agents.36ꢀ38 To achieve good biocompatibility, we coated Fe3O4 and
MnxFe3ꢀxO4 nanoparticles with sodium citrate to confer water solubility. We chose sodium citrate but
not macromolecules (for example, PEG and PVP with large volume) because sodium citrate coating
would not change the diameter of nanoparticles significantly. Researches have already showed that
nanoparticles smaller than 50 nm can escape phagocytosis to some extent, resulting in a prolonged
circulation time,39ꢀ41 therefore maintaining the small size of nanoparticles would be beneficial for
biomedical applications. Dynamic light scattering (DLS) analysis (Figure S3 and Table S3) indicates
that Fe3O4 and MnxFe3ꢀxO4 nanoparticles are very stable with narrow size distribution in water.
Moreover, there is little change in the diameter between the asꢀprepared nanoparticles and the
nanoparticles after coating with sodium citrate.
We then studied the contrast enhancement abilities of MnxFe3ꢀxO4 nanoparticles with different
manganese doping levels. We firstly performed the relaxivity test on a 0.5 T MRI scanner. It is
noteworthy that both the T1 and T2 relaxivities showed interesting trends as the manganese doping
level increases. The r2 values (Figure 6a and Table S4) are 128.3 ± 2.9 mMꢀ1sꢀ1 for Fe3O4 (x = 0, with
respect to iron concentration), and 206.9 ± 1.9, 269.3 ± 6.0, 375.9 ± 14.1, 459.5 ± 5.7, 506.6 ± 18.7,
396.7 ± 11.5, 312.1 ± 14.8, 244.4 ± 2.6, 154.4 ± 1.2, 117.3 ± 0.6, 77.7 ± 2.4 mMꢀ1sꢀ1 (with respect to
total metal ion concentration) for MnxFe3ꢀxO4 nanoparticles (from x = 0.09 to x = 1.06), respectively.
The highest r2 value is 506.6 ± 18.7 mMꢀ1sꢀ1 when x = 0.43, 4 times higher than that of Fe3O4 and 6.5
12
ACS Paragon Plus Environment

Page 13 of 33
Chemistry of Materials
1
2
3
4
5
6
7
8
9
times higher than that of MnxFe3ꢀxO4 nanoparticles (x = 1.06), which is mainly attributed to the
largest saturation magnetization. According to quantum mechanical outer sphere theory, saturation
magnetization plays an important role in transverse relaxation, and a larger Ms brings about a higher
r2. Therefore, T2 contrast abilities of ferrite nanoparticles should show a similar trend to their
saturation magnetizations, peaking at x =0.43, which is consistent with experimental results (Figure
5b and Figure 6b). We also performed phantom imaging analysis. In T2ꢀweighted MR images, the
tissue with a short T2 relaxation time appears dark. We can observe that with the increase of total
metals concentrations, the signal intensity of T2ꢀweighted phantom images reduces gradually in all
the samples (Figure 6c). The T2 contrast effect is the strongest when manganese doping level is 0.43,
weakened as the doping level is reduced to 0 or increased to 1.06 gradually, indicating that x = 0.43
is the optimal manganese doping level of MnxFe3ꢀxO4 nanoparticles as T2 CAs.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Meanwhile, we also evaluated T1 contrast abilities of MnxFe3ꢀxO4 nanoparticles at different
manganese doping levels (Figure S4a,b). The r1 values of Fe3O4 (x = 0) and MnxFe3ꢀxO4
nanoparticles (from x = 0.09 to x = 1.06) at 0.5 T are 19.4 ± 0.1, 26.8 ± 0.2, 45.1 ± 0.6, 60.1 ± 0.5,
70.3 ± 0.6, 76.5 ± 1.1, 64.2 ± 0.2, 50.5 ± 0.8, 32.4 ± 0.7, 17.0 ± 0.3, 13.7 ± 0.9 and 9.4 ± 0.2 mMꢀ1sꢀ1,
respectively (Table S5). They have the similar trend to r2 values at 0.5 T. Indeed, superparamagnetic
nanoparticles also can shorten T1 relaxation process. The r1 value increases with the manganese
proportion (x less than 0.43) may be attributed to the increased surface Mn2+ ions of MnxFe3ꢀxO4
nanoparticles. Mn2+ ion has more unpaired electrons and longer electronic relaxation time than Fe2+
ion42ꢀ44 , therefore has higher r1 value according to SBM theory.45ꢀ47 The r1 values reduced with
higher manganese proportion might because that the disordered metal atoms on surface lead to an
ineffective coordinating and chemical exchanging process of protons.48ꢀ49 The phantom imaging
13
ACS Paragon Plus Environment

Chemistry of Materials
Page 14 of 33
1
2
3
4
5
6
7
8
9
showed the interesting changes of T1 contrast effects clearly (Figure S5). The value of r2/r1 is crucial
to estimate whether the nanoparticles can serve as a T1 or T2 contrast agent.50ꢀ53 High r2/r1 ratio (> 10)
results in T2ꢀ dominated contrast effect and the low ratio (< 5) leads to T1ꢀ dominated contrast
effect.49, 53ꢀ56 For T1ꢀT2 dualꢀmode contrast agents, the suitable r2/r1 value is about 5ꢀ10.57ꢀ61 The r2/r1
ratios of Fe3O4 (x = 0) and MnxFe3ꢀxO4 nanoparticles (from x = 0.09 to x = 1.06) at 0.5 T are 6.6, 7.7,
6.0, 6.3, 6.5, 6.6, 6.2, 5.6, 7.5, 9.1, 8.6, and 8.3, respectively (see Table S5). The moderate r2/r1
values and high r1 values of MnxFe3ꢀxO4 nanoparticles (from x = 0.19 to x = 0.53) suggest that they
can serve as T1ꢀT2 dualꢀmode contrast agents in MRI with low magnetic fields (e.g., 0.5 T). Our
results are also in agreement with this trend in the T1ꢀ and T2ꢀ weighted phantom imaging (Figure S5
and Figure 6c).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
In theory, signalꢀtoꢀnoise ratio (SNR) is proportional to the square of external magnetic field while
noise is directly proportional to external magnetic field, which means that the sensitivity of MR
imaging can be enhanced by applying high magnetic field.62 Taking this factor into account, we also
conducted T1 and T2 relaxivity tests on a 7.0 T MRI scanner (Figure 7). Consistent with the situation
at 0.5 T, the r2 values are 244.2 ± 12.3, 397.1 ± 18.3, 512.5 ± 21.7, 715.6 ± 17.4, 855.3 ± 3.4, 904.4 ±
11.1, 748.4 ± 7.5, 591.3 ± 6.2, 460.0 ± 5.3, 289.5 ± 1.2, 236.4 ± 12.4, and 139.1 ± 1.7 mMꢀ1 sꢀ1 for
Fe3O4 (x = 0) and MnxFe3ꢀxO4 nanoparticles (from x = 0.09 to 1.06), respectively, peaking at x = 0.43
(Figure 7a and Table S4). The strength of magnetic field is an important parameter for the
relaxivities of magnetic nanoparticles.63 The r2 values of the nanoparticles are greatly increased,
while the r1 values are significantly diminished at a high magnetic field.63ꢀ64 The r1 values (Figure
S4c,d) are 1.46 ± 0.02, 1.21 ± 0.13, 0.90 ± 0.05, 0.73 ± 0.01, 0.56 ± 0.01, 0.50 ± 0.01, 0.76 ± 0.02,
0.87 ± 0.05, 1.19 ± 0.02, 1.73 ± 0.09, 1.90 ± 0.11, and 2.19 ± 0.04 mMꢀ1 sꢀ1 for Fe3O4 (x = 0) and
14
ACS Paragon Plus Environment

Page 15 of 33
Chemistry of Materials
1
2
3
4
5
6
7
8
9
MnxFe3ꢀxO4 nanoparticles (from x = 0.09 to 1.06), and the r2/r1 ratios are about 165, 328, 569, 980,
1527, 1809, 985, 680, 387, 167, 124, 64, respectively (Table S5). The ultrahigh r2/r1 values suggest
that MnxFe3ꢀxO4 nanoparticles only serve as T2 contrast agents at high fields. It is noteworthy that
MnxFe3ꢀxO4 nanoparticles (x = 0.43) exhibits the highest negative contrast effect (Figure 7b) with a r2
value of 904.4 mM−1s−1, which is the highest r2 value ever reported to the best of our knowledge, and
is about 9.2 times higher than that of Feraheme (ferumoxytol, iron oxide nanoparticles with a r2
value of 98.4 mM−1s−1 at 7.0 T, see Figure S6), an approved MRI contrast agent in clinical practice.
The ultrahigh transverse relaxivity leads to a strong T2 contrast effect in MR imaging. As shown in
Figure 7c, compared to the signal of water, a significant dark signal for MnxFe3ꢀxO4 (x = 0.43) was
observed even when the concentration of total metal was only 0.05 mMꢀ1, indicating that these
nanoparticles hold great promise for highly sensitive and accurate detection in imaging and diagnosis.
We also performed the longitudinal and transverse relaxivities of MnxFe3ꢀxO4 (x = 0.43)
nanoparticles at clinical field strengths. The r1 and r2 values of MnxFe3ꢀxO4 (x = 0.43) nanoparticles
are 737.2 ± 16.7 and 19.93 ± 0.17 mMꢀ1 sꢀ1 at 1.5 T, respectively, indicating that MnxFe3ꢀxO4 (x =
0.43) nanoparticles can serve as excellent T2 contrast agents at clinical field strengths.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
In vitro and in vivo MRI studies. Before in vivo studies, we first evaluated the cytotoxicity of
sodium citrateꢀcoated MnxFe3ꢀxO4 nanoparticles (x = 0.09, 0.43, and 1.06) using SMMCꢀ7721 cells
as a model by tetrazoliumꢀbased colorimetric (MTT) assays. They showed no appreciable
cytotoxicity even at high concentrations (up to 120 ꢁg [Mn + Fe] mL−1) after 24 hour incubation of
SMMCꢀ7721 cells, suggesting the good biocompatibility of the waterꢀdispersible MnxFe3ꢀxO4
nanoparticles (Figure S8). Moreover, the particle size changed little after incubation with fetal
bovine serum (FBS), suggesting the good stability of these nanoparticles in the presence of serum
15
ACS Paragon Plus Environment

Chemistry of Materials
Page 16 of 33
1
2
3
4
5
6
7
8
9
proteins (Figure S9). We also tested the T1ꢀ and T2ꢀ weighted MRI contrast abilities of MnxFe3ꢀxO4
nanoparticles (x = 0.43) in vitro by incubating SMMCꢀ7721 cells with them at different
concentrations (0.2, 0.4, and 0.8 mM [Mn + Fe]) on a 0.5 T MR scanner (Figure S10 and Table S7).
Cells after being incubated with MnxFe3ꢀxO4 nanoparticles at higher concentration showed brighter
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
signals in T1 imaging and darker signals in T2 imaging. SNR changes ꢂSNR (ꢂSNR = |SNRpost
−
SNRpre|/SNRpre) for cells (Table S8) incubated with MnxFe3ꢀxO4 nanoparticles at the concentration of
0.8 mM are 60.5 ± 4.31% in T1 images and 76.1 ± 1.7% in T2 images, demonstrating that MnxFe3ꢀxO4
nanoparticles show both T1 and T2 MR contrast enhancement effects in vitro at a low magnetic field
of 0.5T.
To evaluate the contrast abilities of MnxFe3ꢀxO4 nanoparticles in vivo, we chose Fe3O4 (x = 0)
nanoparticles, MnxFe3ꢀxO4 nanoparticles (x = 0.43 and x = 1.06) as the representative samples, and
used Feraheme as control. Nanoparticles are rapidly taken up by mononuclear phagocyte system
(MPS) and easily accumulated in hepatic Kupffer cells in liver,65ꢀ67 so we focused on liver as the
region of interest (ROI). We used healthy BALB/c mice as the model to conduct the animal
experiments and perform T2ꢀ weighted MRI of liver. After intravenous injection of these four
samples at a dose of only 1 mg [Fe]/kg or 1 mg [Mn + Fe]/kg mouse body weight, we observed
significant signal attenuation for four groups at 0.5, 1, 2, and 4 h post injection (p.i.) of transverse
plane (Figure 8a) and coronal plane (Figure S11a) in the liver region. The liver region became dark
at 0.5 h postꢀinjection, reached maximum dark signals at 2 h and showed brighter signals at 4 h than
those at 2 h. The bright signals at 4 h (also can be confirmed in Table S9 and Table S10 SNR
changes) imply that the nanoparticles started to degrade and were excreted from the body. Previous
studies reported the way taken by cells in vivo to process and degrade iron oxide nanoparticles over
16
ACS Paragon Plus Environment

Page 17 of 33
Chemistry of Materials
1
2
3
4
5
6
7
8
9
time.68ꢀ70 Moreover, size plays a strong role in biodistribution and blood circulation, the 18 nmꢀsized
particles we used have numerous benefits for in vivo applications.71ꢀ72 Smaller particles (<10 nm)
reach various organs by crossing the tight endothelial junctions and are rapidly excreted through the
glomeruli of the kidneys.73ꢀ74
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Especially for MnxFe3ꢀxO4 (x = 0.43), the liver region showed obvious dark signals only at 0.5 h
and reached maximum dark signals at 2 h postꢀinjection. These results demonstrate that MnxFe3ꢀxO4
nanoparticles have a fast contrastꢀenhanced effect and relative long diagnostic time window for
several hours after intravenous administration, which could provide more useful information for
diagnosis with enhanced accuracy.
To quantitate the different contrast abilities of four samples, we analyzed the SNRpost/SNRpre value
for each animal of transverse plane (Figure 8b) and coronal plane (Figure S11b). The SNR (%) of
Fe3O4, MnxFe3ꢀxO4 (x = 0.43), MnxFe3ꢀxO4 (x =1.06) and Feraheme at 2 h for transverse plane are
71.7 ± 1.9, 19.0 ± 1.3, 85.0 ± 1.9, 91.8 ± 1.9, respectively. The MnxFe3ꢀxO4 nanoparticles (x = 0.43)
exhibited the best enhancement effects and the maximal ꢂSNR was up to 81.0 ± 1.3% for transverse
plane (Table S9, coronal plane see Table S10), ~2.9 times higher than that of Fe3O4, ~5.4 times
higher than that of MnxFe3ꢀxO4 (x = 1.06), and ~9.9 times higher than that of Feraheme. These results
suggest that MnxFe3ꢀxO4 nanoparticles (x = 0.43) with an ultrahigh r2 value hold great promise as an
excellent T2 contrast agent for sensitive imaging and diagnosis. On the other hand, the high contrast
ability of MnxFe3ꢀxO4 nanoparticles (x = 0.43) indicates a low injection dose, which may imply lower
cost, less side effects, and better potential for clinical translation.
CONCLUSIONS
17
ACS Paragon Plus Environment

Chemistry of Materials
Page 18 of 33
1
2
3
4
5
6
7
8
9
In summary, we introduced a facile method to produce a series of manganese doping magnetite
nanoparticles by oneꢀpot synthesis. By tuning the manganese doping level and investigating the
changes in crystal structures and magnetic properties, we uncovered the possible role of manganese
ions in altering magnetite structures and contrast abilities. It is demonstrated that saturation
magnetizations (Ms) and T2 relaxivities of MnxFe3ꢀxO4 nanoparticles increase as the manganese
doping level rises, reach the maximum when x = 0.43, and decrease as the manganese doping level
continues to augment. The optimized manganese ferrite nanoparticles with ultrahigh T2 contrast
ability show a great potential in sensitive imaging and diagnosis. This work provides a strategy to
develop highꢀperformance negative contrast agents by tuning metal composition of nanoparticles.
Furthermore, besides morphology, size, and surface structure,8, 33, 49 composition of ironꢀoxideꢀbased
nanoparticles should be also carefully considered for design of newꢀgeneration T2 contrast agents.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ASSOCIATED CONTENT
Supporting Information
The Figures S1ꢀS11 and Tables S1ꢀS10. This material is available free of charge via the Internet at
http://pubs.acs.org.
AUTHOR INFORMATION
Corresponding Author
*Email: jhgao@xmu.edu.cn
18
ACS Paragon Plus Environment

Page 19 of 33
Chemistry of Materials
1
2
3
4
5
6
7
Notes
8
9
The authors declare no competing financial interests.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Acknowledgements
This work was supported by National Natural Science Foundation of China (81370042, 81430041,
21602186, and 21521004), National Key Basic Research Program of China (2013CB933901,
2014CB744502, and 2014CB932004), Fundamental Research Funds for the Central Universities
(20720160074), and Department of Human Resources of Fujian Province.
19
ACS Paragon Plus Environment

Chemistry of Materials
Page 20 of 33
1
2
3
4
REFERENCES
(1) Zhou, Z.; Zhu, X.; Wu, D.; Chen, Q.; Huang, D.; Sun, C.; Xin, J.; Ni, K.; Gao, J., Anisotropic
Shaped Iron Oxide Nanostructures: Controlled Synthesis and Proton Relaxation Shortening Effects.
Chem. Mater. 2015, 27, 3505ꢀ3515.
(2) Wu, L.; MendozaꢀGarcia, A.; Li, Q.; Sun, S., Organic Phase Syntheses of Magnetic
Nanoparticles and Their Applications. Chem. Rev. 2016, 116, 10473ꢀ512.
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(3) Casula, M. F.; Floris, P.; Innocenti, C.; Lascialfari, A.; Marinone, M.; Corti, M.; Sperling, R. A.;
Parak, W. J.; Sangregorio, C., Magnetic Resonance Imaging Contrast Agents Based on Iron Oxide
Superparamagnetic Ferrofluids. Chem. Mater. 2010, 22, 1739ꢀ1748.
(4) Tassa, C.; Shaw, S. Y.; Weissleder, R., Dextranꢀcoated iron oxide nanoparticles: a versatile
platform for targeted molecular imaging, molecular diagnostics, and therapy. Acc. Chem. Res. 2011,
44, 842ꢀ52.
(5) Poselt, E.; Kloust, H.; Tromsdorf, U.; Janschel, M.; Hahn, C.; Masslo, C.; Weller, H., Relaxivity
optimization of a PEGylated ironꢀoxideꢀbased negative magnetic resonance contrast agent for
T(2)ꢀweighted spinꢀecho imaging. ACS Nano 2012, 6, 1619ꢀ24.
(6) Ghosh, D.; Lee, Y.; Thomas, S.; Kohli, A. G.; Yun, D. S.; Belcher, A. M.; Kelly, K. A.,
M13ꢀtemplated magnetic nanoparticles for targeted in vivo imaging of prostate cancer. Nat.
Nanotechnol. 2012, 7, 677ꢀ82.
(7) Gao, J.; Gu, H.; Xu, B., Multifunctional magnetic nanoparticles: design, synthesis, and
biomedical applications. Acc. Chem. Res. 2009, 42, 1097ꢀ107.
(8) Zhao, Z.; Chi, X.; Yang, L.; Yang, R.; Ren, B. W.; Zhu, X.; Zhang, P.; Gao, J., Cation Exchange
of AnisotropicꢀShaped Magnetite Nanoparticles Generates HighꢀRelaxivity Contrast Agents for
Liver Tumor Imaging. Chem. Mater. 2016, 28, 3497ꢀ3506.
(9) Jang, J. T.; Nah, H.; Lee, J. H.; Moon, S. H.; Kim, M. G.; Cheon, J., Critical enhancements of
MRI contrast and hyperthermic effects by dopantꢀcontrolled magnetic nanoparticles. Angew. Chem.
2009, 48, 1234ꢀ8.
(10)Liu, Y.; Goebl, J.; Yin, Y., Templated synthesis of nanostructured materials. Chem. Soc. Rev.
2013, 42, 2610ꢀ53.
(11)Yang, L.; Zhou, Z.; Liu, H.; Wu, C.; Zhang, H.; Huang, G.; Ai, H.; Gao, J.,
Europiumꢀengineered iron oxide nanocubes with high T1 and T2 contrast abilities for MRI in living
subjects. Nanoscale 2015, 7, 6843ꢀ50.
(12)Yu, Y.; MendozaꢀGarcia, A.; Ning, B.; Sun, S., Cobaltꢀsubstituted magnetite nanoparticles and
their assembly into ferrimagnetic nanoparticle arrays. Adv. Mater. 2013, 25, 3090ꢀ4.
(13)Lee, J. H.; Huh, Y. M.; Jun, Y. W.; Seo, J. W.; Jang, J. T.; Song, H. T.; Kim, S.; Cho, E. J.; Yoon,
H. G.; Suh, J. S.; Cheon, J., Artificially engineered magnetic nanoparticles for ultraꢀsensitive
molecular imaging. Nat. Med. 2007, 13, 95ꢀ9.
(14)Colombo, M.; CarregalꢀRomero, S.; Casula, M. F.; Gutierrez, L.; Morales, M. P.; Bohm, I. B.;
Heverhagen, J. T.; Prosperi, D.; Parak, W. J., Biological applications of magnetic nanoparticles.
Chem. Soc. Rev. 2012, 41, 4306ꢀ34.
(15)SchultzꢀSikma, E. A.; Joshi, H. M.; Ma, Q.; MacRenaris, K. W.; Eckermann, A. L.; Dravid, V. P.;
Meade, T. J., Probing the Chemical Stability of Mixed Ferrites: Implications for Magnetic Resonance
Contrast Agent Design. Chem. Mater. 2011, 23, 2657ꢀ2664.
(16)Lee, J.; Zhang, S.; Sun, S., HighꢀTemperature SolutionꢀPhase Syntheses of MetalꢀOxide
Nanocrystals. Chem. Mater. 2013, 25, 1293ꢀ1304.
20
ACS Paragon Plus Environment

Page 21 of 33
Chemistry of Materials
1
2
3
4
5
6
(17)Qiao, R.; Jia, Q.; Huwel, S.; Xia, R.; Liu, T.; Gao, F.; Galla, H. J.; Gao, M., Receptorꢀmediated
delivery of magnetic nanoparticles across the bloodꢀbrain barrier. ACS Nano 2012, 6, 3304ꢀ10.
(18)Jun, Y. W.; Seo, J. W.; Cheon, J., Nanoscaling laws of magnetic nanoparticles and their
applicabilities in biomedical sciences. Acc. Chem. Res. 2008, 41, 179ꢀ89.
7
8
9
(19)Cheong, S.; Ferguson, P.; Feindel, K. W.; Hermans, I. F.; Callaghan, P. T.; Meyer, C.; Slocombe,
A.; Su, C. H.; Cheng, F. Y.; Yeh, C. S.; Ingham, B.; Toney, M. F.; Tilley, R. D., Simple synthesis and
functionalization of iron nanoparticles for magnetic resonance imaging. Angew. Chem. Int. Ed. Engl.
2011, 50, 4206ꢀ9.
(20)Koenig, S. H.; Kellar, K. E., Theory of 1/T1 and 1/T2 NMRD profiles of solutions of magnetic
nanoparticles. Magn. Reson. Med. 1995, 34, 227ꢀ233.
(21)Gillis, P.; Moiny, F.; Brooks, R. A., On T(2)ꢀshortening by strongly magnetized spheres: a partial
refocusing model. Magn. Reson. Med. 2002, 47, 257ꢀ63.
(22)Brooks, R. A.; Moiny, F.; Gillis, P., On T2ꢀshortening by weakly magnetized particles: the
chemical exchange model. Magn. Reson. Med. 2001, 45, 1014ꢀ20.
(23)Vuong, Q. L.; Berret, J. F.; Fresnais, J.; Gossuin, Y.; Sandre, O., A universal scaling law to
predict the efficiency of magnetic nanoparticles as MRI T(2)ꢀcontrast agents. Adv. Healthcare Mater.
2012, 1, 502ꢀ12.
(24)Sathya, A.; Guardia, P.; Brescia, R.; Silvestri, N.; Pugliese, G.; Nitti, S.; Manna, L.; Pellegrino,
T., CoxFe3–xO4Nanocubes for Theranostic Applications: Effect of Cobalt Content and Particle Size.
Chem. Mater. 2016, 28, 1769ꢀ1780.
(25)Beji, Z.; Hanini, A.; Smiri, L. S.; Gavard, J.; Kacem, K.; Villain, F.; Grenèche, J. M.; Chau, F.;
Ammar, S., Magnetic properties of Znꢀsubstituted MnFe2O4nanoparticles synthesized in polyol as
potential heating agents for hyperthermia. Evaluation of their toxicity on Endothelial cells. Chem.
Mater. 2010, 22, 5420ꢀ5429.
(26)Huang, G.; Li, H.; Chen, J.; Zhao, Z.; Yang, L.; Chi, X.; Chen, Z.; Wang, X.; Gao, J., Tunable T1
and T2 contrast abilities of manganeseꢀengineered iron oxide nanoparticles through size control.
Nanoscale 2014, 6, 10404ꢀ12.
(27)Song, Q.; Ding, Y.; Wang, Z. L.; Zhang, Z. J., Tuning the Thermal Stability of Molecular
Precursors for the Nonhydrolytic Synthesis of Magnetic MnFe2O4Spinel Nanocrystals. Chem. Mater.
2007, 19, 4633ꢀ4638.
(28)Tromsdorf, U. I.; Bigall, N. C.; Kaul, M. G.; Bruns, O. T.; Nikolic, M. S.; Mollwitz, B.; Sperling,
R. A.; Reimer, R.; Hohenberg, H.; Parak, W. J.; Forster, S.; Beisiegel, U.; Adam, G.; Weller, H., Size
and surface effects on the MRI relaxivity of manganese ferrite nanoparticle contrast agents. Nano
Lett. 2007, 7, 2422ꢀ7.
(29)Lu, J.; Ma, S.; Sun, J.; Xia, C.; Liu, C.; Wang, Z.; Zhao, X.; Gao, F.; Gong, Q.; Song, B.; Shuai,
X.; Ai, H.; Gu, Z., Manganese ferrite nanoparticle micellar nanocomposites as MRI contrast agent
for liver imaging. Biomaterials 2009, 30, 2919ꢀ28.
(30)Yang, H.; Zhang, C.; Shi, X.; Hu, H.; Du, X.; Fang, Y.; Ma, Y.; Wu, H.; Yang, S., Waterꢀsoluble
superparamagnetic manganese ferrite nanoparticles for magnetic resonance imaging. Biomaterials
2010, 31, 3667ꢀ73.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(31)Liu, C.; Zhang, Z. J., SizeꢀDependent Superparamagnetic Properties of Mn Spinel Ferrite
Nanoparticles Synthesized from Reverse Micelles. Chem. Mater. 2001, 13, 2092ꢀ2096.
(32)Yamashita, T.; Hayes, P., Analysis of XPS spectra of Fe2+ and Fe3+ ions in oxide materials.
Appl. Surf. Sci. 2008, 254, 2441ꢀ2449.
21
ACS Paragon Plus Environment

Chemistry of Materials
Page 22 of 33
1
2
3
4
5
6
(33)Zhao, Z.; Zhou, Z.; Bao, J.; Wang, Z.; Hu, J.; Chi, X.; Ni, K.; Wang, R.; Chen, X.; Chen, Z.; Gao,
J., Octapod iron oxide nanoparticles as highꢀperformance T(2) contrast agents for magnetic
resonance imaging. Nat. Commun. 2013, 4, 2266.
(34)Tan, B. J.; Klabunde, K. J.; Sherwood, P. M. A., XPS studies of solvated metal atom dispersed
(SMAD) catalysts. Evidence for layered cobaltꢀmanganese particles on alumina and silica. J. Am.
Chem. Soc. 1991, 113, 855ꢀ861.
(35)Xu, Y.; Sherwood, J.; Qin, Y.; Holler, R. A.; Bao, Y., A general approach to the synthesis and
detailed characterization of magnetic ferrite nanocubes. Nanoscale 2015, 7, 12641ꢀ9.
(36)Tong, S.; Hou, S.; Zheng, Z.; Zhou, J.; Bao, G., Coating optimization of superparamagnetic iron
oxide nanoparticles for high T2 relaxivity. Nano Lett. 2010, 10, 4607ꢀ13.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(37)Gallo, J.; Long, N. J.; Aboagye, E. O., Magnetic nanoparticles as contrast agents in the diagnosis
and treatment of cancer. Chem. Soc. Rev. 2013, 42, 7816ꢀ33.
(38)Berry, C. C.; Wells, S.; Charles, S.; Aitchison, G.; Curtis, A. S. G., Cell response to
dextranꢀderivatised iron oxide nanoparticles post internalisation. Biomaterials 2004, 25, 5405ꢀ5413.
(39)Wang, Y. X.; Hussain, S. M.; Krestin, G. P., Superparamagnetic iron oxide contrast agents:
physicochemical characteristics and applications in MR imaging. Eur. Radiol. 2001, 11, 2319ꢀ31.
(40)Li, W.; Tutton, S.; Vu, A. T.; Pierchala, L.; Li, B. S.; Lewis, J. M.; Prasad, P. V.; Edelman, R. R.,
Firstꢀpass contrastꢀenhanced magnetic resonance angiography in humans using ferumoxytol, a novel
ultrasmall superparamagnetic iron oxide (USPIO)ꢀbased blood pool agent. J. Magn. Reson. Imaging
2005, 21, 46ꢀ52.
(41)Chemistry of MaterialsChemistry of MaterialsPombo Garcia, K.; Zarschler, K.; Barbaro, L.;
Barreto, J. A.; O'Malley, W.; Spiccia, L.; Stephan, H.; Graham, B., Zwitterionicꢀcoated "stealth"
nanoparticles for biomedical applications: recent advances in countering biomolecular corona
formation and uptake by the mononuclear phagocyte system. Small 2014, 10, 2516ꢀ29.
(42)Lauffer, R. B., Paramagnetic metal complexes as water proton relaxation agents for NMR
imaging: theory and design. Chem. Rev. 1987, 87, 901ꢀ927.
(43)Grant, M.; Jordan, R. B., Kinetics of solvent water exchange on iron(III). Inorg. Chem. 1981, 20,
55ꢀ60.
(44)Han, G.; Huang, Y.; Koua, F. H.; Shen, J. R.; Westlund, P. O.; Messinger, J., Hydration of the
oxygenꢀevolving complex of photosystem II probed in the darkꢀstable S1 state using proton NMR
dispersion profiles. Phys. Chem. Chem. Phys. 2014, 16, 11924ꢀ35.
(45)Zhang, M.; Cao, Y.; Wang, L.; Ma, Y.; Tu, X.; Zhang, Z., Manganese doped iron oxide
theranostic nanoparticles for combined T1 magnetic resonance imaging and photothermal therapy.
ACS. Appl. Mater. Inter. 2015, 7, 4650ꢀ8.
(46)Ananta, J. S.; Godin, B.; Sethi, R.; Moriggi, L.; Liu, X.; Serda, R. E.; Krishnamurthy, R.;
Muthupillai, R.; Bolskar, R. D.; Helm, L.; Ferrari, M.; Wilson, L. J.; Decuzzi, P., Geometrical
confinement of gadoliniumꢀbased contrast agents in nanoporous particles enhances T1 contrast. Nat.
Nanotechnol. 2010, 5, 815ꢀ21.
(47)Westlund, P.ꢀO.; Larsson, P. T.; Welinder, K. G.; Schneider, P.; Dunford, H. B.; Lahajnar, G.;
MaartmannꢀMoe, K.; Karlsson, B., ProtonꢀEnhanced Relaxation in LowꢀSymmetry Paramagnetic
Complexes (S = 1): Beyond the SolomonꢀꢀBloembergen and Morgan Theory. 1. The Smoluchowsky
Distortion Model of the ZFS Interaction. Acta Chem. Scand. 1991, 45, 11ꢀ18.
(48)Kim, B. H.; Lee, N.; Kim, H.; An, K.; Park, Y. I.; Choi, Y.; Shin, K.; Lee, Y.; Kwon, S. G.; Na, H.
B.; Park, J. G.; Ahn, T. Y.; Kim, Y. W.; Moon, W. K.; Choi, S. H.; Hyeon, T., Largeꢀscale synthesis of
22
ACS Paragon Plus Environment

Page 23 of 33
Chemistry of Materials
1
2
3
4
5
6
7
8
9
uniform and extremely smallꢀsized iron oxide nanoparticles for highꢀresolution T1 magnetic
resonance imaging contrast agents. J. Am. Chem. Soc. 2011, 133, 12624ꢀ31.
(49)Zhou, Z.; Zhao, Z.; Zhang, H.; Wang, Z.; Chen, X.; Wang, R.; Chen, Z.; Gao, J., Interplay
between Longitudinal and Transverse Contrasts in Fe3O4 Nanoplates with (111) Exposed Surfaces.
ACS Nano 2014, 8, 7976ꢀ7985.
(50)Tromsdorf, U. I.; Bruns, O. T.; Salmen, S. C.; Beisiegel, U.; Weller, H., A Highly Effective,
Nontoxic T1 MR Contrast Agent Based on Ultrasmall PEGylated Iron Oxide Nanoparticles. Nano
Lett. 2009, 9, 4434ꢀ4440.
(51)Li, Z.; Wang, S. X.; Sun, Q.; Zhao, H. L.; Lei, H.; Lan, M. B.; Cheng, Z. X.; Wang, X. L.; Dou,
S. X.; Lu, G. Q., Ultrasmall Manganese Ferrite Nanoparticles as Positive Contrast Agent for
Magnetic Resonance Imaging. Adv. Healthcare Mater. 2013, 2, 958ꢀ964.
(52)Malyutin, A. G.; Easterday, R.; Lozovyy, Y.; Spilotros, A.; Cheng, H.; SanchezꢀFelix, O. R.;
Stein, B. D.; Morgan, D. G.; Svergun, D. I.; Dragnea, B.; Bronstein, L. M., Viruslike Nanoparticles
with Maghemite Cores Allow for Enhanced MRI Contrast Agents. Chem. Mater. 2015, 27, 327ꢀ335.
(53)Dong, C.; Korinek, A.; Blasiak, B.; Tomanek, B.; van Veggel, F. C. J. M., Cation Exchange: A
Facile Method To Make NaYF4:Yb,TmꢀNaGdF4 Core–Shell Nanoparticles with a Thin, Tunable,
and Uniform Shell. Chem. Mater. 2012, 24, 1297ꢀ1305.
(54)Zhou, Z.; Wang, L.; Chi, X.; Bao, J.; Yang, L.; Zhao, W.; Chen, Z.; Wang, X.; Chen, X.; Gao, J.,
Engineered IronꢀOxideꢀBased Nanoparticles as Enhanced T1 Contrast Agents for Efficient Tumor
Imaging. ACS Nano 2013, 7, 3287ꢀ3296.
(55)Na, H. B.; Song, I. C.; Hyeon, T., Inorganic Nanoparticles for MRI Contrast Agents. Adv. Mater.
2009, 21, 2133ꢀ2148.
(56)Park, M.; Lee, N.; Choi, S. H.; An, K.; Yu, S.ꢀH.; Kim, J. H.; Kwon, S.ꢀH.; Kim, D.; Kim, H.;
Baek, S.ꢀI.; Ahn, T.ꢀY.; Park, O. K.; Son, J. S.; Sung, Y.ꢀE.; Kim, Y.ꢀW.; Wang, Z.; Pinna, N.; Hyeon,
T., LargeꢀScale Synthesis of Ultrathin Manganese Oxide Nanoplates and Their Applications to T1
MRI Contrast Agents. Chem. Mater. 2011, 23, 3318ꢀ3324.
(57)Huang, J.; Hou, Y.; Liu, C.; Jing, L.; Ma, T.; Sun, X.; Gao, M., Chemical Spacer Design for
Engineering the Relaxometric Properties of Core–Shell Structured Rare Earth Nanoparticles. Chem.
Mater. 2015, 27, 7918ꢀ7925.
(58)Zhou, Z.; Huang, D.; Bao, J.; Chen, Q.; Liu, G.; Chen, Z.; Chen, X.; Gao, J., A Synergistically
Enhanced T1–T2 DualꢀModal Contrast Agent. Adv. Mater. 2012, 24, 6223ꢀ6228.
(59)Niu, D.; Luo, X.; Li, Y.; Liu, X.; Wang, X.; Shi, J., ManganeseꢀLoaded DualꢀMesoporous Silica
Spheres for Efficient T1ꢀ and T2ꢀWeighted Dual Mode Magnetic Resonance Imaging. ACS. Appl.
Mater. Inter. 2013, 5, 9942ꢀ9948.
(60)Yang, H.; Zhuang, Y.; Sun, Y.; Dai, A.; Shi, X.; Wu, D.; Li, F.; Hu, H.; Yang, S., Targeted
dualꢀcontrast T1ꢀ and T2ꢀweighted magnetic resonance imaging of tumors using multifunctional
gadoliniumꢀlabeled superparamagnetic iron oxide nanoparticles. Biomaterials 2011, 32, 4584ꢀ4593.
(61)Bae, K. H.; Kim, Y. B.; Lee, Y.; Hwang, J.; Park, H.; Park, T. G., Bioinspired Synthesis and
Characterization of GadoliniumꢀLabeled Magnetite Nanoparticles for Dual Contrast T1ꢀ and
T2ꢀWeighted Magnetic Resonance Imaging. Bioconj. Chem. 2010, 21, 505ꢀ512.
(62)Lee, N.; Yoo, D.; Ling, D.; Cho, M. H.; Hyeon, T.; Cheon, J., Iron Oxide Based Nanoparticles
for Multimodal Imaging and Magnetoresponsive Therapy. Chem. Rev. 2015, 115, 10637ꢀ89.
(63)Caravan, P., Strategies for increasing the sensitivity of gadolinium based MRI contrast agents.
Chem. Soc. Rev. 2006, 35, 512ꢀ523.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
23
ACS Paragon Plus Environment

Chemistry of Materials
Page 24 of 33
1
2
3
4
5
6
(64)Zhang, X.; Blasiak, B.; Marenco, A. J.; Trudel, S.; Tomanek, B.; van Veggel, F. C. J. M., Design
and Regulation of NaHoF4 and NaDyF4 Nanoparticles for HighꢀField Magnetic Resonance Imaging.
Chem. Mater. 2016, 28, 3060ꢀ3072.
(65)Huang, J.; Bu, L.; Xie, J.; Chen, K.; Cheng, Z.; Li, X.; Chen, X., Effects of nanoparticle size on
cellular uptake and liver MRI with polyvinylpyrrolidoneꢀcoated iron oxide nanoparticles. ACS Nano
2010, 4, 7151ꢀ60.
(66)Walkey, C. D.; Chan, W. C., Understanding and controlling the interaction of nanomaterials with
proteins in a physiological environment. Chem. Soc. Rev. 2012, 41, 2780ꢀ99.
(67)Mornet, S. p.; Vasseur, S. b.; Grasset, F.; Duguet, E., Magnetic nanoparticle design for medical
diagnosis and therapy. J. Mater. Chem. 2004, 14, 2161.
(68)Levy, M.; Luciani, N.; Alloyeau, D.; Elgrabli, D.; Deveaux, V.; Pechoux, C.; Chat, S.; Wang, G.;
Vats, N.; Gendron, F.; Factor, C.; Lotersztajn, S.; Luciani, A.; Wilhelm, C.; Gazeau, F., Long term in
vivo biotransformation of iron oxide nanoparticles. Biomaterials 2011, 32, 3988ꢀ3999.
(69)Jain, T. K.; Reddy, M. K.; Morales, M. A.; LeslieꢀPelecky, D. L.; Labhasetwar, V.,
Biodistribution, Clearance, and Biocompatibility of Iron Oxide Magnetic Nanoparticles in Rats. Mol.
Pharm. 2008, 5, 316ꢀ327.
(70)Pouliquen, D.; Le Jeune, J. J.; Perdrisot, R.; Ermias, A.; Jallet, P., Iron oxide nanoparticles for
use as an MRI contrast agent: Pharmacokinetics and metabolism. Magn. Reson. Imaging 1991, 9,
275ꢀ283.
(71)Cui, J.; Richardson, J. J.; Björnmalm, M.; Faria, M.; Caruso, F., Nanoengineered Templated
Polymer Particles: Navigating the Biological Realm. Acc. Chem. Res. 2016, 49, 1139ꢀ1148.
(72)Chouly, C.; Pouliquen, D.; Lucet, I.; Jeune, J. J.; Jallet, P., Development of superparamagnetic
nanoparticles for MRI: effect of particle size, charge and surface nature on biodistribution. J.
Microencapsul. 1996, 13, 245ꢀ255.
(73)PérezꢀCampaña, C.; GómezꢀVallejo, V.; Puigivila, M.; Martín, A.; CalvoꢀFernández, T.; Moya, S.
E.; Ziolo, R. F.; Reese, T.; Llop, J., Biodistribution of Different Sized Nanoparticles Assessed by
Positron Emission Tomography: A General Strategy for Direct Activation of Metal Oxide Particles.
ACS Nano 2013, 7, 3498ꢀ3505.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(74)De Jong, W. H.; Hagens, W. I.; Krystek, P.; Burger, M. C.; Sips, A. J. A. M.; Geertsma, R. E.,
Particle sizeꢀdependent organ distribution of gold nanoparticles after intravenous administration.
Biomaterials 2008, 29, 1912ꢀ1919.
24
ACS Paragon Plus Environment

Page 25 of 33
Chemistry of Materials
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1. TEM images of Fe3O4 (x = 0) and MnxFe3ꢀxO4 nanoparticles with various manganese
doping levels (x = 0.09, 0.19, 0.31, 0.39, 0.43, 0.47, 0.53, 0.61, 0.79, 0.92, and 1.06). The
nanoparticles are spherical shape with narrow size distribution.
25
ACS Paragon Plus Environment

Chemistry of Materials
Page 26 of 33
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2. Characterizations of MnxFe3ꢀxO4 nanoparticles (x = 0.43). (a) Transmission electron
microscopy (TEM) image (inset: HRTEM image), (b) selected area electron diffraction (SAED)
patterns, (c) the energyꢀdispersive Xꢀray line scanning analysis (EDX) line profiles (inset:
STEMꢀHAADF image), and (d) EDX mapping images of MnxFe3ꢀxO4 nanoparticles (x = 0.43).
26
ACS Paragon Plus Environment

Page 27 of 33
Chemistry of Materials
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 3. Xꢀray powder diffraction (XRD) patterns of MnxFe3ꢀxO4 nanoparticles with different
manganese doping levels. It is noteworthy that the red line was the pattern of MnxFe3ꢀxO4 with the
manganese doping level of 0.47, from which the shifting of peaks became significant with the
increase of manganese doping level.
27
ACS Paragon Plus Environment

Chemistry of Materials
Page 28 of 33
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 4. Crystal lattices of (220) in HRTEM images of Fe3O4 nanoparticles and MnxFe3ꢀxO4
nanoparticles with different manganese doping levels. The (220) lattice distances were increased
from 0.29 nm (x = 0, Fe3O4) to 0.30 nm (x = 0.43, MnxFe3ꢀxO4), and finally is 0.31 nm (x = 1.06,
MnxFe3ꢀxO4). Meanwhile, the disturbed lattice fringes became significant (after x > 0.43) with the
augment of manganese doping level.
28
ACS Paragon Plus Environment

Page 29 of 33
Chemistry of Materials
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 5. Magnetic properties of MnxFe3ꢀxO4 with different manganese doping levels. (a)
Fieldꢀdependent magnetization curves (M–H) of MnxFe3ꢀxO4 nanoparticles of various manganese
doping levels at 300 K. (b) The comparison of saturated magnetization (Ms) of above mentioned
MnxFe3ꢀxO4 samples.
29
ACS Paragon Plus Environment
