Paclitaxel-functionalized gold nanoparticles

Article abstract of DOI:10.1021/ja075181k

Here we describe the first example of 2 nm gold nanoparticles (Au NPs) covalently functionalized with a chemotherapeutic drug, paclitaxel. The synthetic strategy involves the attachment of a flexible hexaethylene glycol linker at the C-7 position of pacli

Full text of DOI:10.1021/ja075181k

Published on Web 08/24/2007
Paclitaxel-Functionalized Gold Nanoparticles
Jacob D. Gibson, Bishnu P. Khanal, and Eugene R. Zubarev*
Contribution from the Department of Chemistry, Rice UniVersity, Houston, Texas 77005
Received July 12, 2007; E-mail: zubarev@rice.edu
Abstract: Here we describe the first example of 2 nm gold nanoparticles (Au NPs) covalently functionalized
with a chemotherapeutic drug, paclitaxel. The synthetic strategy involves the attachment of a flexible
hexaethylene glycol linker at the C-7 position of paclitaxel followed by coupling of the resulting linear analogue
to phenol-terminated gold nanocrystals. The reaction proceeds under mild esterification conditions and
yields the product with a high molecular weight, while exhibiting an extremely low polydispersity index

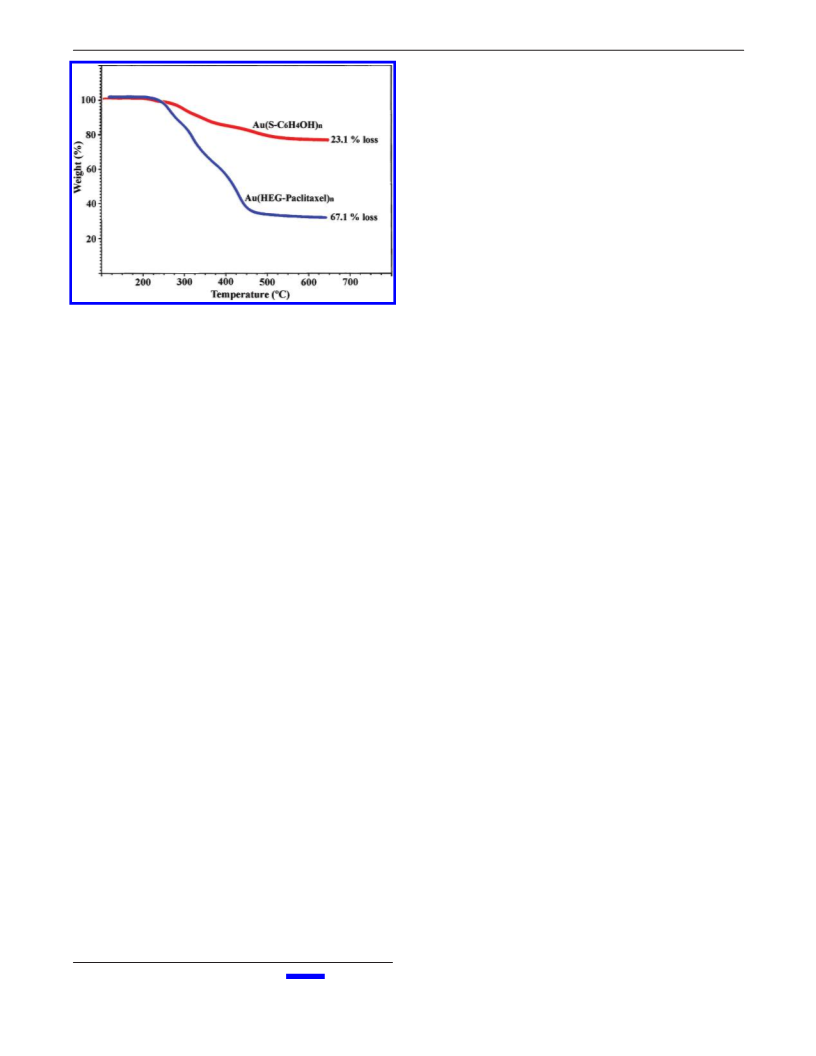

(1.02, relative to linear polystyrene standards). TGA analysis of the hybrid nanoparticles reveals the content
of the covalently attached organic shell as nearly 67% by weight, which corresponds to ∼70 molecules of
paclitaxel per 1 nanoparticle. The presence of a paclitaxel shell with a high grafting density renders the

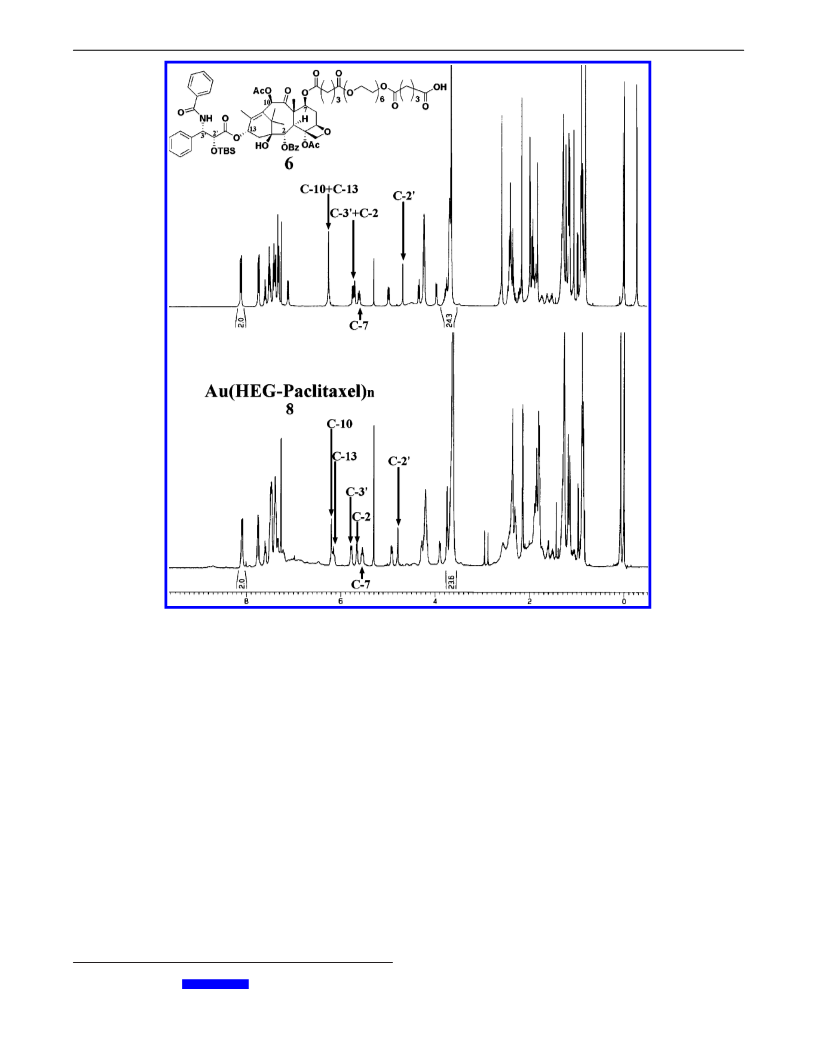

product soluble in organic solvents and allows for detailed 1H NMR analysis and, therefore, definitive

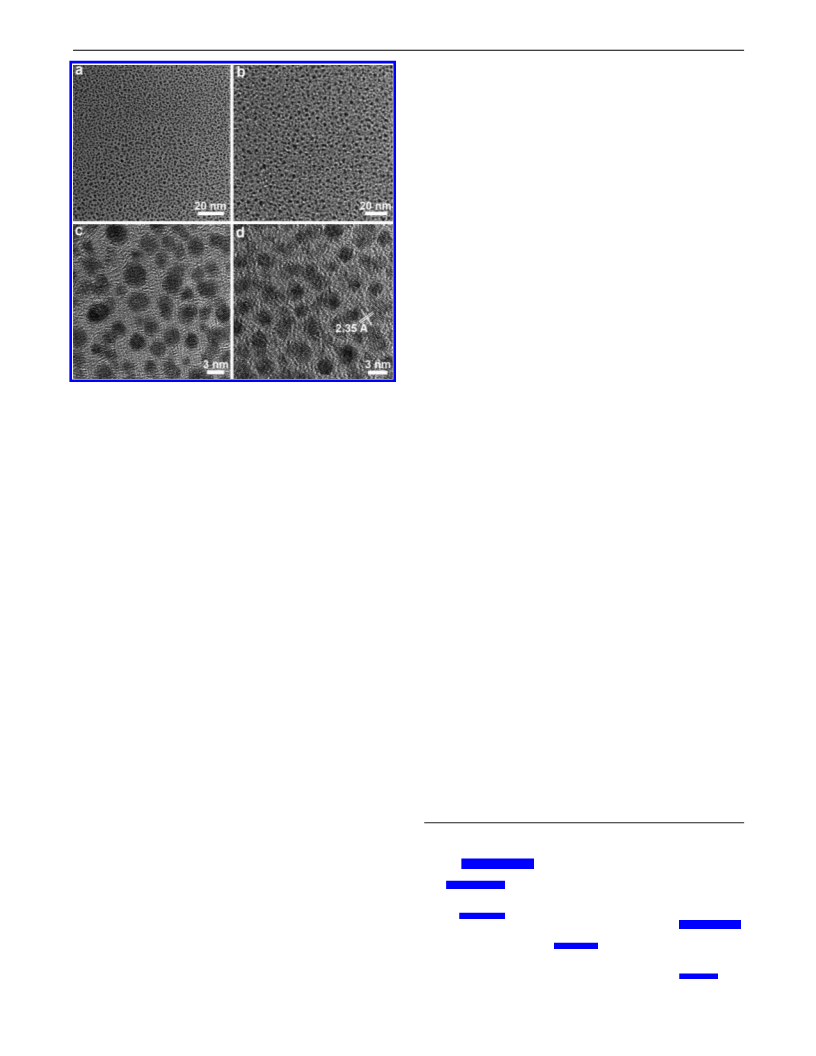

confirmation of its chemical structure. High-resolution TEM was employed for direct visualization of the
inorganic core of hybrid nanoparticles, which were found to retain their average size, shape, and high
crystallinity after multiple synthetic steps and purifications. The interparticle distance substantially increases
after the attachment of paclitaxel as revealed by low-magnification TEM, suggesting the presence of a
larger organic shell. The method described here demonstrates that organic molecules with exceedingly
complex structures can be covalently attached to gold nanocrystals in a controlled manner and fully
characterized by traditional analytical techniques. In addition, this approach gives a rare opportunity to
prepare hybrid particles with a well-defined amount of drug and offers a new alternative for the design of
nanosized drug-delivery systems.
hydrophilic shells.1
8-20
Effective toward increasing the aqueous
Introduction
stability of many chemotherapeutic agents, more specifically
paclitaxel, drug-carrier systems continue to rapidly gain interest.
The relatively large sizes of these systems render them capable
of exploiting the increased permeation and retention within
tumors, thereby increasing the selective delivery of paclitaxel
to cancerous tissue. Encapsulation methods, however, are not
without intrinsic limitations as inefficient drug loading and
clearance by the reticuloendothelial system (RES) remain a
The difficulties associated with selective targeting of cancer
cells have limited the success of modern chemotherapeutics. In
addition, the hydrophobic nature of many anticancer drugs
prevents the use of traditional modes of administration, which
has proven to be equally problematic. However, significant
progress in hydrophobic drug delivery has been reported, much
of which is focused on encapsulation of drug molecules within
the core of polymeric micelles1-17 as well as dendrimers with
1
,4,5
challenge.
Interestingly, it has been shown that smaller
structures can evade RES capture and exhibit the ability to
accumulate in a broader range of tumors creating a necessity
for nano-sized delivery vehicles.
(
1) Farokhzad, O. C.; Cheng, J.; Teply, B. A.; Sherifi, I.; Jon, S.; Kantoff, P.
W.; Richie, J. P.; Langer, R. Proc. Natl. Acad. Sci. U.S.A. 2006, 103, 6315-
6
320.
21-30
(
2) Huang, H.; Remsen, E. E.; Kowalewski, T.; Wooley, K. L. J. Am. Chem.
Soc. 1999, 121, 3805-3806.
(
(
3) Hawker, C. J.; Wooley, K. L. Science 2005, 309, 1200-1205.
4) Torchilin, V. P.; Lukyanov, A. N.; Gao, Z.; Papahadjopoulos-Sternberg,
B. Proc. Natl. Acad. Sci. U.S.A. 2003, 100, 6039-6044.
5) Gref, R.; Minamitake, Y.; Peracchia, M. T.; Trubetskoy, V.; Torchilin, V.;
Langer, R. Science 1994, 263, 1600-1603.
(15) Gillies, E. R.; Jonsson, T. B.; Frechet, J. M. J. J. Am. Chem. Soc. 2004,
126, 11936-11943.
(16) O’Reilly, R. K.; Joralemon, M. J.; Wooley, K. L.; Hawker, C. J. Chem.
Mater. 2005, 17, 5976-5988.
(
(
(
(
(
(17) Kwon, Y. J.; James, E.; Shastri, N.; Frechet, J. M. J. Proc. Natl. Acad. Sci.
U.S.A. 2005, 102, 18264-18268.
6) Oh, K. S.; Lee, K. E.; Han, S. S.; Cho, S. H.; Kim, D.; Yuk, S. H.
Biomacromolecules 2005, 6, 1062-1067.
(18) Ooya, T.; Lee, J.; Park, K. Bioconjugate Chem. 2004, 15, 1221-1229.
(19) Lee, C. C.; Yoshida, M.; Frechet, J. M. J.; Dy, E. E.; Szoka, F. C.
Bioconjugate Chem. 2005, 16, 535-541.
7) Lee, H.; Zeng, F.; Dunne, M.; Allen, C. Biomacromolecules 2005, 6, 3119-
3
128.
8) Sheihet, L.; Dubin, R. A.; Devore, D.; Kohn, J. Biomacromolecules 2005,
, 2726-2731.
(20) Hecht, S.; Frechet, J. M. J. Angew. Chem., Int. Ed. 2001, 40, 74-91.
(21) Hobbs, S. K.; Monsky, W. L.; Yuan, F.; Roberts, W. G.; Griffith, L.;
Torchilin, V. P.; Jain, R. K. Proc. Natl. Acad. Sci. U.S.A. 1998, 95, 4607-
4612.
6
9) Zhang, Z.; Feng, S.-S. Biomacromolecules 2006, 7, 1139-1146.
(
10) Richard, R. E.; Schwarz, M.; Ranade, S.; Chan, A. K.; Matyjaszewski, K.;
Sumerlin, B. Biomacromolecules 2005, 6, 3410-3418.
(22) Karlsson, A. J.; Pomerantz, W. C.; Weisblum, B.; Gellman, S. H.; Palecek,
S. P. J. Am. Che. Soc. 2006, 128, 12630-12631.
(
(
11) Sipos, L.; Som, A.; Faust, R. Biomacromolecules 2005, 6, 2570-2582.
12) Liang, H.-F.; Chen, S.-C.; Chen, M.-C.; Lee, P.-W.; Chen, C.-T.; Sung,
H.-W. Bioconjugate Chem. 2006, 17, 291-299.
(23) Drummond, C. J.; Fong, C. Curr. Opin. Colloid Interface Sci. 1999, 4,
449-456.
(
13) Shuai, X.; Merdan, T.; Schaper, A. K.; Xi, F.; Kissel, T. Bioconjugate Chem.
(24) Kaasgaard, T.; Drummond, C. J. Phys. Chem. Chem. Phys. 2006, 8, 4957.
(25) Barauskas, J.; Johnsson, M.; Tiberg, F. Nano Lett. 2005, 5, 1615-1619.
(26) Loo, C.; Lowery, A.; Halas, N.; West, J.; Drezek, R. Nano Lett. 2005, 5,
709.
2
004, 15, 441-448.
(
14) Menger, F. M.; Zhang, H.; de Joannis, J.; Kindt, J. T. Langmuir 2007, 23,
308-2310.
2
10.1021/ja075181k CCC: $37.00 © 2007 American Chemical Society
J. AM. CHEM. SOC. 2007, 129, 11653-11661
9
11653

A R T I C L E S
Gibson et al.
Attractive for their size, stability, and biocompatibility, gold
nanoparticles (NPs) continue to gain interest due to their
potential to enhance a number of biomedical applications.
and co-workers have demonstrated the ability of thiol-function-
alized particles to release ligands in ViVo as a result of a
3
1-49
63,64
glutathione-mediated place exchange reaction.
More importantly, the ability to functionalize the surface of gold
with organic molecules allows for the preparation of nanopar-
Despite numerous examples detailing the coupling of biologi-
cally active compounds with AuNPs, observing and proving
the presence of covalently bound molecules has been mainly
limited to qualitative studies. In many cases only indirect
methods can be used as an argument for successful covalent
attachment because the power of solution characterization
techniques (NMR, SEC, and LS) is often negated by low
solubility and structural inhomogeneities of hybrid organic-
inorganic structures. As a consequence, there exist very few
reports on the preparation of organic-inorganic systems con-
taining a specific number of drug molecules. In our previous
ticles which can specifically interact with any physiological
system.5
0-58
Murray et al. reported on the use of ethidium
thiolate modified Au NPs as a probe into the mechanism of
59
DNA intercalation. Similarly, Mirkin et al. have developed a
method for the sequence-specific detection of polynucleotides
based on DNA-functionalized Au nanoparticles.60 Perhaps,
attracting the most attention is the emerging application of
surface modified Au NPs as vehicles for drug delivery. Recently,
Paciotti et al. described the coating of 26 nm Au particles with
a mixture of tumor necrosis factor (TNF), polyethylene glycol,
6
5,66
work,
we have shown that polymer-functionalized metallic
and the chemotherapeutic paclitaxel as a multifunctional vector
nanoparticles featuring a 2 nm gold core are, in fact, suitable
for traditional characterization methods in solution and, there-
fore, present an attractive opportunity for manufacturing drug
delivery vehicles with tunable properties. In this work we
describe the synthesis of paclitaxel-gold nanoparticle hybrid
structures in which the covalent attachment of paclitaxel
molecules to the surface of 2 nm gold nanocrystals is observed
using standard analytical techniques. The synthetic strategy
described here yields a hybrid structure with an extremely high
content of organic shell (67 wt. %), a narrow polydispersity
index (1.02), and a well-defined number of drug molecules (73
capable of targeted drug delivery to solid tumors.6
1,62
Further
increasing the potential of Au NP-based drug carriers, Rotello
(
27) Hirsch, L. R.; Stafford, R. J.; Bankson, J. A.; Sershen, S. R.; Rivera, B.;
Rrice, R. E.; Hazle, J. D.; Halas, N. J.; West, J. Proc. Natl. Acad. Sci.
U.S.A. 2003, 100, 13549.
(
(
(
28) Chithrani, B. D.; Chan, W. C. W. Nano Lett. 2007, 7, 1542-1550.
29) Kam, N. W. S.; Liu, Z.; Dai, H. Nanotechnology 2006, 45, 577-581.
30) Cheng, J. Y.; Wang, D. L.; Xi, J. F.; Au, L.; Siekkinen, A.; Warsen, A.;
Li, Z. Y.; Zhang, H.; Xia, Y. N.; Li, X. D. Nano Lett. 2007, 7, 1318-
1
322.
(
31) Alivisatos, P. Nat. Biotechnol. 2004, 22, 47-52.
(
32) Medintz, I. L.; Konnert, J. H.; Clapp, A. R.; Stanish, I.; Twigg, M. E.;
Mattoussi, H.; Mauro, J. M.; Deschamps, J. R. Proc. Natl. Acad. Sci. U.S.A.
2
004, 101, 9612-9617.
(
4) per metallic particle. This well-defined chemical structure
(
33) Simberg, D.; Duza, T.; Park, J. H.; Essler, M.; Pilch, J.; Zhang, L. L.;
Derfus, A. M.; Yang, M.; Hoffman, R. M.; Bhatia, S.; Sailor, M. J.;
Ruoslahti, E. Proc. Natl. Acad. Sci. U.S.A. 2007, 104, 932-936.
of drug-functionalized nanoparticles may allow one to more
accurately define their efficacy and therapeutic utility.
(
34) Zhao, X.; Zhang, S. Trends Biotechnol. 2004, 22 (9), 470-6.
(
35) Lee, S. W.; Mao, C.; Flynn, C. E.; Belcher, A. M. Science 2002, 296 (5569),
Results and Discussion
8
92-5.
(
36) Everts, M.; Saini, V.; Leddon, J. L.; Kok, R. J.; Stoff-Khalili, M.; Preuss,
M. A.; Millican, L. C.; Perkins, G.; Brown, J. M.; Bagaria, H.; Nikles, D.
E.; Johnson, D. T.; Zharov, V. P.; Curiel, D. T. Nano Lett. 2006, 6, 587.
37) Hainfeld, J. F.; Slatkin, D. N.; Smilowitz, H. M. Phys. Med. Biol. 2004,

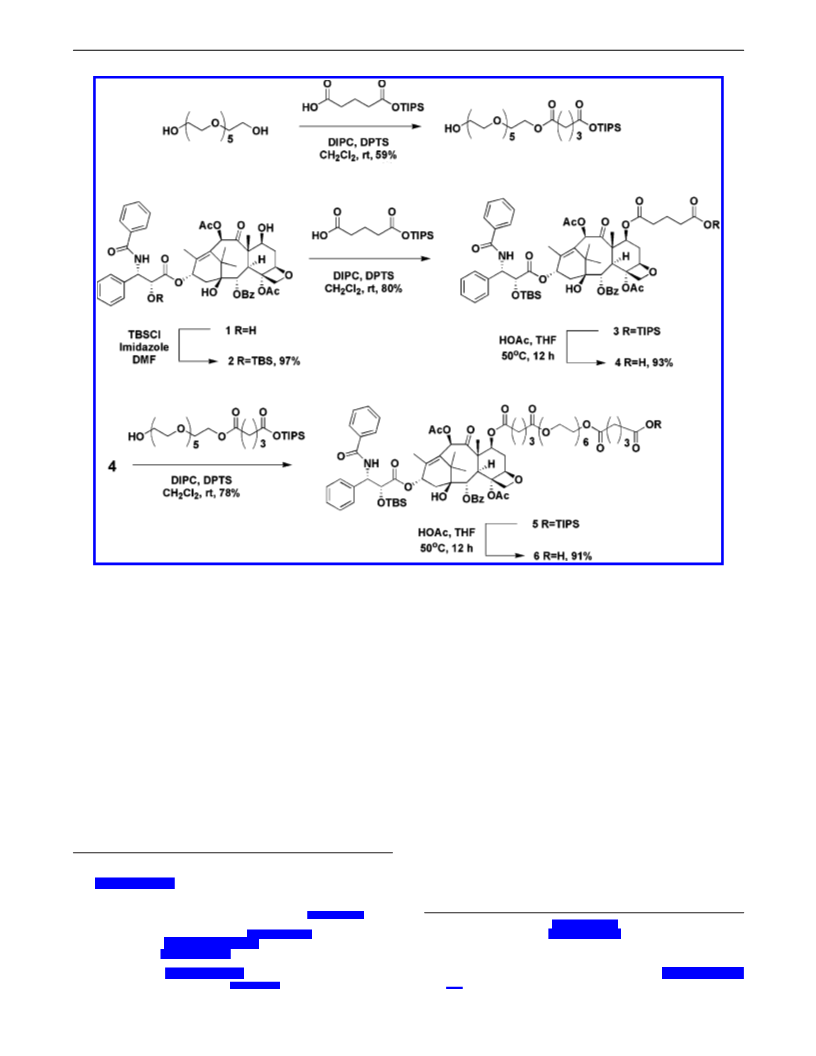

Preparation of the paclitaxel-AuNP conjugate begins with
the synthesis of a linear analogue featuring a hydrophilic,
carboxyl-terminated linker (hexaethylene glycol) anchored at
the C-7 position of paclitaxel, which can be directly coupled to
4-mercaptophenol-functionalized 2 nm Au particles. Selection
of the C7-OH group as the point of attachment was motivated
by the structure-activity relationships reported for paclitaxel,6
which show that chemical modification of this site does not
cause any significant change in paclitaxel’s ability to arrest cell
division processes in cancer cells. This is in contrast to the C2′-
OH group, the modification of which results in either drastic
reduction or complete disappearance of biological activity. While
reports on analogous paclitaxel compounds modified at the C2′-
(
(
4
9, N309-N315.
38) Loo, C.; Hirsch, L.; Lee, M.-H.; Chang, E.; West, J.; Halas, N.; Drezek,
R. Optics Lett. 2005, 30, 1012-1014.
(
39) Nath, N.; Chilkoti, A. Anal. Chem. 2004, 76, 5370-5378.
40) Pandey, P.; Singh, S. P.; Arya, S. K.; Gupta, V.; Datta, M.; Singh, S.;
Malhotra, B. D. Langmuir 2007, 23, 3333-3337.
(
7-70
(41) Rothrock, A. R.; Donkers, R. L.; Schoenfisch, M. H. J. Am. Chem. Soc.
2
005, 127, 9362-9363.
(42) Angelatos, A. S.; Radt, B.; Caruso, F. J. Phys. Chem. B 2005, 109, 3071-
3
076.
(
43) Gole, A.; Murphy, C. J. Langmuir, 2005, 21, 10756-10762.
44) Berry, V.; Gole, A.; Kundu, S.; Murphy, C. J.; Saraf, R. F. J. Am. Chem.
Soc. 2005, 127, 17600-17601.
(
(
(
(
(
(
(
(
45) Stone, J. W.; Sisco, P. N.; Goldsmith, E. C.; Baxter, S. C.; Murphy, C. J.
Nano Lett. 2007, 7, 116-119.
46) El-Sayed, I. H.; Huang, X.; El-Sayed, M. A. Cancer Lett. 2006, 239, 129-
1
35.
71,72
47) El-Sayed, I. H.; Huang, X.; El-Sayed, M. A. Nano Lett. 2005, 5, 829-
34.
48) Huang, X.; El-Sayed, I. H.; Qian, W.; El-Sayed, M. A. J. Am. Chem. Soc.
OH group exist,
these examples rely on enzymatic processes
8
capable of unmasking this hydroxyl group in ViVo. Furthermore,
2
006, 128, 2115-2120.
49) Stoeva, S. I.; Lee, J.-S.; Smith, J. E.; Rosen, S. T.; Mirkin, C. A. J. Am.
Chem. Soc. 2006, 128, 8378-8379.
(61) Paciotti, G. F.; Kingston, D. G. I.; Tamarkin, L. Drug. DeV. Res. 2006, 67,
47-54.
50) Templeton, A. C.; Wuelfing, W. P.; Murray, R. W. Acc. Chem. Res. 2000,
(62) Paciotti, G. F.; Myer, L.; Weinreich, D.; Goia, D.; Pavel, N.; McLaughlin,
R. E.; Tamarkin, L. Drug DeliVery 2004, 11, 169-183.
(63) Hong, R.; Han, G.; Fern a´ ndez, J. M.; Kim, B.-J.; Forbes, N. S.; Rotello,
V. M. J. Am. Chem. Soc. 2006, 128, 1078-1079.
3
3, 27-36.
51) Woehrle, G. H.; Brown, L. O.; Hutchison, J. E. J. Am. Chem. Soc. 2005,
1
27, 2172-2183.
(
(
52) Cao, Y.; Jin, R.; Mirkin, C. A. J. Am. Chem. Soc. 2001, 123, 7961-7962.
53) Liu, Y.; Shipton, M. K.; Ryan, J.; Kaufman, E. D.; Franzen, S.; Feldheim,
D. L. Anal. Chem. 2007, 79, 2221-2229.
(64) Verma, A.; Simard, J. M.; Worrall, W. E.; Rotello, V. M. J. Am. Chem.
Soc. 2004, 126, 13987-13991.
(65) Zubarev, E. R.; Xu, J.; Sayyad, A.; Gibson, J. D. J. Am. Chem. Soc. 2006,
128, 15098-15099.
(
(
54) Thanh, N. T. K.; Rosenzweig, Z. Anal. Chem. 2002, 74, 1624-1628.
55) Peelle, B. R.; Krauland, E. M.; Wittrup, K. D.; Belcher, A. M.; Langmuir
(66) Khanal, B. P.; Zubarev, E. R. Angew. Chem., Int. Ed. 2007, 46, 2195-
2198.
2
005, 21, 6929-6933.
(
(
(
56) Murthy, V. S.; Cha, J. N.; Stucky, G. D.; Wong, M. S. J. Am. Chem. Soc.
004, 126, 5292-5299.
57) Hurst, S. J.; Lytton-Jean, A. K. R.; Mirkin, C. A. Anal. Chem. 2006, 78,
(67) Mathew, A. E.; Mejillano, M. R.; Nath, J. P.; Himes, R. H.; Stella, V. J.
J. Med. Chem. 1992, 35, 145-151.
2
(68) Kingston, D. G. I. Chem. Commun. 2001, 867-880.
(69) Deutsch, H. M.; Glinski, J. A.; Hernandez, M.; Haugwitz, R. D.; Narayanan,
V. L.; Suffness, M.; Zalkow, L. H. J. Med. Chem. 1989, 32, 788-792.
(70) Nicolaou, K. C.; Riemer, C.; Kerr, M. A.; Rideout, D.; Wrasidlo, W. Nature
1993, 364, 464-466.
8
313-8318.
58) Claridge, S. A.; Goh, S. L.; Frechet, J. M. J.; Williams, S. C.; Micheel, C.
M.; Alivisatos, A. P. Chem. Mater. 2005, 17, 1628-1635.
(
(
59) Wang, G.; Zhang, J.; Murray, R. W. Anal. Chem. 2002, 74, 4320-4327.
60) Elghanian, R.; Storhoff, J. J.; Mucic, R. C.; Letsinger, R. L.; Mirkin, C. A.
Science 1997, 277, 1078-1081.
(71) Zakharian, T. Y.; Seryshev, A.; Sitharaman, B.; Gilbert, B. E.; Knight, V.;
Wilson, L. J. J. Am. Chem. Soc. 2005, 127, 12508-12509.
11654 J. AM. CHEM. SOC.
9
VOL. 129, NO. 37, 2007

Paclitaxel-Functionalized Gold Nanoparticles
A R T I C L E S
Scheme 1. Synthesis of a Paclitaxel Analogue Featuring a Hexaethylene Glycol Linker at the C-7 Position
modifying the C-7 position is less likely to alter the biologically
active T-shaped conformation, as defined by Kingston et al.
4-toluenesulfonate (DPTS) have been shown to effect esterifi-
cation in high yields and represent the standard coupling agents
7
3
79,80
Incentive for the inclusion of hexaethylene glycol (HEG) into
the structure of this linker is twofold in that (1) HEG increases
the water solubility of the product, which can be further
increased by introducing longer polyethylene glycol (PEG)
linkers, and (2) the presence of multiple ethylene glycol units
has been shown to minimize opsonization and RES clearance,
hence increasing circulation time in the body.74-78
described in this sequence.
Introduction of a carboxylic acid
functionality at the C-7 position was achieved upon the coupling
of 2 with glutaric acid monotriisopropylsilyl (TIPS) ester
followed by selective cleavage of the TIPS group using acetic
acid in THF at slightly elevated temperatures (50 °C). Impor-
tantly, under these conditions C2′-OTBS remains intact as
1
confirmed by H NMR analysis (see Supporting Information).
Selective protection of the ester-activated C2′-OH group of
paclitaxel with tert-butyldimethylsilyl (TBS) chloride was
carried out under standard conditions78 to afford 2 with a 97%
isolated yield. This approach gives exclusive access to the
hydroxyl group located at the C-7 position because the C-1
tertiary hydroxyl is sterically hindered and remains unreactive
under these mild conditions (Scheme 1). 1,3-Diisopropyl
carbodiimide (DIPC) and 4-(N,N-dimethylamino)pyridinium-
Acetic acid has been shown to minimize the formation of side
products when used in the synthesis of paclitaxel.
8
1
In a separate synthesis, the hexaethylene glycol (HEG) portion
of the linker was prepared by coupling excess HEG (5 mol
equiv) with glutaric acid monotriisopropylsilyl ester in the
presence of DIPC/DPTS, which was then reacted with com-
pound 4 under the same esterification conditions to give the
desired product 5 in 78% isolated yield. Again, acetic acid was
employed to selectively cleave the TIPS group, providing a
TBS-protected paclitaxel analogue 6, which features a carboxyl-
terminated HEG linker. Interestingly, we were able to take
advantage of paclitaxel’s poor solubility profile, as several
(
72) Safavy, A.; Bonner, J. A.; Waksal, H. W.; Buchsbaum, D. J.; Gillespie, G.
Y.; Khazaeli, M. B.; Arani, R.; Chen, D.-T.; Carpenter, M.; Raisch, K. P.
Bioconjugate Chem. 2003, 14, 302-310.
(
73) Ganesh, T.; Yang, C.; Norris, A.; Glass, T.; Bane, S.; Ravindra, R.; Banerjee,
A.; Metaferia, B.; Thomas, S. L.; Giannakakou, P.; Alcaraz, A. A.;
Lakdawala, A. S.; Snyder, J. P.; Kingston, D. G. I. J. Med. Chem. 2007,
5
0, 713-725.
(79) Moore, J. S.; Stupp, S. I. Macromolecules 1990, 23, 65-71.
(80) Teng, J.; Zubarev, E. R. J. Am. Chem. Soc. 2003, 125, 11840-11841.
(81) Singh, A. K.; Weaver, R. E.; Powers, G. L.; Rosso, V. W.; Wei, C.; Lust,
D. A.; Kotnis, A. S.; Comezoglu, F. T.; Liu, M.; Bembenek, K. S.; Phan,
B. D.; Vanyo, D. J.; Davies, M. L.; Mathew, R.; Palaniswamy, V. A.; Li,
W.-S.; Gadamsetti, K.; Spagnuolo, C. J.; Winter, W. J. Org. Process Res.
DeV. 2003, 7, 25-27.
(74) Mishra, S.; Webster, P.; Davis, M. E. Eur. J. Cell Biol. 2004, 83, 97-111.
(75) Moghimi, S. M. Biochim. Biophys. Acta 2002, 1590, 131-139.
(76) Gabizon, A. A. Clin. Cancer Res. 2001, 7, 223-225.
(
77) Remaut, K.; Lucas, B.; Raemdonck, K.; Braeckmans, K.; Demeester, J.;
De Smedt, S. C. Biomacromolecules 2007, 8, 1333-1340.
(78) Magri, N. F.; Kingston, D. G. I. J. Nat. Prod. 1988, 51, 298-306.
J. AM. CHEM. SOC.
9
VOL. 129, NO. 37, 2007 11655

A R T I C L E S
Gibson et al.

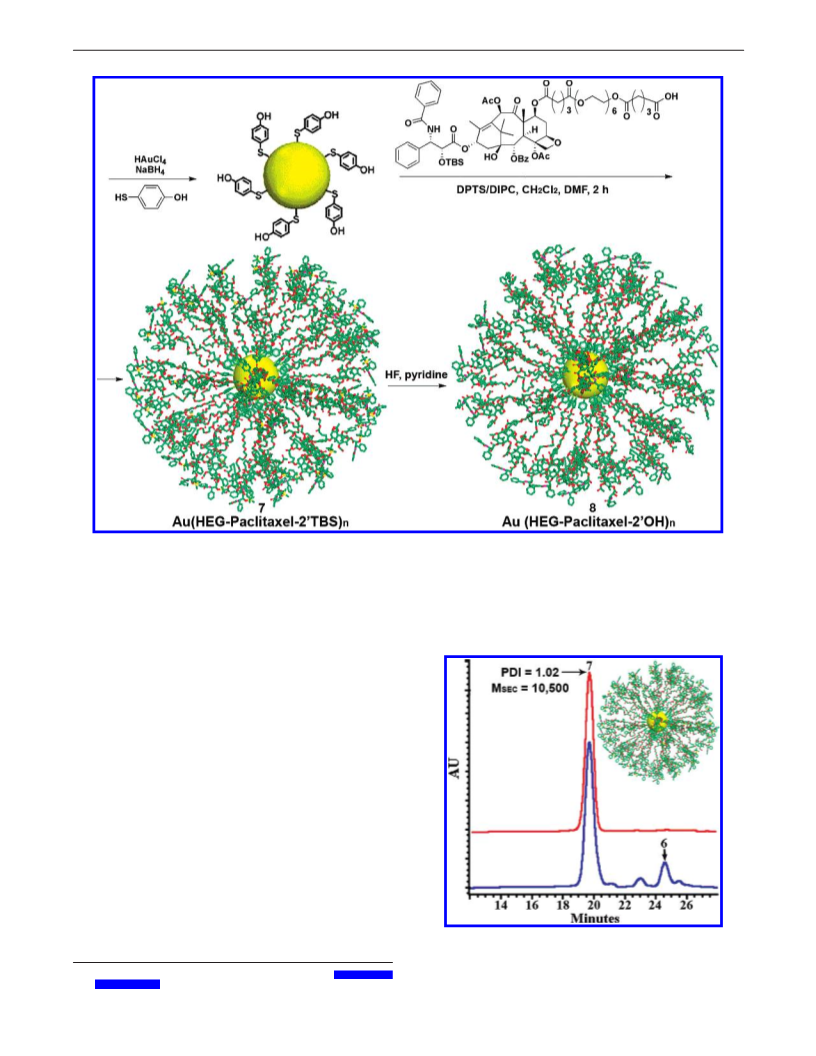

Scheme 2. Covalent Coupling of Paclitaxel to 4-Mercaptophenol-Modified 2 nm Gold Nanoparticles
intermediates (2, 4, and 6) are not soluble in nonpolar solvents,
allowing for the clean precipitation of the product from hexane
as a common protocol for purification.
mated, as the molecular weight of 2 nm gold clusters alone is
at least 53 000 Da (∼270 Au atoms). In addition, SEC analysis
is known to underestimate the molecular weight of branched
structures, i.e., dendrimers and star-shaped polymers, when the
hydrodynamic radii of linear standards are used for calibration.83
Chromatograms taken after 4 and 8 h reveal similar ratios of
product to starting material, suggesting that the maximum
Standard conditions were employed for the coupling of TBS-
protected paclitaxel derivative 6 and 4-mercaptophenol-func-
tionalized Au nanoparticles (Scheme 2), which were prepared
using a modified procedure introduced by Brust and co-
workers.82 However, dropwise addition of 30% DMF to a
methylene chloride suspension of Au NPs is required to bring
the hydroxyl-terminated particles into solution as they are not
readily soluble in nonpolar solvents. The progress of this reaction
is easily monitored, as the nature of 7 renders the system
compatible with size exclusion chromatography (SEC). SEC
traces taken after 2 h show near complete consumption of 6
and the presence of a high molar mass peak with a very low
polydispersity index (PDI ) 1.02) corresponding to TBS-
protected paclitaxel-functionalized gold nanoparticles 7 (Figure
1
). This remarkably low value of PDI is in good agreement
with DLS data (see Figure S19) and suggests a nearly mono-
disperse size of hybrid nanoparticles in solution as well as a
uniform distribution of paclitaxel molecules along their surfaces.
However, some underestimation of the polydispersity is possible
because SEC relies on a calibration curve based on linear
polymer standards.
Similarly, the molar mass of hybrid nanoparticles 7 measured
by SEC relative to polystyrene standards is highly underesti-
Figure 1. Size exclusion chromatography traces (eluting with THF)
showing the coupling of compound 6 to the surface of Au NPs (bottom),
and the isolated product 7 after purification (top). See also Figure S20 in
the Supporting Information for SEC traces of pure compound 6 and final
product 8.
(
82) Brust, M.; Fink, J.; Bethell, D.; Schiffrin, D. J.; Kiely, C. J. Chem. Soc.,
Chem. Commun. 1995, 1655.
11656 J. AM. CHEM. SOC.
9
VOL. 129, NO. 37, 2007

Paclitaxel-Functionalized Gold Nanoparticles
A R T I C L E S
Figure 2. 1H NMR spectra of paclitaxel analogue 6 (top) and the isolated hybrid structure 8 (bottom).
possible amount of 6 is coupled to AuNPs within the first 2 h.
Purification of the product 7 is equally simplified, as its much
larger size can be exploited by centrifugal ultrafiltration. DMF
solutions of the reaction mixture were placed on regenerated
cellulose membranes with MWCO 30 kDa and centrifuged at
In addition, the location of a triplet corresponding to the C-7
proton in both products 6 and 8 is at 5.6 ppm (Figure 2), which
is very different from that of free paclitaxel where the C-7 proton
appears at 4.4 ppm (see Supporting Information). Because this
triplet integrates exactly as 1H, one can conclude that all
paclitaxel moieties in product 8 are attached to the glutaric acid-
HEG linker. The linker, in turn, must be connected to gold
nanoparticles because SEC analysis of 8 demonstrated the
complete absence of precursor 6 or any other low molar mass
species (Figure 1, top). On the other hand, there are distinct
differences in the two spectra presented in Figure 2. Nearly all
signals from the final product 8 are broader compared to those
of 6, which is indicative of the decreased rotational mobility of
paclitaxel moieties covalently attached to the surface of gold
nanocrystals. Most affected by this phenomenon are those
signals associated with HEG (4H at 4.2 ppm and 22H at 3.65
ppm) and glutaric acid (1.7-2.4 ppm), lending to their closer
proximity to the gold surface.
3
750 rpm. Only three 45-min rounds of centrifugation were
necessary for the complete removal of all starting materials as
determined by SEC (Figure 1, top). Last, the synthesis of the
paclitaxel-AuNP conjugate 8 was complete upon liberation of
the C2′-OH groups of paclitaxel moieties using HF in pyridine
(70:30 v/v, respectively), followed by precipitation from hexane
affording 8 as a gray-brown powder.
Upon purification, the successful coupling of paclitaxel to
1
Au nanoparticles was confirmed by H NMR (see also Figure
S18 for IR spectra). Figure 2 details the proton spectra for
paclitaxel-HEG analogue 6 (top) and the final product 8
(bottom). The overall appearance, position, and the integration
values of all major signals are very similar. In both cases, the
integration ratio of paclitaxel aromatic protons, for example,
the C-23, C-27 doublet at 8.11 ppm, to HEG nonterminal
aliphatic protons at 3.65 ppm remains the same (2H vs 24H).
It is important to emphasize, however, that the presence of
the highly flexible and relatively long HEG linker is crucial
for the NMR characterization of paclitaxel-functionalized nano-
particles. Our control experiment showed that nearly all
resonances become exceedingly broad and unrecognizable if
(
83) Mourey, T. H.; Turner, S. R.; Rubinstein, M.; Frechet, J. M. J.; Hawker,
C. J.; Wooley, K. L. Macromolecules 1992, 25, 2401-2406.
J. AM. CHEM. SOC.
9
VOL. 129, NO. 37, 2007 11657

A R T I C L E S
Gibson et al.
compound 6 and the deprotection of nanoparticles 7, Oswald
ripening of metallic cores did not occur. However, the inter-
particle distance is substantially increased (∼2.5 nm), indicating
the presence of a much larger organic shell. This distance is
approximately twice the size of a paclitaxel molecule, but it is
shorter than the length of compound 6 in its fully extended
conformation (4.6 nm). High flexibility and a small cross-
sectional area of HEG chains may explain this difference. It is
reasonable to expect that drying would cause HEG linkers to
collapse near the surface of the gold core. In addition, the
interdigitation of ligands from adjacent nanocrystals may take
place in accord with the observations reported for alkanethiolate
8
4-87
gold clusters.
The conventional bright-field TEM, however, does not prove
that the dark spherical objects shown in Figure 2a and 2b are
indeed gold nanocrystals. For that purpose we employed high-
resolution TEM imaging of both mercaptophenol- and pacli-
taxel-functionalized nanoparticles 8 (Figure 3c,d). The majority
of particles exhibit the characteristic lattice fringes, which
represent the individual atomic layers. The d-spacing between
the fringes is either 2.04 or 2.35 Å, which allows one to identify
them as {200} and {111} crystallographic planes of fcc Au and
offers definitive proof that these structures are crystalline. Most
of the particles are single crystals, and only occasional twinning
of particles is observed. Importantly, HRTEM clearly demon-
strates that the average size of particles, and their degrees of
crystallinity have not been altered during the multistep synthesis
and several ultrafiltration steps en route to the final product 8.
Figure 3d also shows that the metallic cores of hybrid structures
Figure 3. TEM and HRTEM images of 4-mercaptophenol-coated Au NPs
(a, c) and paclitaxel-functionalized Au NPs (b, d).
paclitaxel is directly coupled to the surface of AuNPs (without
the HEG linker). Another important feature of the NMR
spectrum collected from 8 is a very broad signal in the range
between 7.2 and 6.7 ppm. This is due to the presence of
4
-mercaptophenol ligands, which connect paclitaxel-HEG
chains to the surface of AuNPs. The broad signal appears only
after the attachment, and it is not present in the starting material
8
have near-spherical shapes, which simplifies the estimation
of the number of organic molecules attached and their grafting
density, as discussed below.
6
. Finally, several fine changes in the spectra prove complete
deprotection of the C2′-OH group. First, the signals of TBS
methyl groups (0 and -0.3 ppm) and the tert-butyl group (0.8
ppm) are not observed in the spectrum of the final product 8.
Second, the resonances of protons attached to C-2′ and C-3′
undergo slight shifts downfield from 4.65 to 4.82 ppm and from
The number of paclitaxel molecules attached to each Au
particle was first determined qualitatively from the weight gain
observed upon isolation of paclitaxel-functionalized nanopar-
ticles 8. Based on the mass of product (24 mg) formed from
the starting Au NPs (9.5 mg), one can estimate that the mass
increase is approximately 150% by weight, which is due to the
covalent attachment of HEG-paclitaxel moieties. It has been
previously reported that 2 nm gold clusters contain ∼270
5
.7 to 5.8 ppm, respectively (Figure 2). Additionally, a small
upfield shift of the C-13 proton takes place upon deprotection,
and the signal is no longer overlapped with that of the C-10
proton as in the case of precursor 6. This slight separation of
C-10 and C-13 signals was only observed in the final product
8
8,89
atoms
(MAu ) 53 000 Da) and the number of thiol ligands
protecting their surface is approximately 126 based on TGA
see below). The molecular weight of mercaptophenol-coated
particles is then 68 750 Da (MAu + 126‚MC H OS), and the
8
and in the unprotected paclitaxel, whereas the NMR spectra
(
of all TBS-protected intermediates 2 through 7 showed a
complete overlap of these particular peaks (see Supporting
Information).
6
5
increase of 150% corresponds to ∼103 125 Da. Given the
molecular weight of 6 (1342 g/mol, without TBS), there are on
average 103 125/1342 = 77 paclitaxel molecules per one Au
NP. However, this estimation assumes a quantitative conversion
of starting Au nanoparticles to product 8.
In order to confirm that the soluble product 8 with a high
molecular weight (SEC) and an NMR spectrum similar to that
of precursor 6 is indeed a hybrid organic-inorganic structure,
we performed several TEM experiments. First, we imaged the
starting 2 nm gold nanoparticles coated with 4-mercaptophenol.
Figure 3a shows a low magnification TEM image of AuNPs
deposited from a THF solution onto a carbon-coated grid. The
average size of the particles is close to 2 nm, although structures
as small as 0.7 nm and as big as 4.3 nm can be found in the
image. The interparticle distance also varies within a relatively
large range (0.5 to 3 nm), but the average value is close to 1
(
84) Terrill, R. H.; Postlethwaite, T. A.; Chen, C.-H.; Poon, C.-D.; Terzis, A.;
Chen, A.; Hutchison, J. E.; Clark, M. R.; Wignall, G.; Londono, J. D.;
Superfine, R.; Falvo, M.; Johnson, C. S., Jr.; Samulski, E. T.; Murray, R.
W. J. Am. Chem. Soc. 1995, 117, 12537-12548.
(
85) Badia, A.; Singh, S.; Demers, L.; Cuccia, L.; Brown, G. R.; Lennox, R. B.
Chem.sEur. J. 1996, 2, 359-363.
(
86) Whetten, R. L.; Khoury, J. T.; Alvarez, M. M.; Murthy, S.; Vezmar, I.;
Wang, Z. L.; Stephens, P. W.; Cleveland, C. L.; Luedtke, W. D.; Landman,
U. AdV. Mater. 1996, 8, 428-433.
(87) Ohara, P. C.; Leff, D. V.; Heath, J. R.; Gelbart, W. M. Phys. ReV. Lett.
1995, 75, 3466-3469.
8
2
nm, which is in good agreement with earlier reports. Impor-
tantly, TEM imaging of the final product 8 reveals the presence
of spherical particles with a very similar average size of ∼2
nm (Figure 3b), which implies that, during the coupling of
(
88) Daniel, M.-C.; Astruc, D. Chem. ReV. 2004, 104, 293-346.
(89) Hostetler, M. J.; Wingate, J. E.; Zhong, C.; Harris, J. E.; Vachet, R. W.;
Clark, M. R.; Londono, J. D.; Green, S. J.; Stokes, J. J.; Wignall, G. D.;
Glish, G. L.; Porter, M. D.; Evans, N. D.; Murray, R. W. Langmuir 1998,
14, 17-30.
11658 J. AM. CHEM. SOC.
9
VOL. 129, NO. 37, 2007

Paclitaxel-Functionalized Gold Nanoparticles
A R T I C L E S
an analysis reveals a system containing a well-defined number
of paclitaxel molecules with near uniform composition, as
evidenced by SEC, NMR, TEM, and TGA experiments. Perhaps
most importantly, this approach allows for a more accurate
measurement of biological activity as a result of the increased
ability to quantify the amount of drug present. An investigation
into the biological activity of this system is ongoing and will
be reported in due course.
Experimental Section
Unless otherwise stated, all starting materials were obtained from
1
commercial suppliers and used without further purification. H NMR
3
spectra were recorded in CDCl using a Bruker 400 MHz spectrometer.
Size Exclusion Chromatography (SEC) analysis was performed on a
Waters Breeze 1515 series liquid chromatograph equipped with a dual
λ absorbance detector (Waters 2487), automatic injector, and three
styrogel columns (HR1, HR3, HR4) using linear polystyrene standards
for the calibration curve and tetrahydrofuran (THF) as the mobile phase.
Thermogravimetric analysis was performed on a TA Instruments TGA
Q50. Samples (3.0-6.0 mg) were placed in platinum sample pans and
heated under an argon atmosphere at a rate of 10 °C/min to 100 °C
and held for 30 min to completely remove residual solvent. Samples
were then heated to 700 °C at a rate of 10 °C/min. TEM and HRTEM
imaging were performed on a JEOL 2100F transmission electron
microscope operating at 200 kV accelerating voltage. Samples were
Figure 4. TGA data measuring the loss of organic material corresponding
to 4-mercaptophenol-coated Au NPs (red) and hybrid structure 8 (blue).
In order to corroborate the calculated number of paclitaxel
molecules, 8 was subjected to thermogravimetric (TGA) analysis
which allows for direct measurement of the weight content of
organic shell. As a control, 4-mercaptophenol-functionalized Au
NPs were first analyzed in order to measure the amount of
organic material (mercaptophenol ligands) present before the
coupling of 6. The result of this experiment reveals that thiol
ligands account for approximately 23.1% of the mass of stock
Au NPs (Figure 4, top). Coupled with the molar mass of
mercaptophenol (125 g/mol), each Au particle was found to
contain 126 functional sites. Using this same procedure, the
composition of 8 was determined to be 67.1% organic and
2 2
drop cast from dilute solutions of 10% THF in CH Cl onto carbon-
coated TEM grids and allowed to dry in open air. Centrifugal filters (2
mL capacity) Ultrafree-CL containing regenerated cellulose membranes
with a molecular weight cutoff of 30 000 g/mol were purchased from
Fisher Scientific Inc. 4-(N,N-Dimethylamino)pyridinium-4-toluene-
sulfonate (DPTS) was prepared by mixing saturated THF solutions of
N,N-dimethylaminopyridine (DMAP) (1 equiv) and p-toluenesulfonic
acid monohydrate (1 equiv) at room temperature. The precipitate was
filtered, washed several times with THF, and dried under vacuum.
Glutaric Acid Mono-triisopropylsilyl Ester. Triisopropylsilyl
chloride (TIPSCl) (3.2 g, 16.6 mmol) was introduced dropwise into a
solution of 2.0 g (15.1 mmol) of glutaric acid in 25 mL of DMF. The
reaction vessel was then equipped with a rubber septum, and under
rigorous agitation, 1.45 g (16.5 mmol) morpholine were slowly injected
via syringe. After 5 min the reaction was stopped by diluting the mixture
3
2.9% metallic Au. Since the molecular weight of the gold core
is 53 kDa, the total molecular weight of organic shell is then
08 kDa. Assuming that the number of mercaptophenol ligands
1
remained constant, the molecular weight of HEG-paclitaxel
moieties is 92.3 kDa (108 000 - 126‚MC H OS), which gives
6
5
approximately 69 molecules per particle. This remarkable
agreement between the TGA data and the estimation based on
the mass gain upon coupling reaction indicates the reliability
and high accuracy of both methods. These results also reveal
the high efficiency of the synthetic strategy used for the
preparation of hybrid structures described here. To the best of
our knowledge, the organic content (67.1 wt %) in nanoparticles
5
-fold with dichloromethane, removing DMF and morpholine by
washing the organic solution 4 times with DI water followed by one
extraction using an aqueous solution of 3% citric acid. The solvent
was then reduced on a rotary evaporator at 40 °C, and the crude product
was purified by column chromatography using 5% THF/CH
eluent (R ) 0.60). The result was a colorless oil with a typical yield
of 1.70 g (39%). H NMR (400 MHz, CDCl
2 2
Cl as an
f
1
a
8
is the highest value reported for any hybrid structures to date.
3
) δ 1.06 (d, 18H) , 1.30
m, 3H) , 1.95 (m, 2H), 2.44 (t, 4H); C NMR (100 MHz, CDCl ) δ
12.17, 17.64, 20.08, 33.09, 34.69, 172.99, 179.24; IR (neat) νmax 2948,
b
13
(
3
It significantly exceeds the records reported for polymer-
9
0
functionalized Au NPs with a high grafting density (56.5%).
-
1
1
716, 1211, 1060, 1001, 883, 684 cm ; SEC (254 nm, THF): MSEC
Therefore, our approach allows for the preparation of core-
shell nanostructures, which are well-defined in terms of their
size, the content of the organic layer, and the number of
molecules grafted to the inorganic core. Most importantly, one
can use this strategy to prepare hybrid systems with a high drug
loading capacity.
)
236; PDI ) 1.005.
Glutaric Acid Triisopropylsilyl Ester Hexaethylene Glycol Ester.
Mono-TIPS-glutaric acid (0.5 g, 1.7 mmol), hexaethylene glycol (2.5
g, 8.85 mmol), and DPTS (0.8 g, 2.7 mmol) were dissolved in 30 mL
of dichloromethane. After all components were in solution, 1 mL (7.7
mmol) of DIPC was added. Complete consumption of starting TIPS-
glutaric acid was observed by GPC after 2 h. The reaction was stopped
by diluting with dichloromethane and removing DPTS via five
extractions with DI water. The organic fraction was reduced, and the
Conclusion
A novel approach toward the preparation of a well-defined
drug-gold nanoparticle system has been described. The result-
ing hybrid structure is unique in that the small ratio of gold
core to organic shell allows for both solution and solid-state
characterization based on powerful analytical techniques. Such
product isolated by column chromatography eluting with 20% THF/
1
CH
2
Cl
2
(R
f
) 0.40). Yield 0.568 g (59%). HNMR (CDCl
3
) δ 1.06 (d,
a
b
1
8H) , 1.27 (m, 3H) , 1.93 (m, 2H), 2.40 (t, 4H), 3.67 (m, 22H), 4.21
(
m, 2H); 13C NMR (100 MHz, CDCl
3
) δ 11.86, 17.75, 20.33, 23.46,
3
3
3.20, 34.76, 61.66, 63.51, 69.10, 70.52, 72.62, 172.97; IR (neat) νmax
479, 2867, 1733, 1652, 1464, 1418, 1384, 1142, 949, 884, 744, 685
(
90) Corbierre, M. K.; Cameron, N. S.; Lennox, R. B. Langmuir 2004, 20, 2867-
-
1
2
873.
cm ; SEC (254 nm, THF): MSEC ) 378; PDI ) 1.002.
J. AM. CHEM. SOC. VOL. 129, NO. 37, 2007 11659
9

A R T I C L E S
Gibson et al.
2
′-OTBS-paclitaxel (2). A stock silylating solution was prepared
Compound 5. Compound 4 (191 mg, 0.18 mmol), mono-TIPS-
glutaric acid-HEG-OH (150 mg, 0.27 mmol), and DPTS (70 mg, 0.23
mmol) were dissolved in 2.0 mL of dichloromethane. DIPC (100 mg,
0.79 mmol) was added dropwise after 5 min. The reaction was complete
after 4 h as determined by GPC, and removal of DPTS was achieved
via four DI water extractions. The product was purified by column
by dissolving tert-butyldimethylsilyl chloride (TBSCl) (0.57 g, 3.8
mmol) and imidazole (7.6 mmol, 0.52 g) in 1.0 mL of dry DMF. Please
note that the final volume of the silylating solution was more than 1.0
mL. A 0.50 mL aliquot of this stock solution was then used to dissolve
00 mg (0.12 mmol) of paclitaxel. The reaction was monitored by TLC
using 1:1 (v/v) hexane/EtOAc as an eluent (product R ) 0.40). The
complete disappearance of starting Taxol (R ) 0.10) was observed
after 30 min, and the reaction was quenched by diluting with
dichloromethane and extracting DMF and imidazole with DI water.
The remaining dichloromethane solution was concentrated, and pre-
cipitation from hexane provided 110 mg of the final product as a white
1
f
f
chromatography using 1:3 (v/v) hexane/EtOAc as an eluent (R ) 0.65).
1
f
Product (223 mg, 78% yield) was obtained as a colorless oil. H NMR
c
c
c
3
(CDCl ) δ -0.30 (s, 3H) , -0.02 (s, 3H) , 0.80 (s, 9H) , 1.08 (broad,
a
b
18H) , 1.16 (m, 3H) , 1.21 (m, 3H), 1.82-1.98 (m, 9H), 2.15-2.20
(broad, 4H), 2.33-2.45 (m, 5H), 2.57 (broad, 4H), 3.67 (m, 22H), 3.85
(m, 2H), 3.95 (d, 1H), 4.23 (broad, 8H), 4.34 (d, 1H), 4.67 (s, 1H),
4.95 (d, 1H), 5.65 (t, 1H), 5.71 (m, 2H), 6.26 (broad, 2H), 7.09 (d,
1H), 7.33 (m, 3H), 7.42 (m, 4H), 7.52 (m, 3H), 7.62 (m, 1H), 7.75 (d,
2H), 8.13 (d, 2H). SEC (254 nm, THF): MSEC ) 1110; PDI ) 1.002.
1
c
powder. Yield 97%. H NMR (CDCl
3
) δ -0.27 (s, 3H) , -0.03 (s,
H) , 0.81 (s, 9H) , 1.14 (s, 3H), 1.25 (s, 3H), 1.69 (s, 3H), 1.91-1.93
broad, 4H), 2.15 (m, 1H), 2.23 (s, 3H), 2.45 (m, 1H), 2.57-2.58 (broad,
c
c
3
(
4
1
H), 3.83 (d, 1H), 4.24 (d, 1H), 4.32 (d, 1H), 4.40 (m, 1H), 4.67 (s,
H), 5.00 (d, 1H), 5.69 (d, 1H), 5.72 (m, 1H), 6.30 (broad, 2H), 7.09
Compound 6.Compound 5 (100 mg, 62 µmol) was dissolved in
.0 mL of THF. While the mixture stirred vigorously, 5.6 mL of glacial
2
(d, 1H), 7.33 (m, 3H), 7.41 (m, 4H), 7.50 (m, 3H), 7.60 (m, 1H), 7.74
acetic acid were added. Last, 0.40 mL of DI H O was added dropwise,
2
1
3
(d, 2H), 8.13 (d, 2H); C NMR (100 MHz, CDCl
3
) δ -5.79, -5.25,
and the mixture was heated to 50 °C. TLC (1:3 mixture of hexane/
EtOAc) shows the complete conversion of the carboxyl protected
9
4
8
1
.65, 14.95, 18.17, 20.85, 22.31, 23.06, 25.54, 26.78, 35.60, 35.83,
3.26, 45.54, 55.69, 58.52, 71.43, 72.13, 75.11, 75.56, 79.13, 81.16,
4.46, 126.45, 127.01, 128.03, 128.79, 129.18, 130.24, 131.83, 132.95,
33.68, 134.07, 138.27, 142.44, 167.01, 170.14, 171.28, 171.38, 203.76;
compound (R
2 h. The reaction was quenched by diluting the mixture with
dichloromethane and washing several times with DI water. Precipitation
f
) 0.65) to the free carboxyl product (R ) 0.10) after
f
1
-
1
IR (neat) νmax 3441, 2930, 1733, 1652, 1581, 1125, 744 cm ; SEC
1
from hexane gave 82 mg (91% yield) of isolated product. H NMR
(254 nm, THF): MSEC ) 490; PDI ) 1.003.
c
c
c
(
3
CDCl ) δ -0.29 (s, 3H) , -0.02 (s, 3H) , 0.80 (s, 9H) , 1.21 (m, 3H),
Compound 3. Compound 2 (160 mg, 0.17 mmol), mono-TIPS-
1.82-1.98 (m, 9H), 2.15 (broad, 4H), 2.33-2.45 (m, 5H), 2.58 (broad,
4H), 3.66-3.70 (m, 24H), 3.95 (d, 1H), 4.23 (broad, 5H), 4.35 (d, 1H),
4.95 (d, 1H), 5.65 (t, 1H), 5.75 (m, 2H), 6.26 (broad, 2H), 7.11 (d,
1H), 7.33 (m, 3H), 7.43 (m, 4H), 7.52 (m, 3H), 7.62 (m, 1H), 7.75 (d,
glutaric acid (75 mg, 0.26 mmol), and DPTS (100 mg, 0.33 mmol)
were placed in a small vial and dissolved in 2.0 mL of dichloromethane.
Upon stirring for 5 min, DIPC (100 mg, 0.79 mmol) was added
dropwise to initiate coupling. After 4 h, the absence of starting 2 was
observed by GPC. The reaction was stopped via 5-fold dilution of the
reaction mixture with dichloromethane and four water extractions to
remove DPTS. The crude product was purified by column chromatog-
2H), 8.13 (d, 2H); 13C NMR (100 MHz, CDCl
) δ -5.81, -5.17, 10.91,
3
12.29, 14.61, 17.70, 18.13, 19.62, 20.02, 20.73, 23.01, 23.40, 25.54,
26.38, 33.22, 42.32, 43.37, 46.84, 55.69, 56.04, 63.45, 69.14, 70.57,
71.30, 74.56, 75.07, 78.56, 80.99, 84.01, 126.42, 127.02, 128.00, 128.77,
129.17, 130.22, 131.87, 132.74, 133.71, 134.08, 138.20, 140.87, 166.87,
167.26, 168.96, 169.90, 171.51, 172.10, 172.97, 173.15, 201.98; IR
(neat) νmax 2958, 1733, 1662, 1520, 1451, 1372, 1259, 1108, 838, 802,
raphy using 2:1 (v/v) hexane/EtOAc as an eluent (R
f
) 0.60). The yield
1
for this reaction was 163 mg (80%). H NMR (CDCl ) δ -0.29 (s,
3
c
c
c
a
b
3
1
2
(
(
7
)
H) , -0.01 (s, 3H) , 0.81 (s, 9H) , 1.07 (broad, 18H) , 1.17 (s, 3H) ,
.22 (m, 3H), 1.82-1.95 (m, 6H), 1.99 (s, 3H), 2.15-2.20 (broad, 4H),
.35-2.45 (m, 5H), 2.58 (broad, 4H), 3.95 (d, 1H), 4.23 (d,1H), 4.34
-
1
711 cm ; SEC (254 nm, THF): MSEC ) 990; PDI ) 1.003.
Au(HEG-Paclitaxel-2′OTBS) (7). Au(OH) NPs (9.5 mg) were
n
n
d, 1H), 4.68 (s, 1H), 4.95 (d, 1H), 5.65 (t, 1H), 5.72 (m, 2H), 6.28
broad, 2H), 7.09 (d, 1H), 7.33 (m, 3H), 7.43 (m, 4H), 7.51 (m, 3H),
.62 (m, 1H), 7.75 (d, 2H), 8.13 (d, 2H). SEC (254 nm, THF): MSEC
690; PDI ) 1.004.
Compound 4. A 5.6 mL aliquot of glacial acetic acid was added to
taken from a stock solution in i-propanol and dried on a rotary
evaporator at 45 °C. The dried particles were then washed 3 times with
dichloromethane to remove any residual isopropanol. 2′OTBS-Pacli-
taxel-7-GA-HEG-GA (20 mg, 14 µmol) and DPTS (12 mg, 40 µmol)
were dissolved in 2.0 mL of dichloromethane and added to the vessel
containing the dried hydroxyl-terminated nanoparticles. Please note that
a solution containing 150 mg (0.12 mmol) of 3 in 2.0 mL of THF.
After the dropwise addition of 0.40 mL of H O, the reaction mixture
was heated to 50 °C. The reaction was monitored by TLC eluting with
:1 (v/v) hexane/EtOAc. After 12 h, the complete conversion of
carboxyl protected compound (R ) 0.60) to the free carboxyl product
) 0.10) was observed. The reaction mixture was diluted with
2
the Au(OH)
mg (0.12 mmol) of DIPC was done after 5 min, followed by addition
of 1.0 mL of DMF to bring the Au(OH) NPs into solution. The reaction
n 2 2
NPs are not soluble in CH Cl . Dropwise addition of 15
2
n
f
was complete after 4 h as determined by GPC. DPTS and DMF were
removed after several washes with DI water, and the remaining
dichloromethane solution was evaporated on a rotary evaporator at 40
°C. The crude product was then dissolved in 10 mL of DMF and placed
in a 30 kDa regenerated cellulose membrane filter. The sample was
purified by ultracentrifugation at 3750 rpm until only one peak was
observed by GPC (high molar mass peak). The solution was then
(R
f
dichloromethane and washed 5 times with DI water. The organic
fraction was reduced on a rotary evaporator at 40 °C, and precipitation
1
from hexane yielded 122 mg (93%) as a white solid. H NMR (CDCl
3
)
c
c
c
δ -0.28 (s, 3H) , -0.02 (s, 3H) , 0.81 (s, 9H) , 1.22 (m, 3H), 1.82-
1
2
1
(
(
1
2
7
1
1
3
9
5
.90 (m, 6H), 1.99 (s, 3H), 2.15-2.20 (broad, 4H), 2.33-2.45 (m, 5H),
.58 (broad, 4H), 3.95 (d, 1H), 4.23 (d, 1H), 4.34 (d, 1H), 4.68 (s,
H), 5.00 (d, 1H), 5.65 (t, 1H), 5.72 (m, 2H), 6.28 (broad, 2H), 7.09
concentrated in Vacuo and precipitated from hexane, resulting in 27
1
mg of 7 in the form of a gray powder. H NMR (CDCl
3
) δ -0.30 (s,
c
c
c
d, 1H), 7.33 (m, 3H), 7.43 (m, 4H), 7.51 (m, 3H), 7.62 (m, 1H), 7.75
3H) , -0.02 (s, 3H) , 0.80 (s, 9H) , 1.21 (m, 3H), 1.81-1.98 (m, 9H),
2.15 (broad, 5H), 2.30-2.50 (m, 9H), 2.58 (broad, 6H), 3.64-3.68
(m, 24H), 3.95 (d, 1H), 4.21 (broad, 5H), 4.35 (d, 1H), 4.95 (d, 1H),
5.65 (t, 1H), 5.75 (m, 2H), 6.26 (broad, 2H), 7.09 (d, 1H), 7.33 (m,
3H), 7.42 (m, 4H), 7.52 (m, 3H), 7.65 (m, 1H), 7.75 (d, 2H), 8.12 (d,
1
3
d, 2H), 8.13 (d, 2H); C NMR (100 MHz, CDCl
3
) δ -5.81, -5.18,
0.91, 12.29, 14.61, 17.70, 18.14, 19.39, 20.69, 21.43, 23.01, 23.33,
5.54, 26.37, 32.88, 33.39, 35.55, 42.35, 43.37, 46.83, 55.70, 56.04,
1.32, 74.58, 75.07, 78.51, 81.01, 84.00, 126.42, 127.03, 128.01, 128.78,
29.18, 130.22, 131.89, 132.79, 133.70, 134.05, 138.18, 140.84, 166.83,
67.39, 169.04, 169.87, 171.53, 172.12, 177.60, 201.99; IR (neat) νmax
435, 2952, 2861, 2253, 1733, 1652, 1580, 1520, 1486, 1373, 1243,
2H); 13C NMR (100 MHz, CDCl
) δ -5.50, -5.43, 10.66, 14.26, 18.01,
3
19.74, 20.12, 21.35, 22.76, 24.26, 25.37, 26.05, 32.77, 43.54, 46.70,
48.62, 54.80, 55.90, 56.66, 63.42, 68.84, 70.36, 70.82, 71.51, 74.73,
75.09, 75.93, 77.23, 78.68, 79.01, 79.34, 80.46, 83.60, 127.56, 128.01,
128.26, 128.57, 128.76, 130.06, 130.40, 131.28, 133.17, 133.46, 135.08,
-
1
81, 913, 838, 782, 732, 648 cm ; SEC (254 nm, THF): MSEC
58; PDI ) 1.005.
)
11660 J. AM. CHEM. SOC.
9
VOL. 129, NO. 37, 2007

Paclitaxel-Functionalized Gold Nanoparticles
A R T I C L E S
1
2
8
1
38.84, 140.35, 165.70, 166.92, 169.13, 170.70, 171.80, 172.02, 172.75,
32.01, 32.79, 44.07, 47.34, 56.44, 57.17, 63.99, 67.91, 69.39, 70.92,
71.65, 74.96, 75.28, 75.72, 76.37, 77.77, 80.94, 84.03, 128.10, 128.36,
128.94, 129.37, 130.59, 130.96, 132.03, 133.63, 134.11, 135.54, 140.46,
141.15, 166.24, 167.32, 169.73, 171.15, 172.39, 173.34, 173.72, 202.68;
IR (neat) νmax 3418, 3061, 2955, 2359, 2342, 1734, 1654, 1602, 1580,
1522, 1483, 1370, 1236, 1107, 802, 715, 668 cm ; SEC (254 nm,
THF): MSEC ) 7000; PDI ) 1.05.
02.06; IR (neat) νmax 3446, 2951, 1733, 1634, 1539, 1484, 1398, 1126,
-
1
95, 839, 711 cm ; SEC (254 nm, THF): MSEC ) 10 500; PDI )
.02.
n n
Au(HEG-Paclitaxel) (8). Au(HEG-Paclitaxel-2′OTBS) (27 mg)
-
1
was dissolved in 1.5 mL of THF and transferred to a small polypro-
pylene vial. While the mixture stirred, 0.50 mL of HF in pyridine (70:
3
0, respectively) was added (Please note that safe laboratory practices
Acknowledgment. The authors gratefully acknowledge the
financial support provided by the National Science Foundation
DMR-0547399 and CBET-0506832) and Robert A. Welch
Foundation (L-C-003).
should be observed when handling HF). The deprotection was quenched
after 4 h by diluting the reaction mixture with dichloromethane and
washing several times with DI water. The organic fraction was reduced
(
1
and washed thrice with hexane, yielding 25 mg of a gray powder. H
Supporting Information Available: 1H NMR and 13C NMR
spectra of intermediate compounds, additional GPC traces and
calibration curve, FTIR, and DLS data. This material is available
free of charge via the Internet at http://pubs.acs.org.
NMR (CDCl
4
3
3
) δ 1.15-1.19 (m, 7H), 1.80-2.00 (m, 14H), 2.15 (s,
H), 2.20-2.50 (m, 13H), 2.51-2.70 (broad, 3H), 3.63-3.80 (m, 24H),
.91 (d, 1H), 4.21-4.28 (broad, 7H), 4.93 (d, 1H), 5.55 (t, 1H), 5.65
(d, 1H), 5.75 (d, 1H), 6.20 (broad, 2H), 7.15 (broad, 1H), 7.32-7.62
1
3
(m, 12H), 7.75 (d, 2H), 8.10 (d, 2H); C NMR (100 MHz, CDCl
3
) δ
1
1.14, 11.51, 14.28, 20.63, 20.98, 21.95, 23.03, 25.54, 25.92, 26.61,
JA075181K
J. AM. CHEM. SOC.
9
VOL. 129, NO. 37, 2007 11661
