168
T. Ma et al. / Catalysis Today 228 (2014) 167–174
fraction from methanol that is generated from syngas.
were obtained on an S-5200 microscope (Hitachi) operating at
10–15 kV.
Reaction processes using solid catalysts in near- and super-
critical solvents have received considerable attention in the fields
improved in the solvents. Supercritical hydrocarbon fluids have
been applied to the FTS to increase the hydrocarbon yield and to
suppress the generation of undesired products due to the efficient
extraction of products from catalysts [27–31]. In a manner similar
to the FTS reaction in the supercritical phase, the LPG synthesis from
syngas using a hybrid catalyst in a near-critical solvent of n-hexane
has been studied [32]. Efficient removal of heat generated during
the reaction by the near-critical fluid leads to improvements in the
stability of the catalyst as well as the selectivity for light hydrocar-
bons. In this paper, the term “near-critical” is used to connote the
region close to the critical temperature and pressure of n-hexane.
In this study we investigated the catalytic activity of a hybrid
catalyst composed of Cu-ZnO and Pd/ZSM-5 in a near-critical n-
hexane solvent in the conversion of syngas to hydrocarbons via
methanol. During the experimental trials, the reaction in the near-
critical phase was compared with those in conventional phases to
clarify the effect of the near-critical solvent on the catalytic activity

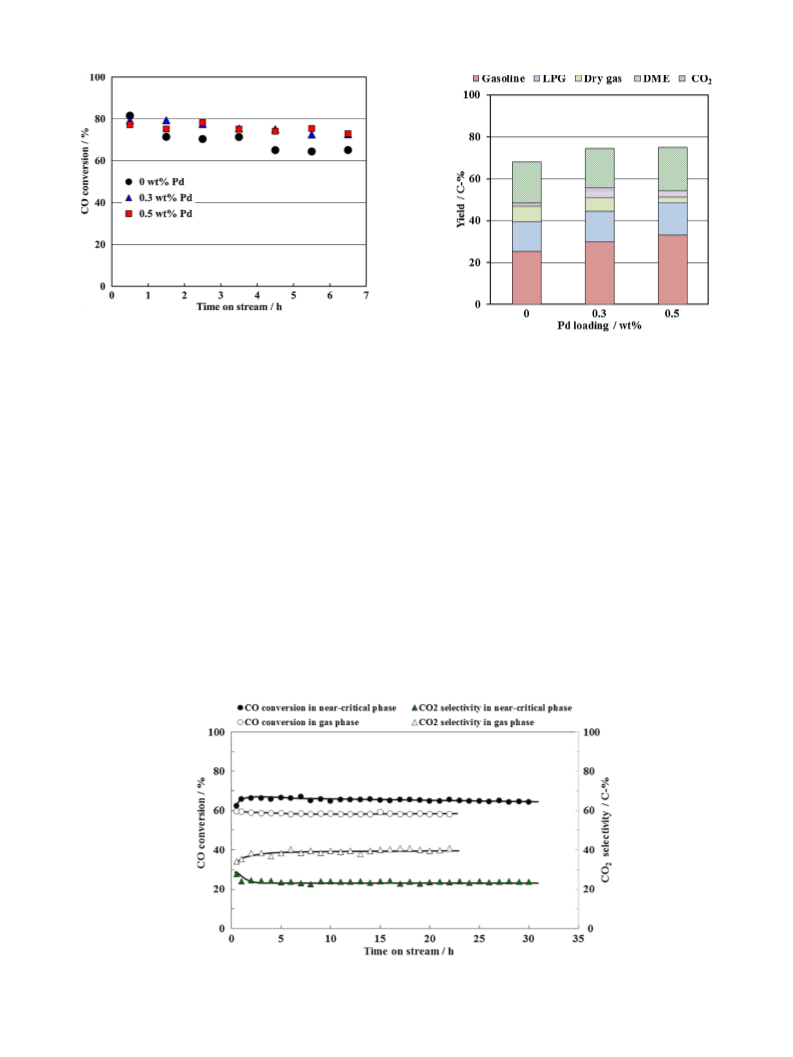

and product distribution. We also investigated the effects of the
acid amount and particle size of ZSM-5 as well as Pd loading on the
hydrocarbon yield.
Temperature programmed ammonia desorption (NH3-TPD)
profiles were recorded on BELCAT-B (BEL Japan). The sample was
pretreated under a He flow at 723 K for 1 h, and then cooled down
to 373 K. Ammonia was allowed to make contact with the sample
at 373 K for 1 h. Subsequently, the sample was evacuated to remove
weakly adsorbed ammonia at 373 K for 30 min. Finally, the sample
was heated from 373 K to 883 K at a raising rate of 10 K/min in a He
flow. The desorbed ammonia was monitored on a TCD.
Temperature programmed hydrogen desorption (H2-TPD) pro-
files were recorded on BELCAT-B (BEL Japan). The sample was
pretreated under a He flow at 473 K for 5 h, and then reduced under
10 vol% H2 balanced by He at 573 K for 10 h. After cooling down to
323 K, a mixed gas composed of 10 vol% H2 and He balance flowed
into the sample for 1 h. Finally, the sample was heated from 323 K to
923 K at raising rate of 10 K/min in a He flow. A mass spectrometer
was used to monitor the desorbed hydrogen (m/e = 2).
A pressurized flow type of reaction apparatus with a fixed-bed
reactor was used for this study. The experimental set-up scheme is
shown in Fig. 1. The apparatus was equipped with an electronic
temperature controller for a furnace, a vaporizer of a solvent, a
stainless tubular reactor with an inner diameter of 6 mm, thermal
mass flow controllers for gas flows and a back-pressure regulator. A
solvent was pumped into the reactor by a high-pressure pump. 1 g
of a hybrid catalyst was loaded in the reactor, and inert glass sand
was placed above and below the catalyst. The length of the catalyst
bed was about 6.0–6.5 cm. The catalyst was reduced in a flow of
a mixture of 5% hydrogen and 95% nitrogen with 100 mL min−1 at
573 K for 3 h. After the reduction of the catalyst, the catalyst was
cooled down to 473 K. Syngas (60% H2, 32% CO, 5% CO2, and 3%
Ar) and n-hexane as a solvent were introduced into the catalyst to
make the total pressure inside reach to 4.0 MPa in a He flow, and
then the catalyst was heated up to 553 K. The partial pressure of

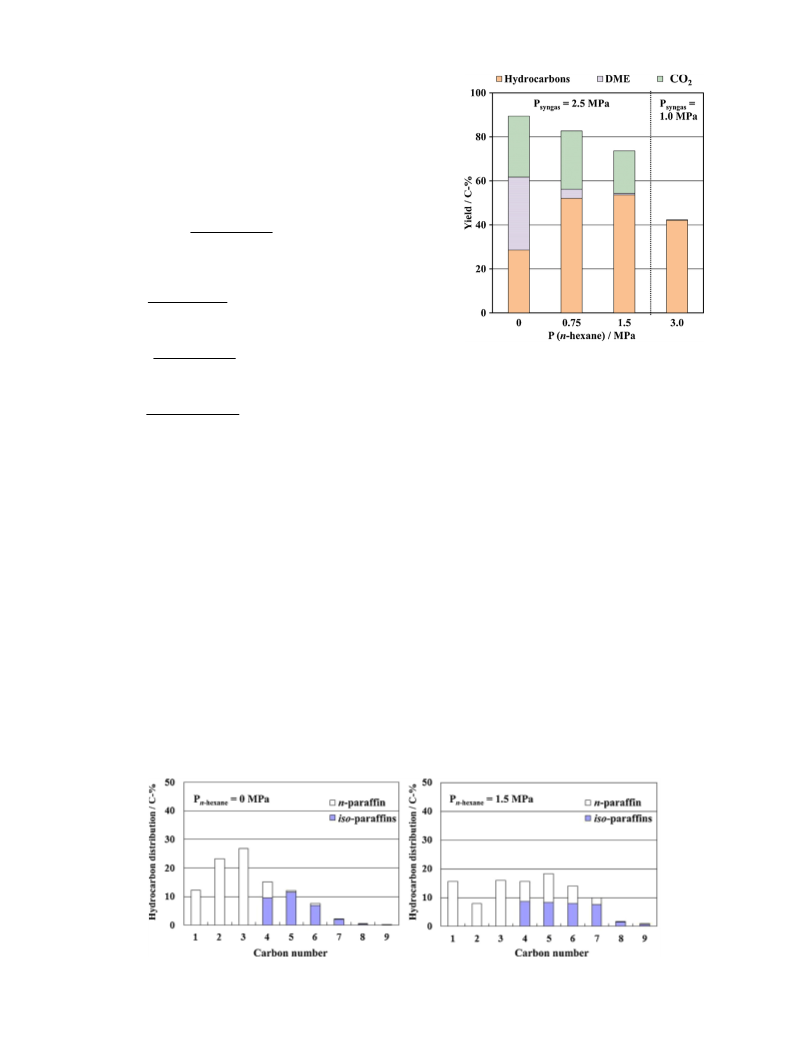

syngas, Psyngas, of 2.5 MPa was retained, and the partial pressure of
n-hexane, Pn-hexane, was varied from 0 MPa to 1.5 MPa. The catalyst
2. Experimental
2.1. Catalyst preparation
A hybrid catalyst was prepared by physically mixing the
355–710 m pellets of a Cu-ZnO methanol synthesis catalyst of
0.5 g with those of a Pd/ZSM-5 catalyst of 0.5 g. Cu-ZnO was a com-
mercial catalyst (MK-121, TOPSØE). Pd/ZSM-5 was prepared by
impregnation method with a 4.557 wt% Pd(NH3)2(NO3)2 aqueous
solution and commercial ZSM-5 with the SiO2/Al2O3 molar ratio of
+
23 (CBV2314, Zeolyst) or 80 (CBV8014, Zeolyst). Commercial NH4
-
type ZSM-5 was calcined at 823 K for 3 h to become proton-type
ZSM-5. Proton-type ZSM-5 was immersed in the Pd(NH3)2(NO3)2
aqueous solution with a supported Pd weight at room temper-
ature overnight. The resultant was evaporated at 333 K, dried at
393 K for 3 h, and calcined at 823 K for 3 h. In addition, a MFI zeo-
lite was hydrothermally synthesized by using an aluminosilicate
gel with the SiO2/Al2O3 ratio of 23 and tetrapropylammonium
hydroxide (TPAOH) as a structure-directing agent (SDA) at 443 K for
24 h, according to the previous report [33]. The obtained Na+-type
MFI zeolite was transformed to a proton-type MFI zeolite by ion-
exchange treatment with 2.2 M NH4NO3 aqueous solution followed
by calcination at 823 K for 3 h.
weight to the flow rate ratio (W/F-syngas) was 9.7 g-cat h/mol-syngas
.
CO, CO2 and CH4 of the reaction products were analyzed with an
on-line gas chromatograph (Shimadzu GC-8A) equipped with a
thermal conductivity detector (TCD) and a packed column of acti-
vated charcoal. The light hydrocarbon products were analyzed with
another on-line gas chromatograph (Shimadzu GC-2014) equipped
2.2. Characterization
The structure of the catalysts was examined by X-ray diffrac-
tion (XRD, Rigaku XRD-DSC-XII). The diffractometer was operated
at 40 kV and 20 mA using Cu-K␣ radiation source. XRD patterns
were recorded at 6 degree/min over the angular range of 5–50◦.
The SiO2/Al2O3 ratios of the samples were determined by X-ray
fluorescence analysis (XRF, Rigaku ZSX101E). The BET surface area
and micropore volume were estimated from nitrogen adsorption
isotherms at 77 K with a Micromeritics ASAP 2010 instrument. Prior
to the analyses, the sample was treated at 573 K for 3 h under nitro-
gen flow in order to remove adsorbed compounds. External surface
area (SEXT) was estimated by the t-plot method. Field-emission
scanning electron microscopic (FE-SEM) images of the catalysts
Fig. 1. Scheme of experimental set-up.
