Solvent-free ball-milling subcomponent synthesis of metallosupramolecular complexes

Article abstract of DOI:10.1002/chem.201500734

Subcomponent self-assembly from components A, B, C, D, and Fe²⁺ under solvent-free conditions by self-sorting leads to the construction of three structurally different metallosupramolecular iron(II) complexes. Under carefully selected ball-milling conditions, tetranuclear [Fe₄(AD₂)₆]^4- 22-component cage 1, dinuclear [Fe₂(BD₂)₃]^2- 11-component helicate 2, and 5-component mononuclear [Fe(CD₃)]²⁺ complex 3 were prepared simultaneously in a one-pot reaction from 38 components. Through subcomponent substitution reaction by adding subcomponent B, the [Fe₄(AD₂)₆]^4- cage converts quantitatively to the [Fe₂(BD₂)₃]^2- helicate, which, in turn, upon addition of subcomponent C, transforms to [Fe(CD₃)]²⁺, following the hierarchical preference based on the thermodynamic stability of the complexes.

Full text of DOI:10.1002/chem.201500734

DOI: 10.1002/chem.201500734
Communication
&
Supramolecular Complexes
Solvent-Free Ball-Milling Subcomponent Synthesis of
Metallosupramolecular Complexes
Chandan Giri,[a, b] Prasit Kumar Sahoo,[a] Rakesh Puttreddy,[b] Kari Rissanen,*[b] and
Prasenjit Mal*[a]
aminal-(bis)imine FeII-complex.[7] In all the above-mentioned
Abstract: Subcomponent self-assembly from components
A, B, C, D, and Fe2+ under solvent-free conditions by self-
sorting leads to the construction of three structurally dif-
ferent metallosupramolecular iron(II) complexes. Under
carefully selected ball-milling conditions, tetranuclear
[Fe4(AD2)6]4ꢀ 22-component cage 1, dinuclear [Fe2(BD2)3]2ꢀ
11-component helicate 2, and 5-component mononuclear
[Fe(CD3)]2+ complex 3 were prepared simultaneously in
a one-pot reaction from 38 components. Through sub-
component substitution reaction by adding subcompo-
nent B, the [Fe4(AD2)6]4ꢀ cage converts quantitatively to
the [Fe2(BD2)3]2ꢀ helicate, which, in turn, upon addition of
subcomponent C, transforms to [Fe(CD3)]2+, following the
hierarchical preference based on the thermodynamic sta-
bility of the complexes.
cases the dynamic behavior of the imine bond is the key factor
to control the self-assembly process.[8]
In the last few years, mechanochemistry,[9] as a solvent-free
synthesis method, has drawn great interest due to its advan-
tages over traditional solution-based methods,[10a] including
some self-assembling systems.[10b,c] The core benefit of mecha-
nochemistry is to avoid traditional work-up.[11] This advantage
has huge implications to green processes, shown to be eco-
nomical, time efficient, and environmentally friendly. Quantita-
tive conversion, less by-products, and no purification bring
extra benefits to this method. The mechanochemical synthesis
of small organic molecules is well explored,[12] also including
multistep synthesis[11c] and the synthesis of small mononuclear
ZnII, CuII, and NiII salen/salophen complexes has been recently
demonstrated by James and co-workers.[13]
However, unlike in solution, subcomponent synthesis of
complex supramolecular assemblies in absence of any solvent
is still rare. Herein we demonstrate that mechanochemistry,
under one-pot solvent-free ball-milling conditions offers a very
efficient route to prepare three distinct, structurally different,
water-soluble metallosupramolecular iron complexes from
their respective subcomponents by self-sorting from 38 com-
ponents. These metallosupramolecular complexes are a tetrahe-
dral [Fe4(AD2)6] cage 1 (22 components), a dinuclear [Fe2(BD2)3]
triple helicate 2 (11 components), and a mononuclear [Fe(CD3)]
complex 3 (5 components) (Figure 1), in which AD2, BD2, and
CD3 are the bis-, bis-, and tris-Schiff base ligands formed in situ
during the one-pot reaction.
The subcomponent self-assembly[1] is an integral part of self-
sorting reactions[2] in which ligands of the metallo-supramolec-
ular complexes are formed in situ from their subcomponents.
This concept has proved to offer a promising method for the
synthesis of high-purity products from complex mixtures of
starting materials.[3] The metal-ion-assisted subcomponent self-
assembly of a rigid aromatic linear bisamine, pyridine-2-carbox-
aldehyde, and iron(II) resulting in tetrahedral M4L6 cage in
water reported by the group of Nitschke and us opened a new
page on supramolecular tetrahedral complexes.[4] Recently, by
exploiting the same dynamic imine chemistry,[5] we have used
this concept to prepare the smallest possible tetrahedral M4L6
cage complex[6] and for the anion-controlled formation of an
The one-pot solvent-free ball-milling reaction emulates the
similar solution reaction[14] in which six equivalents of 4,4’-dia-
minobiphenyl-2,2’-disulfonic acid A, three equivalents of 6,6’-
oxybis(3-ammoniobenzenesulfonate) B, one equivalent of
tris(2-aminoethyl)amine C, 21 equivalents of 2-formyl pyridine
D, 18 equivalents of sodium bicarbonate, together with seven
equivalents of iron(II) sulfate heptahydrate are mixed together;
however, here they were mechanically milled without any sol-
vent in a ball mill (21 Hz) resulting in the same three metallo-
supramolecular complexes 1, 2, and 3 as in solution. This one-
pot solvent-free reaction cannot be considered a true solid-
state reaction as two of the components (C and D) are liquids.
Individually, under the same ball-milling conditions, the supra-
molecular complexes 1, 2, and 3 were also produced from
their respective subcomponents, A+D for 1, B+D for 2 and
C+D for 3.
[a] Dr. C. Giri,+ P. K. Sahoo,+ Dr. P. Mal
School of Chemical Sciences
National Institute of Science Education and Research (NISER) Bhubaneswar
Institute of Physics Campus
P.O. Sainik School, Bhubaneswar, Odisha 751005 (India)
E-mail: pmal@niser.ac.in
[b] Dr. C. Giri,+ Dr. R. Puttreddy, Prof. Dr. K. Rissanen
University of Jyvaskyla, Department of Chemistry
Nanoscience Center
P.O. Box. 35, 40014 University of Jyvaskyla (Finland)
E-mail: kari.t.rissanen@jyu.fi
[+] These authors contributed equally.
Supporting information for this article (including details of the experimen-
tal methods, spectroscopic investigations, synthetic procedure, characteriza-
tion data, and spectra of the complexes) is available on the WWW under
http://dx.doi.org/10.1002/chem.201500734.
Chem. Eur. J. 2015, 21, 1 – 5
1
ꢀ 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
&
&
These are not the final page numbers! ÞÞ

Communication
tone to remove the excess pyridine-2-aldehyde (1.1 equiv). The
complexes were characterized and their purity verified in com-
parison to the 1H NMR spectra of a standard sample of the
same complexes synthesized in water. The cage 1 was original-
ly synthesized in water in 20 h at 508C;[14] however, in here the
solvent-free ball-milling reaction times are 2 h for 1, 1 h for 2,
and 0.5 h for 3, respectively. The one-pot synthesis of 1, 2, and
3 took 2 h.
The X-ray structures of the tetraanionic tetrahedral cage 1 as
tetra-TMA (tetramethylammonium)+ and di-Fe(H2O)2+ salts[4,16]
and the mononuclear complex 3 as perchlorate,[17] tetrafluoro-
borate,[18] and hexafluorophosphate[19] salts have been report-
ed previously. But the X-ray structure of the triple-helicate 2
has been unknown prior to this study. The negatively (overall
2ꢀ) charged triple-stranded helicate 2 is structurally very simi-
lar to the corresponding nonsulfonated diphenyl ether Ni- and
Co-triple-helicates.[20] Whereas the Fe…Fe separation in 2 is
11.25 ꢁ, the Ni- and Co-helicates have Ni…Ni and Co…Co distan-
ces of 11.41 and 11.37 ꢁ, respectively (Figure 3). The triple-heli-
cate 2 has tighter helix structure, with a CꢀH…centroid dis-
tance of the adjacent phenyl ring of 2.80 ꢁ, when in the Ni-
and Co-diphenyl ether triple-helicates the same distance is
3.00 ꢁ.

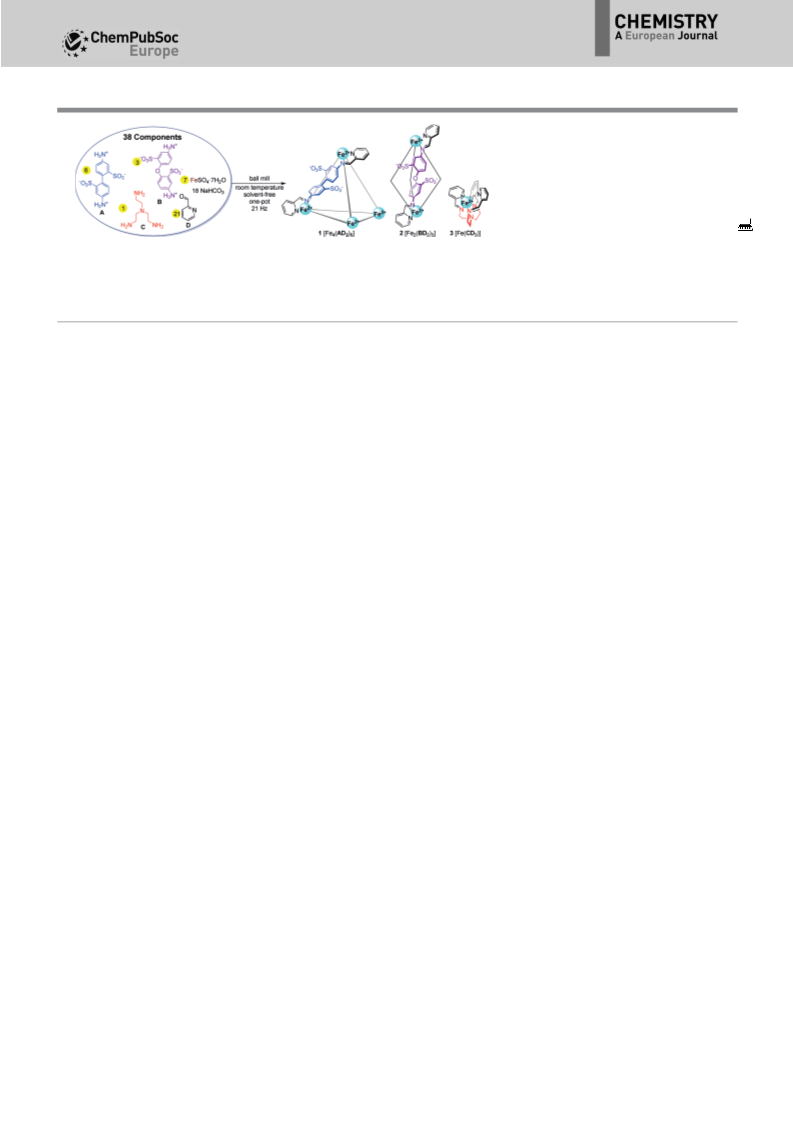

Figure 1. The one-pot solvent-free synthesis of 22-component [Fe4(AD2)6]4ꢀ
1, 11-component [Fe2(BD2)3]2ꢀ 2, and 5-component [Fe(CD3)]2+ 3. A slight
excess of 2-formylpyridine (D) was used (1.1 equivalent).
The one-pot and individual reactions were performed under
ambient conditions and monitored during the initial synthesis
1
tests using H NMR spectroscopy (Figure 2). During monitoring,
the ball-milling apparatus was stopped, a small portion of the
sample was extracted from the reaction chamber, and the
1H NMR spectrum was recorded in D2O. The final synthesis was
done in a fixed time and the products were removed, placed
on a paper filter, and washed with a minimum quantity of ace-
Figure 3. The X-ray structure of the Fe-triple-helicate 2.
Previous studies in solution[14] have established that com-
plexes 1, 2, and 3 can undergo transformation to a thermody-
namically more stable structure upon an appropriate subcom-
ponent substitution reaction. The role of the solvent has been
considered to be crucial for the transformation from the ther-
modynamically less stable complex to the thermodynamically
more stable complex, like 1!2. However, under solvent-free
conditions, due to restrictions of the molecular movements,
the concept of dynamic chemistry has not been explored or
defined. However, it has been anticipated that under ball-mill-
ing conditions the products formed are thermodynamically
controlled.
The well-defined differences in the thermodynamical stabili-
ty of 1, 2, and 3 enable post-assembly transformation (substi-
tution) chemistry to progress in a predictable, hierarchical path
also under solvent-free ball-milling conditions. The addition of
Figure 2. 1H NMR spectra of the complexes obtained under solvent-free ball
milling condition; a) 1, 2, and 3 from the one-pot reaction; individual reac-
tions b) 1, c) 2, d) 3.
&
&
Chem. Eur. J. 2015, 21, 1 – 5
www.chemeurj.org
2
ꢀ 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
ÝÝ These are not the final page numbers!

Communication

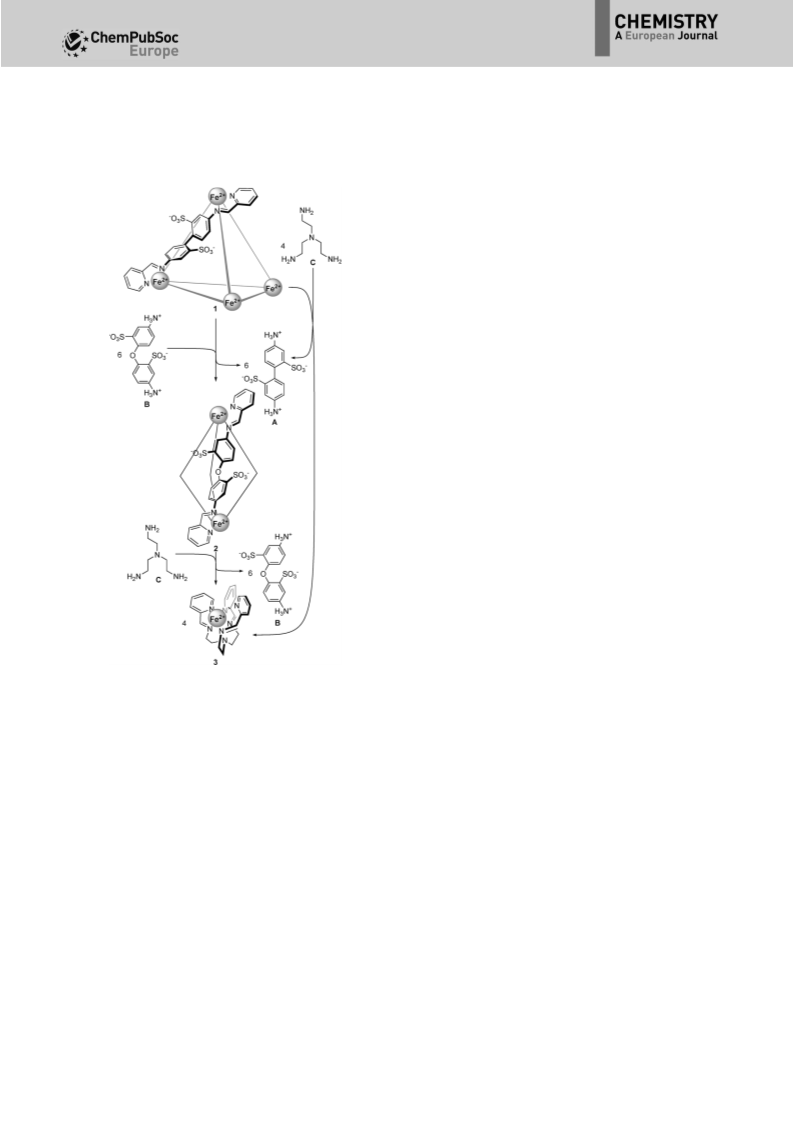

the tris-amine subcomponent C to either 1 or 2 under ball-
milling conditions yielded 3, with ejection of diamine subcom-
ponent A or B, respectively. Similarly adding B into 1 resulted
in 2, which could then subsequentially be transformed into 3
upon addition of C (Figure 4).
molecular networks which ultimately assist us to acquire new
systems[25] with properties and functions unlike any conven-
tional materials.[26] In other words, the dynamic self-sorting ap-
proach can enable easy access to certain materials of interests
by changing inputs in either sub- or multicomponent sys-
tems.[27] To the best of our knowledge, this is the first example
of a subcomponent self-assembly under solvent-free condition
in which both cationic (1 and 2) and anionic (3) complexes
were generated together.
In conclusion, an unprecedented example of self-sorting of
three distinct iron(II) complexes under solvent-free mechano-
milling condition has been demonstrated. The obtained three
distinct structures were obtained from 38 subcomponents in
one-pot reaction at room temperature. However, these com-
plexes were transformed to their smaller and more stable
counterparts upon subcomponent substitution under solvent-
free conditions. Currently, in our laboratory, we are focusing on
developing more complex supramolecular architectures whose
molecular recognition can be reversibly controlled to facilitate
control over product distribution of a particular system of in-
terest.
Experimental Section
Detailed experimental procedures are given in the Supporting In-
formation. All the complexes are known from literature and were
characterized using NMR spectroscopy.
During the transformation reaction from 2 to 3, silica gel (column
chromatography grade, 100–200 mesh) was used to avoid sticki-
ness at the milling ball. In absence of silica gel the reaction of 2 to
3 was unsuccessful.
One-pot ball-milling synthesis of 1, 2, and 3: Tris(2-ethylamino)-
amine A (1.46 mg, 10.0 mmol), 4,4’-diaminobiphenyl ether-2,2’-di-
sulfonic acid B (4.5 mg, 80%, balance water, 6.6 mmol), 4,4’-diami-
nobiphenyl-2,2’-disulfonic acid C (4.6 mg, 75%, balance water,
6.6 mmol), sodium bicarbonate (5.0 mg, 60 mmol), FeSO4·7H2O
(6.5 mg, 23.3 mmol), and 2-formyl pyridine (6.7 mL, 70 mmol) were
added in a 10 mL Teflon reaction chamber with a one 5 mm diame-
ter steel ball. After reaction the mixture was washed with acetone
Figure 4. The solvent-free post-assembly transformation (substitution) reac-
tion[15] of 1 and 2 leading to 3.
1
and dissolved in 0.5 mL D2O and H NMR spectra recorded.
Crystal data for 2: M=2160.60, violet block, 0.32ꢂ0.26ꢂ0.18 mm3,
¯
triclinic, space group P1, a=15.8610(8) ꢁ, b=15.9946(7) ꢁ, c=
Our focus on the competition among the iron complexes in-
cludes the flexibility/rigidity of their backbones and the entro-
py associated with degrees of freedom of mono-, di-, and
tetra-iron(II) complexes. The geometries of 1, 2, and 3 derive
from the flexibilities of their respective amine subcomponents:
To maximize entropy, each imine ligand will generate the
smallest self-assembled structure possible in which all iron(II)
ions are hexacoordinate and all imine nitrogen atoms are coor-
dinated to iron(II). As can be seen from the structural analysis
of the iron complexes, the number of building blocks presents
in the systems are 22, 11, and 5 for 1, 2, and 3, respectively.
22.5064(8) ꢁ, a=97.075(3)8, b=102.500(4)8, g=97.641(4)8, V=
5456.2(4) ꢁ3,
Z=2,
1calcd =1.315 gcmꢀ3
,
F000=2195,
m=
0.594 mmꢀ1, T=120 K, 2qmax =50.68, 19722 reflections used, 10748
with Io > 2s(Io), Rint =0.0965, 1502 parameters, 175 restraints, GoF=
1.076, R=0.1361 [Io > 2s(Io)], wR=0.3811 (all reflections), 1.122 <
D1 <ꢀ1.097 eꢁ3. CCDC-1043159 contain the supplementary crys-
tallographic data for this paper. These data can be obtained free of
charge from The Cambridge Crystallographic Data Centre via
www.ccdc.cam.ac.uk/data_request/cif.
Therefore the relative thermodynamic stability of the com- Acknowledgements
plexes could be as follows, 3>2>1. Thus the experimental
outcome shown in Figure 4 may be justified.
The Department of Science and Technology, New Delhi, India
Many self-sorting methodologies[2c,3b,21] are known in ’sys-
tems biology’.[22] However, the study of ’systems chemistry’[3c,23]
provides primary insights into the self-sorting principles[24] of
(PM, grant no. INT/FINLAND/P-06 and SR/S1/IC-59/2010) and
the Academy of Finland (KR, grant no. 263256 and 265328) are
acknowledged. P.K.S. thanks UGC India for a fellowship.
Chem. Eur. J. 2015, 21, 1 – 5
www.chemeurj.org
3
ꢀ 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
&
&
These are not the final page numbers! ÞÞ

Communication
tesberger, G. W. V. Cave, M. C. Ferrarelli, M. W. Heaven, C. L. Raston, J. L.
Atwood, Chem. Commun. 2005, 892–894.
Keywords: ball mill
·
dynamic imine chemistry
·
[11] a) T. K. Achar, S. Maiti, P. Mal, RSC Adv. 2014, 4, 12834–12839; b) T. K.
Achar, P. Mal, J. Org. Chem. 2015, 80, 666–672; c) S. Maiti, P. Mal, Synth.
Commun. 2014, 44, 3461–3469; d) A. Bose, P. Mal, Tetrahedron Lett.
2014, 55, 2154–2156.
[12] A. Stolle, T. Szuppa, S. E. S. Leonhardt, B. Ondruschka, Chem. Soc. Rev.
2011, 40, 2317–2329.
[13] M. Ferguson, N. Giri, X. Huang, D. Apperley, S. L. James, Green Chem.
2014, 16, 1374–1382.
[14] P. Mal, J. R. Nitschke, Chem. Commun. 2010, 46, 2417–2419.
[15] a) Y.-R. Zheng, W.-J. Lan, M. Wang, T. R. Cook, P. J. Stang, J. Am. Chem.
Soc. 2011, 133, 17045–17055; b) D. A. Roberts, A. M. Castilla, T. K.
Ronson, J. R. Nitschke, J. Am. Chem. Soc. 2014, 136, 8201–8204.
mechanochemistry · multicomponent synthesis · self-sorting ·
supramolecular chemistry
[1] a) P. D. Frischmann, V. Kunz, V. Stepanenko, F. Wꢃrthner, Chem. Eur. J.
2015, 21, 2766–2769; b) A. M. Castilla, W. J. Ramsay, J. R. Nitschke, Acc.
Chem. Res. 2014, 47, 2063–2073; c) H. Bunzen, Nonappa, E. Kalenius, S.
Hietala, E. Kolehmainen, Chem. Eur. J. 2013, 19, 12978–12981; d) X.-P.
Zhou, Y. Wu, D. Li, J. Am. Chem. Soc. 2013, 135, 16062–16065; e) D. H.
Ren, D. Qiu, C. Y. Pang, Z. Li, Z. G. Gu, Chem. Commun. 2015, 51, 788–
791.
[2] a) Z. He, W. Jiang, C. A. Schalley, Chem. Soc. Rev. 2015, 44, 799–789;
b) C. Talotta, C. Gaeta, Z. Qi, C. A. Schalley, P. Neri, Angew. Chem. Int. Ed.
2013, 52, 7437–7441; Angew. Chem. 2013, 125, 7585–7589; c) M. Lal
Saha, M. Schmittel, Org. Biomol. Chem. 2012, 10, 4651–4684; d) S. Mu-
kherjee, P. S. Mukherjee, Chem. Commun. 2014, 50, 2239–2248.
[3] a) J.-F. Ayme, J. E. Beves, C. J. Campbell, D. A. Leigh, Chem. Soc. Rev.
2013, 42, 1700–1712; b) T. Mitra, K. E. Jelfs, M. Schmidtmann, A.
Ahmed, S. Y. Chong, D. J. Adams, A. I. Cooper, Nat. Chem. 2013, 5, 276–
281; c) N. Giuseppone, Acc. Chem. Res. 2012, 45, 2178–2188.
´
[16] a) T. K. Ronson, C. Giri, B. N. Kodiah, A. Minkkinen, F. Topic, J. J. Holstein,
K. Rissanen, J. R. Nitschke, Chem. Eur. J. 2013, 19, 3374–3382; b) P. Mal,
B. Breiner, K. Rissanen, J. R. Nitschke, Science 2009, 324, 1697–1699.
[17] G. Brewer, C. Luckett, L. May, A. M. Beatty, W. R. Scheidt, Inorg. Chim.
Acta 2004, 357, 2390–2396.
[18] R. M. Kirchner, C. Mealli, M. Bailey, N. Howe, L. P. Torre, L. J. Wilson, L. C.
Andrews, N. J. Rose, E. C. Lingafelter, Coord. Chem. Rev. 1987, 77, 89–
163.
[19] K. Boubekeur, A. Deroche, F. Lambert, I. Morgenstern-Badarau, Acta
Crystallogr. Sect. A 1995, 51, 2244–2246.
[20] H. Cheng, D. Chun-ying, F. Chen-jie, M. Qing-jin, J. Chem. Soc. Dalton
Trans. 2000, 2419–2424.
[21] M. M. Safont-Sempere, G. Fernꢅndez, F. Wꢃrthner, Chem. Rev. 2011, 111,
5784–5814.
[22] J. Snoep, H. Westerhoff, in Systems Biology, Vol. 13 (Eds.: L. Alberghina,
H. V. Westerhoff), Springer, Heidelberg, 2005, pp. 13–30.
[23] a) J. R. Nitschke, Nature 2009, 462, 736–738; b) R. F. Ludlow, S. Otto,
Chem. Soc. Rev. 2008, 37, 101–108.
[24] R. Chakrabarty, P. S. Mukherjee, P. J. Stang, Chem. Rev. 2011, 111, 6810–
6918.
[25] K. Ruꢆz-Mirazo, C. Briones, A. de La Escosura, Chem. Rev. 2014, 114, 285–
366
[26] a) E. R. Kay, D. A. Leigh, F. Zerbetto, Angew. Chem. Int. Ed. 2007, 46, 72–
191; Angew. Chem. 2007, 119, 72–196; b) B. Lewandowski, G. De Bo,
J. W. Ward, M. Papmeyer, S. Kuschel, M. J. Aldegunde, P. M. E. Gramlich,
D. Heckmann, S. M. Goldup, D. M. D’Souza, A. E. Fernandes, D. A. Leigh,
Science 2013, 339, 189–193.
[27] a) J. Brinkmann, E. Cavatorta, S. Sankaran, B. Schmidt, J. van Weerd, P.
Jonkheijm, Chem. Soc. Rev. 2014, 43, 4449–4469; b) A. Herrmann, Chem.
Soc. Rev. 2014, 43, 1899–1933; c) M. M. J. Smulders, I. A. Riddell, C.
Browne, J. R. Nitschke, Chem. Soc. Rev. 2013, 42, 1728–1754.
[4] P. Mal, D. Schultz, K. Beyeh, K. Rissanen, J. R. Nitschke, Angew. Chem. Int.
Ed. 2008, 47, 8297–8301; Angew. Chem. 2008, 120, 8421–8425.
[5] a) M. E. Belowich, J. F. Stoddart, Chem. Soc. Rev. 2012, 41, 2003–2024;
ˇ
´
b) K. Osowska, O. S. Miljanic, Angew. Chem. Int. Ed. 2011, 50, 8345–
8349; Angew. Chem. 2011, 123, 8495–8499; c) J.-M. Lehn, Angew. Chem.
Int. Ed. 2015, DOI: 10.1002/anie.201409399.
[6] C. Giri, F. Topic, P. Mal, K. Rissanen, Dalton Trans. 2014, 43, 17889–
17892.
´
[7] C. Giri, F. Topic, P. Mal, K. Rissanen, Dalton Trans. 2014, 43, 15697–
15699.
[8] a) S. Fischmann, U. Lꢃning, Isr. J. Chem. 2013, 53, 87–96; b) K. Acharyya,
S. Mukherjee, P. S. Mukherjee, J. Am. Chem. Soc. 2013, 135, 554–557;
c) S. K. Samanta, J. W. Bats, M. Schmittel, Chem. Commun. 2014, 50,
2364–2366.
[9] a) R. S. Varma, Green Chem. 2014, 16, 2027–2041; b) G. Cravotto, E. C.
Gaudino, P. Cintas, Chem. Soc. Rev. 2013, 42, 7521–7534; c) D. Braga, L.
Maini, F. Grepioni, Chem. Soc. Rev. 2013, 42, 7638–7648;d) S. L. James,
C. J. Adams, C. Bolm, D. Braga, P. Collier, T. Friscic, F. Grepioni, K. D. M.
Harris, G. Hyett, W. Jones, A. Krebs, J. Mack, L. Maini, A. G. Orpen, I. P.
Parkin, W. C. Shearouse, J. W. Steed, D. C. Waddell, Chem. Soc. Rev. 2012,
ˇˇ ´
41, 413–447; e) T. Friscic, I. Halasz, P. J. Beldon, A. M. Belenguer, F.
Adams, S. A. J. Kimber, V. Honkimꢄki, R. E. Dinnebier, Nat. Chem. 2013, 5,
66–73; f) P. Balꢅz, M. Achimovicova, M. Balaz, P. Billik, Z. Cherkezova-
Zheleva, J. M. Criado, F. Delogu, E. Dutkova, E. Gaffet, F. J. Gotor, R.
Kumar, I. Mitov, T. Rojac, M. Senna, A. Streletskii, K. Wieczorek-Ciurowa,
Chem. Soc. Rev. 2013, 42, 7571–7637.
Received: February 23, 2015
[10] a) S. Ley, M. O’Brien, R. Denton, Synthesis 2011, 1157–1192; b) P. J. Nich-
ols, C. L. Raston, J. W. Steed, Chem. Commun. 2001, 1062–1063; c) J. An-
Published online on && &&, 0000
&
&
Chem. Eur. J. 2015, 21, 1 – 5
www.chemeurj.org
4
ꢀ 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
ÝÝ These are not the final page numbers!

Communication
COMMUNICATION
&
Supramolecular Complexes
C. Giri, P. K. Sahoo, R. Puttreddy,
K. Rissanen,* P. Mal*
&& – &&
Solvent-Free Ball-Milling
Subcomponent Synthesis of
Metallosupramolecular Complexes
Four different subcomponents self-
sorted around iron(II) templates to
create Fe4, Fe2, and Fe1 complexes
under ball milling. Input-controlled clear
hierarchical preferences were observed:
the Fe4 could be converted to Fe2 or
Fe1. Similarly Fe2 was switchable to Fe1
depending on the input used.
Chem. Eur. J. 2015, 21, 1 – 5
www.chemeurj.org
5
ꢀ 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
&
&
These are not the final page numbers! ÞÞ
