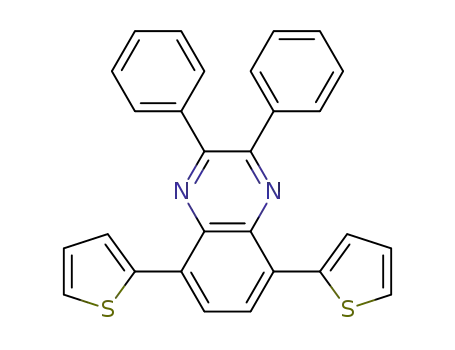

Kim et al. Synthesis and Characterization of Quinoxaline Derivative as Organic Semiconductors for Organic Thin-Film Transistors
quinoxaline-based organic semiconductors for the realiza-
tion of applications in organic electronics.
Acknowledgments: This study was supported by a
Research Grant of Pukyong National University (2016).
References and Notes
1
. (a) H. Sirringhaus, Adv. Mater. 26, 1319 (2014); (b) S. Vegiraju,
C. -M. Hsieh, D. -Y. Huang, Y. -C. Chen, P. Priyanka, J.-S. Ni, F. A.
Esya, C. Kim, S. L. Yau, C.-P. Chen, C.-L. Liu, and M.-C. Chen,
Dyes Pigm. 133, 280 (2016); (c) J. Yang, D. Yan, and T. S. Jones,
Chem. Rev. 115, 5570 (2015); (d) M. Ozdemir, D. Choi, G. Kwon,
Y. Zorlu, B. Cosut, H. Kim, A. Facchetti, C. Kim, and H. Usta,
ACS Appl. Mater. Inter. 8, 14077 (2016); (e) Y. B. Yuan, G. Giri,
A. L. Ayzner, A. P. Zoombelt, S. C. B. Mannsfeld, J. H. Chen,
D. Nordlund, M. F. Toney, J. S. Huang, and Z. Bao, Nat. Com-
mun. 5, 3005 (2014); (f) M. Ozdemir, D. Choi, G. Kwon, Y. Zorlu,
H. Kim, M.-G. Kim, S. Seo, U. Sen, M. Citir, C. Kim, and H. Usta,
RSC Adv. 6, 212 (2016); (g) X. Guo, A. Facchettim, and T. J. Marks,
Chem. Rev. 114, 8943 (2014); (h) J. Mei, Y. Diao, A. L. Appleton,
L. Fang, and Z. Bao, J. Am. Chem. Soc. 135, 6724 (2013); (i) J.-M.
Yun, D.-Y. Kim, and Y.-Y. Noh, Sci. Adv. Mater. 8, 450 (2016); (j)
J.-M. Yun, D.-Y. Kim, and Y.-Y. Noh, Sci. Adv. Mater. 8, 450 (2016);
(k) H.-C. Yu, G. Kwon, S. Vegiraju, C.-W. Chao, L.-H. Li, J.-S. Ni,
P.-Y. Huang, S. L. Yau, Y.-C. Chao, C. Kim, and M.-C. Chen, Dyes
Pigm. 126, 261 (2016).
2
. (a) X. Wang, B. Liu, Q. Lu, L. Meng, C. Li, W. Duan, and A. Tang,
Sci. Adv. Mater. 7, 2436 (2015); (b) J. Youn, S. Vegiraju, J. D. Emery,
B. J. Leever, S. Kewalramani, S. J. Lou, S. Zhang, K. Prabakaran,
Y. Ezhumalai, C. Kim, P.-Y. Huang, C. Stern, W.-C. Chang, M. J.
Bedzyk, L. X. Chen, M.-C. Chen, A. Facchetti, and T. J. Marks, Adv.
Electron. Mater. 1, 1500098 (2015); (c) W.-C. Chen, Q.-X. Tong, and
Delivered by Ingenta to: State University of New York at Binghamton
IP: 146.185.200.35 On: Fri, 09 Jun 2017 02:36:33
Copyright: American Scientific Publishers
C.-S. Lee, Sci. Adv. Mater. 7, 2193 (2015); (d) M. Kang, K. Chung,
K.-J. Baeg, D. H. Kim, and C. Kim, Appl. Phys. Lett. 106, 043302
2015); (e) S. K. Gupta, P. Jha, A. Singh, M. M. Chehimi, and D. K.
(
Aswal, J. Mater. Chem. C 3, 8468 (2015); (f) Y. Zang, F. Zhang,
D. Huang, X. Gao, C.-A. Di, and D. Zhu, Nat. Commun. 6, 6269
(2015); (g) X. Wang, B. Liu, Q. Lu, L. Meng, C. Li, W. Duan,
and A. Tang, Sci. Adv. Mater. 7, 2436 (2015); (h) J. S. Kim, D. I.
Kim, B. U. Hwang, Y. G. Seol, T. U. Kim, and N.-E. Lee, Sci. Adv.
Mater. 7, 1469 (2015); (i) M. A. M. Sarjidan, N. Jubri, S. H. Basri,
N. K. Zaaba, M. S. Zaini, S. N. Zaini, and W. H. A. Majid, Nanosci.
Nanotechnol. Lett. 6, 1035 (2014).
3
. (a) Y. Diao, B. C.-K. Tee, G. Giri, J. Xu, D. H. Kim, H. A. Becerril,
R. M. Stoltenberg, T. H. Lee, G. Xue, S. C. B. Mannsfeld, and
Z. Bao, Nat. Mater. 12, 665 (2013); (b) J. S. Kim and C. K. Song,
Thin Solid Films 589, 620 (2015); (c) V. Raghuwanshi, D. Bharti,
and S. P. Tiwari, Org. Electron. 31, 177 (2016); (d) V. Raghuwanshi,
D. Bharti, and S. P. Tiwari, Org. Electron. 31, 177 (2016); (e) D.-K.
Kim, J.-D. Oh, J.-W. Kim, H.-Y. Lee, and J.-H. Choi, J. Phys. Chem.
C 120, 13716 (2016).
Figure 7. AFM topographic image of thin films of compound 5 via
solution-shearing (a) and vacuum-deposition on PS substrates (b) at T =
D
ꢀ
ꢀ
20
C; (c) at T = 50 C), respectively. (Inset: ꢇ–2ꢇ XRD scans of the
D
corresponding thin films). Scale bar denotes 1 ꢀm.
4
. (a) M. C. Chen, S. Vegiraju, C. M. Huang, P. Y. Huang,
K. Prabakara, S. L. Yau, W. C. Chen, W. T. Peng, I. Chao, C. Kim,
and Y. T. Tao, J. Mater. Chem. C 2, 8892 (2014); (b) J. C.
Ribierre, L. Zhao, S. Furukawa, T. Kikitsu, D. Inoue, A. Muranaka,
K. Takaishi, T. Muto, S. Matsumoto, D. Hashizume, M. Uchiyama,
P. Andre, C. Adachi, and T. Aoyama, Chem. Commun. 51, 5836
4
. CONCLUSION
In this study, newly developed quinoxaline derivatives
were synthesized and characterized for organic thin-film
transistors. Devices were fabricated via solution process
and vacuum deposition process and exhibited p-channel
device characteristics with carrier mobility as high as 1.9×
(
2015).
5. (a) Y. Lin, H. Fan, Y. Li, and X. Zhan, Adv. Mater. 24, 3087 (2012);
b) G. Reginato, A. Mordini, L. Zani, M. Calamante, and A. Dessi,
(
Eur. J. Org. Chem. 2016, 233 (2016); (c) B. Fu, C.-Y. Wang, B. D.
Rose, Y. Jiang, M. Chang, P.-H. Chu, Z. Yuan, C. F. Hernandez,
B. Kippelen, J.-L. Bredas, D. M. Collard, and E. Reichmanis, Chem.
Mater. 27, 2928 (2015).
−4
2
1
0
cm /Vs. The magnitudes of the device performance
were relatively low due to the poor film microstructure. We
expect that our study would contribute to studies of new
J. Nanosci. Nanotechnol. 17, 5530–5538, 2017
5537
