M. Akbarian, E. Sanchooli, A.R. Oveisi et al.
Journal of Molecular Liquids 325 (2021) 115228
for 4 h at 80 °C, before being cooled to room temperature. After that, a
−1
dark yellow solid was obtained. FT-IR (ATR, cm ): 3293, 3024, 1630,
1
8
557, 1508, 1434, 1406, 1382, 1298, 1258, 1080, 1013, 1006, 952, 865,
23, 767, 644, 518, 473, 416.
2
.6. General procedure for the one-pot three-component synthesis of
chromenes
A typical mixture of aldehyde (1 mmol), malononitrile (1 mmol), 4-
hydroxycoumarin or α-naphthol (1 mmol), and ChCl@UiO-66-Urea
10 mg) in a test tube was stirred magnetically under solvent-free con-
(
dition at 80 °C for the indicated time (see Table 2). After the completion
of the reaction, monitored by thin layer chromatography (TLC) using n-
hexane/ethyl acetate (7:3 v/v), the organic compounds were dissolved
in low amount of chloroform. Then, the MOF-based catalyst was isolated
by centrifugation. After evaporation of the solvent, the residue was re-
crystallized from ethanol to afford the desired product. The products
were characterized by physical and spectroscopic data (Melting point,
1
13
FT-IR, H NMR, and C NMR) as given in supporting information (SI).
. Result and discussion
.1. ChCl@UiO-66-Urea characterization
4
UiO-66-NH was firstly synthesized starting from ZrCl and 2-
Fig. 2. Large-angle XRD patterns form bottom to up: UiO-66-NH
synthesized UiO-66-NH (green), UiO-66-Urea (blue), ChCl@UiO-66-Urea (brown), and
reused ChCl@UiO-66-Urea (gray).
2
(simulated, red), as-
3
2
3
2
aminoterephthalic acid via solvothermal condition according to the pre-
viously reported procedure [58,60]. Subsequently, the free amino
groups were reacted with 1,4-phenylene diisocyanate at 40 °C under ni-
trogen atmosphere for 48 h to yield urea moieties which are covalently

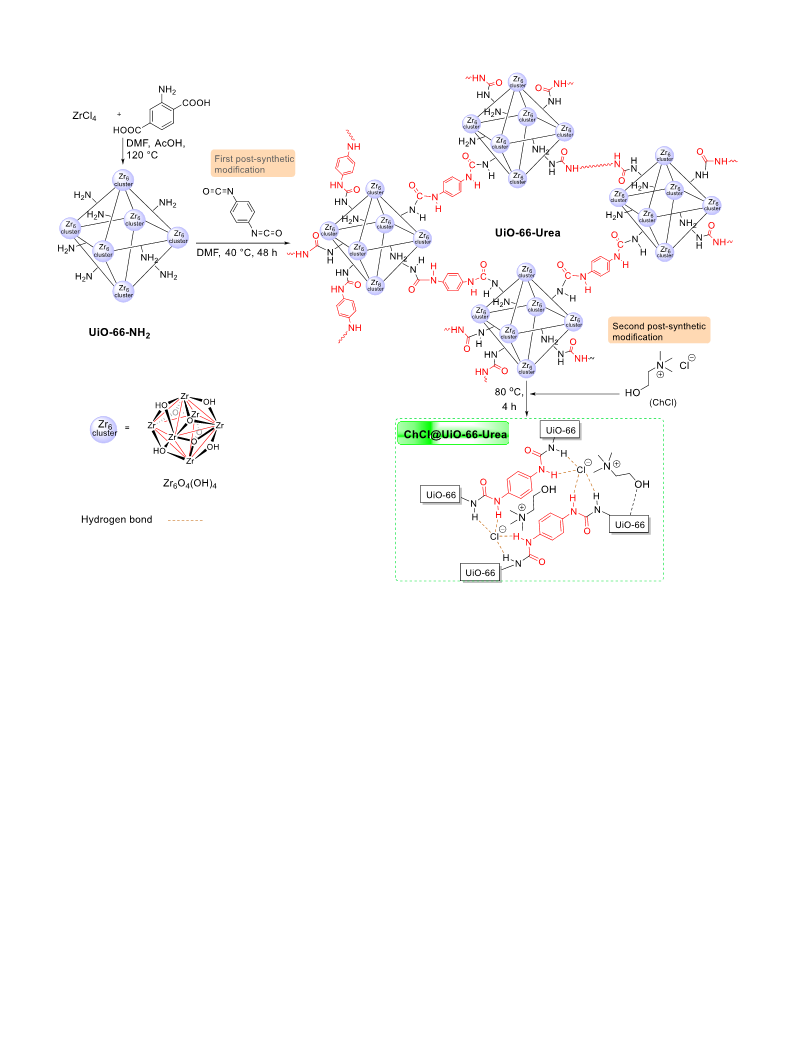

linked to UiO-66-NH (named UiO-66-Urea) (Scheme 1). Further, post-
2
synthetic modification of UiO-66-Urea with choline chloride (ChCl) re-
2
Subsequently, the crystallinity of as-synthesized UiO-66-NH , UiO-
66-Urea, and ChCl@UiO-66-Urea were evaluated by powder X-ray dif-
fractometer (PXRD). As shown in Fig. 2, all of the XRD patterns clearly
showed the reflection peaks of 2θ = 7.36, 8.50, 12.06, 14.12, 14.77,
17.06, 18.59, 19.08, 20.96, 22.20, 25.35, 25.69, and 30.68, which
corresponded, respectively, to (111), (200), (220), (311), (222), (400),
(331), (420), (422), (511), (531), (600), and (711) Bragg planes as the
sulted in in-situ formation of a deep eutectic solvent, might be similar to
+
−
ChCl-2Urea [23], [Choline] [Cl(urea)
2
] , into the UiO-66-Urea MOF
same those of the simulated and reported UiO-66-NH
2
[20,58,59,61].
(
named DES-UiO-66 or ChCl@UiO-66-Urea), in which urea comes
This result was proved that these three MOF structures are the same
from UiO-66-Urea and can act as hydrogen-bond donor whereas ChCl
can act as hydrogen-bond acceptor (Scheme 1).
2
and the pristine UiO-66-NH remained obviously intact after the post-
synthetic modifications.
The successful post-synthetic modifications can be initially assessed

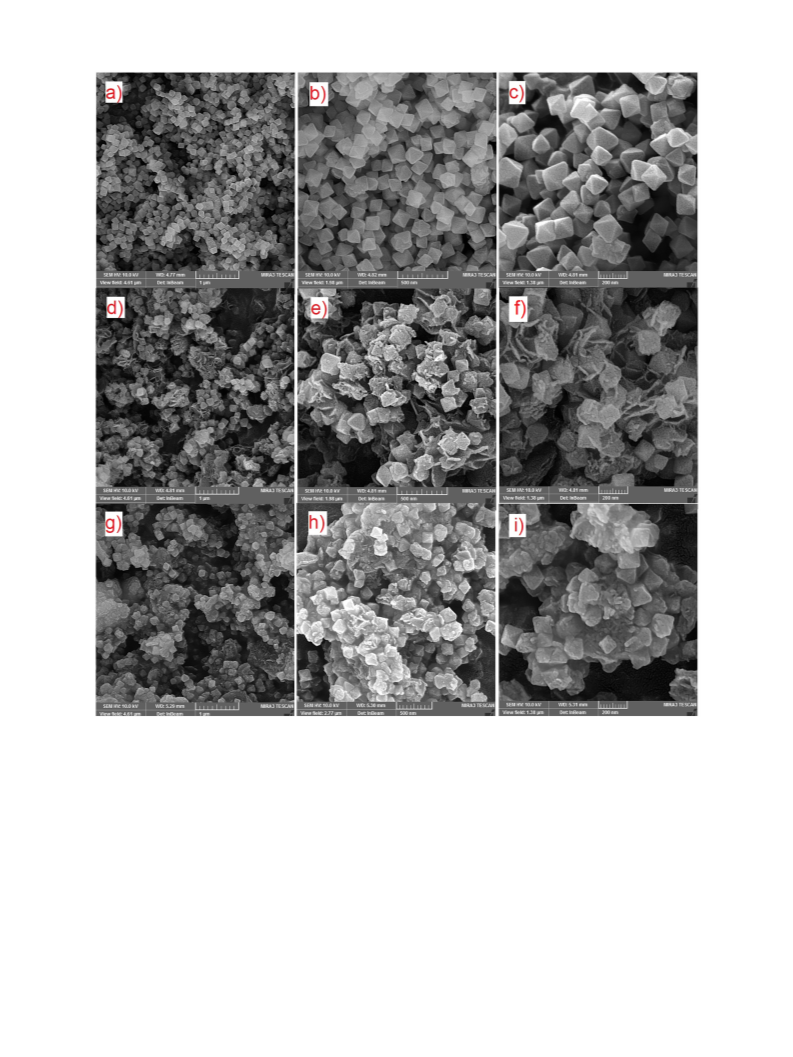

Besides, the morphology, shape, and size of UiO-66-NH
Urea, and ChCl@UiO-66-Urea were assessed by SEM (Fig. 3a–i). The im-
ages showed that the pristine UiO-66-NH particles have octahedral
morphology in the size range of 90 to 200 nm (Fig. 3a–c). In addition,
as given in the Fig. 3d–i, the primary MOF particles are remained un-
changed after the modification procedures. Further, the polymerization
of MOF particles through reacting with the diisocyanate in the second
process, and subsequently, their integration with ChCl, yielding the
2
, UiO-66-
by IR spectroscopy. FT-IR spectra of UiO-66-NH
2
, UiO-66-Urea, and
ChCl@UiO-66-Urea are shown in Fig. S1-S3. The peaks at 3469 and
2
−1
~
3360 cm are assigned to asymmetric and symmetric vibrations of
the amino groups in UiO-66-NH (Fig. S1). The peaks appeared at
657, 1573, 1494, 1383, and 1258 cm are attributed respectively to
2
−1
1
the stretching modes of C=O, O-C=O (asymmetric carboxylate), C=
C, O-C=O (symmetric carboxylate), and Caromatic-N bonds [58,61]. The
−1
observed intense peak at ~764 cm is ascribed to N-H wagging band
2
ChCl@UiO-66-Urea, deep eutectic solvent over the UiO-66-NH , are no-
−1
[
62]. Further peaks at lower frequencies between 475 and 664 cm
ticeable in the Fig. 3d–i. Next, energy dispersive X-ray (EDX) analysis of
the ChCl@UiO-66-Urea revealed the presence of the elemental composi-
tion of C (46.26 wt%), N (23.23 wt%), O (19.71 wt%), Zr (4.79 wt%), and
particularly Cl (6.01 wt%) in the material, approving the successful post-
synthetic modifications (Fig. S4). Moreover, the elemental mapping im-
ages of the respective MOF confirmed that the all elements (notably Cl)
were distributed homogenously in the whole framework (Fig. 4).

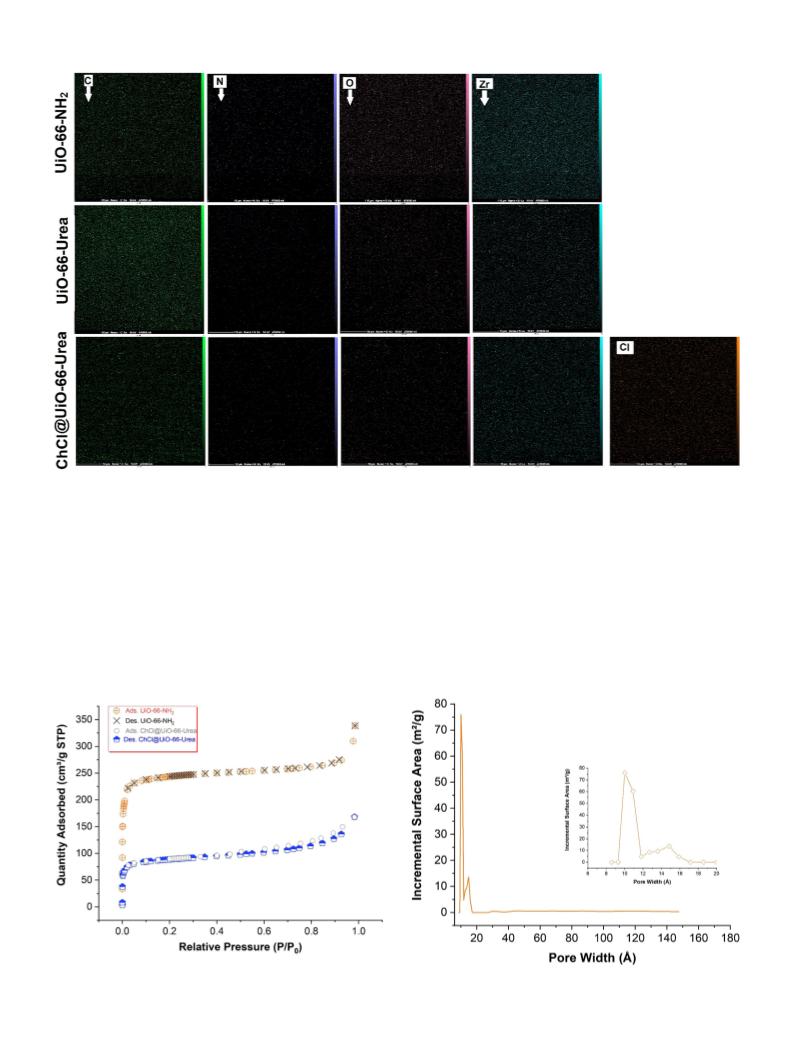

Nitrogen adsorption-desorption measurements indicated that
ChCl@UiO-66-Urea is prominently porous with a Brunauer-Emmett-
are related to -OH and -CH bending and Zr-O vibrations. The band cen-
−
1
tered at 664 cm is assigned to stretching mode of μ
20,62]. In IR spectrum of UiO-66-Urea (Fig. S2 in the Supporting Infor-
mation), the complete removal of the stretching band of -N=C=O of
3
−O in Zr-O-Zr
[
−1
the isocyanate at ~2250 cm was associated with appearance of the
new characteristic stretching bands of the urea moiety, N-H at
295 cm , C=O at 1630 cm , and N-C-N at 1300 cm [63]. At the
−1
−1
−1
3
same time, the bands related to the N–H-stretching vibrations of the
amino group are clearly diminished. These data confirm the urea forma-
tion and its linkage to the MOF, namely, UiO-66-Urea. After the last
post-synthetic modification of UiO-66-Urea with choline chloride, the
new characteristic bands of the ChCl are observed at 3024, 1080, 952,
2
−1
Teller (BET) surface area of 350 m
g
and a total pore volume of
3
−1
0.26 cm g (Fig. 5). The observed decrease in BET surface area from
UiO-66-NH to ChCl@UiO-66-Urea, respectively, from 850 m g of
2
350 m g , is due to the formation of urea linkages and their merging
with ChCl toward synthesis of the DES-UiO-66. Furthermore, the iso-
therm curve of the DES-UiO-66 is a typical type I shape which is repre-
sentative of a microporous material.
2
−1
2
−1
−1
and 865 cm , which are respectively related to the asymmetric bend-
ing -OH, rocking CH , asymmetric stretching of CCO, and stretching N-
CH [64] (Fig. S3). Additionally, the absorption band of UiO-66-Urea at
295 cm is moved to the lower wavenumber of 3293 cm and be-
2
3
−1
−1
3
Porosity distribution calculated from nitrogen sorption data by using
DFT model confirmed the presence of micropores (1–1.2 and ~1.5 nm)
in the framework (Fig. 6).
come broader as shown in the Fig. S3. It could be due to the strong hy-
drogen bonds formed between UiO-66-Urea and ChCl. These results
suggest the successful UiO-66-NH
the ChCl@UiO-66-Urea.
2
modifications toward formation of
Further, thermogravimetric analysis (TGA) was employed to evalu-
ate the thermal stability of MOFs. TG curves of UiO-66-NH , UiO-66-
2
4
