J. Phys. Soc. Jpn., Vol. 79, No. 12
LETTERS
K. KUDO et al.
either transition-metal (TM) atoms or arsenic atoms. The
difference between the two forms is due to the different
distributions of TM and arsenic over the aluminum sites.
These structures can be schematically visualized by plane
sequences along the c-axis: –As–TM–As–TM–As–TM– for
the CaBe2Ge2-type structure and –As–TM–As–As–TM–As–
for the ThCr2Si2-type structure. As can be seen from Fig. 1,
there exists a three-dimensional Pt–As network in SrPt As
2
2
with the CaBe Ge -type structure, whereas there is a two-
2
2
dimensional Fe–As network in BaFe2As2 with the ThCr2Si2-
type structure.
ρ
Despite the three-dimensional Pt–As network, a band
calculation indicates that the square lattice of Pt exhibits
23)
a Peierls instability in SrPt2As2. In accordance with this
prediction, SrPt2As2 exhibits a CDW transition at about
4
70 K. Imre et al. reported that a structural modulation
ꢀ
develops with a modulation vector of q ¼ 0:62a in the
–
4
As–Pt–As– layers with PtAs4 tetrahedra below about
70 K, whereas the –Pt–As–Pt– layers with Pt4As tetrahedra

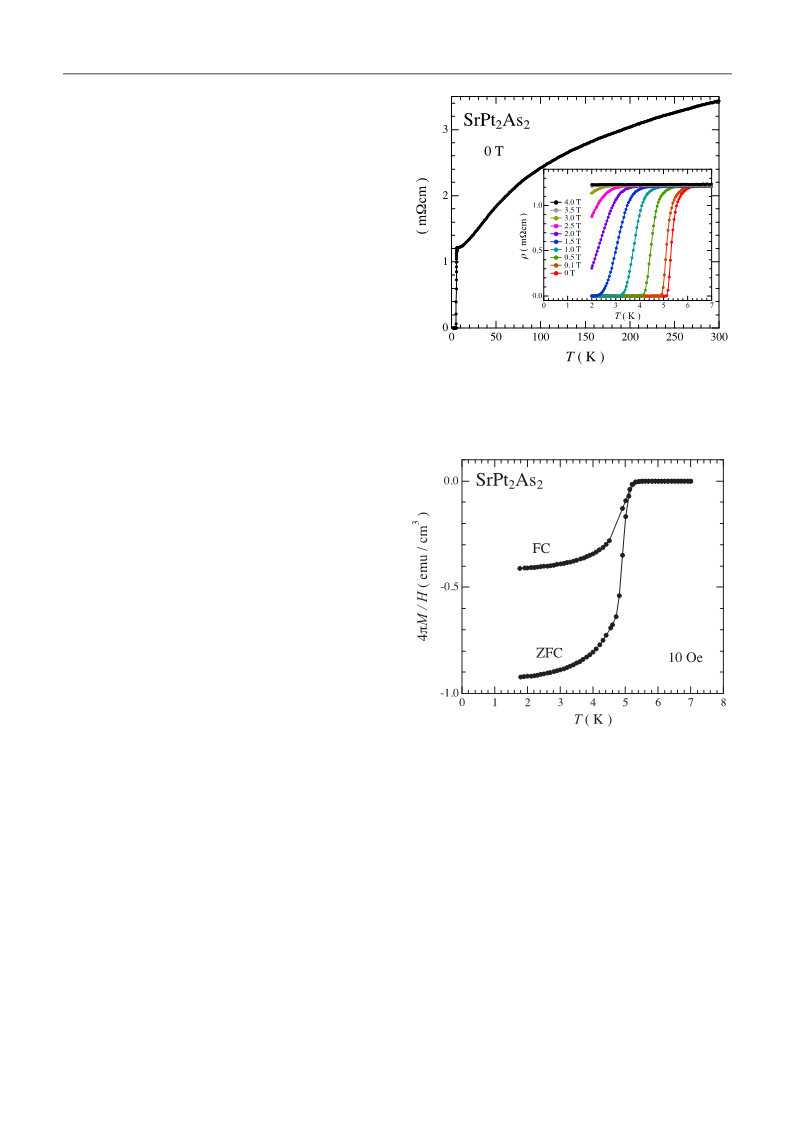

Fig. 2. (Color online) Temperature dependence of electrical resistivity ꢁ
for SrPt2As2 in zero field. The inset shows temperature dependence of ꢁ
in magnetic fields up to 4 T.
remain intact. This modulation leads to a structural dis-
tortion from the high-temperature tetragonal phase with
the CaBe2Ge2-type structure to the low-temperature CDW
phase with the average structure of the orthorhombic space
group Pmmn (#59). In this phase, superconductivity
emerges, as described in the following.
23)
Polycrystalline samples of SrPt2As2 were synthesized by a
solid-state reaction. PtAs2 precursor was first synthesized by
ꢃ
heating Pt powder and As grains at 700 C in an evacuated
quartz tube. Then, stoichiometric amounts of Sr, PtAs2, and
Pt powders were mixed and ground. The resulting powder
was placed in an alumina crucible and sealed into an
ꢃ
evacuated quartz tube. The ampule was heated at 700 C for
ꢃ
10 h and then at 1100 C for 24 h. After furnace cooling,
the sample was ground, pelletized, wrapped with Ta foil and
ꢃ
heated at 700 C for 10 h in an evacuated quartz tube. The
products were characterized by powder X-ray diffraction and
confirmed to be a single phase of SrPt2As2. The lattice
˚
˚
parameters were estimated to be a ¼ 4:46 A, b ¼ 4:51 A,
˚
and c ¼ 9:81 A, which are consistent with the previous
report.2 This result indicates that the sample is indeed in the
3)
CDW phase at room temperature.
Fig. 3. Temperature dependence of magnetization divided by applied
field, M=H, of SrPt2As2 at 10 Oe under zero-field-cooling (ZFC) and
field-cooling (FC) conditions.
Magnetization M was measured with a SQUID magne-
tometer (Magnetic Property Measurement System, Quantum
Design) from 1.8 to 7 K under a magnetic field of 10 Oe.
Electrical resistivity ꢁ was measured by the standard DC
four-terminal method in the temperature range between 2
and 300 K under magnetic fields up to 4 T using the Physical a modulation vector of q ¼ 0:62aꢀ persists down to low
Property Measurement System (PPMS, Quantum Design). temperatures where superconductivity emerges.
Specific heat C was measured by the relaxation method in
the temperature range between 2 and 7 K in zero field and in transition in detail. The 10–90% transition width was about
a magnetic field of 4 T using the PPMS. 0.4 K, and the onset temperature determined from the 10%
Figure 2 shows the temperature dependence of the resistiv- rule was 5.7 K. Zero resistivity was observed at 5.2 K. The
ity for a polycrystalline sample of SrPt As . The normal-state temperature-dependent magnetization data for this sample
The inset of Fig. 2 shows the resistive superconducting
2
2
resistivity was of the order of 1 mꢁ cm at low temperatures. are shown in Fig. 3, which exhibited a diamagnetic behavior
This relatively high value indicates that part of the Fermi below 5.2 K. The shielding and flux exclusion signals
surface is depleted by CDW formation. At high temperatures, correspond to 92 and 42% of perfect diamagnetism,
the resistivity exhibited an ‘‘S’’-shaped temperature depend- respectively. These data support the emergence of bulk
ence, which is characteristic of metal. We did not observe any superconductivity at Tc ¼ 5:2 K in SrPt2As2.
anomaly in the normal-state resistivity below 300K, indicating

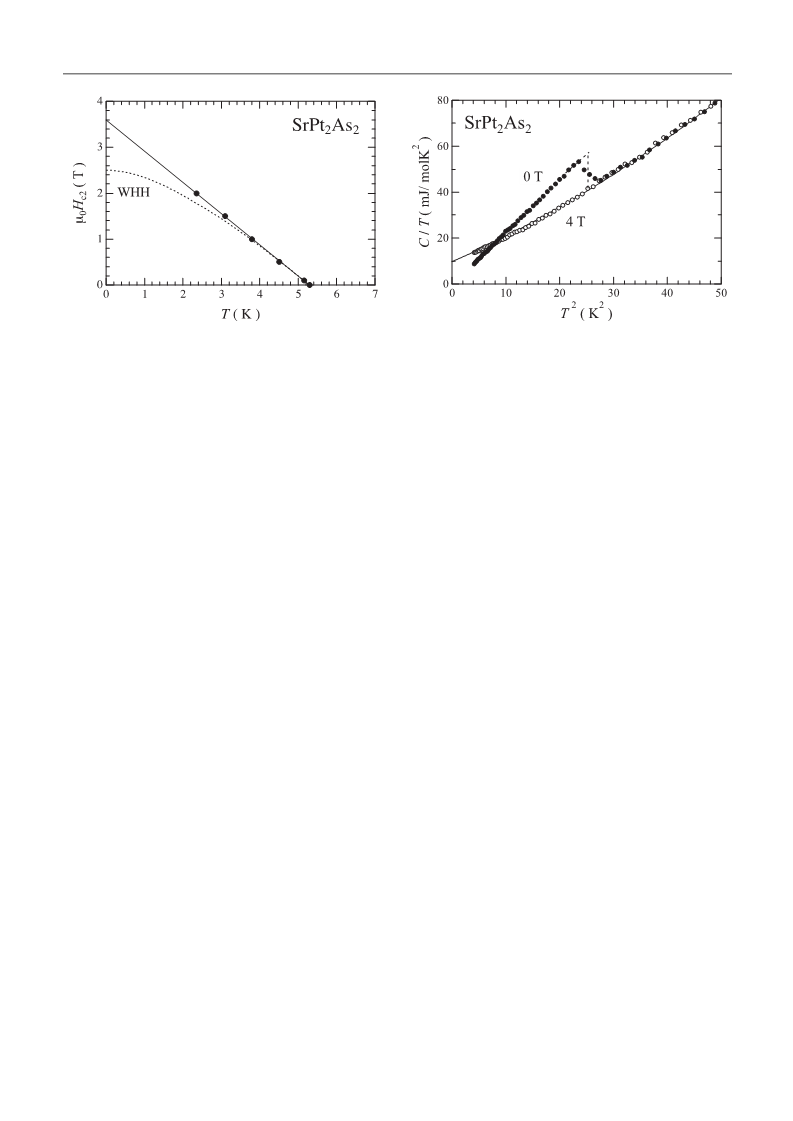

As shown in the inset of Fig. 2, Tc gradually decreased
the absence of transition from the incommensurate CDW to with increasing external magnetic field. The temperature
a commensurate CDW. Thus, the incommensurate CDW with dependence of the upper critical field Hc2 was determined
123710-2
