Three Resorcin[4]arene-Based Two-Dimensional Zn(II) Supramolecular Isomers Synthesized via a Structure-Directing Strategy for Knoevenagel Condensation

Strategy for Knoevenagel Condensation

Article

Three Resorcin[4]arene-Based Two-Dimensional Zn(II)

Supramolecular Isomers Synthesized via a Structure-Directing

Fei-Fei Wang, Ying-Ying Liu,* Wen-Yuan Pei, and Jian-Fang Ma*

Cite This: https://doi.org/10.1021/acs.inorgchem.1c00497

Read Online

ACCESS

Metrics & More

Article Recommendations

sı Supporting Information

ABSTRACT: Herein, in the presence of three structure-directing

agents (SDAs), a family of imidazole-functionalized resorcin[4]arene-

based coordination polymers (CPs), [Zn(TIC4R)(HCOO)]·HCOO·

.5DMF·1.5H O (1), [Zn(TIC4R)(CN)]·HCOO·DMF·2.5H O (2),

and [Zn(TIC4R)(H O)]·2HCOO·2H O (3), were assembled under

solvothermal conditions [TIC4R = tetra(imidazole) resorcin[4]arene].

exhibits a double-layer structure with rectangle windows, and 2 and 3

display monolayer structures. The layers of CPs 2 and 3 are slides with

diﬀerent oﬀsets along the a-axis. In addition, three CPs were used as

catalysts to catalyze Knoevenagel condensations. Strikingly, all CPs

exhibit remarkable catalytic performance for several substrates. To the

best of our knowledge, this is the ﬁrst time that a small organic acid as

SDA was used in the syntheses of resorcin[4]arene-based supra-

molecular isomers.

INTRODUCTION

separate and reuse the catalysts. Thus, the design and syntheses

of new heterogeneous catalysts have attracted a great deal of

■

Structure-directing agents (SDAs) are becoming an active

research area today, particularly in the ﬁelds of zeolite or

molecular sieve syntheses.

backbone of architectures but act as templates, space-ﬁlling

molecules, or counterions for charge balance in the pores.

4−36

attention.

heterogeneous catalysts because they have insoluble features

In this regard, CPs were often used as

−6

SDAs seldom appear in the ﬁnal

37,38

and uniformly distributed metal ions in their structures.

−9

Because of the considerations described above, we focused

on the construction and properties of resorcin[4]arene-based

(Scheme 1) CPs by introducing organic acids as SDAs. In this

work, three new CPs, [Zn(TIC4R)(HCOO)]·HCOO·

Commonly used SDAs include organic/inorganic acids,

polyoxometalatic acids, organic amines, and solvent mole-

0−12

cules.

preparation of coordination polymers (CPs).

Recently, SDAs began to be employed for the

8,13

By analyzing

previous works, we found that rational utilization of SDAs

0.5DMF·1.5H O (1), [Zn(TIC4R)(CN)]·HCOO·DMF·

could result in diﬀerent structures upon adjustment of the

.5H O (2), and [Zn(TIC4R)(H O)]·2HCOO·2H O (3),

14−16

dimensions of CPs.

were ﬁrst achieved by employing 2-sulfoterephthalic acid,

fumaric acid, and terephthalic acid as SDAs. Meaningfully, all

of the CPs exhibit excellent and recyclable heterogeneous

catalytic performances for Knoevenagel condensations. The

diﬀerent catalytic abilities of three isomeric CPs were

compared on the basis of the sizes of channels in their

structures.

As an important branch of supramolecular chemistry and

crystal engineering, supramolecular isomerism refers to the

phenomenon of diﬀerent networks with the same structural

units. It is an enormous challenge to design a supramolecular

7−22

isomerism system with SDAs.

alized resorcin[4]arenes, plenty of CPs with unique architec-

On the basis of function-

23−29

tures and diverse properties have been reported.

Although

POMs as SDAs have been applied in the syntheses of

resorcin[4]arene-based CPs, small organic acids as SDAs for

the syntheses of resorcin[4]arene-based supramolecular

Received: February 17, 2021

25,30,31

isomers have never before been reported.

As a crucial member of the C−C bond-forming reaction,

Knoevenagel condensation is a typical condensation between

32,33

aldehydes and methylene.

However, this reaction was

usually catalyzed by homogeneous catalysts, and it is hard to

XXXX American Chemical Society

Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry

Article

(

s), 1352 (m), 1283 (w), 1238 (s), 1149 (w), 1106 (s), 1092 (s),

062 (m), 1019 (m), 984 (s), 955 (s), 919 (m), 852 (w), 750 (m),

79 (w), 660 (m), 635 (w), 585 (w), 565 (w).

Scheme 1. Structure of TIC4R

Crystals of 3 (48% yield). Element analysis (%) calculated for

C H ZnN O : C, 57.78; H, 5.03; N, 10.00. Found: C, 58.02; H,

−1

.23; N, 9.67. IR data (KBr, cm ): 3396 (m), 3133 (w), 2972 (m),

593 (s), 1530 (m), 1475 (s), 1459 (s), 1435 (m), 1406 (m), 1359

(s), 1283 (w), 1238 (s), 1150 (w), 1106 (s), 1091 (s), 1063 (m),

018 (m), 984 (s), 956 (s), 920 (m), 894 (w), 856 (w), 816 (w), 799

(w), 755 (s), 679 (w), 661 (m), 634 (w), 586 (w), 567 (m).

RESULTS AND DISCUSSION

■

The SQUEEZE program in PLATON was used to reﬁne the

structures of 1−3, and the formulas of 1−3 were established by

diﬀuse electron density, thermogravimetric analysis, and

elemental analysis.

Structural Description of [Zn(TIC4R)(HCOO)]·HCOO·

EXPERIMENTAL SECTION

■

.5DMF·1.5H O (1). 1 crystallized in a tetragonal system, in

Synthesis of [Zn(TIC4R)(HCOO)]·HCOO·0.5DMF·1.5H O (1).

space group I4/m (Table 1). The independent unit of 1

A mixture of TIC4R (9 mg, 0.01 mmol), Zn(NO ) ·6H O (12 mg,

contains a quarter of a TIC4R ligand, a quarter of a Zn(II)

.04 mmol), 2-sulfoterephthalic acid monosodium salt (11 mg, 0.04

−

mmol), and 3.5 M HNO (two drops) was added to a DMF/H O

cation, and a quarter of a HCOO anion. A quarter of a free

−

solution [8 mL, 3/5 (v/v)] in a 15 mL Teﬂon reactor. Then, the

mixture was heated at 110 °C for 3 days. The crystals were formed in

a 45% yield based on TIC4R. Elemental analysis (%) calculated for

C H ZnN O : C, 59.54; H, 5.09; N, 10.73. Found: C, 59.22; H,

HCOO anion ﬂoats in the framework to balance the cationic

charge. The formula unit also contains half of a free DMF

molecule and one and a half free H O molecules. The Zn(II)

8.5 13

cation is ﬁve-coordinated with four N atoms from four

−

(

.01; N, 10.85. IR data (KBr, cm ): 3412 (w), 3132 (w), 2972 (m),

593 (s), 1531 (m), 1475 (s), 1460 (s), 1434 (m), 1405 (m), 1379

−

diﬀerent TIC4R ligands and a HCOO anion (Figure 1a).

Each TIC4R ligand connects with Zn(II) ions in a tetradentate

m),1357 (m), 1304 (m), 1283 (w), 1238 (s), 1149 (m), 1106 (s),

092 (s), 1062 (m), 1019 (s), 983 (s), 954 (s), 919 (s), 852 (w), 798

w), 752 (m), 679 (w), 660 (m), 621 (w), 585 (w), 565 (w), 499

w).

−

mode. It is worth noting that C14 of the HCOO anion lies at

an inversion center, and the Zn(II) ions are linked by

−

symmetry-related HCOO anions and TIC4R ligands to

Syntheses of [Zn(TIC4R)(CN)]·HCOO·DMF·2.5H O (2) and

generate a double layer (Figure 1b). The cavitands of TIC4R

are arranged in a face-to-face manner to aﬀord a channel with

dimensions of ∼10.3 Å × 2.4 Å when the van der Waals radii

of the atoms are taken into account (Figure 1c and Figure

S3a ).

[

Zn(TIC4R)(H O)]·2HCOO·2H O (3). CPs 2 and 3 were prepared by

2 2

an experimental procedure identical to that of 1 except that 2-

sulfoterephthalic acid monosodium salt was replaced with fumaric

acid (4 mg, 0.04 mmol) and terephthalic acid (7 mg, 0.04 mmol),

respectively.

Structural Descriptions of [Zn(TIC4R)(CN)]·HCOO·

Crystals of 2 (44% yield). Element analysis (%) calculated for

C H ZnN O : C, 58.64; H, 5.27; N, 12.00. Found: C, 58.19; H,

DMF·2.5H O (2) and [Zn(TIC4R)(H O)]·2HCOO·2H O (3).

10 13.5

−

.93; N, 12.61. IR data (KBr, cm ): 3394 (m), 3132 (w), 2971 (w),

668 (s), 1604 (s), 1522 (m), 1475 (s), 1434 (w), 1405 (m), 1384

When diﬀerent SDAs were used during the reaction, two other

supramolecular isomers were obtained. Crystallographic

Table 1. Crystallographic Data for CPs 1−3

formula

M_r

crystal system

space group

a (Å)

b (Å)

c (Å)

α (deg)

β (deg)

γ (deg)

V (Å³)

C H ZnN₈_.₅O₁₃

C H ZnN O

1167.52

triclinic

C H ZnN O

57 61

10 13.5

54 56

1109.45

tetragonal

I4/m

13.8032(3)

32.399(3)

1122.43

tetragonal

P4/n

13.79650(10)

15.8622(4)

13.7747(6)

13.8337(8)

17.0114(10)

111.443(6)

99.500(5)

90.175(4)

2968.7(3)

6172.9(6)

3019.27(9)

T (K)

298

1.194

2318

298

1.306

1222

298

1.235

1172

D_c_a_l_c(g/cm⁻³)

F(000)

R_i_n_t

0.0771

1.024

0.0572

0.1850

0.0428

0.970

0.0727

0. 2268

0.0229

1.052

0.0473

0.1436

goodness of ﬁt on F

R₁[I > 2σ(I)]

wR₂(all data)

R = ∑||F | − |F ||/∑|F |. wR = {∑[w(F − F ) ]/∑w(F ) }1/2_.

2 2

Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry

Article

Figure 1. (a) Coordination sphere of Zn(II) in 1 . (b) Layered structure of 1. (c) Two-dimensional packing structure of 1.

Scheme 3. Knoevenagel Condensations with Meldrum’s

Acid and Barbituric Acid

Table 3. Knoevenagel Condensations of Meldrum’s Acid

and Barbituric Acid with Benzaldehyde Catalyzed by 1−3

entry catalyst substrate time (min) temp (°C) conversion (%)

Figure 2. (a) Coordination sphere of Zn(II) in 2. (b) Two-

dimensional packing structure of 2. (c) Coordination sphere of Zn(II)

in 3. (d) Two-dimensional packing structure of 3.

Scheme 2. Schematic Drawing for the Knoevenagel

Condensations

−

is diﬀerent (Figure 2a,c). In CP 2, the coordinated HCOO

anion is replaced by the CN anion and the CN⁻is

−

monodentate, so the Zn(II) ions are linked by TIC4R ligands

−

to give a monolayer. The CN is produced by the

decomposition of DMF under hydrothermal conditions. In

−

Table 2. Knoevenagel Condensation of Malononitrile with

Benzaldehyde under Various Conditions

CP 3, the coordinated HCOO is replaced by a H O molecule,

and the structure is also a monolayer. The second diﬀerence

lies in the slide of the layers (Figure 2b,d). For 2, the layer

moves along the a-axis for ∼4.16 Å, forming a channel with

dimensions of ∼6.3 Å × 1.9 Å when the van der Waals radii of

the atoms are taken into account (Figure S3b). For 3, a

signiﬁcant slide of ∼6.90 Å along the a-axis results in a channel

with dimensions of 4.2 Å × 1.7 Å when the van der Waals radii

of the atoms are taken into account (Figure S3c). The levels of

slide lead to diﬀerent channels of three CPs, and the order of

the channel size is as follows: 1 > 2 > 3.

Knoevenagel Condensation. Considering the Lewis acid

Zn(II) sites in 1−3, their catalytic performances for

Knoevenagel condensation were evaluated under solvent-free

conditions (Scheme 2). The conversions were calculated by

gas chromatography (GC) (Figure S5). Before the catalytic

reaction, the crystals of 1−3 were soaked in acetone for 12 h

and then heated at 80 °C under vacuum for 12 h. To

investigate the optimum reaction parameters, the model

entry

catalyst

none

Zn(NO ) ·6H O

time (min) temp (°C) conversion (%)

trace

>99

TIC4R

With 0.50 mmol % 1.

analysis shows that the Zn(II) ions in 2 and 3 also exhibit

pyramidal geometries. There are some diﬀerences among the

three CPs. First, the axially coordinated molecule of Zn(II) ion

Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry

Article

Table 4. Diﬀerent Knoevenagel Condensations of

Malononitrile with Benzaldehydes Catalyzed by 1−3

of 1 (0.01 mmol) at 30, 40, 50, and 60 °C, and the conversions

were 24%, 72%, 98%, and >99%, respectively (entries 3−6,

respectively). Noticeably, when the catalyst quantity was 0.50

mmol %, the conversion decreased to 85% (entry 7).

Therefore, the following catalytic experiments would be

carried out with 0.01 mmol of catalyst at 60 °C and reacted

for 40 min. Subsequently, we found that TIC4R (0.01 mmol)

as a basic catalyst for Knoevenagel reaction could also provide

quantitative conversion at 60 °C after 40 min (entry 8).

However, TIC4R as a homogeneous base catalyst is not easy to

recycle. Under the optimum conditions, the catalytic

conversions of 2 and 3 were both >99% (entries 9 and 10,

respectively). It can be seen that 1−3 have high catalytic

eﬃciencies for benzaldehyde and malononitrile condensations.

In addition, we have explored the reaction of benzaldehyde

with two other active methylene compounds (meldrum’s acid

and barbituric acid) (Scheme 3). For meldrum’s acid, the

conversions of 1−3 are 41%, 37%, and 24%, respectively

(

Table 3, entries 1−3, respectively). For barbituric acid, the

corresponding conversions are 55%, 44%, and 38% for 1−3,

respectively (entries 4−6, respectively). Because the molecular

sizes of meldrum’s acid and barbituric acid are larger than that

41,42

of malononitrile, the conversions decrease.

To demonstrate the general applicability of 1−3, under the

optimized conditions, a series of substituted benzaldehydes

and other types of aldehydes were used as substrates to react

with malononitrile (Table 4 and Figures S7 −S9). When

benzaldehydes substituted with electron-withdrawing groups

(

2-Cl-, 4-F-, 4-CN-, and 4-NO -) reacted with malononitrile,

conversions of >99% were obtained (entries 2−5, respec-

tively). When benzaldehyde was substituted with those

electron-donating groups, the conversions were aﬀected by

substrates. As for the 4-CH - and 2-OH-substituted groups, the

conversions of 1−3 are 98%, 97%, and 97% and 95%, 90%, and

8%, respectively (entries 6 and 7). For 4-CH CH - and 4-

2 3

OCH -substituted groups, the conversions decreased to 85%,

0%, 62%, 68%, 60%, and 48% for 1−3, respectively (entries 8

and 9). We can conclude that electron-donating substituted

groups result in lower conversions. Subsequently, several other

types of aldehydes were also used as catalytic substrates. For

hexaldelyde and 2-naphthaldehyde, high conversions of 96% to

99% were obtained for three CPs (entries 10 and 11). As for

the cinnamaldehyde, lower conversions of 76%, 64%, and 58%

were achieved, respectively (entry 12). Fortunately, crystal

samples of target products 2-(4-nitrobenzylidene)-

malononitrile and 2-(4-methoxybenzylidene)malononitrile

were isolated, and their structures were determined by

single-crystal X-ray diﬀraction (Figure S10). CPs 1−3 are

eﬀective catalysts for Knoevenagel condensations of the

substrates used. In particular, all CPs exhibit excellent catalytic

eﬃciency for the substrates with electron-withdrawing groups,

and hexaldelyde and 2-naphthaldehyde. The open channel

plays an important role in the improved catalytic eﬃciency.

Upon comparison of the catalytic eﬀects of 1−3 for diﬀerent

substrates, the results show that the catalytic eﬀects are in the

order of 1 > 2 > 3 for most types of aldehydes, which is due to

1 having a relatively large channel along the b-direction. The

substrates could easily diﬀuse into the channel and react with

the active Lewis acid sites. On the contrary, in CPs 2 and 3, the

slide of the layers made the pores smaller, and the substrate has

diﬃculty in reaching the catalytic sites. As a result, they

exhibited lower conversions. Obviously, the catalytic perform-

ances of 1−3 were aﬀected by their diﬀerent channel sizes

Figure 3. Hot ﬁltration experiments catalyzed by (a) 1, (b) 2, and (c)

after 20 min.

substrates benzaldehyde (1 mmol) and malononitrile (2

mmol) over catalyst 1 (0.01 mmol) were investigated under

diﬀerent conditions (Table 2). The study shows that only a

trace of product is produced without using any catalyst (entry

). When Zn(NO ) ·6H O (0.01 mmol) was used as the

3 2 2

catalyst, a conversion of 36% was realized (entry 2). To explore

the temperature, the reactions were carried out in the presence

Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry

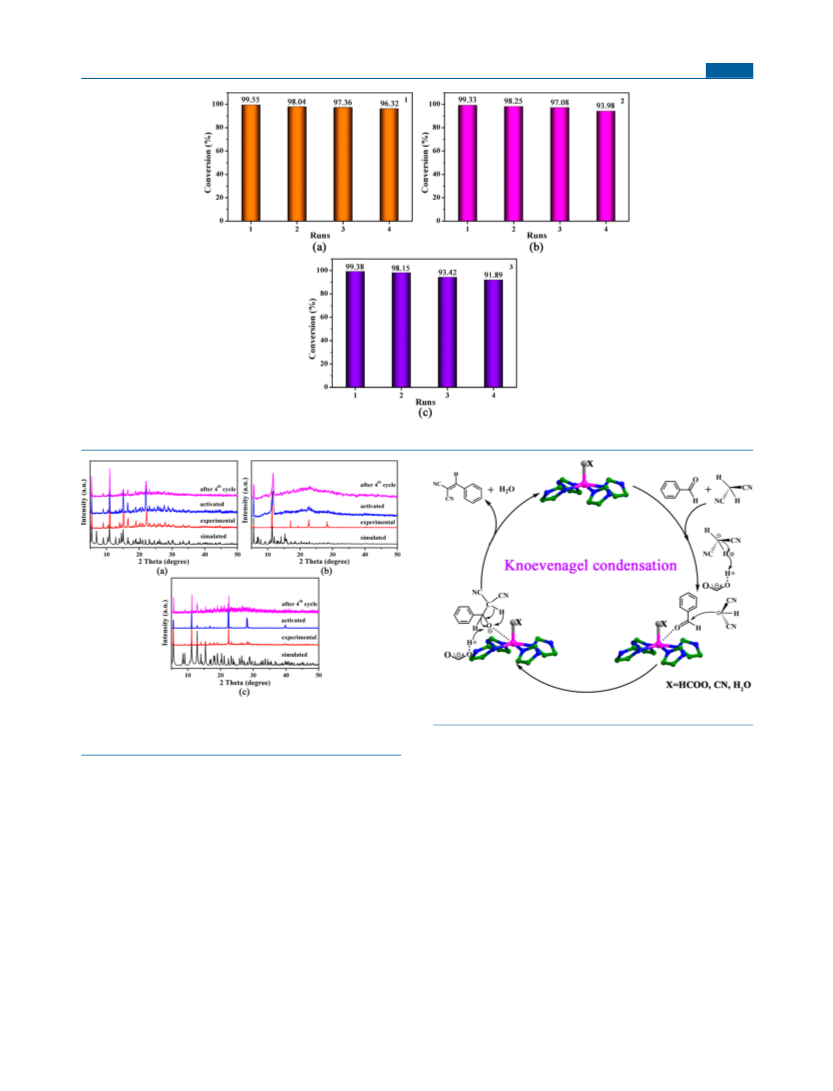

Figure 4. Recycling experiments for Knoevenagel condensation using catalysts (a) 1 , (b) 2 , and (c) 3 .

Article

Figure 6. Possible mechanism for the Knoevenagel condensation.

Figure 5. PXRD patterns of the simulated, experimental, and

activated forms of and after four cycles for catalysts (a) 1, (b) 2,

and (c) 3.

benzaldehyde and malononitrile, the three catalysts still

maintain high catalytic activities (96%, 94%, and 92%,

respectively) after four cycles. At the same time, PXRD

patterns of the separated catalysts 1 and 3 are still in good

agreement with their simulated ones (Figure 5a,c). For catalyst

2, a new peak appears at ∼12° after four cycles. Due to the

change in the solvents, the PXRD pattern of sample 2 may

change slightly (Figure 5b).

(10.3 Å × 2.4 Å, 6.3 Å × 1.9 Å, and 4.2 Å × 1.7 Å,

respectively). The larger the channels, the better the catalytic

performances.

To determine whether the catalyses are heterogeneous

reactions, we separated the catalysts at 20 min by

centrifugation, and the liquid phases were stirred for a further

0 min (Figure 3). In the prior 20 min, the conversions of CPs

−3 reached 85%, 88%, and 84%, respectively. When the

A possible mechanism for the catalysis of 1−3 has been

provided. Deprotonation of the active methylene was

−

catalysts were removed, no signiﬁcant increases were observed

for the conversions of three CPs. We demonstrated that 1−3

are heterogeneous catalysts during the Knoevenagel con-

densations.

Catalysts 1−3 were easily separated by centrifugation after

the reactions, and the cycle experiments were carried out

successively. After each run of centrifugation, the catalyst was

washed with dichloromethane and dried for the next run

enhanced by HCOO , and the Zn(II) cation interacts with

the carbonyl group of benzaldehyde. Then the carboanion

attacks the activated benzaldehyde, and benzylidenemalononi-

trile is obtained after rearrangement and dehydration (Figure

6).

To evaluate the catalytic activity of CPs 1−3, a comparison

of the conversion of benzaldehyde with malononitrile with

those of other CPs is presented in Table 5 and Table S2. The

results show that 1−3 exhibit superior catalytic capacities

(Figure 4 and Figures S11 −S13 ). For the condensation of

Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry

Complete contact information is available at:

Article

Table 5. Comparison of the Catalytic Activities of 1−3 with Reported CPs in Benzaldehyde and Malononitrile Reactions

catalyst

dosage/solvent

1 mmol %

temp/time

conversion (%)

ref

−3

60 °C/40 min

35 °C/6 h

50 °C/4 h

40 °C/1 h

RT/1 h

85 °C/4 h

60 °C/6 h

60 °C/1 h

60 °C/6 h

60 °C/12 h

>99

this work

Cd₃_.₅(L ) [(CH ) NH ] ·(H O) ·(H O)

3 mol %/THF

3 mmol %/ethanol

2 mol %/MeOH

18.9 mmol %/toluene

2 mol %

0.3 mmol %

2 mol %

5 mol %

[

Zn(H L )(H O) ]·3H O

Al (OH) (OCH ) (NH -bdc) ]

Co (tdc) (tpxn)

[

ZnL (H O)] ·2NO ·2DEF

Co (Hatta) (H O) ]·3DMA

Zn (TCA)(BIB)₂_.₅]·NO₃

Cd(L )(2-NH -BDC)]·DMF·0.5H O

Mn L (HL )(H O)

compared to those of several CPs. ⁴^,⁴⁴⁻⁴⁷In comparison with

the CPs with equally high conversions, 1−3 have several

advantages, such as a shorter reaction time, a smaller dosage of

Authors

Fei-Fei Wang − Key Laboratory of Polyoxometalate and

Reticular Material Chemistry, Department of Chemistry,

Northeast Normal University, Changchun 130024, People’s

Republic of China

34,48−51

catalyst, and solvent-free conditions.

Wen-Yuan Pei − Key Laboratory of Polyoxometalate and

Reticular Material Chemistry, Department of Chemistry,

Northeast Normal University, Changchun 130024, People’s

Republic of China

CONCLUSIONS

■

In summary, three two-dimensional supramolecular isomers

have been assembled by an imidazole-functionalized

resorcin[4]arene ligand and Zn ion in the presence of diﬀerent

SDAs. The isomers consist of the same Zn(II)/TIC4R ratio

and coordination modes. CP 1 displays a double-layer

structure with channels. The structures of 2 and 3 are

monolayers. The layers of 2 and 3 slide ∼4.16 and ∼6.90 Å

along the a-axis, respectively. For the Knoevenagel con-

densation, 1−3 have excellent catalytic activities and

recyclability under solvent-free condition. The catalytic

performances are in the order 1 > 2 > 3 for several type of

aldehydes. This research may provide insights for the use of

SDAs to design and synthesize CPs with diﬀerent properties.

https://pubs.acs.org/10.1021/acs.inorgchem.1c00497

Notes

The authors declare no competing ﬁnancial interest.

ACKNOWLEDGMENTS

■

This work was supported by the National Natural Science

Foundation of China (Grant 21471029).

REFERENCES

■

ASSOCIATED CONTENT

sı Supporting Information

The Supporting Information is available free of charge at

https://pubs.acs.org/doi/10.1021/acs.inorgchem.1c00497.

■

2) Park, G. T.; Jo, D. H.; Ahn, N. H.; Cho, J.; Hong, S. B. Synthesis

1) Li, J. Y.; Corma, A.; Yu, J. H. Synthesis of New Zeolite

Structures. Chem. Soc. Rev. 2015, 44, 7112−7127.

and Structural Characterization of a CHA-Type AlPO Molecular

Sieve with Penta-Coordinated Framework Aluminum Atoms. Inorg.

L.; Du, H.-B.; Márquez-Alvarez, C.; Sun, J. L.; Camblor, M. A.

Experimental details, FT-IR, TGA, ¹H NMR, GC,

structural ﬁgures, and tables (PDF)

Chem. 2017, 56, 8504−8512.

(3) Chen, F.-J.; Gao, Z. R.; Li, J.; Gómez-Hortiguela, L.; Lin, C.; Xu,

Structure-Direction Towards the New Large Pore Zeolite NUD-3.

Chem. Commun. 2021, 57, 191.

Accession Codes

CCDC 2054695 −2054699 contain the supplementary crys-

tallographic data for this paper. These data can be obtained

free of charge via www.ccdc.cam.ac.uk/data_request/cif , or by

emailing data_request@ccdc.cam.ac.uk , or by contacting The

Cambridge Crystallographic Data Centre, 12 Union Road,

Cambridge CB2 1EZ, UK; fax: +44 1223 336033.

(

4) Jiang, Y. S.; Song, J. S.; Xiu, Z. J.; Huang, L. L.; Gao, F.; Jiao, S.

F.; Bi, Y. F. Solvent-Free Syntheses of Two pcu Topological Indium

Phosphite-Oxalates with a Novel Butterfly Motif and Proton

Conductivity. Microporous Mesoporous Mater. 2019, 289 , 109643.

5) Park, S. H.; Choi, W.; Choi, H. J.; Hong, S. B. Organic-Free

Synthesis of Silicoaluminophosphate Molecular Sieves. Angew. Chem.,

Zones, S. I. Synthesis of Germanosilicate Molecular Sieves from

Int. Ed. 2018, 57, 9413−9418.

(

6) Boal, B. W.; Deem, M. W.; Xie, D.; Kang, J. H.; Davis, M. E.;

AUTHOR INFORMATION

■

Mono- and Di-Quaternary Ammonium OSDAs Constructed from

Benzyl Imidazolium Derivatives: Stabilization of Large Micropore

Volumes Including New Molecular Sieve CIT-13. Chem. Mater. 2016,

Corresponding Authors

Ying-Ying Liu − Key Laboratory of Polyoxometalate and

Reticular Material Chemistry, Department of Chemistry,

Northeast Normal University, Changchun 130024, People’s

Republic of China; orcid.org/0000-0003-0633-7109;

Email: liuyy147@nenu.edu.cn

Jian-Fang Ma − Key Laboratory of Polyoxometalate and

Reticular Material Chemistry, Department of Chemistry,

Northeast Normal University, Changchun 130024, People’s

Republic of China; orcid.org/0000-0002-4059-8348;

Email: majf247@nenu.edu.cn ; Fax: +86-431-85098620

7) Cundy, C. S.; Cox, P. A. The Hydrothermal Synthesis of

8, 2158−2164.

Zeolites: Precursors, Intermediates and Reaction Mechanism. Micro-

porous Mesoporous Mater. 2005, 82, 1−78.

(

L.; Bowden, M. E.; Han, Y.; Ghose, S.; Sushko, M. L. H.; Schaef, T.;

Xu, W. Q.; Nyman, M.; Thallapally, P. K. Molecular Intermediate in

the Directed Formation of a Zeolitic Metal-Organic Framework. J.

Am. Chem. Soc. 2020, 142, 17598−17606.

8) Sinnwell, M. A.; Miller, Q. R. S.; Palys, L.; Barpaga, D.; Liu, L.

Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry

Article

9) Xu, Z. H.; Han, L.-L.; Zhuang, G.-L.; Bai, J.; Sun, D. In Situ

Resorcin[4]arene for Efficient Catalysis. Inorg. Chem. 2020, 59,

15402−15409.

(26) Pei, W.-Y.; Xu, G. H.; Yang, J.; Wu, H.; Chen, B. L.; Zhou, W.;

Ma, J.-F. Versatile Assembly of Metal-Coordinated Calix[4]-

resorcinarene Cavitands and Cages through Ancillary Linker Tuning.

J. Am. Chem. Soc. 2017, 139, 7648−7656.

(27) Yu, M.-Y.; Yang, J.; Guo, T.-T.; Ma, J.-F. Efficient Catalytic

Oxidative Desulfurization toward Thioether and Sulfur Mustard

Stimulant by Polyoxomolybdate-Resorcin[4]arene-Based Metal-Or-

ganic Materials. Inorg. Chem. 2020, 59 , 4985 −4994.

Construction of Three Anion-Dependent Cu(I) Coordination

Networks as Promising Heterogeneous Catalysts for Azide-Alkyne

Click ” Reactions. Inorg. Chem. 2015, 54, 4737−4743.

(

“

10) Zhang, X.-D.; Zhao, Y.; Chen, K.; Guo, J.-H.; Wang, P.; Wu,

H.; Sun, W.-Y. Cucurbit[6]uril-Based Supramolecular Assemblies

Incorporating Metal Complexes with Multiaromatic Ligands as

Structure-Directing Agent for Detection of Aromatic Amines and

Nitroaromatic Compounds. Sens. Actuators, B 2019, 282, 844−853.

(

11) Duguet, M.; Lemarchand, A.; Benseghir, Y.; Mialane, P.;

Gomez-Mingot, M.; Roch-Marchal, C.; Haouas, M.; Fontecave, M.;

Mellot-Draznieks, C.; Sassoye, C.; Dolbecq, A. Structure-Directing

Role of Immobilized Polyoxometalates in the Synthesis of Porphyrinic

Zr-Based Metal-Organic Frameworks. Chem. Commun. 2020, 56,

(28) Al-Azemi, T. F.; Vinodh, M. Effect of the Resorcin[4]arene

Host on the Catalytic Epoxidation of a Mn(III)-Based Resorcin[4]-

arene-Metalloporphyrin Conjugate. RSC Adv. 2015, 5, 88154−88159.

(29) Liu, J.-H.; Yu, M.-Y.; Yang, J.; Liu, Y.-Y.; Ma, J.-F.

Polyoxometalate-Based Complex/Graphene for High-Rate Lithium-

Ion Batteries. Microporous Mesoporous Mater. 2021, 310, 110666.

(30) Zhai, Q.-Y.; Su, J.; Guo, T.-T.; Yang, J.; Ma, J.-F.; Chen, J.-S.

Two Porous Polyoxometalate-Resorcin[4]arene-Based Supramolecu-

lar Complexes: Selective Adsorption of Organic Dyes and Electro-

chemical Properties. Cryst. Growth Des. 2018, 18, 6046−6053.

(31) Liu, J.-H.; Shen, Q.-T.; Yang, J.; Yu, M.-Y.; Ma, J.-F.

Polyoxometalate-Templated Cobalt-Resorcin[4]arene Frameworks:

Tunable Structure and Lithium-Ion Battery Performance. Inorg.

Chem. 2021, 60, 3729−3740.

(32) Razavi, S. A. A.; Morsali, A. Function-Structure Relationship in

Metal-Organic Frameworks for Mild, Green, and Fast Catalytic C-C

Bond Formation. Inorg. Chem. 2019, 58, 14429−14439.

(33) Gascon, J.; Aktay, U.; Hernandez-Alonso, M.; van Klink, G.;

Kapteijn, F. Amino-Based Metal-Organic Frameworks as Stable,

Highly Active Basic Catalysts. J. Catal. 2009, 261, 75−87.

(34) Jiang, Y. S.; Xu, J. N.; Zhu, Z. Q.; Jiang, C. W.; Ma, L.; Wang,

H.; Wang, L.; Fan, Y. Manganese-organic Framework Assembled by

5-((4 ′-(tetrazol-5 ″-yl)benzyl)oxy) isophthalic acid: A Solvent-Free

Catalyst for The Formation of Carbon-Carbon Bond. Inorg. Chim.

Acta 2020, 510, 119735.

(

0143−10146.

12) Mao, Y. M.; Deng, Y. D.; Luan, L. D.; Zeng, H. M.; Zou, G. H.;

Lin, Z. E. Pillared-Layered Indium Phosphites Templated by Amino

Acids: Isoreticular Structures, Water Stability, and Fluorescence.

Dalton Trans. 2020, 49, 14766−14770.

(13) Huang, X. Q.; Chen, Y. F.; Lin, Z. G.; Ren, X. Q.; Song, Y. N.;

Xu, Z. Z.; Dong, X. M.; Li, X. G.; Hu, C. W.; Wang, B. Zn-BTC

MOFs with Active Metal Sites Synthesized via a Structure-Directing

Approach for Highly Efficient Carbon Conversion. Chem. Commun.

14) Feng, L.; Lv, X.-L.; Yan, T.-H.; Zhou, H.-C. Modular

014, 50, 2624−2627.

Programming of Hierarchy and Diversity in Multivariate Polymer/

Metal-Organic Framework Hybrid Composites. J. Am. Chem. Soc.

15) Liang, L.-L.; Zhang, R.-L.; Zhao, J.-S. Counterion-Controlled

019, 141, 10342−10349.

Formation of Layered Honeycomb and Polythreading Uranyl

Networks and the Highly Sensitive and Selective Detection of Fe

in Aqueous Media. Inorg. Chem. 2020, 59, 7980−7990.

(16) Menzel, S.; Millan, S.; Höfert, S.-P.; Nuhnen, A.; Gökpinar, S.;

Schmitz, A.; Janiak, C. Increase of Network Hydrophilicity from Sql

to Lvt Supramolecular Isomers of Cu-MOFs with the Bifunctional 4-

(35) Li, B. B.; Ju, Z. F.; Zhou, M.; Su, K. Z.; Yuan, D. Q. A Reusable

3,5-dimethyl-1H-pyrazol-4-yl)benzoate Linker. Dalton Trans. 2020,

9, 12854−12864.

17) Hennigar, T. L.; MacQuarrie, D. C.; Losier, P.; Rogers, R. D.;

MOF-Supported Single-Site Zinc(II) Catalyst for Efficient Intra-

molecular Hydroamination of o -Alkynylanilines. Angew. Chem., Int.

Ed. 2019, 58, 7687−7691.

(36) Liu, T.-T.; Liang, J.; Xu, R.; Huang, Y.-B.; Cao, R. Salen-

Co(III) Insertion in Multivariate Cationic Metal-Organic Frameworks

for the Enhanced Cycloaddition Reaction of Carbon Dioxide. Chem.

Commun. 2019, 55, 4063−4066.

(37) Cheng, M.-L.; Qin, M.-N.; Sun, L.; Liu, L.; Liu, Q.; Tang, X.-Y.

Highly Efficient Cu(II)-Pyrazoledicarboxylate Heterogeneous Cata-

lysts for a Base-Free Aerobic Oxidation of Benzylic Alcohol to

Benzaldehyde With Hydrogen Peroxide as the Oxidant. Dalton Trans.

2020, 49, 7758−7765.

(38) Gupta, V.; Mandal, S. K. A Microporous Metal-Organic

Framework Catalyst for Solvent-Free Strecker Reaction and CO ₂

Fixation at Ambient Conditions. Inorg. Chem. 2020 , 59 , 4273 −4281.

(39) Spek, A. L. PLATON SQUEEZE: A Tool for the Calculation of

the Disordered Solvent Contribution to the Calculated Structure

Factors. Acta Crystallogr., Sect. C: Struct. Chem. 2015 , 71 , 9 −18.

(40) Xiao, J.; Li, Q.; Chen, T. Q.; Han, L.-B. Copper-mediated

Selective Aerobic Oxidative C3-cyanation of Indoles with DMF.

Tetrahedron Lett. 2015, 56, 5937−5940.

(41) Ghosh, S.; Das, J.; Chattopadhyay, S. A Novel Light Induced

Knoevenagel Condensation of Meldrum ’s Acid with Aromatic

Aldehydes in Aqueous Ethanol. Tetrahedron Lett. 2011, 52, 2869−

2872.

(42) Khurana, J. M.; Vij, K. Nickel Nanoparticles Catalyzed

Knoevenagel Condensation of Aromatic Aldehydes with Barbituric

Acids and 2-Thiobarbituric Acids. Catal. Lett. 2010, 138, 104−110.

(43) Liu, Z. D.; Ning, L. M.; Wang, K. Y.; Feng, L. X.; Gu, W.; Liu,

X. A new Imidazole-Functionalized 3D-Cobalt Metal-Organic Frame-

work as a High Efficiency Heterogeneous Catalyst for Knoevenagel

Condensation Reaction of Furfural. J. Mol. Struct. 2020, 1221,

128744.

(

Zaworotko, M. J. Supramolecular Isomerism in Coordination

Polymers: Conformational Freedom of Ligands in [Co(NO ) (1,2-

bis(4-pyridyl)ethane) ] . Angew. Chem., Int. Ed. Engl. 1997, 36, 972−

.5 n

73.

(18) Moulton, B.; Zaworotko, M. J. From Molecules to Crystal

Engineering: Supramolecular Isomerism and Polymorphism in

Network Solids. Chem. Rev. 2001, 101, 1629−1658.

(19) Chen, D.; Liu, Y.-J.; Lin, Y.-Y.; Zhang, J.-P.; Chen, X.-M.

Packing Polymorphism of a Two-Dimensional Copper(I) 3-Amino-

,2,4-Triazolate Coordination Polymer. CrystEngComm 2011, 13,

827−3831.

(20) Fan, L. M.; Zhang, X. T.; Li, D. C.; Sun, D.; Zhang, W.; Dou, J.

M. Supramolecular Isomeric Flat and Wavy Honeycomb Networks:

Additive Agent Effect on the Ligand Linkages. CrystEngComm 2013,

5, 349−355.

(21) Chen, M.; Zhao, H.; Liu, C.-S.; Wang, X.; Shi, H.-Z.; Du, M.

Template-Directed Construction of Conformational Supramolecular

Isomers For Bilayer Porous Metal-Organic Frameworks With Distinct

Gas Sorption Behaviors. Chem. Commun. 2015, 51, 6014−6017.

(22) Cui, P. P.; Wu, J. L.; Zhao, X. L.; Sun, D.; Zhang, L. L.; Guo, J.;

Sun, D. F. Two Solvent-Dependent Zinc(II) Supramolecular Isomers:

Rare kgd and Lonsdaleite Network Topologies Based on a Tripodal

Flexible Ligand. Cryst. Growth Des. 2011, 11, 5182−5187.

23) Pinalli, R.; Dalcanale, E.; Ugozzoli, F.; Massera, C.

Resorcinarene-Based Cavitands as Building Blocks For Crystal

Engineering. CrystEngComm 2016, 18 , 5788 −5802.

(24) Kobayashi, K.; Yamanaka, M. Self-assembled Capsules Based

on Tetrafunctionalized Calix[4]resorcinarene Cavitand. Chem. Soc.

Rev. 2015, 44, 449−466.

(25) Xiong, Y.-L.; Yu, M.-Y.; Guo, T.-T.; Yang, J.; Ma, J.-F. A

Nanosized Propeller-Like Polyoxometalate-Linked Copper(I)-

Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry

Huang, Y.-B.; Cao, R. An Anion Metal-Organic Framework with

Article

(44) Wang, X.-S.; Liang, J.; Li, L.; Lin, Z.-J.; Bag, P. P.; Gao, S.-Y.;

Lewis Basic Sites-Rich toward Charge-Exclusive Cationic Dyes

Separation and Size-Selective Catalytic Reaction. Inorg. Chem. 2016,

(

5, 2641−2649.

45) Karmakar, A.; Paul, A.; Mahmudov, K. T.; Guedes da Silva, M.

F. C.; Pombeiro, A. J. L. pH Dependent Synthesis of Zn(II) and

Cd(II) Coordination Polymers with Dicarboxyl-Functionalized

Arylhydrazone of Barbituric Acid: Photoluminescence Properties

and Catalysts for Knoevenagel Condensation. New J. Chem. 2016, 40,

46) Dhakshinamoorthy, A.; Heidenreich, N.; Lenzen, D.; Stock, N.

535−1546.

Knoevenagel Condensation Reaction Catalysed by Al-MOFs with

CAU-1 and CAU-10-Type Structures. CrystEngComm 2017, 19,

47) Laha, B.; Khullar, S.; Gogia, A.; Mandal, S. K. Effecting

187−4193.

Structural Diversity in a Series of Co(II)-Organic Frameworks by the

Interplay Between Rigidity of a Dicarboxylate and Flexibility of

Bis(tridentate) Spanning Ligands. Dalton Trans. 2020, 49, 12298−

48) Guo, F.; Su, C. H.; Chu, Z. P.; Zhao, M. H. A Highly Stable 3D

2310.

Metal-Organic Framework for Selectively Luminescent Sensing and

Knoevenagel Condensation Reaction. J. Solid State Chem. 2019, 277,

49) Deng, J.-B.; Wang, X.; Ni, Z.-Q.; Zhu, F. Two Co(II)-Based

5−31.

Metal-Organic Frameworks: Catalytic Knoevenagel Condensation

Reactions and Inhibitory Activity on the Scar Tissue Hyperplasia by

Reducing the Activity of the VEGF Signaling Pathway. Arabian J.

Chem. 2020, 13, 7482−7489.

(50) Yao, C.; Zhou, S. L.; Kang, X. J.; Zhao, Y.; Yan, R.; Zhang, Y.;

Wen, L. L. A Cationic Zinc-Organic Framework with Lewis Acidic

and Basic Bifunctional Sites as an Efficient Solvent-Free Catalyst: CO ₂

Fixation and Knoevenagel Condensation Reaction. Inorg. Chem. 2018,

51) Zhai, Z. W.; Yang, S. H.; Lv, Y. R.; Du, C.-X.; Li, L.-K.; Zang,

7, 11157−11164.

S.-Q. Amino Functionalized Zn/Cd-Metal-Organic Frameworks for

Selective CO Adsorption and Knoevenagel Condensation Reactions.

Dalton Trans. 2019, 48, 4007−4014.
