Facile synthesis of meso-porous ZnO nano-triangular prisms with enhanced
photocatalytic activity
K. Vignesh *, Sora Kang, Byeong Sub Kwak, Misook Kang **
Department of Chemistry, College of Science, Yeungnam University, Gyeongsan, Gyeongbuk
712-749, Republic of Korea.
Corresponding Author:
E-mail: mskang@ynu.ac.kr
vignesh134@gmail.com
Fax: +82 53 815 5412
(Misook Kang)
(K. Vignesh)
Tel.: +82 53 810 2363
Tel.: +821073052241
Abstract:
We report a simple route for the synthesis of ZnO nano-triangular prisms (ZnO-nt) with
excellent photocatalytic activity. The activity of ZnO-nt was superior for the degradation of
rhodamine-B (Rh-B) dye, when compared to ZnO-nanorods (ZnO-nr) and ZnO nano-particles
(ZnO-np). The enhancement in photocatalytic activity of ZnO-nt is attributed to its special
morphology, good surface area, high oxygen vacancies and suppression of electron-hole
recombination. The results testify that ZnO-nt could act as a promising photocatalyst for the
remediation of dye contaminated water under solar light irradiation.
Keywords: ZnO; Nano- triangular prisms; Photocatalytic activity
1

RSC Advances
Page 2 of 18
View Article Online
DOI: 10.1039/C5RA02042E
1. Introduction:
Semiconductor photocatalysis is a low cost technology to solve the energy and environmental
related problems with the help of inexhaustible solar energy [1-2]. The natural sunlight consists
of both UV and visible light. Hence, the photocatalyst must be active under UV and visible light
for practical applications. Recently, the measurement of photocatalytic activity under simulated
solar light or UV-vis irradiation is a hot topic of research. The key factors in the designing of a
photocatalyst are morphology, surface area, visible light absorption capacity, electron mobility,
catalytic efficiency and stability [3]. In recent years, the designing of photocatalysts with novel
architectures are of great interest because of their unique chemical and physical properties [4].
Zinc oxide (ZnO) is an inexpensive and wide band gap semiconductor photocatalyst with similar
characteristics to that of TiO2 [5]. The photocatalytic applications of ZnO with different nano
morphologies such as rods [6], wires [7], belts [8], sheets [9] and tubes [10] have been reported.
The photocatalytic activity of ZnO nano- triangular prisms (ZnO-nt) has not been reported so far.
M. Salavati-Niasari et al. [11] studied the synthesis, characterization and optical properties of
ZnO nano-triangles.
Herein, we report the synthesis, characterization and photocatalytic activity of ZnO-nt.
ZnO-nt was characterized using X-ray diffraction (XRD), transmission electron microscope
(TEM), high resolution TEM (HR-TEM), BET surface area analysis, UV diffuse reflectance
spectroscopy (UV-DRS) and photoluminescence (PL) techniques. The photocatalytic activity
was evaluated for the degradation of rhodamine-B dye (Rh-B) under simulated solar light
irradiation. The results of this research work were also compared with some recently reported
catalysts.
2

Page 3 of 18
RSC Advances
View Article Online
DOI: 10.1039/C5RA02042E
2. Experimental:
All the chemicals used were of analytical grade and used as received without further
purification.
ZnO-nt was synthesized using a hydrothermal method as follows: 0.1 M of zinc acetate di-
hydrate solution was prepared using ethanol. Then, the pH was adjusted to 3 using acetic acid
and the solution was stirred for 3 h at room temperature. The final mixture was transferred into a
Teflon coated stainless steel autoclave and heated at 120 °C for 3 h. The product was centrifuged,
washed with double distilled water, ethanol, dried at 100 °C for 24 h. For comparison, ZnO-nr
and ZnO- np were synthesized by the reported procedures. ZnO-nr was prepared from the
calcination of zinc acetate at 350 °C [6]. ZnO-np was also prepared from zinc acetate using
precipitation method [12].
The detailed characterization techniques and procedure for the measurement of
photocatalytic activity was already given in our previous report [13]. The Rh-B dye with 10 ppm
of initial concentration was taken for the photocatalytic measurements. The solar light irradiation
was simulated by 150 W Xe arc lamp. Chemical oxygen demand (COD) of Rh-B after
photoreaction was determined by the dichromate oxidation method [14].
3.Results and Discussion:
3.1 Characterization:

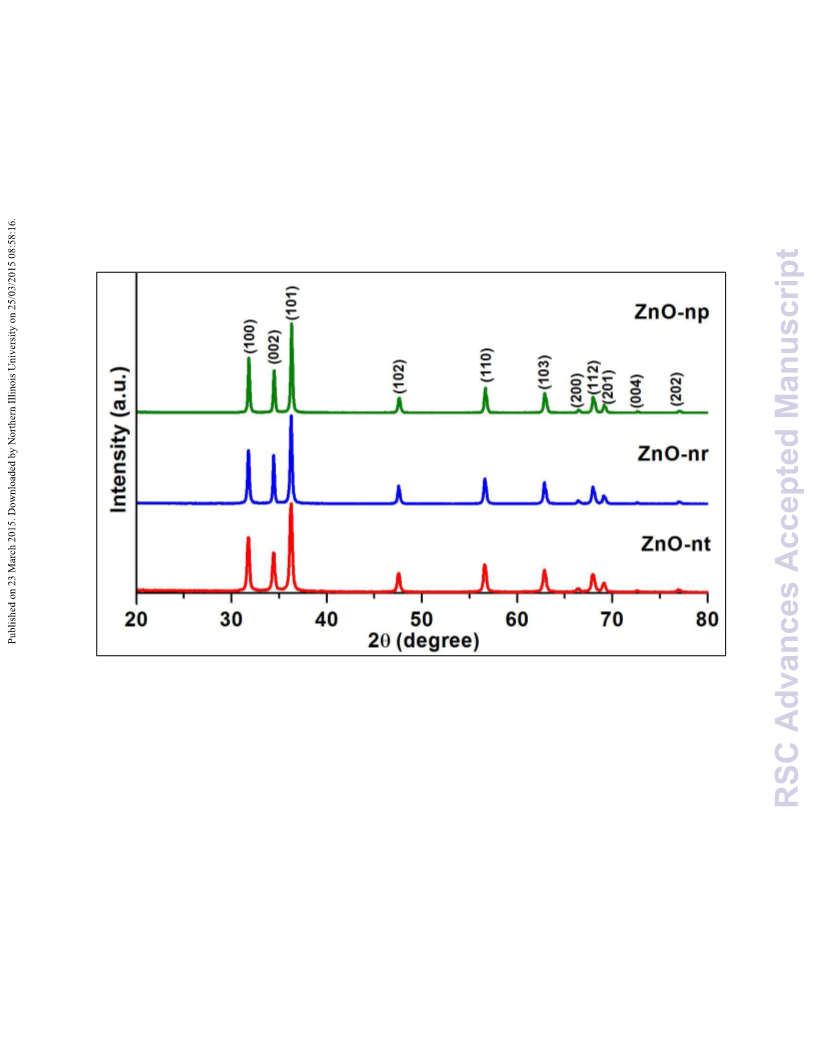

The crystalline phases of the synthesized samples were analyzed using XRD and the
results are shown in Fig. 1 (a). The diffraction peaks of ZnO-nt, ZnO-nr and ZnO-np are
perfectly matched with the standard JCPDS pattern of ZnO (36-1451). No other impurity phases
are detected, which indicates the high purity of the products. It is also noted that the intensity of
3

RSC Advances
Page 4 of 18
View Article Online
DOI: 10.1039/C5RA02042E
the diffraction peaks are differed with respect to their morphology (see Fig.S1 and Table S1 in
supporting information). The differences in peak intensity could be explained as follows: ZnO
consists of a polar zinc terminated plane (001), polar oxygen terminated plane as (001) and non-
polar plane as (100) [15]. The growth of ZnO is different in solvent with different polarities. It is
ascribed to the interaction between solvent and polar/non-polar planes of ZnO. The morphology
of ZnO is also related to the difference in surface free energies of the main crystallographic
planes [(100), (002) and (101)] of ZnO [16].

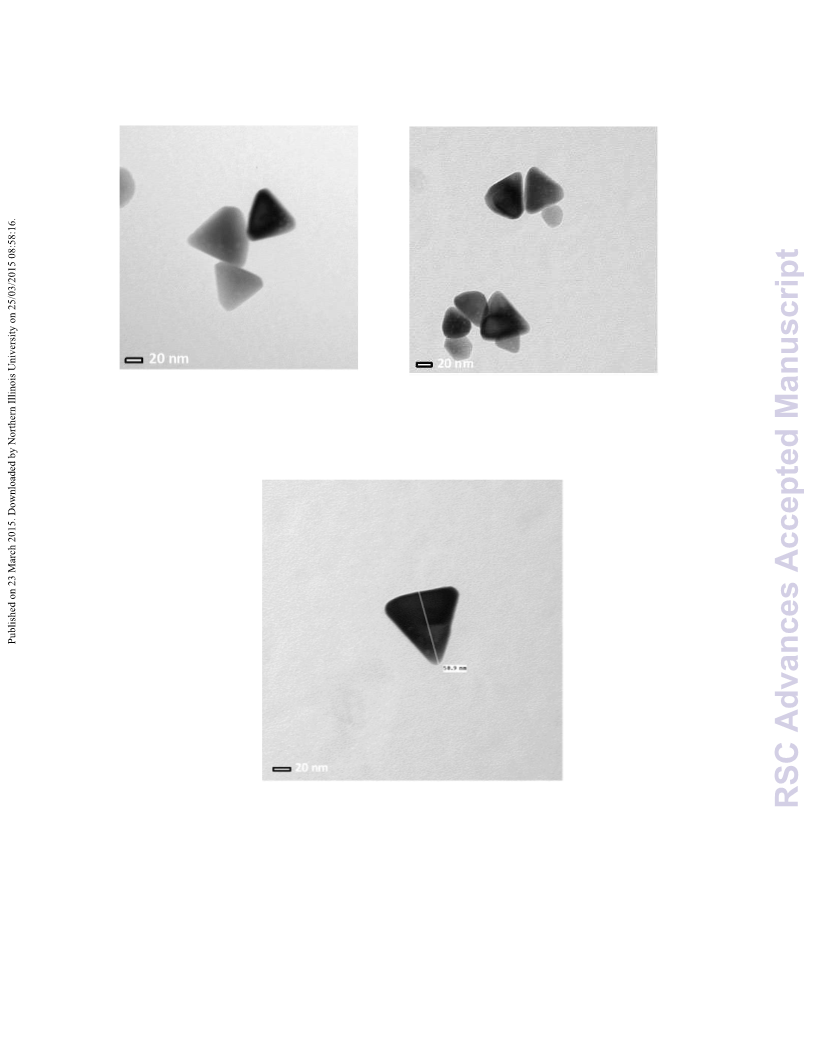

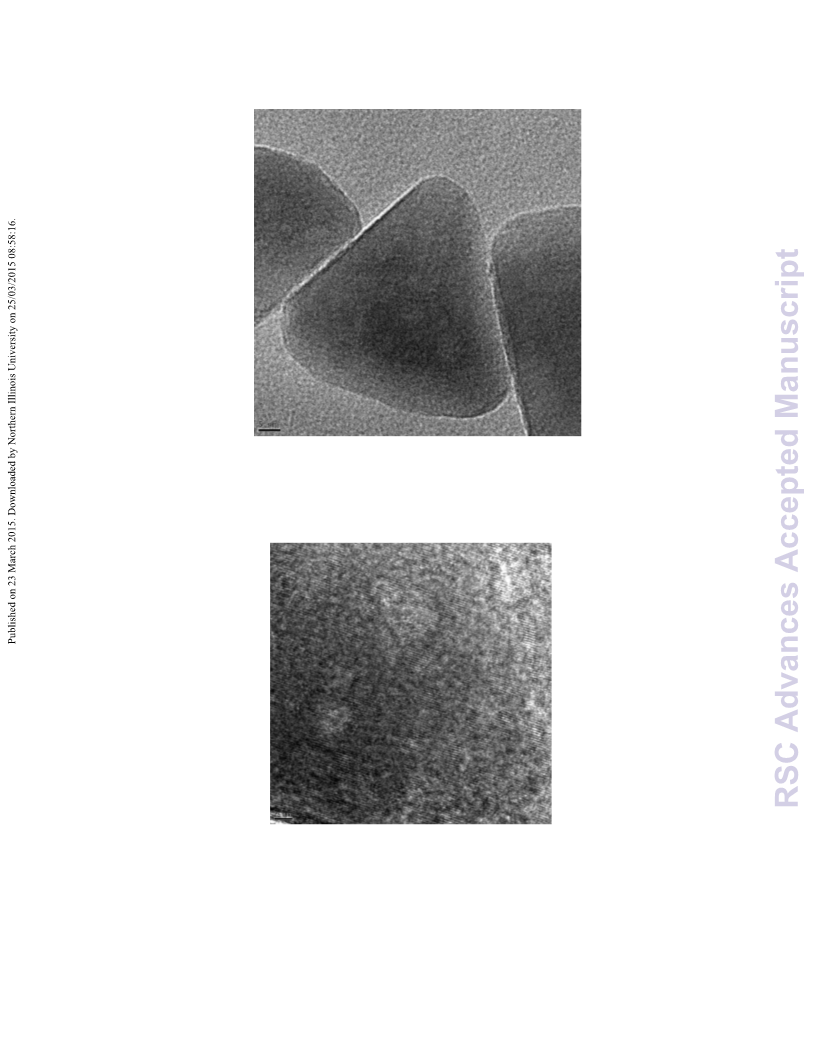

TEM images of ZnO-nt are shown in Fig. 1 (b-d). It can be observed that ZnO is
composed of more number of nano- triangular prisms with a length range from 50 nm to 60 nm.
Some nano-hexagonal shaped ZnO are also formed in addition to the nano- triangular prisms.
HR-TEM was taken to investigate the existence of meso-pores in ZnO-nt. The HR-TEM images
of ZnO-nt are displayed in Fig. 1 (e-f). The results suggest that ZnO-nt has some meso-pores in
its structure.
The N2 adsorption-desorption isotherms of ZnO-nt, ZnO-nr and ZnO-np are shown in
Fig. S1. The isotherm of ZnO-nt is identified as type IV, according to IUPAC data, which is the
characteristic of meso-porous materials. The isotherms of ZnO-nr and ZnO-np are classified as
type III with non-porous nature. The specific surface area of ZnO-nt, ZnO-nr and ZnO-np is
found to be 19.83 m2/g, 7.66 m2/g and 2.96 m2/g, respectively. The average pore diameter of
ZnO-nr (68.87 nm) and ZnO-np (155.78 nm) are higher than that of ZnO-nt (32.89 nm). The
high surface area of ZnO-nt could make it more photoactive than ZnO-nr and ZnO-np.
Fig. 2 displays the UV-DRS of ZnO-nt, ZnO-nr and ZnO-np. There is no remarkable
difference in the absorption edge of ZnO-nt, ZnO-nr and ZnO-np. The band gap energies were
4

Page 5 of 18
RSC Advances
View Article Online
DOI: 10.1039/C5RA02042E
estimated by applying Tauc method [13]. The band gap energies of ZnO-nt, ZnO-nr and ZnO-np
are found to be 3.07 eV, 3.09 eV and 3.10 eV, respectively.
3.2. Photocatalytic activity:
The photocatalytic activity of the samples was examined for the degradation of Rh-B (10
ppm) under simulated solar light irradiation. The concentration of the catalyst was fixed at 1.25

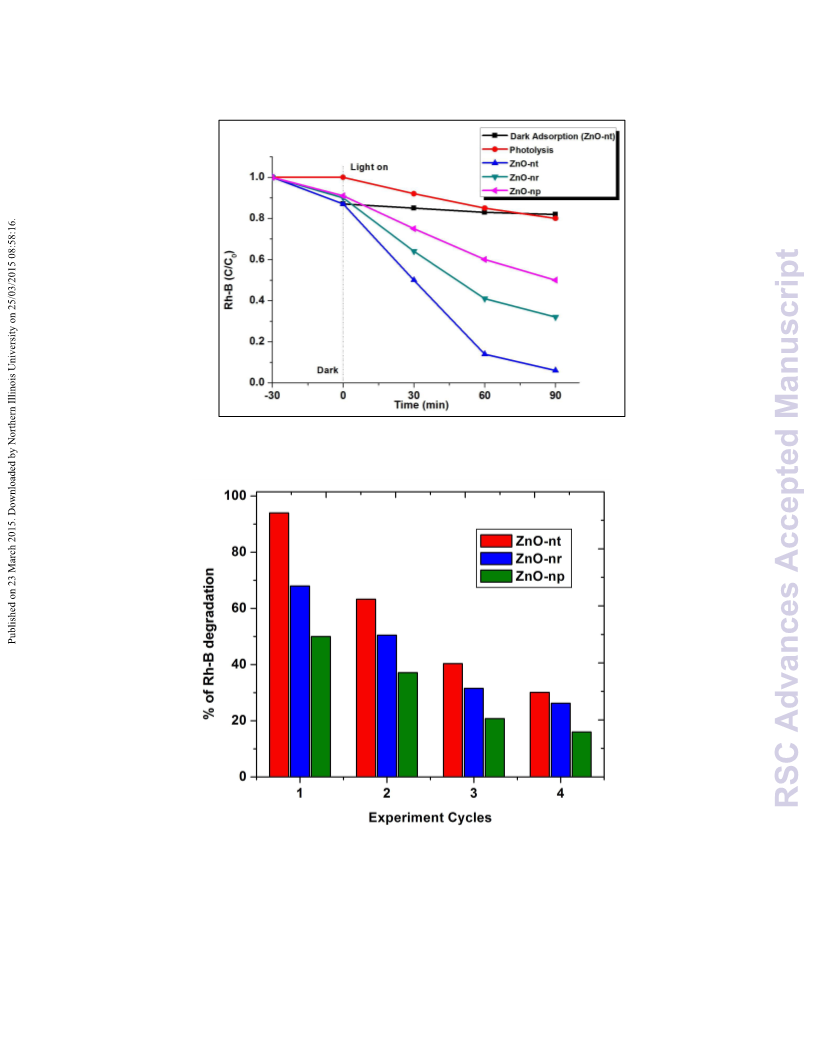

g/L. Fig. 3 (a) illustrates the photo-degradation of Rh-B as a function of irradiation time over
ZnO-nt, ZnO-nr and ZnO-np. The degradation efficiency is expressed as C/C0, where C and C0
are the final and initial absorbance of Rh-B, respectively. The order of photocatalytic activity at
90 min of light irradiation is summarized as follows: ZnO-nt > ZnO-nr > ZnO-np.
The photocatalytic efficiency of ZnO-nt is 94 % whereas that of ZnO-nr is 68 % and
ZnO-np is 50 %. The high performance photocatalytic activity of ZnO-nt is mainly caused by its
special morphology with meso-porous nature, high specific surface area and efficient transport of
photo generated electron-holes. The activity of ZnO-nt is compared with some recently reported
ZnO based photocatalysts and the results are given in Table 1. It can be clearly seen that ZnO-nt
showed excellent photocatalytic activity for the degradation of Rh-B than other catalysts. The
maximum degradation process is achieved using ZnO-nt and minimum intensity lamp (150 W of
Xe) within 90 min. The results also suggest that ZnO-nt based photocatalyst could produce
excellent activity.
The photolysis and dark adsorption experiments were carried out to evidence the role of
light and catalyst in the photo-degradation process. The photolysis test reveals that only 21 % of
Rh-B is degraded in the absence of catalyst. The dark adsorption capacity of ZnO-nt was also
evaluated for 90 min. The adsorption of Rh-B on ZnO-nt is limited as soon as the adsorption-
5

RSC Advances
Page 6 of 18
View Article Online
DOI: 10.1039/C5RA02042E
desorption equilibrium is reached. The difference between photocatalysis, photolysis and dark
adsorption results clearly testify the contribution of light and catalyst in the degradation of Rh-B.
COD test was performed to find out the conversion of organic molecule (Rh-B) to CO2 and H2O.
The COD of Rh-B after 90 min of irradiation using ZnO-nt, ZnO-nr and ZnO-np are decreased to
49 %, 56 % and 61 % respectively. This indicates that Rh-B is completely converted to CO2 and
H2O only after long time of irradiation.
The cycling experiments for photo-degradation of Rh-B were performed to check the
reusability of catalysts and the results are shown in Fig. 3 (b). After each cycle, the catalyst was
collected, washed with double distilled water, dried overnight and then reused. The experimental
conditions are: Rh-B = 10 ppm, catalyst concentration =1.25 g/L and irradiation time = 90 min.
The results inferred that the photocatalytic activity of all the three catalysts (ZnO-nt, ZnO-nr and
ZnO-np) is dropped after the first use. This is attributed to the photo-dissolution of ZnO during
long time of light irradiation. Therefore, ZnO-nt must be coupled with suitable surface modifier
for its cyclic use.

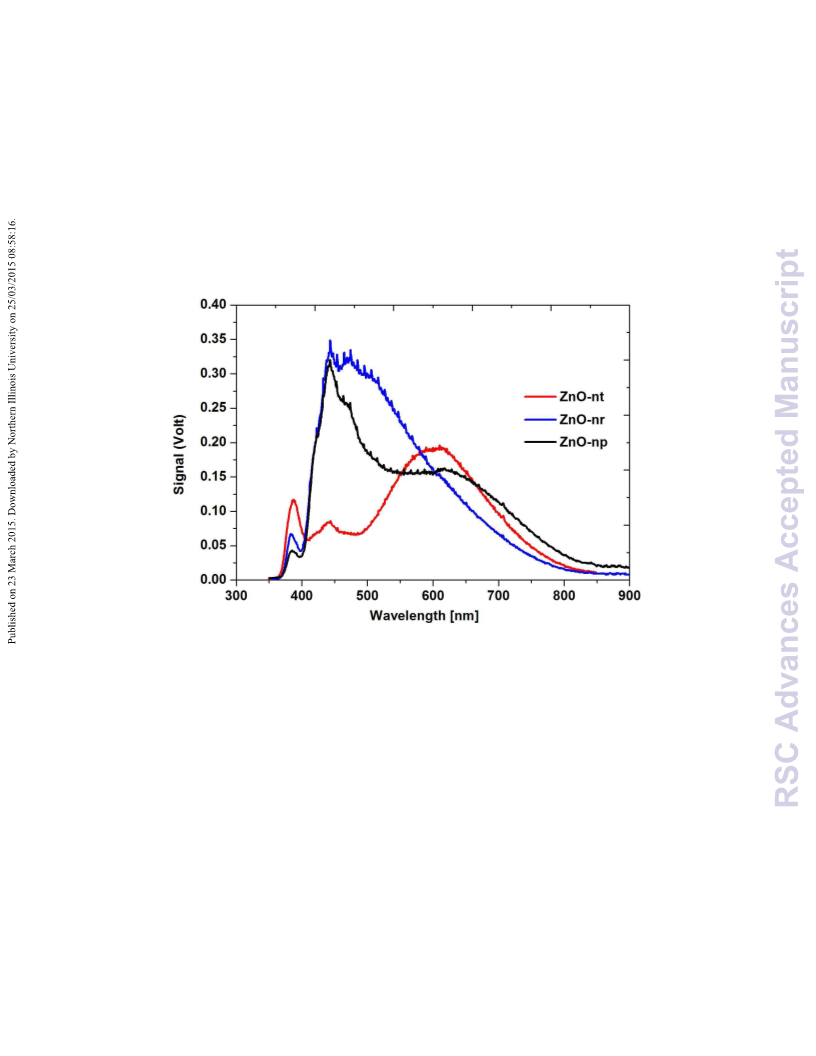

The electron-hole separation process was studied with the help of PL. Fig. 3 (c ) shows
the PL spectra of ZnO-nt, ZnO-nr and ZnO-np. Three peaks at 385 nm, 441 nm and 600 nm are
observed for ZnO-nt. The peaks of ZnO-nr are located at 382 nm, 443 nm and 470 nm. ZnO-np
has four peaks centered at 385 nm, 442 nm, 470 nm and 616 nm. The appearance of peak in the
UV region (380 nm) is ascribed to the band gap emission. The peak located around 440 nm is
attributed to the intrinsic transition of zinc ions from excited state to the ground state. The visible
emission peaks may result from the surface oxygen vacancies and defects in the crystal during
the crystal growth [17-18]. The emission intensity peak of ZnO-nt at 441 nm is lower than that of
6

Page 7 of 18
RSC Advances
View Article Online
DOI: 10.1039/C5RA02042E
ZnO-nr and ZnO-np. It indicates that the life time of charge carriers is increased and the
electron-hole transport is improved in the nano-triangles.
The electron–hole transfer process of ZnO was discussed in many papers. The conduction
band (CB) and valence band (VB) positions of ZnO-nt at the point of zero charge were
calculated using Butler and Ginley equation. The CB and VB positions of ZnO-nt are found to be
-0.24 eV and 2.82 eV, respectively. The electron-hole transfer process in ZnO-nt was proposed

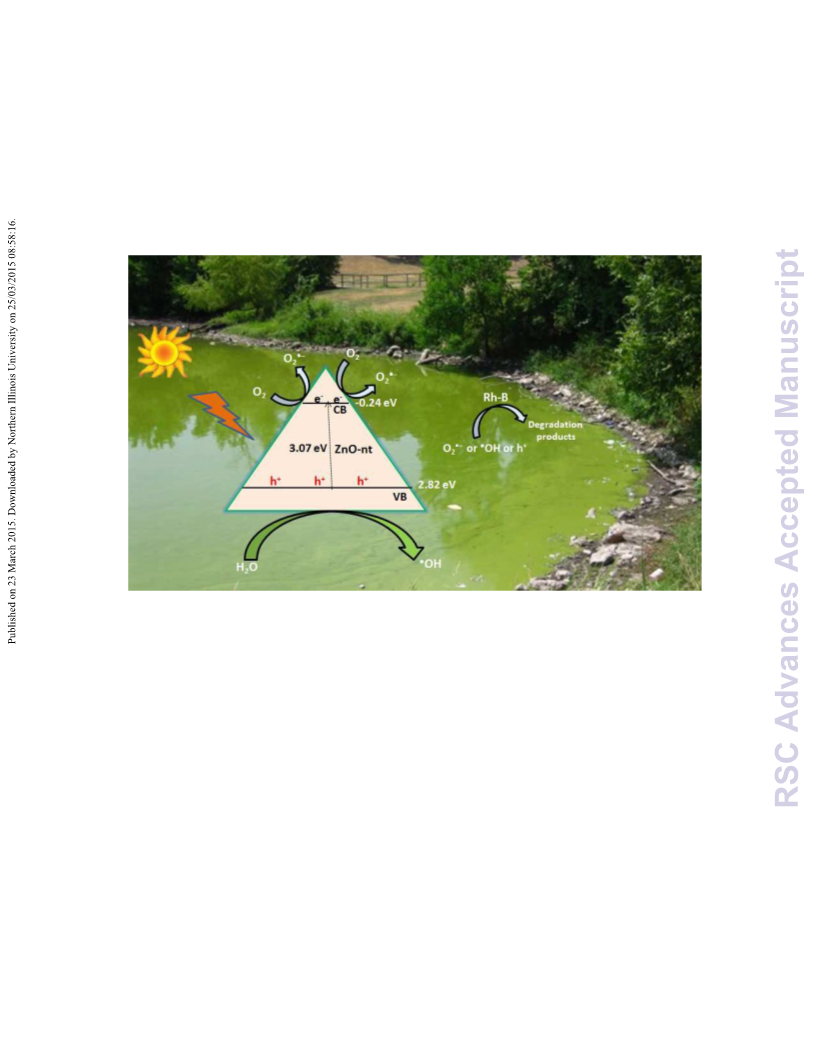

and schematically shown in Fig. 4. When the ZnO-nt is being irradiated with simulated solar
light, it is easily excited and electrons and holes are generated. The electrons accumulated in the
●-
CB of ZnO-nt are readily trapped by the dissolved oxygen to produce super oxide radical (O2 ),
●
Similarly, the VB holes of directly decompose the Rh-B or react with water to form OH. The
degradation of Rh-B may be caused by the reactive oxygen species (O2●- , ●OH, h+) formed in the
photocatalysis process.
It is believed that the triangular prism morphology of ZnO can promote the effective
conduction and mobility of photo-generated electron-hole pairs on the catalyst surface, which
leads to the significant enhancement in the photocatalytic activity. The high specific surface area
of ZnO-nt can supply more active sites for the photodegradation of Rh-B and promote the
diffusion of reactants/products during photo-reaction.
4. Conclusion:
In summary, a simple and convenient method has been developed for the synthesis of ZnO-nt.
The crystal structure, morphology, surface area and optical properties were measured using XRD,
TEM, HR-TEM, BET, UV-DRS and PL techniques. Nearly 94 % of Rh-B degradation is
7

RSC Advances
Page 8 of 18
View Article Online
DOI: 10.1039/C5RA02042E
achieved by ZnO-nt within 90 min of simulated solar light irradiation. The activity of ZnO-nt is
superior to that of ZnO-nr and ZnO-np. The results prove that the morphology of ZnO plays an
important role in its photocatalytic activity. Therefore ZnO-nt is holding great promise for the
practical development of solar light active photocatalysts.
Acknowledgement:
This work was supported by the National Research Foundation of Korea (NRF) grant
funded by the Korea government (2012R1A1A3005043), for which the authors are very grateful.
References:
[1] T.-J. Liu, Q. Wang and P. Jiang, RSC Adv., 2013, 3, 12662-12670.
[2] K. Vignesh, A. Suganthi, B.-K.Min, M. Rajarajan and M. Kang, RSC Adv., 2015, 5, 576-
585.
[3] D. Wang, L. Guo, Y. Zhen, L. Yue, G. Xue and F. Fu, J. Mater. Chem. A, 2014, 2, 11716–
11727.
[4] H.-M. Chiu, T.-H. Yang, Y.-C. Hsueh, T.-P. Perng and J.-M. Wu, Appl. Catal., B, 2015, 163,
156–166
[5] R. Lamba, A. Umar, S.K. Mehta and S.K. Kansal, Talanta, 2015, 131, 490–498.
[6] X. Zhang, J. Qin, Y. Xue, P. Yu, B. Zhang, L. Wang and R. Liu, Sci. Rep. 4, 4596;
DOI:10.1038/srep04596 (2014).
[7] F.-H. Chu, C.-W. Huang, C.-L. Hsin, C.-W. Wang, S.-Y. Yu, P.-H. Yeh and W.-W. Wu,
Nanoscale, 2012, 4, 1471-1475.
8

Page 9 of 18
RSC Advances
View Article Online
DOI: 10.1039/C5RA02042E
[8] M. Wang, G. T. Fei and L.D. Zhang, Nanoscale Res Lett., 2010, 5, 1800–1803.
[9] Y. Liu, S. Xie, H Li and X.Wang, ChemCatChem, 2014, 6, 2522-2526.
[10] S.-M. Lam, J.-C. Sin, A. Z. Abdullah and A.R. Mohamed, Mater. Lett., 2013, 93, 423-426.
[11] M. Salavati-Niasari, N. Mir and F. Davar, J. Alloys Compd., 2009, 476, 908–912.
[12] B.M. Rajbongshi, A. Ramchiary and S.K. Samdarshi, Mater. Lett. , 2014, 134, 111–114.
[13] K. Vignesh, A. Suganthi, B.-K. Min and M. Kang, J. Mol. Catal. A: Chem., 2014, 395, 373–
383.
[14] R. Satheesh, K. Vignesh, A. Suganthi, M. Rajarajan, J. Environ. Chem. Eng, 2014, 2, 1956-
1968.
[15] N. Talebian, S.M. Amininezhad and M. Doudi, J. Photochem. Photobiol., B, 2013, 120, 66-
73.
[16] V. Khranovskyy and R. Yakimova, Physica. B, 2012, 407, 1533-1537
[17] L. Gu, J. Wang, Z. Zou and X. Han, J. Hazard. Mater., 2014, 268, 216–223.
[18] C. Li, R. Hu, T. Zhou, H. Wu, K. Song, X. Liu and R. Wang, Mater. Lett.2014, 124, 81-84.
[19] G. M. Neelgund, A. Oki and Z. Luo, J. Colloid Interface Sci., 2014, 430, 257–264.
[20] L. Shi, L. Liang, J. Ma, Y. Meng, S. Zhong, F. Wang and J. Sun, Ceram. Int., 2014, 40,
3495–3502.
[21] X. Hou, Mater. Lett., 2015, 139, 201–204
[22] X. Guo, H. Zhu and Q. Li, Appl. Catal. B, 2014, 160–161, 408–414
[23] L. Xu, G. Zheng, J. Wang, M. Lai, J. Miao, F. Xian, F. Gu, T. Sun, Mater. Lett., 2014, 122,
1–4.
9

RSC Advances
Page 10 of 18
View Article Online
DOI: 10.1039/C5RA02042E
Table Caption
Table . 1.
A Comparison of photocatalytic activity of ZnO-nt with recently reported ZnO based catalysts
for the degradation of Rh-B
S. No
Catalyst
Lamp Source
Irradiation
Percentage of
Reference
time (min) degradation (%)
1
2
3
ZnO-nt
150 W of Xe
90
94
Present
work
[19]
GR–ZnO–CoPC
ZnO
Sun light
130
,,
100
78
,,
Ag/AgBr/ZnO
300 W of iodine
tungsten (400 nm
to 800 nm)
,,
180
100
[20]
ZnO
,,
38
80
4
5
6
Ag/ZnO
300 W of Xe
180
(λ>420 nm)
[21]
[22]
ZnO
,,
,,
10
89
ZnO/ZnFe2O4
300 W of Xe
(λ>400 nm)
180
ZnO
,,
,,
29
80
Leaf-like ZnO
175 W of Hg
120
[23]

Page 11 of 18
RSC Advances
View Article Online
DOI: 10.1039/C5RA02042E
Figure Captions:
Fig. 1 (a). XRD patterns of ZnO-nt, ZnO-nr and ZnO-np.
Fig. 1 (b), (c) and (d) TEM images of ZnO-nt
Fig. 2. UV-DRS of ZnO-nt, ZnO-nr and ZnO-np.
(e ) and (f ) HR-TEM images of ZnO-nt
Fig. 3. (a ) Photodegradation curves of Rh-B (10 ppm) over ZnO-nt, ZnO-nr and ZnO-np under
simulated solar light irradiation.
Fig. 3. (b) Cycling runs of ZnO-nt, ZnO-nr and ZnO-np for the degradation of Rh-B under
simulated solar light irradiation
Fig. 3. (c ) PL spectra of ZnO-nt, ZnO-nr and ZnO-np
Fig. 4. The schematic diagram of electron –hole transfer process in ZnO-nt under simulated solar
light irradiation.

RSC Advances
Page 12 of 18
View Article Online
DOI: 10.1039/C5RA02042E
Fig. 1(a)

Page 13 of 18
RSC Advances
View Article Online
DOI: 10.1039/C5RA02042E
(b )
(c )
(d )
Fig. 1

RSC Advances
Page 14 of 18
View Article Online
DOI: 10.1039/C5RA02042E
(e )
(f )
Fig. 1

Page 15 of 18
RSC Advances
View Article Online
DOI: 10.1039/C5RA02042E
Fig. 2

RSC Advances
Page 16 of 18
View Article Online
DOI: 10.1039/C5RA02042E
(a )
(b )
Fig. 3

Page 17 of 18
RSC Advances
View Article Online
DOI: 10.1039/C5RA02042E
(c )
Fig. 3

RSC Advances
Page 18 of 18
View Article Online
DOI: 10.1039/C5RA02042E
Fig. 4
