Iron, nickel and zinc malates coordination compounds synthesis, characterization and thermal behaviour

Article abstract of DOI:10.1023/A:1023948526145

The coordinations compounds (NH₄)[Fe(C₄H₄O₅)(OH)₂] ·0.5H₂O,[Ni(C₄H₄ O₅)]·3H₂O and [Zn(C₄H₄ O₅)]·5H₂O were synthesized by a precipitation method and characterized by chemical analysis, spectral (IR, UV-VIS) and magnetical investigations. In the range 50-600°C stepped thermal decompositions occur with formation of anhydrous malates, malonates, oxoacetates (iron and nickel compounds) and hydroxocarbonate (Zn compound) as intermediates observed by FT-IR spectroscopy. α-Fe₂ O₃, NiO and ZnO constitute the final decomposition products.

Full text of DOI:10.1023/A:1023948526145

Journal of Thermal Analysis and Calorimetry, Vol. 72 (2003) 281–288
IRON, NICKEL AND ZINC MALATES COORDINATION
COMPOUNDS
Synthesis, characterization and thermal behaviour
1
L. Patron , O. Carp , I. Mindru , G. Marinescu and E. Segal
1*
1
1
2
1
Institute of Physical Chemistry ‘I. G. Murgulescu’, Splaiul Independentei no. 202, sector 6,
Bucharest, Romania
Department of Physical Chemistry, Faculty of Chemistry, University of Bucharest,
2
B-dul Elisabeta no. 4–12, sector 4, Bucharest, Romania
Abstract
The coordinations compounds (NH )[Fe(C
4
4
H
4
O
5
)(OH)
2
]⋅0.5H
2
O, [Ni(C
4
H
4
O
5
)]⋅3H
2
O and
[
Zn(C )]⋅5H O were synthesized by a precipitation method and characterized by chemical anal-
4
H
4
O
5
2
ysis, spectral (IR, UV-VIS) and magnetical investigations. In the range 50–600°C stepped thermal
decompositions occur with formation of anhydrous malates, malonates, oxoacetates (iron and nickel
compounds) and hydroxocarbonate (Zn compound) as intermediates observed by FT-IR spectros-
2 3
copy. α-Fe O , NiO and ZnO constitute the final decomposition products.
Keywords: iron-, nickel-, zinc-malate coordination compound, non-isothermal analysis
Introduction
Due to their capacity in chelating metallic ions and low decomposition temperatures
with evolving nontoxic compounds (CO, CO , H O), ligands belonging to carboxylic
2
2
acids class are suited for obtaining precursor systems of transition metal oxides [1–8].
Although detailed investigations has been made concerning the obtaining of the sim-
ple/mixed oxides through thermal decomposition of formates, acetates, tartrates pre-
cursors, a similar interest for complex malates is relative lacking [9–12].
The paper reports the synthesis, characterization and thermal behaviour of Fe,
Ni and Zn malates coordination compounds. From practical point of view the under-
taken investigations permit to determine a new route of simple oxide synthesis. From
the theoretical one, it represents a first but necessary step in elucidation the solid state
pathway of mixed oxides formation.
*
Author for correspondence: E-mail: carp@apia.ro
1
388–6150/2003/ $ 20.00
Akadémiai Kiadó, Budapest
©
2003 Akadémiai Kiadó, Budapest
Kluwer Academic Publishers, Dordrecht

2
82
PATRON et al.: IRON, NICKEL AND ZINC MALATES
Experimental
Precursors preparation
As starting materials, Fe(NO ) ⋅9H O, Ni(NO ) ⋅6H O, Zn(CH COO) and malic
3
3
2
3 2
2
3
2
acid of reagent grade quality were used. The compounds and some of their thermal
decomposition intermediates were characterized by elemental chemical analysis: the
metal content was determined by atomic absorption technique; the carbon, nitrogen
and hydrogen content were obtained by microcombustion technique.
(
NH )[Fe(C H O )(OH) ]⋅0.5H O and [Ni(C H O )]⋅3H O – metallic salts
4
4
4
5
2
2
4
4
5
2
(
malic acid (6 mmol (0.804 g), 4 mmol (0.536 g)) in molar ratios Fe : malic acid=1:3
2 mmol (0.808 g) of Fe(NO ) ⋅9H O and 2 mmol (0.58 g) of Ni(NO ) ⋅6H O) and
3
3
2
3 2
2
3+
2
+
and Ni : malic acid=1:2, were dissolved in a minimum amount of distilled water
50 mL) and mixed. Subsequently, ethanol was added under stirring till the reaction
medium is 1:1=aqueous/ethanolic. For a complete precipitation, the pH was adjusted
(
to 4.5–5 with a NH OH 25% : ethanol 1:1 solution. Yellow brown iron containing
4
compound and pale green containing zinc one were obtained. Afterward, the precipi-
tates were aged for 24 h at 4°C. Next, they were filtered, washed with ethanol and
vacuum dried. FeC H NO calcd./found Fe%: 22.4/21.78; C%: 19.28/19.43; H%:
4
11
7.5
4
1
3
.42/4.50; N%: 5.62/5.74. NiC H O calcd./found Ni%: 20.89/21.40; C%:
4 14 10
7.10/17.00; H%: 4.98/5.08. NiC H O (reaction intermediate) calcd./found Ni%:
3
2
4
6.50/37.40; C%: 22.41/20.90; H%: 1.24/0.85.
Zn(C H O )]⋅5H O – to the reaction mixture prepared by mixing stoichiometric
[
quantities of aqueous solutions of 2 mmol Zn(CH COO) (0.438 g) and 4 mmol malic
4
4
5
2
3
2
2+
acid (0.536 g), molar ratio Zn : malic acid=1:2, ethanol was added under stirring till the
reaction medium is 1:1 aqueous/ethanolic. A white compound was formed. After 24 h at
4°C aging, the compound was filtered, washed with ethanol and dried in vacuum.
ZnC H O calcd./found Zn%: 24.27/23.89; C%: 17.81/18.04; H%: 4.45/4.55.
4
12
9
ZnC H O (reaction intermediate) calcd./found Zn%: 39.06/40.19; C%: 21.50/19.47;
3
2
4
H%: 1.19/0.82.
Characterization
–
1
The UV-VIS reflectance spectra (11 000–54 000 cm ) were recorded with a
JASCO V550 spectrophotometer using MgO as standard. IR spectra
–
400–4000 cm ) were recorded with a BIO-RAD FTIR 125 type device, in KBr pel-
1
(
lets. The thermal measurements were performed using a Q–1500 D derivatograph in a
static air atmosphere, with α-Al O as the reference compound, at a heating rate of
2
3
–
K min . The magnetic susceptibility at room temperature were determined using a
1
5
Faraday balance with Ni as calibrant.
J. Therm. Anal. Cal., 72, 2003

PATRON et al.: IRON, NICKEL AND ZINC MALATES
283
Results and discussion
Synthesis and physico-chemical characterization of precursors
2+
3+
From the system M /or M -malic acid the following coordination compounds were iso-
lated: (NH )[Fe(C H O )(OH) ]⋅0.5H O; [Ni(C H O )]⋅5H O; [Zn(C H O )]⋅4H O.
4
4
4
5
2
2
4
4
5
2
4
4
5
2
Analyzing the three IR spectra (Figs 1–3 (a)) the following features may be
pointed out:
–
1
•
the broad bands in the region 3600–2700 cm are due to the symmetric and
asymmetric stretching frequencies of the weakly bonded crystallization water
molecules and hydroxyl groups;
–
1
•
•
the water presence is confirmed also by the shoulder at ∼ 1650 cm character-
istic for its bending mode;
–
the free vibration of C=O from 1730 cm is split into two very strong bands
1
characteristic for coordinated carboxylic group, respective ν vibration
as(OCO)
–
1
–1
one at 1401–1382 cm ;
at 1590–1550 cm and ν
s(OCO)
–1
•
•
in the range 1092–1083 cm a medium absorption band assigned to the stretch-
ing vibration of alcoholic hydroxyl is also present [13]. The shift of ν(C–OH) to-
ward lower frequencies indicates a possible coordination of this group to the me-
tallic ions;
the bands which appear in the range 563–500 cm are assigned to M–O
stretching vibrations.
–
1

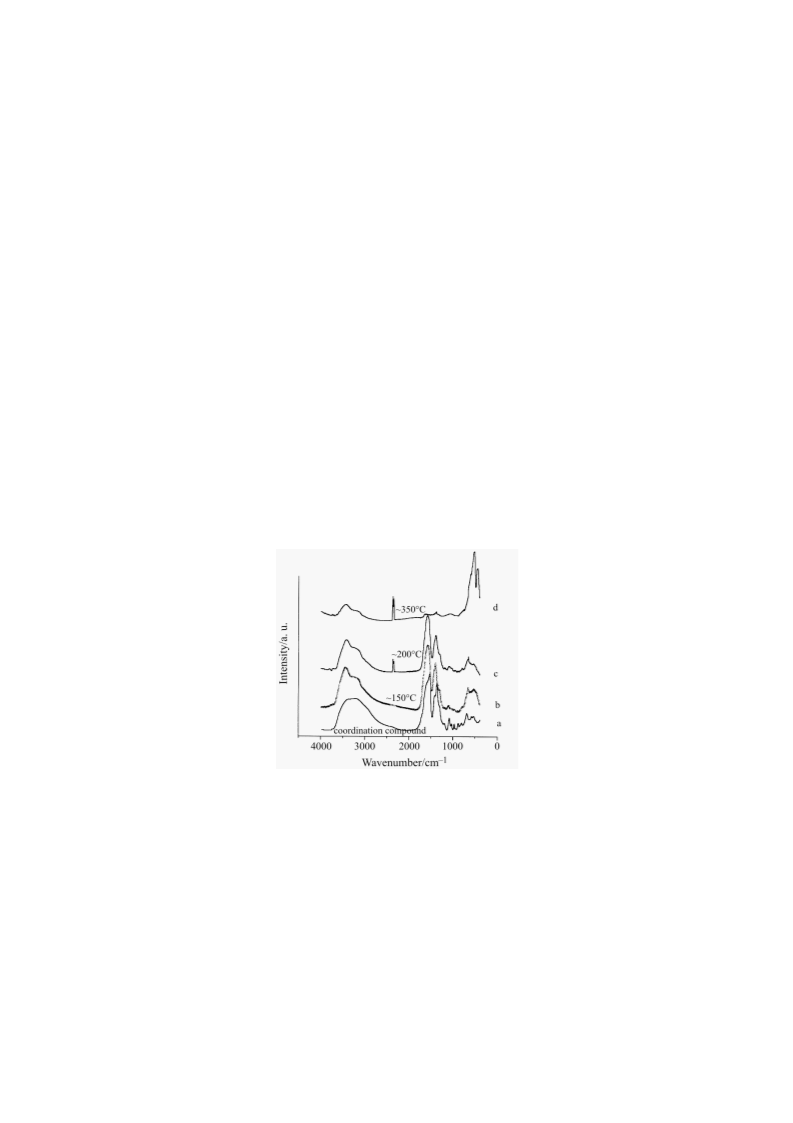

Fig. 1 IR spectra of the (NH
its solid reaction
4
)[Fe(C
4
H
4
O
5
)(OH)
2
2
]⋅0.5H O coordination compound and
On the basis of spectroscopic criteria, the magnitude of separation ∆ν=νasym–νsym
may represent an indication of the different coordination modes of the carboxylate ions.
–1
So, ∆ν values included in the range 140–160 cm , lower than those observed for ionic
–1
compounds (∆Na (C H O )=180 cm ), suggest a bridging bidentate bonding. On the
2
4
4
5
J. Therm. Anal. Cal., 72, 2003

2
84
PATRON et al.: IRON, NICKEL AND ZINC MALATES
Fig. 2 IR spectra of the [Ni(C
tion decomposition intermediates
4
H
4
O
5 2
)]⋅5H O coordination compound and its solid reac-

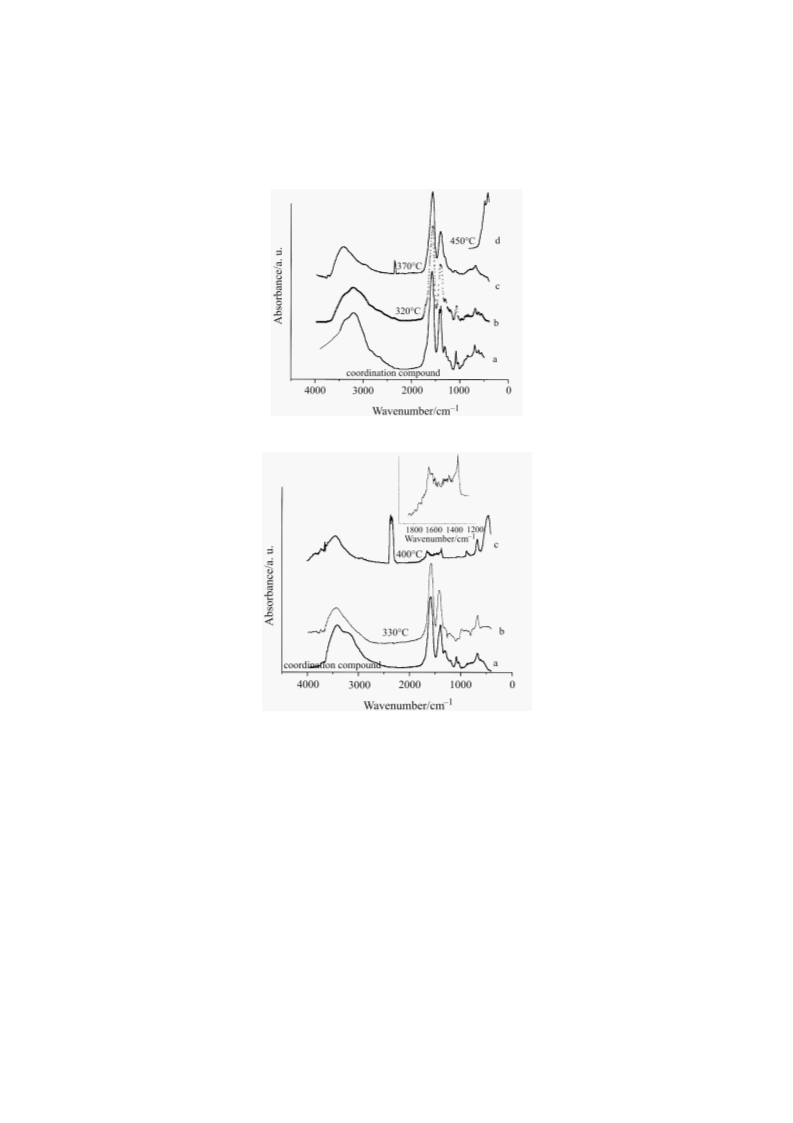

Fig. 3 IR spectra of the [Zn(C
tion decomposition intermediates
4
H
4
O
5
2
)]⋅4H O coordination compound and its solid reac-
–1
other hand, values of ∆ν>180 cm are characteristic for unidentate coordination com-
pounds.
Concerning our three compounds the following conclusions may be marked:
–
1
–
the ∆ν value of 190 cm observed for zinc coordination compound suggests a
monodentate bonding of the carboxylate group. Such a linkage conduct to a polymer
structure of the compound similar with other transitional metal carboxylate compounds;
J. Therm. Anal. Cal., 72, 2003

PATRON et al.: IRON, NICKEL AND ZINC MALATES
285
–
the splitting into two components of the νsymm vibration detected for nickel co-
–1
ordination compound, leading to ∆ν =163 and ∆ν =189 cm values, suggest two dif-
ferent bonding of COO group: a bidentate one (corresponding to ∆ν value) and a
1
2
–
1
monodentate one (corresponding to ∆ν value);
2
–
for iron coordination compound the splitting of the band localized in
1
–
–1
1
440–1380 cm range is due to the bridging bidentate bond (∆ν=168 cm ) and the
presence of NH ion (∼ 1430 cm ).
+
–1
4
At room temperature, the effective magnetic moments of nickel and iron com-
pound was found to be µ=3.39 and µ=6.12 BM in agreement with an octahedral con-
2
+
3+
figuration of Ni and Fe high spin [14]. The value obtained for nickel compound
which is higher than that corresponding to the spin value (µ=2.83 BM) could be ex-
plained through the coupling spin–orbit, which is also found in the slight splitting in
the electron spectrum of band ν .
2
The octahedral environments of the two metallic ions are evidenced also by
UV-VIS reflectance investigations.
Thermal decompositions of the three coordination compounds
A stepped thermal decompositions of the coordination compounds occur in the range
5
0–600°C. In order to determine the stages involved in the thermal processes, the de-
composition intermediates were identified by means of elemental chemical analysis
and IR spectroscopy.
(NH
4
)[Fe(C
4
H O
4 5
)(OH)
]⋅0.5H O coordination compound
2 2
The results of thermal analysis revealed five distinct steps of mass loss (Fig. 4). The
experimental total mass loss recorded by TG measurements is 67.82% in comparison
with the theoretical value of 67.91% assuming the solid residue to be α-Fe O .
2
3

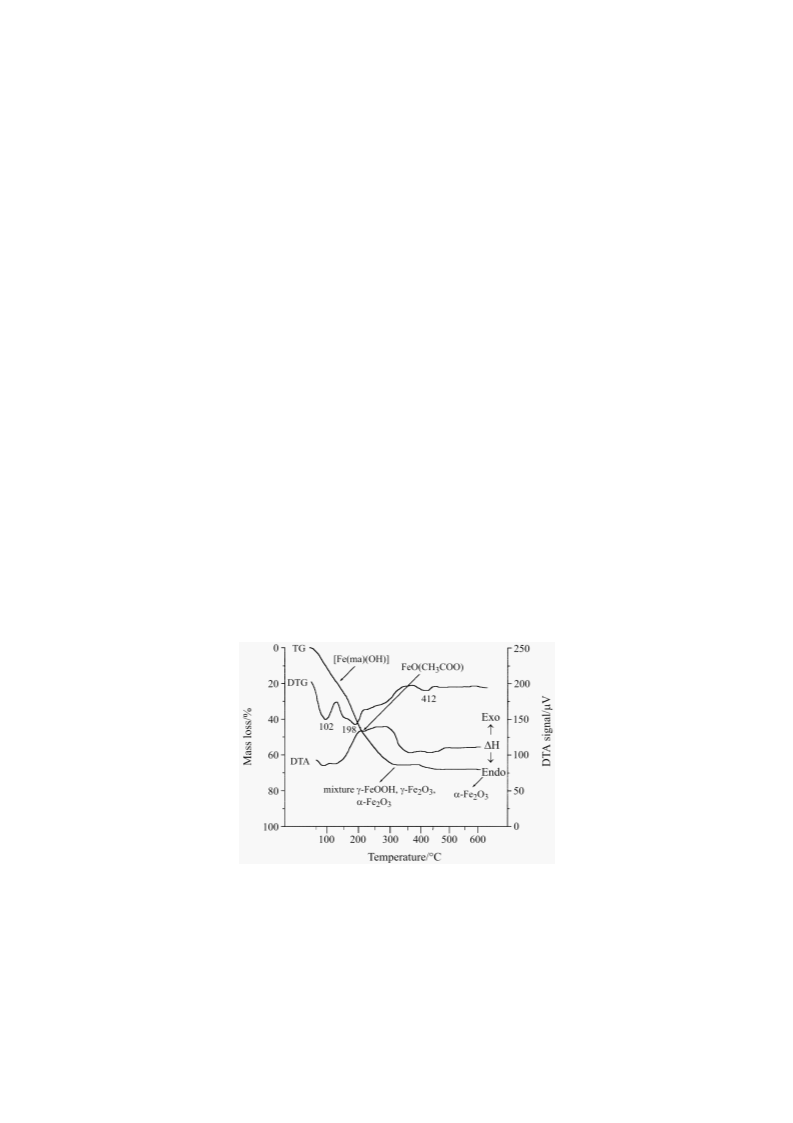

Fig. 4 Thermoanalytical curves of (NH
4
)[Fe(C
4
H
4
O
5
)(OH)
pound (initial mass 51.09 mg, heating rate 5°C min , static air)
2
2
]⋅0.5H O coordination com-
–
1
J. Therm. Anal. Cal., 72, 2003

2
86
PATRON et al.: IRON, NICKEL AND ZINC MALATES
The first step (42–138°C) represents the endothermic evolving of 0.5 water and one
NH OH molecules (calcd./found 17.99/17.68%). The anhydrous malate compound is
converted into a malonic one (138–178°C) due to the anion degradation (calcd./found
4
12.76/12.05%). The next decomposition step (178–225°C) assigned to the formation of
an iron oxoacetate FeO(CH COO) (calcd./found 17.89/18.08%) which decomposes fur-
3
ther (225–331°C), leading to a mixture of iron oxide and oxohydroxides. Subsequently, a
well-defined decomposition step (401–448°C), assigned to water releasing from oxo-
hydroxides generated in the reaction medium occurs.
In the IR spectra of the decomposition intermediates, the presence of malonates
–
Fig. 1 b) is identified by the disappearance of the band assigned to HO group
(
(
–
1040 cm ), the formation of an acetate compound by the bands characteristic to
1
–
1
–1
–
CH group at 1100–1000 cm and shoulder at ∼ 1360 cm (Fig. 1 c) [15]. At 350°C
3
the IR spectrum (Fig. 1 d) shows a mixture of lepidocrite (γ-FeOOH, band at
–
1
–1
–1
1
(
022 cm , shoulder at 750 cm ), maghemite (shoulder at ∼ 600 cm ) and α-Fe O
2
3
–1 –1
bands at 543 and 470 cm ). The band evidenced at 2362 cm for the intermediates
–
1
obtained at 200 and 350 cm is due to the ν(CO ), suggesting its presence in a
2
trapped state within the solid matrix.
[
Ni(C H O )]⋅5H O coordination compound
4
4
5
2
For this compound five decomposition mass losses followed by a mass gain are evi-
denced (Fig. 5). The experimental and theoretical mass losses assuming NiO forma-
tion are close (calcd./found 73.40/74.20%).

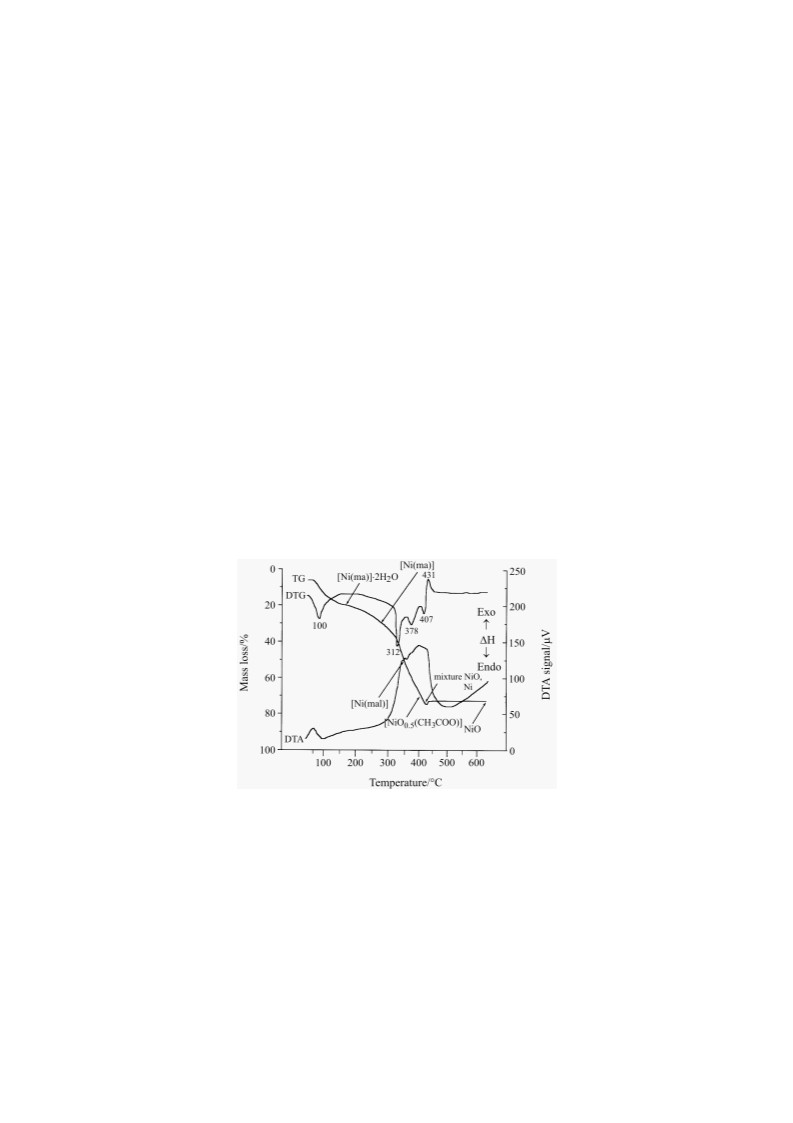

Fig. 5 Thermoanalytical curves of [Ni(C
4
H
4
O
5
2
)]⋅5H O coordination compound (initial
–
1
mass 49.56 mg, heating rate 5°C min , static air)
The decomposition starts with two endothermic processes (70–298°C) which
can be attributed to water evolving. The first one (70–190°C) represents the elimina-
tion of three crystallization water molecules (calcd./found 19.23/20.23%), while the
J. Therm. Anal. Cal., 72, 2003

PATRON et al.: IRON, NICKEL AND ZINC MALATES
287
second which occur at higher temperatures (190–298°C), of two water molecules co-
ordinated bonded to the metallic ion (calcd./found 12.83/13.40%). The next step
(
298–338°C) is assigned to the oxidative fragmentation of the malate ion with forma-
tion of a malonate intermediate (calcd./found 10.69/10.02%). The malonate interme-
diate is identified by chemical analysis and by IR investigations through the disap-
–
pearance of the bands assigned to OH group (1032 cm , Fig. 2 b).
1
On further heating (338–425°C) the malonate intermediate decomposition occurs
via an oxoacetate intermediate (338–360°C, calcd./found 17.89/18.08%, Fig. 2 c). The
–1
–1
shoulder at ∼ 1300 cm and the weak band at ∼ 1050 cm are characteristic for CH
group.
A mass gain (1.26%) may be detected at the end of thermal decomposition
425–445°C). It is known that NiO promotes oxidation of carbon containing materi-
3
(
als. Thus, it is reasonable to suppose that the carbonaceous moieties are oxidized on
the NiO surface, with a concomitant reduction NiO→Ni. Since the process is con-
ducted in air, the metal undergoes a rapid reoxidation. NiO is identified by the ab-
–
1
sorption at 495 and 435 cm (Fig. 2 d).
[
ZnC H O ]⋅4H O coordination compound
4
4
5
2
The coordination compound undergoes a stepwise decomposition in four distinct
stages of mass loss (Fig. 6). The observed mass loss (67.12%) is in good agreement
with the calculated one (67.27%) considering as residue ZnO.
Fig. 6 Thermoanalytical curves of [Zn(C
4
H
4
O
5
2
)]⋅4H O coordination compound (initial
–
1
mass 49.13 mg, heating rate 5°C min , static air)
The decomposition starts with two endothermic steps (55–275°C) correspond-
ing to release of two (calcd./found 13.00/13.98%) and respectively one (calcd./found
7.16./7.88%) water molecules. The next decomposition step (275–350°C) represent
the oxidative fragmentation of malate anion with formation of the malonic intermedi-
J. Therm. Anal. Cal., 72, 2003

2
88
PATRON et al.: IRON, NICKEL AND ZINC MALATES
ate (calcd./found 11.93/11.42%), identified by chemical analysis and IR spectros-
copy (Fig. 3 curve b). On further heating, this compound decompose with formation
of hydrozincite [Zn (CO ) ⋅6(OH)]. At this stage the absorptions at 1380, 877 and
5
3 2
–
1
2–
–1
675 cm indicates de formation of CO , while the weak band from 3710 cm and
–
the shoulder from 1737 cm evidence the presence of HO group (Fig. 3 c).
3
–
1
Solid state mechanism
By means of thermoanalytical, chemical analysis and IR measurements the following
thermal decomposition steps of the coordination compounds compound may be as-
sumed:
4
2–138°C
(
NH )[Fe(ma)(OH) ]⋅5H O   → [Fe(ma)(OH)]
4
2
2
1
38–178°C
178–225°C

 → [Fe(mal)(OH]   → FeO(CH COO)
3
2

25–331°C
401–448°C
 → mixture γ-FeOOH, γ-Fe
O
and α-Fe
O
  → 0.5α-Fe
O
(1)
2
3
2
3
2
3
7
0–190°C
190–298°C
298–338°C
[
Ni(ma)]⋅5H O   → [Ni(ma)]⋅2H O   → [Ni(ma)]   → [Ni(mal)]
2
2
3
38–360°C
360–425°C
425–445°C

 → NiO0.5(CH
3
COO)   → mixture NiO and Ni   → NiO
(2)
(3)
5
5–180°C
180–275°C
275–350°C
[
Zn(ma)]⋅4H O   → [Zn(ma)]⋅H O   → [Zn(ma)]   → [Zn(mal)]
2
2
3

50–374°C
374–471°C
 → 1/5Zn
(CO ) (OH)   → ZnO
3 2 6
5
where ma, mal represent the dianions of malic and malonic acids.
* *
*
The financial support by MATNANTECH program is gratefully acknowledged.
References
1
2
3
4
5
O. Carp and E. Segal, Rev. Roum. Chim., 39 (1994) 1123.
I. Mindru, L. Patron and M. Brezeanu, Roum. Chem. Quart. Rev., 4 (1996) 167.
I. Mindru, L. Patron, D. Crisan and M. Brezeanu, Roum. Chem. Quart. Rev., 42 (1997) 31.
M. Brezeanu, L. Patron, O. Carp, M. Andruh and N. Stanica, Rev. Roum. Chim., 39 (1991) 545.
I. Mindru, L. Patron, O. Carp, G. Marinescu, M. Brezeanu and E. Segal, Rev. Roum. Chim.,
4
5 (2000) 601.
6
7
8
9
M. Brezeanu, L. Patron, O. Carp, M. Andruh and N. Stanica, Rev. Roum. Chim., 39 (1991) 545.
W. Bryska and W. Ozga, J. Therm. Anal. Cal., 65 (2001) 829.
B. S. Randhawa and K. J. Sweety, J. Therm. Anal. Cal., 67 (2002) 623.
T. V. Albu, I. Mindru, L. Patron, E. Segal and M. Brezeanu, Thermochim. Acta, 340 (1999) 235.
1
1
1
0 T. V. Albu, L. Patron and E. Segal, J. Therm. Anal. Cal., 48 (1997) 359.
1 P. Spacu, L. Patron and A. Butucelea, Rev. Roum. Chim., 36 (1991) 519.
2 O. Carp, L. Patron, I. Mindru, G. Marinescu, L. Diamandescu and A. Banuta,
J. Therm. Anal. Cal., (in press).
1
1
3 P. E. Rush, J. D. Oliver, G. D. Simpson and G. O. Carlisle, J. Inorg. Chem., 37 (1975) 1393.
4 F. A.Cotton and G.Wilkinson, in Advanced Inorganic Chemistry, Interscience Publishers,
nd
2
Ed., New York 1966, p. 861, p. 881.
1
5 P. Baraldi, Spectrochim. Acta, Part A, 38 (1982) 51.
J. Therm. Anal. Cal., 72, 2003
