Controlled synthesis of highly ordered LaFeO3 nanowires using a citrate-based sol-gel route

Article abstract of DOI:10.1016/j.materresbull.2005.08.022

Highly ordered LaFeO₃ nanowires of complex oxide were controlled synthesized with a porous anodic aluminum oxide (AAO) template by a citrate-based sol-gel route. The results of scanning electron microscopy (SEM) and transmission electron microscopy (TEM) revealed that the LaFeO₃ nanowires formed a uniform length and diameter, which were determined by the thickness and the pore diameter of the AAO template, respectively. The results of X-ray diffraction (XRD) and the selected area electron diffraction (SAED) indicated that the LaFeO₃ nanowires had a perovskite-type crystal structure. Furthermore, X-ray photoelectron spectroscopy (XPS) demonstrated that stoichiometric LaFeO₃ was formed.

Full text of DOI:10.1016/j.materresbull.2005.08.022

Materials Research Bulletin 41 (2006) 274–281
www.elsevier.com/locate/matresbu
Controlled synthesis of highly ordered LaFeO3 nanowires
using a citrate-based sol–gel route
*
Zhi Yang, Yi Huang, Bin Dong, Hu-Lin Li
College of Chemistry and Chemical Engineering, Lanzhou University, Gansu, Lanzhou 730000, People’s Republic of China
Received 12 March 2005; received in revised form 10 August 2005; accepted 26 August 2005
Available online 19 September 2005
Abstract
Highly ordered LaFeO3 nanowires of complex oxide were controlled synthesized with a porous anodic aluminum oxide (AAO)
template by a citrate-based sol–gel route. The results of scanning electron microscopy (SEM) and transmission electron microscopy
(TEM) revealed that the LaFeO3 nanowires formed a uniform length and diameter, which were determined by the thickness and the
pore diameter of the AAO template, respectively. The results of X-ray diffraction (XRD) and the selected area electron diffraction
(SAED) indicated that the LaFeO3 nanowires had a perovskite-type crystal structure. Furthermore, X-ray photoelectron spectro-
scopy (XPS) demonstrated that stoichiometric LaFeO3 was formed.
# 2005 Elsevier Ltd. All rights reserved.
Keywords: A. Inorganic compounds; A. Nanostructures; B. Chemical synthesis; B. Sol–gel chemistry
1. Introduction
One-dimensional materials have received much attention due to their significant technological implications. Much
effort has been expended on the synthesis of nanoscale materials of various compounds. Recently, much attention has
been paid to the preparation of complex oxides nanowires because of their interesting and distinctive physical and
chemical properties that are different from those of conventional bulk materials. Several complex oxides nanowires
such as LiNi0.5Mn0.5O2 [1], LiMnO2 [2], and LiCoO2 [3] have been successfully synthesized. In this paper, we select
perovskite-type complex oxide LaFeO3 as a subject, a well-known material that has been the subject of intensive
investigations over the years.
Functional perovskite complex oxides such as LaFeO3 and related compounds, are very promising materials due to
their innovative use in advanced technologies. These perovskite-type oxides are active oxidation catalysts [4],
environmental monitoring films [5], can be employed as cathodes and membranes in solid oxide fuel cells [6], as
electrode materials [7], as a magnetic material [8], and as active materials for chemical sensors for the detection of
humidity [9], alcohols [10] and gases [11] such as oxygen [12], CO [13], NO [14] and NO2 [15].
The synthesis of LaFeO3 and related compounds have been achieved by many methods, including solid-state
reaction [16], mechanochemical solid reaction [17], sol–gel [18], combustion synthesis [19], hydrothermal synthesis
[20], sonochemical synthesis [21], thermal decomposition of the heteronuclear complex [22], wet chemically co-
precipitation [23], a polymerizable complex method [24] and a microemulsion method [25].
* Corresponding author. Tel.: +86 931 891 2517; fax: +86 931 891 2582.
E-mail address: lihl@lzu.edu.cn (H.-L. Li).
0025-5408/$ – see front matter # 2005 Elsevier Ltd. All rights reserved.
doi:10.1016/j.materresbull.2005.08.022

Z. Yang et al. / Materials Research Bulletin 41 (2006) 274–281
275
Recent publications mainly focus on the preparation and properties of the LaFeO3 films or powders. In contrast, the
investigations on wire-like LaFeO3 nanostructures are quite limited. The properties of the final materials obtained are
strongly dependent on the preparation method. The controlled synthesis of homogeneous, high purity and high surface
area LaFeO3 material is necessary in most applications for obtaining reproducible properties. LaFeO3 nanowires have
higher surface areas compared to LaFeO3 films and powders, and hence should enhance the effectiveness of the
material in many applications, e.g., catalysis and gas sensitivity.
Up to now, the synthesis of nanowires of multi-component oxides is still a challenging issue. Herein we have
successfully combined the concepts of sol–gel synthesis and template preparation of nanomaterials for the first time to
yield a novel general route for fabricating highly ordered LaFeO3 nanowires, which are distinctly different from the
results of conventional methods. This was accomplished by conducting sol–gel synthesis within the pores of
nanoporous membranes, resulting in the formation of mono-dispersed LaFeO3 nanowires were obtained. This process
uses inexpensive raw materials and can be performed at room temperature.
2. Experimental
2.1. Membrane preparation
High purity aluminum foil (99.999%) employed in this experiment was ultrasonically degreased in acetone for
10 min, etched in 1.0 mol lÀ1 NaOH at room temperature for 3 min to remove the native oxide, washed thoroughly
with distilled water, electropolished in a mixed solution of HClO4:CH3CH2OH = 1:4 (v/v) for 5 min to provide a
smooth surface and promptly rinsed with distilled water. Afterwards, the resulted clean aluminum foil was anodized at
80 Vdc for 2 h in 0.5 mol lÀ1 phosphoric acid solution. Each sample was then placed into a saturated HgCl2 solution for
1 h to separate the template membrane from the aluminum substrate. The membrane was rinsed with distilled water
and immersed in 0.5 mol lÀ1 H3PO4 solution for about 15 min at 328 K in order to dissolve the barrier-type part of
nanoholes on the bottom. The obtained AAO template had a highly ordered porous structure with very uniform and
nearly parallel pores, which could be organized in an almost precise hexagonal structure. The AAO template was
characterized by using atomic force microscopy (AFM, Solver P47, Russia) and SEM (JSM-5600LV, Japan).
2.2. Preparation of LaFeO3 nanowires
The LaFeO3 perovskite precursors in this work were prepared by the citrate-based sol–gel method. Analytical grade
lanthanum nitrate (La(NO3)3Á6H2O), ferric nitrate (Fe(NO3)3Á9H2O), citric acid (C6H8O7ÁH2O) and ammonia water
(NH3ÁH2O) were used as raw materials. According to the stoichiometric composition reactants, 0.1 mol
La(NO3)3Á6H2O and 0.1 mol Fe(NO3)3Á9H2O were first dissolved in 100 ml deionized water, then 0.2 mol citric
acid is added to the above solution. The molar amount of citric acid was equal to total molar amount of metal nitrates in
solution. Ammonia water was slowly added to adjust the pH value of the solution in the range of 6–7 and stabilize the
nitrate–citrate solution. During this procedure, the solution was kept at a temperature of 333 K and continuously
stirred. Thus, a transparent and homogeneous sol was obtained.
The AAO template membrane was immersed into this sol for 30 min and then removed. Excess sol on the
membrane surface was wiped off using a laboratory tissue, followed by drying under vacuum at 323 K for 2 h. The
membrane surface was carefully wiped again to remove salts crystallized on the surface and then heat treated at 953 K
for 3 h in the open furnace. As a result, LaFeO3 nanowires were formed inside the pores of AAO template.
2.3. Characterization of LaFeO3 nanowires
The structure and morphology properties of LaFeO3 nanowires were characterized by several techniques. The SEM
samples were obtained as following: the alumina membrane was attached to a SEM sample stub with carbon
conductive paint and then several drops of 3 mol lÀ1 NaOH were added to the sample to dissolve the partial membrane.
Prior to characterization, Au was sputtered onto the samples surface in order to increase their conductivity. TEM
images were obtained using a HITACHI-600 microscope. It was used to observe the morphology and degree of
agglomeration of the nanowires. Before TEM observation, the alumina template membrane was dissolved by using
3 mol lÀ1 NaOH, and then diluted with distilled water for three times. Droplets of solution containing LaFeO3

276
Z. Yang et al. / Materials Research Bulletin 41 (2006) 274–281
nanowires were dropped onto the copper grids. The XRD patterns for LaFeO3 nanowires were recorded with a
diffractometer (Rigaku D/MAX-2400, Japan) using Cu Ka radiation (l = 0.154184 nm). The current and voltage
during the measurements were 60 mA and 40 kV, respectively. The scanning rate was 108 minÀ1 and the 2u scanning
range was from 20 to 808. XPS data were obtained with a V.G. ESCA Lab. 2201-XL photoelectron spectrometer with
Mg Ka source, a concentric hemispherical analyzer operating in fixed analyzer transmission mode and a multi-
channel detector. The pressure in the analysis chamber was less than 2 Â 10À10 Torr. The spectra were acquired with a
50 eV pass energy and a 1 mm2 spot (large area mode without using XL lens). The binding energy was calibrated with
reference to the C 1s level of carbon (284.8 eV).
3. Results and discussion
3.1. Characterization of the membrane
When anodized in an acidic electrolyte, aluminum forms a porous oxide with very uniform and parallel pores open
at one end and sealed at the other [26–28]. Its structure is described as a close-packed array of columnar cells, each
containing a central pore of which the size and the interval can be controlled by changing the forming conditions [26–
28]. As indicated in Fig. 1(a), the pores in the membrane are arranged in a regular hexagonal lattice. Perfect hexagonal
pore arrays can be observed within domains of microsize, which are separated from neighboring aluminum oxide
domains with a different orientation of the pore lattice by grain boundaries. Fig. 1(b) depicts the cross-section SEM
image of the AAO template with pores parallel to each other and perpendicular to the surface of the membrane. Here,
the pores of the membrane are about 100 nm in diameter and about 50 mm in length with a pore density of about
109–1010 cmÀ2
.
3.2. SEM analysis of LaFeO3 nanowires

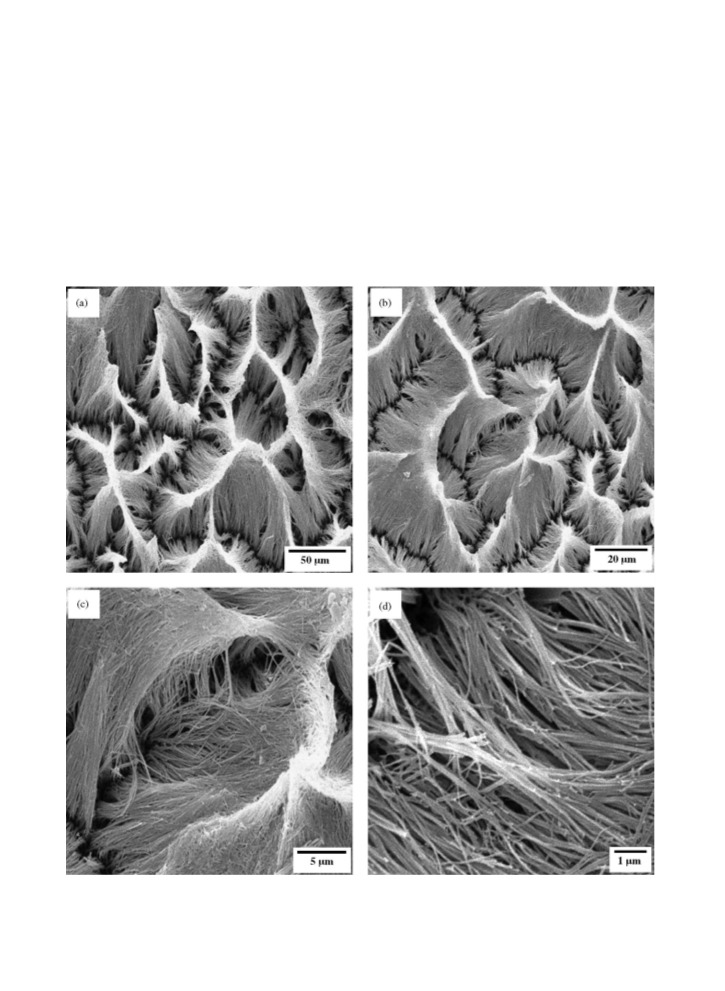

Fig. 2(a–d) shows SEM images of LaFeO3 nanowires grown in AAO template. These photographs show that the
nanowires are uniformly distributed, highly ordered, parallel to each other. Few microscopic defects are found in these
wires. Fig. 2(a) and (b) are planforms from which we can find several clusters of nanowires. The clusters can result
from the situation in which the nanowires are uncovered from the framework of the AAO template but freestanding
incompletely. When the top alumina of the AAO template is dissolved away, the nanowires embedded in the template
release gradually and incline to agglomerate together. It is conceivable that the surface energy of the nanowires causes
Fig. 1. (a) AFM image of the surface of AAO template under tapping mode and (b) SEM image of cross-section of AAO template.

Z. Yang et al. / Materials Research Bulletin 41 (2006) 274–281
277
this interesting phenomenon. Fig. 2(a) and (b) also show that LaFeO3 nanowires are abundant, uniform and highly
ordered in large area. Fig. 2(c) reveals a cross-section where the alumina matrix of the AAO template has been partially
dissolved away. It can be seen that the nanowires deposited inside the nanochannel of the AAO template are parallel,
tidily aligned and uniformly distributed. It is correlative to that the AAO template had an array of densely parallel
nanoholes arranged in a hexagonal fashion. Fig. 2(d) shows a split where the alumina matrix of the AAO template has
been dissolved away and large quantities of LaFeO3 nanowires remain. We can see that these nanowires have a fiber-
brush aspect. From these figures, we find that LaFeO3 nanowires can be produced in large areas within the pores of the
AAO template. At the same time, it also can be estimated that the length of LaFeO3 nanowires is about 50 mm. It is
corresponding with the thickness of the AAO template. The outside diameters of these nanowires are about 100 nm,
which are equivalent to the pore diameter of the template membrane.
Fig. 2. SEM images of LaFeO3 nanowires with the AAO template partly dissolved: (a, b) top view in low magnification and (c, d) cross-section in
high magnification.

278
Z. Yang et al. / Materials Research Bulletin 41 (2006) 274–281
3.3. TEM and SAED analysis of LaFeO3 nanowires

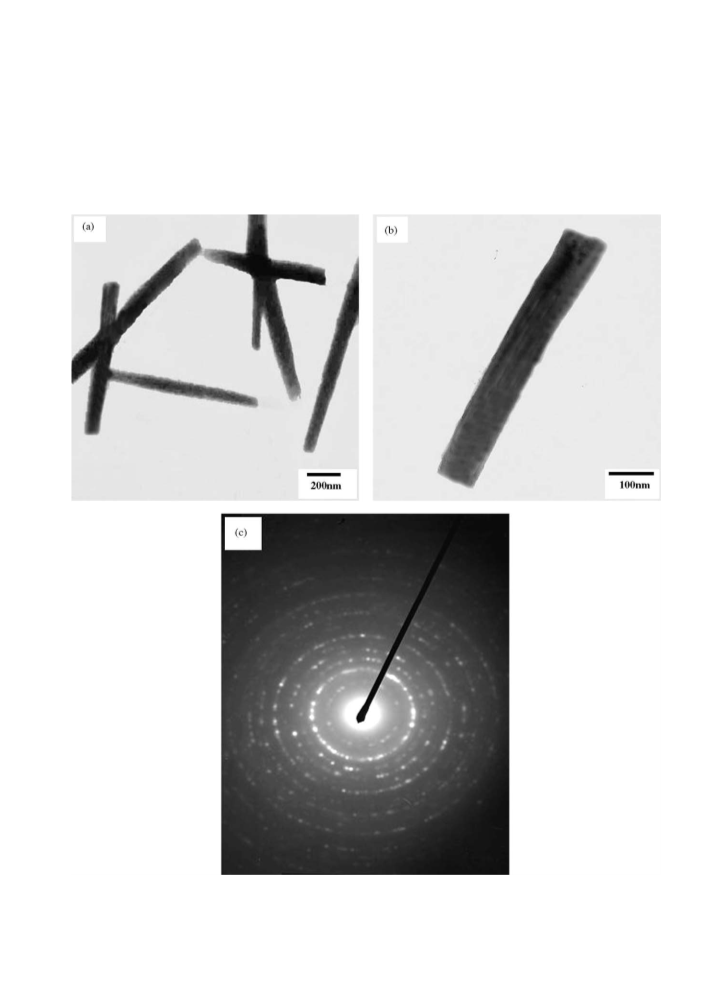

TEM images of LaFeO3 nanowires formed within the AAO template are shown in Fig. 3(a) and (b). Fig. 3(a)
shows several LaFeO3 nanowires, in which some of these nanowires cross and overlap with each other. This
image also shows that the diameter of LaFeO3 nanowires is about 100 nm, which approximately equals to that
of the nanochannels of the AAO template. Although the lengths of nanowires are much less than 50 mm, it does not
Fig. 3. (a) TEM image of several LaFeO3 nanowires after removing AAO; (b) TEM image of one LaFeO3 nanowire and (c) The corresponding
selected-area electron diffraction for LaFeO3 nanowires.

Z. Yang et al. / Materials Research Bulletin 41 (2006) 274–281
279
Fig. 4. XRD patterns of LaFeO3 nanowires.
imply that the as grown nanowires are really so short, because during the preparation of samples for TEM
observation, the nanowires are easily broken by the ultrasonic stirring. These nanowires are uniformly distributed,
which indicates that the alumina matrix is dissolved completely. Fig. 3(b) shows another image of one LaFeO3
nanowire. It can be seen that the surface of this nanowire is smooth. Fig. 3(c) shows the corresponding SAED pattern
taken from LaFeO3 nanowires. Lots of individual LaFeO3 nanowires were examined and we always observed
diffraction rings. The SAED results indicate that LaFeO3 nanowires are polycrystalline. Generally, the nanowires
prepared by the sol–gel method with the AAO templates are polycrystalline [29,30]. It should be noted that the
diffraction rings are discontinuous and consist of rather sharp spots, which indicates that the nanowires are well
crystallized. According to the electron-diffraction formula, the major diffraction spots correspond to the (1 0 1),
(1 2 1), (2 2 0), (2 0 2), (2 4 0), (2 4 2) and (2 0 4) diffraction planes for LaFeO3 with an orthorhombic perovskite
structure.
3.4. XRD analysis of LaFeO3 nanowires
Fig. 4 shows the XRD patterns of LaFeO3 nanowires after heat treatment at 953 K for 3 h. The peak positions and
their relative intensities are consistent with the standard powder diffraction patterns of perovskite-type LaFeO3
(JCPDS, card number: 37–1493). All of the diffraction peaks are assigned to LaFeO3 and no other peaks attributable to
La2O3 and Fe2O3 are observed. The XRD patterns of LaFeO3 nanowires are characteristic of crystalline perovskite
oxides, with an orthorhombic cell, Pnma space group [31].
3.5. XPS analysis of LaFeO3 nanowires
The oxidation state of principal elements of LaFeO3 nanowires in the pores of AAO can be determined by XPS.
The binding energies obtained in the XPS analysis are standardized for specimen charging using C 1s as the
reference at 284.8 eV. Fig. 5(a–d) display the XPS spectra of La 3d5/2, Fe 2p, O 1s and Al 2p core levels for LaFeO3
nanowires embedded in AAO template, respectively. The line of the La 3d5/2 core level has two binding energy
peaks located at 839.0 and 835.7 eV (Fig. 5(a)). The peaks located at 709.8 and 724.3 eV (Fig. 5(b)) are attributed
to the spin–orbit splitting of the Fe (2p) components, Fe 2p3/2 and Fe 2p1/2, respectively. The line shape of the core
levels O 1s and Al 2p are Gaussian-like with a binding energy of 530.7 eV (Fig. 5(c)) and 74.2 eV (Fig. 5(d)),
respectively. We can see that the peak intensities of O 1s and Al 2p are higher than for the other elements. The
reason for the weaker peak intensity of La 3d5/2 and Fe 2p derives from the low concentration of LaFeO3 in the
AAO template and the LaFeO3 not being covered on the surface of the template. The binding energy values for
principal elements of LaFeO3 in the pores of AAO are in good agreement with those of LaFeO3 found in the
literature [32,33]. XPS spectra further confirm the main composition of the nanowires in the pores of AAO to be
stoichiometric LaFeO3.

280
Z. Yang et al. / Materials Research Bulletin 41 (2006) 274–281
Fig. 5. XPS spectra of (a) La 3d5/2; (b) Fe 2p; (c) O 1s and (d) Al 2p core levels for LaFeO3/AAO membrane.
4. Conclusion
In summary, highly ordered LaFeO3 nanowires were successfully fabricated by a citrate-based sol–gel template
process. We have also applied SEM, TEM, XRD and XPS techniques to characterize the structure of LaFeO3
nanowires. The SEM and TEM results showed highly ordered LaFeO3 nanowires had a uniform length and diameter,
which were determined by the thickness and the pore diameter of the applied AAO template, respectively. XRD
patterns indicated that perovskite-type LaFeO3 naowires were orthorhombic symmetry structures. The result of SAED
demonstrated that LaFeO3 nanowires were polycrystalline. XPS analysis demonstrated that the stoichiometric LaFeO3
nanowires were formed. We have succeeded in providing a meaningful method to design perovskite-type complex
oxide LaFeO3 nanowires. It could be expected that the novel and effective technique presented in this article would be
also appropriate for the preparation of nanowires of other monocomponent or multi-component oxides. This facile
method of preparing highly ordered LaFeO3 nanowires with a large area might be important for many applications in
nanomaterials.
Acknowledgments
This work is supported by the National Natural Science Foundation of China (No. 60171004). The authors would
like to express our sincere thanks to Researcher Jia-Zheng Zhao of Lanzhou Institute of Chemical Physics of the
Chinese Academy of Sciences for SEM measurement, to Chief Engineer Da-Kang Song of Material Department of
Lanzhou University for measurement and analysis of XRD data.

Z. Yang et al. / Materials Research Bulletin 41 (2006) 274–281
281
References
[1] Y.K. Zhou, H.L. Li, J. Mater. Chem. 12 (2002) 681.
[2] Y.K. Zhou, J.E. Huang, H.L. Li, Appl. Phys. A: Mater. Sci. Process. 76 (2003) 53.
[3] Y.K. Zhou, C.M. Shen, H.L. Li, Solid State Ionics 146 (2002) 81.
[4] A.D. Paoli, A.A. Barresi, Ind. Eng. Chem. Res. 40 (2001) 1460.
[5] G. Martinelli, M.C. Carotta, M. Ferroni, Y. Sadaoka, E. Traversa, Sens. Actuators B 55 (1999) 99.
[6] N.Q. Mih, J. Am. Ceram. Soc. 76 (1993) 563.
[7] T. Inoue, N. Seki, K. Eguchi, H. Arai, J. Electrochem. Soc. 137 (1990) 2523.
[8] H. Tanaka, T. Kawai, Solid State Commun. 112 (1999) 201.
[9] J.P. Lukaszewicz, Sens. Actuators B 4 (1991) 227.
[10] S.Q. Zhao, J.K.O. Sin, B.K. Xu, M.Y. Zhao, Z.Y. Peng, H. Cai, Sens. Actuators B 64 (2000) 83.
[11] X. Ge, Y. Liu, X. Liu, Sens. Actuators B 79 (2001) 171.
[12] T. Arakawa, H. Kurachi, J. Shiokawa, J. Mater. Sci. 4 (1985) 1207.
[13] Y. Takahashi, H. Taguchi, J. Mater. Sci. Lett. 3 (1984) 251.
[14] N.N. Toan, S. Saukko, V. Lantto, Physica B 327 (2003) 279.
[15] Y. Matsuura, S. Matsushima, M. Sakamoto, Y. Sadaoka, J. Mater. Chem. 3 (1993) 767.
[16] M. Kakihana, J. Sol–gel Sci. Technol. 6 (1996) 7.
[17] Q.W. Zhang, F. Saito, J. Mater. Sci. 36 (2001) 2287.
´ ´ ´ ´
¨
[18] C. Vazquez-Vazquez, P. Kogerler, M.A. Lopez-Quintela, R.D. Sanchez, J. Rivas, J. Mater. Res. 13 (1998) 451.
[19] X.W. Qi, J. Zhou, Z.X. Yue, Z.L. Gui, L.T. Li, Ceram. Int. 29 (2003) 347.
[20] W.J. Zheng, R.H. Liu, D.K. Peng, G.Y. Meng, Mater. Lett. 43 (2000) 19.
[21] M. Sivakumar, A. Gedanken, W. Zhong, Y.H. Jiang, Y.W. Du, I. Brukental, D. Bhattacharya, Y. Yeshurun, I. Nowik, J. Mater. Chem. 14 (2004)
764.
[22] Y. Sadaoka, H. Aono, E. Traversa, M. Sakamoto, J. Alloys Compd. 278 (1998) 135.
[23] J.J. Liang, H.S. Weng, Ind. Eng. Chem. Res. 32 (1993) 2563.
[24] M. Popa, J. Frantti, M. Kakihana, Solid State Ionics 154–155 (2002) 437.
[25] A.E. Giannakas, A.K. Ladavos, P.J. Pomonis, Appl. Catal. B 49 (2004) 147.
[26] Y. Peng, H.L. Zhang, S.L. Pan, H.L. Li, J. Appl. Phys. 87 (2000) 7405.
[27] S.L. Pan, H.L. Zhang, Y. Peng, Z. Wang, H.L. Li, Chem. J. Chin. Univ. 20 (1999) 1622.
[28] C.A. Huber, T.E. Huber, M. Sadoqi, J.A. Lubin, S. Manalis, C.B. Prater, Science 263 (1994) 800.
[29] Y. Lin, F.Q. Sun, X.Y. Yuan, B.Y. Geng, L.D. Zhang, Appl. Phys. A: Mater. Sci. Process. 78 (2003) 1197.
[30] B.A. Hernandez, K.S. Chang, E.R. Fisher, P.K. Dorhout, Chem. Mater. 14 (2002) 480.
[31] P. Ciambelli, S. Cimino, L. Lisi, M. Faticanti, G. Minelli, I. Pettiti, P. Porta, Appl. Catal. B 33 (2001) 193.
[32] X. Li, H.B. Zhang, X.X. Liu, S.J. Li, M.Y. Zhao, Mater. Chem. Phys. 38 (1994) 355.
[33] X. Li, X.X. Liu, B. Xu, M.Y. Zhao, J. Alloys Compd. 186 (1992) 315.
