Structural Identification between Phthalazine-1,4-Diones and
N-Aminophthalimides via Vilsmeier Reaction: Nitrogen
Cyclization and Tautomerization Study
Cheng-Yen Chung 1,2, Ching-Chun Tseng 1,2, Sin-Min Li 3, Shuo-En Tsai 1,2, Hui-Yi Lin 1,* and Fung Fuh Wong 1,
*
1
School of Pharmacy, China Medical University, No. 91, Hsueh-Shih Rd., Taichung 40402, Taiwan;
u109308001@cmu.edu.tw (C.-Y.C.); u106308201@cmu.edu.tw (C.-C.T.); u100003044@cmu.edu.tw (S.-E.T.)
The Ph.D. Program for Biotech Pharmaceutical Industry and School of Pharmacy, China Medical University,
No. 91, Hsueh-Shih Rd., Taichung 40402, Taiwan
Institute of New Drug Development, China Medical University, No. 91 Hsueh-Shih Rd.,
Taichung 40402, Taiwan; u102003483@cmu.edu.tw
2
3
*
Correspondence: hylin@mail.cmu.edu.tw (H.-Y.L.); wongfungfuh@yahoo.com.tw or
ffwong@mail.cmu.edu.tw (F.F.W.); Tel.: +886-422-053-366 (ext. 5112) (H.-Y.L.);
+886-422-053-366 (ext. 5603) (F.F.W.); Fax: +886-422-078-083 (H.-Y.L. & F.F.W.)
Abstract: N-Aminophthalimides and phthalazine 1,4-diones were synthesized from isobenzofuran-
1,3-dione, isoindoline-1,3-dione, furo [3,4-b] pyrazine-5,7-dione, or 1H-pyrrolo [3,4-c] pyridine-1,3-
dione with monohydrate hydrazine to carry out the 5-exo or 6-endo nitrogen cyclization under the
different reaction conditions. Based on the control experimental results, 6-endo thermodynamic
hydrohydrazination and kinetical 5-exo cyclization reactions were individually selective formation.
Subsequently, Vilsmeier amidination derivatization was successfully developed to probe the struc-
tural divergence between N-aminophthalimide 2 and phthalazine 1,4-dione 3. On the other hand,
the best tautomerization of N-aminophthalimide to diazinone was also determined under acetic acid
mediated solution.
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Citation: Chung, C.-Y.; Tseng, C.-C.;
Li, S.-M.; Tsai, S.-E.; Lin, H.-Y.; Wong,
F.F. Structural Identification between
Phthalazine-1,4-Diones and
N-Aminophthalimides via Vilsmeier
Reaction: Nitrogen Cyclization and
Tautomerization Study. Molecules
2021, 26, 2907. https://doi.org/
10.3390/molecules26102907
Keywords: vilsmeier reagent; phthalazine-1,4-diones; N-aminophthalimide; hydrazine
1. Introduction
Academic Editor: Fangrui Zhong
Nitrogen-containing heterocyclic compounds are widely applied to the biologically
active pharmaceuticals, agrochemicals, and functional materials and become more and
Received: 25 April 2021
Accepted: 10 May 2021
Published: 13 May 2021
more important [
1–
5]. Especially, heterocycle derivatives containing bridgehead amine
and hydrazine [
6
,7
] such as N-aminophthalimides [ ] and phthalazine 1,4-diones [ ] have
8
9
received considerable attention. Therefore, the development of new efficient methods
to synthesize N-heterocycles with structural diversity is one major interest of modern
synthetic organic chemists [10–12].
Heterocycles containing phthalazine 1,4-dione moiety have been reported to possess
different pharmacological properties including anti-inflammatory, cardiotonic vasorelaxant,
anticonvulsant [13], antihypertensive [14], antibacterial [15], anti-cancer [16], and carbonic
anhydrase enzyme activity [17]. On the other hand, phthalimide group was conceived
as a nitrogen source [18], for the direct introduction of masked amino function via the
Publisher’s Note: MDPI stays neutral
with regard to jurisdictional claims in
published maps and institutional affil-
iations.
classical Gabriel protocol [19,20] as well as for the protection of amino groups [21–23].
N-aminophthalimides can be considered as phthalazine 1,4-dione tautomeric pairs. The
structural arrangement of hydrazine derivatives is the mainly associated with the intercon-
Copyright:
© 2021 by the authors.
Licensee MDPI, Basel, Switzerland.
This article is an open access article
distributed under the terms and
conditions of the Creative Commons
Attribution (CC BY) license (https://
creativecommons.org/licenses/by/
4.0/).
version of imine enamine [24,25]. Herein, we selectively synthesize N-aminophthalimide
−
and phthalazine 1,4-dione derivatives in via the thermodynamic-kinetic control conditions.
They will provide as the precursors for constructing the pharmacological heterocyclic
compounds (PDE5 inhibitors) [26
,
27] or the chemiluminescent luminol derivatives [28].
Molecules 2021, 26, 2907. https://doi.org/10.3390/molecules26102907
https://www.mdpi.com/journal/molecules

Molecules 2021, 26, 2907
2 of 15
Owing to the structural divergence between N-aminophthalimides
diones
work [29
2
and phthalazine-1,4-
3
, we explored the Vilsmeier amidination derivatization to identify them in this
33]. Furthermore, we successfully developed the prototrophic tautomeric inter-
–
conversion from N-aminophthalimides to phthalazine 1,4-diones under Brønsted–Lowry
acidic condition [29–35].
2. Results and Discussion
Initially, isobenzofuran-1,3-diones (1a
5,7-dione (1e), and 1H-pyrrolo[3,4-c] pyridine-1,3-dione (1f) [34
prepared as the starting materials. Reacting compounds 1a with monohydrate hydrazine
in ethanol solution at low (at 0 C or –20 C) or room temperature led directly to the
5-exo cyclization N-aminophthalimide products 2a (81–94%) without the accumulation
of hydrohydrazination products 3a (Table 1). On the other hand, the 6-exo cyclization
of distal nitrogen instead of proximal one was exclusively observed at reflux for ~4 h,
and the corresponding 6-endo phthalazine 1,4-dione products 3a were formed (83–91%,
Table 1). Fortunately, compounds 2a and 3a can be selectively prepared via kinetic
and thermodynamic control reaction with hydrazine hydrate. From the fundamental
perspective, these symmetric molecules of N-aminophthalimide products 2a provide
–c), isoindoline-1,3-dione (1d), furo [3,4-b] pyrazine-
–
36] were purchased or
–f
◦
◦
–
f
–
f
–
f
–
f
–f
–
f
themselves for investigation of tautomeric conversion controlling processes as well as
convenient platforms for the structural identity.
Additionally, phthalazine 1,4-diones 3a
though compounds and were tautomeric pairs, they significantly possessed the differ-
ent polarity, such as, Rf = 0.33 for N-aminophthalimide 2a and Rf = 0.41 for phthalazine
1,4-dione 3a (EA/MeOH = 9/1). All of the 2a and 3a compounds were fully character-
–f were used as the reference standards. Al-
2
3
–f
–f
ized by spectroscopic methods. For example, compound 2a presented peaks at 3447 and
3482 cm−1 for stretching of the –NH2 group and at 1020 cm−1 for stretching of the N–N
group in FT-IR spectrum. For compound 3a, its IR absorption peaks were at 3461 cm−1
for stretching of the –NH–NH– group and at 1051 cm−1 for stretching of the N–N group.
In 1H-NMR, compounds
resulting in difficult structural identification of each other. For example, the H-NMR
spectra of compounds 2a and 3a were similar as shown in Figure 1. This observation drove
us to develop a novel identification method.
2
and
3
presented similar chemical shift and coupling constants,
1
On the other hand, N-aminophthalimides 2c and 2e reveal the existence of intramolec-
1
ular hydrogen bonding phenomenon between carbonyl and amino group in H-NMR
spectra. This phenomenon leads to the different chemical shift values between Ha and
Ha’ in an aromatic ring (Figure 1). However, compounds 3a–f were favorable for the free
base form in DMSO-d6 solvent. For example, the 1H-NMR spectrum of compound 3e was
presented in Figure 1. Furthermore, Compound 2c was dissolved in DMSO-d6 and heated
at ~100 ◦C by NMR technique. The sample was monitored in 0, 10, 20, 30, and 60 min,
the timed programming result was shown in Figure 2, we found that the intramolecular
hydrogen bonding phenomenon was very clearly stable.

Molecules 2021, 26, 2907
3 of 15
Table 1. The thermodynamic-kinetic control synthesis of N-aminophthalimides 2a–f and phthalazine 1,4-diones 3a–f.
◦
a
b
c
The reaction condition at –20 C within 4h. The reaction condition at 0 ◦C within 4h. Compound 2f and 3f were provided and prepared
from our previous work [28].

Molecules 2021, 26, 2907
4 of 15
1

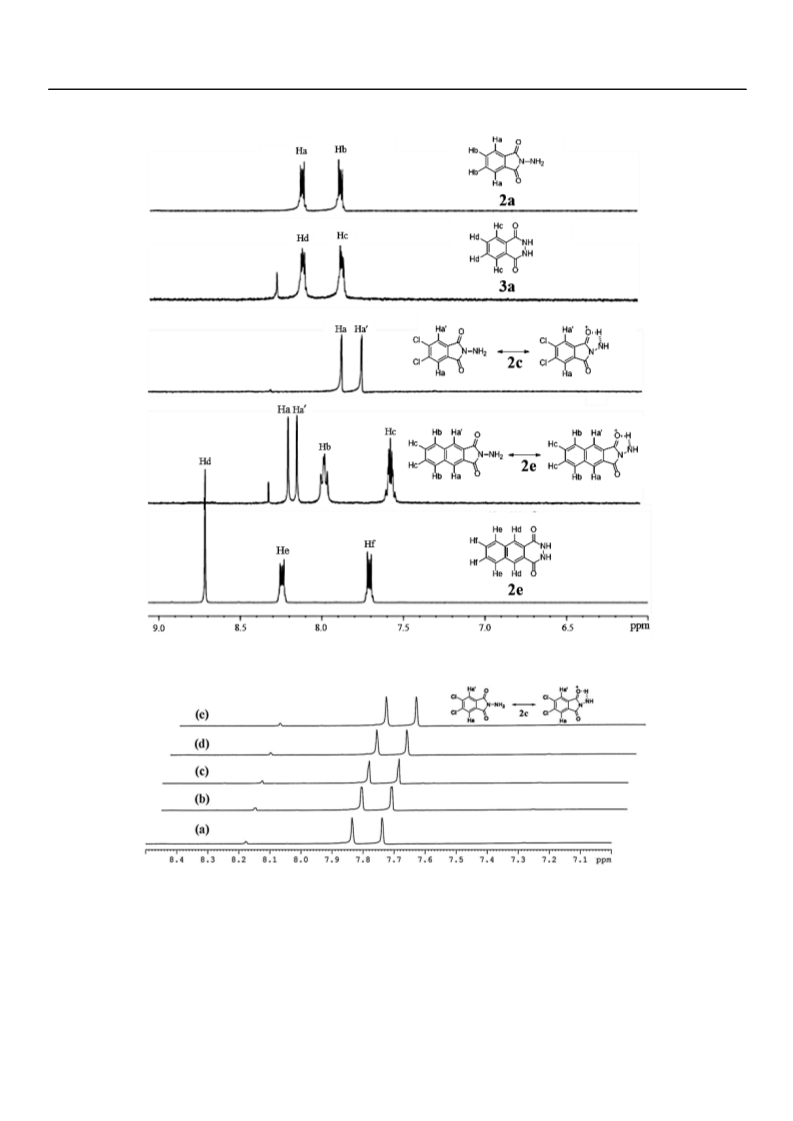

Figure 1. H NMR spectra of N-aminophthalimides 2a, 2c and 2e and phthalazines 1,4-dione 3a and 3e.
