Optimization Optimisation of extraction procedure and development of LC-–DAD-–MS
methodology for anthocyanin analysis in anthocyanin-pigmented corn kernels
a*
a
a
H.T. Hong , M.E. Netzel , T. J. O'Hare
a
Centre for Nutrition and Food Sciences, Queensland Alliance for Agriculture and Food Innovation,
University of Queensland, Coopers Plains, QLD 4108, Australia
Hung Trieu Hong; h.trieu@uq.edu.au
Michael Netzel; m.netzel@uq.edu.au
Tim O’Hare, t.ohare@uq.edu.au
Corresponding author: Hung T. Hong
Current Address: Centre for Nutrition and Food Sciences, The University of Queensland, Coopers
Plains, QLD 4108, Australia.
Tel: +61452233955
Email address: h.trieu@uq.edu.au (H.T. Hong)
1

1
2
3
4
5
6
7
8
9
0
1
2
3
4
Abstract: An ultra-high high-performance liquid chromatography-–diode array detector-–mass
spectrometry (UHPLC-DAD-MS) method was developed for characterisation and quantification of
anthocyanin components in complex corn-kernel matrices. The anthocyanin profiles and total
anthocyanin content (TAC) of mature seeds of five types of anthocyanin-pigmented corn were
reported. Internal standards were used to validate the efficiency of extraction and optimise the liquid
extraction procedure for anthocyanins. A total of eighteen anthocyanins were identified and
quantified. Cyanidin-based glucosides were the major pigments of purple-pericarp sweetcorn (75.5%
of total anthocyanin content (TAC)) and blue-aleurone maize (91.6%), while pelargonidin-base
glucosides composed the main anthocyanins of reddish-purple-pericarp sweetcorn (61.1%) and
cherry-aleurone maize (74.6%). Importantly, previous studies reporting reported the presence of
acetylated and succinylated anthocyanins in corn kernels; these compounds were found to be artefact
pigments, generated during the extraction process. These crucial findings provide the correct
anthocyanin profiles of pigmented corns, and emphasize emphasise the importance of using acidified
solutions for the extraction of corn-based anthocyanins.
1
1
1
1
1
1
1
5
6
Keywords: Artefact pigments, extraction solution, esterification, analysis, anthocyanins, coloured
corn, stability.
1
7
Introduction
1
1
2
2
2
2
2
8
9
0
1
2
3
4
Anthocyanins are natural purple, blue, and red pigments and are a major subclass of
polyphenols/flavonoids (Yousuf, Gul, Wani, & Singh, 2016). These pigments are present in a wide
range of flowers, fruits and vegetables, and have been reported to be associated with a range of
human health benefits, including anti-inflammatory action (Blando, Calabriso, Berland, Maiorano,
Gerardi, Carluccio, et al., 2018), antihypertensive activity (reduction of blood pressure) (Shindo,
Kasai, Abe, & Kondo, 2007), and a slowing of age-related cognitive decline and memory loss (Lu,
Wu, Zheng, Hu, Cheng, & Zhang, 2012).
2

2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Pigmented corns contain high concentrations of anthocyanins (up to 6.02 mg/g dry weight (DW))
(Yang, Chen, Yuan, Zhai, Piao, & Piao, 2009), with pericarp-pigmented corns normally having higher
anthocyanin concentrations than aleurone-pigmented corns (Li, Zhang, Yang, Dong, Ren, Fan, et al.,
2019). In general, the anthocyanin profile consists of cyanidin-, pelargonidin- and peonidin-based
glucosides (Lao & Giusti, 2016; Nankar, Dungan, Paz, Sudasinghe, Schaub, Holguin, et al., 2016;
Vayupharp & Laksanalamai, 2015). Because of the potentially high anthocyanin concentration in
pigmented corn, and its association with various health benefits, several studies have attempted to
extract and quantify the anthocyanins of pigmented corn (Lao & Giusti, 2016; Nankar, et al., 2016).
Low stability of anthocyanins following extraction, and a strong tendency for anthocyanin to remain
bound to the corn matrix, are still major issues to be addressed to improve the accuracy of anthocyanin
quantification. In regard to extraction, although anthocyanins are water soluble, a combination of
methanol (or ethanol) with water is required to optimise the efficiency of extraction solutions (Abdel-
Aal, Hucl, & Rabalski, 2018; Downey & Rochfort, 2008; Vayupharp & Laksanalamai, 2015). This
is principally because of interactions between anthocyanins and ionic carbohydrates (e.g., pectin) in
sample matrices (Fernandes, Bras, Mateus, & de Freitas, 2014; Takahama, Yamauchi, & Hirota,
2013). Commonly, a range of 40% aqueous methanol to 100% methanol is used to extract
anthocyanin from fruit and vegatable matrices (Chandrasekhar, Madhusudhan, & Raghavarao, 2012;
Fredericks, Fanning, Gidley, Netzel, Zabaras, Herrington, et al., 2013). It is crucial to optimise the
ratio of methanol to water in the extraction solvent, both to maximise the extraction capacity, and
also to minimise extraction time. Secondly, prolonged extraction time (Zhang, Jordheim, Lewis,
Arathoon, Andersen, & Davies, 2014) or high temperatures (Piyapanrungrueang, Chantrapornchai,
Haruthaithanasan, Sukatta, & Aekatasanawan, 2016; Trikas, Papi, Kyriakidis, & Zachariadis, 2016)
may increase the efficiency of anthocyanin extraction, but these conditions also reduce anthocyanin
stability (Mori, Goto-Yamamoto, Kitayama, & Hashizume, 2007; Zhao, Corrales, Zhang, Hu, Ma, &
Tauscher, 2008). Finally, because of the inherent poor stability of anthocyanins in non-acidified
solvents (Aaby, Mazur, Nes, & Skrede, 2012; Chen, Inbaraj, & Chen, 2012), acidified extraction
3

5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
methods have been developed with acetic acid (AA) (Downey & Rochfort, 2008), formic acid (FA)
(Fredericks, et al., 2013), phosphoric acid (Trikas, Papi, Kyriakidis, & Zachariadis, 2016), or
hydrochloric acid (HCl) (Abdel-Aal, Hucl, & Rabalski, 2018; Deineka, Sidorov, & Deineka, 2016;
Vayupharp & Laksanalamai, 2015; Yang & Zhai, 2010b). The presence of a strong acid (HCl) in a
methanol/water mix promotes ionisation of extraction solution, which assists with breaking the
association between anthocyanins and pectin in plant matrices, allowing methanol and water to
extract anthocyanins more efficiently, particularly from high starch samples. The combination of
acidified methanol and water therefore provides a favourable environment for the extraction of both
free and plant-cell-wall bound anthocyanins in corn (Lao & Giusti, 2016) and other matrices, such
as purple wheat (Abdel-Aal, Hucl, & Rabalski, 2018). However, the stability of anthocyanins during
extraction procedure at room temperature (rt) (Li, et al., 2019), 40 ºC (Abdel-Aal, Hucl, & Rabalski,
2018), or at 60-–80 ºC (Piyapanrungrueang, Chantrapornchai, Haruthaithanasan, Sukatta, &
Aekatasanawan, 2016) was not taken into account in these previous studies. In addition, the use of
low acid concentrations of 0.1% HCl (Galvez Ranilla, Christopher, Sarkar, Shetty, Chirinos, &
Campos, 2017) or 0.01% HCl (Vayupharp & Laksanalamai, 2015), or extraction with 100% methanol
(Yang & Zhai, 2010a) in starchy matrices, have a low efficiency of extraction for anthocyanin.
6
6
6
7
7
7
7
7
7
7
7
8
9
0
1
2
3
4
5
6
Despite the benefits of extraction of an acidified methanol solution, anthocyanin stability can still be
compromised. Downey et al. (2007) have previously reported that coumaroyl-, malonyl- and
succinyl-based anthocyanins are unstable in highly acidified solutions. Ester bonds, such as those
between the glucoside and coumaric acid, are hydrolysed by acid resulting in anthocyanin
interconversion (Downey & Rochfort, 2008). The rate of this reaction can be slowed by using cooler
extraction temperatures and lower acid concentrations, in contrast to the improved extraction
efficiency provided at higher temperatures and higher acidity. Therefore, it is crucial to balance
temperature, the composition of the extraction solution, and acidity to efficiently extract anthocyanins
from the corn kernel matrix, while minimising subsequent degradation, or interconversion of the
original anthocyanins. The current paper provides an optimised methodology for efficiently
4

7
7
7
7
8
9
extracting anthocyanins of kernels from a range of pigmented corn-types, without compromising the
anthocyanin profile through degradation or anthocyanin interconversion. This methodology was
further extended to take into account the properties of the acidic mobile phase used in HPLC analysis.
8
8
8
0
1
2
1. Materials and Methods
1.1. Materials
1.1.1. Plant materials
8
8
8
8
8
8
8
9
9
3
4
5
6
7
8
9
0
1
Mature kernels (approximately 10% moisture) of purple-pericarp sweetcorn (PPS), reddish-purple-
pericarp sweetcorn (RPS), purple-pericarp maize (PPM), purple-pericarp-blue-aleurone maize (PP-
BAM), blue-aleurone maize (BAM) and cherry aleurone maize (CAM) (Fig. S1) were harvested in
autumn 2018 at the Gatton Research Facility, Gatton, QLD, Australia. A composite sample of PPS
and white sweetcorn (anthocyanin-free) were also harvested at 26 days after pollination (DAP, 78%
moisture), equivalent to the eating stage at which sweetcorn is consumed. Individual plants were self-
pollinated by hand to exclude foreign pollen. Five cobs were harvested randomly, dehusked and
immediately transported (1 h transit) to The University of Queensland, Health and Food Sciences
Precinct at Coopers Plains, QLD, where they were stored at -–20 °C prior to analysis.
9
2
1.1.2. Chemicals
9
9
9
9
9
9
3
4
5
6
7
8

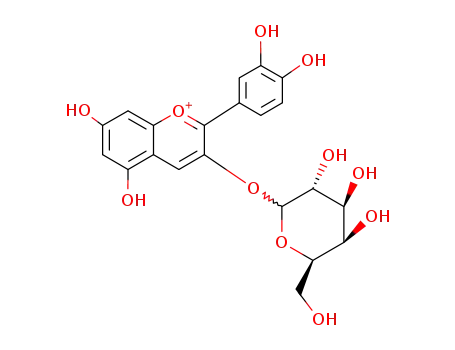

Cyanidin-3-glucoside (Cy3G), pelargonidin-3-glucoside (Pg3G), delphinidin-3-glucoside (Del3G)
and peonidin-3-glucoside (Pn3G) standards were obtained from Sigma-Aldrich (Sydney, NSW,
Australia) and Extrasynthèese (Genay, France). All other chemicals and solvents were purchased
from Merck (Darmstadt, Germany) or Sigma-Aldrich. All chemicals were HPLC or analytical grade.
Deionized Deionised water (Millipore Australia Pty Ltd, Kilsyth, VIC, Australia) was used
throughout the study unless otherwise stated.
9
9
1.1.3. Solutions
5

1
1
1
1
1
1
00
01
02
03
04
05
A solvent combining methanol, deionized water and FA (80:19:1; solution A) was used as a matrix-
free solution to dissolve 2 mg each of Cy3G, Pg3G and Pn3G in 10 mL to create master stock
solutions of 200 mg/L. Solutions for nine calibration standard concentrations of 0.01, 0.05, 0.1, 0.5,
1, 5, 10, 20, and 50 mg/L of each external standard, together with 1 mg/L of Del3G (internal standard,
IS) were prepared from the master stock solutions by diluting with a white (anthocyanin-free)
sweetcorn matrix solution.
1
1
1
1
1
06
07
08
09
10
An extraction solution consisting of methanol, deionized deionised water (80:20) in 0.1M HCl
(solution B) was prepared for sample extraction. IS (this anthocyanin has not been reported to exist
in maize) was dissolved in the extraction solution to have give a final concentration of 100 mg/L. The
mMobile phase A of the liquid chromatography (LC) system consisted of acetonitrile (ACN),
deionized water, and FA (92:7: 1), v/v), and the mobile phase B consisted of 1% FA in ACN.
1
1
1
11
12
13
2.2. Methods
2.2.1. Anthocyanin analysis
Sample preparation
1
1
1
1
1
1
1
1
1
1
14
15
16
17
18
19
20
21
22
23
Sample preparation was followed (Hong, Netzel, & O'Hare, 2020), with modifications. Briefly, three
rows of kernels were snap frozen by liquid nitrogen and cryo-milled using a ball mill (MM400 Retsch
Mixer Mill, Haan, Germany) operated at 30 Hz for 60 s. The powdered sample (about 0.5 g) was
transferred to a 15 15-mL Falcon® tube, 120 µL of IS was were added and 3.88 mL of cold extraction
solution B (4 °C) was were added. The mixture was sonicated for 10 min at 4 °C and then shaken on
a horizontal reciprocating shaker (RP 1812; Paton Scientific, Victor Harbor, SA, Australia) at 250
rpm/min for 10 min under dim light and cool temperature (4 °C) before being centrifuged at 4000
rpm for 10 min at 4 °C. The supernatant was removed and the pellet residue re-extracted twice using
the same procedure with 4 mL of cold extraction solution B (4 °C). The combined supernatants were
filtered through a 0.22 휇m hydrophilic PTFE syringe filter into a UHPLC vial for analysis.
6

1
24
Instrumental conditions
1
1
25
26
Ultra-high-performance liquid chromatography–diode array detector–mass
spectrometry (UHPLC-–DAD-–MS)
1
1
1
1
1
1
1
1
1
1
1
1
1
27
28
29
30
31
32
33
34
35
36
37
38
39
Anthocyanins were identified and quantified using a Q Exactive Quadrupole-Orbitrap mass
spectrometer (Thermo Fisher Scientific, USA; System 1), an Agilent 1290 Infinity UHPLC-–DAD
system (Agilent Technologies, USA; System 2), and a Shimadzu UHPLC-–DAD-–ESI-MS/MS
system (Shimadzu, Kyoto, Japan, ; System 3) carried out on A Nexera X2 UHPLC system consisting
of a system controller (CBM-30A), three pumps (LC-30AD), an autosampler (SIL-30AC), column
heater (CTO-20AC), diode-array detectors (DAD) detector (SPD-M30A) and two degassers (DGU-
20A3R and DGU-20A ). The Nexera X2 UHPLC system was coupled to an LCMS-8050 triple
5R
quadrupole mass spectrometer (Shimadzu, Kyoto, Japan) and the ESI source was operated with a
nebulizer gas flow of 2 L/min, drying gas flow of 10 L/min, with a desolvation line (DL) temperature
of 250 °C and heat block temperature of 400 °C. Selected ion monitoring (SIM) and product ion
monitoring was operated at a collision energy of -–20 V, and full MS scans in positive mode were in
the range of m/z 100-–1200. Labsolutions LCMS software Ver.5.85 (Shimadzu) was used for
instrument control and data-processing.
1
1
1
1
1
1
1
40
41
42
43
44
45
46
Chromatographic separation was carried out on a reverse phase Acquity UPLC BEH C18
column (150 ×x 2.1 mm i.d., 1.7 µm particle size; Waters, Dublin, Ireland). Column temperature was
maintained at 50 °C and at a flow rate of 0.25 mL/min. The DAD spectrum was scanned from 200 to
800 nm and monitored at 520 nm. The elution was programmed with 100% of mobile phase A as the
initial isocratic eluant hold held for 1 min, followed by a linear gradient from 100% to 85% of mobile
phase A for over 30 min, purging 3 min at 100% with mobile phase B, conditioning for 1 min, and
re-equilibrating for 5 min.
1
47
Anthocyanin identification
7

1
1
1
1
1
1
1
1
48
49
50
51
52
53
54
55
Anthocyanins were detected by DAD at 520 nm and spiking external standards of Cy3G,
Pg3G and Pn3G to determine standard elution times and to confirm molecular masses. The remaining
compounds were determined by their unique absorption maximum on DAD detection (Fig. S3), and
their mass-to-charge ratio and fragment pattern via mass spectrometry in positive ion mode (Fig. 2
and Table 3). Comparison of elution order to previously published literature (Deineka, Sidorov, &
Deineka, 2016; Nankar, et al., 2016; Pascual-Teresa, Santos-Buelga, & Rivas-Gonzalo, 2002;
Paulsmeyer, Chatham, Becker, West, West, & Juvik, 2017; Zhao, Corrales, Zhang, Hu, Ma, &
Tauscher, 2008) was additionally used to confirm anthocyanin identity.
1
56
Anthocyanin quantification
1
1
1
1
1
1
1
1
1
1
1
1
57
58
59
60
61
62
63
64
65
66
67
68
As more than 700 anthocyanins have been found (Wallace & Giusti, 2015), with only a few
available as commercial standards, total anthocyanin concentration (TAC) was expressed as
equivalents from one of the six basic anthocyanin standards, i.e., Cy3G, Pg3G, Del3G, petunidin-3-
glucoside (Pt3G), Pn3G or malvidin-3-glucoside (Mal3G). In this study, the final concentration of
individual anthocyanins was measured by comparison of the area of each peak from the DAD spectra
to the external calibration curves of Cy3G, Pg3G and Pn3G. Equivalent concentrations were
calculated for all anthocyanin malonyl-glucosides based upon their flavylium cations, due to
differences in the maximum absorbance of Cy, Pg and Pn (Fig. S3). TAC was calculated as the sum
of Cy3G, Pg3G, and Pn3G, and their respective malonated counterparts. Selected Ion ion Monitoring
monitoring (SIM) mode in positive ion mode was scanned to calculate the relative contribution of the
co-eluted compounds within each peak (Fig. S6). The percentage contribution was used to correct the
peak area of DAD and to quantify the co-eluteding anthocyanin compounds.
1
69
2.2.2. Optimisation of the extraction procedure
1
1
70
71
A composite PPS sample was chosen as a representative of the pigmented corn samples for two
reasons. Firstly, PPS contained a higher anthocyanin concentration compared to PP-BAMZ, BAM
8

1
1
1
1
1
1
1
1
1
1
1
1
1
1
72
73
74
75
76
77
78
79
80
81
82
83
84
85
and CAM (Hong, Netzel, & O'Hare, 2020; Nankar, et al., 2016). Secondly, PPS possesses a high
sugar and starch content that have strong interactions with anthocyanins in their matrices matrices
(Fernandes, Bras, Mateus, & de Freitas, 2014; Takahama, Yamauchi, & Hirota, 2013). Commonly
used extraction solutions, including different methanol:water mixtures ranging from 0:100 (Jing &
Giusti, 2007), 20:80 (Downey & Rochfort, 2008), 40:60 (Downey & Rochfort, 2008), 60:40 (Joshi,
Rana, Kumar, Kumar, Padwad, Yadav, et al., 2017), 80:20 (Fredericks, et al., 2013), to 100:0 (Ma,
Johnson, Liu, DaSilva, Meschwitz, Dain, et al., 2018) in 0.1M HCl were compared to optimise the
solution for extraction of anthocyanins from a composite PPS sample. Five different solutions,
including 1% FA (Fredericks, et al., 2013), 5% AA (Heffels, Weber, & Schieber, 2015), 0.1M HCl
(Heffels, Buhrle, Schieber, & Weber, 2017), 0.05M HCl and 0.01M HCl (Fischer, Jaksch, Carle, &
Kammerer, 2013) in 80% methanol were also used to extract anthocyanins from a composite of PPS
sample to further optimise the efficiency of the extraction solution by acidification. Higher
concentrations of HCl (>0.1M) in solution were avoided, due to the reported accelerated degradation
of both anthocyanins and the UPLC column material (Downey & Rochfort, 2008).
1
86
2.2.3. Method validation
1
1
87
88
Validation of the analytical procedure was performed according to the NATA (National Association
of Testing Authorities, Australia) guidelines (NATA, 2018).
1
89
Principles of analytical calibration and anthocyanin recovery
1
1
1
1
1
90
91
92
93
94
Calibration standards of Cy3G, Pg3G and Pn3G were prepared by spiking the matrix-free and
sweetcorn-matrix solution with appropriate volumes of anthocyanin stock solutions (200 µg/mL for
each anthocyanin). Three calibration curves were established within the concentration range of 0.05-–
50 µg/mL for each external standard together with 1 µg/mL of internal standard. These calibration
curves of concentration ratios were used to quantify anthocyanins in pigmented corn.
9

1
1
1
1
1
95
96
97
98
99
Additionally, the anthocyanin-free samples were spiked with three different concentrations (low- –
0.1 µg/mL, medium- – 10 µg/mL and high- – 50 µg/mL; n = 9 for each concentration and
anthocyanin) of Cy3G, Pg3G and Pn3G. The spiked samples were extracted and analysed, and
recoveries calculated by comparing the ratio of detected and spiked concentrations of Cy3G, Pg3G
and Pn3G.
2
00
Limit of detection (LOD) and quantification (LOQ)
2
2
2
2
01
02
03
04
LOD and LOQ were determined at a signal-to-noise ratio of 3:1 and 10:1, respectively. The sweetcorn
matrix was obtained from anthocyanin-free white sweetcorn at the same physiological maturity (26
DAP) as the analysed samples. LOD and LOQ were determined for the three predominant
anthocyanins present in pigmented corn (Cy3G, Pg3G and Pn3G).
2
05
Matrix effect
2
2
2
2
2
06
07
08
09
10
Calibration standards of Cy3G, Pg3G and Pn3G within the concentration range of 0.05-–50 µg/mL
were prepared and analysed in matrix-free solution and sweetcorn matrix solution. The matrix effect
was calculated by comparing the different slopes of the calibration curves in the matrix-free solution
and sweetcorn matrix solution (S /S ). The relative ratio of the two slopes was calculated to estimate
s
m
the effect of matrix components on the signal strength of Cy3G, Pg3G, and Pn3G (NATA, 2018).
푆푚
2
2
11
12
%ME = ( ―1) ∗ 100%
푆푠
Precision and accuracy
2
2
2
2
13
14
15
16
Intra- and inter-day precision of the method was assessed by degrees of freedom for repeatability (df
= n- – 1 = 8) within one day, and repeated on three consecutive days. Samples were analysed on
System- 3. The same extraction procedure was applied in the following week with a different
operator, andoperator and analysed on System- 2.
1
0

푚푒푎푠푢푟푒푚푒푛푡 푟푒푠푢푙푡
푡푟푢푒 푟푒푠푢푙푡
2
2
17
18
% accuracy =
× 푥 100%
2.2.4. Stability studies
2
2
2
19
20
21
Stability of individual anthocyanins in the extraction solution of PPS sample was investigated after
storage at -–20 °C, 4 °C and room temperature (rt, 23 °C) for 5 hours, 12 hours, 24 hours, 4 days and
three weeks.
2
22
2.2.5. Statistical analysis
2
2
2
2
23
24
25
26
A one-way analysis of variance (AOVA), using Minitab 17 software for Windows (Minitab Inc.,
State College, PA, USA), was applied to assess variances of anthocyanin content in pigmented
sweetcorn kernels and stored extraction solutions. Least significant differences (p < 0.05) were used
to compare differences between means.
2
2
27
28
2. Results and discussion
2.1. Optimisation of the extraction solution
2
2
2
2
2
2
2
2
2
2
2
2
29
30
31
32
33
34
35
36
37
38
39
40
From the range of methanol:water ratios evaluated for anthocyanin extraction, 80% acidified
methanol produced the highest anthocyanin extraction concentration for the PPS matrix, with a
maximum TAC of 64.5 mg/100g fresh weight (FW) (Fig. 1A and Fig. 1B). Neat methanol has a
slightly lower degree of extraction, potentially because it coagulates protein in plant cells instantly,
forming a ring of coagulated protein around the cell walls, preventing further penetration of methanol
(McDonnell, 2007). In contrast, 80% methanol solution penetrates the cell walls at a slower rate,
andrate and allows continued extraction of anthocyanins. In addition, concentrated methanol tends to
extract a large number of non-anthocyanin compounds from the pigmented corn matrix, causing a
longer analysis time due to the requirement to elute all non-anthocyanin compounds from the LC-
column. On the other hand, a high concentration of water in the extraction solution leads to a decrease
in the degree of extraction efficiency of bound- anthocyanins. This is relevant since a substantial part
of anthocyanins in the kernel matrix are bound to plant cells. As a result, a reasonably high methanol
1
1

2
2
41
42
level (80%) efficiently allowed the extraction solution to isolate anthocyanins from the complex
matrix of the pigmented corn kernel.
2
2
2
2
2
43
44
45
46
47
Although, acid concentrations of 1% FA (Fredericks, et al., 2013), 5% AA (Tatsuzawa, Hosokawa,
Saito, & Honda, 2012), or 0.01 M HCl (Brito, Areche, Sepulveda, Kennelly, & Simirgiotis, 2014)
have been used in many previous studies to extract anthocyanin from different matrices, the present
study observed that an extraction solution acidified with 0.1 M HCl produced a significantly (Pp <
0.05) higher TAC than either 1% FA, 5% AA or 0.01 and 0.05 M HCl (Fig. 1A).”
2
48
3.2. Stability
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
The stability of the six major anthocyanins in PPS extracted with solution B was tested under three
different temperatures: 23 °C, 4 °C and -–20 °C. The results (Fig. S2) showed that the concentration
of Cy3G, Pg3G and Pn3G increased, with a concurrent decline in the concentration of their malonated
counterparts over the storage period at 23 °C. These findings are in agreement with previous
observations (Downey & Rochfort, 2008) of the stability of anthocyanins in grape skin held in
acidified solutions for 24 hours at rt. The main reason for the observed increase and decline,
respectively, is that strongly acidified solutions (e.g. 0.1 M HCl) hydrolyse the ester linkages between
malonic acid and Cy3G, Pg3G and Pn3G in the malonated anthocyanins, resulting in an increase of
Cy3G, Pg3G and Pn3G. This reaction, however, is slowed down at lower temperatures (-(–20 °C, 4
°C), as seen in Fig. S2. All anthocyanins were stable for up to 24 hours without any significant (p <
0.05) change in TAC (p < 0.05) at 4 °C. In fact, the extraction solution of purple-pericarp sweetcorn
can be stored for up to 3 weeks at -–20 °C, or for 24 hours in a refrigerator or LC-autosampler at 4
°C, without any significant (p < 0.05) degradation. The findings also confirm that low temperature
maintenance during the extraction procedure is crucial to minimising the degradation or alteration of
anthocyanin components.
2
64
Esterification products of anthocyanins
1
2

2
2
2
2
2
2
2
2
2
2
65
66
67
68
69
70
71
72
73
74
Apart from the findings above that malonyl moieties of Cy3G, Pg3G and Pn3G can be hydrolysed in
acidified extraction solution to result ingive a decrease in the concentration of malonyl anthocyanins
and an increase in free anthocyanins, the malonyl moieties of Cy3G, Pg3G and Pn3G could also be
esterified in acidified methanol to create methyl-malonate esters (Fig. 2A and Table 1). The products
of this esterification reaction appeared after the PPS extraction was stored at 23 °C for 5 hours and
were quantifiable by DAD and MS/MS after 4 days at this temperature (Fig. 2 and Fig. S4). These
esterification products were also found by Vayupharp and Laksanalamai (2015), comparing the
anthocyanin profile of a Thai waxy purple corn cob extracted in acidified water and in acidified
ethanol. Vayupharp and Laksanalamai (2015) reported these compounds as natural anthocyanins,
although it is more likely they were the esterification products formed from ethanol and anthocyanins.
2
75
Identification of the esterification products of anthocyanins
+
2
2
2
2
2
2
2
76
77
78
79
80
81
82
The MS/MS fragmentation pattern of compound N3 including m/z 603 = m/z [M+H-–31] , m/z 575
+
+
= m/z [M+H-–59] and m/z 535 = m/z [M+H-–100] indicated the removal of a –OCH , -COOCH
3
3
and methyl malonate group (Fig. 2B and Table 1). Therefore, N3 is Cy-3-
+
(methylmalonatemalonylglucoside). Compound N1 (m/z 549 [M] and MS/MS fragmentation of m/z
+
+
+
517 = m/z [M+H-–31] , m/z 490 = m/z [M+H-–59] , m/z 449 = m/z [M+H-–100] are methyl malonate
moieties of Cy3G (Fig. 2C and Table 1). Likewise, nine new esterification products in Table 1 and
Fig. S4 were identified from their MS/MS fragmentation patterns.
2
2
2
2
2
2
2
83
84
85
86
87
88
89
Six of the esterified compounds listed in Table 1 above have been previously reported in purple-
pericarp maize and blue-aleurone maize as Cy-3-(6’’-succinylglucoside (m/z 549, N1), Cy-3-(6’’-
malonylsuccinylglucoside) (m/z 635, N2 and N3), Pn-3-(6’’-succinylglucoside) (m/z 563, N4), Pg-3-
(malonylsuccinylglucoside) (m/z 619, N5 and N6) and Cy-3-disuccinylglucoside (m/z 649, N7, N8
and N9) (Lao & Giusti, 2016; Nankar, et al., 2016). In the current study, these compounds could not
be detected either by DAD at 520 nm or by MS in fresh samples, unless the samples were stored at
23 °C for at least 5 hours.
1
3

2
2
2
2
2
90
91
92
93
94
Therefore, the succinyl and ethylmalonyl anthocyanins previously reported in acidified purple maize
extracts (methanolic or ethanolic) (Nankar, Dungan et al. 2016; Pascual-Teresa, Santos-Buelga et al.
2002; Vayupharp and Laksanalamai 2015) are highly likely not to be endogenous pigmented maize
anthocyanins, but esterification products formed between the malonyl component and the acidified
extraction solvents.
2
2
95
96
2.2. Method validation
LOD, LOQ and matrix effect
2
2
2
3
3
3
3
3
3
97
98
99
00
01
02
03
04
05
The current study shows Cy3G had a slightly higher LOD and LOQ than Pg3G and Pn3G (Table S1)
due to a broadening of its chromatographic peak. These findings are in agreement with reported LODs
and LOQs for anthocyanin compounds in a berry matrix (Brito, Areche, Sepulveda, Kennelly, &
Simirgiotis, 2014). The effect of the kernel matrix was determined by comparing the standard curves
in the matrix-free extract solution with that of the sweetcorn matrix solution. Calibration curves of
2
2
the standards were linear with a high coefficient of determination (R r > 0.999), with the matrix
effect for all anthocyanin standards being lower than 8.8%. The method also showed a high recovery
for low, medium and high concentration levels of the external standards (93.4 - –109.2%), indicating
a satisfactory accuracy of the current extraction method (Table S1).
3
06
Precision and accuracy
3
3
3
3
3
3
3
07
08
09
10
11
12
13
The inter-day and intra-day accuracy was assessed by determining the relative changes of external
standards at three different concentrations (9 replicates per concentration per standard) over three
consecutive days. The results of percent relative standard deviation (RSD %) in Table S2 indicated
an acceptable range, with 0.9 to 3.4% for intra-day variation, and 1.7 to 3.7% for inter-day variation.
Although there was an increase in the highest RSD % between different analytical instruments from
3.7 to 5.7%, the inter-instrument range together with the relative accuracy still indicated the present
UHPLC-–PDADAD-–MS/MS method was reliable, accurate and reproducible (Table S2).
1
4

3
14
3.4. Identification of anthocyanins in pigmented corn
3
3
3
3
3
3
3
3
3
3
3
15
16
17
18
19
20
21
22
23
24
25
Based on the unique absorption maximumsa of anthocyanins in pigmented corn, they can be classified
1
2
into three anthocyanin groups; group 1: Cy-based glucosides, λmax 514 nm including peak 1, 3 , 3 ,
3
4
1
2
3
1
2
1
2
3 , 3 , 6 , 6 , 6 ; group 2: Pg-based glucosides, λ 504 nm including peak 2, 5 , 5 , 8 , 8 , and; group
max
1
2
3
3: Pn-based glucosides, λmax 517 nm including peak 4, 7 , 7 , 7 , 9 (Fig. 3 and Fig. S3). Samples were
spiked with Cy3G, Pg3G and Pn3G standards at different concentrations to identify retention times,
molecular masses and their fragment ions of the anthocyanins in pigmented corn. Other anthocyanins
without commercially available standards were identified based on their molecular masses and
specific fragmentation patterns (Fig. S5 and Table 3), determined by System 3 and System 1 in
positive mode, and comparing the elution- order to previous reports (Deineka, Sidorov, & Deineka,
2016; Nankar, et al., 2016; Pascual-Teresa, Santos-Buelga, & Rivas-Gonzalo, 2002; Paulsmeyer,
Chatham, Becker, West, West, & Juvik, 2017; Zhao, Corrales, Zhang, Hu, Ma, & Tauscher, 2008).
3
3
3
3
3
3
3
3
3
3
3
3
3
26
27
28
29
30
31
32
33
34
35
36
37
38
Next, anthocyanins were tentatively identified based on their respective MS/MS fragmentation
pattern. For example, cyanidin-3-(dimalonylglucoside) (Cy3DMG) (m/z 621, Fig. S5) was identified
by the molecular ion at m/z 621 and the formation of the fragment ion at m/z 577 [M+H – 44]+
+
corresponding to the loss of CO from the carboxyl group. The fragment ion m/z 535 [M+H-–87]
2
was formed from the fragmentation of Cy3DMG (m/z 621) due to the loss of a malonyl group at m/z
-
–
+
87 [C H O ] , ] , and the key fragment ion at m/z 287 [M+2H-–87-–87-–162] is a predominant
3
2
3
fragment of Cy3DMG after the loss of two malonyl groups (2x87 2 × 87 Da) and one glucose (162
Da) (Fig. S5). Likewise, peonidin-3-(dimalonylglucoside) (Pn3DMG) (m/z 635) was confirmed by
+
the detection of its daughter ion of m/z 591 [M+H – 44] , representing the loss of CO from the
2
carboxyl group (44 Da) of its fatty acid moiety. The fragment ion of m/z 549 [M+H – 87]+
corresponded to peonidin-3-(malonylglucoside) Pn3MG after elimination of a malonyl group (87
4
Da). The MS fragment at m/z 301 corresponded to the flavylium cation of peonidin, formed from the
loss of a sugar and two malonyl moiety units. Likewise, eighteen different anthocyanins and isomers
1
5

3
3
3
3
39
40
41
42
in pigmented corn kernels were identified and quantified in the present study: Cy3G, four isomers of
cyanidin-3-(malonylglucoside) (Cy3MG), three isomers of Cy3DMG, Pg3G, two isomers of
pelargonidin-3-(malonylglucoside) (Pg3MG), two isomers of pelargonidin-3-(dimalonylglucoside)
(Pg3DMG), Pn3G, and three isomers of Pn3MG and Pn3DMG (Table S2, Fig. 3 and Fig. S5).
3
43
3.5. Quantification of anthocyanins in pigmented corns
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
In the present study, the anthocyanin profile, together with the proportions of individual anthocyanin
components of pigmented corn was basically in agreement with other studies analysing anthocyanins
in purple-pericarp, cherry-aleurone and blue-aleurone maize (Nankar, et al., 2016; Vayupharp &
Laksanalamai, 2015; Yang & Zhai, 2010b; Zhao, Corrales, Zhang, Hu, Ma, & Tauscher, 2008).
Anthocyanin succinyl glucoside and ethylmalonylglucoside were reported in previous studies
(Nankar, et al., 2016; Vayupharp & Laksanalamai, 2015) were absent in all pigmented corn kernels
(Table 2). TAC of PPS (from 288.6 to 593.3 mg/100g DW) was almost the same concentration as
that of PPM (from 438.5 to 667.2 mg/100g DW). TAC of these two purple cultivars was significantly
higher than those of PP-BAM, RPS, BAM and CAM. These findings are in agreement with previous
studies of anthocyanin content in pigmented corn kernels (Nankar, et al., 2016; Vayupharp &
Laksanalamai, 2015). While cyanidin-based glucosides was the main pigment in PPS, PPM, PP-BAM
(71.6 to 82.9%) and BAM (91.6%), pelargonidin-based glucosides accounted for up to 65.0% of
anthocyanins in the RPS accession and almost 75% in CAM. Interestingly, peonidin-based glucosides
was were not detectable in BAM and CAM, whereas it was a major pigment in PPS and PP-BAM
(Table 2). Anthocyanin malonyl-glucosides and dimalonyl-glucosides were significantly higher than
non-malonylated glucosides in all pigmented corn kernels. Both of the malonylated and
dimalonylated glucosides were observed to have low stability in acidified solutions (Fig. S2).
Therefore, both temperature and the concentration of acid need to be considered prior to extraction
of
pigmented
corn
samples.
Optimised method for System 3 analysis
1
6

3
3
3
3
3
3
3
3
3
64
65
66
67
68
69
70
71
72
In the current study, four isomers of Cy3MG could be detected by MS in PPS, PPM, PP-BAM and
RPS, with a main isomer eluting at 12.97 min and three minor isomers at 9.88, 10.75 min and 11.31
min, respectively. However, the isomer at 11.31 min of Cy3MG co-eluted with Pn3G. In addition, an
isomer of Pn3MG co-eluted with Pg3MG and another isomer of Cy3DMG at 15.25 min. These co-
eluted compounds were impossible to quantify from the area of those peaks on the DAD
chromatogram without information about the percentage contribution of individual compound in each
peak. Consequently, selected Ion ion Monitoring monitoring (SIM) in positive ion mode was
employed to determine the ratio of each co-eluted compound (Fig. S6) from total area of the peaks
on in the DAD chromatogram at 520 nm.
3
3
3
3
3
3
3
3
3
3
73
74
75
76
77
78
79
80
81
82
Generally, the TAC in the pericarp-pigmented accessions (222.5-–667.2 mg/100 g FW) was
significantly higher than the aleurone-pigmented accessions (10.5-–40.8 mg/100 g FW). Anthocyanin
content in the PPM was higher than that reported in Chinese purple maize (304.5 mg Cy3G
equivalents/100 g FW) (Zhao, Corrales, Zhang, Hu, Ma, & Tauscher, 2008), but similar to that of
Thai waxy purple corn (421-–636 mg/100 g at the a similar moisture content of 12%; (Vayupharp &
Laksanalamai, 2015). The blue aleurone accession, BAM, displayed a similar TAC to some blue corn
varieties from the United States and Mexico, such as ‘Navajo Blue’ (41 mg/100 g FW), ‘Santa Clara
Blue’ (58 mg/100 g FW), ‘Hopi Blue’ (56 mg/100 g FW), ‘Ohio Blue’ (54 mg/100 g FW), while the
cherry aleurone, CAM, displayed a similar TAC to the reddish-purple variety, ‘Flor Del Rio’ (11
mg/100 g FW) (Nankar, et al., 2016).
3
83
3. Conclusions
3
3
3
3
3
84
85
86
87
88
A fully validated method with low LOQ and high accuracy to quantify anthocyanins, including their
isomers, in pigmented corn was developed and validated. The method is applicable to a range of corn
types, including pericarp-pigmented or aleurone-pigmented sweetcorn or maize and potentially other
anthocyanin-containing commodities. A total of eighteen different anthocyanin compounds,
consisting of cyanidin-, peonidin-, and pelargonidin-glycosides, were identified and quantified from
1
7

3
3
3
3
3
89
90
91
92
93
a range of pigmented sweetcorn and maize. Coloration of pigmented kernels was directly influenced
by the proportion of individual anthocyanin components present. While the predominant
anthocyanins in blue-aleurone and purple-pericarp corn were cyanidin-based glucosides (91.7% and
76.5%, respectively), pelargonidin-based glucosides accounted for over 60% in reddish-purple-
pericarp and 75% in cherry-aleurone accessions.
3
3
3
3
3
3
94
95
96
97
98
99
For the first time, the present study found that although acidified extraction solutions stabilise the
flavylium cation of anthocyanins, they were also the main cause of hydrolysis and esterification
reactions affecting the malonyl and carboxyl moieties in the endogenous extraction. Consequently,
nine ‘artefact’ anthocyanins were identified by LC-–DAD-–ESI-MS. The creation of artefact
anthocyanins can be reduced by the use of low temperatures during extraction, instrumental analytical
operationanalysis, and storage of extracts.
4
4
00
01
Acknowledgements: This study was funded in part by ‘Naturally Nutritious’ (Horticulture
Innovation Ltd., project HN15001).
4
4
02
03
Conflicts of Interest: The authors declare no conflict of interest.
References
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
Aaby, K., Mazur, S., Nes, A., & Skrede, G. (2012). Phenolic compounds in strawberry (Fragaria x ananassa
Duch.) fruits: Composition in 27 cultivars and changes during ripening. Food Chem, 132(1), 86-97.
Abdel-Aal, E.-S. M., Hucl, P., & Rabalski, I. (2018). Compositional and antioxidant properties of anthocyanin-
rich products prepared from purple wheat. Food Chemistry, 254, 13-19.
Blando, F., Calabriso, N., Berland, H., Maiorano, G., Gerardi, C., Carluccio, M. A., & Andersen, O. M. (2018).
Radical Scavenging and Anti-Inflammatory Activities of Representative Anthocyanin Groupings from
Pigment-Rich Fruits and Vegetables. Int J Mol Sci, 19(1), 169.
Brito, A., Areche, C., Sepulveda, B., Kennelly, E. J., & Simirgiotis, M. J. (2014). Anthocyanin characterization,
total phenolic quantification and antioxidant features of some Chilean edible berry extracts.
Molecules, 19(8), 10936-10955.
Chandrasekhar, J., Madhusudhan, M. C., & Raghavarao, K. S. M. S. (2012). Extraction of anthocyanins from
red cabbage and purification using adsorption. Food Bioprod Process, 90(C4), 615-623.
Chen, H. J., Inbaraj, B. S., & Chen, B. H. (2012). Determination of phenolic acids and flavonoids in Taraxacum
formosanum Kitam by liquid chromatography-tandem mass spectrometry coupled with a post-
column derivatization technique. Int J Mol Sci, 13(1), 260-285.
Deineka, V. I., Sidorov, A. N., & Deineka, L. A. (2016). Determination of purple corn husk anthocyanins. J
Anal Chem+, 71(11), 1145-1150.
1
8

4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
Downey, M. O., & Rochfort, S. (2008). Simultaneous separation by reversed-phase high-performance liquid
chromatography and mass spectral identification of anthocyanins and flavonols in Shiraz grape skin.
J Chromatogr A, 1201(1), 43-47.
Fernandes, A., Bras, N. F., Mateus, N., & de Freitas, V. (2014). Understanding the molecular mechanism of
anthocyanin binding to pectin. Langmuir, 30(28), 8516-8527.
Fischer, U. A., Jaksch, A. V., Carle, R., & Kammerer, D. R. (2013). Influence of origin source, different fruit
tissue and juice extraction methods on anthocyanin, phenolic acid, hydrolysable tannin and
isolariciresinol contents of pomegranate (Punica granatum L.) fruits and juices. Eur Food Res
Technol, 237(2), 209-221.
Fredericks, C. H., Fanning, K. J., Gidley, M. J., Netzel, G., Zabaras, D., Herrington, M., & Netzel, M. (2013).
High-anthocyanin strawberries through cultivar selection. J Sci Food Agric, 93(4), 846-852.
Galvez Ranilla, L., Christopher, A., Sarkar, D., Shetty, K., Chirinos, R., & Campos, D. (2017). Phenolic
Composition and Evaluation of the Antimicrobial Activity of Free and Bound Phenolic Fractions
from a Peruvian Purple Corn (Zea mays L.) Accession. J Food Sci, 82(12), 2968-2976.
Heffels, P., Buhrle, F., Schieber, A., & Weber, F. (2017). Influence of common and excessive enzymatic
treatment on juice yield and anthocyanin content and profile during bilberry (Vaccinium myrtillus
L.) juice production. Eur Food Res Technol, 243(1), 59-68.
Heffels, P., Weber, F., & Schieber, A. (2015). Influence of Accelerated Solvent Extraction and Ultrasound-
Assisted Extraction on the Anthocyanin Profile of Different Vaccinium Species in the Context of
Statistical Models for Authentication. J Agric Food Chem, 63(34), 7532-7538.
Hong, H. T., Netzel, M. E., & O'Hare, T. J. (2020). Anthocyanin composition and changes during kernel
development in purple-pericarp supersweet sweetcorn. Food Chem, 315, 126284.
Jing, P., & Giusti, M. M. (2007). Effects of extraction conditions on improving the yield and quality of an
anthocyanin-rich purple corn (Zea mays L.) color extract. J Food Sci, 72(7), C363-368.
Joshi, R., Rana, A., Kumar, V., Kumar, D., Padwad, Y. S., Yadav, S. K., & Gulati, A. (2017). Anthocyanins
enriched purple tea exhibits antioxidant, immunostimulatory and anticancer activities. J Food Sci
Technol, 54(7), 1953-1963.
Lao, F., & Giusti, M. M. (2016). Quantification of Purple Corn (Zea mays L.) Anthocyanins Using
Spectrophotometric and HPLC Approaches: Method Comparison and Correlation. Food Analytical
Methods, 9(5), 1367-1380.
Li, T., Zhang, W., Yang, H., Dong, Q., Ren, J., Fan, H., Zhang, X., & Zhou, Y. (2019). Comparative
transcriptome analysis reveals differentially expressed genes related to the tissue-specific
accumulation of anthocyanins in pericarp and aleurone layer for maize. Scientific reports, 9(1),
2485-2485.
Lu, J., Wu, D. M., Zheng, Y. L., Hu, B., Cheng, W., & Zhang, Z. F. (2012). Purple sweet potato color attenuates
domoic acid-induced cognitive deficits by promoting estrogen receptor-alpha-mediated
mitochondrial biogenesis signaling in mice. Free Radic Biol Med, 52(3), 646-659.
Ma, H., Johnson, S. L., Liu, W. X., DaSilva, N. A., Meschwitz, S., Dain, J. A., & Seeram, N. P. (2018). Evaluation
of Polyphenol Anthocyanin-Enriched Extracts of Blackberry, Black Raspberry, Blueberry, Cranberry,
Red Raspberry, and Strawberry for Free Radical Scavenging, Reactive Carbonyl Species Trapping,
Anti-Glycation, Anti--Amyloid Aggregation, and Microglial Neuroprotective Effects. International
Journal of Molecular Sciences, 19(2), 461.
McDonnell, G. E. (2007). Antisepsis, disinfection, and sterilization: types, action and resistance: ASM press.
Mori, K., Goto-Yamamoto, N., Kitayama, M., & Hashizume, K. (2007). Loss of anthocyanins in red-wine
grape under high temperature. J Exp Bot, 58(8), 1935-1945.
Nankar, A. N., Dungan, B., Paz, N., Sudasinghe, N., Schaub, T., Holguin, F. O., & Pratt, R. C. (2016).
Quantitative and qualitative evaluation of kernel anthocyanins from southwestern United States
blue corn. J Sci Food Agric, 96(13), 4542-4552.
NATA. (2018). General Accreditation Guidance - Validation and verification of quantitative and qualitative
test methods. In): https://www.nata.com.au/phocadownload/gen-accreditation-
guidance/Validation-and-Verification-of-Quantitative-and-Qualitative-Test-Methods.pdf.
Pascual-Teresa, S. d., Santos-Buelga, C., & Rivas-Gonzalo, J. C. (2002). LC–MS analysis of anthocyanins from
purple corn cob. J Sci Food Agric, 82, 1003-1006.
1
9

4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
00
01
02
03
04
05
06
07
Paulsmeyer, M., Chatham, L., Becker, T., West, M., West, L., & Juvik, J. (2017). Survey of Anthocyanin
Composition and Concentration in Diverse Maize Germplasms. J Agric Food Chem, 65(21), 4341.
Piyapanrungrueang, W., Chantrapornchai, W., Haruthaithanasan, V., Sukatta, U., & Aekatasanawan, C.
(2016). Comparison of Anthocyanin Extraction Methods from High Anthocyanin Purple Corn Cob
Hybrid: KPSC 901, and Quality of the Extract Powder. J Food Process Pres, 40(5), 1125-1133.
Shindo, M., Kasai, T., Abe, A., & Kondo, Y. (2007). Effects of dietary administration of plant-derived
anthocyanin-rich colors to spontaneously hypertensive rats. J Nutr Sci Vitaminol (Tokyo), 53(1), 90-
93.
Takahama, U., Yamauchi, R., & Hirota, S. J. F. c. (2013). Interactions of starch with a cyanidin–catechin
pigment (vignacyanidin) isolated from Vigna angularis bean. Food Chemistry, 141(3), 2600-2605.
Tatsuzawa, F., Hosokawa, M., Saito, N., & Honda, T. (2012). Three acylated anthocyanins and a flavone
glycoside in violet-blue flowers of Saintpaulia ‘Thamires’. South African Journal of Botany, 79, 71-
76.
Trikas, E. D., Papi, R. M., Kyriakidis, D. A., & Zachariadis, G. A. (2016). A Sensitive LC-MS Method for
Anthocyanins and Comparison of Byproducts and Equivalent Wine Content. Separations, 3(2), 18.
Vayupharp, B., & Laksanalamai, V. (2015). Antioxidant properties and color stability of anthocyanin purified
extracts from Thai waxy purple corn cob. J Food Nutr Res, 3, 629-636.
Wallace, T. C., & Giusti, M. M. (2015). Anthocyanins. Adv Nutr, 6(5), 620-622.
Yang, Z., Chen, Z., Yuan, S., Zhai, W., Piao, X., & Piao, X. (2009). Extraction and identification of anthocyanin
from purple corn (Zea maysL.). International Journal of Food Science and Technology, 44(12), 2485-
2492.
Yang, Z., & Zhai, W. (2010a). Identification and antioxidant activity of anthocyanins extracted from the seed
and cob of purple corn (Zea mays L.). Innovative food science & emerging technologies, 11(1), 169-
176.
Yang, Z., & Zhai, W. (2010b). Optimization of microwave-assisted extraction of anthocyanins from purple
corn (Zea mays L.) cob and identification with HPLC–MS. Innov. Food Sci. Emerg. Technol, 11(3),
470-476.
Yousuf, B., Gul, K., Wani, A. A., & Singh, P. (2016). Health Benefits of Anthocyanins and Their Encapsulation
for Potential Use in Food Systems: A Review. Crit Rev Food Sci Nutr, 56(13), 2223-2230.
Zhang, H. B., Jordheim, M., Lewis, D. H., Arathoon, S., Andersen, O. M., & Davies, K. M. (2014).
Anthocyanins and their differential accumulation in the floral and vegetative tissues of a shrub
species (Rhabdothamnus solandri A. Cunn). Scientia Horticulturae, 165, 29-35.
Zhao, X., Corrales, M., Zhang, C., Hu, X., Ma, Y., & Tauscher, B. (2008). Composition and thermal stability of
anthocyanins from chinese purple corn ( Zea mays L.). J Agric Food Chem, 56(22), 10761-10766.
5
5
5
5
5
5
5
08
09
10
11
12
13
14
2
0

List of Tables
Table 1: Esterification products of purple corn anthocyanins in acidified methanol at 23 °C identified
by System 3.
RT(RT
(min)
19.6
22.5
23.6
24.1
25.9
27.2
27.6
28.1
28.7
λmax
(nm)
514
514
514
520
500
500
514
520
520
Anthocyanins
m/z
549
635
635
563
619
619
649
649
649
MS/MS
517, 449, 287
603, 575, 535, 287
603, 575, 535, 287
531, 517, 301
271
Cy-3-(methylmalonateglucoside) (N1)
Cy-3-(methylmalonatemalonylglucoside) (N2)
Cy-3-(methylmalonatemalonylglucoside) (N3)
Pn-3-(methylmalonateglucoside) (N4)
Pg-3-(methylmalonatemalonylglucoside) (N5)
Pg-3-(methylmalonatemalonylglucoside) (N6)
Pn-3-( methylmalonatemalonylglucoside) (N7)
Cy-3-(dimethyldimalonateglucoside) (N8)
Pn-3-(methylmalonatemalonylglucoside) (N9)
271
617, 605, 563, 301
605, 549, 287
617, 573, 549, 301
RT: Retention Time; N1 to N9 are esterification products producing after 5-hour storage of PPS extraction at rt.
Table 2: Individual anthocyanin concentrations and total anthocyanin content (TAC) in mature seeds
of pigmented corn accessions determined by LC– System 3 at 520 nm. PPS: purple-pericarp
sweetcorn; RPS: reddish-purple-pericarp sweetcorn; PPM: purple-pericarp maize; PP-BAM: purple-
pericarp-blue-aleurone maize; BAM: blue-aleurone maize and CAM: cherry- aleurone maize; TPg;
total pelargonidin content; TPn: total peonidin content; TCy: total cyanidin content.
Antho-
cyanins
TAC in pigmented corn (mg/100 g DW)
PPSa
RPSb
PPMa
PP-BAMa
BAMb
CAMb
Cy3G
72.4-–137.1
5.4-–19.6
21.78 ± 0.2
41.1± 0.4
5.2± 0.1
127.5-–260.1
9.8-–15.8
72.2-–101.2
4.9-–14.7
4.2 ± 0.0
1.1 ± 0.0
0.0
0.6 ± 0.0
1.2 ± 0.0
0.0
Pg3G
Pn3G
14.0-–26.2
116.4-–246.9
15.8-–25.1
212.1-–246.5
49.6-–72.3
23.8-–35.9
5.7-–12.1
11.6-–21.3
125.6-–134.6
31.3-–45.1
14.6-–35.1
3.8-–9.8
Cy3MG*
34.4± 0.1
7.3± 0.2
16.5 ± 0.2
16.8 ± 0.1
1.1 ± 0.0
1.2 ± 0.0
0.0
1.1 ± 0.1
1 ± 0.0
3.5 ± 0.1
3.2 ± 0.1
0.0
Cy3DMG* 22.0-–52.8
Pg3MG*
Pg3DMG*
Pn3MG*
16.2-–43.7
4.6-–11.4
26.0-–57.5
73.3 ± 0.6
21.6 ± 0.1
13.5 ± 0.1
4.8-–25.5
12.5-–34.0
2
1

Pn3DMG* 10.3-–22.3
4.5 ± 0.1
136 ± 1.1
23.1 ± 0.3
63.3 ± 0.3
3.1-–13.2
39.5-–64.1
5.7-–15.2
11.4-–59.6
0.0
0.0
TPg
TPn
TCy
TAC
24.3-–73.9
49.8-–106.0
210.9-–418.7
3.4 ± 0.0
0.0
7.8 ± 0.2
0.0
23.7-–59.4
29.8-–70.5
363.5-–555.7
438.5-–667.2
185.2-–258.0
244.3-–351.7
37.4 ± 0.1
40.8 ± 0.1
2.7 ± 0.1
10.5 ± 0.2
288.6-–593.3 222.5 ± 1.7
a
experiments were performed in biological replicates (n = 6-–12) for the purple accessions.
a composite sample for each of the BAM, CAM and RPS accessions.
anthocyanins having multiple isomers.
b
*
2
2

Table 3: Characterisation of anthocyanins detected in pigmented corn by System 3 and System 1 in positive ion mode.
Precursor ions (m/z)b
λmax
Molecular
formula
Elution time (min)a
6.41
m/za
449
MS/MSa
Fragmentsb
287.0547
Anthocyanins
Cy3G
b
(nm)
Observed Theoretical
+
514
318, 287, 163
449.1075
449.1078
C H O
21 21 11
+
+
Pg3G
Pn3G
9.88
504
517
433
463
323, 271
433.1127
463.1232
433.1129
463.1235
C H O
21 10
271.0600
301.0705
2
1
11.31
322, 301, 286
C H O
22 23 11
Cy3MG*
Pg3MG*
9.88, 10.75, 11.31, 12.97
13.74, 15.25
514
504
535
519
517, 491, 449, 287, 163
475, 433,385, 271, 158
535.1078
519.1134
535.1082
519.1133
C H O
23 14
+
+
287.0547
271.0600
2
4
C H O
23 13
2
4
Cy3DMG*
Pn3MG*
15.25, 15.78, 16.50
14.85, 15.25, 16.87
18.66, 19.46
514
517
504
517
621
549
605
635
577, 535, 491, 287, 169
531, 505, 463, 301, 286
587, 561, 518, 522, 271
617, 591, 549, 301, 287
621.1089
549.124
621.1086
549.1239
605.1137
635.1243
C H O
25 17
+
+
+
+
287.0547
301.0705
271.0600
301.0705
2
7
C H O
25 14
2
5
Pg3DMG*
Pn3DMG*
605.1136
635.1242
C H O
27 25 16
21.17
C H O
28 27 17
a
b
:
:
samples were tested by System 3, : System 1.
anthocyanins have with multiple isomers.
*
2
3

List of figures
Fig. 1: TAC (+/- SE (standard error)) in a composite PPS sample at 26 DAP; A: anthocyanin
extraction by a combination of methanol/water (8:2) acidified with different acids (HCl, FA and AA);
B: anthocyanins extraction by different methanol/water mixtures acidified with 0.1M HCl. All
extractions were carried out in triplicate and % the standard error of the mean (SEM) was <7%.
Fig. 2: (A) an example of the esterification and hydrolysis reaction of Cy3MG in acidified methanol
at 23 °C. (B) mass spectrum of new esterification products of Cy-3-(6’’-methylmalonate-3’’-
malonylglucoside (N3) and (C) diagrams of fragmentations of (N3) and Cy-3-(6’’-
methylmalonateglucoside) (N1) by System 3.
Fig. 3. Anthocyanin profiles of different pigmented corn samples analysed by System 3 at 520 nm.
1
2
3
4
1
2
Peaks: (1) Cy3G; (2) Pg3G; (3 ); (3 ), (3 ) and (3 ) Cy3MG isomers; (4) Pn3G; (5 ) and (5 ) Pg3MG
1
2
3
1
2
1
2
isomers; (6 ), (6 ) and (6 ) Cy3DMG isomers; (7 ) and (7 ) Pn3MG isomers; (8 ) and (8 ) Pg3DMG
isomers; (9) Pn3DMG; IS: internal standard of Del3G (1 µg/L); PPS: purple-pericarp sweetcorn; RPS
reddish-purple-pericarp sweetcorn; PPM: purple-pericarp maize; PP-BAM: purple-pericarp-blue-
aleurone maize; BAM: blue-aleurone maize and CAM: cherry aleurone maize.
Highlights:

A fully optimised extraction procedure for anthocyanin-pigmented corn was
developed


Eighteen genuine anthocyanins were identified in pigmented corns
Nine ‘artefact’ anthocyanins were identified during the extraction procedure
2
4



Highest anthocyanin content was found in purple-pericarp corn kernels
The use of acidified solutions for extraction is essential for accurate assessment
CRediT author statement
Author Contributions: Conceptualization, H.H. and T.O.; methodology, H.H.., M.N.; software,
H.H.; formal analysis, H.H., and T.O.; investigation, H.H.; resource, T.O.; data curation, H.H. and
T.O.; writing—original draft preparation, H.H.; writing—review and editing, H.H., M.N., and T.O;
supervision, T.O.; project administration, T.O.; funding acquisition, T.O.
Sincerely
Dr Hung Trieu Hong
(
on behalf of the authors)
Centre for Nutrition and Food Sciences, Queensland Alliance for Agriculture and Food Innovation
QAAFI), The University of Queensland
(
Declaration of interests
☒
The authors declare that they have no known competing financial interests or personal relationships
that could have appeared to influence the work reported in this paper.
☒
The authors declare the following financial interests/personal relationships which may be considered as
potential competing interests:
The authors declare no conflict of interest.
2
5

2
6
