One High-Nuclearity Cd(II)-Yb(III) Nanoring with Near-IR Luminescent Sensing to Antibiotics

Article abstract of DOI:10.1021/acs.inorgchem.0c02567

One 12-metal Cd(II)-Yb(III) nanoring, [Cd8Yb4L8(OAc)8]·4OH (1), with a size of 1.2 × 2.8 × 2.8 nm was obtained from a designed flexible salen-type ligand that has eight coordination sites (O and N atoms). The near-IR emission of Yb(III) at 983 nm was detected upon the excitation of ligand-central absorption at 386 nm. This Cd(II)-Yb(III) nanoring exhibits high sensitivity to nitrofuran antibiotics (NFAs) even in the presence of other antibiotics. The quenching constants and limits of detection of NFAs are 2.5 × 104-4.5 × 104 M-1 and 1.5-2.8 μM, respectively.

Full text of DOI:10.1021/acs.inorgchem.0c02567

pubs.acs.org/IC
Communication
One High-Nuclearity Cd(II)−Yb(III) Nanoring with Near-IR
Luminescent Sensing to Antibiotics
Yanan Ma, Xiaoping Yang,* Dongliang Shi, Mengyu Niu, and Desmond Schipper
Cite This: https://dx.doi.org/10.1021/acs.inorgchem.0c02567
Read Online
sı
*
Metrics & More
Article Recommendations
Supporting Information
ACCESS
ABSTRACT: One 12-metal Cd(II)−Yb(III) nanoring, [Cd8Yb4L8(OAc)8]·4OH (1), with a size of 1.2 × 2.8 × 2.8 nm was
obtained from a designed flexible salen-type ligand that has eight coordination sites (O and N atoms). The near-IR emission of
Yb(III) at 983 nm was detected upon the excitation of ligand-central absorption at 386 nm. This Cd(II)−Yb(III) nanoring exhibits
high sensitivity to nitrofuran antibiotics (NFAs) even in the presence of other antibiotics. The quenching constants and limits of
detection of NFAs are 2.5 × 104−4.5 × 104 M−1 and 1.5−2.8 μM, respectively.
uring recent years, the development of high-nuclearity
metal nanorings has received much interest because of
exhibits interesting near-IR (NIR) emission sensing to
antibiotics, particularly to NFAs at the parts per million level.
The salen-type ligand H2L was synthesized with 2-nitro-
phenol, 1,4-dibromobutane, and 2-hydroxy-3-methoxybenzal-
dehyde as raw materials (Figure 1a), and its structure was
confirmed by NMR, electrospray ionization mass spectrome-
try, and Fourier transform infrared (Figures S1 and S2). The
product of 1 was formed as red crystals from the reaction of
H2L with Yb(SO3CF3)3 and Cd(OAc)2 in an ethanol (EtOH)/
methanol (MeOH) solution. Employment of a long salen-type
ligand leads to the large size of 1 (about 1.2 × 2.8 × 2.8 nm;
Figure 1b). The centrosymmetric structure of 1 includes four
equivalent Cd2Yb moieties that are linked into a nanoscale ring
by eight salen-type ligands. The diameter of the ring is about
1.6 nm. Eight O atoms from one OAc− anion and four L2−
ligands bond to the Yb(III) ion, which exhibits a slightly
distorted dodecahedral configuration.26 The coordination
numbers of Cd(II) ions are 6 and 7. In 1, the coordination
modes of OAc− and L2− are μ2(η1:η1 or η1:η2) and
μ4(η1:η2:η1:η1:η2:η1), respectively. The distances between the
adjacent Cd(II) and Yb(III) ions are from 3.693 to 3.736 Å.
The Yb−O, Cd−N, and Cd−O bond lengths are 2.039−2.970,
2.190−2.460, and 1.907−2.529 Å, respectively. As shown in
Figure 1c, the Cd/Yb molar ratio is found to be 2 by energy-
dispersive X-ray spectroscopy (EDX) of 1, in agreement with
its molecular formula. Thermogravimetric analysis (TGA)
displays that 1 loses about 5% weight before 100 °C because of
the escape of solvent molecules (e.g., MeOH, EtOH, and
H2O) uncoordinated in the structure, and then its weight
hardly changes until it is heated to more than 200 °C (Figure
S4). The thermodynamic stability of 1 is also investigated by
D
their beautiful geometrical configuration and special physical
and chemical properties.1,2 Some large metallorings have been
obtained from the assembly of d-block transition metals and
lanthanides, e.g., Mn4Ln4,3 Mn8Ln8,4 Fe6Ln3,5 Co16Ln24,6
Cu36Ln24,7 and Cu6(Zn6)Ln6.8 At present, growing attention
has been devoted to fluorescence-based chemical sensors
because of their fast response, high sensitivities, and
convenient utilization.9,10 Among all kinds of detection objects,
pharmaceutical antibiotics, which have been broadly used in
many fields such as medical, aquaculture, and food processing,
have been considered to be one of the most noticeable classes
of environmental pollutants.11,12 For instance, nitrofuran
antibiotics (NFAs) are a class of broad-spectrum antimicrobial
compounds that have been proven to show potential
carcinogenic and mutagenic effects. In recent years, some
lanthanide complexes, including mononuclear complex and
metal−organic frameworks, have been designed for the
luminescence detection of antibiotics.13−15 As is known,
some porphyrins and heterocyclic-based macrocycles, which
have large ringlike structures, have been used as fluorescent
sensors to detect small molecules and ions,16−18 while the
construction of high-nuclearity d−4f nanorings as fluorescent
probes for detection is still challenging.
For the synthesis of d−4f nanorings, much attention has
been focused on the use of small bridging ligands, such as
phosphonates,19,20 alkoxides,21,22 and carboxylates,5,7 for the
purpose of obtaining single-molecule magnets (SMMs). In
contrast, so far there are very few reported ringlike metal
clusters with large organic ligands. Flexible long-chain Schiff
base ligands can coordinate with metal ions by various modes
in polynuclear d−4f complexes.23−25 We herein report a 12-
metal Cd(II)−Yb(III) nanoring, [Cd8Yb4L10(OAc)8]·4OH
(1), with a new flexible salen-type Schiff base ligand, 6,6′-
{(1E,1′E)-[[[butane-1,4-diylbis(oxy)]bis(2,1-phenylene)]bis-
(azaneylylidene)]bis(methaneylylidene)}bis(2-methoxyphe-
nol) (H2L; Figure 1a), which has eight coordination sites (O
and N atoms) to bind both d- and f-block metal ions. 1
Received: August 28, 2020
https://dx.doi.org/10.1021/acs.inorgchem.0c02567
© XXXX American Chemical Society
Inorg. Chem. XXXX, XXX, XXX−XXX
A

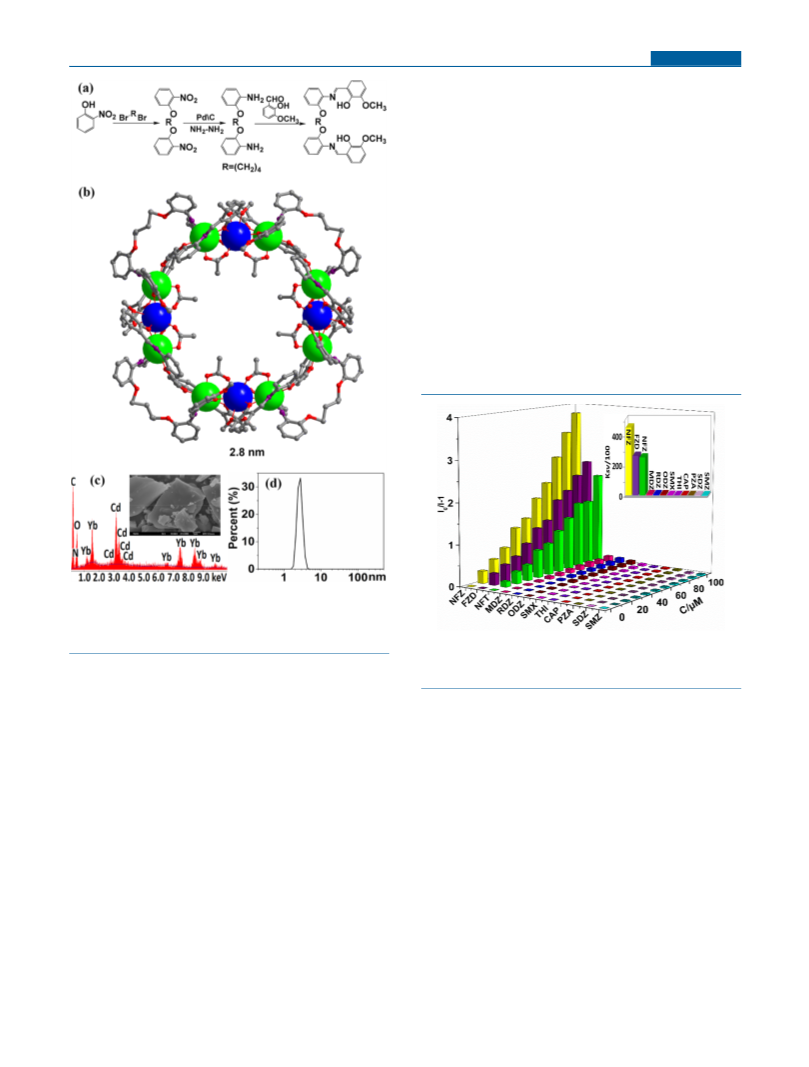

Inorganic Chemistry
pubs.acs.org/IC
Communication
salen-type ligand and the 2F5/2 level of Yb(III) in 1 plays a key
role in the energy-transfer process.34,35 The LC level of the
3
salen-type ligand in 1 can be estimated from the visible
emission of the Gd(III) analogue ([Cd8Gd4L8(OAc)8]·4OH;
see the SI), in which energy transfer from the salen-type
3
ligands to lanthanides does not occur. The LC level of the
salen-type ligand is determined to be 18200 cm−1 (Figure S9).
2
Hence, the energy gap between the 3LC and F5/2 levels
[Yb(III): 10200 cm−1] in 1 is calculated to be about 8000
cm−1. This large energy gap suggests that the process of energy
transfer in 1 may be decided by electron transfer or a phonon-
assisted energy-transfer mechanism.36,37
The sensing behavior of 1 to four types of classic antibiotics,
i.e., nitrofurans (NFAs: NFZ, FZD, and NFT), nitroimidazoles
(MDZ, RDZ and ODZ), sulfonamides (SMX, SDZ, and
SMZ), and chloramphenicols (THI and CAP), and one
commonly used antibiotics−pyrazinamide (PZA; Scheme S2)
was studied in acetonitrile (CH3CN). The addition of these
antibiotics leads to various changes of the NIR emission of 1.
Except SDZ and SMZ, the addition of other antibiotics
decreases the emission of 1 (Figures 2 and S10). NFAs (NFZ,
Figure 1. (a) Synthesis route of the salen-type ligand H2L. (b)
Ringlike crystal structure of 1 [Cd(II), green, Yb(III), blue]. (c) EDX.
Inset: Field emission scanning electron microscopy image. (d) DLS
analysis of 1 in CH3CN.
Figure 2. Intensity changes of 1 (c = 10 μM) at 983 nm caused by the
addition of antibiotics at different concentrations. Inset: Quenching
constants of antibiotics (λex = 386 nm).
melting point measurement, which indicates that it begins to
decompose from 220 °C (see the Supporting Information, SI).
The stability of the ringlike structure of 1 in solution is
confirmed by dynamic light scattering (DLS) analysis, which
displays a diameter distribution centered at 2.8 nm (Figure
1d), consistent with its crystal structure of 1.27−30
FZD, and NFT) decrease the lanthanide luminescence much
faster than other antibiotics. For example, the addition of 100
μM NFAs decreases the luminescence more than 70%, but less
than 20% for the addition of other antibiotics with the same
concentration (Figure S10).
The quenching constants (KSV) of the antibiotics were
calculated by the Stern−Volmer equation (I0/I = 1 +
KSV[A]).38 As shown in Figure 2, the KSV values of NFZ,
FZD, and NFT are 4.49 × 104, 2.62 × 104, and 2.51 × 104
M−1, respectively, which correspond to the highest numbers
reported so far for NFA detection based on fluorescent metal
complexes39−42 and higher than those obtained from
fluorescent silica nanoparticles.43 For 1, the limits of detection
(LOD = 3σ/KSV44) of these three NFAs are calculated to be
1.53, 2.63, and 2.74 μM, respectively. This indicates that 1 has
high luminescence sensitivity to NFAs at the parts per million
level.
In 1, the lanthanide ions are surrounded within the nanoring
structure and separated from outside solvent molecules that
may decrease the lanthanide emission.31 Meanwhile, no
solvent molecules such as MeOH or H2O bond to the Yb(III)
ions. These factors are conducive to improvement of the
luminescence properties of 1. The free H2L ligand displays
absorption bands at 280 and 338 nm (Figure S6) and exhibits
a broad emission band at 554 nm (Figure S7a). Under
excitation at 386 nm, the NIR emission of Yb(III)
2
2
corresponding to the F5/2→ F7/2 transition was found at
983 nm (Figure S7b), with a lifetime (τ) of 7.48 μs (Figure
S8). The intrinsic quantum yield of Yb(III) (ΦLn = τ/τ0) is
able to be estimated as 0.37%, with τ0 = 2000 μs.32 The
quantum yield of the NIR emission of 1 (Φem) is measured as
The origin of emission quenching of 1 caused by antibiotics
can be due to an “inner filter effect”,39,40 in which the added
antibiotics also absorb light energy at the excitation wavelength
(386 nm), resulting in a decrease in energy absorption of 1. As
0.09%. Consequently, the transfer energy efficiency (ηsens
=
Φem/ΦLn) of salen-type ligands is found to be 24.3%.33 The
energy gap between the excited triplet-state level (3LC) of the
B
https://dx.doi.org/10.1021/acs.inorgchem.0c02567
Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry
pubs.acs.org/IC
Communication
shown in Figure 3, NFAs exhibit strong absorption at 386 nm;
however, other antibiotics have very little absorption. For
existence of other antibiotics with 10 times concentration does
not change the emission quenching of 1 caused by NFZ
(Figure 4a). In addition, the stepwise addition of antibiotics
Figure 3. UV−vis absorption spectra of tested antibiotics (c = 10 μM)
in CH3CN.
instance, the absorption coefficients of NFT and NFZ at λex are
7.27 × 104 and 7.73 × 104 M−1 cm−1, respectively, which are
larger than that of 1 (6.47 × 104 M−1 cm−1). Therefore, the
added NFAs can effectively compete with the salen-type
ligands of 1 to absorb light energy. In addition, another
mechanism that may be involved is the photoinduced electron-
transfer (PET) process, where emission quenching of 1 is due
to excited electron transfer from the salen-type ligand to the
LUMO of antibiotics.17,41 According to the literature,45 the
approximate LUMO energy level of the salen-type ligand in 1
is at about −1 eV, which is higher than those of NFAs. Thus,
antibiotics with lower LUMO energy levels have a stronger
ability to accept an electron from the ligand. As shown in
Scheme 1, although the LUMO energy levels of NFAs are
Figure 4. NIR emission sensing of 1 (c = 10 μM) to NFZ in the
presence of other antibiotics in CH3CN: (a) percentages of emission
quenching before and after the addition of NFZ (c = 100 μM) with
the existence of other antibiotics (c = 1000 μM); (b) decrease of the
luminescence intensities with the stepwise addition of other
antibiotics and NFZ (15 μM each time).
Scheme 1. HOMO and LUMO Energy Levels of the
Antibiotics
also confirms the selectivity of 1 to NFAs (Figure 4b). For
instance, emission quenching is not very obvious with the
addition of MDZ twice first. However, the continued addition
of NFZ gives a rapid decrease of the lanthanide emission. In
the following addition cycles, this changing trend of the
luminescence intensities repeats again, which indicates that 1
exhibits high selectivity to NFZ even in the presence of other
antibiotics.
In order to evaluate the practicality of the Yb(III) nanoring
on real samples, the luminescent response of 1 to antibiotic
drugs sold in pharmacies was investigated. For example, the
addition of 60 mg L−1 nitrofurazone (containing NFZ) and
furazolidone (containing FZD) reduces the luminescence
intensities by 95% and 73%, respectively (Figure S11). These
results show that 1 displays high sensitivity to real antibiotic
drugs containing NFAs.
In brief, one 12-metal Cd(II)−Yb(III) nanoring, 1, was
constructed by the use of a new flexible salen-type ligand that
shows a μ4(η1:η2:η1:η1:η2:η1) coordination mode. The
molecular size of the metal nanoring is about 1.2 × 2.8 ×
2.8 nm. 1 exhibits NIR emission sensing to NFAs at the ppm
level. The quenching constants and LODs of NFAs are 2.5 ×
104−4.5 × 104 M−1 and 1.5−2.8 μM, respectively. The
presence of other antibiotics does not affect the high sensitivity
and selectivity of 1 to NFAs. The practicality of 1 was
investigated by its luminescent response to real antibiotic drugs
generally lower than those of other antibiotics, the changing
trends of the KSV values of all antibiotics and their LUMO
energy levels are not the same. For instance, the LUMO energy
levels of MDZ, RDZ, ODZ, THI, and CAP are much lower
than those of SMX, PZA, SDZ, and SMZ; however, these nine
antibiotics have similar KSV values. These results suggest that
the PET mechanism may not play a key role in emission
quenching caused by antibiotics, while the “inner filter effect”
dominates the quenching process of 1 to NFAs.
In the presence of other antibiotics, the sensing behavior of
1 to NFAs was studied in CH3CN. It was found that the
C
https://dx.doi.org/10.1021/acs.inorgchem.0c02567
Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry
pubs.acs.org/IC
Communication
structural, magnetic, and theoretical characterization. Chem. - Eur. J.
2015, 21, 16364−16369.
(5) Kuhne, I. A.; Mereacre, V.; Anson, C. E.; Powell, A. K. Nine
members of a family of nine-membered cyclic coordination clusters;
Fe6Ln3 wheels (Ln = Gd to Lu and Y). Chem. Commun. 2016, 52,
1021−1024.
(6) Zhang, Z.; Pan, L.; Lin, W.; Leng, J.; Guo, F.; Chen, Y.; Liu, J.;
Tong, M. Wheel-shaped nanoscale 3d-4f {CoII16LnIII24} clusters (Ln =
Dy and Gd). Chem. Commun. 2013, 49, 8081−8083.
(7) Leng, J.-D.; Liu, J.-L.; Tong, M.-L. Unique nanoscale
{CuII36LnIII24} (Ln = Dy and Gd) metallo-rings. Chem. Commun.
2012, 48, 5286−5288.
(8) Wu, J.; Li, X.; Guo, M.; Zhao, L.; Zhang, Y.; Tang, J. Realization
of toroidal magnetic moments in heterometallic 3d-4f metallocycles.
Chem. Commun. 2018, 54, 1065−1068.
(9) Guo, Z.; Xu, H.; Su, S.; Cai, J.; Dang, S.; Xiang, S.; Qian, G.;
Zhang, H.; O’Keeffe, M.; Chen, B. A robust near infrared luminescent
ytterbium metal-organic framework for sensing of small molecules.
Chem. Commun. 2011, 47, 5551−5553.
(10) Xu, Y.-Y.; Chen, P.; Gao, T.; Li, H.-F.; Yan, P.-F. Improved
luminescence properties by the self-assembly of lanthanide com-
pounds with a 1-D chain structure for the sensing of CH3COOH and
toxic HS− anions. CrystEngComm 2019, 21, 964−970.
(11) Martinez, J. L. Environmental pollution by antibiotics and by
antibiotic resistance determinants. Environ. Pollut. 2009, 157, 2893−
2902.
(12) Fernandez, F.; Sanchez-Baeza, F.; Marco, M.-P. Nanogold
probe enhanced surface plasmon resonance immunosensor for
improved detection of antibiotic residues. Biosens. Bioelectron. 2012,
34, 151−158.
(13) Singha, S.; Ahn, K. H. Detection of ciprofloxacin in urine
through sensitized lanthanide luminescence. Sensors 2016, 16, 2065−
2075.
such as nitrofurazone and furazolidone. Further studies in the
design of luminescent d−4f nanorings with sensing properties
to more antibiotics are in progress.
ASSOCIATED CONTENT
* Supporting Information
The Supporting Information is available free of charge at
https://pubs.acs.org/doi/10.1021/acs.inorgchem.0c02567.
■
sı
Synthesis process of H2L and 1, IR, NMR, PXRD, and
UV−vis spectra, TGA, luminescence properties, and X-
ray crystallography (PDF)
Accession Codes
CCDC 2025645 contains the supplementary crystallographic
data for this paper. These data can be obtained free of charge
via www.ccdc.cam.ac.uk/data_request/cif, or by emailing
data_request@ccdc.cam.ac.uk, or by contacting The Cam-
bridge Crystallographic Data Centre, 12 Union Road,
Cambridge CB2 1EZ, UK; fax: +44 1223 336033.
AUTHOR INFORMATION
Corresponding Author
■
Xiaoping Yang − College of Chemistry and Materials
Engineering, Wenzhou University, Wenzhou 325035, China;
orcid.org/0000-0002-4370-517X; Email: xpyang@
wzu.edu.cn
Authors
Yanan Ma − College of Chemistry and Materials Engineering,
Wenzhou University, Wenzhou 325035, China
Dongliang Shi − College of Chemistry and Materials
Engineering, Wenzhou University, Wenzhou 325035, China
Mengyu Niu − College of Chemistry and Materials
Engineering, Wenzhou University, Wenzhou 325035, China
Desmond Schipper − Department of Chemistry and
Biochemistry, The University of Texas at Austin, Austin,
Texas 78712, United States
(14) Ren, K.; Wu, S.-H.; Guo, X.-F.; Wang, H. Lanthanide organic
framework as a reversible luminescent sensor for sulfamethazine
antibiotics. Inorg. Chem. 2019, 58, 4223−4229.
(15) Liu, T.-Y.; Qu, X.-L.; Yan, B. A highly sensitive and selective
“turn-on” fluorescent probe for detection of fleroxacin in human
serum and urine based on a lanthanide functionalized metal−organic
framework. Dalton Trans. 2019, 48, 17945−17952.
(16) Sessler, J. L.; Cai, J.; Gong, H.-Y.; Yang, X.; Arambula, J. F.;
Hay, B. P. A pyrrolyl-based triazolophane: A macrocyclic receptor
with CH and NH donor groups that exhibits a preference for
pyrophosphate anions. J. Am. Chem. Soc. 2010, 132, 14058−14060.
(17) Kang, S. O.; Day, V. W.; Bowman-James, K. The influence of
amine functionalities on anion binding in polyamide-containing
macrocycles. Org. Lett. 2009, 11, 3654−3657.
Complete contact information is available at:
https://pubs.acs.org/10.1021/acs.inorgchem.0c02567
Notes
The authors declare no competing financial interest.
(18) Guo, L.; Wang, M.; Zeng, X.; Cao, D. Luminescent porous
organic polymer nanotubes for highly selective sensing of H2S. Mater.
Chem. Front. 2017, 1, 2643−2650.
ACKNOWLEDGMENTS
■
The authors acknowledge High-level Talents Innovation
Technology Projects of Wenzhou (2019), Major Research
Plan of Wenzhou City (Grant ZG2017027), and the National
Natural Science Foundation of China (Grant 21771141).
(19) Zangana, K. H.; Pineda, E. M.; McInnes, E. J. L.; Schnack, J.;
Winpenny, R. E. P. Centred nine-metal rings of lanthanides. Chem.
Commun. 2014, 50, 1438−1440.
(20) Pineda, E. M.; Tuna, F.; Zheng, Y.-Z.; Teat, S. J.; Winpenny, R.
E. P.; Schnack, J.; McInnes, E. J. L. Iron lanthanide phosphonate
clusters: {Fe6Ln6P6} wells-dawson-like structures with D3d symmetry.
Inorg. Chem. 2014, 53, 3032−3038.
(21) Li, M.; Lan, Y.; Ako, A. M.; Wernsdorfer, W.; Anson, C. E.;
Buth, G.; Powell, A. K.; Wang, Z.; Gao, S. A family of 3d-4f octa-
nuclear [MnIII4LnIII4] wheels (Ln = Sm, Gd, Tb, Dy, Ho, Er, and Y):
Synthesis, structure, and magnetism. Inorg. Chem. 2010, 49, 11587−
11594.
REFERENCES
■
(1) Papatriantafyllopoulou, C.; Moushi, E. E.; Christou, G.;
Tasiopoulos, A. J. Filling the gap between the quantum and classical
worlds of nanoscale magnetism: giant molecular aggregates based on
paramagnetic 3d metal ions. Chem. Soc. Rev. 2016, 45, 1597−1628.
(2) Baniodeh, A.; Anson, C. E.; Powell, A. K. Ringing the changes in
FeIII/YbIII cyclic coordination clusters. Chem. Sci. 2013, 4, 4354−
4361.
(3) Li, M.; Lan, Y.; Ako, A. M.; Wernsdorfer, W.; Anson, C. E.; Buth,
G.; Powell, A. K.; Wang, Z.; Gao, S. A family of 3d-4f octa-nuclear
[MnIII4LnIII4] wheels (Ln = Sm, Gd, Tb, Dy, Ho, Er, and Y):
Synthesis, structure, and magnetism. Inorg. Chem. 2010, 49, 11587−
11594.
̈
(22) Botezat, O.; van Leusen, J.; Kravtsov, V. C.; Kogerler, P.; Baca,
S. G. Ultralarge 3d/4f coordination wheels: From carboxylate/amino
alcohol-supported {Fe4Ln2} to {Fe18Ln6} rings. Inorg. Chem. 2017, 56,
1814−1822.
(23) Wang, C.; Yang, X.; Wang, S.; Zhu, T.; Bo, L.; Zhang, L.; Chen,
H.; Jiang, D.; Dong, X.; Huang, S. Anion dependent self-assembly of
drum-like 30- and 32-metal Cd-Ln nanoclusters: visible and NIR
(4) Vignesh, K. R.; Langley, S. K.; Moubaraki, B.; Murray, K. S.;
Rajaraman, G. Large hexadecametallic {MnIII-LnIII} wheels: Synthesis,
D
https://dx.doi.org/10.1021/acs.inorgchem.0c02567
Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry
pubs.acs.org/IC
Communication
luminescent sensing of metal cations. J. Mater. Chem. C 2018, 6, 865−
874.
(24) Jiang, D.; Yang, X.; Zheng, X.; Bo, L.; Zhu, T.; Chen, H.;
Zhang, L.; Huang, S. Self-assembly of luminescent 12-metal Zn−Ln
planar nanoclusters with sensing properties towards nitro explosives. J.
Mater. Chem. C 2018, 6, 8513−8521.
(25) Shi, D.; Yang, X.; Chen, H.; Jiang, D.; Liu, J.; Ma, Y.; Schipper,
D.; Jones, R. A. Large Ln42 coordination nanorings: NIR
luminescence sensing of metal ions and nitro explosives. Chem.
Commun. 2019, 55, 13116−13119.
(26) King, R. B. Chemical applications of topology and group
theory. IV. Polyhedra for coordination numbers 10−16. J. Am. Chem.
Soc. 1970, 92, 6460−6466.
(27) Zheng, X.; Jiang, Y.; Zhuang, G.; Liu, D.; Liao, H.; Kong, X.;
Long, L.; Zheng, L. A gigantic molecular wheel of {Gd140}: A new
member of the molecular wheel family. J. Am. Chem. Soc. 2017, 139,
18178−18181.
(28) Chandrasekhar, V.; Bag, P.; Colacio, E. Octanuclear {Ln-
(III)8}(Ln = Gd, Tb, Dy, Ho) macrocyclic complexes in a
cyclooctadiene-like conformation: Manifestation of slow relaxation
of magnetization in the Dy(III) derivative. Inorg. Chem. 2013, 52,
4562−4570.
(41) Wang, B.; Lv, X.-L.; Feng, D.; Xie, L.-H.; Zhang, J.; Li, M.; Xie,
Y.; Li, J.-R.; Zhou, H.-C. Highly stable Zr(IV)-based metal-organic
frameworks for the detection and removal of antibiotics and organic
explosives in water. J. Am. Chem. Soc. 2016, 138, 6204−6216.
(42) Zhang, Y.; Yang, J.; Zhao, D.; Liu, Z.; Li, D.; Fan, L.; Hu, T.
Two cadmium(II) coordination polymers as luminescent sensors for
the detection of nitrofuran/nitroimidazole antibiotics. CrystEngComm
2019, 21, 6130−6135.
(43) Wang, C.; Li, Q.; Wang, B.; Li, D.; Yu, J. Fluorescent sensors
based on AIEgenfunctionalised mesoporous silica nanoparticles for
the detection of explosives and antibiotics. Inorg. Chem. Front. 2018,
5, 2183−2188.
(44) Nagarkar, S. S.; Joarder, B.; Chaudhari, A. K.; Mukherjee, S.;
Ghosh, S. K. Highly selective detection of nitro explosives by a
luminescent metal-organic framework. Angew. Chem., Int. Ed. 2013,
52, 2881−2885.
(45) Xie, R.; Tu, M.-B.; Elder, T. Substituent effect of phenolic
aldehyde inhibition on alcoholic fermentation by saccharomyces
cerevisiae. Energy Fuels 2016, 30, 3078−3084.
(29) Bozoklu, G.; Gateau, C.; Imbert, D.; Pecaut, J.; Robeyns, K.;
Filinchuk, Y.; Memon, F.; Muller, G.; Mazzanti, M. Metal-controlled
diastereoselective self-assembly and circularly polarized luminescence
of a chiral heptanuclear europium wheel. J. Am. Chem. Soc. 2012, 134,
8372−8375.
(30) Xuan, W.; Surman, A. J.; Miras, H. N.; Long, D. L.; Cronin, L.
Controlling the ring curvature, solution assembly, and reactivity of
gigantic molybdenum blue wheels. J. Am. Chem. Soc. 2014, 136,
14114−14120.
(31) Sabbatini, N.; Guardigli, M.; Lehn, J. M. Luminescent
lanthanide complexes as photochemical supramolecular devices.
Coord. Chem. Rev. 1993, 123, 201−228.
(32) Klink, S. I.; Grave, L.; Reinhoudt, D. N.; van Veggel, F. C. J. M.;
Werts, M. H. V.; Geurts, F. A. J.; Hofstraat, J. W. A systematic study
of the photophysical processes in polydentate triphenylene-function-
alized Eu3+, Tb3+, Nd3+, Yb3+, and Er3+ complexes. J. Phys. Chem. A
2000, 104, 5457−5468.
(33) Bunzli, J.-C. G.; Piguet, C. Taking advantage of luminescent
̈
lanthanide ions. Chem. Soc. Rev. 2005, 34, 1048−1077.
(34) Xu, Y.-Y.; Chen, P.; Gao, T.; Li, H.-F.; Yan, P.-F. White-light
emission based on a single component Sm(III) complex and
enhanced optical properties by doping methods. CrystEngComm
2019, 21, 964−970.
(35) Xu, Y.-Y.; Sun, O.; Qi, Y.; Xie, B.-Y.; Gao, T. Enhanced
luminescence for detection of small molecules based on doped
lanthanide compounds with a dinuclear double-stranded helicate
structure. New J. Chem. 2019, 43, 16706−16713.
(36) Horrocks, W. D.; Bolender, J. P.; Smith, W. D.; Supkowski, R.
M. Photosensitized near infrared luminescence of Ytterbium(III) in
proteins and complexes occurs via an internal redox process. J. Am.
Chem. Soc. 1997, 119, 5972−5973.
(37) Reinhard, C.; Gudel, H. U. High-resolution optical spectros-
copy of Na3[Ln(dpaa)3]·13H2O with Ln = Er3+, Tm3+, Yb3+. Inorg.
Chem. 2002, 41, 1048−1055.
(38) Xiao, Y.; Cui, Y.; Zheng, Q.; Xiang, S.; Qian, G.; Chen, B. A
microporous luminescent metal-organic framework for highly
selective and sensitive sensing of Cu2+ in aqueous solution. Chem.
Commun. 2010, 46, 5503−5505.
(39) Xu, S.; Shi, J.; Ding, B.; Liu, Z.; Wang, X.; Zhao, X.; Yang, E. A
heterometallic sodium(I)-europium(III)-organic layer exhibiting dual-
responsive luminescent sensing for nitrofuran antibiotics, Cr2O72‑ and
−
MnO4 anions. Dalton Trans. 2019, 48, 1823−1834.
(40) Zhang, F.; Yao, H.; Chu, T.; Zhang, G.; Wang, Y.; Yang, Y. A
lanthanide MOF thin-film fixed with Co3O4 nano-anchors as a highly
efficient luminescent sensor for nitrofuran antibiotics. Chem. - Eur. J.
2017, 23, 10293−10300.
E
https://dx.doi.org/10.1021/acs.inorgchem.0c02567
Inorg. Chem. XXXX, XXX, XXX−XXX
