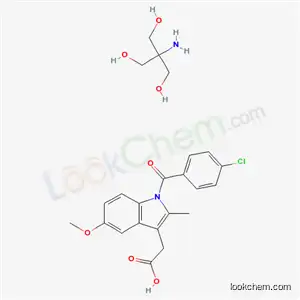

Preparation of a crystalline salt of indomethacin and tromethamine by hot melt extrusion technology

Article abstract of DOI:10.1016/j.ejpb.2018.08.001

Although salt formation is the most ubiquitous and effective method of increasing the solubility and dissolution rates of acidic and basic drugs, it consumes large quantities of organic solvents and is a batch process. Herein, we show that the dissolution rate of indomethacin (a poorly water-soluble drug) can be increased by using hot melt extrusion of a 1:1 (mol/mol) indomethacin:tromethamine mixture to form a highly crystalline salt, the physicochemical properties of which are investigated in detail. Specifically, pH–solubility studies demonstrated that this salt exhibited a maximal solubility of 19.34 mg/mL (>1000 times that of pure indomethacin) at pH 8.19. A solvent evaporation technique was also used for salt formation. Spectroscopic analyses (infrared, nuclear magnetic resonance) of both; demonstrated, in situ salt formation with proton transfer. Powder X-ray diffraction and differential scanning calorimetry confirmed the crystalline nature of salts formed by both methods. Even though a number of amorphous salts of acidic drugs have been reported, the formation of a crystalline salt of an acidic drug by hot melt extrusion is completely unprecedented, which makes this study an important benchmark for the pharmaceutical production industry.

Full text of DOI:10.1016/j.ejpb.2018.08.001

Accepted Manuscript
Preparation of a Crystalline Salt of Indomethacin and Tromethamine by Hot
Melt Extrusion Technology
Mustafa Bookwala, Priyanka Thipsay, Samir Ross, Feng Zhang, Suresh
Bandari, Michael A. Repka
PII:
S0939-6411(18)30529-0
https://doi.org/10.1016/j.ejpb.2018.08.001
EJPB 12850
DOI:
Reference:
To appear in:
European Journal of Pharmaceutics and Biophar-
maceutics
Received Date:
Revised Date:
Accepted Date:
24 April 2018
26 July 2018
4 August 2018
Please cite this article as: M. Bookwala, P. Thipsay, S. Ross, F. Zhang, S. Bandari, M.A. Repka, Preparation of a
Crystalline Salt of Indomethacin and Tromethamine by Hot Melt Extrusion Technology, European Journal of
Pharmaceutics and Biopharmaceutics (2018), doi: https://doi.org/10.1016/j.ejpb.2018.08.001
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to our customers
we are providing this early version of the manuscript. The manuscript will undergo copyediting, typesetting, and
review of the resulting proof before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.

Preparation of a Crystalline Salt of Indomethacin and Tromethamine by Hot Melt Extrusion
Technology
a
a
b
c
a
Mustafa Bookwala , Priyanka Thipsay , Samir Ross , Feng Zhang , Suresh Bandari , Michael A.
Repkaa,d,*
aDepartment of Pharmaceutics & Drug Delivery, School of Pharmacy, The University of
Mississippi, University, MS 38677, USA
bNational Center for Natural Products Research, School of Pharmacy, The University of
Mississippi, University, MS 38677, USA
cCollege of Pharmacy, The University of Texas at Austin, Austin, TX 78712, USA
dPii Center for Pharmaceutical Technology, The University of Mississippi, University, MS 38677,
USA
*Corresponding author. E-mail: marepka@olemiss.edu
Abstract
Although salt formation is the most ubiquitous and effective method of increasing the solubility
and dissolution rates of acidic and basic drugs, it consumes large quantities of organic solvents
and is a batch process. Herein, we show that the dissolution rate of indomethacin (a poorly water-
soluble drug) can be increased by using hot melt extrusion of a 1:1 (mol/mol)
indomethacin:tromethamine mixture to form a highly crystalline salt, the physicochemical
properties of which are investigated in detail. Specifically, pH–solubility studies demonstrated that
this salt exhibited a maximal solubility of 19.34 mg/mL (>1000 times that of pure indomethacin)
at pH 8.19. A solvent evaporation technique was also used for salt formation. Spectroscopic
analyses (infrared, nuclear magnetic resonance) of both; demonstrated, in situ salt formation with
1

proton transfer. Powder X-ray diffraction and differential scanning calorimetry confirmed the
crystalline nature of salts formed by both methods. Even though a number of amorphous salts of
acidic drugs have been reported, the formation of a crystalline salt of an acidic drug by hot melt
extrusion is completely unprecedented, which makes this study an important benchmark for the
pharmaceutical production industry.
Keywords: crystalline salt, indomethacin, tromethamine, hot melt extrusion, solution-phase NMR
Abbreviations: Hot melt extrusion, HME; solvent evaporation, SE; differential scanning
calorimetry, DSC; hot-stage polarized light microscopy, HSPLM; Fourier transform infrared
spectroscopy, FTIR; distortionless enhancement by polarization transfer, DEPT; nuclear magnetic
resonance, NMR; scanning electron microscopy, SEM; powder X-ray diffraction, PXRD;
thermogravimetric analysis, TGA; attenuated total reflectance, ATR; high-performance liquid
chromatography, HPLC; dimethyl sulfoxide, DMSO; United States Pharmacopeia, USP.
2

1
. Introduction
Molecular modeling and high-throughput screening have enabled the discovery of numerous
pharmaceutically active small molecules, the development and commercialization of which,
however, are often hindered by poor solubility in aqueous media, low bioavailability, and high
toxicity [1]. Therefore, a number of techniques (e.g., amorphous solid dispersion, amorphous solid
solution, salt formation, co-crystal formation, surface modification, cyclodextrin complexation,
and the use of self-emulsifying systems) have been developed to improve the dissolution and thus
increase the bioavailability of poorly water-soluble drugs [2].
Since many drugs are weak acids or weak bases thus they can easily form salts with suitable
counter ions, the biopharmaceutical properties of new drug candidates are most commonly
improved by salt formation [3,4]. More than 50% of marketed drugs are available in salt form,
making salt formation the preferred solubilization technique. In view of the fact that salt formation
is an acid-base reaction involving a neutralization reaction or proton transfer from the acidic
moiety to the basic group and usually requires low activation energy, it is theoretically applicable
to all compounds with acidic or basic properties. The relative strength of the acid or base is
particularly important, determining whether or not salt formation occurs and being a measure of
the stability of the resulting salt [5]. In the pharmaceutical industry, salts are typically produced in
solution by batch processing, which leads to the consumption of large amounts of solvents [6].
Although the above approach allows one to control the process rate and yield, the use of solvents
can harm the environment, jeopardize patient health, and incur additional costs due to variability
issues and batch processes will delay its commercialization [7]. Moreover, the need to remove
solvents at the end of the reaction results in the exposure of the salt to stimuli such as heat, which
3

may cause other problems [8]. Therefore, salt formation is often performed as a multistep process
9].
[
A cleaner, greener, and more productive approach corresponds to salt formation facilitated by an
input of mechanical and/or thermal energy. Although HME has been extensively used in the
plastics industry since the 1930s, research and development within the pharmaceutical
manufacturing industry over the past two decades has propelled this technique as an alternative
“platform technology” for solid dosage form development. HME offers distinct advantages over
traditional pharmaceutical formulation techniques, i.e., it is a solvent-free technique, allows
continuous operation and thus requires fewer processing steps, does not require major downstream
processing such as compression, and is known to improve bioavailability [10,11]. Literature
presents salt formation, but in their amorphous forms [12,13], which are characterized by
unpredictable behavior due to their thermodynamic instability and increased molecular mobility.
Consequently, this unpredictability leads to elevated chemical degradation rates and the
occurrence of spontaneous recrystallization. Therefore, crystalline salt formation offers the
advantages of kinetic/thermodynamic stability and decreased susceptibility to chemical
degradation [14–17].
Herein, we report a solvent-free and continuous one-step HME-based process for the formation of
a crystalline salt of an acidic drug (indomethacin (Indo)), demonstrating that the obtained product
shows physicochemical properties similar to those of the crystalline salt prepared by solvent
evaporation (SE).
According to the biopharmaceutics classification system, Indo is a Class II drug with a pK of 4.5
a
and a melting point of 162 °C [18,19]. The bioavailability of Indo is rate-limited by its solubility
and dissolution rate [20], which has inspired extensive research aimed at improving its dissolution
4

behavior. In this study, tromethamine (Tro), a highly water-soluble amino sugar with a pK of 8.07
a
and a melting point of 171 °C, was selected as the salt-forming base in view of the fact that it is an
FDA-approved excipient commonly used as a salt former for oral and intravenous drug
administration [21, 22]. It is generally accepted that salt formation occurs if the ΔpK
acid and the base is greater than three [23,24]. Herein, based on the pK difference between Indo
and Tro (ΔpK = 3.6), we hypothesized that in situ proton transfer between these species could
a
between the
a
a
occur during melt extrusion and thus effectively enhance the dissolution performance and physical
stability of Indo. The thermally induced in situ acid−base reaction between Indo and Tro was
investigated by differential scanning calorimetry (DSC) and hot-stage polarized light microscopy
(
HSPLM). Additionally, Fourier transform infrared spectroscopy (FTIR) and solution-phase
1
13
H/ C nuclear magnetic resonance (NMR) and distortionless enhancement by polarization transfer
(
DEPT 135) was applied to confirm the occurrence of the above proton transfer. The morphology
of as-prepared salts was investigated using scanning electron microscopy (SEM), and the
dissolution properties of salts prepared by SE and HME under non-sink conditions at pH 7 were
determined using simulated intestinal fluid as the dissolution medium. Finally, powder X-ray
diffraction (PXRD) and DSC were used to confirm the crystalline nature of the prepared salt.
2
2
. Materials and Methods
.1 Materials
Indomethacin (C19
.5) was purchased from Combi-Blocks, Inc. (San Diego, California). Tromethamine (C
99% purity, M = 121.14g/mol, melting point = 142 °C (metastable polymorph) and 171 °C
stable polymorph), pK
H
16ClNO
4
, ≥98% purity, M
W
= 357.69 g/mol, melting point = 162 °C, pK =
a
4
4
H
11NO ,
3
≥
W
(
a
= 8.07) was obtained from AK Scientific, Inc. (Union City, California).
5

All organic solvents and other chemicals were sourced from Fisher Scientific (Waltham,
Massachusetts) and were of analytical reagent grade.
2
2
.2 Methods
.2.1 Salt preparation by SE
The solubility of Indo and Tro in anhydrous 200 proof ethanol equal 6.5 mg/mL and 14.6 mg/mL,
respectively. To prepare the Indo-Tro salt, the above constituents (1 mmol each) were dissolved at
room temperature in 200 proof ethyl alcohol (64 mL) in a 250-mL beaker upon stirring, and the
resulting solution was heated to 80 °C to ensure the complete dissolution of all solids or nuclei.
The above temperature was maintained until ethanol evaporation–induced supersaturation was
reached, and the solution was subsequently cooled to room temperature [25]. The precipitated
Indo-Tro salt was filtered, dried, and stored in a desiccator for the duration of the study.
Subsequently, the dried product was characterized by HSPLM, PXRD, DSC, thermogravimetric
1
13
analysis (TGA), solution-phase H/ C NMR, DEPT 135 and attenuated total reflectance FTIR
ATR-FTIR) spectroscopy.
(
2
.2.2 Salt preparation by HME
Indo and Tro were passed through a US#30 mesh screen to remove aggregates. A 1:1 (mol/mol)
physical mixture of Indo (35.8 g, 0.1 mol) and Tro (12.1 g, 0.1 mol) was tumble-mixed at 25 rpm
for 20 min using a Maxiblend™ blender (GlobePharma, New Brunswick, NJ, USA). The blended
mixture was fed into zone 1 of a 11-mm co-rotating twin screw extruder (Process 11, Thermo
Fisher Scientific, Waltham, Massachusetts) using a single-screw volumetric feeder at a mass flow
rate of 5% (~0.24 g/min), the extruder screws rotated at a speed of 150 rpm and the zones were
6

heated at 135 °C. The extruder with a length-to-diameter ratio of 40:1 and eight electrically heated
zones was operated utilizing a die and a 3-mm die insert, and the product was collected at the exit
end of the extruder. To monitor the progress of salt formation, samples from zones 3, 5, and 8 of
the extruder were taken out at the end of each experiment and analyzed by DSC.
2
.2.3 pH–solubility profile
Suspensions of Indo in 25 mL of water were prepared in 100-mL conical flasks at 25 °C using a
ThermoScientific orbital shaker (ThermoScientific, Waltham, Massachusetts). The pH of as-
obtained suspensions (5.04) was adjusted by dropwise addition of aqueous Tro (0.1 and 0.5 M),
and the pH change was monitored with a pH meter. It was ensured that excess solid phase always
remained in equilibrium with the suspension. After each pH adjustment, suspensions were
equilibrated by shaking for at least 2 h, and withdrawn aliquots were filtered through a 0.22-μm
centrifuge tube filter (MilliporeSigma, Burlington, Massachusetts) and subjected to 5-min
ultracentrifugation at 10000 rpm and 25 °C. No significant change in drug solubility was observed
when equilibration was continued for up to 24 h. After appropriate dilutions, the filtered solutions
were assayed for Indo by reverse-phase high-performance liquid chromatography (HPLC;
Waters® e2696 Separations Module) using a Kinetex® 5-μm C18 (250 × 4.6 mm) column,
Waters® 2489 UV/visible detector at 254 nm, and 1:1 (v/v) acetonitrile/phosphate buffer (pH 7.8)
as the mobile phase. The above solvent mixture was also used for aliquot dilution.
2
.2.4 DSC analysis
DSC analysis was performed using a Model 25 differential scanning calorimeter (TA Instruments,
Newcastle, Delaware) equipped with a refrigerator cooling system 120. Nitrogen was used as the
7

purge gas at a flow rate of 50 mL/min. Indium metal was used for instrument calibration. For
sample analysis, 2−5 mg samples were accurately weighed and sealed inside standard TA Tzero
aluminum pans. For thermal characterization, pure Indo and pure Tro were heated at 10 °C/min
from 25 to 200 °C. To characterize the Indo-Tro interaction, their 1:1 (mol/mol) mixture was
heated at 10 °C/min from 25 to 185 °C, and the above thermal program was also used to
characterize salts obtained by SE and HME. All the results were analysed using Trios software
(
TA Instruments, Newcastle, Delaware).
2
.2.5 HSPLM imaging
An Agilent Cary 620 IR optical microscope (Agilent, Santa Clara, CA, USA) equipped with an
electronically controlled hot stage (T95 LinkPad and FTIR 600, Linkam, Tadworth, UK) was used,
and the crystallinity of Indo and Tro were evaluated based on the corresponding images captured
under crossed polarizers. During imaging, samples were heated to 200 °C at a ramp rate of
2
0 ± 0.1 °C/min, and the temperature was maintained until visual analysis was complete.
2
.2.6 PXRD analysis
PXRD patterns were recorded on a MiniFlex 600 diffractometer (Rigaku Corporation, Tokyo,
Japan) equipped with a Cu K radiation source (λ = 1.5406 Å). Measurements were conducted at

an acceleration voltage of 40 kV and a current of 15 mA. Scanning was performed over an angle
range of 2θ = 5–35° at a step size of 0.02° and a dwell time of 0.5 s. The results were analyzed
using MDI Jade 8.5 software (Materials Data, Inc., Livermore, CA).
2
.2.7 SEM imaging
8

Samples were mounted on aluminum stubs using a carbon adhesive film and were subsequently
coated with gold employing a Hummer® 6.2 sputtering system (Anatech Ltd., Battlecreek, MI,
USA) in a high-vacuum evaporator. The surface topography of each sample was analyzed by SEM
at acceleration voltages of 1.0 kV –5.0 kV (JEOL JSM-5600, JEOL, Inc., Peabody, MA, USA).
2
.2.8 ATR-FTIR spectroscopy
FTIR spectra were collected using a Cary 660 bench top spectrometer (Agilent Technologies,
Santa Clara, CA, USA) with a MIRacle ATR sampling accessory (Pike Technologies, Madison,
WI, USA) equipped with a single-bounce diamond-coated ZnSe internal reflection element.
Samples were placed on the crystal surface and subjected to a constant torque using the built-in
pressure tower to achieve uniform solid–crystal contact. Spectra were recorded at ambient
−
1
−1
temperature in the range of 4000−600 cm using 32 scans at a resolution of 4 cm .
1
13
2
.2.9 H and C solution-phase NMR
Solution-phase NMR spectra were recorded on a Bruker BioSpin Ultrashield spectrometer
400 MHz, Bruker, Rheinstetten, Germany) using dimethyl sulfoxide (DMSO) as a solvent and
(
tetramethylsilane as an internal reference to confirm the purity of individual substances and the
occurrence of salt formation.
2
.2.10 TGA
A PerkinElmer Pyris 1 TGA calorimeter was used to determine the thermal stability of Indo, Tro,
and their equimolar physical mixture and thus predict the thermal behavior of this mixture in the
hot melt extruder. Samples were placed in an open aluminum pan and heated from 30 to 135 °C at
9

a rate of 20 °C/min using ultra-purified nitrogen as the purge gas at a flow rate of 25 mL/min. Pyris
software was utilized for data collection/analysis and for calculating percentage mass losses and/or
onset temperatures.
2
.2.11 In vitro release study
The drug release properties of salts prepared via SE and HME were determined using a United
States Pharmacopeia (USP) basket-type dissolution apparatus I (Hanson SR8-plus™, Hanson
Research, Chatsworth, CA, USA) according to USP standards. Specifically, 150 mL of pH 7.2
potassium phosphate monobasic buffer was mixed with 600 mL of deionized water to achieve a
final pH of 7. All experiments were carried out in triplicate at 37 ± 0.5 °C for 2 h using 750 mL of
the dissolution medium. The basket rotation speed was set to 100 rpm. Weighed salt samples with
an Indo equivalent dose of 50 mg were placed into size 2 gelatin capsules, and samples were
withdrawn and analyzed after 5, 15, 30, 45, 60, and 120 min. The amount of released Indo was
determined by HPLC (Waters Corp., Milford, MA, USA; detection at 254 nm) using Empower
software (version 2, Waters Corp.).
2
.2.12 Content uniformity
Accurately weighed amounts of HME-prepared salt equivalent to an Indo dose of 50 mg were
randomly taken from the sample container, dissolved in suitable amounts of the mobile phase, and
sonicated. The sonicated dispersions were subjected to appropriate dilutions, filtered, and analyzed
by HPLC to determine the drug content.
3
. Results and Discussion
10

3
.1 Salt formation by SE
The solvent evaporation method was employed to produce a high-quality salt that was compared
with the product obtained by HME. Specifically, 1:1, 2:1, 4:1, 1:2, and 1:4 (mol/mol) Indo:Tro
mixtures were prepared by SE. The FTIR spectrum of the product obtained at a 1:1 molar ratio
was indicative of complete salt formation, whereas spectra recorded at other ratios were not, i.e.,
a shoulder peak of amorphous Indo was observed for 2:1 and 4:1 ratio’s, and no Tro N–H stretch
shift was observed for 1:2 and 1:4 ratios. DSC scans showed eutectic behavior at a 1:1 molar ratio,
and the formed salt had a distinct melting peak and was confirmed to be crystalline by PXRD.
Based on the shifts of the methylene group adjacent to the carboxylic group (3.7–3.48 ppm)
1
observed by solution-phase H NMR, salt formation was concluded to be complete at the 1:1 molar
ratio. The positional variability of the above shift was ascribed to the effects of proton donation by
the carboxyl group, which was thought to increase the electron density on carboxyl oxygen and
thus decrease its electron-withdrawing effect on the methylene hydrogen [26]. TGA results
indicated that no weight loss was observed for either Indo, Tro, or their physical mixture.
3
.2 Salt formation by continuous HME processing
Herein, we explored the use of HME as a continuous manufacturing process to prepare an Indo-
Tro salt by co-processing Indo-Tro blends with 1:1 and 2:1 Indo:Tro molar ratios, and the
morphology and dissolution profiles of the obtained samples were compared. We hypothesized
that the 1:1 sample should be more stable and exhibit a better/equivalent dissolution profile than
the pure drug, the salt prepared by SE, and the 2:1 sample prepared by HME. Since Tro may adopt
a cage-like structure enabling numerous types of interactions, we wanted to determine if these
interactions allowed 2 equiv. of Indo to be stabilized by 1 equiv. of Tro. In view of the fact that
11

HME processing parameters (e.g., feed rate, configuration, and temperature profile) significantly
affect the quality of the obtained materials, these parameters were carefully optimized. As a result,
the highest crystallinity was achieved when extrusion was performed at 135 °C at a feed rate of
5
% and 150 rpm using a screw configuration featuring two mixing blocks (Figure 1). The torque
at 135 °C varied between 10% and 12%. Viscous dissipation was generated at the interfaces
between the tacky melt, co-rotating twin screws, and the inner surface of the extruder barrel. Even
though the individual melting points of Indo and Tro significantly exceeded the working
temperature, the formation of a eutectic mixture decreased the melting point to much lower values.
When zone 5 of the extruder was opened, it was observed that the Indo-Tro mixture was fully
melted, and it was concluded that the salt crystallizes out after the interaction is complete. In view
of the conversion of the Indo-Tro blend to a tacky material during extrusion, the time period
between the feeding of the blend into the extruder and the exit of the product (residence time) was
determined as 8 min. The thus obtained product was further used as an ideal formulation for all
comparison studies and characterizations. Samples produced by SE and HME exhibited identical
melting points and similar enthalpies, which indicated that essentially identical crystallinities were
obtained in both cases.
3
.3 pH–solubility studies
The role of the pH–solubility relationship in aqueous media in determining the feasibility of
pharmaceutically acceptable salts of acidic and basic drugs has been extensively studied [27]. The
pH–solubility profile of an acidic drug may be expressed by two independent curves, the
intersection point of which is denoted as pHmax, i.e., the pH of maximum solubility. The solubility
curves above and below the pHmax may, respectively, be determined by Eq. (1) and (2). At pH <
12

pHmax, the solid phase in equilibrium with the saturated solution is the free acid, whereas at pH >
pHmax, it is the salt, and both form co-exist at pH = pHmax. Thus, salt-to-acid interconversion (and
vice versa) may occur if the pH shifts away i.e. lower from pHmax [3]. Equations describing the
pH–solubility relationships of salt and free-acid forms of acidic compounds were first established
by Kramer and Flynn [24]:
–

ST acid
[AH]
STsalt
[A–]

pH  pHmax



AH s

 A  

AHs
1 K / H O 
Eq. (1)

a
3





=
s
(1 + 10 pH – pKa
)
–
–

pH  pHmax

 A  

AH

 A 
1 H O  / K
Eq. (2)








3

a
s
s
=
s
(1 + 10 pKa – pH
)
-
Where A and AH are the deprotonated (salt) and free acid species of the drug, respectively, S
T
is
the total solubility at any particular pH, K
a
is the acid dissociate constant, and the subscript s
denotes the equilibrium species in the solid state. Different aqueous suspensions were used in
multiple experiments to obtain solubility values (Figure 2), and the solubility of Indo in water at
2
5 °C was determined as 0.9 µg/mL. Figure 2 also shows that the complete pH−solubility profile
was indeed represented by two curves that intersected at pHmax ≈ 8.19. As mentioned above, the
equilibrium species present below pHmax is the free acid. When a new solid form precipitated out
of the solution, pH increased to values above 8. The solid phase in equilibrium with the solution
at such pH was shown to not be the free acid and was therefore concluded to be the corresponding
salt. The fact that a new solid form could be obtained by increasing pH to values above pHmax by
the addition of Tro illustrated the feasibility of forming a Tro salt of Indo. The solubility of the
Indo-Tro salt in the flat pH region of 8.15–8.3 was determined as 19.34 mg/mL, gradually
decreasing at pH > 8.3 because of the common ion effect. The apparent Ksp of the salt was
–3
2
calculated as 1.63 × 10 M using the method of Anderson and Conradi [28]. Figure 2 also
13

revealed that after the pH of maximum salt solubility was reached, the solubility exhibited a plateau
and then decreased, in agreement with Le Chatelier’s common ion effect. As the concentration of
base increased after full acid neutralization, the acid (Indo) precipitated out until the ion product
became equal to the solubility product [29].
3
.4 Characterization of the Indo-Tro interaction and the corresponding crystalline salt by
DSC
Solid-state reactions between acids and bases are likely to occur at elevated temperatures [9]. The
pKa rule is generally accepted to predict salt formation. Since the pK difference between Indo and
a
Tro equals 3.57, these species are likely to react and form an organic salt at elevated temperature.
Herein, the interaction between Indo and Tro in physical mixtures at elevated temperature was
initially studied by DSC analysis with a heat−cool−heat temperature cycle. Figure 3 shows that
pure Indo melted at 162 °C, whereas pure Tro melted at 143 °C (metastable polymorph) and 171
°C (stable polymorph). Notably, Indo-Tro binary mixtures demonstrated interesting thermal
behaviors, e.g., “eutectic-like” endothermic events (136 °C) at temperatures below the individual
melting points of both Indo and Tro were observed in the binary mixture, which was attributed to
the suppression of Indo melting in the presence of Tro. The salt obtained by HME had a melting
point of 142 °C, which was identical to that of the crystalline salt prepared by SE. The Melt
enthalpy for the hot melt extruded salt was 66.2 J/g and for Solvent evaporation was 74.4 J/g. As
shown in Figure 3, the melting peak of the newly formed crystals was almost superimposed on the
first melting peak of the metastable polymorph of Tro. When Tro was cooled and reheated, its
melting point was determined as 148 °C, which indicated that the salt peak did not correspond to
that of the recrystallized metastable Tro polymorph. Also, heat-cool-heat cycle for the salt showed;
14

1st heating cycle resulted in the melting of the salt at 142 °C, no crystallization was observed in
the cooling cycle (cooled up to -30 °C at 1°C /min and kept isothermal at -30 °C for 10 min), 2nd
heating cycle resulted in a Tg. This clearly concluded that the crystalline peak cannot be of the
polymorph of Tro, as it is an easily crystallizable compound. The salt did not convert crystalline
again as Indo belongs to class III (very weak) crystal category [30]. Excess of kinetic energy was
input thus rendering it in the amorphous form. The Tg of the amorphous product was found to be
in the range of 45 – 55 °C, which is higher than the Indo Tg (40 °C), indicating interaction [31].
Moreover, no additional melting peaks were observed in the first heating cycle, and we therefore
ascribed the new peak to the melting of the newly formed crystalline salt. A small Tg was also
observed in the thermogram having a midpoint of 48 °C. 11% of the salt was in its amorphous
state and 89% in its crystalline state. The higher the amorphous salt, the higher the content of the
degradant. Presence of an amorphous content is the reason for the salt having low lattice energy.
Generally, performing TGA analysis prior to HME is of critical importance, since the high
temperature experienced by the drug and excipients during extrusion may result in the occurrence
of degradation, thermally induced chemical reactions, or both [32]. Herein, the obtained TGA
results revealed that Indo, Tro, and their equimolar physical mixture were chemically stable in the
temperature range of HME processing (data not shown).
3
.5 Characterization of the Indo-Tro interaction by HSPLM
HSPLM imaging was utilized to further understand the thermal events observed in DSC analysis.
Figure 4 shows a correlation between the DSC thermogram and the HSPLM photomicrographs
observed for the equimolar physical mixture of Indo and Tro heated at a rate of 20 °C/min. Indo
and Tro were easily distinguishable based on their irregular crystal shapes, as confirmed by the
15

results of SEM imaging. When the above species were tested individually, no thermal event was
observed by HSPLM until the respective melting temperatures (143 °C (metastable polymorph)
and 171 °C (stable polymorph) for Tro and 162 °C for Indo) were reached. Conversely, Tro began
to melt around 110 °C in the Indo−Tro physical mixture, whereas Indo crystals gradually dissolved
in molten Tro, and complete mixing was achieved before any of the individual melting points was
reached. Thus, the results of DSC and HSPLM analyses indicated that Indo and Tro could have
reacted to form a salt upon thermal treatment. Eutectic melting cannot conclude salt formation, but
the components should have chemical groups that can interact to form physical bonds, such as
intermolecular hydrogen bonding, etc [33]. Crystallization of a molecular complex following the
solubilization of one component into the melt of the other one has been achieved by other solubility
enhancement techniques for substrates such as co-amorphous materials and co-crystals.
The real-time monitoring of in situ intermediate formation during mechanochemical milling is
challenging [34]. Herein, the rate of melting was much faster for the lower-melting-point
component (i.e., Tro metastable polymorph), and this melting therefore produced a large amount
of “solvent” for the higher-melting-point component, which first dissolved in the melt and then
transformed into a more stable crystalline state. Similar results have been reported for the thermally
induced formation of carbamazepine–nicotinamide co-crystals [35]. In conclusion, the results of
HSPLM imaging indicated that Indo and Tro formed an Indo-Tro salt in situ at elevated
temperature.
3
.6 Characterization of the crystalline salt by PXRD
The PXRD pattern of the salt obtained by HME was compared to that of the salt obtained by
solution-phase crystallization and those of individual components and their physical mixture. The
16

PXRD pattern of Indo resembled that reported for the -form, in agreement with the interpretation
of DSC results [36], featuring intense reflections in the 2θ = 10−35° range that were indicative of
a complex crystal structure (Figure 5), namely at 2θ = 10°, 11°, 19°, 22°, 29°, and 34°. For Tro,
intense signals compliant with its intricate crystal lattice arrangement were observed at 2θ = 14–
2
7° (Figure 5), namely at 14°, 18°, 20°, 22.5°, 25°, and 27°. Salts produced by both SE and HME
exhibited a distinct peak with significant intensity at 2θ = 12.55°. Moreover, the salt produced by
the latter method was shown to be crystalline by DSC analysis. The impact of process parameters
was distinctly revealed by PXRD analysis, i.e., when non-optimal conditions were applied, a single
dominant amorphous halo at 2θ = 21° was observed in place of the above crystalline phase peak
(
data not shown), in agreement with the results of DSC analysis. The diffractogram of the Indo-
Tro physical mixture showed reflections belonging to individual Indo and Tro (Figure 5).
3
.7 Characterization of surface morphology by SEM
SEM was used as a technique providing direct visual evidence and capable of confirming
crystalline salt formation to examine the surface morphology of the drug, co-former, and salts
produced by SE and HME. Indo was shown to exist as irregularly shaped plate-like crystals,
whereas Tro formed rough and thick plate-like irregular crystals. Crystalline compounds with a
rough surface can be imaged by SEM [37]. Also ionic compounds are brittle in nature [38]. In
agreement with this statement, the image obtained for the highly crystalline salt showed extremely
rough particle surfaces, whereas the amorphous product contained particles with smooth surfaces.
Moreover, the crystalline salt obtained by SE featured a surface morphology similar to that of the
salt produced by HME (Figure 6). Thus, these results suggested that the formation of a crystalline
salt in this case was highly probable, and the good content uniformity of HME systems confirmed
17

that the degrees of mixing and salt formation in the hot melt extruder were acceptably high.
Therefore, the results of SEM imaging were consistent with those of DSC and PXRD analyses.
3
.8 Characterization of the crystalline salt by FTIR spectroscopy
Salts can be categorized into those exhibiting ionic interaction (as result of proton transfer) or non-
ionic interaction with varying degrees of proton sharing via H-bonding [39], with complete proton
transfer between acidic and basic components occurring for ΔpK
a
> 3.0 [21]. Since Indo and Tro
have pK s of 4.5 and 8.07, respectively, we hypothesized that ionic interaction with full proton
a
transfer was possible. However, proton transfer is also affected by molecular packing and
processing conditions. Herein, FTIR spectroscopy and NMR were used to determine the
interaction between Indo and Tro, showing the occurrence of full proton transfer. The former
technique is often used to detect salt formation based on the ionization state of acidic and basic
components. In this work, FTIR analysis offered crucial information on salt formation, since the
variation in vibrational frequencies was correlated with changes in hydrogen bonding caused by
the formation of multicomponent crystals. Figure 7 shows the wavenumbers of important Indo and
Tro groups involved in salt formation. Salt was formed via proton transfer from the carboxylic
acid group of Indo to the primary amine of Tro, which was the most basic site. The antisymmetric
−
1
C=O stretch of the ionized carboxyl group is typically observed between 1540 and 1650 cm [40].
-1
The peak at 3327 cm completely disappears, as the primary amine is no longer in its primary state
-
1
and the 3370 cm peak remains constant, which indicates that the primary amine group of Tro was
−
1
involved in the salt formation. Moreover, a new peak (Figure 8) at 1570 cm was observed for 1:1
salts obtained by SE and HME. To reveal the reason why the 1:1 molar ratio worked best, we
recorded FTIR spectra of SE–processed mixtures with Indo:Tro ratios of 1:1, 2:1, 4:1, 1:2, and 1:4
18

−
1
(
Figure 9). In the case of the 2:1 ratio, a shoulder around 1750 cm was observed, which indicated
the presence of amorphous Indo, and the observation of the salt-specific peak implied that 1 equiv.
of Indo reacted with 1 equiv. of Tro to form a salt. In the case of the 4:1 ratio, the observation of
the COOH carbonyl stretch revealed the presence of excess Indo. Finally, the NH bending peak at
−
1
1
584 cm detected in 1:2 and 1:4 mixtures completely overpowered Indo peaks, indicating the
presence of excess Tro.
3
.9 Characterization of the crystalline salt via solution-phase NMR
Although one can deduce which positions are protonated based on chemical reasoning and pK
a
value computations, FTIR does not directly indicate which carbon atoms are involved in
deprotonation. Conversely, the sensitivity of NMR to subtle changes in the electronic environment
of the nuclei of interest make it an excellent technique for investigating deprotonation sites [41].
1
Herein, the results of H solution-phase NMR confirmed the occurrence of salt formation, since
the protons of the methylene group adjacent to the carboxyl carbon showed an upfield shift from
3
.7 ppm to 3.4 ppm (Figure 10). Moreover, whereas the spectrum of pure Indo featured an acidic
proton signal at 12.4 ppm, no such peak was observed for crystalline salts prepared by SE and
1
3
HME, which indicated that this proton was transferred to the base (Figure 11). C solution-phase
NMR spectra of Indo and 1:1 salt prepared by HME are shown in Figure 12. The spectra of Indo
and Tro were in good agreement with those reported previously. Notably, deprotonation at the
carboxylic carbon induced a downfield shift from 172.1 to 174.4 ppm, which indicated that
deprotonation occurred at a specific carboxylic carbon nucleus [42]. Additionally, DEPT 135
experiments were conducted to observe the effects of protonation on the methylene group adjacent
to the primary amine group of the base and on the methylene group adjacent to the carboxylic
19

group of the acid. As a result, the methylene signal of the free base shifted upfield to 60.2 ppm
from 63.2 ppm, and the signal of the methylene group of the acid shifted downfield to 32.8 ppm
from 29.6 ppm (Figure 13), which was indicative of salt formation and agreed with the results of
the protonation/deprotonation study of Schneider et al. [26]. The results suggest 95% salt
formation was possible by hot melt extrusion and more than 99% by solvent evaporation. This was
estimated by the integration value of an acidic hydrogen peak, where presence of acidic hydrogen
in Indo was 100% and presence of acidic hydrogen in hot melt extrusion and solvent evaporation
is <5% and <1%, respectively. To eliminate the possibility of ionization in DMSO, the physical
mixture of Indo and Tro was also studied, and the shift observed for the physical mixture was
shown to be very small compared to that observed for the salt.
3
.10 In vitro release/content uniformity
Salt formation is known to influence several physicochemical properties of the parent compound
including dissolution rate, solubility, stability, and hygroscopicity. In turn, these properties affect
drug availability and formulation characteristics. The dissolution rate of a pharmaceutical agent is
of major importance to the formulator, since in many cases, particularly for poorly soluble drugs,
it best reflects bioavailability [43]. As a rule, pharmaceutical salts exhibit higher dissolution rates
than the corresponding conjugate acids or bases at identical pH, even though the equilibrium
solubilities may be equal [3]. In this study, solubility enhancement via HME-induced crystalline
salt formation was evaluated by in vitro dissolution testing, with the results presented in Figures
1
4 and 15. Specifically, we used the dissolution medium (final pH = 7) described in the USP
monograph on Indo, and the equilibrium solubility of Indo in this medium at 37 °C was determined
as 15.1 μg/mL. Dissolution testing was performed using salt samples prepared by HME and SE so
20

that the nominal concentration of Indo equaled 66.6 μg/mL. The dissolution profile of pure Indo
was markedly different from those of the 1:1 mixture and crystalline salts (Figure 14). Notably,
1
00% of the drug was released within 5 min from salts prepared by either method, and the
solubility of Indo in the salt form was shown to exceed that of the free acid form by a factor of 4.6.
Conversely, the 1:1 physical mixture of Indo and Tro showed a drug release of ~80% over 2 h.
Indo has pH dependent solubility; Tro affects the pH environment of the dissolution media thus
giving better profile than the drug. The drug release profile of the crystalline salt was also
compared to those of the 2:1 mixture and the amorphous tacky mass of 1:1 composition (Figure
1
5). As a result, a release of only 70% over 2 h was observed in the former case, which indicated
that some salt might have formed, while the remaining Indo possibly underwent slow
recrystallization upon contact with the medium. The 1:1 amorphous tacky mass also exhibited poor
dissolution performance compared to the 1:1 crystalline salt, which was ascribed to the occurrence
of high-temperature degradation reactions in the former case, i.e., those leading to aldehyde
formation instead of ionic interaction. This aldehyde formation was detected by NMR, and the
corresponding HPLC profiles featured a new separate peak not attributed to Indo. Based on the
obtained data, HME resulted in the uniform mixing of the drug with the co-former to achieve
content uniformity, which is one of the key factors to take into consideration for formulation
development. The drug content of extruded formulations was determined as 98.8ꢀ±ꢀ1%, and the
lower standard deviation obtained for the extruded salt indicated that the optimized screw
configuration provided sufficient mixing and resulted in a homogenous interaction between Indo
and Tro.
21

4
. Conclusion
This research focused on increasing the solubility of a poorly water-soluble drug, Indo, by
converting it into a salt form using Tro as the co-former. In view of the fact that techniques
commonly used for salt formation require the use of organic solvents and are batch processes, we
herein employed HME as an alternative continuous and solvent-free method. The obtained pH–
solubility profiles suggested that salt formation between Indo and Tro is feasible at a 1:1 molar
ratio, and the corresponding mixture was shown to exhibit eutectic melting by DSC and HSPLM.
The crystalline nature of the prepared salt was confirmed by PXRD and SEM, and solution-phase
NMR and FTIR spectroscopy suggested the occurrence of a strong ionic interaction accompanied
by proton transfer from Indo to Tro. Salt formation increased the dissolution rate of Indo in
aqueous medium, achieving a 100% drug release in less than 5 min. Crystalline salts prepared by
SE and HME showed similar physicochemical characteristics, and the latter method was therefore
concluded to be a promising solvent-free alternative for the preparation of crystalline salts,
contributing to the elimination of batch processing while achieving comparable quality.
Acknowledgements
This project was supported by the National Institute of General Medical Sciences, National
Institutes of Health (Grant No. P20GM104932). The content is solely the responsibility of the
authors and does not necessarily represent the official views of the National Institutes of Health.
The authors also thank the Pii Center for Pharmaceutical Technology for contributions to this
project.
References
[
1] C.A. Lipinski, F. Lombardo, B.W. Dominy, P.J. Feeney, Experimental and
computational approaches to estimate solubility and permeability in drug discovery and
22

development settings, Adv. Drug Delivery Rev. 46 (2001) 3–26.
2] C. Leuner, J. Dressman, Improving drug solubility for oral delivery using solid
dispersions, Eur. J. Pharm. Biopharm. 50 (2000) 47–60.
[
[
[
[
[
3] A.T. Serajuddin, Salt formation to improve drug solubility, Adv. Drug Delivery
Rev. 59 (2007) 603–616.
4] G.A. Stephenson, A. Aburub, T.A. Woods, Physical stability of salts of weak bases in
the solid-state, J. Pharm. Sci. 100 (2011) 1607–1617.
5] S.M. Berge, L.D. Bighley, D.C. Monkhouse, Pharmaceutical salts, J. Pharm. Sci. 66
(
1977) 1–19.
6] T. Vasconcelos, B. Sarmento, P. Costa, Solid dispersions as strategy to improve oral
bioavailability of poor water soluble drugs, Drug Discovery Today 12 (2007) 1068–
1
075.
[
[
[
7] R. Hernandez, Continuous manufacturing: a changing processing paradigm, BioPharm
Int. 28 (2015) 20–27.
8] A. Myerson, Handbook of Industrial Crystallization, second ed., Butterworth-
Heinemann, Boston, (2002) 231–248.
9] S.L. James, C.J. Adams, C. Bolm, D. Braga, P. Collier, T. Friščić, F. Grepioni, K.D.M.
Harris, G. Hyett, W. Jones, A. Krebs, J. Mack, L. Maini, A.G. Orpen, I.P. Parkin, W.C.
Shearouse, J.W. Steed, D.C. Waddell, Mechanochemistry: opportunities for new and
cleaner synthesis, Chem. Soc. Rev. 41 (2012) 413–447.
[
10] M.A. Repka, S.K. Battu, S.B. Upadhye, S. Thumma, M.M. Crowley, F. Zhang, C.
Martin, J.W. McGinity, Pharmaceutical applications of hot-melt extrusion: Part
II, Drug Dev. Ind. Pharm. 33 (2007) 1043–1057.
23

[
[
11] M.A. Repka, S. Shah, J. Lu, S. Maddineni, J. Morott, K. Patwardhan, N.N.
Mohammed, Melt extrusion: process to product, Expert Opin. Drug Delivery 9 (2012)
1
05–125.
12] Y. Song, D. Zemlyanov, X. Chen, H. Nie, Z. Su, K. Fang, X. Yang, D. Smith, S.
Byrn, J.W. Lubach, Acid–base interactions of polystyrene sulfonic acid in amorphous
solid dispersions using
a
combined UV/FTIR/XPS/ssNMR study, Mol.
Pharmaceutics 13 (2015) 483–492.
[
13] D. Hasa, B. Perissutti, C. Cepek, S. Bhardwaj, E. Carlino, M. Grassi, S. Invernizzi,
D. Voinovich, Drug salt formation via mechanochemistry: the case study of
vincamine, Mol. Pharmaceutics 10 (2012) 211–224.
[
[
14] M. J. Pikal, A.L. Lukes, J.E. Lang, Thermal decomposition of amorphous β-lactam
antibacterials, J. Pharm. Sci. 66 (1977) 1312–1316.
15] Y. Aso, S. Yoshioka, S. Kojima, Explanation of the crystallization rate of
amorphous nifedipine and phenobarbital from their molecular mobility as measured by
13C nuclear magnetic resonance relaxation time and the relaxation time obtained from
the heating rate dependence of the glass transition temperature, J. Pharm. Sci. 90 (2001)
7
98–806.
[
[
16] D. Zhou, G.G. Zhang, D. Law, D.J. Grant, E.A. Schmitt, Physical stability of
amorphous pharmaceuticals: importance of configurational thermodynamic quantities
and molecular mobility, J. Pharm. Sci. 91 (2002) 1863–1872.
17] H. L. Lee, J. M. Vasoya, M. D. L. Cirqueira, K. L. Yeh, T. Lee, A. T. Serajuddin,
Continuous preparation of 1:1 haloperidol-maleic acid salt by a novel solvent-free
method using a twin screw melt extruder, Mol. Pharm. 14 (2017) 1278-1291.
24

[
[
[
18] L.S. Taylor, G. Zografi, Spectroscopic characterization of interactions between
PVP and indomethacin in amorphous molecular dispersions, Pharm. Res. 14 (1997)
1
691–1698.
19] G.L. Amidon, H. Lennernäs, V.P. Shah, J.R. Crison, A theoretical basis for a
biopharmaceutic drug classification: the correlation of in vitro drug product dissolution
and in vivo bioavailability, Pharm. Res. 12 (1995) 413–420.
20] E. Lenz, K. Löbmann, T. Rades, K. Knop, P. Kleinebudde, Hot melt extrusion and
spray drying of co-amorphous indomethacin-arginine with polymers, J. Pharm.
Sci. 106 (2017) 302–312.
[
[
[
[
[
[
21] C. Saal, A. Becker, Pharmaceutical salts: A summary on doses of salt formers from
the Orange Book, Eur. J. Pharm. Sci. 49 (2013) 614–623.
22] S. Thakral, R. Suryanarayanan, Salt formation during freeze-drying – an approach
to enhance indomethacin dissolution, Pharm. Res. 32 (2015) 3722-3731.
23] A.J. Cruz-Cabeza, Acid–base crystalline complexes and the pK
rule, CrystEngComm 14 (2012) 6362–6365.
a
24] S.F. Kramer, G.L. Flynn, Solubility of organic hydrochlorides, J. Pharm. Sci. 61
1972) 1896–1904.
(
25] W.L. Chiou, S. Riegelman, Pharmaceutical applications of solid dispersion
systems, J. Pharm. Sci. 60 (1971) 1281–1302.
1
13
26] H.-J. Schneider, J. Pöhlmann, H and C NMR spectra, protonation, deprotonation,
and host-guest complexation-induced shifts of some fluorescence dyes, Bioorg.
Chem. 15 (1987) 183–193.
[
27] P.H. Stahl, C.G. Wermuth, Handbook of pharmaceutical salts: properties, selection
25

and use, first ed., Wiley-VCH, Weinheim, (2002) 135–160
[
[
[
28] B.D. Anderson, R.A. Conradi, Predictive relationships in the water solubility of
salts of a nonsteroidal anti-inflammatory drug, J. Pharm. Sci. 74 (1985) 815–820.
29] R. Fernandez-Prini, Le Chatelier's principle and the prediction of the effect of
temperature on solubilities, J. Chem. Educ. 59 (1982) 550.
30] V. E. Bernard, J. A. Baird, L. S. Taylor, Crystallization tendency of active
pharmaceutical ingredients following rapid solvent evaporation—classification and
comparison with crystallization tendency from undercooled melts, J. pharm. sci. 99
(
2010) 3826-3838.
[
[
31] C. S. Towler, T. Li, H. Wikstrꢁm, D. M. Remick, M. V. Sanchez- Felix, L. S.
Taylor, An investigation into the influence of counterion on the properties of some
amorphous organic salts, Mol. Pharm. 5 (2008) 946−955.
32] J.T. Morott, M. Pimparade, J.B. Park, C.P. Worley, S. Majumdar, Z. Lian, E. Pinto,
Y. Bi, T. Durig, M.A. Repka, The effects of screw configuration and polymeric carriers
on hot-melt extruded taste-masked formulations incorporated into orally disintegrating
tablets, J. Pharm. Sci. 104 (2015) 124–134.
[
[
33] U. Gala, H. Pham, H. Chauhan, Pharmaceutical applications of eutectic mixtures, J.
Dev. Drug. 2 (2013) 1-2.
34] T. Friščić, I. Halasz, P.J. Beldon, A.M. Belenguer, F. Adams, S.A.J. Kimber, V.
Honkimäki, R.E. Dinnebier, Real-time and in situ monitoring of mechanochemical
milling reactions, Nat. Chem. 5 (2013) 66–73.
[
35] K. Seefeldt, J. Miller, F. Alvarez-Nunez, N. Rodriguez-Hornedo, Crystallization
pathways and kinetics of carbamazepine–nicotinamide cocrystals from the amorphous
26

state by in situ thermomicroscopy, spectroscopy, and calorimetry studies, J. Pharm.
Sci. 96 (2007) 1147–1158.
[
[
36] J. M. Aceves-Hernandez, I. Nicolás-Vázquez, F.J. Aceves, J. Hinojosa-Torres, M.
Paz, V.M. Castaño, Indomethacin polymorphs: Experimental and conformational
analysis, J. Pharm. Sci. 98 (2009) 2448–2463.
37] J. I. Goldstein, D. E. Newbury, J. R. Michael, N. W. Ritchie, J. H. Scott, D. C. Joy,
Scanning Electron Microscopy and X-Ray Microanalysis, fourth ed. Springer, New
York, (2018) 491-515.
[
[
[
38] S. Ruoshi, D. D. Johnson, Stability maps to predict anomalous ductility in B2
materials, Phy. Rev. B. 87 (2013) 104-107.
39] C.C. Sun, Cocrystallization for successful drug delivery, Expert Opin. Drug
Delivery 10 (2013) 201–213.
40] D. Lin-Vien, N.B. Colthup, W.G. Fateley, J.G. Grasselli, The Handbook of Infrared
and Raman Characteristic Frequencies of Organic Molecules, first ed., Elsevier, New
York, 1991.
[
[
41] Y. Boonsongrit, B.W. Mueller, A. Mitrevej, Characterization of drug–chitosan
1
interaction by H NMR, FTIR and isothermal titration calorimetry, Eur. J. Pharm.
Biopharm. 69 (2008) 388–395.
13
1
42] L.H. Merwin, S.D. Ross, Solid-State C and H NMR Study of Anomalous Acid
Salts of Dibasic Carboxylic Acids, Mag. Res. Chem. 30 (1992) 440–448.
27

[
43] N. Ahuja, O.P. Katare, B. Singh, Studies on dissolution enhancement and
mathematical modeling of drug release of a poorly water-soluble drug using water-
soluble carriers, Eur. J. Pharm. Biopharm. 65 (2007) 26–38.
Figure (1) Illustration of ideal screw configuration used in HME.
Figure (2) pH-Solubility profile of Indo (weak acid) titrated with Tro (weak base).
Figure (3) DSC scans of (A) Indo, (B) Tro, (C) 1:1 Indo-Tro physical mixture, (D) 1:1 Indo-Tro
crystalline salt prepared by SE and (E) 1:1 Indo-Tro crystalline salt prepared by HME.
Figure (4) Hot stage polarized light microscopy of 1:1 Indo-Tro physical mixture.
Figure (5) XRPD scans of (A) Indo, (B) Tro, (C) 1:1 Indo-Tro physical mixture, (D) 1:1 Indo-
Tro crystalline salt prepared by SE and (E) 1:1 Indo-Tro crystalline salt prepared by HME.
Figure (6) Scanning electron microscopy images of (A) Indo, (B) Tro, (C) 1:1 Indo-Tro
crystalline salt prepared by SE, (D) 1:1 Indo-Tro crystalline salt prepared by HME and (E) 1:1
Indo-Tro amorphous product prepared by HME.
Figure (7) FTIR ranges of (A) Indo and (B) Tro.
Figure (8) FTIR spectra of (A) Indo, (B) Tro, (C) 1:1 Indo-Tro crystalline salt prepared by SE,
(
D) 1:1 Indo-Tro crystalline salt prepared by HME.
Figure (9) FTIR spectra of different molar ratios of Indo-Tro prepared by SE (A) 1:1, (B) 2:1,
C) 4:1, (D) 1:2 and (E) 1:4.
(
28

1
Figure (10) H NMR of (A) Indo, (B) Tro, (C) 1:1 Indo-Tro physical mixture, (D) 1:1 Indo-Tro
crystalline salt prepared with SE and (E) 1:1 Indo-Tro crystalline salt prepared by HME.
1
Figure (11) H NMR of (A) Indo, (B) 1:1 Indo-Tro crystalline salt prepared with SE and (C) 1:1
Indo-Tro crystalline salt prepared by HME.
1
3
Figure (12) C NMR of (A) Indo and (B) 1:1 Indo-Tro crystalline salt prepared by HME.
Figure (13) DEPT 135 NMR of (A) Indo (B) Tro and (C) 1:1 Indo-Tro crystalline salt prepared
with HME.
Figure (14) Dissolution profiles of (A) Indo, (B) 1:1 Indo-Tro physical mixture (C) 1:1 Indo-Tro
crystalline salt prepared by HME and (D) 1:1 Indo-Tro crystalline salt prepared with SE in 750
mL of pH 7 media using USP apparatus I at 100 rpm (n = 3).
Figure (15) Dissolution profiles of (A) Indo, (B) 2:1 Indo-Tro prepared with HME, (C) 1:1 Indo-
Tro tacky mass prepared with HME at 145°C and (D) 1:1 Indo-Tro crystalline salt prepared with
HME in 750 mL of pH 7 media using USP apparatus I at 100 rpm (n = 3).
29
