NHD2-15, a novel antagonist of Growth Factor Receptor-Bound Protein-2 (GRB2), inhibits leukemic proliferation

Article abstract of DOI:10.1371/journal.pone.0236839

The majority of chronic myeloid leukemia (CML) cases are caused by a chromosomal translocation linking the breakpoint cluster region (BCR) gene to the Abelson murine leukemia viral oncogene-1 (ABL1), creating the mutant fusion protein BCR-ABL1. Downstream of BCR-ABL1 is growth factor receptor-bound protein-2 (GRB2), an intracellular adapter protein that binds to BCR-ABL1 via its src-homology-2 (SH2) domain. This binding constitutively activates growth pathways, downregulates apoptosis, and leads to an over proliferation of immature and dysfunctional myeloid cells. Utilizing novel synthetic methods, we developed four furo-quinoxaline compounds as GRB2 SH2 domain antagonists with the goal of disrupting this leukemogenic signaling. One of the four antagonists, NHD2-15, showed a significant reduction in proliferation of K562 cells, a human BCR-ABL1+ leukemic cell line. To elucidate the mode of action of these compounds, various biophysical, in vitro, and in vivo assays were performed. Surface plasmon resonance (SPR) assays indicated that NHD2-15 antagonized GRB2, binding with a KD value of 119 ± 2 μM. Cellulose nitrate (CN) assays indicated that the compound selectively bound the SH2 domain of GRB2. Western blot assays suggested the antagonist downregulated proteins involved in leukemic transformation. Finally, NHD2-15 was nontoxic to primary cells and adult zebrafish, indicating that it may be an effective clinical treatment for CML.

Full text of DOI:10.1371/journal.pone.0236839

PLOS ONE
RESEARCH ARTICLE
NHD2-15, a novel antagonist of Growth Factor
Receptor-Bound Protein-2 (GRB2), inhibits
leukemic proliferation
Tina R. Lewis1,2, Jesse Smith1, Kallie Griffin1, Stephanie Aguiar1, Kristen F. Rueb1,
Natalie Holmberg-Douglas2, Ellen M. Sampson2, Skylar Tomasetti1, Sofia Rodriguez1,
David L. Stachura 1☯*, Carolynn C. Arpin2☯
*
ID
1 Department of Biological Sciences, California State University, Chico, Chico, CA, United States of America,
2 Department of Chemistry and Biochemistry, California State University, Chico, Chico, CA, United States of
America
a1111111111
a1111111111
a1111111111
a1111111111
a1111111111
☯ These authors contributed equally to this work.
* dstachura@csuchico.edu (DLS); carpin@csuchico.edu (CCA)
Abstract
The majority of chronic myeloid leukemia (CML) cases are caused by a chromosomal trans-
location linking the breakpoint cluster region (BCR) gene to the Abelson murine leukemia
viral oncogene-1 (ABL1), creating the mutant fusion protein BCR-ABL1. Downstream of
BCR-ABL1 is growth factor receptor-bound protein-2 (GRB2), an intracellular adapter
protein that binds to BCR-ABL1 via its src-homology-2 (SH2) domain. This binding constitu-
tively activates growth pathways, downregulates apoptosis, and leads to an over prolifera-
tion of immature and dysfunctional myeloid cells. Utilizing novel synthetic methods, we
developed four furo-quinoxaline compounds as GRB2 SH2 domain antagonists with the
goal of disrupting this leukemogenic signaling. One of the four antagonists, NHD2-15,
showed a significant reduction in proliferation of K562 cells, a human BCR-ABL1+ leukemic
cell line. To elucidate the mode of action of these compounds, various biophysical, in vitro,
and in vivo assays were performed. Surface plasmon resonance (SPR) assays indicated
that NHD2-15 antagonized GRB2, binding with a KD value of 119 ± 2 μM. Cellulose nitrate
(CN) assays indicated that the compound selectively bound the SH2 domain of GRB2.
Western blot assays suggested the antagonist downregulated proteins involved in leukemic
transformation. Finally, NHD2-15 was nontoxic to primary cells and adult zebrafish, indicat-
ing that it may be an effective clinical treatment for CML.
OPEN ACCESS
Citation: Lewis TR, Smith J, Griffin K, Aguiar S,
Rueb KF, Holmberg-Douglas N, et al. (2020)
NHD2-15, a novel antagonist of Growth Factor
Receptor-Bound Protein-2 (GRB2), inhibits
leukemic proliferation. PLoS ONE 15(8): e0236839.
https://doi.org/10.1371/journal.pone.0236839
Editor: Laszlo Buday, Hungarian Academy of
Sciences, HUNGARY
Received: May 6, 2020
Accepted: July 14, 2020
Published: August 11, 2020
Peer Review History: PLOS recognizes the
benefits of transparency in the peer review
process; therefore, we enable the publication of
all of the content of peer review and author
responses alongside final, published articles. The
editorial history of this article is available here:
https://doi.org/10.1371/journal.pone.0236839
Copyright: © 2020 Lewis et al. This is an open
access article distributed under the terms of the
Creative Commons Attribution License, which
permits unrestricted use, distribution, and
reproduction in any medium, provided the original
author and source are credited.
Introduction
Myeloid cells are leukocytes whose major role is to destroy pathogens invading the body. All
mature blood cells, including myeloid cells, originate from a multipotent hematopoietic stem
cell (HSC) that must generate blood cells for an organism’s lifespan [1–3]. HSCs that generate
myeloid cells first differentiate into a common myeloid progenitor (CMP) [4, 5], which is
capable of generating other hematopoietic progenitor cell (HPC) types called megakaryocyte-
Data Availability Statement: All relevant data are
within the manuscript and its Supporting
Information files.
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
1 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
Funding: This research was supported by the CSU
Program for Education and Research in
erythroid progenitors (MEPs) and granulocyte-monocyte progenitors (GMPs) [4, 5]. MEPs
generate erythrocytes and megakaryocytes, while GMPs further differentiate into the full rep-
ertoire of the myeloid lineage. Once myeloid cells are differentiated, they migrate out of the
bone marrow and travel through the bloodstream to replace dying cells throughout the body.
While the exact lifespan of each myeloid cell type is not known, neutrophils make up 50–70%
of all of the circulating leukocytes in humans and have a lifespan of about 5 days [6, 7]. This
means that the 1011 to 1012 neutrophils in an adult human need to be replaced on a constant
basis [6]. The regulation of this process is intricate and still not completely understood and
when perturbations in the production and differentiation of myeloid cells arise there can be
severe clinical complications. Underproduction of myeloid cells can lead to neutropenia,
allowing pathogens to invade and damage the host. On the other hand, failure to properly dif-
ferentiate HPCs can lead to leukemia, where the body generates immature, nonfunctional
myeloid precursors that deplete the body’s resources and overwhelm the hematopoietic
system.
Biotechnology (CSUPERB) (New Investigator
Awards to D.L.S. and C.C.A.), CSUPERB
President’s Commission Scholar Awards (to N.H.D.
and E.M.S.), a California State University Chico
Internal Research Grant (to D.L.S. and C.C.A.), and
Student Research and Creativity Awards from
California State University, Chico (to T.R.L. and J.
S.). The funders had no role in study design, data
collection and analysis, decision to publish, or
preparation of the manuscript.
Competing interests: D.L.S. is a scientific
consultant and has received compensation from
Finless Foods, Inc. and Xytogen Biotech, Inc. This
does not alter our adherence to PLOS ONE policies
on sharing data and materials. All other authors
declare no competing interests.
Chronic myeloid leukemia (CML) is a malignant blood disease affecting the normal growth
and development of myeloid cells. The vast majority of CML cases are caused by a chromo-
somal translocation that links the breakpoint cluster region (BCR) gene on chromosome 22 to
the Abelson murine leukemia viral oncogene-1 (ABL1) gene on chromosome 9 [8–12]. Nor-
mally, the ABL1 protein is a ubiquitously expressed non-receptor tyrosine kinase that when
activated triggers cell proliferation, differentiation, or apoptosis [13]. The function of BCR is
less clear but two roles are known. First, BCR acts as a GTPase-activating protein (GAP) by
activating Ras-related C3 botulinum toxin substrate 1 (RAC1), a GTPase in the RAS superfam-
ily involved in cell proliferation regulation [14]. BCR also acts as a kinase that activates a wide
range of signaling pathways [15]. These pathways increase proliferation and inhibit apoptosis
and autophagy [16, 17]. In essence, the inappropriate fusion of BCR to ABL1 creates a consti-
tutively active oncogene that activates numerous growth pathways, downregulates apoptosis,
and causes leukemic transformation.
Growth factor receptor-bound protein-2 (GRB2) is an intracellular adapter protein respon-
sible for linking receptor tyrosine kinases (RTKs) to downstream signaling proteins involved
in cellular growth and differentiation [18]. Generally, once an extracellular ligand binds to an
RTK, it will dimerize and autophosphorylate [19]. Once phosphorylated, the RTK dimer will
bind to an adapter protein such as GRB2 [20] which can then bind and activate catalytic pro-
teins. As an adapter protein, GRB2 has multiple binding domains. It is one of many proteins
to contain both a src-homology-2 (SH2) binding domain as well as a src-homology-3 (SH3)
binding domain [21]. The SH2 binding domain is highly conserved, composed of an approxi-
mately 100 amino acid sequence that binds phosphorylated tyrosines. The SH3 binding
domain binds proline-rich sequences and is found on proteins with and without catalytic capa-
bilities. It is approximately 50–75 amino acids in length and is also highly conserved [22].
GRB2 is a small protein consisting of one SH2 binding domain and two SH3 binding domains
[23]; GRB2’s SH2 domain binds to BCR-ABL1 via a phosphorylated tyrosine residue (Y177)
on BCR in the same manner that it binds an activated, dimerized RTK [24]. This BCR-ABL1
binding to GRB2 initiates leukemic transformation [25]. After binding to BCR-ABL1, GRB2’s
SH3 domain can bind to GRB2-associated-binding protein 2 (GAB2), as well as Son of Seven-
less (SOS) and many others [26]. This secondary binding causes the newly formed BCR-ABL1/
GRB2 complex to associate with membrane receptors, binding to their intracellular domains
to activate cellular growth, survival, and differentiation pathways while inhibiting apoptosis
and autophagy [27].
While targeted small molecule therapies exist for CML it is still deadly, affecting mainly
patients over 64 years of age. Imatinib, the first drug developed to fight CML, is a tyrosine
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
2 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
kinase inhibitor (TKI) specific to the BCR-ABL1 protein [28–30]. While many other second-
and third-generation TKIs now exist to treat CML, many patients still develop resistance to
these treatments and succumb to the disease [31, 32]. To block downstream signaling of
BCR-ABL1 in a different way, we used a novel synthetic reaction to generate small molecules
to block BCR-ABL1’s binding to the GRB2 SH2 domain to inactivate leukemic signaling. To
do this, we generated furo-quinoxaline based compounds, which have not been well studied
mostly due to a lack of efficient synthetic methods. However, we were able to generate four
molecules in sufficient yield to test their effect on preventing leukemic transformation. Out of
the four antagonists we created and examined, one compound, NHD2-15 bound the GRB2
SH2 domains with a micromolar KD value and inhibited the proliferation and metabolism of
human leukemia cells. Importantly, NHD2-15 was non-toxic when administered to adult zeb-
rafish at low concentrations, indicating that it may be a specific and effective treatment for this
disease.
Materials and methods
General synthetic methods
All air- and moisture-sensitive reactions were conducted under a dry nitrogen atmosphere in
oven-dried glassware, using standard syringe/cannula transfer techniques unless otherwise
reported. Anhydrous dioxane (Sigma Aldrich) was used directly from a Sure/Seal bottle.
Unless otherwise stated, all commercial reagents were purchased from Sigma Aldrich and
used without further purification. 1H NMR spectra were recorded on a Bruker 400 MHz spec-
trometer in either CDCl3 or DMSO-d6. Chemical shifts (δ) are reported in parts per million
(ppm) after calibration to the internal reference solvent peak (CDCl3: 7.26 ppm and DMSO-
d6: 2.50 ppm). Coupling constants (J) are reported in Hz. Exact mass was calculated for M+Na
using electrospray ionization unless reported otherwise. Using a Hewlett Packard 8453
UV-Vis spectrophotometer, solubility was obtained either by measuring the increase in light
scatter upon increasing precipitation via absorbance at 700 nm, or by using absorbance cali-
bration curves at the noted wavelength and then extrapolating concentration from saturated
sample absorbance [33].
Synthesis of 2,3-dihydroxyquinoxaline (1)
Diethyl oxalate (37.7 mL, 277 mmol) was added to neat o-phenylenediamine (10.0 g, 92 mmol)
and allowed to reflux overnight. After cooling to room temperature, the product was isolated
via vacuum filtration and rinsed with ethanol to yield 1 as a grey powder (14.10 g, 94%) that
was used without further purification. Spectra matched those previously reported [34].
Synthesis of 2,3-dichloroquinoxaline (2)
DMF (2.40 mL, 31 mmol) was added to a solution of 1 (10.0 g, 62 mmol) in phosphorus oxy-
chloride (3.35 mL, 370 mmol) and allowed to come to reflux. After refluxing for 1.5 h, the reac-
tion was cooled to room temperature and quenched by the slow addition of ice water. Crude
product was isolated via vacuum filtration and rinsed with water. Recrystallization from hex-
anes gave 2 as white crystals (9.64 g, 79%). Spectra matched those previously reported [35].
General procedure for furo-quinoxaline synthesis
The β-diketone (1.0 equiv) was added to a round bottom flask, followed directly by 60%
sodium hydride in mineral oil (2.0 equiv), upon which some fuming occurred. Dioxane (0.02
M solution) was then added, and the mixture was stirred at room temperature for about 5
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
3 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
minutes, during which the solution bubbled. To this enolate solution, 2 (2.0 equiv) was then
added, followed by FeSO4 (0.1 equiv) that had been previously dried by leaving in a 150˚C
oven and open to air overnight. The reaction was then left open to air, heated to reflux, and
subjected to a 150 V incandescent lamp. When TLC showed full consumption of starting
material (usually about 6 h), the dark maroon solution was cooled to room temperature and
then quenched by the addition of saturated NH4Cl. The solution was transferred to a separa-
tory funnel, rinsed with EtOAc, and washed with NH4Cl (3×), then back-extracted aqueous
with EtOAc (3×). The combined organics were then washed with brine, dried over Na2SO4,
and concentrated en vacuo. Flash column purification over silica yielded the desired solid
product.
Synthesis of NHD2-15
Acetylacetone reacted with sodium hydride, 2, and dried FeSO4 in dioxane on a 0.26 mmol
scale following the general procedure. Flash column purification over silica with a gradient of
15:1 Hex:EtOAc yielded NHD2-15 as a yellow solid (0.015 g, 26%). 1H NMR (400 MHz,
CDCl3) δ 8.32–8.25 (m, 1H), 8.19–8.12 (m, 1H), 7.84–7.79 (m, 2H), 3.02 (s, 3H), 3.00 (s, 3H).
13C NMR (100 MHz, CDCl3): δ 172.06, 167.75, 152.78, 142.07, 141.24, 138.39, 132.48, 131.15,
130.87, 129.29, 128.81, 128.76, 128.70, 115.89, 31.48, 15.97. HRMS (ESI) calcd: 249.0640 (for
C13H10N2O2 + Na), found: 249.0638. Solubility was obtained by use of an absorbance calibra-
tion curve at 367.5 nm: 515 6 μM in water and 1.0% DMSO.
Synthesis of NHD2-92
Methyl acetoacetate reacted with sodium hydride, 2, and dried FeSO4 in dioxane on a 0.17
mmol scale following the general procedure. Flash column purification over silica with a gradi-
ent of 4:1 Hex:EtOAc yielded NHD2-92 as a yellow solid (0.042 g, 24%). 1H NMR (400 MHz,
CDCl3) δ 8.32–8.24 (m, 1H), 8.10–8.01 (m, 1H), 7.77–7.67 (m, 2H), 4.00 (s, 3H), 2.92 (s, 3H).
13C NMR (100 MHz, CDCl3): δ 172.74, 162.86, 152.78, 142.38, 140.67, 138.49, 129.60, 129.46,
128.72, 128.67, 109.05, 52.32, 15.77. HRMS (ESI) calcd: 265.0589 (for C13H10N2O3 + Na),
found: 265.0592. Solubility was obtained by measuring light scatter at 700 nm upon increasing
precipitation: >1588 μM in water and 2.0% DMSO.
Synthesis of NHD2-107
Ethyl benzoylacetate reacted with sodium hydride, 2, and dried FeSO4 in dioxane on a 0.23
mmol scale following the general procedure. Flash column purification over silica with a gradi-
ent of 7:1 Hex:EtOAc yielded NHD2-107 as a pale yellow solid (0.0.027 g, 37%). 1H NMR (400
MHz, CDCl3) δ 8.41–8.34 (m, 1H), 8.22–8.09 (m, 3H), 7.83 (dt, J = 6.5, 3.5 Hz, 2H), 7.67–7.46
(m, 4H), 4.57 (q, J = 7.1 Hz, 2H), 1.47 (t, J = 7.1 Hz, 3H). 13C NMR (100 MHz, CDCl3): δ
165.93, 162.37, 152.85, 142.76, 141.87, 138.99, 132.18, 129.71, 129.68, 129.63, 129.37, 128.70,
128.61, 128.56, 128.15, 108.94, 61.71, 14.18. HRMS (ESI) calcd: 341.0902 (for C19H14N2O3
+ Na), found: 341.0911. Solubility was obtained by use of an absorbance calibration curve at
247 nm: 130 20 μM in water and 2.0% DMSO.
Synthesis of NHD2-114
Ethyl acetoacetate reacted with sodium hydride, 2, and dried FeSO4 in dioxane on a 0.50
mmol scale following the general procedure. Flash column purification over silica with a gradi-
ent of 5:1 Hex:EtOAc yielded NHD2-114 as a pale yellow solid (0.0.027 g, 21%). 1H NMR (400
MHz, CDCl3) δ 8.31–8.24 (m, 1H), 8.08–8.01 (m, 1H), 7.75–7.68 (m, 2H), 4.46 (q, J = 7.1 Hz,
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
4 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
2H), 2.91 (s, 3H), 1.43 (t, J = 7.1 Hz, 3H). 13C NMR (100 MHz, CDCl3): δ 172.06, 162.25,
152.78, 142.44, 141.00, 138.45, 129.71, 129.38, 129.38, 128.62, 109.34, 61.27, 15.86, 14.42.
HRMS (ESI) calcd: 279.0746 (for C14H12N2O3 + Na), found: 279.0747. Solubility was obtained
by use of an absorbance calibration curve at 367.5 nm: 1200 100 μM in water and 5.7%
DMSO.
Surface Plasmon Resonance (SPR) spectroscopy
SPR experiments were performed using a BIAcore™ 3000 instrument (GE Healthcare). A CM5
chip surface was activated with 1:1 N-hydroxysulfosuccinimide(NHS)/1-(3-dimethylamino-
propyl)-3-ethylcarbodiimide hydrochloride (EDC) immediately followed by ethanolamine
blocking. GRB2 was immobilized on a CM5 sensor chip following the manufacturer’s instruc-
tions until an immobilization level of ~12 kRU was obtained at a flow rate of 30 μL/min. Each
antagonist was then diluted with HBS-EP buffer (0.01 M HEPES pH 7.4, 0.15 M NaCl, 3 mM
EDTA, 0.005% v/v Surfactant P20) to final concentrations of 125, 62.5, 31.25, 15.63, 7.81, 3.91,
and 0 μM in 0.5% DMSO. Antagonist was then injected into the GRB2-immobilized CM5 sen-
sor chips and the response read. Data analysis was performed using Scrubber 2.0 software. Full
sensorgrams and dose-response curves are provided in the S4–S11 Figs.
Enzyme Linked Immunosorbent Assay (ELISA)
NHD2-15 was resuspended in DMSO at 25 mM. 96-well plates coated with streptavidin
(Thermo Fisher) were incubated for 1 h at 37˚C with 100 μL of a 100 nM solution of the GRB2
SH2 domain-binding peptide (biotin-Aha-PSpYVNVQN) [36] in TBS buffer (100 mM Tris,
50 mM NaCl, pH 7.5). Then, 800 μL per well of SuperBlock™ Blocking Buffer (Thermo Scien-
tific) was added to each well and incubated for 4 h. NHD2-15 at desired concentrations (60,
30, 15, and 0 μM) was diluted in SuperBlock™ and GST-GRB2 (20 nM, 100 μL per well) and
were both added to the desired wells and incubated for 1 h at 37˚C. The plates were then rinsed
four times using SuperBlock™ and 0.05% Tween 20. Next, 100 μL per well of anti-GST antibody
with horseradish peroxidase (HRP) (Invitrogen; dilution of 1:4000 in SuperBlock™ with 0.05%
Tween 20) was added, and the plate was then incubated for 1 h at 37˚C. The plate was then
rinsed four times using SuperBlock™ with 0.05% Tween 20 before being incubated in the pres-
ence of 200 μL per well of TMB developing solution at room temperature for approximately 30
s. The reaction was stopped by adding 100 μL of 10% (V/V) sulfuric acid per well. The absor-
bance reading was taken at 450 nm. An equivalent well with no peptide was utilized to deter-
mine the background of this reaction, which was subtracted from the absorbance reading.
Cellulose Nitrate (CN) filtration assay
NHD2-15 was resuspended in DMSO at 25 mM. CN filtration assays were performed with
4 μM GRB2 incubated with either 8 μM SH2 domain inhibitor (KD = 400 nM) [37], 16 μM
SH3 inhibitor (KD = 4 μM) [38], both inhibitors, or neither inhibitor (all from Santa Cruz Bio-
technology) for 0.5 h in TBS with 0.5% DMSO. Afterwards, antagonist was added at a final
concentration of 25 μM and allowed to incubate for an additional 0.5 h at room temperature.
The solution was then passed through a 0.2 μm CN syringe filter (Thermo Fisher) and was
analyzed via an HP 6890 series gas chromatograph (GC) flame ionization detector (FID) with
an omegawax 250 column (Sigma Aldrich). Standard calibration curves were obtained via
GC-FID analysis of varying drug concentrations of 100, 75, 50, 25, and 0 μM. Response versus
concentration was plotted and linear regression analysis utilized to determine the final concen-
tration of antagonist in the filtrate solution.
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
5 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
Western blotting
Protein isolated from whole cell lysate was separated on 4–20% acrylamide gel (Mini-Protean
GTX, BioRad). Protein was transferred to PVDF membranes and blocked with 10% milk for 1
h. Gels were stained post-transfer using Coomassie stain to visualize loaded protein levels.
Blots were probed with anti-GRB2 antibodies (dilution of 1:5,000; Abcam, Ab32037), anti-
phosho-CRKL antibodies (dilution of 1:1000; Cell Signaling Technology Inc., 3181S), and
anti-phospho-c-ABL1 antibodies (dilution of 1:1000; Cell Signaling Technology Inc., 2868S).
Anti-GAPDH antibodies (dilution of 1:15,000; Abcam, Ab181602) were used as a loading con-
trol. Goat anti-rabbit IgG coupled to HRP secondary antibodies were used at 1:10,000 dilution
(Abcam). Blots were stained with Ponceau stain to confirm loading amounts. ImageJ was used
to quantitate pixel density.
Cell culture
K562 cells were obtained from the American Type Tissue Collection (ATCC, catalog number
CCL-243) and maintained in RPMI 1640 media (Corning) with 10% fetal bovine serum (FBS),
1% penicillin/streptomycin, and 1% L-glutamine. Normal primary human peripheral blood
mononuclear cells (PBMCs) were obtained from ATCC (catalog number PCS-800-011) and
maintained in RPMI 1640 media (Corning) with 10% fetal bovine serum (FBS), 1% penicillin/
streptomycin, and 1% L-glutamine. HEK293FT cells were obtained from ATCC (catalog num-
ber CRL-3216) and maintained in DMEM (Corning) with 10% FBS, 1% penicillin/streptomy-
cin, and 1% L-glutamine. All mammalian cell lines were maintained at 37˚C with 5% CO2.
Primary Zebrafish Kidney Stromal (ZKS) cells were maintained and cultured as previously
described [39]. All cell lines were monitored visually to confirm their morphology and tested
for mycoplasma contamination via PCR analysis before use.
Cell proliferation
K562 cells were plated at 1 x 105 cells/well in a 12-well plate and incubated for 72 h with
NHD2-15, DMSO vehicle control, or imatinib. PBMCs were plated at 1 x 105 cells/well in a
12-well plate and incubated for 48 h with NHD2-15 or imatinib. ZKS were plated at 1 x 105
cells/well in a 12-well plate and incubated for 72 h with NHD2-15 or imatinib. Cells were enu-
merated with a Cell Counter and CytoSMART Cloud Application (Corning Inc., Corning
NY).

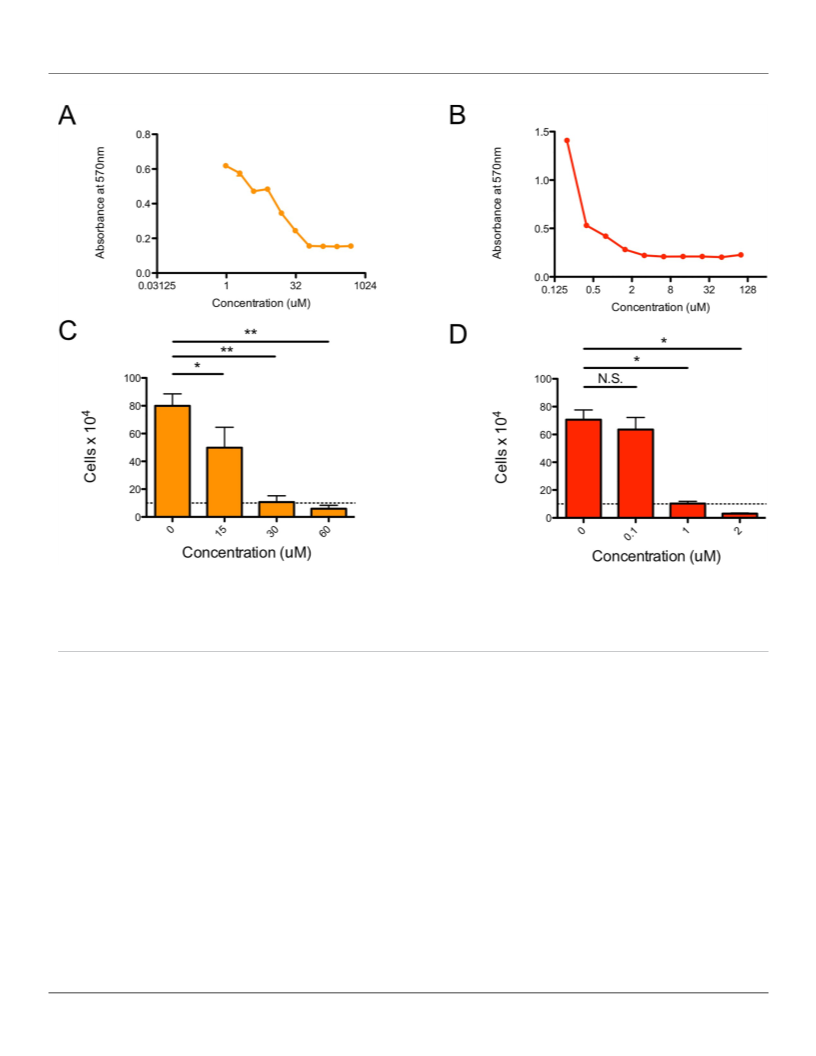

CellTiter 96 metabolic assay
K562 cells were resuspended at 5 x 105 cells/mL; 100 μL of cell suspension was placed in indi-
vidual wells of a 96-well plate with NHD2-15, DMSO vehicle control, or imatinib. Cells were
cultured for 48 h at 37˚C in 5% CO2, 15 μL CellTiter dye was added, the reaction was incu-
bated for 2 h and then 100 μL stop solution was added. Plates were incubated for an additional
24 h at 37˚C and absorbance at 570 nm was assessed.
Zebrafish husbandry and care
Zebrafish were mated, staged, and raised as described [40] and maintained in accordance with
California State University (CSU), Chico Institutional Animal Care and Use Committee
(IACUC) guidelines. The CSU Chico IACUC approved these studies before they were per-
formed. Personnel were trained in animal care by taking the online Citi Program training
course entitled “Working With Zebrafish (Danio rerio) in Research Settings” (https://www.
citiprogram.org). AB wild type (wt) fish were utilized for this study. Zebrafish were housed in
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
6 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
a 700L recirculating zebrafish aquarium system (Aquatic Enterprises, Seattle, WA) regulated
by a Profilux 3 Outdoor module that regulated salinity, pH, and temperature (GHL Interna-
tional, Kaiserslautern, Germany) 24-hours-a day. The facility was illuminated on a 14-hour
light/ 10-hour dark cycle. Zebrafish were fed once a day with hatched brine shrimp (Brine
Shrimp Direct, Ogden, UT) and once a day with Gemma micro 300 (Skretting, Westbrook,
ME).
Zebrafish toxicity
Adult zebrafish (6-months-old), raised at our animal facility at CSU Chico, were individually
placed in a 500 mL breeding tank with 15 μM of NHD2-15 (n = 12, 6 males and 6 females),
DMSO vehicle control (n = 8, 4 males and 4 females), or 2 μM imatinib (n = 8, 4 males and 4
females) and incubated for 3 days. Another experiment utilized 30 μM of NHD2-15 (n = 8, 4
males and 4 females), and another experiment was performed whereby 30 μM of NHD2-15
(n = 4, 2 males and 2 females) was added to the water for two hours before placing the fish into
fresh system water. Every 24 h fish were fed. Every 2 hours fish were analyzed for signs of dis-
tress, including erratic swimming, ruffled gills and fins, lack of movement, and labored breath-
ing. If fish showed any signs of distress they would have been immediately euthanized by an
overdose of tricane methanesulfonate (MS-222), but that never occurred.
Statistical methods
Statistical analyses were performed in Microsoft Excel. To discern statistical difference, data
were analyzed using an unpaired two-tailed Student’s T test assuming unequal variance. All
raw data from these studies are supplied in Supporting Information.
Results
Library synthesis
As shown in Fig 1A, synthetic preparation of the furo-quinoxaline library commenced with
the acyl substitution of diethyl malonate with o-phenylenediamine to give 2,3-dihydroxyqui-
noxaline (Fig 1A, structure 1). Treatment of 1 with phosphorus oxychloride and catalytic
DMF yielded the dichloro-substituted quinoxaline (Fig 1A, structure 2). Finally, deprotona-
tion of the β-diketone with sodium hydride followed by addition of 2 and catalytic iron (II)
sulfate yielded the desired final compounds. A proposed mechanism for this novel reaction is
a tandem SRN1 C-arylation followed by O-arylation via SNAr as described in Fig 1B. These
reactions generated four compounds that we refer to as NHD2-15, NHD2-92, NHD2-107, and
NHD2-114.
GRB2 binding as assessed by SPR
To quantitatively assess the binding affinity of our antagonists to GRB2, SPR spectroscopy was
used to measure the equilibrium dissociation constant, KD, of each antagonist for GRB2. All
compounds had KD values in the micromolar to millimolar range (S1 Table). NHD2-15 had
the highest affinity for GRB2 with a KD of 119 2 μM. NHD2-114 also had micromolar affinity
with a KD of 440 7 μM. NHD2-92 and NHD2-107 displayed weaker affinity in the millimolar
range (1000 20 μM and 3400 100 μM, respectively). While SPR analysis indicated that all
library molecules bound to GRB2, the experimental conditions were sub-par for NHD2-114,
NHD2-92, and NHD2-107. Therefore, we performed all subsequent assays with NHD2-15,
which had the most potent binding (see all analysis of SPR in S4–S11 Figs).
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
7 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
Fig 1. Synthetic preparation of furo-quinoxalines NHD2-15, NHD2-92, NHD2-107, and NHD2-114. (A) Library preparation consisted of only three synthetic steps,
the last of which is a novel reaction. (B) Proposed mechanism of the furo-quinoxaline formation: a new domino reaction beginning with an SRN1 C-arylation followed
by O-arylation via SNAr.
https://doi.org/10.1371/journal.pone.0236839.g001
GRB2 SH2 domain binding

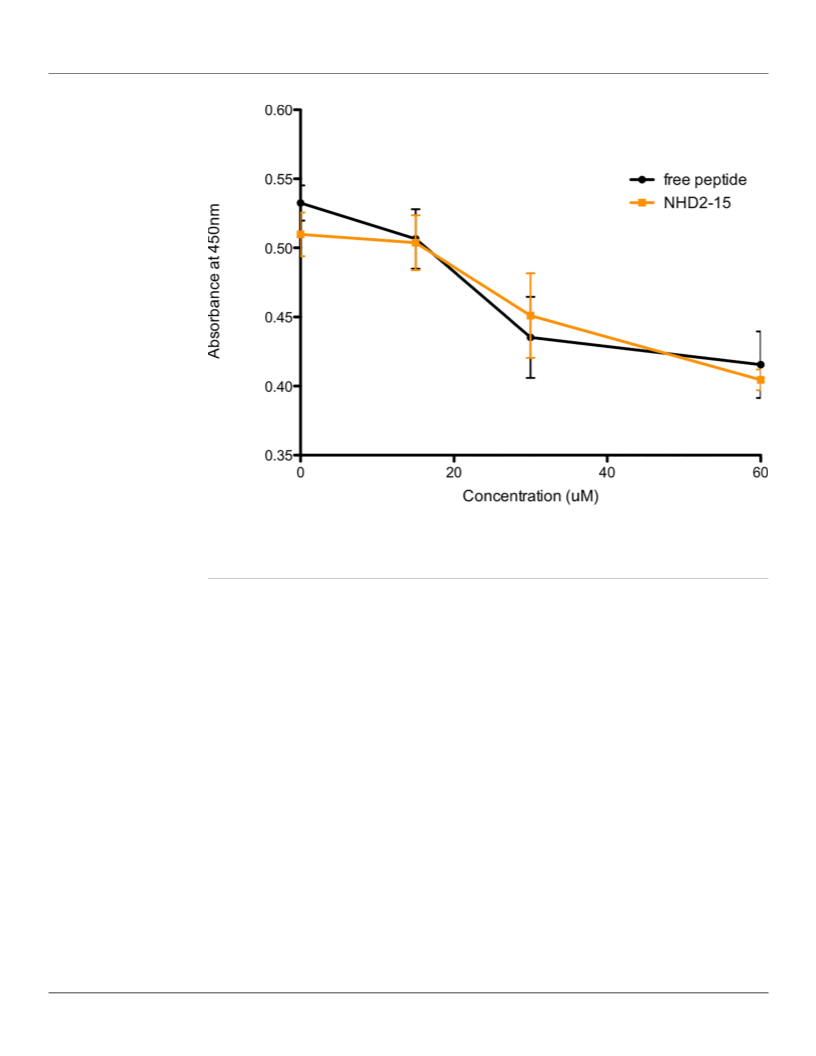

To confirm that NHD2-15 bound to the SH2 domain of GRB2, ELISA experiments were per-
formed, evaluating how well NHD2-15 competitively displaced a native GRB2 SH2 domain-
binding peptide [36]. NHD2-15 bound the GRB2 SH2 domain similarly to increasing amounts
of native peptide (Fig 2). These ELISA experiments indicated that NHD2-15 bound to the
GRB2 SH2 domain as well as the domain’s native binding peptide at all concentrations
examined.
GRB2 domain binding specificity
To evaluate the specificity of NHD2-15 to bind the GRB2 SH2 domain as opposed to the pro-
tein’s SH3 domains, CN filtration experiments were utilized. After incubation with a specific
GRB2 domain inhibitor of known potent binding [36], NHD2-15 was incubated with GRB2.
The mixture was then passed through a CN filter which binds peptides but allows most small
amphipathic small molecules to pass through. The filtrate was then analyzed by GC-FID, com-
pared to a calibration curve (Fig 3A), and the concentration of drug in the filtrate was deter-
mined. With the GRB2 SH2 domain occupied, the concentration of NHD2-15 in the filtrate
increased when compared to those detected in the absence of the domain inhibitor (Fig 3B).
When the protein’s SH3 domains were blocked but its SH2 domain was not, the concentration
of NHD2-15 in the filtrate was comparable to those detected without an inhibitor. Combined,
these results indicate that NHD2-15 bound the GRB2 SH2 domain with specificity over the
protein’s SH3 domains.
GRB2 is highly expressed in leukemic K562 cells
To develop a cellular model to study the effect of NHD2-15 on cell growth, we investigated the
human BCR-ABL1+ K562 leukemic cell line. To determine if K562 cells had high expression of
GRB2, we compared the levels of GRB2 in K562 cells to that of non-malignant cells. Western
blotting of total cell lysate from K562 cells and human embryonic kidney cells (HEK293FT)
showed elevated expression of GRB2 in K562 cells relative to HEK293FT cells (Fig 4). Data
obtained from the Cancer Cell Line Encyclopedia (CCLE, https://portals.broadinstitute.org/
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
8 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
Fig 2. NHD2-15 binds similarly to GRB2’s natural ligand. ELISA results with increasing concentrations of GRB2 antagonist and
free peptide were performed. Peptide with a biotin tag was added to streptavidin-coated wells, and GST-tagged GRB2 and NHD2-15
were incubated together, allowing GRB2 to bind either the peptide or the antagonist. Wells were rinsed, and an anti-GST antibody
coupled with HRP was introduced. TMB was added and the reaction was stopped with sulfuric acid and analyzed via UV-Vis at 450
nm. Data points are the mean, error bars denote SD. n = 4 for all points.
https://doi.org/10.1371/journal.pone.0236839.g002
ccle) also indicated that GRB2 mRNA expression was elevated in a variety of human cancer
cell lines, especially commonly utilized leukemic cell lines like Kasumi-1, HL-60, THP-1,
K562, and RS4;11. These results indicated that elevated GRB2 mRNA expression levels are a
feature of CML as well as other human cancers, and likely play a role in their proliferative
capacity.
NHD2-15 inhibits growth of K562 cells
To determine if NHD2-15 would inhibit the growth of K562 cells, we first performed a CellTi-
ter 96 assay, which measures the metabolic activity of cells. Exposing K562 cells to increasing
amounts of NHD2-15 decreased their metabolic activity (Fig 5A), especially in the 15–120 μM
range. Imatinib was run as a positive control, and reduced K562 cell metabolism at 1–2 μM, as
previously reported [41] (Fig 5B). Overall, NHD2-15 had an inhibitory effect on the metabolic
activity of K562 cells.
To validate our CellTiter 96 results, we also performed a cell proliferation assay. K562 cells
were exposed to 15–60 μM of NHD2-15 and enumerated with a cell counter after 72 h of expo-
sure (Fig 5C). As the concentration of antagonists increased, cell growth was reduced (Fig 5C),
correlating with the data in Fig 5A. Imatinib effectively killed the K562 cells at a concentration
of 1–2 μM (Fig 5D). Overall, NHD2-15 was effective at reducing the growth of K562 cells in
culture.
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
9 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
Fig 3. NHD2-15 binds to GRB2’s SH2 domain. (A) NHD2-15 was diluted to 100, 75, 50, and 25 μM and analyzed with GC-FID. The response vs. concentration was
plotted and a linear regression line constructed. The equation of the line was used to calculate the concentrations of NHD2-15 in (B). (B) 4 μM of GRB2 was incubated
in either 8 μM SH2 domain inhibitor, 16 μM SH3 inhibitor, both inhibitors, or neither. After incubation, NHD2-15 was added and incubated, creating a final
concentration of 25 μM before passing through a 0.2 μm cellulose nitrate syringe filter. The filtrate was then analyzed via GC-FID. � p = 0.029, �� p = 0.001; ���
p = 0.0007; n = 4; error bars = SD.
https://doi.org/10.1371/journal.pone.0236839.g003
NHD2-15 does not inhibit growth of PBMCs
To determine if NHD2-15 specifically inhibited leukemic blood cells versus normal blood
cells, we exposed untransformed, primary PBMCs to NHD2-15 and imatinib. PBMCs are
post-mitotic, and do not proliferate in culture without exogenous cytokine addition and die
within a week of culture under normal in vitro conditions. PBMCs were exposed to 15–60 μM
of NHD2-15 and enumerated with a cell counter after 48 h of exposure (S1 Fig). As the con-
centration of NHD2-15 increased, cell growth remained constant (S1A Fig), indicating that it
did not inhibit the growth of healthy human blood cells. As a control, PBMCs were also
exposed to imatinib, which also had no negative effect on cell growth (S1B Fig). Together,
these data indicate that NHD2-15 is a selective growth inhibitor of leukemic cells and not
untransformed human blood cells.
NHD2-15 does not inhibit growth of ZKS cells
To further illustrate that NHD2-15 does not affect cell proliferation in untransformed, healthy
cells, proliferation assays were performed on ZKS cells, primary kidney stromal cells derived
from adult zebrafish. ZKS cells were exposed to 15–60 μM of NHD2-15 and imatinib and enu-
merated with a cell counter after 72 h of exposure (S1C Fig). In the presence of NHD2-15 cell
growth still increased, and remained similar when compared to ZKS cells treated with imatinib
(S1C Fig), indicating that NHD2-15 did not inhibit the proliferation of these healthy primary
cells.
NHD2-15 antagonist toxicity
To determine if NHD2-15 was toxic to cells and living organisms, we performed an adult zeb-
rafish toxicity assay. Zebrafish are useful for these studies, as our compounds are water soluble.
Additionally, zebrafish are an inexpensive, efficient, whole-organism model for drug screening
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
10 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
Fig 4. GRB2 is overexpressed in K562 cells. (A) Representative western blot of 10 μg total cell lysate isolated from
HEK293FT and K562 cells probed for GRB2 (top) and GAPDH (bottom). (B) Densitometry of HEK293FT (white bars) and
K562 (black bars) western blots probed for GAPDH (left) and GRB2 (right). � p = 0.04, n = 3; error bars = SD; N.S., not
significant (p = 0.89).
https://doi.org/10.1371/journal.pone.0236839.g004
and validation [42–45]. Fish were placed into a tank and 15 μM of antagonists were added; 12
fish were analyzed every 4 h for three days to assess their health. Exposure to DMSO (8 fish)
and imatinib (8 fish) had no effect on fish health or survival (S2A Fig). NHD2-15 also had no
negative effects and was non-toxic at 15 μM; all fish were healthy and survived the experiment
(S2A Fig). However, increasing the dose to 30 μM killed all fish (8 fish) over the course of 6
hours (S2B Fig). Due to the fact that all fish survived 30 μM for at least 2 hours, we performed
another experiment whereby four fish were exposed to 30 μM for 2 hours, and then placed
into fresh water. All fish survived this treatment (S2C Fig). These findings indicate that while
NHD2-15 prevents proliferation of leukemic cells, it is also non-toxic to zebrafish over 72 h of
exposure at 15 μM. It also indicates that increasing the concentration of NHD2-15 is tolerable,
but only for a short amount of time.
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
11 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
Fig 5. Treatment with NHD2-15 reduces metabolism and proliferation of K562 cells in a dose-dependent manner. (A) 1×105 K652 cells were incubated with
increasing amount of NHD2-15. Cells were also cultured with imatinib as a positive control (B). After 72 h, a CellTiter 96 Assay was performed and absorbance at 570
nm was assessed. Filled circles represent the mean, and error bars represent SD; n = 3 for all trials. (C) 1×105 K652 cells were incubated with 0, 15, 30, or 60 μM of
NHD2-15. Bars represent the mean, and error bars represent SD; � p < 0.017, �� p < 0.001; n = 4. Cells were also cultured with 0, 0.1, 1, or 2 μM of imatinib as a positive
control (D). After 72 hours, cells were enumerated by trypan blue exclusion. Bars represent the mean, and error bars represent SD; N.S. denotes no significance
(p = 0.32), � p < 0.003; n = 3. Dashed line denotes starting amount of cells.
https://doi.org/10.1371/journal.pone.0236839.g005
NHD2-15 prevents activation of BCR-ABL1
To determine if NHD2-15 prevented the activation of cell proliferation pathways upregulated
in leukemogenesis, K562 cells were treated with NHD2-15 for 72 h. A western blot for phos-
pho-BCR-ABL1 and phospho-CRKL, a downstream adapter protein that functions as a prog-
nostic indicator in patients with CML [46], was performed. Increasing amounts of NHD2-15
caused decreased activation of BCR-ABL1 and CRKL in a similar manner to 1 μM imatinib
(Fig 6). GAPDH (Fig 6) was used as a loading control. These data indicated that activated
(phospho) BCR-ABL1 and CRKL were reduced by NHD2-15 addition, explaining the reduc-
tion in leukemic proliferation.
Combinatorial addition of NHD2-15 and imatinib kills K562 cells more
efficiently
Finally, we hypothesized that NHD2-15 and imatinib added combinatorially would signifi-
cantly reduce K562 cell proliferation. To test this, we added NHD2-15 and imatinib together
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
12 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
Fig 6. NHD2-15 reduces phosphorylation of BCR-ABL1 and CRKL in a dose-dependent manner. K562 cells were treated with DMSO vehicle (K562, left
lane), increasing levels of NHD2-15 (black triangle spans 15, 30, and 60 μM), and 1 μM imatinib (right lane) for 72 hours. 10 μg of total cell lysate per lane was
probed for phosphorylated (p) BCR-ABL1 and CRKL. GAPDH is shown below as loading control.
https://doi.org/10.1371/journal.pone.0236839.g006
and performed a cell proliferation assay. After K562 cells were exposed to 15–60 μM of
NHD2-15 and 1μM of imatinib for 72 h they were enumerated with a cell counter. As the con-
centration of NHD2-15 increased, cell growth was significantly reduced (Fig 7) indicating that
the combination of NHD2-15 with imatinib significantly killed K562 cells better when com-
pared to cells exposed to imatinib alone.
Discussion
In this study, we generated four novel antagonists of GRB2. SPR data was collected to assess
binding of these antagonists to GRB2, but since the data was not optimal for all compounds,
we decided to more closely examine NHD2-15, which showed the most potent binding.
NHD2-15 bound specifically to the SH2 domains of GRB2 when analyzed by a CN binding
assay. NHD2-15 also reduced the amount of cellular proliferation in K562 cells when mea-
sured by metabolic and cell proliferation assays. NHD2-15 appears to be specific for cells
overexpressing GRB2, as it didn’t kill primary cell lines, PBMCs, or adult zebrafish at low con-
centrations. It also appears to down regulate the same proteins as imatinib, and works even
better at killing cells when combined with imatinib. For these reasons, we postulate that
NHD2-15 could be an effective molecule to treat BCR-ABL1+ leukemia.
Design of the furo-quinoxaline scaffold of our novel antagonists was inspired by a previ-
ously studied SH2 domain-binder of a GRB protein [47] (S3 Fig). This compound has a central
quinoxaline, and computational modeling revealed that the 2-hydroxyl and α-hydrogen off
the 3-position of the quinoxaline adopt a planar conformation in the binding site. To increase
the overall rigidity and ensure this planarity, we cyclized this central core of the compound,
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
13 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
Fig 7. Combinatorial addition of NHD2-15 and imatinib reduces proliferation of K562 cells. 1×105 K652 cells were incubated with 0, 15, 30, or
60 μM of NHD2-15 only (orange bars) and with 1 μM of imatinib (red and orange striped bars). After 72 hours, cells were enumerated by trypan blue
exclusion. Dashed line denotes starting amount of cells. Bars represent the mean, and error bars represent SD; � p = 0.04, �� p = 0.03, ��� p = 0.006; ����
p = 0.001, ����� p < 0.001; n = 3 for K652 samples and n = 4 for combinatorial samples.
https://doi.org/10.1371/journal.pone.0236839.g007
which led to our furo-quinoxaline scaffold. After that, novel synthetic methods were used to
prepare our library of furo-quinoxaline compounds. Despite their utility as intermediates in
chemical synthesis [48], and as rigid scaffolds for novel drug development [49, 50], fused furo-
quinoxalines have not been intensively studied, likely due to the difficulty of a versatile method
of synthesis. The separate works of Iijima and Ismail report the cyclization of hydroxyl-substi-
tuted quinoxalines by use of phosphorous oxychloride, but only a few examples were described
by Iijima, and both methods only yield mono-substituted furo-quinoxalines as opposed to
more versatile di-substituted furo-quinoxalines [49, 51]. Kumar and co-workers described the
synthesis of a benzofuran fused with a quinoxaline scaffold by use of a strong Lewis acid, and
successfully prepared a multitude of compounds by this method [52]. However, their synthesis
only provided the benzofuran-fused heterocycle as opposed to a lone furan. Other work by
Nakhi et al. detailed the cyclization of alkyne-substituted quinoxalines; this method is also lim-
ited to the formation of only mono-substituted furo-quinoxalines [50]. Additionally, this
method consists of two discrete synthetic steps: installation of the alkyne followed by cycliza-
tion. Our novel method employed a domino SRN1 C-arylation of a β-diketone with
2,3-dichloroquinoxaline, followed by O-arylation via SNAr to yield versatile di-substituted
furo-quinoxalines in only one synthetic step.
Identifying the conditions for our key domino reaction took extensive optimization. Initial
attempts to build the furo-quinoxaline scaffold were based on recent work by Aljaar et al.
which utilized an intermolecular Ullmann-type C-arylation between 1,2-dihalobenzenes and
β-dicarbonyls with subsequent Ullmann-type O-arylation to build benzofurans [53].
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
14 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
Disappointingly, application of this method with 2,3-dibromoquinoxaline and 2,4-pentane-
dione did not furnish the desired furo-quinoxaline and instead gave a complex mixture of aro-
matic compounds. Thus, efforts turned toward a possible tandem SNAr carbon-coupling with
a subsequent SNAr of the resulting enolate. The C-arylation step was first investigated by form-
ing the methylene anion of diethylmalonate with sodium hydride, followed by addition of
2,3-dichloroquinoxaline, and isolation of the desired coupled product suggested the feasibility
of this approach. These same conditions were used to couple methyl acetoacetate with
2,3-dichloroquinoxaline, and although the C-arylated product could not be isolated, the
desired cyclized product was isolated with 14% yield, again suggesting that a tandem SNAr C-
arylation and SNAr O-arylation would be an effective method in preparing furo-quinoxalines.
Unfortunately, despite a thorough screen of conditions, this isolated yield of 14% could not be
improved. This then led to a survey of conditions to promote a domino reaction consisting of
an SRN1 mediated carbon-coupling, followed by SNAr with the resulting enolate. There have
been a number of reports demonstrating the addition of ketone and β-dicarbonyl enolates to
different heterocycles via SRN1 mechanisms [54], one of which even notes a single entry of an
interesting cyclization similar to what is described here but in poor yield [55].
After exhaustive investigation of our novel SRN1/SNAr domino reaction, our optimized
conditions consisted of β-diketone addition directly to sodium hydride, followed by the addi-
tion of catalytic iron (II) sulfate and 2,3-dichloroquinoxaline. Reaction times of around 6 h
yielded the most product; longer reaction times showed some decomposition of the product
when the reaction was followed using GC-MS. Despite extensive optimization of these reaction
conditions, this valuable transformation suffered from poor yields and a substrate scope lim-
ited to the compounds discussed here. Even subsequent functionalizations of the products,
such as hydrolysis of the ester in NHD2-92 to a carboxylic acid, were unattainable. Nonethe-
less, our useful SRN1/SNAr domino reaction enabled the efficient one-step preparation of our
library compounds utilizing novel synthetic methods.
We used the BCR-ABL1+ human leukemic cell line K562 to assess if these compounds pre-
vented cellular growth. We performed these studies on K562 cells for multiple reasons. First,
K562 cells are easily grown and manipulated in vitro. Secondly, they overexpress GRB2, and
GRB2 overexpression is correlated with CML. It is important to note that K562 cells likely
overexpress GRB2 even more than our studies indicate; we compared levels to that of
HEK293FT cells, which are not cancerous, but still transformed to grow indefinitely in vitro.
While we originally tested the efficacy of the compounds with CellTiter 96 assays, we were
concerned that this might not be the best method, as this measures cellular metabolism. While
metabolism is linked to cell proliferation, we wanted to count cells and ensure that they were
not proliferating. The findings in both assays look very similar; at higher concentrations, the
CellTiter 96 assay indicated that NHD2-15 reduced the metabolic activity, and our cell counts
indicated decreased proliferation of the K562 cells. While NHD2-15 did not actively kill the
cells as potently as imatinib, it had a profound effect on halting their growth in these assays.
Importantly, it had no effect on primary human PBMCs or primary zebrafish kidney cells,
indicating that it is likely specific for blocking the proliferation of transformed cells.
One other issue that we addressed was toxicity. We performed these experiments by adding
NHD2-15 to the water of adult zebrafish, as they are convenient animals for studying drug effi-
cacy and toxicity in vertebrates [56, 57]. We hypothesized that NHD2-15 would be relatively
non-toxic, as it was designed towards the SH2 domain of a specific protein overexpressed in
cancer cells. To assess this, we added the lowest concentration of compounds that had a statis-
tically significant negative effect on cellular proliferation in our in vitro assays (15 μM) to the
water of adult zebrafish. We observed that NHD2-15 was nontoxic, with fish surviving over 3
days in 15 μM of the compound dissolved in aquarium water. Importantly, increasing the
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
15 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
concentration of NHD2-15 did kill fish after only 6 h of exposure. However, the toxicity of
NHD2-15 at 30 μM does not automatically preclude it from being an effective treatment for
blocking GRB2 signalling; reduced exposure time of only 2 hours showed no toxicity. Impor-
tantly, delivery methods of this drug may also need to be optimized. Unfortunately, no good
zebrafish models of GRB2high myeloid leukemia exist. If developed, these diseased fish could
be subjected to NHD2-15 to determine if it prevents or shrinks tumor burden in a live, whole
animal system. It would also be useful to analyze if NHD2-15 has a negative effect on embry-
onic development, as GRB2 is expressed in dividing cells receiving RTK signals prevalent dur-
ing embryogenesis and development.
GRB2 binds to BCR-ABL1 via a phosphorylated tyrosine residue on BCR with its SH2
domain. This binding to BCR-ABL1 initiates leukemic transformation [25]. It is known that
imatinib reduces the amount of phospho-BCR-ABL1 in leukemic cells, reducing the activated
protein, and hence, downstream leukemic transformation. In our assays NHD2-15 had the
same effect, reducing the amount of activated BCR-ABL1 present in K562 cells. Additionally,
phospho-CRKL, an adapter protein that is a prognostic indicator of leukemic transformation
[30, 46] (and a direct target of BCR-ABL1 [30, 58]) was also reduced with NHD2-15 and imati-
nib. These data indicate that NHD2-15 and imatinib both reduce essential pathways for leuke-
mic transformation in K562 cells.
While NHD2-15 1) binds to GRB2 in the micromolar range, 2) binds the SH2 domain of
GRB2, 3) down-regulates leukemic cell proliferation proteins, 4) and is non-toxic to non-
transformed cells and in an animal model at 15 μM, it does not appreciably kill BCR-ABL1+
cells in vitro; it only prevents their proliferation. However, this is an important finding. With-
out NHD2-15 added to K562 cells, they increase 9-fold over the course of 72 h. When NHD2-
15 is present, this expansion is completely blocked. In essence, NHD2-15 effectively prevents
the proliferation of leukemic cells. In addition, our findings indicate that NHD2-15 is useful as
an additive therapy for preventing the expansion of cancerous cells. When imatinib and
NHD2-15 were simultaneously added to K562 cells, leukemic cell death was observed. By add-
ing the antagonists simultaneously, cell proliferation was inhibited better than NHD2-15 or
imatinib alone, indicating that NHD2-15 could potentially be used in situations where cancer
cells have already become resistant to frontline TKI treatments. In essence, these studies indi-
cate that NHD2-15 may have some therapeutic efficacy in treating CML, albeit through a dif-
ferent mechanism than current TKIs. Future studies focused on analyzing this possibility
should be fruitful, helping to prevent deaths attributed to this hematologic malignancy.
Supporting information
S1 Fig. Treatment with NHD2-15 does not kill primary cell lines. (A) 1×105 primary human
PBMCs cells were incubated with increasing amounts of NHD2-15. Bars represent the mean,
and error bars represent SD. N.S., not significant (p values of 0.139, 0.203, and 0.219); n = 3 for
all trials. Cells were also cultured with 1 μM imatinib (B). After 72 h, cells were enumerated by
trypan blue exclusion. Dashed line denotes starting amount of cells. Bars represent the mean,
and error bars represent SD. N.S., not significant (p = 0.72); n = 4 for all trials. (C) 1×105 pri-
mary ZKS cells were incubated with 0, 15, 30, or 60 μM of NHD2-15. Bars represent the mean,
and error bars represent SD. N.S., not significant (p values of 0.880, 0.537, and 0.746); n = 4 for
all trials. Cells were also cultured with 1 μM of imatinib (D). After 72 hours, cells were enumer-
ated by trypan blue exclusion. Dashed line denotes starting amount of cells. Bars represent the
mean, and error bars represent SD; N.S., not significant (p = 0.877); n = 4 for all trials.
(PPTX)
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
16 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
S2 Fig. NHD2-15 at 15 μM is not toxic to adult zebrafish. (A) 6-month-old zebrafish were
placed in water containing 15 μM GRB2 antagonist (orange line), 2μM imatinib (red line), or
vehicle control (DMSO, black line) and monitored over 3 days for survival. (B) 6-month-old
zebrafish were placed in water containing 30 μM GRB2 antagonist (orange line) and moni-
tored for 6 h. (C) 6-month-old zebrafish were placed in water containing 30 μM GRB2 antago-
nist (orange line) for 2h, then moved to fresh water and monitored over 3 days for survival.
(PPTX)
S3 Fig. Compound library design. Structure of a previously studied GRB SH2 domain-binder
[47] and depiction of the rational design of our library compounds.
(PPTX)
S4 Fig. Raw SPR sensorgrams for NHD2-15 versus GRB2. Concentrations (From the top):
125, 62.5, 31.25, 15.625, 7.8125, 3.90625, 0 μM in HBSEP buffer with 0.5% DMSO.
(PPTX)
S5 Fig. Dose-response curve resulting from SPR data of NHD2-15 versus GRB2. Affinity:
KD = 119 2 μM as determined using Scrubber 2.0 software.
(PPTX)
S6 Fig. Raw SPR sensorgrams for NHD2-92 versus GRB2. Concentrations (From the top):
125, 62.5, 31.25, 0 μM in HBSEP buffer with 0.5% DMSO.
(PPTX)
S7 Fig. Dose-response curve resulting from SPR data of NHD2-92 versus GRB2. Affinity:
KD = 1000 20 μM as determined using Scrubber 2.0 software.
(PPTX)
S8 Fig. Raw SPR sensorgrams for NHD2-107 versus GRB2. Concentrations (From the top):
125, 62.5, 0 μM in HBSEP buffer with 0.5% DMSO.
(PPTX)
S9 Fig. Dose-response curve resulting from SPR data of NHD2-107 versus GRB2. Affinity:
KD = 3400 100 μM as determined using Scrubber 2.0 software.
(PPTX)
S10 Fig. Raw SPR sensorgrams for NHD2-114 versus GRB2. Concentrations (From the
top): 125, 62.5, 31.25, 15.625, 0 μM in HBSEP buffer with 0.5% DMSO.
(PPTX)
S11 Fig. Dose-response curve resulting from SPR data of NHD2-114 versus GRB2. Affinity:
KD = 440 7 μM as determined using Scrubber 2.0 software.
(PPTX)
S12 Fig. Original blot for Fig 4.
(PPTX)
S13 Fig. Original blots for Fig 6.
(PPTX)
S1 Data. Lewis supporting information raw data.
(XLSX)
S1 Table. Equilibrium dissociation constants (KD) values as measured by SPR, which were
used to assess binding affinity between compounds and the GRB2 protein.
(PPTX)
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
17 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
Acknowledgments
We thank Betsey Tamietti, Carol Buckmann, and Blain Wells for excellent laboratory
management.
Author Contributions
Conceptualization: Tina R. Lewis, Jesse Smith, Stephanie Aguiar, David L. Stachura, Carolynn
C. Arpin.
Investigation: Tina R. Lewis, Jesse Smith, Kallie Griffin, Stephanie Aguiar, Kristen F. Rueb,
Natalie Holmberg-Douglas, Ellen M. Sampson, Skylar Tomasetti, Sofia Rodriguez, David L.
Stachura, Carolynn C. Arpin.
Methodology: Carolynn C. Arpin.
Resources: David L. Stachura, Carolynn C. Arpin.
Supervision: David L. Stachura, Carolynn C. Arpin.
Writing – original draft: Tina R. Lewis, Jesse Smith, Kallie Griffin, Carolynn C. Arpin.
Writing – review & editing: Tina R. Lewis, David L. Stachura, Carolynn C. Arpin.
References
1. Cumano A, Godin I. Ontogeny of the hematopoietic system. Annu Rev Immunol. 2007; 25:745–85.
https://doi.org/10.1146/annurev.immunol.25.022106.141538 PMID: 17201678.
2. Orkin SH, Zon LI. Hematopoiesis: an evolving paradigm for stem cell biology. Cell. 2008; 132(4):631–
44. https://doi.org/10.1016/j.cell.2008.01.025 PMID: 18295580; PubMed Central PMCID:
PMC2628169.
3. Eaves CJ. Hematopoietic stem cells: concepts, definitions, and the new reality. Blood. 2015; 125
(17):2605–13. https://doi.org/10.1182/blood-2014-12-570200 PMID: 25762175; PubMed Central
PMCID: PMC4440889.
4. Akashi K, Traver D, Miyamoto T, Weissman IL. A clonogenic common myeloid progenitor that gives rise
to all myeloid lineages. Nature. 2000; 404(6774):193–7. https://doi.org/10.1038/35004599 PMID:
10724173.
5. Manz MG, Miyamoto T, Akashi K, Weissman IL. Prospective isolation of human clonogenic common
myeloid progenitors. Proc Natl Acad Sci U S A. 2002; 99(18):11872–7. https://doi.org/10.1073/pnas.
172384399 PMID: 12193648; PubMed Central PMCID: PMC129361.
6. Mayadas TN, Cullere X, Lowell CA. The multifaceted functions of neutrophils. Annu Rev Pathol. 2014;
9:181–218. https://doi.org/10.1146/annurev-pathol-020712-164023 PMID: 24050624; PubMed Central
PMCID: PMC4277181.
7. Pillay J, den Braber I, Vrisekoop N, Kwast LM, de Boer RJ, Borghans JA, et al. In vivo labeling with
2H2O reveals a human neutrophil lifespan of 5.4 days. Blood. 2010; 116(4):625–7. https://doi.org/10.
1182/blood-2010-01-259028 PMID: 20410504.
8. Abelson HT, Rabstein LS. Lymphosarcoma: virus-induced thymic-independent disease in mice. Cancer
Res. 1970; 30(8):2213–22. PMID: 4318922.
9. Bartram CR, de Klein A, Hagemeijer A, van Agthoven T, Geurts van Kessel A, Bootsma D, et al. Trans-
location of c-ab1 oncogene correlates with the presence of a Philadelphia chromosome in chronic
myelocytic leukaemia. Nature. 1983; 306(5940):277–80. https://doi.org/10.1038/306277a0 PMID:
6580527.
10. Groffen J, Stephenson JR, Heisterkamp N, de Klein A, Bartram CR, Grosveld G. Philadelphia chromo-
somal breakpoints are clustered within a limited region, bcr, on chromosome 22. Cell. 1984; 36(1):93–9.
https://doi.org/10.1016/0092-8674(84)90077-1 PMID: 6319012.
11. Nowell PC, Hungerford DA. Chromosome studies on normal and leukemic human leukocytes. J Natl
Cancer Inst. 1960; 25:85–109. PMID: 14427847.
12. Rowley JD. Letter: A new consistent chromosomal abnormality in chronic myelogenous leukaemia iden-
tified by quinacrine fluorescence and Giemsa staining. Nature. 1973; 243(5405):290–3. https://doi.org/
10.1038/243290a0 PMID: 4126434.
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
18 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
13. Wang JY. The capable ABL: what is its biological function? Mol Cell Biol. 2014; 34(7):1188–97. https://
doi.org/10.1128/MCB.01454-13 PMID: 24421390; PubMed Central PMCID: PMC3993570.
14. Diekmann D, Brill S, Garrett MD, Totty N, Hsuan J, Monfries C, et al. Bcr encodes a GTPase-activating
protein for p21rac. Nature. 1991; 351(6325):400–2. https://doi.org/10.1038/351400a0 PMID: 1903516.
15. Maru Y, Witte ON. The BCR gene encodes a novel serine/threonine kinase activity within a single exon.
Cell. 1991; 67(3):459–68. https://doi.org/10.1016/0092-8674(91)90521-y PMID: 1657398.
16. Sawyers CL, McLaughlin J, Witte ON. Genetic requirement for Ras in the transformation of fibroblasts
and hematopoietic cells by the Bcr-Abl oncogene. J Exp Med. 1995; 181(1):307–13. https://doi.org/10.
1084/jem.181.1.307 PMID: 7807010; PubMed Central PMCID: PMC2191855.
17. Skorski T, Kanakaraj P, Nieborowska-Skorska M, Ratajczak MZ, Wen SC, Zon G, et al. Phosphatidyli-
nositol-3 kinase activity is regulated by BCR/ABL and is required for the growth of Philadelphia chromo-
some-positive cells. Blood. 1995; 86(2):726–36. PMID: 7606002.
18. Brummer T, Schmitz-Peiffer C, Daly RJ. Docking proteins. FEBS J. 2010; 277(21):4356–69. https://doi.
org/10.1111/j.1742-4658.2010.07865.x PMID: 20883498.
19. Maruyama IN. Mechanisms of activation of receptor tyrosine kinases: monomers or dimers. Cells.
2014; 3(2):304–30. https://doi.org/10.3390/cells3020304 PMID: 24758840; PubMed Central PMCID:
PMC4092861.
20. Songyang Z, Shoelson SE, Chaudhuri M, Gish G, Pawson T, Haser WG, et al. SH2 domains recognize
specific phosphopeptide sequences. Cell. 1993; 72(5):767–78. https://doi.org/10.1016/0092-8674(93)
90404-e PMID: 7680959.
21. Lowenstein EJ, Daly RJ, Batzer AG, Li W, Margolis B, Lammers R, et al. The SH2 and SH3 domain-
containing protein GRB2 links receptor tyrosine kinases to ras signaling. Cell. 1992; 70(3):431–42.
https://doi.org/10.1016/0092-8674(92)90167-b PMID: 1322798.
22. Marengere LE, Pawson T. Structure and function of SH2 domains. J Cell Sci Suppl. 1994; 18:97–104.
https://doi.org/10.1242/jcs.1994.supplement_18.14 PMID: 7883800.
23. Maignan S, Guilloteau JP, Fromage N, Arnoux B, Becquart J, Ducruix A. Crystal structure of the mam-
malian Grb2 adaptor. Science. 1995; 268(5208):291–3. https://doi.org/10.1126/science.7716522
PMID: 7716522.
24. Puil L, Liu J, Gish G, Mbamalu G, Bowtell D, Pelicci PG, et al. Bcr-Abl oncoproteins bind directly to acti-
vators of the Ras signalling pathway. EMBO J. 1994; 13(4):764–73. PMID: 8112292; PubMed Central
PMCID: PMC394874.
25. Million RP, Van Etten RA. The Grb2 binding site is required for the induction of chronic myeloid leuke-
mia-like disease in mice by the Bcr/Abl tyrosine kinase. Blood. 2000; 96(2):664–70. PMID: 10887132.
26. Sattler M, Mohi MG, Pride YB, Quinnan LR, Malouf NA, Podar K, et al. Critical role for Gab2 in transfor-
mation by BCR/ABL. Cancer Cell. 2002; 1(5):479–92. https://doi.org/10.1016/s1535-6108(02)00074-0
PMID: 12124177.
27. O’Hare T, Deininger MW, Eide CA, Clackson T, Druker BJ. Targeting the BCR-ABL signaling pathway
in therapy-resistant Philadelphia chromosome-positive leukemia. Clin Cancer Res. 2011; 17(2):212–
21. https://doi.org/10.1158/1078-0432.CCR-09-3314 PMID: 21098337.
28. Druker BJ, Tamura S, Buchdunger E, Ohno S, Segal GM, Fanning S, et al. Effects of a selective inhibi-
tor of the Abl tyrosine kinase on the growth of Bcr-Abl positive cells. Nat Med. 1996; 2(5):561–6. https://
doi.org/10.1038/nm0596-561 PMID: 8616716.
29. le Coutre P, Mologni L, Cleris L, Marchesi E, Buchdunger E, Giardini R, et al. In vivo eradication of
human BCR/ABL-positive leukemia cells with an ABL kinase inhibitor. J Natl Cancer Inst. 1999; 91
(2):163–8. https://doi.org/10.1093/jnci/91.2.163 PMID: 9923858.
30. Druker BJ, Talpaz M, Resta DJ, Peng B, Buchdunger E, Ford JM, et al. Efficacy and safety of a specific
inhibitor of the BCR-ABL tyrosine kinase in chronic myeloid leukemia. N Engl J Med. 2001; 344
(14):1031–7. Epub 2001/04/05. https://doi.org/10.1056/NEJM200104053441401 PMID: 11287972.
31. Holyoake TL, Vetrie D. The chronic myeloid leukemia stem cell: stemming the tide of persistence.
Blood. 2017; 129(12):1595–606. https://doi.org/10.1182/blood-2016-09-696013 PMID: 28159740.
32. Rosti G, Castagnetti F, Gugliotta G, Baccarani M. Tyrosine kinase inhibitors in chronic myeloid leukae-
mia: which, when, for whom? Nat Rev Clin Oncol. 2017; 14(3):141–54. https://doi.org/10.1038/
nrclinonc.2016.139 PMID: 27752053.
33. Lipinski CA, Lombardo F, Dominy BW, Feeney PJ. Experimental and computational approaches to esti-
mate solubility and permeability in drug discovery and development settings. Adv Drug Deliv Rev. 2001;
46(1–3):3–26. https://doi.org/10.1016/s0169-409x(00)00129-0 PMID: 11259830.
34. Li JJ, Carson KG, Trivedi BK, Yue WS, Ye Q, Glynn RA, et al. Synthesis and structure-activity relation-
ship of 2-amino-3-heteroaryl-quinoxalines as non-peptide, small-molecule antagonists for interleukin-8
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
19 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
receptor. Bioorg Med Chem. 2003; 11(17):3777–90. https://doi.org/10.1016/s0968-0896(03)00399-7
PMID: 12901923.
35. Surywanshi MR, Kulkarni VM, Mahadik KR, Bhosale SH. Synthesis, Pharmacological Evaluation and
QSAR Study of 2-aryl- 1H-[1, 3,4] oxadiazino [5, 6-b] quinoxalines as Antidepressants. Archives of
Applied Science Research. 2011; 3(1):380–91.
36. Nioche P, Liu WQ, Broutin I, Charbonnier F, Latreille MT, Vidal M, et al. Crystal structures of the SH2
domain of Grb2: highlight on the binding of a new high-affinity inhibitor. J Mol Biol. 2002; 315(5):1167–
77. https://doi.org/10.1006/jmbi.2001.5299 PMID: 11827484.
37. Bibbins KB, Boeuf H, Varmus HE. Binding of the Src SH2 domain to phosphopeptides is determined by
residues in both the SH2 domain and the phosphopeptides. Mol Cell Biol. 1993; 13(12):7278–87.
https://doi.org/10.1128/mcb.13.12.7278 PMID: 7504171; PubMed Central PMCID: PMC364798.
38. Vidal M, Montiel JL, Cussac D, Cornille F, Duchesne M, Parker F, et al. Differential interactions of the
growth factor receptor-bound protein 2 N-SH3 domain with son of sevenless and dynamin. Potential
role in the Ras-dependent signaling pathway. J Biol Chem. 1998; 273(9):5343–8. https://doi.org/10.
1074/jbc.273.9.5343 PMID: 9478994.
39. Stachura DL, Reyes JR, Bartunek P, Paw BH, Zon LI, Traver D. Zebrafish kidney stromal cell lines sup-
port multilineage hematopoiesis. Blood. 2009; 114(2):279–89. Epub 2009/05/13. https://doi.org/10.
1182/blood-2009-02-203638 PMID: 19433857; PubMed Central PMCID: PMC2714204.
40. Westerfield M. The Zebrafish Book. A guide for the laboratory use of zebrafish (Danio rerio). 5th ed:
Univ. of Oregon Press, Eugene.; 2007.
41. Thiesing JT, Ohno-Jones S, Kolibaba KS, Druker BJ. Efficacy of STI571, an abl tyrosine kinase inhibi-
tor, in conjunction with other antileukemic agents against bcr-abl-positive cells. Blood. 2000; 96
(9):3195–9. PMID: 11050003.
42. North TE, Goessling W, Walkley CR, Lengerke C, Kopani KR, Lord AM, et al. Prostaglandin E2 regu-
lates vertebrate haematopoietic stem cell homeostasis. Nature. 2007; 447(7147):1007–11. Epub 2007/
06/22. https://doi.org/10.1038/nature05883 PMID: 17581586; PubMed Central PMCID: PMC2775137.
43. Paik EJ, de Jong JL, Pugach E, Opara P, Zon LI. A chemical genetic screen in zebrafish for pathways
interacting with cdx4 in primitive hematopoiesis. Zebrafish. 2010; 7(1):61–8. Epub 2010/04/27. https://
doi.org/10.1089/zeb.2009.0643 PMID: 20415644; PubMed Central PMCID: PMC2897134.
44. Ridges S, Heaton WL, Joshi D, Choi H, Eiring A, Batchelor L, et al. Zebrafish screen identifies novel
compound with selective toxicity against leukemia. Blood. 2012; 119(24):5621–31. Epub 2012/04/12.
https://doi.org/10.1182/blood-2011-12-398818 PMID: 22490804; PubMed Central PMCID:
PMC3382926.
45. Yeh JR, Munson KM, Elagib KE, Goldfarb AN, Sweetser DA, Peterson RT. Discovering chemical modi-
fiers of oncogene-regulated hematopoietic differentiation. Nat Chem Biol. 2009; 5(4):236–43. Epub
2009/01/28. https://doi.org/10.1038/nchembio.147 PMID: 19172146; PubMed Central PMCID:
PMC2658727.
46. La Rosee P, Holm-Eriksen S, Konig H, Hartel N, Ernst T, Debatin J, et al. Phospho-CRKL monitoring for
the assessment of BCR-ABL activity in imatinib-resistant chronic myeloid leukemia or Ph+ acute lym-
phoblastic leukemia patients treated with nilotinib. Haematologica. 2008; 93(5):765–9. Epub 2008/03/
28. https://doi.org/10.3324/haematol.12186 PMID: 18367481.
47. Ambaye ND, Gunzburg MJ, Lim RC, Price JT, Wilce MC, Wilce JA. Benzopyrazine derivatives: A novel
class of growth factor receptor bound protein 7 antagonists. Bioorg Med Chem. 2011; 19(1):693–701.
Epub 2010/12/08. https://doi.org/10.1016/j.bmc.2010.10.030 PMID: 21134757.
48. Roy P, Ghorai BK. One-pot three-component synthesis of quinoxaline and phenazine ring systems
using Fischer carbene complexes. Beilstein J Org Chem. 2010; 6:52. https://doi.org/10.3762/bjoc.6.52
PMID: 20625524; PubMed Central PMCID: PMC2900911.
49. Ismail MM, Ammar YA, Ibrahim MK, El-Zahaby HS, Mahmoud SS. Synthesis and pharmacological eval-
uation of novel quinoxalines as potential nonulcerogenic anti-inflammatory and analgesic agents. Arz-
neimittelforschung. 2005; 55(12):738–43. https://doi.org/10.1055/s-0031-1296923 PMID: 16430027.
50. Nakhi A, Rahman MS, Seerapu GP, Banote RK, Kumar KL, Kulkarni P, et al. Transition metal free
hydrolysis/cyclization strategy in a single pot: synthesis of fused furo N-heterocycles of pharmacological
interest. Org Biomol Chem. 2013; 11(30):4930–4. https://doi.org/10.1039/c3ob41069b PMID:
23824158.
51. Iijima C, Hayashi E. [Quinoxalines. XXI. Synthesis of 2-substituted furo(2,3-b)quinoxaline and 2-substi-
tuted pyrrolo(2,3-b)quinoxaline (author’s transl)]. Yakugaku Zasshi. 1977; 97(7):712–8. https://doi.org/
10.1248/yakushi1947.97.7_712 PMID: 915697.
52. Kumar KS, Rambabu D, Sandra S, Kapavarapu R, Krishna GR, Basaveswara Rao MV, et al. AlCl3
induced (hetero)arylation of 2,3-dichloroquinoxaline: a one-pot synthesis of mono/disubstituted
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
20 / 21

PLOS ONE
NHD2-15 inhibits leukemic growth
quinoxalines as potential antitubercular agents. Bioorg Med Chem. 2012; 20(5):1711–22. https://doi.
org/10.1016/j.bmc.2012.01.012 PMID: 22316553.
53. Aljaar N, Malakar CC, Conrad J, Strobel S, Schleid T, Beifuss U. Cu-catalyzed reaction of 1,2-dihalo-
benzenes with 1,3-cyclohexanediones for the synthesis of 3,4-dihydrodibenzo[b,d]furan-1(2H)-ones. J
Org Chem. 2012; 77(18):7793–803. https://doi.org/10.1021/jo3014275 PMID: 22917488.
54. Rossi RA, Pierini AB, Santiago AN. Aromatic Substitution by the SRN1 Reaction. Organic Reactions:
Wiley; 2004. p. 1–271.
55. Carver DR, Hubbard JS, Wolfe JF. SRN1 Mechanism in Heteroaromatic Nucleophilic Substitution.
Reactions of 2-Chloroquinoxaline and 4-Chloroquinazolines with Ketone Enolates. Journal of Organic
Chemistry. 1982; 47:1036–40.
56. Deveau AP, Bentley VL, Berman JN. Using zebrafish models of leukemia to streamline drug screening
and discovery. Exp Hematol. 2017; 45:1–9. https://doi.org/10.1016/j.exphem.2016.09.012 PMID:
27720937.
57. Bambino K, Chu J. Zebrafish in Toxicology and Environmental Health. Curr Top Dev Biol. 2017;
124:331–67. https://doi.org/10.1016/bs.ctdb.2016.10.007 PMID: 28335863; PubMed Central PMCID:
PMC5836480.
58. Chan WW, Wise SC, Kaufman MD, Ahn YM, Ensinger CL, Haack T, et al. Conformational control inhibi-
tion of the BCR-ABL1 tyrosine kinase, including the gatekeeper T315I mutant, by the switch-control
inhibitor DCC-2036. Cancer Cell. 2011; 19(4):556–68. Epub 2011/04/13. https://doi.org/10.1016/j.ccr.
2011.03.003 PMID: 21481795; PubMed Central PMCID: PMC3077923.
PLOS ONE | https://doi.org/10.1371/journal.pone.0236839 August 11, 2020
21 / 21
