Communication
ChemComm
Table 4 Hydrolytic properties of a series of thiol-Michael polymers
material science disciplines. One extraordinary feature of these
materials is an impressive tunability of the hydrolytic properties
of thiol-Michael networks. Ranging from photo-, to thermally
degradable and non-degradable macromolecular architectures,
useful functional materials can be facilely fabricated fulfilling
the existing gaps in applied polymer and material science.
We gratefully acknowledge financial support from National
Institutes of Health for this research (NIH: 1U01DE023777-01)
Sample mass change
after 7 days in
5 wt% HCl
Sample mass change
after 7 days in
5 wt% NaOH
Thiol-Michael
network
HDDA/PETMP
ꢀ0.7 (0.3)
24 (8)
1.8 (1.1)
1.0 (0.4)
ꢀ15.1 (1)
HDDVS/PETMP
HMDVSA/PETMP
DMHDVSA/PETMP
Hydrolyzed in 1 day
Hydrolyzed in 10 min
0 (0)
literature, the elimination, or reduction in the amount, of
esters in the network results in higher Tg materials. It is Conflicts of interest
therefore expected that incorporation of ester-free thiol monomers
There are no conflicts to declare.
in mixtures with vinyl sulfonamides would also yield hydrolytically
22
stable, tough and glassy polymers. Accordingly, we introduced a
shorter chain length tertiary vinyl sulfonamide (DMPDVSA/SiTSH)
and structurally rigid cyclic vinyl sulfonamide (HPDVSA/SiTSH)
into the mixtures with the ester free thiol SiTSH. The resulting
Notes and references
1
2
3
4
5
C. F. H. Allen, W. J. Humphlett and J. O. Fournier, Can. J. Chem.,
1964, 42, 2616–2620.
D. P. Nair, M. Podgorski, S. Chatani, T. Gong, W. X. Xi, C. R. Fenoli
and C. N. Bowman, Chem. Mater., 2014, 26, 724–744.
W. X. Xi, T. F. Scott, C. J. Kloxin and C. N. Bowman, Adv. Funct.
Mater., 2014, 24, 2572–2590.
B. D. Mather, K. Viswanathan, K. M. Miller and T. E. Long, Prog.
Polym. Sci., 2006, 31, 487–531.
G. Z. Li, R. K. Randev, A. H. Soeriyadi, G. Rees, C. Boyer, Z. Tong,
T. P. Davis, C. R. Becer and D. M. Haddleton, Polym. Chem., 2010, 1,
g

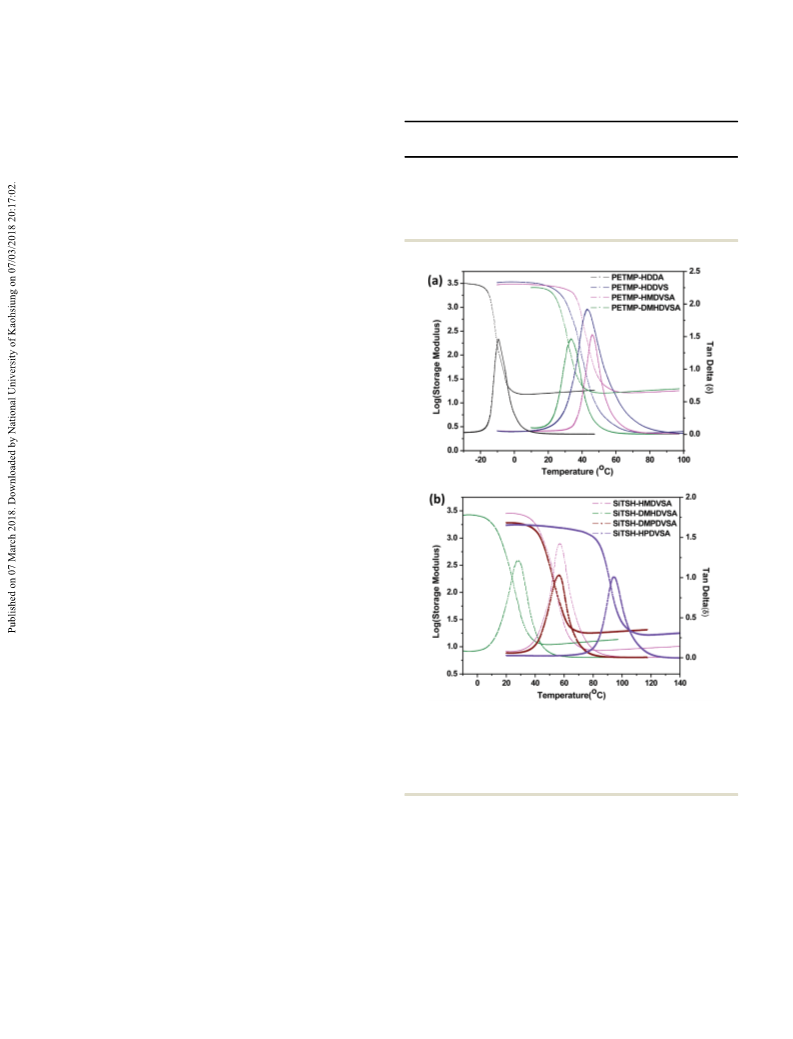

networks reach an impressive glassy T of over 90 1C. In contrast,
due to very poor reactivity of acrylamides towards the photo
thiol-Michael addition, design of a network polymer based on
such systems is highly ineffective.

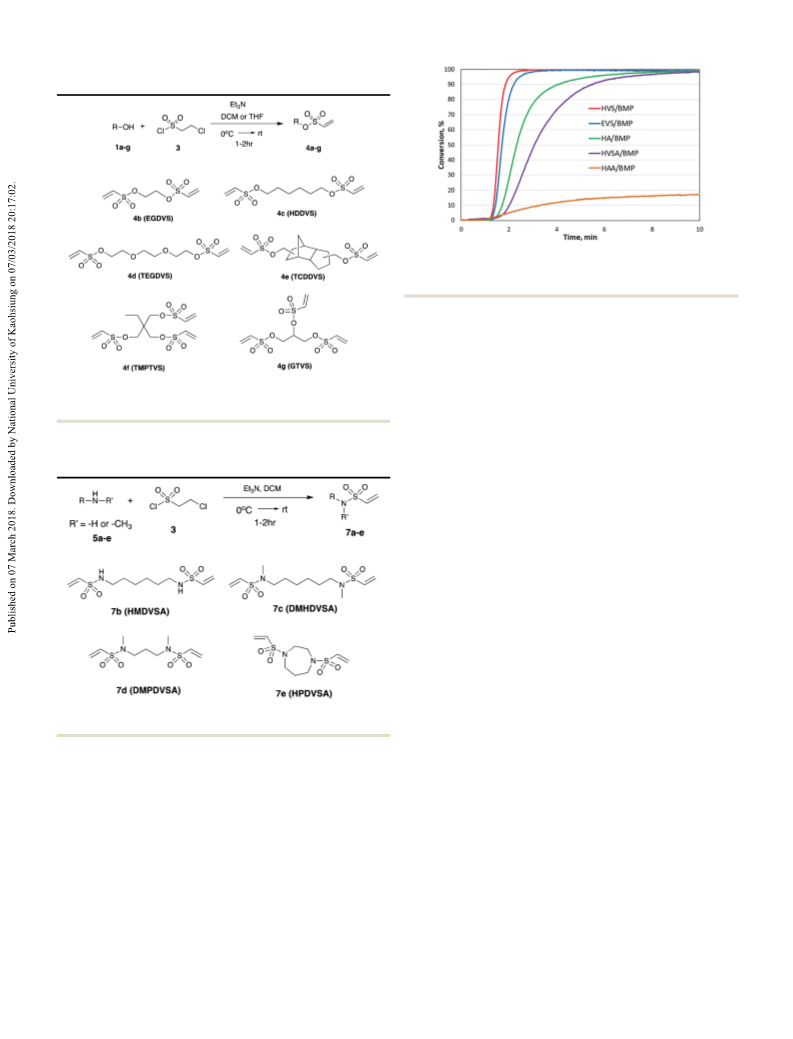

Furthermore, a series of thiol-Michael polymers based on
structural vinyl analogues was investigated for their hydrolytic
stability (Table 4). Thiol-Michael materials of similar cross-
linking densities exhibit drastically different susceptibility to
basic and acidic environments. Among the materials tested,
several polymers hydrolyzed in the order of minutes whereas
others were found to be practically non-degradable. It is not
surprising that the sulfonate esters degrade in both acidic and
basic conditions; however, even as compared to acrylate esters,
their hydrolysis is evidently accelerated. On the other hand,
1
196–1204.
J. W. Chan, C. E. Hoyle, A. B. Lowe and M. Bowman, Macromolecules,
010, 43, 6381–6388.
7 S. Chatani, D. P. Nair and C. N. Bowman, Polym. Chem., 2013, 4,
048–1055.
6
2
1
8
M. Podgorski, S. Chatani and C. N. Bowman, Macromol. Rapid
Commun., 2014, 35, 1497–1502.
9 M. H. Stenzel, ACS Macro Lett., 2013, 2, 14–18.
10 C. M. Cruz, M. Ortega-Munoz, F. J. Lopez-Jaramillo, F. Hernandez-
Mateo, V. Blanco and F. Santoyo-Gonzalez, Adv. Synth. Catal., 2016,
358, 3394–3413.
tertiary vinyl sulfonamides do not degrade under these condi- 11 S. Caddick and H. D. Bush, Org. Lett., 2003, 5, 2489–2492.
1
1
1
1
1
1
2 J. Dadova, M. Vrabel, M. Adamik, M. Brazdova, R. Pohl, M. Fojta and
M. Hocek, Chem. – Eur. J., 2015, 21, 16091–16102.
3 K. Tong, J. C. Tu, X. Y. Qi, M. Wang, Y. J. Wang, H. Z. Fu,
C. U. Pittman and A. H. Zhou, Tetrahedron, 2013, 69, 2369–2375.
4 D. Haamann, H. Keul, D. Klee and M. Moller, Macromolecules, 2010,
tions upon exposure to either acids or bases. Acidic secondary
amides are sensitive to bases and hydrolyze rapidly in dilute
basic solutions but are stable in acidic conditions. This broad
range of hydrolytic stability and characteristics will likely allow
for a design of materials with tunable hydrolysis/degradation
profiles for a variety of applications, from soft to hard hydrogel
scaffolds, micro-, and nanoparticles and macroscopic bulk
network polymers.
43, 6295–6301.
5 S. Chatani, M. Podgorski, C. Wang and C. N. Bowman, Macromolecules,
2014, 47, 4894–4900.
6 Z. Brzozowski, F. Saczewski and N. Neamati, Bioorg. Med. Chem.
Lett., 2006, 16, 5298–5302.
7 J. Morales-Sanfrutos, J. Lopez-Jaramillo, M. Ortega-Munoz,
A. Megia-Fernandez, F. Perez-Balderas, F. Hernandez-Mateo and
F. Santoyo-Gonzalez, Org. Biomol. Chem., 2010, 8, 667–675.
8 R. G. Schoenmakers, P. van de Wetering, D. L. Elbert and
J. A. Hubbell, J. Controlled Release, 2004, 95, 291–300.
In summary, we demonstrated the utilization of two
rarely considered families of multifunctional vinyl monomers
1
(sulfonates and sulfonamides) for the crosslinking photo-, and
thermal thiol-Michael addition polymerization. This extended 19 O. Koniev and A. Wagner, Chem. Soc. Rev., 2015, 44, 5495–5551.
2
2
2
2
0 J. J. Reddick, J. M. Cheng and W. R. Roush, Org. Lett., 2003, 5,
library of vinyls now offers multiple way of initiation as well
as a broad range of thermomechanical properties that are
conveniently generated from anionic (and radical) thiol–vinyl
step-growth reactions. The expanded range of available vinyl
monomers is expected to further popularize the thiol-Michael
addition-based polymerization and functionalization in various
1967–1970.
1 E. Ceppi, W. Eckhardt and C. A. Grob, Tetrahedron Lett., 1973,
3627–3630.
2 M. Podgorski, E. Becka, S. Chatani, M. Claudino and C. N. Bowman,
Polym. Chem., 2015, 6, 2234–2240.
3 A. Singhamahapatra, L. Sahoo, B. Varghese and D. Loganathan,
RSC Adv., 2014, 4, 18038–18043.
Chem. Commun.
This journal is ©The Royal Society of Chemistry 2018
