Click chemistry approach to characterize curcumin-protein interactions in vitro and in vivo

Article abstract of DOI:10.1016/j.jnutbio.2019.02.010

Curcumin, a bis-α, β-unsaturated β-diketon dietary compound from turmeric, is among the most promising dietary compounds for preventing chronic diseases. Previous research has shown that curcumin is highly reactive toward protein thiols to form curcumin-p

Full text of DOI:10.1016/j.jnutbio.2019.02.010

Accepted Manuscript
Click chemistry approach to characterize curcumin-protein
interactions in vitro and in vivo
Haixia Yang, Elvira Sukamtoh, Zheyuan Du, Weicang Wang,
Manami Ando, Yaa Nyamekye Kwakwa, Jianan Zhang, Guodong
Zhang
PII:
DOI:
Reference:
S0955-2863(19)30043-9
https://doi.org/10.1016/j.jnutbio.2019.02.010
JNB 8146
To appear in:
The Journal of Nutritional Biochemistry
Received date:
Revised date:
Accepted date:
14 January 2019
20 February 2019
28 February 2019
Please cite this article as: H. Yang, E. Sukamtoh, Z. Du, et al., Click chemistry approach to
characterize curcumin-protein interactions in vitro and in vivo, The Journal of Nutritional
Biochemistry, https://doi.org/10.1016/j.jnutbio.2019.02.010
This is a PDF file of an unedited manuscript that has been accepted for publication. As
a service to our customers we are providing this early version of the manuscript. The
manuscript will undergo copyediting, typesetting, and review of the resulting proof before
it is published in its final form. Please note that during the production process errors may
be discovered which could affect the content, and all legal disclaimers that apply to the
journal pertain.

ACCEPTED MANUSCRIPT
Click chemistry approach to characterize curcumin-protein interactions in vitro and in vivo
Haixia Yang a,b,1,*, Elvira Sukamtoh a,1, Zheyuan Du a, Weicang Wang a, Manami Ando a,c, Yaa
Nyamekye Kwakwa a,d, Jianan Zhang a, and Guodong Zhang a,e,*
a Department of Food Science, University of Massachusetts, Amherst, MA, USA.
b Department of Nutrition and Food Safety, College of Public Health, Xi’an Jiaotong University,
Xi’an, Shaanxi 710061, China.
c Department of Food Science and Technology, Tokyo University of Marine Science and
Technology, Tokyo, Japan.
d Department of Chemistry, Mount Holyoke College, South Hadley, MA, 01075, USA.
e Molecular and Cellular Biology Graduate Program, University of Massachusetts, Amherst, MA
01003, USA.
1 Y.H. and S.E. contributed equally to this work.
* Correspondence: Guodong Zhang, Department of Food Science, University of Massachusetts,
Amherst, MA, USA. Email: guodongzhang@umass.edu, Tel: 413-4541014, Fax: 413-5451262;
Haixia Yang, Department of Food Science, University of Massachusetts, Amherst, MA, USA. Email:
yanghaixia214@gmail.com.
Abbreviations: Keap1, Kelch-like ECH-associated protein 1; Nrf2, nuclear factor erythroid 2-
related factor 2; NF-κB, nuclear factor kappa-light-chain-enhancer of activated B cells; mono-Cur,
mono-propargyl curcumin; di-Cur, di-propargyl curcumin; DMEM, Dulbecco’s modified Eagle’s
medium; FBS, fetal bovine serum; MTT, 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium
bromide; THPTA, tris-hydroxypropyltriazolylmethylamine.

ACCEPTED MANUSCRIPT
Abstract
Curcumin, a bis-α, β-unsaturated β-diketon dietary compound from turmeric, is among the most
promising dietary compounds for preventing chronic diseases. Previous research has shown that
curcumin is highly reactive toward protein thiols to form curcumin-protein adducts, however, the
interactions of curcumin with proteins are under-studied. Here we report the design and synthesis of
“click” chemistry probes of curcumin, mono-propargyl curcumin (mono-Cur) and di-propargyl
curcumin (di-Cur), and use the click probes to study curcumin-proteins interactions in vitro and in
vivo. We find that compared with di-Cur, the mono-Cur probe has more potent biological effects and
enhanced effects to label proteins in cultured cells, suggesting that mono-Cur is a better click probe

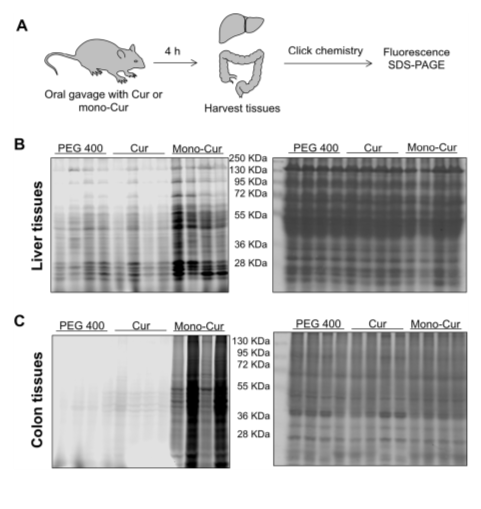

to study the biological actions of curcumin. Furthermore, using the mono-Cur probe, we find that
oral administration of this probe in mice leads to formation of curcumin-protein adducts in colon and
liver tissues of C57BL/6 mice, suggesting that curcumin could covalently modify cellular proteins in
vivo. Together, these results could help us to better understand protein-curcumin interactions. These
results could in part explain the poor pharmacokinetics of curcumin; in addition, formation of these
protein adducts could contribute to the health-promoting effects of curcumin.
Keywords: curcumin; click chemistry probe synthesis; protein adducts; distribution

ACCEPTED MANUSCRIPT
Introduction
Curcumin, a dietary compound from turmeric, is among the most promising dietary compounds for
preventing chronic diseases such as inflammation and cancer [1, 2]. Notably, two Phase II human
clinical trials have shown that curcumin reduced the risks of colorectal cancer [3] and pancreatic
cancer [4]. Currently the biological effects of curcumin are being evaluated in over 100 human
clinical trials [5]. A better understanding of its biological effects and action mechanisms could help
to develop novel anti-cancer agents.
Previous research to study the pharmacokinetics and/or tissue distribution of curcumin has focused
on analyzing the tissue concentrations of free-form curcumin or its metabolites such as curcumin
glucuronide and curcumin sulfate [6-8]. However, curcumin has a bis-α,β-unsaturated β-diketone
moiety, and therefore it is highly reactive toward protein thiols to form curcumin-protein adducts via
Michael reaction [9]. It is important to study the formation of curcumin-protein adducts, since
substantial research has shown that some protein thiols contribute to cell signaling, and covalent
modification of these thiol groups could have important biological significance. For example,
previous research has shown that covalent modification of thiol groups of Kelch-like ECH-
associated protein 1 (Keap1) protein leads to disruption of Keap1-nuclear factor erythroid 2-related
factor 2 (Nrf2) complex and induction of phase II detoxification enzymes [10], and covalent
modification of thiol groups of p65 subunit of nuclear factor kappa-light-chain-enhancer of activated
B cells (NF-κB) protein complex impairs NF-κB-DNA binding and suppresses NF-κB-mediated
inflammatory responses [11]. However, to date, the curcumin-protein interactions are under-studied.
In particular, it mains unknown whether curcumin could covalently modify cellular proteins in vivo
after oral ingestion.

ACCEPTED MANUSCRIPT
Alkene and azide [3+2] cycloaddition click chemistry-based imaging is a novel and powerful method
for analysis of the interactions of proteins with small molecules [12]. In this study, we report the
chemical synthesis and biological activity of “click” probes of curcumin, and use the click chemistry
approach to study the interactions of curcumin with proteins in vitro and in vivo.
Material and Methods

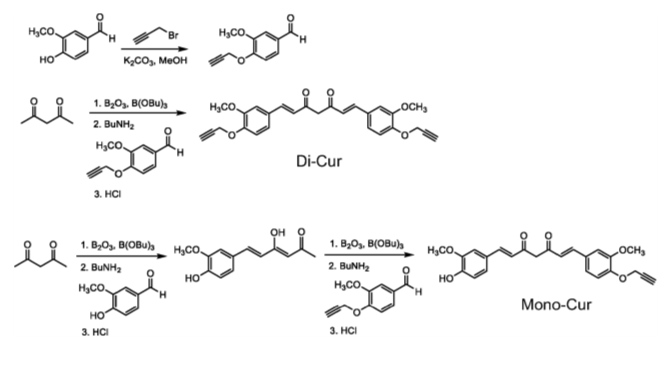

Chemical synthesis of mono-propargyl curcumin (mono-Cur)
Chemical synthesis of 3-Methoxy-4-(prop-2-yn-1-yloxy) benzaldehyde: Vanillin (1 g, 6.57 mmol,
Sigma-Aldrich, St. Louis, MO) and potassium carbonate (4.54 g, 33 mmol) were mixed in 50 mL
methanol, followed by addition of 80 wt% propargyl bromide solution dissolved in toluene (4.91 g,
33 mmol). The reaction mixture was stirred under nitrogen at room temperature overnight. The
reaction product was extracted with ethyl acetate and the organic layers were combined, washed with
water, dried with anhydrous magnesium sulfate, and evaporated under vacuum using a rotatory
evaporator to offer 3-Methoxy-4-(prop-2-yn-1-yloxy) benzaldehyde. The product was used for
reaction without purification. All the regents are purchased from Thermo Fisher Scientific (Waltham,
MA) except specially provided.
Chemical synthesis of 3, 5-Hexadien-2-one, 4-hydroxy-6-(4-hydroxy-3-methoxyphenyl)-:
Boric anhydride (0.69 g, 10 mmol, Sigma-Aldrich) was added to 50 mL anhydrous ethyl acetate,
followed by addition of acetylacetone (4.12 mL, 40 mmol). The mixture was stirred at 50 °C for 30
min. Subsequently, vanillin (1.52 g, 10 mmol) and tributyl borate (5.38 mL, 20 mmol) were added
and the mixture was stirred at 50 °C for another 30 min. Then n-butylamine (0.73 mL, 10 mmol)
dissolved in 15 mL anhydrous ethyl acetate was added dropwise. The reaction mixture was stirred

ACCEPTED MANUSCRIPT
under nitrogen at 80 °C for 4 h and then at room temperature overnight. After 30 mL hydrochloric
acid solution was added, the mixture was stirred for 30 min to quench the reaction. The reaction
product was extracted with ethyl acetate. The crude product was purified by column chromatography
using 50% ethyl acetate in hexane as the mobile phase and silica gel as the stationary phase to afford
3,5-Hexadien-2-one, 4-hydroxy-6-(4-hydroxy-3-methoxyphenyl)-.
Chemical synthesis of mono-Cur: Boric anhydride (0.60 g, 0.85 mmol) was added to 30 mL
anhydrous ethyl acetate, followed by addition of furoylacetone (0.40 g, 1.71 mmol). The mixture was
stirred at 50 °C for 30 min. 3-Methoxy-4-(prop-2-yn-1-yloxy) benzaldehyde (0.32 g, 1.71 mmol) and
tributyl borate (460 µL, 1.71 mmol) were added and the reaction mixture was stirred at 50 °C for
another 30 min. Then n-butylamine (169 µL) dissolved in 10 mL anhydrous ethyl acetate was added
dropwise. The reaction mixture was stirred under nitrogen at 80 °C for 4 h and at room temperature
overnight. After 30 mL hydrochloric acid was added, the mixture was stirred for 30 min to quench
the reaction. The reaction product was extracted with ethyl acetate, the organic layers were combined,
washed with water, dried with anhydrous magnesium sulfate, and evaporated to dryness under
vacuum using a rotary evaporator. The crude product was purified by a silica gel column
chromatography eluted with a gradient of ethyl acetate-hexane gradient (40:60 to 50:50) to afford
mono-Cur probe.
mono-Cur probe was obtained as orange plate. High resolution ESI-MS showed [M-H+] at 405.1342
(calcd. for 405.1344). The purity of the synthesized compound was also checked by 1H NMR and
HPLC analysis. For the HPLC analysis, it was conducted on Agilent 1100 HPLC (Agilent, Santa
Clara, CA, USA) using Kromasil 100-5-C18 column (4.6 x 250 mm, 5 µm), eluted with a mobile
phase of 20% water with 0.1% acetic acid (phase A) and 80% methanol with 0.1% acetic acid (phase
B), at a flow rate of 1.0 mL/min and detection wavelengths at 254 nm and 420 nm.

ACCEPTED MANUSCRIPT
Chemical synthesis of di-propargyl curcumin (di-Cur)
Boric anhydride (0.35 g, 5 mmol) was added to 50 mL anhydrous ethyl acetate, followed by addition
of acetylacetone (1.03 mL, 10 mmol). The mixture was stirred at 50 °C for 30 min. 3-Methoxy-4-
(prop-2-yn-1-yloxy) benzaldehyde (3.8 g, 20 mmol) and tributyl borate (10.8 mL, 40 mmol) were
added and the mixture was stirred at 50 °C for another 30 min. Then n-butylamine (0.4 mL, 5 mmol)
dissolved in 15 mL anhydrous ethyl acetate was added dropwise. The reaction mixture was stirred
under nitrogen at 80 °C for 4 h and at room temperature overnight. After 30 mL hydrochloric acid
was added, the mixture was stirred for 30 min to quench the reaction. The reaction product was
extracted with ethyl acetate, the organic layers were combined, washed with water, dried with
anhydrous magnesium sulfate, and evaporated to dryness under vacuum using a rotary evaporator.
The crude product was purified after recrystallization from methanol. Di-Cur probe was obtained as
orange powder. High resolution ESI-MS showed [M-H+] at 443.1494 (calcd. for 443.1500). The
purity of the compound was validated by HPLC analysis, as described above.
Cell culture
MC38 colon cancer cells (a kind gift from Prof. Ajit Varki at the University of California San Diego)
were cultured in Dulbecco’s modified Eagle’s medium (DMEM, Lonza, Allendale, NJ)
supplemented with 10% fetal bovine serum (FBS, Corning, NY) in a 37 °C incubator under an
atmosphere with 5% CO2.
Cell proliferation assay
MC38 cells were seeded in 96-well plates at a density of 8,000 cells per well in 100 μL DMEM
complete medium and were allowed to attach overnight. The cells were treated with test compounds

ACCEPTED MANUSCRIPT
or DMSO vehicle in complete medium for 24 h. Cell proliferation was assessed by 3-(4,5-
dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT, Sigma-Aldrich, St. Louis, MO) assay.

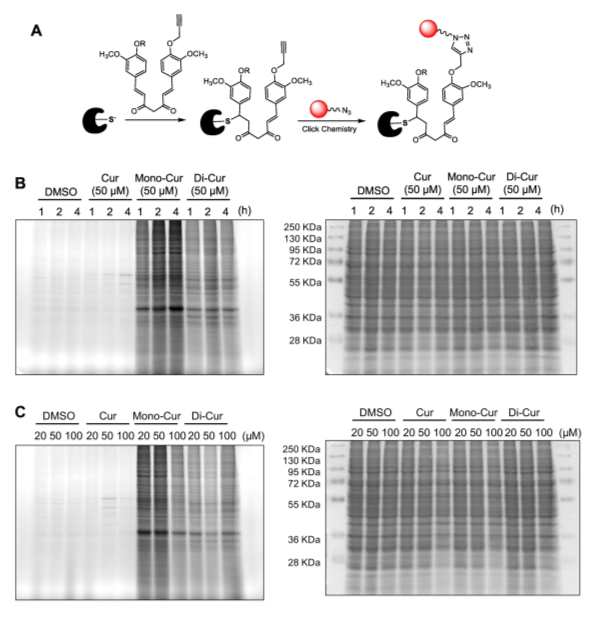

Click chemistry-based fluorescence SDS-PAGE
MC38 cells were treated with curcumin, mono-Cur, di-Cur, or DMSO vehicle in complete medium
for 2-4 h. After aspirating the medium, the cells were washed with PBS, centrifuged at 1,000 rpm at
4 °C for 5 min. Cellular proteins were then extracted using RIPA lysis buffer (Boston BioProducts,
Ashland, MA) with protease inhibitor cocktail (100 ×, Boston BioProducts) for 30 min at 4 °C. After
centrifugation at 12,000 rpm at 4 °C for 20 min, the supernatants were collected and the protein
concentrations were determined using a BCA protein assay kit (Thermo Fisher Scientific).
The supernatant (containing 60 μg protein) was incubated with CuSO4 (50 μM, Thermo Fisher
Scientific), ascorbic acid (50 μM, Thermo Fisher Scientific), tris-
hydroxypropyltriazolylmethylamine (THPTA, 50 μM, Lumiprobe, Hunt Valley, MD), and
CruzFluor smTM 8 azide (50 μM, Santa cruz, Dallas, TX) for 1 h at room temperature in dark. After
the reaction, the solution was 1:1 mixed with SDS-PAGE loading buffer (Amresco, Solon, OH),
heated at 95 ºC for 10 min, and resolved on 15% SDS-PAGE gels. To visualize “click” labelled
proteins, in-gel fluorescence imaging was performed using Odyssey imaging system (LI-COR
Biosciences) at 800 nm. The total protein levels in the gels were determined by coomassie blue
staining.
Click chemistry-based proteomics
MC38 cells were treated with curcumin, mono-Cur, or DMSO vehicle in complete medium for 2-4 h,
then cell lysis was performed as described above. To facilitate protein purifications, we used a click
reaction to label the target proteins with biotin. Briefly, the supernatant from the lysed cell was

ACCEPTED MANUSCRIPT
incubated with CuSO4 (50 μM, Thermo Fisher Scientific), ascorbic acid (50 μM, Thermo Fisher
Scientific), THPTA (50 μM, Lumiprobe), and biotin azide (PEG4 carboxamide-6-azidohexanyl
biotin, 50 μM, Thermo Fisher Scientific) for 1 h at room temperature in dark. The biotinylated
proteins were purified using SoftLink™ soft release avidin resin (Promega, Madison, WI) according
to the manufacturer's instructions. Briefly, ~1.5 mL resin was poured into a polypropylene
chromatography column (BioRad, Hercules, CA). To generate the resin, the resin was saturated with
5 mM biotin (Thermo Fisher Scientific) and then eluted with Tris buffer (50 mM Tris, 150 mM NaCl,
pH 7.9) until the column was equilibrated. The reaction mixture was loaded into the column, washed
with Tris buffer, and eluted with 5 mM biotin in Tris buffer to obtain the biotinylated proteins which
were then concentrated and de-salted by Pierce concentrator (10K MWCO, Thermo Fisher
Scientific). For LC-MS/MS analysis, the isolated protein was 1:1 mixed with SDS-PAGE loading
buffer (Amresco), heated at 95 ºC for 10 min, and resolved on 15% SDS-PAGE gels. The gels were
stained by coomassie blue, and the gels containing proteins were cut for LC-MS/MS at the Mass
Spectrometry Facility at the University of Massachusetts Worcester.
Animal experiment
The animal experiment was conducted in accordance with the protocols (No. 2017-0019) approved
by the Institutional Animal Care and Use Committee of the University of Massachusetts Amherst.
C57BL/6 male mice (age = 6 weeks) were purchased from Charles River (Wilmington, MA). After
acclimation in the animal facility, the mice were divided into 3 groups, and treated with: (1)
curcumin (dose = 100 mg/kg/day) dissolved in 200 μL polyethylene glycol 400 (PEG 400, EMD
Millipore, Billerica, MA), (2) mono-Cur (dose = 100 mg/kg/day) dissolved in PEG 400, and (3) PEG
400 vehicle, by oral gavage. After 4 h, the mice were sacrificed, and tissues were collected for
analysis.

ACCEPTED MANUSCRIPT
Click chemistry-based fluorescence SDS-PAGE for animal tissues
The animal tissues (colon, small intestine, etc) were grounded after frozen by liquid nitrogen. The
proteins from the homogenized animal tissues were extracted with RIPA lysis buffer (Boston
BioProducts) with a protease inhibitor cocktail (100 ×, Boston BioProducts). The click chemistry
reaction and SDS-PAGE fluorescence imaging were performed as described above.
Statistical analysis
Data are expressed as means ± SEM. Statistical comparison of two groups was performed using
either Student’s t test, and comparison of three groups was analyzed by one-way analysis of variance
(ANOVA) followed by Tukey’s post hoc test. The statistical analyses were performed using Prism 6
(GraphPad Software Inc., San Diego, CA) and P < 0.05 was considered statistically significant.
Results
Effects of mono-Cur and di-Cur probes on cell proliferation in MC38 colon cancer cells
We designed and synthesized two click chemistry probes of curcumin, mono-Cur and di-Cur (see
chemical synthesis in Fig. 1). The purities and structures of the synthesized compounds were
validated by HPLC, NMR, and MS analysis (HPLC data see supplemental Fig. S1 and S2, NMR
data see Table S1 and S2).
We studied the biological effects of curcumin and its click probes in MC38 colon cancer cells (Fig.
2). Compared with curcumin, mono-Cur had similar potency to suppress MC38 cell proliferation,
while di-Cur probe had weaker effects. Notably, at a concentration of 50 μM, treatment with
curcumin and mono-Cur for 24 h caused a ~80% inhibition of MC38 cell proliferation, while di-Cur
probe only inhibited ~40% of cell proliferation.

ACCEPTED MANUSCRIPT
Effects of mono-Cur and di-Cur on protein labeling in MC38 colon cancer cells
We tested the effects of curcumin click probes on protein labeling in MC38 colon cancer cells. We
treated MC38 cells with vehicle (DMSO), curcumin, mono-Cur and di-Cur (50 μM) for 1-4 h, then
performed click chemistry-based in-gel fluorescence to image labelled proteins (Fig. 3A). Both click
probes (mono-Cur and di-Cur) were capable of labeling multiple cellular proteins in MC38 cells (Fig.
3B). In comparison, mono-Cur had more potent effect to label proteins than di-Cur. As expected,
treatment with vehicle (DMSO) or curcumin showed little fluorescence signals.
Next, we studied the dose-dependent effects of curcumin click probes on protein labeling in MC38
cells. We treated MC38 cells with vehicle (DMSO), curcumin, mono-Cur and di-Cur (20-100 μM)
for 4 h, then performed in-gel fluorescence imaging (Fig. 3C). In agreement with results above (Fig.
3B), both curcumin click probes were capable of labeling proteins in vitro, and mono-Cur was more
effective to label cellular proteins in MC38 cells (Fig. 3C).
We used a LC-MS/MS-based proteomics to identify the labelled proteins. We treated MC38 cells
with vehicle (DMSO), curcumin, or mono-Cur for 24 h, then performed biotin-based click chemistry
for protein isolation and subsequent LC-MS/MS analysis. LC-MS/MS results showed that 12
proteins were only detected in mono-propargyl curcumin-treated cells, but not in vehicle- or
curcumin-treated cells (see supplemental information Table S3), supporting that these proteins
could be binding proteins of mono-Cur.
Effects of mono-Cur on protein labeling in vivo
We tested whether curcumin could label cellular proteins after oral ingestion in mice. The mice were
treated with vehicle (PEG 400), curcumin, or mono-Cur via oral gavage. After 4 h, we harvested

ACCEPTED MANUSCRIPT
different organs and performed click chemistry-based in-gel fluorescence to image labelled proteins
in tissues (Fig. 4A). We found that liver (Fig. 4B) and colon (Fig. 4C) had clear fluorescence signals,
illustrating the presence of labelled proteins in these tissues. In contrast, other organs, such as
intestine (Fig. S3), had little fluorescence imaging signals, suggesting little presence of labelled
proteins in these tissues.
Discussion
In this study, we have designed and synthesized two “click” probes of curcumin (mono-Cur and di-
Cur), and used these probes to characterize curcumin-protein interactions in vitro and in vivo. Our
results support that both of the two click probes mono-Cur and di-Cur can be detected using the
fluorescence with the protein combination. Compared with di-Cur, the mono-Cur probe is a better
probe to study the biological actions of curcumin. Indeed, mono-Cur has similar biological action
compared with curcumin, while di-Cur has weaker effect. Consistent with this result, we further
found that compared with di-Cur, mono-Cur has more potent effect to label cellular proteins in vitro.
Together, these results support that mono-Cur probe is a better click chemistry probe to study the
biological actions of curcumin. There could be several reasons for the different actions of mono-Cur
and di-Cur. For example, di-Cur has chemical modifications on both hydroxyl (-OH) groups in
curcumin whereas mono-Cur only changed one -OH group. More deletion of -OH group in di-Cur
could have reduced polarity and attenuated permeability across cell membrane. These results also
suggest that the hydroxyl (-OH) groups contribute to the biological actions of curcumin.
A central finding of our research is that curcumin could covalently modify cellular proteins in vitro
and in vivo. Previous research has shown that protein thiols contribute to cell signaling, therefore,
covalent modification of protein thiols could have important biological significance. For example,

ACCEPTED MANUSCRIPT
covalent modification of cysteine residues of Keap1 protein leads to disruption of Keap1-Nrf2
complex and activation of Nrf2-mediated phase II detoxification signaling pathway [10, 13, 14], and
covalent modification of Cys38 residue of p65 protein (a component of NF-κB protein complex)
blocks NF-κB-DNA binding and suppresses NF-κB-mediated inflammatory responses. Therefore, it
is likely that formation of curcumin-protein complex could contribute to the health-promoting effects
of curcumin. A recent click chemistry-based proteomics study showed that curcumin covalently
modifies casein kinase I gamma, and this protein is critical for the bioactivities of curcumin [9]. Here
our LC-MS/MS-based proteomics did not detect this protein, and this difference could be because
different cell lines were used in the experiments. Further elucidation of the direct cellular targets of
curcumin could help to better understand the action mechanisms of curcumin, facilitating the
development of novel compounds for disease prevention.
Using the click chemistry probe of curcumin (mono-Cur), we studied whether curcumin could
covalently label proteins in vivo after oral ingestion. Our results showed that 4 h after oral
consumption of mono-Cur, click chemistry-based in-gel fluorescence imaging showed the formation
of labelled proteins in the colon and liver tissues, which are the two important metabolic organs of
curcumin. Multiple studies showed that curcumin can be used as a chemopreventive agent for
colorectal cancer through many molecular pathways, such as NF-κB and activator protein 1 (AP-1)
[15, 16], which may be explained by our results. This result suggests that after oral administration of
curcumin, curcumin could enter intracellular space, covalently modify the proteins, and get trapped
in the intracellular space. This may contribute to the poor pharmacokinetics of curcumin. Indeed,
previous studies have shown that after oral intake of curcumin, the concentrations of free-form
curcumin in plasma and tissues are extremely low [17-20]. Notably, after a single oral intake of 10-
12 g of curcumin, the free form of curcumin was barely detected in human plasma [6]. This leads to
the hypothesis that the biological effects of curcumin could be mediated by its metabolites. However,

ACCEPTED MANUSCRIPT
the major metabolites of curcumin detected in the circulation are curcumin sulfate and curcumin
glucuronide, which have been shown to be less-active or inactive [6-8, 21]. Here, our results showed
that curcumin forms the complexes with proteins in specific tissues in mice, such as liver and colon,
supporting that these protein complexes may contribute to the beneficial effects of curcumin.
However, it is hard to compare the detected fluorensece proteins in vivo and in vitro because of the
different systems. Moreover, further studies are needed to clarify the protein targets of curcumin in
vivo and the roles of curcumin-protein complexes in the biological actions of curcumin. Meanwhile,
it is important to look for the approaches to improve the structural stability of curcumin as well. For
example, nanoparticle curcumin with increased water solubility is developed and found that it
increased the bioavailability in human subjects [22]. Other developing approaches such as liposomes,
micelles and phospholipid complexes of curcumin were also widely reported to enhance the
bioavailability of curcumin and reviewed by Mirzaei et al. (2017) [23].
Together, using click chemistry-based in-gel fluorescence imaging, our results support that curcumin
can covalently modify cellular proteins in vitro and in vivo. These results could in part explain the
poor pharmacokinetics of curcumin observed in previous studies. In addition, formation of these
protein adducts could contribute to the health-promoting effects of curcumin.
Author contributions
H.Y., E.S. and G.Z. designed the experiments. H.Y., E.S., Z.D., W.W., M.A., Y.N., and J.Z.
performed the experiments. H.Y, E.S., and G.Z analyzed the data and wrote the manuscript. All the
authors read and approved the final manuscript.
Acknowledgement

ACCEPTED MANUSCRIPT
This project was supported by the National Natural Science Foundation of China (21676212) and
Shaanxi Provincial Scientific Technology Research and Development Program (2018KJXX-017).
The authors have declared no conflict of interest.
Supporting information
Figure S1. HPLC analysis of mono-Cur.
Figure S2. HPLC analysis of di-Cur.
Figure S3. Click chemistry imaging of colon tissues. (A) fluorescence imaging; (B) protein
coomassie blue staining. n = 4 per group.
Table S1. 1H NMR chemical shifts and J-coupling constants for mono-Cur (400 MHz, chloroform-d)
Table S2. 1H NMR chemical shifts and J-coupling constants for di-Cur (400 MHz, chloroform-d)
Table S3. List of proteins binding with the mono-Cur probe in MC 38 cells identified by LC-MS/MS.
References
[1] B. B. Aggarwal, A. Kumar, A. C. Bharti, Anticancer potential of curcumin: preclinical and
clinical studies. Anticancer research 2003, 23, 363.

ACCEPTED MANUSCRIPT
[2] H. Yang, Z. Du, W. Wang, M. Song, K. Sanidad, E. Sukamtoh, J. Zheng, L. Tian, H. Xiao, Z. Liu,
G. Zhang, Structure-Activity Relationship of Curcumin: Role of the Methoxy Group in Anti-
inflammatory and Anticolitis Effects of Curcumin. J Agric Food Chem 2017, 65, 4509.
[3] R. E. Carroll, R. V. Benya, D. K. Turgeon, S. Vareed, M. Neuman, L. Rodriguez, M. Kakarala, P.
M. Carpenter, C. McLaren, F. L. Meyskens, Jr., D. E. Brenner, Phase II a clinical trial of curcumin
for the prevention of colorectal neoplasia. Cancer Prev Res (Phila) 2011, 4, 354.
[4] N. Dhillon, B. B. Aggarwal, R. A. Newman, R. A. Wolff, A. B. Kunnumakkara, J. L. Abbruzzese,
C. S. Ng, V. Badmaev, R. Kurzrock, Phase II trial of curcumin in patients with advanced pancreatic
cancer. Clin Cancer Res 2008, 14, 4491.
[5] C. Schneider, O. N. Gordon, R. L. Edwards, P. B. Luis, Degradation of Curcumin: From
Mechanism to Biological Implications. J Agric Food Chem 2015, 63, 7606.
[6] C. Ireson, S. Orr, D. J. Jones, R. Verschoyle, C. K. Lim, J. L. Luo, L. Howells, S. Plummer, R.
Jukes, M. Williams, W. P. Steward, A. Gescher, Characterization of metabolites of the
chemopreventive agent curcumin in human and rat hepatocytes and in the rat in vivo, and evaluation
of their ability to inhibit phorbol ester-induced prostaglandin E2 production. Cancer Res 2001, 61,
1058.
[7] M. Shoji, K. Nakagawa, A. Watanabe, T. Tsuduki, T. Yamada, S. Kuwahara, F. Kimura, T.
Miyazawa, Comparison of the effects of curcumin and curcumin glucuronide in human
hepatocellular carcinoma HepG2 cells. Food Chem 2014, 151, 126.
[8] A. Pal, B. Sung, B. A. Bhanu Prasad, P. T. Schuber, Jr., S. Prasad, B. B. Aggarwal, W. G.
Bornmann, Curcumin glucuronides: assessing the proliferative activity against human cell lines.
Bioorg Med Chem 2014, 22, 435.
[9] D. Abegg, R. Frei, L. Cerato, D. Prasad Hari, C. Wang, J. Waser, A. Adibekian, Proteome-Wide
Profiling of Targets of Cysteine reactive Small Molecules by Using Ethynyl Benziodoxolone
Reagents. Angew Chem Int Ed Engl 2015, 54, 10852.
[10] E. Kansanen, S. M. Kuosmanen, H. Leinonen, A. L. Levonen, The Keap1-Nrf2 pathway:
Mechanisms of activation and dysregulation in cancer. Redox Biol 2013, 1, 45.
[11] A. J. Garcia-Pineres, V. Castro, G. Mora, T. J. Schmidt, E. Strunck, H. L. Pahl, I. Merfort,
Cysteine 38 in p65/NF-kappaB plays a crucial role in DNA binding inhibition by sesquiterpene
lactones. J Biol Chem 2001, 276, 39713.
[12] M. S. Singh, S. Chowdhury, S. Koley, Advances of azide-alkyne cycloaddition-click chemistry
over the recent decade. Tetrahedron 2016, 72, 5257.
[13] K. Taguchi, H. Motohashi, M. Yamamoto, Molecular mechanisms of the Keap1-Nrf2 pathway
in stress response and cancer evolution. Genes Cells 2011, 16, 123.
[14] C. E. Paulsen, K. S. Carroll, Cysteine-mediated redox signaling: chemistry, biology, and tools
for discovery. Chem Rev 2013, 113, 4633.
[15] J. Park, C.N. Conteas. Anti-carcinogenic properties of curcumin on colorectal cancer. World J
Gastrointest Oncol 2010, 2, 169.

ACCEPTED MANUSCRIPT
[16] D.P. Chauhan. Chemotherapeutic potential of curcumin for colorectal cancer. Curr Pharm Des
2002, 8, 1695.
[17] B. Wahlstrom, G. Blennow, A study on the fate of curcumin in the rat. Acta Pharmacol Toxicol
(Copenh) 1978, 43, 86.
[18] V. Ravindranath, N. Chandrasekhara, Absorption and tissue distribution of curcumin in rats.
Toxicology 1980, 16, 259.
[19] M. H. Pan, T. M. Huang, J. K. Lin, Biotransformation of curcumin through reduction and
glucuronidation in mice. Drug Metab Dispos 1999, 27, 486.
[20] S. Perkins, R. D. Verschoyle, K. Hill, I. Parveen, M. D. Threadgill, R. A. Sharma, M. L.
Williams, W. P. Steward, A. J. Gescher, Chemopreventive efficacy and pharmacokinetics of
curcumin in the min/+ mouse, a model of familial adenomatous polyposis. Cancer Epidemiol
Biomarkers Prev 2002, 11, 535.
[21] W. Wang, E. Sukamtoh, H. Xiao, G. Zhang, Curcumin inhibits lymphangiogenesis in vitro and
in vivo. Mol Nutr Food Res 2015, 59, 2345.
[22] M. Kanai, A. Imaizumi, Y. Otsuka, H. Sasaki, M. Hashiguchi, K. Tsujiko, S. Matsumoto,
H. Ishiguro, T. Chiba. Dose-escalation and pharmacokinetic study of nanoparticle curcumin, a
potential anticancer agent with improved bioavailability, in healthy human volunteers. Cancer
Chemother. Pharmacol. 2012, 69, 65.
[23] H. Mirzaeia , A. Shakerib , B. Rashidie , A. Jalilia , Z. Banikazemic , A. Sahebkar. Phytosomal
curcumin: A review of pharmacokinetic, experimental and clinical studies. Biomed. Pharmacother.
2017, 85, 102–112.

ACCEPTED MANUSCRIPT
Figure legends
Figure 1. Chemical synthesis strategy to prepare the click chemistry probes of curcumin (di-Cur and
mono-cur).
Figure 2. Effects of curcumin and its click probes on cell proliferation. The results are expressed
as mean  SEM, n = 6/group.
Figure 3. Click chemistry-based in-gel SDS-PAGE fluorescence imaging in MC38 colon cancer
cells. (A) Scheme of the experiment. (B) Time-course effects of curcumin click probes to label
cellular proteins in MC38 cells. MC38 cells were treated with 50 μM curcumin, mono-Cur, or di-Cur,
or DMSO vehicle for 1-4 h. Left panel: fluorescence imaging; Right panel: coomassie blue staining.
(C) Dose-dependent effects of curcumin click probes to label cellular proteins in MC38 cells. MC38
cells were treated with varied doses of curcumin, mono-Cur, or di-Cur, or DMSO vehicle for 4 h.
Left panel: fluorescence imaging; Right panel: coomassie blue staining.

ACCEPTED MANUSCRIPT
Figure 4. Click chemistry-based in-gel SDS-PAGE fluorescence imaging in mice. (A) Scheme of
the experiment. (B) Click chemistry imaging of liver tissues. Left panel: fluorescence imaging; Right
panel: protein coomassie blue staining. (C) Click chemistry imaging of colon tissues. Left panel:
fluorescence imaging; Right panel: protein coomassie blue staining. n = 4 per group.

Figure 1

Figure 2

Figure 3

Figure 4
