Angewandte
Chemie
DOI: 10.1002/anie.200801424
Stereoselective Catalysis
Catalytic Enantioselective Alkylation of Substituted Dioxanone Enol
Ethers: Ready Access to C(a)-Tetrasubstituted Hydroxyketones,
Acids,and Esters**
Masaki Seto, Jennifer L. Roizen, and Brian M. Stoltz*
The catalytic enantioselective formation of tetrasubstituted
a-alkoxycarbonyl compounds is an ongoing challenge to
synthetic chemists.[1] Fully substituted a-hydroxyesters and
acids comprise essential components of, and building blocks
for, many bioactive natural products (see Figure 1). These
synthesis of C(a)-tetrasubstituted hydroxy carbonyl com-
pounds.[7]

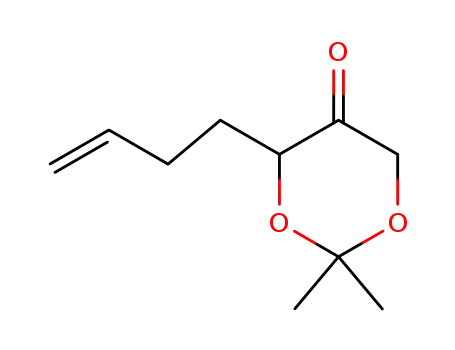

For this application, we chose to incorporate the a-
oxygenation into a cyclic motif, the 2,2-dimethyl-1,3-dioxan-
5-one framework,[8] and employ this platform for the enan-
tioselective synthesis of a-dialkyl ketones (Scheme 1, 6, for
Figure 1. Natural products containing a-hydroxyesters and acids.
Scheme 1. Alkylation strategies using the dioxanone framework.
include quinic acid (1), cytotoxic leiodolide A (2),[2] and the
anticancer agents in the harringtonine series (3a–f), whose
activities depend dramatically on the presence and composi-
tion of an a-hydroxyester side-chain.[3] While many
approaches to these important moieties exist,[4,5] we envi-
sioned applying our recently developed palladium-catalyzed
methods for the formation of enantioenriched all-carbon
quaternary stereocenters in cyclic alkanones[6] to a general
example). Dioxanones are challenging alkylation substrates
because standard conditions do not permit alkylation, but
instead facilitate ketone reduction (e.g. lithium diisopropyla-
mide, LDA, À788C), or self-condensation (e.g., lithium
hexamethyldisilazide, LHMDS), accompanied by decompo-
sition.[9] A technology that avoids this undesirable reactivity
would represent a marked advance in dioxanone chemistry.
For this purpose, Enders and co-workers have developed a
diastereoselective a-alkylation that relies on chirality
imparted by (+)-S-1-amino-2-methoxymethylpyrrolidine
hydrazones, which can be cleaved in a subsequent step
[Scheme 1, Eq. (1)]. We believed our catalytic palladium
technology would be an ideal platform to provide access to
valuable tetrasubstituted a-hydroxyketones, esters, and acids
[Scheme 1, Eq. (2)].
[*] Dr. M. Seto, J. L. Roizen, Prof. B. M. Stoltz
The Arnold and Mabel Beckman Laboratories of Chemical Syn-
thesis, Division of Chemistry and Chemical Engineering, California
Institute of Technology
1200 E. California Boulevard MC 164-30, Pasadena, CA 91125 (USA)
Fax: (+1)626-564-9297
E-mail: stoltz@caltech.edu
[**] The authors thankthe Takeda Pharmaceutical Company Limited of
Japan (postdoctoral fellowship to M.S.), the California Tobacco-
Related Disease Research Program of the University of California,
Grant Number 14DT-0004 (predoctoral fellowship to J.L.R.), the
NIH-NIGMS (R01 GM 080269-01), and Caltech for financial
support, Materia, Inc. for their generous donation of catalyst 9 used
in these studies, and Dr. S. Virgil, A. Silberstein, and Y. Segawa for
experimental assistance.
We examined the conversion of silyl enol ether 4a[10] into
enantioenriched tetrasubstituted ketone 6a under a variety of
palladium-catalyzed conditions, beginning with the standard
conditions developed for the all-carbon system (Table 1).[6]
Triethylsilyl derivative 4a was chosen for its stability and ease
of synthesis, compared to the related trimethylsilyl com-
pound. Treatment of silyl ether 4a with Pd(dmdba)2 (5 mol%,
dmdba = bis(3,5-dimethoxybenzylidene)acetone),
Supporting information for this article is available on the WWW
under http://dx.doi.org/10.1002/anie.200801424.
Angew. Chem. Int. Ed. 2008, 47, 6873 –6876
ꢀ 2008 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
6873

Communications
Table 1: Optimization of the enantioselective allylation of silyl enol ether
ates a variety of substituents at the a-position, including alkyl
(Table 2, entries 1 and 2), benzyl (Table 2, entry 3), and
alkenyl (Table 2, entries 7–9)moieties. Additionally, the
reaction proceeds when the allyl group is substituted inter-
nally by methyl, chloro, or phenyl (Table 2, entries 4–7)to
afford products in high yields and high entantiomeric excess.
Having established a general route to the enantioenriched
tetrasubstituted dioxanone 6, we developed a straightforward
sequence to transform the a-alkoxyketone into the corre-
sponding a-hydroxyester 8 (Table 3). To effect acetonide
cleavage, enantioenriched product 6 is treated with catalytic
p-toluenesulfonic acid (TsOH·H2O)in methanol or ethanol.
Dihydroxyketone 7 is oxidatively cleaved in the presence of
periodic acid, selectively removing the primary alcohol,[13] to
generate the a-hydroxyacid. Subsequent methylation fur-
nishes the tetrasubstituted enantioenriched a-hydroxyester 8.
These operations are tolerant of a number of substitutents,
including alkyl (Table 3, entries 1–4), chloro (Table 3,
entry 5), and aryl (Table 3, entries 3 and 6) groups. Further-
4a.[a]
Entry
Solvent
Yield [%][b]
ee [%][c]
1
THF
Et2O
1,4-dioxane
benzene
toluene
40
59
65
67
74
81
89
67
84
88
2[d]
3
4
5
[a] Reactions were performed using 0.1 mmol of substrate in solvent
(0.033m) at 258C over 5–7 h unless stated otherwise. [b] Yields of
isolated product. [c] Measured by chiral HPLC following conversion to
6b.[12] [d] Performed at 308C and 0.0167m.
Table 3: Substrate scope for methyl ester formation.[a]
(S)-tBuPHOX (5, 5.5 mol%),[11] Bu4NPh3SiF2 (TBAT,
1 equiv), and diallyl carbonate (1.05 equiv) in THF at 258C
(Table 1, entry 1)produced enantioenriched 6a in 40% yield
and 81% ee. Interestingly, the choice of solvent played a
significant role in the selectivity of tertiary ether formation. In
the optimal case, use of toluene as solvent furnished
dioxanone 6a in 74% yield and 88% ee (Table 1, entry 5).
We applied the optimized conditions to silyl enol ethers
with diverse a-substituents, in combination with substituted
allyl carbonates (Table 2). The asymmetric alkylation toler-
Entry
Substrate
R2
Yield 7 [%][b,c]
Yield 8 [%][b,c]
R1
1
2
Me
Et
PhCH2
Me
Me
H
H
H
Me
Cl[e]
Ph[f]
90
97
91
97
97
92
54
60
85
84
76
77
3[d]
4
5
6
Me
Table 2: Substrate scope for enantioselective allylation.[a]
7[g]
80
51
R1
R2
Yield [%][b]
ee [%][c]
8
–
48[h]
Entry
1
2
3
Me
Et
PhCH2
Me
Me
Me
allyl
2-methallyl
1-butenyl
H
H
H
Me
Cl[g]
Ph
Me
H
86
79
85
59
59
73
93
88
83
87
93
86
89
92
94
88
85
92
4[d,e]
5[f]
6[h]
7[e]
8
9[i]
–
61[h]
[a] Acetonides 6 (1.0 equiv) were cleaved with TsOH·H2O (0.1 equiv) in
MeOH (0.1m) over 2–3 h unless otherwise noted. Diols 7 were oxidized
with H5IO6 (1.5 equiv) in 2:1 THF:H2O (0.033m) unless otherwise noted.
TsOH=p-toluenesulfonic acid [b] Yields of isolated product. [c] There is
no measurable change of ee value through this sequence. [d] Acetonide
cleavage was performed in EtOH over 6 h. [e] Absolute stereochemistry
has been assigned by analogy, except in this case, which was assigned by
conversion into (+)-(S)-citramalic acid dimethyl ester.[12] [f] Direct
treatment with H5IO6 and subsequent methylation provided the ester
in 47% yield over two steps. [g] See the Supporting Information for a
description of the preparation of 6b from 6a by cross-metathesis.
[h] Three-step yield. [i] Oxidation performed with H5IO6 (1.0 equiv).
9
H
[a] Reactions were performed with silyl enol ether (0.5 mmol) and diallyl
carbonate (1.05 equiv) in PhMe (0.033m) unless stated otherwise. When
R1 =R2 =H, the reaction proceeds in 13% yield and 82% ee. [b] Yields of
isolated product. [c] Measured by chiral GC or HPLC.[12] [d] Performed
with trimethylsilyl precursor, 35 mol% TBAT in Et2O (0.0167m) at 258C.
[e] Performed with dimethallyl carbonate (1.05 equiv). [f] Performed with
dichloroallyl carbonate (1.05 equiv) at 358C. [g] Absolute stereochemis-
try has been assigned by analogy, except in this case, which was assigned
by conversion into (+)-(S)-citramalic acid dimethyl ester.[12] [h] Per-
formed with diphenylallyl carbonate (1.05 equiv).
6874 www.angewandte.org
ꢀ 2008 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Angew. Chem. Int. Ed. 2008, 47, 6873 –6876

Angewandte
Chemie
more,the tetrasubstituted dioxanone derivative 6 may incor-
porate enolizable a,b-unsaturated esters (Table 3, entry 7), or
cyclic structures (Table 3, entries 8 and 9)as substituents.
Notably, assembly of acid (S)-10 (see Scheme 2)consti-
tutes a catalytic enantioselective formal synthesis of (À)-
quinic acid (1),[14] a useful chiral building block that has been
Keywords: alcohols · allylic compounds · asymmetric catalysis ·
enantioselectivity · palladium
.
[1] G. M. Coppola, H. F. Schuster, a-Hydroxy Acids in Enantiose-
lective Syntheses, Wiley-VCH, Weinheim, 1997.
[2] J. S. Sandler, P. L. Colin, M. Kelly, W. Fenical, J. Org. Chem.
2006, 71, 7245 – 7251.
[3] a)I. Takano, I. Yasuda, M. Nishijima, Y. Hitotsuyanagi, K.
Takeya, H. Itokawa, Bioorg. Med. Chem. Lett. 1996, 6, 1689 –
1690; b)I. Takano, I. Yasuda, M. Nishijima, Y. Yanagi, K.
Takeya, H. Itokawa, Phytochemistry 1997, 44, 735 – 738; c)H.
Morita, M. Arisaka, N. Yoshida, J. Kobayashi, Tetrahedron 2000,
56, 2929 – 2934; d)Q. Liu, E. M. Ferreira, B. M. Stoltz, J. Org.
Chem. 2007, 72, 7352 – 7358.
[4] For reviews, see: a)E. J. Corey, A. Guzmµn-PØrez, Angew.
Chem. 1998, 110, 402 – 415; Angew. Chem. Int. Ed. 1998, 37, 388 –
401; b)D. J. Ramón, M. Yus, Angew. Chem. 2004, 116, 286 – 289;
Angew. Chem. Int. Ed. 2004, 43, 284 – 287; c)D. J. Ramón, M.
Yus, Curr. Org. Chem. 2004, 8, 149 – 183; d)C. Garcia, V. S.
Martin, Curr. Org. Chem. 2006, 10, 1849 – 1889; e)S. V. Ley, T. D.
Sheppard, R. M. Myers, M. S. Chorghade, Bull. Chem. Soc. Jpn.
2007, 80, 1451 – 1472.
[5] For select recent examples, see: a)B. M. Trost, K. Dogra, M.
Franzini, J. Am. Chem. Soc. 2004, 126, 1944 – 1945; b)B. M.
Trost, J. Xu, M. Reichle, J. Am. Chem. Soc. 2007, 129, 282 – 283;
c)H. Li, B. Wang, L. Deng, J. Am. Chem. Soc. 2006, 128, 732 –
733; d)T. Ooi, K. Fukumoto, K. Maruoka, Angew. Chem. 2006,
118, 3923 – 3926; Angew. Chem. Int. Ed. 2006, 45, 3839 – 3842;
e)S. S. Kim, S. H. Lee, J. M. Kwak, Tetrahedron: Asymmetry
2006, 17, 1165 – 1169; f)S. S. Kim, Pure Appl. Chem. 2006, 78,
977 – 983; g)S.-K. Tian, L. Deng, Tetrahedron 2006, 62, 11320 –
11330; h)K. Mikami, Y. Kawakami, K. Akiyama, K. Aikawa, J.
Am. Chem. Soc. 2007, 129, 12950 – 12951; i)S. J. Zuend, E. N.
Jacobsen, J. Am. Chem. Soc. 2007, 129, 15872 – 15883; j)K.
Zheng, B. Qin, X. Liu, X. Feng, J. Org. Chem. 2007, 72, 8478 –
8483; k)B. Qin, X. Xiao, X. Liu, J. Huang, Y. Wen, X. Feng, J.
Org. Chem. 2007, 72, 9323 – 9328; l)K. Takada, N. Takemura, K.
Cho, Y. Sohtome, K. Nagasawa, Tetrahedron Lett. 2008, 49,
1623 – 1626.
[6] a)J. T. Mohr, B. M. Stoltz, Chem. Asian J. 2007, 2, 1476 – 1491;
b)J. T. Mohr, D. C. Behenna, A. M. Harned, B. M. Stoltz,
Angew. Chem. 2005, 117, 7084 – 7087; Angew. Chem. Int. Ed.
2005, 44, 6924 – 6927; c)D. C. Behenna, B. M. Stoltz, J. Am.
Chem. Soc. 2004, 126, 15044 – 15045.
[7] For an alternative approach to asymmetric enolate alkylation,
see: a)M. Braun, F. Laicher, T. Meier, Angew. Chem. 2000, 112,
3637 – 3640; Angew. Chem. Int. Ed. 2000, 39, 3494 – 3497; b)M.
Braun, T. Meier, Angew. Chem. 2006, 118, 7106 – 7109; Angew.
Chem. Int. Ed. 2006, 45, 6952 – 6955; c)M. Braun, T. Meier, F.
Laicher, P. Meletis, M. Fidan, Adv. Synth. Catal. 2008, 350, 303 –
314.
Scheme 2. Formal synthesis of (À)-quinic acid (1) and (À)-dragmaci-
din F (11).
employed in numerous syntheses,[15] including our recent
synthesis of dragmacidin F.[16] Toward this end, we recognize
that enantioenriched a,w-dienes can be transformed into
cycloalkenes with a stereocenter remote to the olefin.[17]
Chiral diene 6e undergoes ring closing metathesis to generate
3-methylcyclopentene 6c in 95% yield and 85% ee. Likewise,
enantioenriched a,w-diene 6 f furnishes cyclohexene 6d in
90% yield and 92% ee. Cyclohexene 6d readily undergoes
acetonide cleavage and periodic acid oxidation to provide
pure, isolable acid (S)-10, completing the formal synthesis of
(À)-quinic acid (1).
In summary, we have developed a palladium-catalyzed
asymmetric alkylation of simple dioxanone derivatives, and
transformed the enantioenriched products into a-hydroxyke-
tones, acids, and esters. This mild, straightforward sequence
proceeds in high yield and enantioselectivity. This procedure
has also enabled a catalytic enantioselective formal synthesis
of (À)-quinic acid. Research is underway to extend this
chemistry to other a-heteroatom-containing carbonyl deriv-
atives and to employ these methods in the total synthesis of
bioactive natural products.
[8] For the use of dioxanones as a template for the synthesis of
stereochemically rich substrances, see: a)D. Enders, W. Bettray
in Asymmetric Synthesis with Chemical and Biological Methods
(Eds: D. Enders, K.-E. Jaeger), Wiley-VCH, Weinheim, 2007,
pp. 38 – 75; b)D. Enders, I. Breuer, E. Drosdow, Synthesis 2005,
3239 – 3244; c)D. Enders, C. Grondal, Angew. Chem. 2005, 117,
1235 – 1238; Angew. Chem. Int. Ed. 2005, 44, 1210 – 1212; d)D.
Enders, B. Bockstiegel, Synthesis 1989, 493 – 496.
[9] M. Majewski, D. M. Gleave, P. Nowak Can. J. Chem. 1995, 73,
1616 – 1626.
[10] Silyl enol ethers were formed from alkylated ketones. The
alkylated ketone was treated with triethylsilyl chloride
(1.3 equiv), triethylamine (1.6 equiv), and sodium iodide
(1.3 equiv)in acetonitrile (0.63 m)and isolated by silica gel
Received: March 25, 2008
Revised: May 1, 2008
Published online: July 24, 2008
Angew. Chem. Int. Ed. 2008, 47, 6873 –6876
ꢀ 2008 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
www.angewandte.org
6875

Communications
chromatography in 46–78% yield, with 6–15% yield of the
[14] a)L. P. Rapado, V. Bulugahapitiya, P. Renauld, Helv. Chim. Acta
2000, 83, 1625 – 1623; b)J. Wolinsky, R. Novak, R. Vasilev, J.
Org. Chem. 1964, 29, 3596 – 3598.
[15] For a review, see: A. Barco, S. Benetti, C. De Risi, P. Marchetti,
G. P. Pollini, V. Zanirato, Tetrahedron: Asymmetry 1997, 8,
3515 – 3545.
isomeric enol ether. For details, see the Supporting Information.
[11] a)G. Helmchen, A. Pfaltz, Acc. Chem. Res. 2000, 33, 336 – 345;
b)J. M. J. Williams, Synlett 1996, 705 – 710, and references
therein.
[12] See Supporting Information for details.
[16] a)N. K. Garg, D. D. Caspi, B. M. Stoltz, J. Am. Chem. Soc. 2004,
126, 9552 – 9553; b)N. K. Garg, D. D. Caspi, B. M. Stoltz, J. Am.
Chem. Soc. 2005, 127, 5970 – 5978; c)N. K. Garg, B. M. Stoltz,
Chem. Commun. 2006, 3769 – 3779; d)N. K. Garg, D. D. Caspi,
B. M. Stoltz, Synlett 2006, 3081 – 3087.
[13] G. H. Phillips, E. J. Bailey, B. M. Bain, R. A. Borella, J. B.
Buckton, J. C. Clark, A. E. Doherty, A. F. English, H. Fazaker-
ley, S. B. Laing, E. Lane-Allman, J. D. Robinson, P. E. Sandford,
P. J. Sharratt, I. P. Steeples, R. D. Stonehouse, C. Williamson, J.
Med. Chem. 1994, 37, 3717 – 3729.
[17] M. Scholl, S. Ding, C. W. Lee, R. H. Grubbs, Org. Lett. 1999, 1,
953 – 956.
6876 www.angewandte.org
ꢀ 2008 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Angew. Chem. Int. Ed. 2008, 47, 6873 –6876
