L. Xu et al. / Electrochimica Acta 56 (2011) 2815–2822
2821
tion of the monomer in 0.2 M NaClO4/ACN solution. The obtained
polymer film is studied by cyclic voltammetry, UV–vis and FT-IR
spectra, scanning electron microscopy. Electrochromic properties
of PBTB film are investigated in detail. Spectroelectrochemistry
reveals that PBTB film has good electrochromic properties (yel-
low color at neutral state and green color at full doped state).
The dual type ECD constructed utilizing PBTB and PEDOT has
reasonable response time (0.43 s) and optical contrast (29.5%) at
628 nm. The CE of the ECD is calculated to be 408.9 cm2 C−1. It
is interesting that this ECD shows green color at neutral state.
These properties make PBTB a good candidate for commercial
applications.
Acknowledgements
Financial supports from the National Natural Science Foun-
dation of China (no. 20906043) and the Taishan Scholarship of
Shandong Province are gratefully acknowledged.

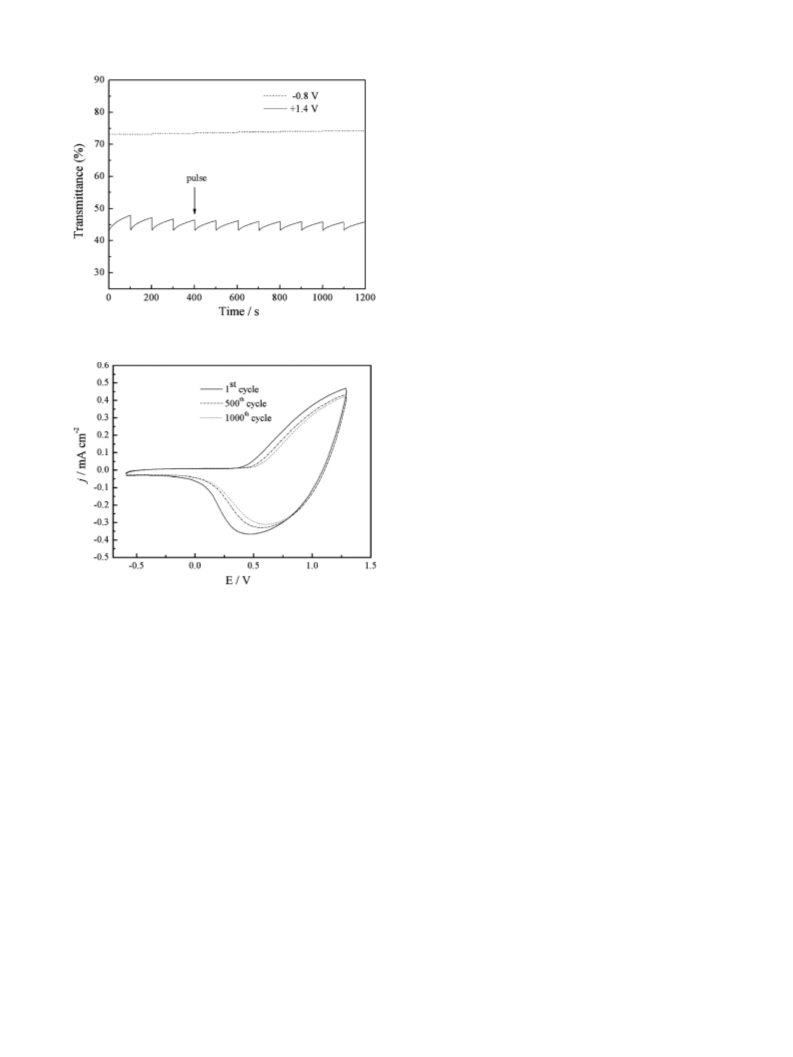

Fig. 11. Open circuit stability of the PBTB/PEDOT ECD monitored at 628 nm.
References
[1] S. Gunes, H. Neugebauer, N.S. Sariciftci, Chem. Rev. 107 (2007) 1324.
[2] J.J.M. Halls, C.A. Walsh, N.C. Greenham, E.A. Marseglia, R.H. Friend, S.C. Moratti,
A.B. Holmes, Nature 376 (1995) 498.
[3] D.T. McQuade, A.E. Pullen, T.M. Swager, Chem. Rev. 100 (2000) 2537.
[4] R.H. Friend, R.W. Gymer, A.B. Holmes, J.H. Burroughes, R.N. Marks, C. Taliani,
D.D.C. Bradley, D.A. Dos Santos, J.L. Bredas, M. Logdlund, W.R. Salaneck, Nature
397 (1999) 121.
[5] C.J. Brabec, N.S. Sariciftci, J.C. Hummelen, Adv. Funct. Mater. 11 (2001) 15.
[6] G.M. Nie, L.J. Zhou, Q.F. Guo, S.S. Zhang, Electrochem. Commun. 12 (2010)
160.
[7] O. Turkarslan, M. Ak, C. Tanyeli, I.M. Akhmedov, L. Toppare, J. Polym. Sci. Part
A: Polym. Chem. 45 (2007) 4496.
˙
[8] S. Koyuncu, B. Gultekin, C. Zafer, H. Bilgili, M. Can, S. Demic, I. Kaya, S. Icli,
Electrochim. Acta 54 (2009) 5694.
[9] G. Sonmez, H. Meng, F. Wudl, Chem. Mater. 16 (2004) 574.
[10] G. Sonmez, C.K.F. Shen, Y. Rubin, F. Wudl, Angew. Chem. Int. Ed. 43 (2004)
1498.
[11] A. Yildirim, S. Tarkuc, M. Ak, L. Toppare, Electrochim. Acta 53 (2008) 4875.
[12] E. Yildiz, P. Camurlu, C. Tanyeli, I. Akhmedov, L. Toppare, J. Electroanal. Chem.
612 (2008) 247.
[13] M. Li, A. Patra, Y. Sheynin, M. Bendikov, Adv. Mater. 21 (2009) 1707.
[14] C. Ma, M. Taya, C.Y. Xu, Electrochim. Acta 54 (2008) 598.
[15] R.J. Mortimer, A.L. Dyer, J.R. Reynolds, Displays 27 (2006) 2.
[16] A. Azens, C.G. Granqvist, J. Solid State Electrochem. 7 (2003) 64.
[17] S. Möller, C. Perlov, W. Jackson, C. Taussig, S.R. Forrest, Nature 426 (2003) 166.
[18] F.B. Koyuncu, S. Koyuncu, E. Ozdemir, Electrochim. Acta 55 (2010) 4935.
[19] C. Zhang, C. Hua, G.H. Wang, M. Ouyang, C.A. Ma, J. Electroanal. Chem. 645
(2010) 50.
[20] J. Seixas de Melo, J. Pina, H.D. Burrows, R.E. Di Paolo, A.L. Mac¸ anita, Chem. Phys.
330 (2006) 449.
[21] A. Bessiere, C. Duhamel, J.C. Badot, V. Lucas, M.C. Certiat, Electrochim. Acta 49
(2004) 2051.
[22] S.A. Manhart, A. Adachi, K. Sakamaki, K. Okita, J. Ohshita, T. Ohno, T. Hamaguchi,
A. Kunai, J. Kido, J. Organomet. Chem. 592 (1999) 52.
[23] C. Pozo-Gonzalo, M. Salsamendi, J.A. Pomposo, H.J. Grande, E.Y. Schmidt, Y.Y.
Rusakov, B.A. Trofimov, Macromolecules 41 (2008) 6886.
[24] Y. Pang, X. Li, H. Ding, G. Shi, L. Jin, Electrochim. Acta 52 (2007) 6172.
[25] L. Akcelrud, Prog. Polym. Sci. 28 (2003) 875.
500 mV s−1
.
tra for PBTB is monitored at 628 nm as a function of time at −0.8
and +1.4 V by applying the potential for 1 s for 200 and 100 s time
intervals, respectively. As seen in Fig. 11, both blue and green
states are highly stable and the device keeps its color without
significant loss. Thus, this device shows a good optical memory.
Based on this discussion, PBTB/PEDOT ECD is well performing under
open circuit conditions, indicating this ECD has potential applica-
tions.
[26] S.C. Ng, J.M. Xu, H.S.O. Chan, Synth. Met. 110 (2000) 31.
[27] M.J. Yang, Q.H. Zhang, P. Wu, H. Ye, X. Liu, Polymer 46 (2005) 6266.
[28] S. Ayachi, K. Alimi, M. Bouachrine, M. Hamidi, J.Y. Mevellec, J.P. L‘ere-Porte,
Synth. Met. 156 (2006) 318.
[29] A. Durmus, G.E. Gunbas, P. Camurlu, L. Toppare, Chem. Commun. 31 (2007)
3246.
[30] S.C. Ng, J.M. Xu, H.S.O. Chan, A. Fujii, K. Yoshino, J. Mater. Chem. 9 (1999)
381.
[31] S. Jin, S. Cong, G. Xue, B. Mansdorf, S.Z.D. Cheng, Adv. Mater. 14 (2002) 1492.
[32] L.Y. Xu, J.S. Zhao, R.M. Liu, H.T. Liu, J.F. Liu, H.S. Wang, Electrochim. Acta 55
(2010) 8855.
3.4.4. Stability of ECD
the application of electrochromic materials in ECD utility [6]. For
this reason, the PBTB/PEDOT ECD is tested by cycling of the applied
potential between −0.6 and +1.3 V with 500 mV s−1 to evaluate the
stability of the devices (Fig. 12). After 500 cycles, 86.0% of its elec-
troactivity is retained and there is no obvious decrease of activity
between 500 cycles and 1000 cycles. These results indicate that this
ECD has reasonable redox stability.
[33] R. Yue, J.K. Xu, B.Y. Lu, C.C. Liu, Y.Z. Li, Z.J. Zhu, S. Chen, J. Mater. Sci. 44 (2009)
5909.
[34] G.W. Lu, G.Q. Shi, J. Electroanal. Chem. 586 (2006) 154.
[35] C. Zhang, Y. Xu, N. Wang, Y. Xu, W. Xiang, M. Ouyang, C. Ma, Electrochim. Acta
55 (2009) 13.
4. Conclusions
[36] B. Yigitsoy, S. Varis, C. Tanyeli, I.M. Akhmedov, L. Toppare, Electrochim. Acta 52
(2007) 6561.
[37] K. Kham, S. Sadki, C. Chevrot, Synth. Met. 145 (2004) 135.
[38] D.M. de Leeuw, M.M.J. Simenon, A.R. Brown, R.E.F. Einerhand, Synth. Met. 87
(1997) 53.
1,4-Dis(2-thienyl)-benzene monomer containing benzene and
thiophene units is synthesized by coupling reaction and then
its polymer is successfully synthesized by electrochemical oxida-
