Synthesis and mesomorphic properties of new methylene-linked linear symmetrical liquid crystal dimers

Article abstract of DOI:10.1080/15421406.2014.927549

A series of methylene-linked symmetrical liquid crystal dimers were synthesized. Their structures were confirmed by physicochemical techniques. Differential scanning calorimetry and polarizing optical microscopy verified the liquid crystal behaviors and t

Full text of DOI:10.1080/15421406.2014.927549

This article was downloaded by: [The Aga Khan University]
On: 13 March 2015, At: 22:31
Publisher: Taylor & Francis
Informa Ltd Registered in England and Wales Registered Number: 1072954 Registered
office: Mortimer House, 37-41 Mortimer Street, London W1T 3JH, UK
Molecular Crystals and Liquid Crystals
Publication details, including instructions for authors and
subscription information:
http://www.tandfonline.com/loi/gmcl20
Synthesis and Mesomorphic Properties
of New Methylene-Linked Linear
Symmetrical Liquid Crystal Dimers
a
a
b
Uhood J. Al-Hamdani , Aiman G. Al-Ibrahim , Hanna S. Abbo &
b
Salam J. J. Titinchi
a
Department of Chemistry, College of Education, University of
Basrah, Basrah, Iraq
b
Department of Chemistry, University of the Western Cape,
Bellville, Cape Town, South Africa
Published online: 26 Feb 2015.
Click for updates
To cite this article: Uhood J. Al-Hamdani, Aiman G. Al-Ibrahim, Hanna S. Abbo & Salam J.
J. Titinchi (2015) Synthesis and Mesomorphic Properties of New Methylene-Linked Linear
Symmetrical Liquid Crystal Dimers, Molecular Crystals and Liquid Crystals, 607:1, 13-22, DOI:
10.1080/15421406.2014.927549
To link to this article: http://dx.doi.org/10.1080/15421406.2014.927549
PLEASE SCROLL DOWN FOR ARTICLE
Taylor & Francis makes every effort to ensure the accuracy of all the information (the
“
Content”) contained in the publications on our platform. However, Taylor & Francis,
our agents, and our licensors make no representations or warranties whatsoever as to
the accuracy, completeness, or suitability for any purpose of the Content. Any opinions
and views expressed in this publication are the opinions and views of the authors,
and are not the views of or endorsed by Taylor & Francis. The accuracy of the Content
should not be relied upon and should be independently verified with primary sources
of information. Taylor and Francis shall not be liable for any losses, actions, claims,
proceedings, demands, costs, expenses, damages, and other liabilities whatsoever or
howsoever caused arising directly or indirectly in connection with, in relation to or arising
out of the use of the Content.
This article may be used for research, teaching, and private study purposes. Any
substantial or systematic reproduction, redistribution, reselling, loan, sub-licensing,
systematic supply, or distribution in any form to anyone is expressly forbidden. Terms &

Conditions of access and use can be found at http://www.tandfonline.com/page/terms-
and-conditions

Mol. Cryst. Liq. Cryst., Vol. 607: pp. 13–22, 2015
Copyright © Taylor & Francis Group, LLC
ISSN: 1542-1406 print/1563-5287 online
DOI: 10.1080/15421406.2014.927549
Synthesis and Mesomorphic Properties of New
Methylene-Linked Linear Symmetrical
Liquid Crystal Dimers
1
1
UHOOD J. AL-HAMDANI, AIMAN G. AL-IBRAHIM,
2
2,∗
HANNA S. ABBO, AND SALAM J. J. TITINCHI
1Department of Chemistry, College of Education, University of Basrah, Basrah,
Iraq
2
Department of Chemistry, University of the Western Cape, Bellville, Cape
Town, South Africa
A series of methylene-linked symmetrical liquid crystal dimers were synthesized.
Their structures were confirmed by physicochemical techniques. Differential scanning
calorimetry and polarizing optical microscopy verified the liquid crystal behaviors and
their transition temperatures. The thermodynamic data for phase transition, melting
transition (T
with increasing the length of spacer. Both T
transition (δH ) for dimers with even numbers of methylene units were higher than those
m
i
), and isotropic transition temperatures (T ) of the dimers were decreased
m
and T and enthalpy change for isotropic
i
i
with odd numbers. Dimers AC-OnO-AC (n = 2–10) formed enantiotropic nematic phase
only, while the unsymmetrical dimer formed a smectic phase.
Keywords Liquid crystal; mesogenic properties; symmetric dimers, thermodynamic
data
1. Introduction
Low molar mass liquid crystals were discovered in 1888. Liquid crystal dimers are one
class among other classes that attracted particular attention due to their unique thermal
behavior and structural features as model compounds similar to polymeric liquid crystals
and that still remain the focus of much research [1].
Of all the important low molar mass liquid crystals discovered, one class, the so-
called liquid crystal dimers, have great potential. Liquid crystal dimers comprise molecules
containing two conventional single semi-rigid mesogenic groups linked by a flexible spacer,
which is most commonly an alkyl chain. [2, 3].
In essence, it is the anisotropic interaction between the cores, normally comprising
phenyl rings linked through short unsaturated linkages, that give rise to the observation of
liquid crystalline behavior while the alkyl chains tend to lower the melting point. Indeed,
for many years it was widely assumed that such a molecular structure was a prerequisite
∗
Address correspondence to Salam J. J. Titinchi, Department of Chemistry, University of the
Western Cape, Private Bag X17, Bellville, Cape Town 7535, South Africa. Tel.: +27-21-959-2217.
E-mail: stitinchi@uwc.ac.za
Color versions of one or more of the figures in the article can be found online at
www.tandfonline.com/gmcl.
13

14
U. J. Al-Hamdani et al.
for liquid crystallinity [2]. During the 1970s, a wide range of unconventional molecular
structures were prepared and shown to support liquid crystallinity [2].
Liquid crystal dimers are classified into two categories, viz., symmetric and non-
symmetric dimers. In the former class of dimers, the mesogenic groups are identical, and
in the later, the mesogenic groups are not identical.
The liquid crystalline properties as well as the structure of different mesophases of
these classes of compounds are found to be dependent on the length and the parity of the
spacer, as it strongly affects the overall shape of the molecule. Depending on the number of
atoms in the spacer, the molecule adopts a bent or linear shape [4] and this then influences
not only the isotropization temperatures but also the type of liquid crystal phase formed.
The nematic–isotropic transition temperatures are found to exhibit a dramatic alterna-
tion as the number of carbon atoms in the alkyl spacer changes from odd to even. However,
the alternation is attenuated as the spacer grows in length [5].
In this study, a new series of linear symmetric dimers with general formula of
AC-OnO-AC has been synthesized and their mesomorphic properties were investigated
by differential scanning calorimetry (DSC) and polarizing optical microscopy. The me-
somorphic properties of the symmetrical compounds (AC-OnO-AC) derived from 4-
hydroxybenzaladehyde and different α,ω-dibromoalkanes followed by the Schiff base
condensation with 4aminoacetophenone were compared with unsymmetrical compound
2
4
derived from 4-(octyloxy)benzalaldehyde and the symmetrical analogues, viz. 3 and
, which were derived from 4-formylbenzoic acid with 4-aminoaceophenone and 4-
hydroxyaceophenone respectively (Schemes 1 and 2). This was done to investigate the

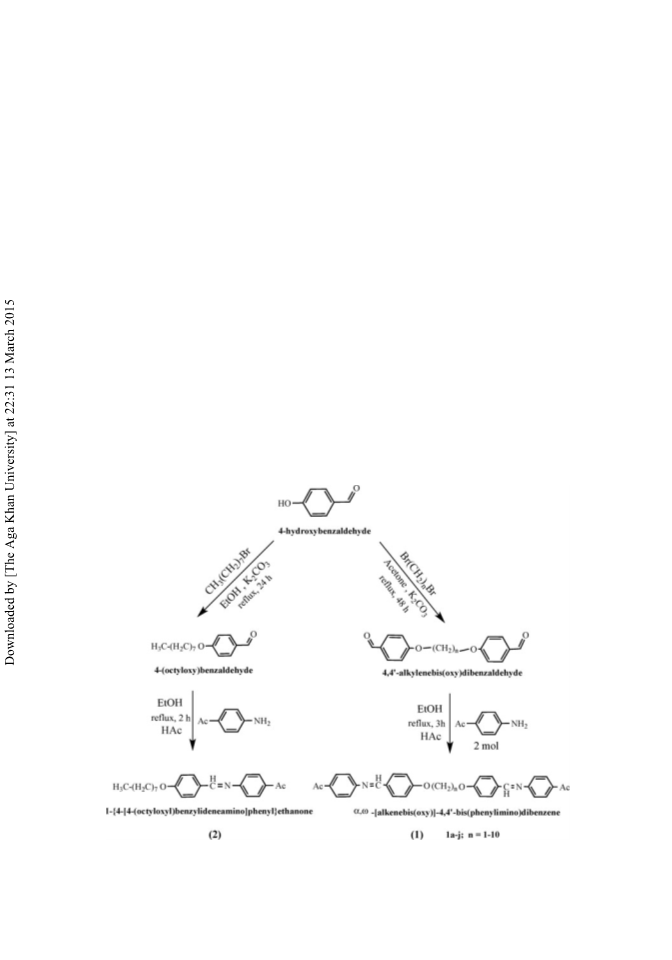

Scheme 1. Synthesis steps of prepared dimers in series AC-OnO-AC (n = 1–10) and compound 2.

Methylene-Linked Linear Symmetrical Liquid Crystal Dimers
15
influence of the length and type of spacer on the mesomorphic properties of symmetric
dimers and comparing it with low molecular weight molecular analogues.
2. Results and Discussion
A series of linear symmetric dimers (AC-OnO-AC dimers; n = 1–10) are synthesized
in two steps: ether formation reaction of 4-hydroxybenzaladehyde and different α,ω-
dibromoalkanes followed by the Schiff base condensation with 4-aminoacetophenone
as shown in Scheme 1. The unsymmetrical compound 2 was derived from 4-
(octyloxy)benzalaldehyde as shown in Scheme 1, and the symmetrical analogues 3 and 4,
derived from 4-formylbenzoic acid with 4-aminoaceophenone and 4-hydroxyaceophenone,
respectively, were synthesized as shown in Scheme 2.
The new dimers are characterized by Fourier transform infrared (FT-IR) spectroscopy,
1
Hydrogen-1 Nuclear magnetic resonance spectroscopy ( H-NMR), and mass spectroscopy.
1
The FT-IR and H-NMR spectral data confirm the formation of these compounds. Mass
spectra also verify the structures of these compounds through their molecular ion peak
+
[
M ]. Figure 1 shows representative mass spectrum of AC-O8O-AC dimer. The phase
Scheme 2. Synthesis steps of prepared dimers 3 and 4.

16
U. J. Al-Hamdani et al.

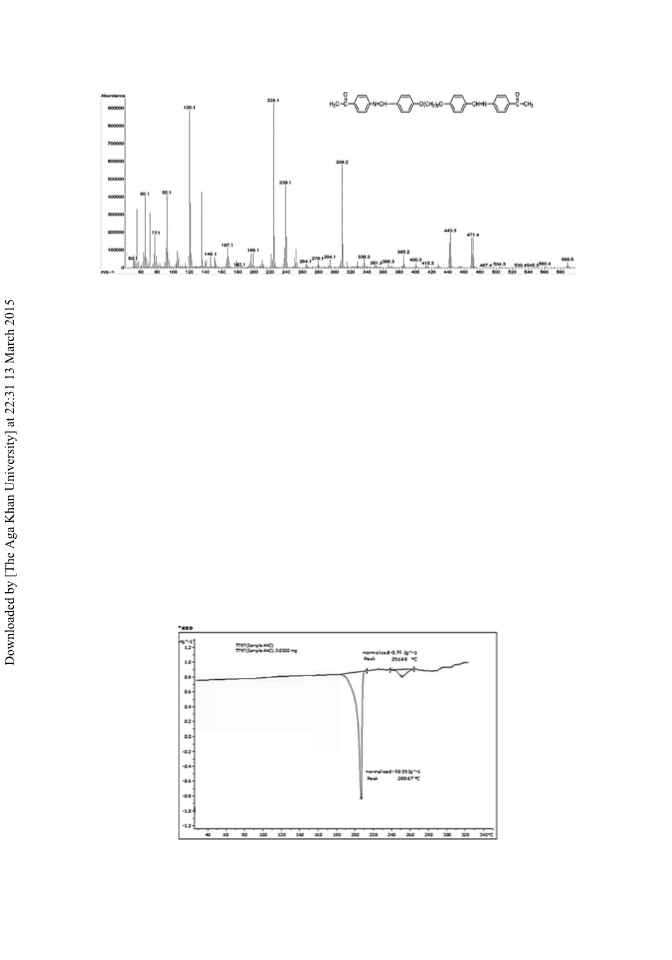

Figure 1. Mass spectra for AC-O8O-AC dimer.
transitions were observed with an optical microscope with polarized light in conjunction
with a Leitz 350 hot stage equipped with a Vario-Orthomat camera.
The thermal mesomorphic phases of the AC-OnO-AC series (except when n = 1)
and compounds 2−4 were analyzed by DSC and hot stage polarizing microscopy. The
mesomorphic properties of these compounds were investigated thru the DSC analyses and
polarizing optical microscopy, which affirm liquid crystal behaviors and their transition
temperatures. Figures 2 and 3 present the DSC theromograms of AC-O4O-AC and AC-
O5O-AC dimers respectively.
All the compounds of series AC-OnO-AC (n = 2–10) (except AC-O1O-AC) and the
dimer 4 formed enantiotropic nematic phase only, whereas compound dimer 3 showed this
phase only upon cooling. On the other hand, compound 2 formed a smectic phase. The
AC-O1O-AC was directly transformed into isotropic melt from the solid crystal on heating
◦
at 163 C.
The thermodynamic data for the phase transition are presented in Table 1. The melting
temperature (Tm: transition temperature to liquid crystal phase) as well as the isotropic
Figure 2. DSC thermogram for AC-O4O-AC dimer.

Methylene-Linked Linear Symmetrical Liquid Crystal Dimers
17
Figure 3. DSC thermogram for AC-O5O-AC dimer.
transition temperatures (Ti: transition temperature to isotropic state) of the dimer com-
pounds in the series AC-OnO-AC were decreased in a zigzag manner (Fig. 4) as the length
of spacer (n) increased. Both Tm and Ti for the dimeric compounds with an even number
of methylene units were higher than those with an odd number of methylene units. Similar
trends were reported for many other series of low molecular liquid crystal compounds and
dimers [6, 7].
Another interesting point is that the values of ꢀHi (enthalpy change value for isotropic
transition) for the dimers with an even number of methylene units were generally higher
than those for the odd-numbered dimeric compounds [8]. It appeared that the mesophases
of the dimeric compounds with spacers of even-numbered methylene units were generally
Table 1. The phase transitions temperatures (K) of series AC-OnO-AC (n = 2–10) and
associated (ꢀH), (ꢀS), and (ꢀS/R) data
C → N
N → I
ꢀ
S
ꢀH
kJ-
ꢀS
−1
−1
ꢀ
H kJ- Jmol
Jmol
−
−1
−1
−1
K
Dimer
T (K) mol 1
K
ꢀS/R T (K) mol
ꢀS/R
AC-O2O-AC 485.20 46.30
AC-O3O-AC 478.00 30.02
AC-O4O-AC 481.67 48.08
AC-O5O-AC 464.32 30.21
AC-O6O-AC 473.01 49.81 105.30 12.66 511.52 5.52
AC-O7O-AC 457.00 30.45 66.63 8.01 473.11 4.03
AC-O8O-AC 459.81 51.26 111.48 13.40 484.91 5.62
AC-O9O-AC 451.21 51.31 113.71 13.67 463.33 5.83
AC-O10O-AC 448.48 52.75 117.63 14.14 458.55 6.23
95.42 11.47 536.31 6.22
62.80 7.55 514.01 5.01
99.81 12.00 528.68 5.91
65.06 7.82 496.43 5.34
11.59
9.74
11.17
10.75
10.79
8.51
11.59
12.58
13.58
1.39
1.17
1.34
1.29
1.29
1.02
1.39
1.51
1.63
−
1
−1
K .
Note. C: crystals, N: nematic, I: isotropic, R: 8.314 Jmol

18
U. J. Al-Hamdani et al.

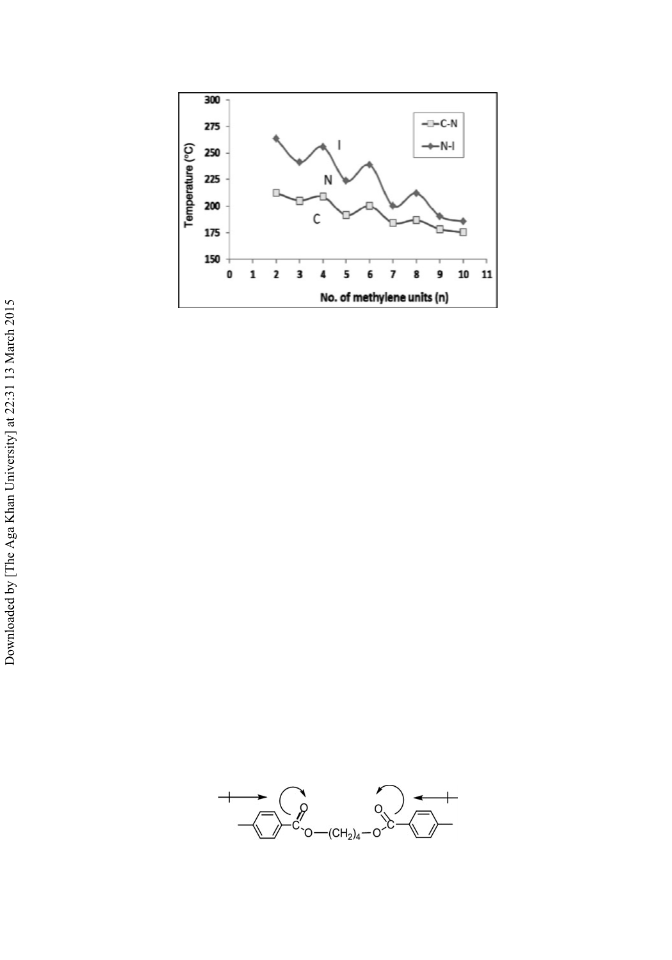

Figure 4. Phase transition temperatures as a function of the number of methylene units in the spacer;
C: crystal, N: nematic, I: isotropic.
of a higher degree of order than those with odd-numbered ones [7, 8]. The melting entropy
values (ꢀS/R) increase with increasing the length of spacer, as the contributions to the
conformational entropy change associated with methylene units in the spacer are higher.
This can also describe the decrease in the melting point with increasing the methylene units
[
9].
The polarizing microscopic studies for dimer 1 revealed that it was directly transformed
◦
into the isotropic melt from solid crystal on heating and its melting point (160 C) was lower
than AC-O8O-AC. This behavior was attributed to the effect of the dipole moment of the
acetyl group, which is substituted at the terminal position of the AC-O8O-AC molecule
which enhances the mesogenic properties [10].
The mesogenic phases of AC-O8O-AC were compared with compound 2 since it
is known that compound 2 shows a smectic phase, while AC-O8O-AC is a nematogen.
The difference between compound 2 and AC-O8O-AC can be attributed to the disrupted
conjugation and flexibility due to the aliphatic spacer (octane group), which disallows
smectic phase to occur [11].
The polarizing microscope studies for dimer 3 revealed that this compound was directly
transformed into the isotropic melt from the solid crystal on heating, while on cooling,
nematic liquid crystal phase was formed before transition to solid state from the isotropic
melt. Therefore, dimer 3 is monotropic. The comparison between the structures of the dimer
of AC-O8O-AC and dimer 3 indicate that the magnitude of the dipole moment should be
taken into account. By considering the electron arrangement in the mesogenic moieties of
dimer AC-O8O-AC and 3, the dipole moment of dimer 3 is expected to be greater than
that of AC-O8O-AC because of the influence of the dipole moment of the carbonyl group
Figure 5. Dipole moment of carbonyl group in the spacer.

Methylene-Linked Linear Symmetrical Liquid Crystal Dimers
19
Table 2. The phase transitions temperatures (K) of compounds 2, 3, and dimer 4 and
associated (ꢀH), (ꢀS), and (ꢀS/R) data
−1
−1 −1
K
Compound
Phase transition
T (K)
ꢀH kJmol
ꢀS Jmol
ꢀS/R
2
C-S
S-I
C-I
I-N
N-C
C-N
N-I
433.34
389.34
—
—
—
31.61
4.36
—
—
—
72.94
11.19
—
—
—
8.77
1.34
—
—
—
3
4
462.61
591.94
80.37
5.65
173.74
9.55
20.89
1.14
Note. C: crystals, N: nematic, I: isotropic, S: smectic, R: 8.314 J.mol 1.K−1.
−
.
in the spacer. The greater local dipole moment in the spacer (Fig. 5) hinders the parallel
arrangement of molecules in liquid crystal phases [5].
Dimer 4, in which the carbonyl groups are substituted in the mesogenic unit of the
molecule, formed enantiotropic nematic, whereas dimer 3 is monotropic (Table 2). The
carbonyl group found in the mesogenic unit (in the terminal group) confers a dipole
moment on dimer 4 in the mesogenic unit that is equal to the greater dipole moment in the
spacer that enhances the attraction between the molecules and, in addition, demonstrates
mesomorphic phases on heating and cooling [5].
Under polarizing optical microscopy, the nematic phase reflects a marbled texture
on heating and the Schlieren texture on cooling. The smectic (SA) phase was clearly
characterized by its typical focal conic texture on heating and cooling (Fig. 6).
3. Experimental
3.1. General
Infrared spectra were recorded as KBr pellets on a Buck-M500 spectrometer (Buck Scien-
1
tific, USA). H-NMR spectra were recorded on Bruker-300 using CDCl3 as a solvent and
TMS as internal standard. Mass spectra were recorded on an Agilent technologies 5957C
spectrometer. The phase transitions were observed with a Leitz Laborlux 12 Pol optical
microscope with polarized light in conjunction with a Leitz 350 hot stage equipped with
a Vario-Orthomat camera. Transition temperatures were determined using a Shimdzu 24
◦
−1
DSC-50 DSC with a heating rate of 10 C min .
3.2. Synthesis
ꢀ
3
.2.1. Synthesis of α, ω-[alkenebis(oxy)]-4,4 -bis(phenylimino)dibenzene (AC-OnO-AC);
n = 1–10. 4,4-alkylenebis(oxy)dibenzaldehydes (n = 1−10) were synthesized according
to the literature procedure [12] by adding a solution of 2 mmol of 4-hydroxybenzaldehyde in
acetone to 2 mmol of potassium carbonate and 1 mmol of appropriate α,ω-dibromoalkane,
and the reaction mixture was refluxed with stirring for 48 hr. The reaction mixture was
filtered when hot and the solvent was evaporated. The obtained white solid was purified by
recrystallization from ethanol (Scheme 1).

20
U. J. Al-Hamdani et al.
Figure 6. (a) Marble texture for nematic phase on heating for AC-O8O-AC, (b) nematic droplet for
AC-O8O-AC, (c) Schlieren texture for nematic phase on cooling for AC-O8O-AC, (d) focal conic
texture of smectic A on heating of compound 2.
ꢀ
The Schiff base dimers were synthesized by the reaction of 4,4 -alkylene-
bis(oxy)dibenzaldehyde with 4-aminoacetophenone (1:2 molar ratio) in absolute ethanol
and three drops of acetic acid (Scheme 1). The reaction mixture was refluxed for 3 hr
with stirring. The reaction mixture was allowed to cool and the product was filtered and
recrystallized from ethanol.
3.2.2. Synthesis of 1-(4-(4-(octyloxy)benzlideneamino)phenyl)ethanone (2). This com-
pound was prepared following the reported method [13]. 4-(octyloxy)benzaldehyde was
synthesized accordingly in Section 3.2.1 with 1:1 molar ratio. The resulting compound
was further reacted with 4-aminobenzophenone to obtain the Schiff base compound 2
(Scheme 1).
3
.2.3. Synthesis of butane-1,4-diyl bis(4-(4-acetylphenylimino)methyl)benzoate (3). The
dimer compound 3 was synthesized following the reported method with slight modification
14]. The Schiff base was synthesized by mixing equimolar amounts of 4-formylbenzoic
acid with 4-aminoacetophenone in absolute ethanol and drops of acetic acid. The product
4-((2-acetylphenylimino)methylbenzoic acid) obtained after 3-hr reaction time was then
[
(
reacted with 1,4-dihydroxybutane in dichloromethane in the presence of dicyclohexylcar-
bodiimide (DCC) 4-dimethylaminopyridine (DMAP) to produce dimer 3 (Scheme 2).
3.2.4. Synthesis of Esters (4). The ester was synthesized by following the reported method
with a slight modification [15, 16].

Methylene-Linked Linear Symmetrical Liquid Crystal Dimers
21
Esterification reaction was performed by the slow addition of equimolar quantities
of 4-formybenzonic acid to a solution of 4-hydoxy acetophenone in presence of dicyclo-
hexylcarbodiimide (DCC)/4-dimethylaminopyridine (DMAP). The reaction was stirred for
30 min. The pH of the solution was adjusted with dilute HCl or NaOH solution to induce
precipitation. The product was filtered, washed, and dried. The solid obtained was reacted
with 4-aminobenzoic acid. The final product was further reacted with 1,4-dihyroxybutane
to obtain the desired dimer (4) (Scheme 2).
4. Characterization
1
AC-O1O-AC: Yellow solid; yield 55.3%; H NMR: 4.16 (s, 2H, −OCH2O−), 2.51 (s, 6H,
−
1
−
COCH3), 7.06–8.05 (m, 16H, Ar−H), 8.63 (s, 2H, −CH N); IR (cm ): 1673 (C=O),
+
1
627 (C=N); MS m/z: 490.4 [M] .
1
AC O2O AC: Yellow solid; yield 50.4%; H NMR: 2.62 (s, 6H, −COCH3), 4.45
−1
(
s, 4H, −OCH2CH2O−), 7.06–7.99 (m, 16H, Ar−H), 8.38 (s, 2H, −CH N); IR (cm ):
+
1677 (C=O), 1622 (C=N); MS m/z 504.4 [M] .
1
AC-O3O-AC: Yellow solid; yield 51.30%; H NMR: 2.25 (p, 2H, −CH2−), 4.16 (t,
4
−
H, −OCH2CH2O−), 2.50 (s, 6H, −COCH3), 7.07–8.06 (m, 16H, Ar−H), 8.66 (s, 2H,
−1
+
CH N); IR (cm ): 1680 (C=O), 1622 (C=N); MS m/z: 518.4 [M] .
1
AC-O4O-AC: Yellow solid; yield 63.20%; H NMR: 1.92 (m, 4H, −CH2CH2−),
2
(
.50 (s, 6H, −COCH3), 4.16 (s, 4H, −OCH2CH2O−), 7.09–8.01 (m, 16H, Ar−H), 8.56
−1
+
s, 2H, −CH N); IR (cm ): 1676 (C=O), 1624 (C=N); MS m/z: 532.4 [M] .
1
AC-O5O-AC: Yellow solid; yield 73.79%; H NMR: 1.60 (m, 2H, −CH2CH2−),
1
(
.79 (pentate, 4H, −CH2CH2−), 2.53 (s, 6H, −COCH3), 7.04–8.03 (m, 16H, Ar−H), 8.55
−1
+
s, 2H, −CH N); IR (cm ): 1676 (C=O), 1624 (C=N); MS m/z: 546.1 [M] .
1
AC-O6O-AC: Yellow solid; yield 75.4%; H NMR: 1.52 (m, 4H, −CH2CH2−), 1.79
(
−
m, 4H, −CH2CH2−), 2.64 (s, 6H, −COCH3), 7.08–8.00 (m, 16H, Ar−H), 8.55 (s, 2H,
−1
+
CH N); IR (cm ): 1678 (C=O), 1622 (C=N); MS m/z: 560.5 [M] .
1
AC-O7O-AC: Yellow solid; yield 77.35%; H NMR: 1.72 (m, 4H, −CH2CH2−),
1
2
1
.30 (pentat, 4H, −CH2CH2−), 1.42 (m, 4H, −CH2CH2−), 1.27 (p, 2H, −CH2CH2−),
−1
.51 (s, 6H, −COCH3), 7.04–8.00 (m, 16H, Ar−H), 8.66 (s, 2H, −CH N); IR (cm ):
+
676 (C=O), 1620 (C=N); MS m/z: 574.1 [M] .
1
AC-O8O-AC: Yellow solid; yield 80.20%; H NMR: 1.45 (m, 4H, −CH2CH2−),
1
2
1
.53 (m, 4H, −CH2CH2−), 1.87 (m, 4H, −CH2CH2−), 4.07 (t, 4H, −OCH2CH2O−),
−1
.63 (s, 6H, −COCH3), 7.01–8.03 (m, 16H, Ar−H), 8.41 (s, 2H, −CH N); IR (cm ):
+
676 (C=O), 1622 (C=N); MS m/z: 588.5 [M] .
1
AC-O9O-AC: Yellow solid; yield 81.35%; H NMR: 1.32 (m, 6H, −(CH2)3−), 1.46
(
(
(
m, 4H, −CH2CH2−), 1.79 (m, 4H, −CH2CH2−), 4.07 (t, 4H, −OCH2CH2O−), 2.50
−1
s, 6H, −COCH3), 7.02–8.03 (m, 16H, Ar−H), 8.51(s, 2H, −CH N); IR (cm ): 1677
+
C=O), 1621 (C=N); MS m/z : 602.1 [M] .
1
AC-O10O-AC: Yellow solid; yield 81.4%; H NMR: 1.32 (m, 8H, −(CH2)4−), 1.459
(
3
m, 4H, −CH2CH2−), 1.79 (m, 4H, −CH2CH2−), 4.07 (t, 4H, −OCH2CH2O−), 2.53 (s,
−
1
H, −COCH3), 7.03–8.08 (m, 16H, Ar−H), 8.66(s, 2H, −CH N); IR (cm ): 1676 (C=O),
+
1620 (C=N); MS m/z: 616.1 [M] .
1
Compound 2: Yellow solid; yield 65.01%; H NMR: 0.91(t, 3H, −CH3), 1.32 (m,
8
2
1
H, −(CH2)4-−), 1.50 (m, 2H, −CH2−), 1.80 (m, 2H, −CH2−), 4.05 (t, 2H, −OCH2−),
−1
.64 (s, 6H, −COCH3), 6.99–8.00 (m, 18H, Ar−H), 8.38 (s, 1H, −CH N); IR (cm ):
+
680 (C=O) ketone, 1624 (C=N); MS m/z: 351.1 [M] .

22
U. J. Al-Hamdani et al.
1
Dimer 3: Yellow solid; yield 60.65%; H NMR: 1.43 (m, 4H, −CH2CH2−), 2.50
(
s, 6H, −COCH3), 4.30 (t, 4H, −(OCH2)2−); 7.06–8.05 (m, 16H, Ar−H), 8.66 (s, 2H,
−
1
−
CH N); IR (cm ): 1701 (C=O) ester, 1670 (C=O) ketone, 1627 (C=N); MS m/z: 588.4
+
[
M] .
1
Dimer 4: Yellow solid; yield 45.7%; H NMR: 1.877 (m, 4H, −CH2CH2−), 3.10 (s,
H, −COCH3), 4.42 (t, 4H, −OCH2−), 7.79–8.34 (m, 24H, Ar−H), 8.35 (s, 2H, −CH N);
6
−1
+
IR (cm ): 1708 (C=O) ester, 1676 (C=O) ketone, 1627 (C=N); MS m/z: 828.5 [M] .
5. Conclusions
A series of linear symmetrical liquid crystal dimers (AC-OnO-AC) with methylene spacer
(
n = 1–10) were synthesized. The structures of these crystal liquid dimers are confirmed
1
by FT-IR, H-NMR, and mass spectroscopy and DSC analyses. The thermodynamic data
for the phase transition, i.e., the melting transition temperature (Tm) and the isotropic
transition temperatures (Ti) of the dimer compounds in the series (AC-OnO-AC) were
decreased in a zigzag fashion as the length of spacer (n) increased. Both Tm and Ti for
dimeric compounds with an even number of methylene units were higher than those with
an odd number. The enthalpy change values for isotropic transition of δHi for the dimers
with an even number of methylene units were generally higher than those for the odd-
numbered dimeric compounds. Dimers AC-OnO-AC (n = 2−10) and the dimer 4 formed
enantiotropic nematic phase only, dimer 3 showed this phase only upon cooling whereas
compound 2 formed a smectic phase.
References
[
1] Imrie, C. T., & Luckhurst, G. R. (1998). Liquid crystal dimers and oligomers. In: D. Demus,
J. Goodby, G. W. Gray, H.-W. Spiess, & V. Vill (Eds.), Hand Book of Liquid Crystals Low
Molecular Weight Liquid Crystals, Vol. 2B, Wiley-VCH: Weinheim, Germany.
2] Luckhurts, G. R., & Gray, G. W. (1979). The Molecular Physics of Liquid Crystals, Academic
Press: London, pp. 1–29.
[
[
[
[
[
3] Imrie, C. T., & Henderson, P. A. (2007). Chem. Soc. Rev., 36, 2096–2124.
4] Białecka-Florjanczyk, E., Sledzinska, I., & Gorecka, E. (2012). Liq. Cryst., 39, 1216–1221.
5] Alapati, P. R., et al. (2011). World J. Cond. Mater. Phys., 1, 167–174.
6] Thaker, B. T., Patel, P. H., Vansadiya, A. D., & Kanojiya, J. B. (2009). Mol. Cryst. Liq. Cryst.,
515, 135–147.
[7] Henderson, P. A., Niemeyer, O., & Imrie, C. T. (2001). Liq. Cryst., 28, 463–472.
[8] Jin, J. I., Chung, Y.-S., Lenz, R. W., & Ober, C. (1983). Bull. Korean Chem. Soc., 4, 143–148.
[9] Henderson, P. A., Seddon, J. M., & Imrie, C. T. (2005). Liq. Cryst., 32, 1499–1513.
[
[
[
[
10] Dave, J. S., & Menon, M. (2000). Bull. Mater. Sci., 23, 237–238.
11] Barbera, J., Oriol, L., & Serrano, J. L. (1992). Liq. Cryst., 12, 37–47.
12] Date, R. W., Imrie, C. T., Luckhurst, G. R., & Seddon, J. M. (1992). Liq. Cryst., 12, 203–238.
13] Binnemans, K., Lodewyckx, K., Donnio, B., & Guillon, D. (2005). Eur. J. Inorg. Chem.,
1
506–1513.
[14] Thaker, B. T., Kanojiya, J. B., & Tandel, R. S. (2010). Mol. Cryst. Liq. Cryst., 528, 120–137.
[15] Al-Hamdani, U. J., Gassim, T. E., & Radhy, H. H. (2010). Molecules., 15, 5620–5628.
[16] Al-Hamdani, U. J. (2011). Inter. J. Mol. Sci., 12, 3182–3190.
