A novel thiophene-fused polycyclic aromatic with a tetracene core: Synthesis, characterization, optical and electrochemical properties

Article abstract of DOI:10.3390/molecules16064467

FeCl₃-mediated oxidative cyclization was successfully used to construct an extended thiophene-pendant pyrene skeleton and synthesize a novel thiophene-fused polycyclic aromatic (THTP-C) with a tetracene core. The identity of the compound was confirmed by ¹H-NMR, ¹³C-NMR, MS, and elemental analysis. Meanwhile, a single crystal of THTP-C was obtained and analyzed by X-ray single-crystal diffraction. THTP-C has a "saddle" shaped π-conjugated 1-D supramolecular structure, and favors highly ordered self-assembly by π-π interactions as evidenced by its concentration- dependent ¹H-NMR spectra in solution. The optical properties of THTP-C were investigated by ultraviolet-visible (UV-Vis) and photoluminescence (PL) spectroscopy and its electrochemical properties were investigated by cyclic voltammetry (CV). The relatively large band gap (2.86 eV), low E_HOMO level (-5.64 eV) and intermolecular π-π interactions imply that THTP-C has a high stability against photo-degradation and oxidation, and may be a promising candidate for stable hole-transporting materials.

Full text of DOI:10.3390/molecules16064467

Molecules 2011, 16, 4467-4481; doi:10.3390/molecules16064467
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
A Novel Thiophene-Fused Polycyclic Aromatic with a
Tetracene Core: Synthesis, Characterization, Optical and
Electrochemical Properties
1
,2,
3
4
1
4
Zong-Fan Duan *, Xian-Qiang Huang , Zhi-Gang Yang , Daiki Hoshino , Susumu Kitanaka ,
2
1,
Gao-Yang Zhao and Yasushiro Nishioka *
1
College of Science and Technology, Nihon University, Narashinodai, Funabashi, Chiba 2748501, Japan
2
School of Materials Science and Engineering, Xi’an University of Technology, Xi’an 710048, China
3
College of Chemistry and Chemical Engineering, Liaocheng University, Shandong 252059, China
4
College of Pharmacy, Nihon University, Narashinodai, Funabashi, Chiba 2748555, Japan
*
Authors to whom correspondence should be addressed; E-Mails: duanzf-2002@163.com (Z.-F.D.);
nishioka@eme.cst.nihon-u.ac.jp (Y.N.); Tel.: +81-474696482 (Y.N.); Fax: +81-474696482 (Y.N.).
Received: 9 May 2011; in revised form: 25 May 2011 / Accepted: 25 May 2011 /
Published: 27 May 2011
3
Abstract: FeCl -mediated oxidative cyclization was successfully used to construct an
extended thiophene-pendant pyrene skeleton and synthesize a novel thiophene-fused
polycyclic aromatic (THTP-C) with a tetracene core. The identity of the compound was
1
13
confirmed by H-NMR, C-NMR, MS, and elemental analysis. Meanwhile, a single
crystal of THTP-C was obtained and analyzed by X-ray single-crystal diffraction. THTP-C
has a “saddle” shaped π-conjugated 1-D supramolecular structure, and favors highly
ordered self-assembly by π-π interactions as evidenced by its concentration-dependent
1
H-NMR spectra in solution. The optical properties of THTP-C were investigated by
ultraviolet-visible (UV-Vis) and photoluminescence (PL) spectroscopy and its
electrochemical properties were investigated by cyclic voltammetry (CV). The relatively
large band gap (2.86 eV), low EHOMO level (−5.64 eV) and intermolecular π-π interactions
imply that THTP-C has a high stability against photo-degradation and oxidation, and may
be a promising candidate for stable hole-transporting materials.
Keywords: polycyclic aromatics; oxidative cyclization; organic semiconductor materials

Molecules 2011, 16
. Introduction
Organic semiconductors based on π-conjugated aromatics have been well-investigated due to their
4468
1
potential applications as active organic semiconductor layers in a variety of organic electronic devices.
Acene and oligothiophene derivatives with high charge-carrier mobility in the solid state represent two
of the most heavily studied series of compounds and are used as organic semiconductor materials in
organic light emitting diodes (OLEDs), solar cells and organic field effect transistors (OFETs) [1,2].
Many efforts have been devoted to the synthesis and applications in organic-based electronic devices
of various π-conjugated homoaromatic and heteroaromatic systems, and oligomers and polymers
derived from acene and thiophene derivatives. In particular, heteroaromatic oligomers derived from
acene and thiophene have received considerable attention due to their unique photophysical properties
and the feasibility of chemical modification, as well as their good stability against photo-degradation
and oxidation. Thiophene-acene co-oligomers and thiophene-fused acenes are very attractive for
maximizing π-orbital overlap by reducing the freedom of rotation in the oligomers and possibly inducing
a densely packed crystal structure with face-to-face π-stacking motifs. Recently, divinyl- benzene,
naphthalene, anthracene, tetracene and fluorene, etc., have been successfully introduced into
oligothiophene via co-oligomerization and were used as excellent stable semiconductor materials with
relatively high band gaps and low levels of the highest occupied molecular orbital energy (EHOMO) [3-7].
However, reports on the synthesis and properties of thiophene-fused acenes are rather limited.
Pyrene and its derivatives are well known as polycyclic aromatic hydrocarbons, and are mainly used
as electro-conductive and photo-sensitive materials [8-10]. We have reported the successful synthesis
of two new thiophene-containing oligomers based on a pyrene core with pendant thienyl rings [11];
an expanded and elongated conjugated system would be expected to lead to even more
3
interesting electronic and optical properties. In this paper, FeCl -mediated oxidative cyclization of
4,5,9,10-tetra[2-(5-hexyl)thienyl]-2,7-di-tert-butylpyrene (THTP) was used to construct an extended
thiophene-pendant pyrene skeleton via thienyl-thienyl carbon-carbon bond formation and to eventually
obtain the flat molecule THTP-C with a larger rigid tetracene core (Scheme 1). To assess its intrinsic
potential as an opto-electronic and organic semiconductor material, the photophysical properties of
THTP-C were studied using UV-Vis absorption and PL spectroscopy both in solution and thin film.
The electrochemical properties were investigated using cyclic voltammetry (CV), and the respective
energy levels were determined by a combinational analysis of CV with UV-Vis absorption. Finally,
single-crystal crystallographic analysis was applied to elucidate the crystal structure of THTP-C.
2
. Results and Discussion
2.1. Synthesis
Scheme 1 outlines the synthetic pathways to prepare THTP, TTP, and THTP-C. The facile synthetic
approach for pyrene derivatives THTP and TTP with pendant thienyl rings mainly involved
Friedel-Crafts alkylation, bromination, and Stille coupling reactions and was performed [11].

Molecules 2011, 16
4469
Scheme 1. Synthetic pathway from pyrene to THTP-C.
C H
C H
C H
6 13
6
13
6
13
C H
6 13
S
S
S
S
S
S
S
S
FeCl3/CH3NO2/CH2Cl2
MeOH
C H
C H
C H
C H
6 13
6
13
6
13
6
13
THTP-C
THTP
BuLi/THF/Bu SnCl
3
C H
Bu3Sn
Pd(PPh ) /DMF/100
6
13
C6H13
3 4
S
-78
S
Br
Br
Br
tert-BuCl
Br2/CCl4
Fe
AlCl3
Br
BuLi/THF/Bu3SnCl
78
Bu Sn
3
Pd(PPh3)4/DMF/100
-
S
S
S
S
S
S
S
S
S
S
FeCl3/CH3NO2/CH2Cl2
MeOH
TTP-C
TTP
3
As an effective way to construct polycyclic aromatic hydrocarbons, FeCl -mediated oxidative
cyclization was utilized to construct an extended thiophene-fused oligoacene skeleton via thienyl-thienyl
carbon-carbon bond formation [12-16]. The oxidative cyclization of THTP using various equivalents
of FeCl was performed at different temperatures; the process was monitored using thin-layer
3
3
chromatography (TLC). The selective β-β oxidative cyclization of THTP with 8 equiv. of FeCl carried
out at 0 °C for 30 min resulted in the highest yield (78%) of THTP-C. The compound TTP, which has
the pendant 2-thienyl rings without blocking groups on the reactive α- and β-sites, was also used for
oxidative cyclization. It was envisioned that the β-β-sites of TTP would participate in discrete
monomer cyclization to selectively afford TTP-C. Since both the α- and β-sites of the pendant
monomer might undergo cyclization under oxidative conditions, and the α-sites were more reactive

Molecules 2011, 16
4470
than the β-sites of pendant monomer, the oxidative cyclodehydrogenation of TTP gave a complicated
mixture rather than the desired β-β oxidative cyclization compound TTP-C even if a small amount of
FeCl (1.8 equiv. per formed C–C bond) and diluted concentrations were used. It was demonstrated by
3
Tovar and Pei et al. that FeCl -mediated cyclization usually could not be applied to electron-rich
3
precursors because the higher spin density and electron-rich properties of the α-position of the
thiophene ring favored C–C coupling reactions at the α-sites forming cross-linked oligomers and
polymers rather than discrete monomer cyclization compounds. Therefore, the oxidative cyclization of
the β-sites of the pendant monomers only occurred after protection of the thiophene α-positions [12-14].
2.2. NMR Spectroscopy
1
13
The structure of THTP-C was identified by H- and C-NMR spectroscopy, fast-atom-
bombardment-mass spectrometry (FAB-MS) and elemental analysis. After cyclization, the resonance
at 6.81 ppm, which was assigned to the β-H on the thiophene rings closer to the pyrene core in THTP,
disappeared and the doublet at 6.71 ppm, which was assigned to the other β-H of thiophene rings, now
1
appeared as a singlet with a significant 0.87 ppm downfield shift in the H-NMR spectrum of THTP-C.
Furthermore, the exact mass decreased from 978.6 to 974.3, which corresponded to the exact loss of
four hydrogen atoms from THTP to form THTP-C. These changes clearly indicate that four β-H atoms
of THTP participated in oxidative cyclodehydrogenation to form a large aromatic π-system.
The highly extended π-framework contributes to effective molecular overlap, which can lead to
self-association through π-π stacking between molecules. THTP-C favored highly ordered
1
self-assembly by π-π interactions, which was evidenced by its concentration-dependent H-NMR spectra
in solution. It was observed that the singlet at a chemical shift of 7.61 ppm, which is assigned to the
protons in the fused-thiophene rings, significantly shifted to 7.47 ppm when the concentration of the
3
CDCl solution increased from 2 to 50 mg/mL at room temperature, as shown in Figure 1. The upfield
shift of the signals for these protons is attributed to intermolecular shielding from the fused-thiophene
rings of neighboring aromatic molecules in the concentrated solution, which implies their tendency to
self-associate through intermolecular π-π stacking [15,16]. However, no pronounced upfield shift was
observed for the protons in the rings of pyrene core. The above results indicate that THTP-C has a
tendency to self-associate through intermolecular π-π stacking, but the packing does not occur in
well-defined columns, which was confirmed by X-ray crystallographic studies. In contrast, the other two
compounds, THTP and TTP, showed no concentration-dependent chemical shift likely due to their small
π-conjugated systems and the intermolecular steric repulsion between the twisted thiophene arms.
1
Figure 1. Comparison of the H-NMR spectra of THTP-C in CDCl
3
at different concentrations.
5
1
0 mg/mL
0 mg/mL
2
mg/mL

Molecules 2011, 16
.3. Photophysical Properties
The UV-vis absorption spectra of THTP-C in a CH Cl solution (10 mol/L) and in a thin film
4471
2
−5
2
2
fabricated by vacuum evaporation on quartz glasses are shown in Figure 2. The photophysical data for
THTP-C, THTP, and TTP are summarized in Table 1.

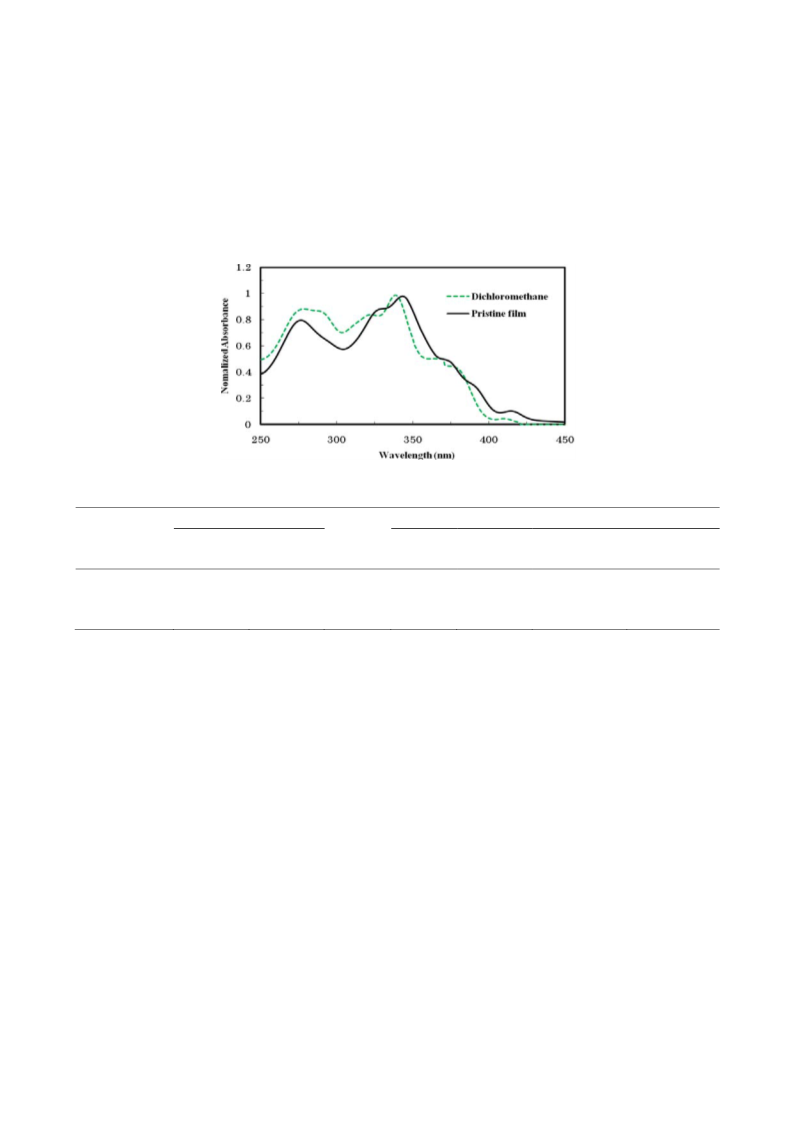

Figure 2. Normalized UV-Vis absorption spectra of THTP-C in dichloromethane and in a thin film.
Table 1. Optical and electrochemical data in thin films.
UV-vis absorption
PL
λmax
(nm)
426
412
443
Electrochemical data
opt
E
(
g
Compounds
λmax
λedge
(nm)
386
eV)
Eonset (V) EHOMO (eV) ELUMO (eV)
(
nm)
359
362
344
TTP
THTP
THTP-C
3.21
3.10
2.86
1.12
0.96
0.92
−5.84
−5.68
−5.64
−2.63
−2.58
−2.78
400
433
As shown in Figure 2, two broad peaks were observed for THTP-C in solution and in a thin film.
The one at a longer wavelength was around 320−350 nm and is attributed to the π-π* transition of the
conjugated backbone, while the band at a shorter wavelength (λmax = 250−300 nm) originated from the
2 2
electronic transitions of the individual aromatic units. The absorption of THTP-C in dilute CH Cl
solution showed a maximum at 338 nm with a small peak at 410 nm. Compared with that in solution,
the absorption spectrum of THTP-C in a thin film was less structured. The maximum absorption
red-shifted by about 6 nm from 338 to 344 nm, while the small peak at 410 nm red-shifted about 5 nm
to 415 nm; this was accompanied with obvious absorbance enhancement and a 13 nm red-shift in the
absorption edge. The pronounced changes in the absorption spectra were a result of the delocalization
of the exciton within a co-facial stack induced by the π-π interactions, which was also evidenced by a
related red-shift of the photoluminescence (PL) spectra shown in Figure 3. The emission spectrum of
THTP-C in dilute solution showed a maximum emission peak at 443 nm with board shoulder peaks at
about 465 nm. The emission spectrum of THTP-C in a thin solid film had a similar structure to that in
solution except that it was red-shifted about 5 nm. As illustrated in Table 1, in comparison with THTP,
the maximum emission peak of THTP-C was red-shifted by more than 30 nm. This further indicates
that a more delocalized and extended π-conjugated system was formed after cyclization. The optical
opt
band gap of THTP-C determined from the absorption onset [Eg (eV) = 1240 / λedge (nm)] was found
to be 2.86 eV. This band gap is significantly higher than that of pentacene (2.2 eV), which is the most

Molecules 2011, 16
4472
well-known OFET material, implying a greater stability of THTP-C against photo-degradation [5].
Compared to the optical band gaps of the un-fused compounds, THTP and TTP, a more than 0.2 eV
decrease for THTP-C was observed. This slight decrease of optical band gap, which is usually
observed in conjugated oligomers and polymers, also agrees with the formation of a more delocalized
and extended π-conjugated system.

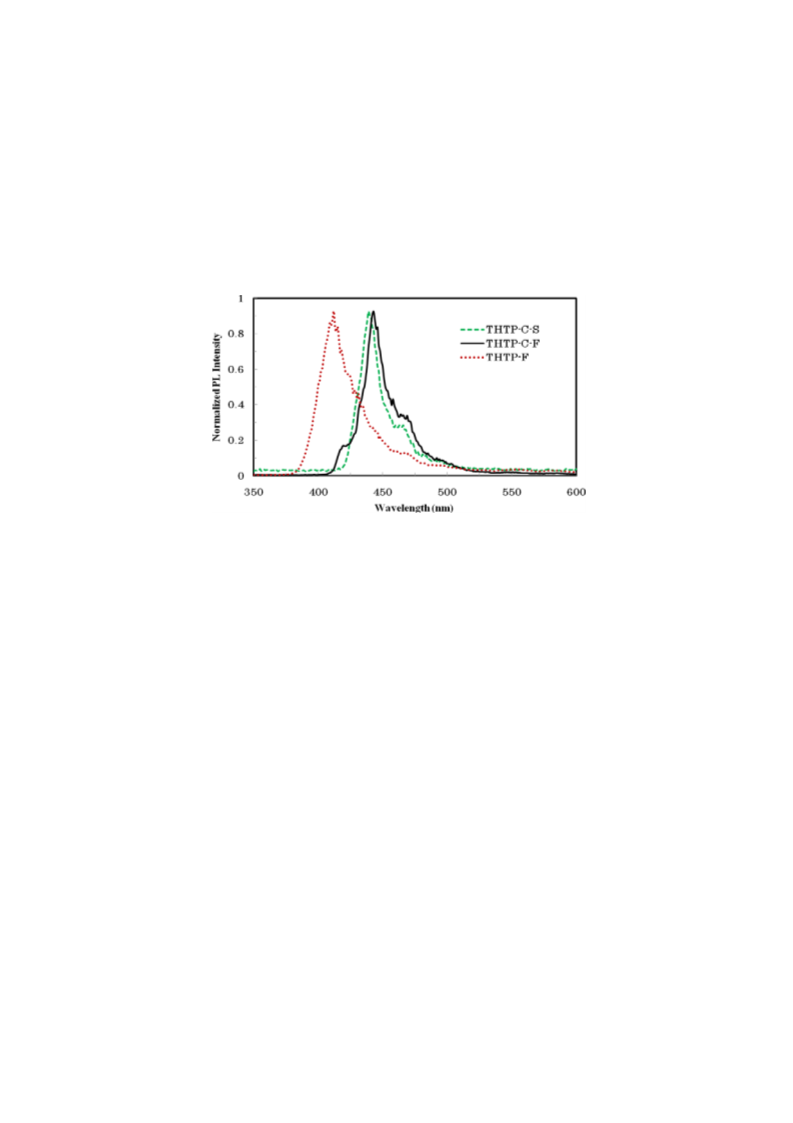

Figure 3. Normalized photoluminescence (PL) spectra: THTP-C in chloroform (THTP-C-S),
THTP-C in film (THTP-C-F) and THTP in film (THTP-F).
2.4. Electrochemical Properties
To understand the charge transport properties and assess the ionization potentials as well as the
electrochemical stability of the oligomer, the redox properties of THTP-C (measured at a concentration
−3
of 10 M) were investigated by cyclic voltammetry. The analyte was dissolved in dichloromethane
containing 0.1 M of tetrabutylammonium hexafluorophosphate (Bu NPF ) as the supporting electrolyte
4
6
and was analyzed at room temperature at a scan rate of 50 mV/s. A platinum stick electrode and
platinum wire were used as the working electrode and counter electrode, respectively. An Ag/AgCl
electrode was used as the reference electrode to calibrate against ferrocene/ferrocenium (0.08 V vs.
Ag/AgCl) at the beginning of the experiments. The cyclic voltammograms of THTP-C are shown in
Figure 4, and the onset oxidation potential and energy levels of the highest occupied molecular orbital
(
HOMO) and lowest unoccupied molecular orbital (LUMO) are summarized in Table 1. As shown in
Figure 4, after five scans of THTP-C, only slight changes in both the potentials and current intensities
were observed, demonstrating that THTP-C was stable to cycling through reduction and oxidation.
THTP-C showed two quasi-reversible oxidation peaks and had an onset oxidation potentials (Eox) of
0.92 V (vs. Ag/AgCl). Assuming that the energy level of the ferrocene/ferrocenium (Fc) reference is
4
.8 eV below vacuum, the energy level of HOMO (EHOMO) can be readily estimated from the onset
oxidation potentials in the cyclic voltammogram [17]. Using the equation EHOMO = −e(E + 4.72) (eV),
ox
the HOMO energy level of THTP-C was calculated to −5.64 eV. The stability of organic
semiconducting materials toward oxidative doping is related to their ionization potentials, i.e., their
HOMO energy levels from vacuum. Therefore, lowering the HOMO energy level would improve the
environmental stability by minimizing the level of p-doping by ambient oxygen. Compared to that of
pentacene (−4.96 eV) and other well-known current OFET materials [18], the lower HOMO energy

Molecules 2011, 16
4473
level of THTP-C suggests that it should have better oxidative stability than traditional p-type
semiconductor materials because there would be less probability of oxygen doping [7]. It is worth
noting that such an energy level provides a closer match to the work function of platinum (5.6 eV) for
source and drain contacts, which clearly encourages the preparation of prototype p-type OFET devices
based on this material [19]. The LUMO energy level of THTP-C was estimated from the optical band
gap and the HOMO energy value [17]. The calculated LUMO energy level of THTP-C is −2.78 eV.
This LUMO energy level is higher than those of THTP and TTP, and matches well with the work
function of Ca/Al (−2.76 eV) [20].
Figure 4. Cyclic voltammogram of THTP-C vs. Ag/AgCl electrode.
2
.5. X-ray Crystallographic Analysis
To further understand the molecular packing of THTP-C, a single crystal of THTP-C was grown by
slow evaporation of solvent from its benzene solution, and the crystal structure was determined by
X-ray diffraction. Crystallographic data were collected and analyzed. The basic information pertaining
to the crystal parameters and structure refinement is summarized in Table 2, and selected bond lengths
and angles are listed in Table 3. The single-crystal view and packing structure of THTP-C are shown
in Figures 5 and 6 and Figures 7 and 8, respectively.
Contrary to our expectations, the new thiophene-fused acene was not planar and the observed
deformation is, to the best of our knowledge, new to the thiophene-acene oligomer family [3]. With
fused cores, we rarely observe a twist deformation as in acenes, but rather a curvature as in “saddle”
shaped systems (Figure 6). The fused core and, therefore, the extended π-conjugated system of
THTP-C are not planar, the tetracene core of THTP-C exhibits a upward curvature angle between the
central two phenyl rings (C5/C6/C11/C16-C18, C15-C17/C22-C24) and two benzene rings’ planes
(
C3-C8, C23-C26/C30/C29) beside the central phenyl rings. The dihedral angle between the
C22/C15/C11/C18 plane and the benzene ring (C3-C8) plane is 19.06(24)°; the C22/C15/C11/C18
plane and the benzene ring (C23-C26/C30/C29) plane also form a dihedral angle of 15.74(31)°, which
may be due to the different steric configuration of the substituted alkyl groups. The main difference is
the length of the bridging double bond, which decreases from 1.479(8) to 1.387(8) Å, which is
indicative of compression and a weakly aromatic character of the central flat rings of THTP-C.
Additionally, the central two phenyl planes (C5/C6/C11/C16-C18, C15-C17/C22-C24) and the other
planes of two neighboring benzene rings (C11-C16, C17-C22) also formed a downward curvature

Molecules 2011, 16
4474
angle. In this context, the overall molecular shape of THTP-C can be approximated by a “saddle”
shaped systems. It is different from planar tetrathienoanthracene isomers without neighboring benzene
rings reported by Brusso et al. [13]. The main factor that makes THTP-C prefer to “saddle”
conformation must be the steric strain between planes of benzene rings. The steric strain between
tetracene core and neighboring benzene rings’ planes (C11-C16, C17-C22) make tetracene core
upward and neighboring planes downward, which result in the formation of “saddle” shaped
conformation. Another factor is possibly due to the carbon-rich polyaromatic property of THTP-C,
which makes THTP-C take on a “saddle” conformation to maintain the C–C bonds, just as carbon-rich
polyaromatic molecules, such as fullerenes and fullerene fragments or buckybowls are inclined to form
ball and bowl-shaped conformation to stabilize the molecular structure [21].
Table 2. Crystal data and structure refinement information for THTP-C.
Emprical formula
Formula weight
Space group
a [Å]
C H S
64 78 4
975.50
C2/c
33.829(3)
b [Å]
19.9281(17)
c [Å]
18.3660(15)
α [˚]
90.00
β [˚]
113.6410(10)
γ [˚]
V [Å ]
90.00
11342.4(16)
3
Z
8
−3
Dcalcd. [g cm ]
θ range
1.143
2.38-25.02
index ranges
R1, wR2 [I > 2σ(I)]
−32 ≤ h ≤ 40 − 23≤ k ≤ 18 – 20 ≤ l ≤ 21
∗
0.0889; 0.3567
1.073
GOF
∗
2
2 2
2 2 1/2
o c o o c o
R1 = ∑||F | − |F ||/|F |. wR2 = [∑w(∑F − F ) /∑w(F ) ] .
Table 3. Selected bond lengths (Å) and angles (˚) of the title compound.
S(1)-C(1)
S(1)-C(4)
S(2)-C(7)
S(2)-C(10)
S(3)-C(32)
S(3)-C(29)
S(4)-C(25)
S(4)-C(27)
C(1)-C(2)
C(1)-C(33)
C(2)-C(3)
C(2)-H(2)
C(3)-C(4)
C(3)-C(8)
1.734(7)
1.737(6)
1.734(6)
1.736(8)
1.733(7)
1.745(7)
1.734(7)
1.744(7)
1.346(9)
1.504(8)
1.425(8)
0.9300
C(5)-C(11)
C(6)-C(7)
C(6)-C(18)
C(7)-C(8)
1.479(8)
1.452(8)
1.468(8)
1.394(8)
1.422(9)
1.355(10)
1.507(11)
1.380(8)
1.407(8)
1.387(8)
1.388(8)
1.539(9)
1.395(8)
1.413(8)
C(8)-C(9)
C(9)-C(10)
C(10)-C(39)
C(11)-C(12)
C(11)-C(16)
C(12)-C(13)
C(13)-C(14)
C(13)-C(57)
C(14)-C(15)
C(15)-C(16)
1.388(8)
1.409(8)

Molecules 2011, 16
4475
Table 3. Cont.
C(15)-C(24)
C(4)-C(5)
C(5)-C(6)
C(18)-C(19)
C(19)-C(20)
C(20)-C(21)
C(21)-C(22)
C(22)-C(23)
1.436(8)
1.395(8)
1.387(8)
1.384(8)
1.389(9)
1.388(8)
1.478(8)
92.3(3)
1.471(8)
1.433(8)
1.422(8)
1.422(8)
1.393(8)
1.444(8)
1.438(8)
119.2(5)
112.6(6)
128.2(6)
121.8(5)
110.0(4)
128.1(4)
119.5(5)
119.0(5)
121.5(5)
118.0(5)
120.1(5)
121.8(5)
121.3(5)
129.9(8)
111.5(5)
118.5(7)
118.7(5)
123.4(5)
C(16)-C(17)
C(17)-C(22)
C(17)-C(18)
C(23)-C(24)
C(23)-C(29)
C(24)-C(25)
C(1)-S(1)-C(4)
C(7)-S(2)-C(10)
C(32)-S(3)-C(29)
C(25)-S(4)-C(27)
C(2)-C(1)-C(33)
C(2)-C(1)-S(1)
C(33)-C(1)-S(1)
C(1)-C(2)-C(3)
C(1)-C(2)-H(2)
C(8)-C(7)-S(2)
C(6)-C(7)-S(2)
C(7)-C(8)-C(3)
C(7)-C(8)-C(9)
C(3)-C(8)-C(9)
C(10)-C(9)-C(8)
C(12)-C(13)-C(14)
C(12)-C(13)-C(57)
C(14)-C(13)-C(57)
C(4)-C(3)-C(8)
C(4)-C(3)-C(2)
C(8)-C(3)-C(2)
C(3)-C(4)-C(5)
C(3)-C(4)-S(1)
C(5)-C(4)-S(1)
C(6)-C(5)-C(4)
C(6)-C(5)-C(11)
C(4)-C(5)-C(11)
C(5)-C(6)-C(7)
C(5)-C(6)-C(18)
C(7)-C(6)-C(18)
C(8)-C(7)-C(6)
C(9)-C(10)-C(39)
C(9)-C(10)-S(2)
C(39)-C(10)-S(2)
C(12)-C(11)-C(16)
C(12)-C(11)-C(5)
92.5(3)
92.9(3)
92.0(3)
129.2(6)
111.3(5)
119.5(5)
113.8(6)
123.1
109.6(5)
129.1(5)
120.1(5)
113.6(6)
126.3(6)
112.9(6)
117.2(5)
119.7(5)
123.0(5)
Figure 5. View of THTP-C showing the atomic numbering. Hydrogen atoms have been
omitted for clarity.

Molecules 2011, 16
4476
Figure 6. Model of “saddle” shaped THTP-C. An extension of the central plane formed by
C22/C15/C11/C18 is shown in red.
Figure 7. The π-π weak interactions between neighboring molecules (represented by red dashed lines).
Figure 8. View of the one-dimensional supramolecular framework of THTP-C along the
b axis. The π-π and CH-S interactions are represented by dashed red and black
lines, respectively.
It is well known that the crystalline state can be controlled by considering size, shape, and aromatic
interactions (both edge-to-face and face-to-face). The herringbone packing motif of unsubstituted
pentacene represents a simple combination of edge-to-face and face-to-face interactions. In order to
increase the π-stacking of pentacene by directed functionalization, Anthony reported a series of
6
,13-disubstituted pentacenes in which the substituents were functionalized by ethyne units; the only
strong interactions left to influence the solid-state order were aromatic face-to-face interactions [22].

Molecules 2011, 16
4477
Similar to the case of 6,13-bis(trimethylsilylethynyl)pentacene, the bulky t-Bu groups of THTP-C
improve the quasi face-to-face interactions and discourage edge-to-face molecular interactions. As
shown in Figure 7, it is clear that each THTP-C molecule is in close contact with the neighboring
THTP-C molecules by two types of weak interactions: (1) The adjacent two molecules are packed into
dimers through π-π stacking interactions of the benzene rings (C3-C8) at distance of 3.7395(2) Å;
(
2) CH–S interactions between the –CH moiety on the methylene group (C51) with the S atoms on the
other thiophene rings of the THTP-C molecules at distances of 2.896(2) Å. All of these weak
interactions play important roles in the formation of the 1-D structure of THTP-C (Figure 8); the 1-D
structure is desirable for fast charge transport along the stacking axis and, thus, THTP-C could
potentially serves as semiconductor material for electronic devices such as organic field effect
transistors [15].
The compounds TTP and THTP are found to easily form large wire-shaped microstructures via a
simple solution evaporation process, but attempts to grow single crystals suitable for X-ray
crystallography have so far been unsuccessful likely as a result of their small π-conjugated systems and
the intermolecular steric repulsion between the twisted thiophene arms.
3. Experimental
3.1. General
All commercially available chemicals were obtained from Tokyo Kasei Industry or Sigma-Aldrich
and used as received. All solvents were of at least reagent grade. Tetrahydrofuran and diethyl ether
were dried by distillation from sodium. N,N-dimethylformamide and dichloromethane were distilled
over CaH prior to use. All reactions were performed under an atmosphere of dry nitrogen. Melting
2
points were determined using the capillary method and are uncorrected. Column chromatography
employed silica gel (Merck, 130–270 mesh). Thin-layer chromatography (TLC) was performed using
1
13
precoated silica gel plates (Merck Kieselgel 60F254). H-NMR and C-NMR spectra were recorded on
a JEOL ECA 600 MHz spectrometer (at 600 and 150 MHz, rexpectively) using deuterated chloroform
3
(CDCl ) as the solvent, and all chemical shifts are shown in parts per million (ppm) with
tetramethylsilane as the internal standard. Mass spectra were measured using a JEOL GCmate mass
spectrometer. Elemental analyses were carried out using an elemental analyzer (Choice Analytical
Elementar VARIO EL). UV-Vis spectra were recorded on a JASCO V-550 spectrophotometer, and
photoluminescence spectra were measured with a JASCO FP-6300 fluorospectrophotometer in cuvettes
(in solution) or in vacuum evaporation films on quartz substrates. Cyclic voltammetry was performed
using a potentio-stat (Hokuto Denko HZ-5000), and measurement was carried out in dichloromethane
containing 0.1 M tetrabutylammonium hexafluorophosphate (Bu NPF ) as the supporting electrolyte
4
6
using a three-electrode cell with a potential scanning rate of 50 mV/s. Suitable single crystals were
selected for indexing and intensity data and were measured on a Siemens Smart CCD diffractometer
with graphite-monochromated Mo Kα radiation (λ = 0.71073Å) at 293K. The raw data frames were
intergrated into SHELX-format reflection files and corrected using the SAINT program. Absorption
corrections based on multiscans were obtained by the SADABS program. The structures were solved
with direct methods and refined with full-matrix least-squares technique using the SHELXS-97 and

Molecules 2011, 16
4478
SHELXL-97 programs. The coordinates of the non-hydrogen atoms were refined anisotropically, and
the positions of the hydrogen atoms were generated geometrically, assigned isotropic thermal
parameters, and allowed to ride on their parent carbon atoms until the final cycle of refinement [23-26].
Crystallographic data have been deposited with the Cambridge Crystallographic Data Centre as
CCDC No. 821587, which contains the supplementary crystallographic data for this paper. The data
can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge
Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK; fax (+44) 1223-336-033;
e-mail: deposit@ccdc.cam.ac.uk).
3.2. Synthesis
THTP-C. To a solution of THTP (98 mg, 0.1 mmol) in dry dichloromethane (150 mL) was added a
solution of FeCl (130 mg, 0.8 mmol) in CH NO (1.5 mL) at 0 °C. After 15 min, anhydrous methanol
3
3
2
(
30 mL) was added to quench the reaction. The mixture was washed with brine, aqueous saturated
NH Cl, and then dried over magnesium sulfate. The residue was purified by column chromatography
4
using hexane/dichloromethane (5:1) as the eluent. After recrystallization by ethyl acetate, a pale yellow
1
solid (76 mg) was obtained at a yield of 78%. mp 185-187 °C. H-NMR: δ 9.48 (s,4H, Ph), 7.58 (s, 4H,
2 2 2
Th), 3.11 (t, 8H, J = 7.4 Hz, CH ), 1.90-1.91 (m, 8H, CH ), 1.78 (s, 18H, Bu), 1.50–1.53(m, 8H, CH ),
1
3
1
.35−1.41(m, 16H, CH
2
), 0.92 (t 12H, J = 7.2 Hz, CH
3
). C-NMR: δ 149.0, 147.3, 135.5, 132.9, 128.4,
+
1
24.3, 122.5, 122.0, 119.2, 36.0, 32.1, 31.7, 31.3, 30.6, 28.9, 22.6, 14.1. FAB-MS, m/z: [M] 974.3.
78 4
Anal. Calcd. for C64H S : C, 78.79; H, 8.06. Found: C, 78.62; H, 8.17. THTP-C is soluble in common
solvents such as chloroform, THF, and even hexane, and can be purified by column chromatography
and recrystallization. Considering that TTP has a similar structure to THTP, the same procedures as for
THTP-C were used to prepare the other thiophene-fused polycyclic aromatics (TTP-C). However,
attempts to perform oxidative cyclodehydrogenation of TTP gave a complicated mixture rather
3
than TTP-C even with a small amount of FeCl (1.8 equiv. per formed C-C bond) and using diluted
reaction concentrations.
4
. Conclusions
FeCl -mediated oxidative cyclization was successfully used to construct an extended thiophene-
3
pendant pyrene skeleton via thienyl-thienyl carbon-carbon bond formation of 4,5,9,10-tetra[2-(5-
hexyl)thienyl]-2,7-di-tert-butylpyrene (THTP) and obtain novel thiophene-fused polycyclic aromatic
THTP-C with a larger rigid tetracene core, while it could not be successfully applied to electron-rich
precursor 4,5,9,10-tetra(2-thienyl)-2,7-di-tert-butylpyrene (TTP). The new compound, THTP-C, with a
large π-conjugated structure has the tendency to self-associate through intermolecular π-π stacking,
1
which was evidenced by its concentration-dependent H-NMR spectra in CDCl and the comparison of
3
its photophysical properties in solution and in the solid state. The optical band gap of THTP-C
determined from the absorption onset was found to be 2.86 eV, which is significantly higher than that
of traditional pentacene derivatives, which implies a greater stability against photo-degradation. The
HOMO energy level of THTP-C determined from the onset oxidation potentials in the cyclic
voltammogram was calculated to be −5.64 eV, which is significantly lower than that of traditional
p-type semiconductor materials and a closer match with the work function of platinum; this clearly

Molecules 2011, 16
4479
encourages the fabrication of oxidatively stable organic field effect transistor devices based on this
material. Crystallographic analyses revealed that THTP-C is not planar but has a curvature similar to
“
saddle” shaped systems. Moreover, intermolecular π-π and CH–S weak interactions lead to the
formation of the resulting 1-D supramolecular structure; such a quasi face-to-face interaction structure
is desirable for fast charge transport along the stacking axis and thus THTP-C could potentially serves
as semiconductor material for electronic device applications. However, further studies to fabricate
THTP-C-based organic field effect transistors and organic light emitting diodes are under way.
Acknowledgements
The films investigated in this work were fabricated at the Micro Functional Device Research Center
of the College of Science and Technology, Nihon University.
References and Notes
1
2
3
.
Murphy, A.R.; Fréchet, J.M.J. Organic semiconducting oligomers for use in thin film transistors.
Chem. Rev. 2007, 107, 1066-1096.
. Mishra, A.; Ma, C.Q.; Bäuerle, P. Functional oligothiophenes: Molecular design for multidimensional
nanoarchitectures and their applications. Chem. Rev. 2009, 109, 1141-1276.
. Didane, Y.; Mehl, G.H.; Kumagai, A.; Yoshimoto, N.; Videlot-Ackermann, C.; Brisset, H.
A “Kite” shaped styryl end-capped benzo[2,1-b:3,4-b’]dithiophene with high electrical
performances in organic thin film transistors. J. Am. Chem. Soc. 2008, 130, 17681-17683.
. Kim, H.S.; Kim, Y.H.; Kim, T.H.; Nob, Y.Y.; Pyo, S.; Yi, M.H.; Kim, D.Y.; Kwon, S.K.
Synthesis and studies on 2-hexylthieno[3,2-b]thiophene end-capped oligomers for OTFTs. Chem.
Mater. 2007, 19, 3561-3567.
4
5
6
7
8
9
1
. Meng, H.; Sun, F.P.; Goldfinger, M.B.; Jaycox, G.D.; Li, Z.G.; Marshall, W.J.; Blackman, G.S.
High-performance, stable organic thin-film field-effect transistors based on bis-5’-alkylthiophen-
2
’-yl-2,6-anthracen semiconductors. J. Am. Chem. Soc. 2005, 127, 2406-2407.
. Merlo, J.A.; Newman, C.R.; Gerlach, C.P.; Kelley, T.W.; Muyres, D.V.; Fritz, S.E.; Toney, M.F.;
Frisbie, C.D. p-Channel organic semiconductors based on hybrid acene-thiophene molecules for
thin-film transistor applications. J. Am. Chem. Soc. 2005, 127, 3997-4009.
.
Noh, Y.Y.; Azumi, R.; Goto, M.; Jung, B.J.; Lim, E.H.; Shim, H.K.; Yoshida, Y.; Yase, K.;
Kim, D.Y. Organic field effect transistors based on biphenyl, fluorene end-capped fused
bithiophene oligomers. Chem. Mater. 2005, 17, 3861-3870.
. Zhang, H.J.; Wang, Y.; Shao, K.Z.; Liu, Y.Q.; Chen, S.Y.; Qiu, W.F.; Sun, X.B.; Qi, T.;
Ma, Y.Q.; Yu, G.; et al. Novel butterfly pyrene-based organic semiconductors for field effect
transistors. Chem. Commun. 2006, 7, 755-757.
.
Lucas, L.A.; DeLongchamp, D.M.; Richter, L.J.; Kline, R.J.; Fischer, D.A.; Kaafarani, B.R.;
Jabbour, G.E. Thin film microstructure of a solution processable pyrene-based organic
semiconductor. Chem. Mater. 2008, 20, 5743-5749.
0. Sonar, P.; Soh, M.S.; Cheng, Y.H.; Henssler, J.T.; Sellinger, A. 1,3,6,8-Tetrasubstituted pyrenes:
Solution-processable materials for application in organic electronics. Org. Lett. 2010, 12, 3292-3295.

Molecules 2011, 16
4480
1
1. Duan, Z.F.; Hoshino, D.; Yang, Z.G.; Yano, D.; Ueki, H.; Liu, Y.W.; Ohuchi, H.; Takyanagi, Y.;
Zhao, G.Y.; Nishioka, Y. Synthesis and characterization of novel pyrene derivatives containing
thienyl groups. Mol. Cryst. Liq. Cryst. 2011, 538, 199-207.
1
2. Tovar, J.D.; Rose, A.; Swager, T.M. Functionalizable polycyclic aromatics through oxidative
cyclization of pendant thiophenes. J. Am. Chem. Soc. 2002, 124, 7762-7769.
1
3. Brusso, J.L.; Hirst, O.D.; Dadvand, A.; Ganesan, S.; Cicoira, F.; Robertson, C.M.; Oakley, R.T.;
Rosei, F.; Perepichkat, D.F. Two-dimensional structural motif in thienoacene semiconductors:
Synthesis, structure, and properties of tetrathienoanthracene isomers. Chem. Mater. 2008, 20,
2
484-2494.
1
1
1
1
4. Pei, J.; Zhang, W.Y.; Mao, J.; Zhou, X.H. Helical polycyclic aromatics containing thiophenes:
Synthesis and properties. Tetrahedron Lett. 2006, 47, 1551-1554.
5. Luo, J.; Zhao, B.M.; Chan, H.S.O.; Chi, C.Y. Synthesis, physical properties and self-assembly of
star-shaped oligothiophenes-substituted and fused triphenylenes. J. Mater. Chem. 2010, 20, 1932-1941.
6. Zhou, Y.; Liu, W.J.; Ma, Y.G.; Wang, H.L.; Qi, L.M.; Cao, Y.; Wang, J.; Pei, J. Single microwire
transistors of oligoarenes by direct solution process. J. Am. Chem. Soc. 2007, 129, 12386-12387.
7. Liu, J.Y.; Zhang, R.; Sauve, G.; Kowalewski, T.; McCullough, R.H. Highly disordered polymer
field effect transistors: N-Alkyl dithieno[3,2-b:2’,3’-d]pyrrole-based copolymers with surprisingly
high charge carrier mobilities. J. Am. Chem. Soc. 2008, 130, 13167-13176.
1
1
2
8. Tang, M.L.; Reichardt, A.D.; Wei, P.; Bao, Z.N. Correlating carrier type with frontier molecular
orbital energy levels in organic thin film transistors of functionalized acene derivatives. J. Am.
Chem. Soc. 2009, 131, 5264-5273.
9. Porzio, W.; Destri, S.; Giovanella, U.; Pasini, M.; Marin, L.; Iosip, M.D.; Campione, M. Solid
state properties of oligomers, containing dithienothiophene or fluorene residues suitable for field
effect transistor devices. Thin Solid Films 2007, 515, 7318-7323.
0. Wu, G.L.; Zhao, G.J.; He, C.; Zhang, J.; He, Q.G.; Chen, X.M.; Li, Y.F. Synthesis and
photovoltaic properties of a star-shaped molecule with triphenylamine as core and
benzo[1,2,5]thiadiazol vinylene as arms. Sol. Energ. Mat. Sol. C. 2009, 93, 108-113.
1. Filatov, A.S.; Jackson, E.A.; Scott, L.T.; Petrukhina, M.A. Foregoing rigidity to achieve greater
intimacy. Angew. Chem. Int. Ed. 2009, 48, 8473-8476.
2
2
2
2. Anthony, J.E.; Eaton, D.L.; Parkin, S.R. A road map to stable, soluble, easily crystallized
pentacene derivatives. Org. Lett. 2002, 4, 15-18.
3. Eddaoudi, M.; Moler, D.B.; Li, H.L.; Chen, B.L.; Reineke, T.M.; O’Keeffe, M.; Yaghi, O.M.
Modular chemistry: Secondary building units as a basis for the design of highly porous and robust
metal-organic carboxylate frameworks. Acc. Chem. Res. 2001, 34, 319-330.
2
2
4. Sun, D.F.; Collins, D.J.; Ke, Y.X.; Zuo, J.L.; Zhou, H.C. Construction of open metal-organic
frameworks based on predesigned carboxylate isomers: From achiral to chiral nets. Chem. Eur. J.
2
006, 12, 3768-3776.
5. Ma, S.Q.; Eckert, J.; Forster, P.M.; Yoon, J.W.; Hwang, Y.K.; Chang, J.S.; Collier, C.D.;
Parise, J.B.; Zhou, H.C. Further investigation of the effect of framework catenation on hydrogen
uptake in metal-organic frameworks. J. Am. Chem. Soc. 2008, 130, 15896-15902.

Molecules 2011, 16
4481
2
6. Lin, X.; Telepeni, I.; Blake, A.J.; Dailly, A.; Brown, C.M.; Simmons, J.M.; Zoppi, M.;
Walker, G.S.; Thomas, K.M.; Mays, T.J.; et al. High capacity hydrogen adsorption in Cu(II)
tetracarboxylate framework materials: The role of pore size, ligand functionalization, and exposed
metal sites. J. Am. Chem. Soc. 2009, 131, 2159-2171.
Sample Availability: Samples of the compounds are available from the authors.
©
2011 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
http://creativecommons.org/licenses/by/3.0/).
(
