Journal of the American Chemical Society
Page 4 of 5
which can itself undergo further fragmentation (e.g to B’ and
C’).
If our mechanistic proposal is accurate, then the poly(4ꢀ
ASSOCIATED CONTENT
Supporting Information
Experimental procedures and spectral data. This material is available
1
2
3
4
5
6
7
8
methoxystyrene) chain ends should still be active once all monꢀ
omer has been consumed. To test this, monomer addition experꢀ
iments were carried out. After polymerization was complete,
irradiation was ceased and an additional equivalent of 2 was
added directly to the solution (Figure 6). A nearly monomodal
molecular weight shift was observed via GPC which retained a
low Ð, a strong indication that the poly(4ꢀmethoxystyrene)
chain ends are still active at the end of polymerization. While
the increase in Mn was less than the theoretically expected douꢀ
bling, an isolated yield of 90% was observed after precipitation
of the poly(4ꢀmethoxystyrene). The GPC trace did indicate a
small higher molecular weight shoulder, suggesting some loss of
control. Given the apparent rapid rate of the polymerization, this
may be a result of initial small differences in monomer concenꢀ
tration at the moment of addition.
AUTHOR INFORMATION
Corresponding Author
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Funding Sources
The authors declare no competing financial interests.
ACKNOWLEDGMENTS
The authors acknowledge Eastman Chemical for financial support of
this project.
REFERENCES
(1)
(2)
Matyjaszewski, K. Macromolecules 2012, 45, 4015.
Moad, G.; Rizzardo, E.; Thang, S. H. Acc. Chem. Res.
2008, 41, 1133.
(3)
Prier, C. K.; Rankic, D. A.; MacMillan, D. W. C. Chem.
Rev. 2013, 113, 5322.
(4)
51, 8850.
(5)
Fors, B. P.; Hawker, C. J. Angew. Chem. ꢀ Int. Ed. 2012,
Xu, J.; Jung, K.; Atme, A.; Shanmugam, S.; Boyer, C. J.
Am. Chem. Soc. 2014, 136, 5508.
(6)
Ogawa, K. a; Goetz, A. E.; Boydston, A. J. J. Am. Chem.
Soc. 2015, 137, 1400.
(7)
Treat, N. J.; Sprafke, H.; Kramer, J. W.; Clark, P. G.;
Barton, B. E.; Read de Alaniz, J.; Fors, B. P.; Hawker, C. J. J. Am.
Chem. Soc. 2014.
(8)
(9)
Sangermano, M. Pure Appl. Chem. 2012, 84, 2089.
Crivello, J. V. J. Polym. Sci. Part Polym. Chem. 1999,
37, 4241.

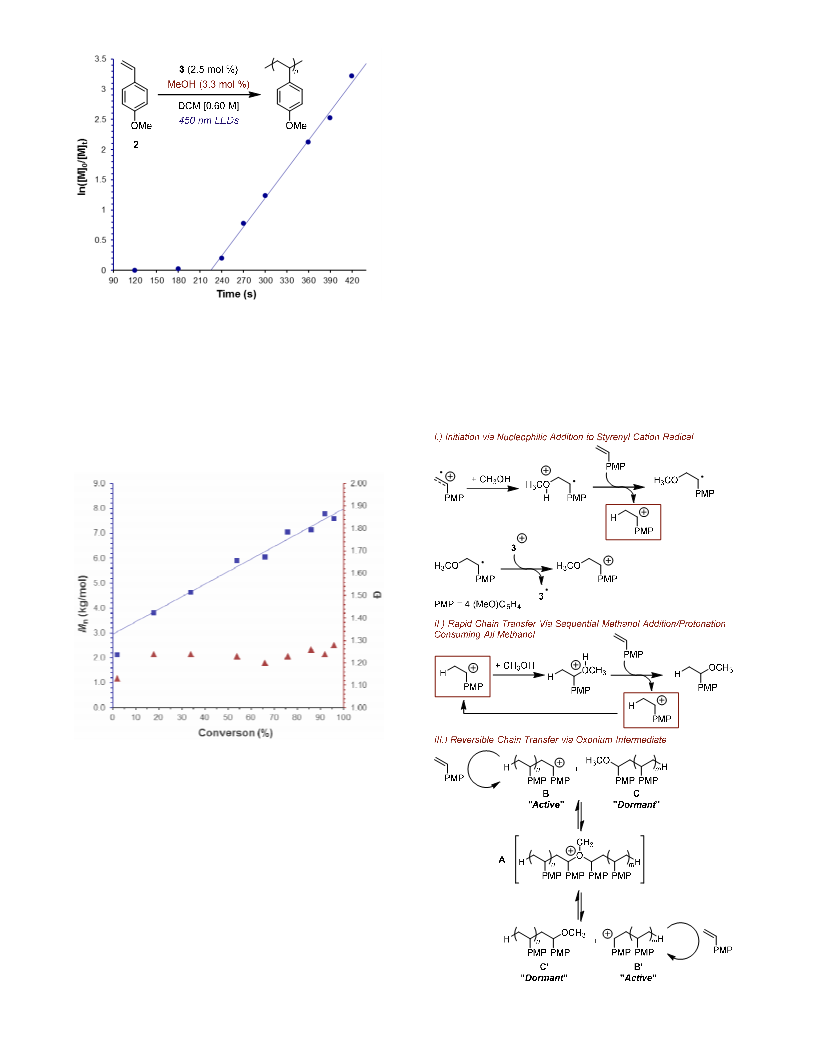

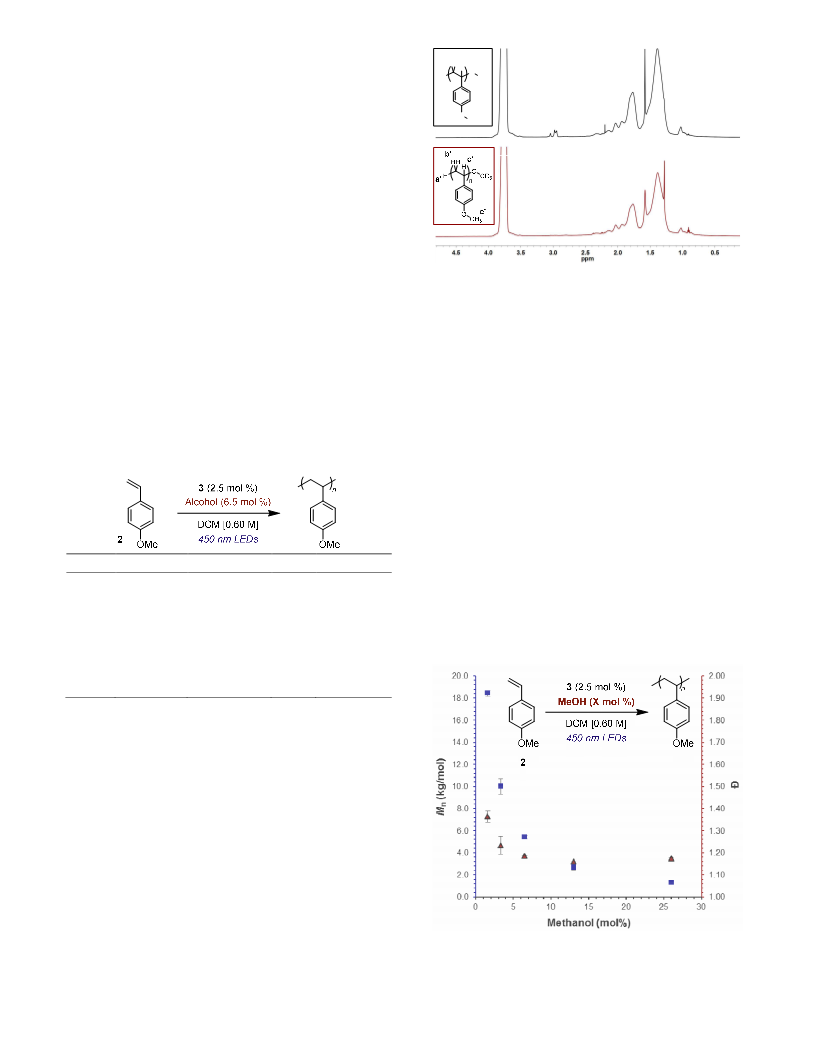

Figure 6. GPC trace showing monomodal molecular weight shift after
monomer addition. Conditions: 2.5 mol % 3, 6.5 mol % methanol, [0.60
M] 2 in DCM, blue LED irradiation. A: Quenched with triethylamine
after 10 minutes irradiation. B: Irradiation ceased at 10 minutes, immeꢀ
diate addition of a further equivalent of 2.
(10) Kahveci, M. U.; Yilmaz, A. G.; Yagci, Y. In Photochemꢀ
istry and Photophysics of Polymer Materials; Allen, N. S., Ed.;
John Wiley & Sons, Inc.: Hoboken, New Jersey, 2010; pp 421–478.
(11) Yagci, Y.; Durmaz, Y. Y.; Aydogan, B. Chem. Rec. N. Y.
N 2007, 7, 78.
(12) Kwon, S.; Chun, H.; Mah, S. Fibers Polym. 2004, 5, 253.
(13) Kahveci, M. U.; Tasdelen, M. A.; Yagci, Y. Polymer
2007, 48, 2199.
In conclusion, we have carried out initial studies into the
methanolꢀcontrolled visible light photoinitiated polymerization
of 4ꢀmethoxystyrene using pyrylium salts. First order kinetic
behavior, linear Mn growth with respect to monomer consumpꢀ
tion, narrow Ð, and continued polymerization upon monomer
addition all indicate the controlled/living nature of the polymerꢀ
ization. The accumulated data suggest methanol plays a role as a
reversible chain transfer agent, analogous to that of dithiocarꢀ
bamates in RAFT polymerization. The polymerization does not
require the use of strong Lewis or Brønsted acids or the prior
synthesis or formation of small molecule coꢀinitiators. Poly(4ꢀ
methoxystyrene) of low Ð can be prepared, with Mn controlled
by the concentration of methanol. Further development of this
methodology will focus on reducing the induction period made
apparent via kinetic study, and elucidation of the precise steps
involved in initiation will likely be of key importance in this
endeavor. Expansion of the scope of this methodology to further
monomers and towards the preparation of block copolymers and
polymers of more complex architecture is also planned. Further
tuning of the protic additive should allow for reduced loadings
and greater control over the polymerization. In principle, a
matching of protic additive and monomer should be possible
such that a wide range of monomers could be amenable to conꢀ
trolled polymerization via this method.
(14) Higashimura, T.; Kojima, K.; Sawamoto, M. Polym. Bull.
1988, 19, 7.
(15) Riener, M.; Nicewicz, D. A. Chem. Sci. 2013, 4, 2625.
(16) For examples of electroinitiated styrene polymerization,
see: a.) Funt, B. L.; Blain, T. J. J. Polym. Sci. [A1] 1970, 8, 3339.;
b.) Toppare, L.; Eren, S.; Özel, ö.; Akbulut, U. J. Macromol. Sci.
Part ꢀ Chem. 1984, 21, 1281; c.) Akbulut, U.; Fernandez, J. E.;
Birke, R. L. J. Polym. Sci. Polym. Chem. Ed. 1975, 13, 133
(17) De, P.; Faust, R. Macromolecules 2004, 37, 7930.
(18) Bawn, C. E. H.; Carruthers, R.; Ledwith, A. Chem.
Commun. 1965, 21, 522.
(19) Ledwith, A. Polym. Prepr. 1982, 23, 323.
(20) Miranda, M. A.; Gar, H. Chem. Rev. 1994, 94, 1063.
(21) Hamilton, D. S.; Nicewicz, D. A. J. Am. Chem. Soc.
2012, 134, 18577.
(22) Wayner, D. D. M.; McPhee, D. J.; Griller, D. J. Am.
Chem. Soc. 1988, 110, 132.
(23) Kamachi, M.; Guo, H.ꢀQ.; Kajiwara, A. Macromol.
Symp. 1997, 118, 149.
ACS Paragon Plus Environment
4
