2.2. Catalyst characterization
20 mL/min. The reaction for each catalyst was kept for 50 h at
ꢀ1
200 °C or 250 °C and GHSV = 6 L hꢀ1
g
cat
. The gas products were
The powder X-ray diffraction (XRD) patterns were recorded on
an automated powder X-ray diffractometer (40 kV, 40 mA, Bruker-
D8) using a Cu Ka radiation source (k = 1.54056 Å) in the range of
10–80° with step size of 2°/min.

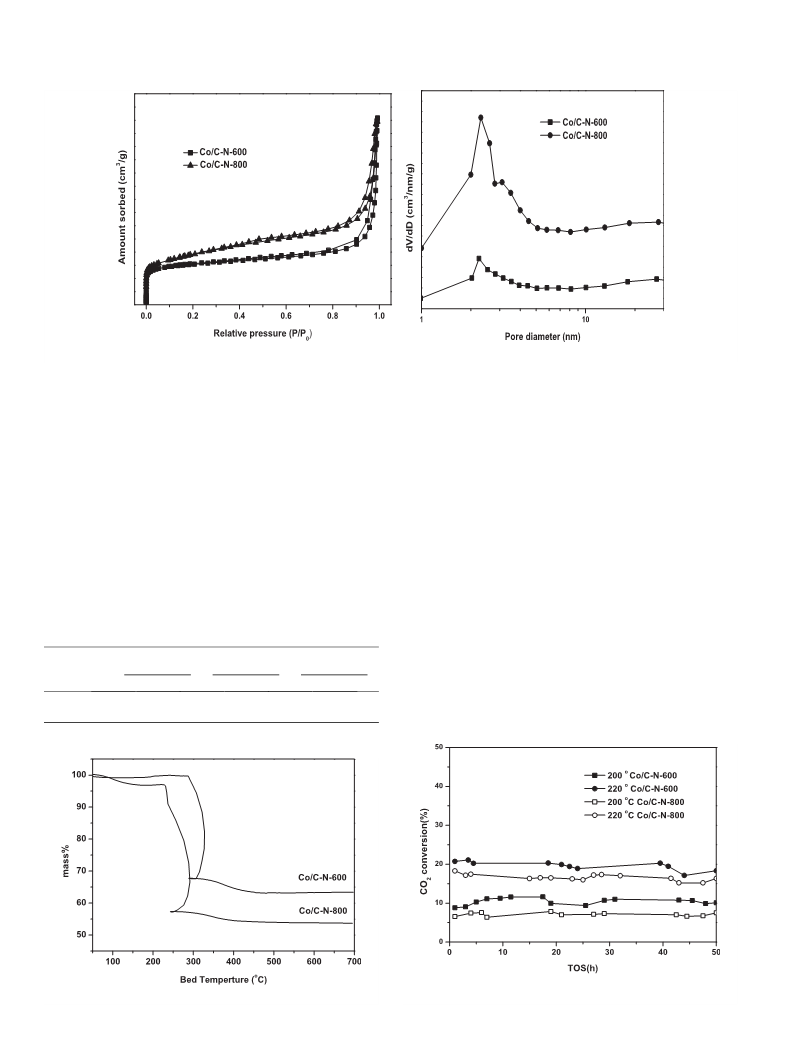

The surface area and pore volume were measured with low-
temperature nitrogen adsorption/desorption (77 K, quantachrome
Autosorb-1-C-MS). The specific surface area was determined from
the linear portion of the standard Brunauer-Emmett-Teller (BET)
plot. The total pore volumes and the average pore sizes were calcu-
lated from the desorption branch of the adsorption isotherm using
the Barrett–Joyner–Halenda (BJH) formula. Before the adsorption
measurements, the sample was degassed at 350 °C under vacuum
for 3 h. The pressure range used for the BET measurements was
9.849–100.566 KPa.
The ability of CO2 adsorption for the catalyst was measured by
CO2-temperature program desorption (CO2-TPD) experiment. Prior
to adsorption of CO2, the sample (100 mg) was pretreated at 300 °C
for 1 h and cool 100 °C in flowing Ar. At this temperature, sufficient
CO2 (30 mL minꢀ1) was injected at least 30 min until adsorption
saturation, followed by purging with Ar (30 mL minꢀ1) for about
1 h. The temperature was then raised from 100 to 650 °C at a ramp
rate of 10 °C minꢀ1 to desorb CO2. The desorbed CO2 was detected
by on-line gas chromatography with a TCD detector.
analyzed on line by an Agilent GC3000 gas chromatography (ther-
mal conductivity and flame ionization detectors). The liquid prod-
ucts were collected in a cold trap and analyzed with a 4890gas
chromatography (flame ionization detectors) off line. The reaction
parameters of CO2 conversion, selectivity and space time yield
(STY) are defined as below (where MeOH refers to methanol)
nCO2;in ꢀ nCo2;out
nproduct;out ꢄ carbon number
Xco2
¼
;
selectivity ¼
nCO2;in
nCo2;out
FCO2; in ꢄ XCO2 ꢄ 60 ꢄ SMeOH
22:4 ꢄ Mcat
STYMeOH
¼
3. Results and discussion
The X-ray diffraction patterns of Co/C-N catalysts are shown in
Fig. 1. The XRD patterns of Co/C-N showed the peaks with 2h at
H2-temperature program desorption (H2-TPD) experiments
were carried out using AMI-200 from Zeton Altamira Company.
For each measurement, about 50 mg of the catalyst was placed in
a quartz tube reactor and reduced at 220 °C for 2 h using a flow
of high-purity hydrogen (>99.999%, 30 mL minꢀ1) and then cooled
from 220 °C to 50 °C in flowing hydrogen. Then hydrogen was
switched to high-purity Ar (>99.999%, 25 mL minꢀ1) for 30 min.
Subsequently, the sample was heated from 50 °C to 600 °C at a rate
of 10 °C minꢀ1 and kept at 600 °C for 2 h in a flow of Ar
(25 mL minꢀ1). The desorbed H2 was monitored by TCD and used
for quantification.
Thermogravimetric analysis (TGA) was carried out on
a
NETZSCH TG 209F3 instrument. The sample (ꢂ10 mg) was placed
in a ceramic crucible and heated from 30 to 700 °C with a ramp
rate of 10 °C minꢀ1 under air (flow rate 30 mL minꢀ1).

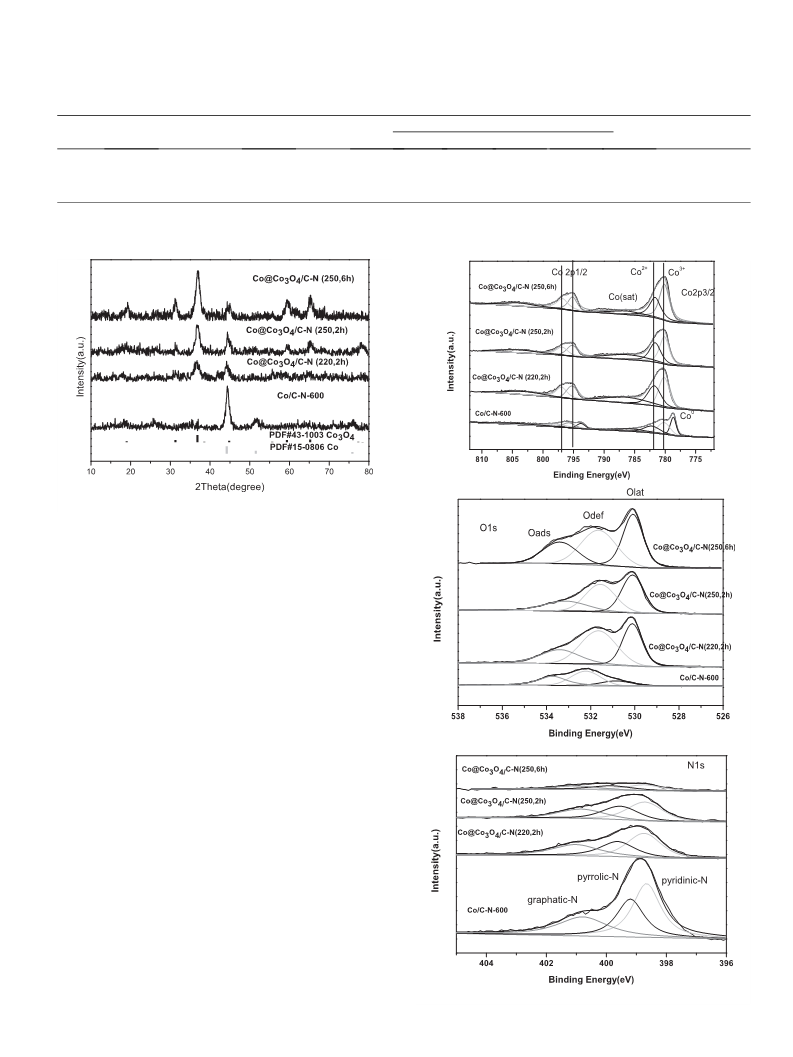

Fig. 1. XRD patterns of Co/C-N catalysts.
X-ray photoelectron spectroscopy (XPS) was conducted on a
Thermo VG scientific ESCA MultiLab-2000 spectrometer with a
monochromatized Al Ka source (1486.6 eV) at a constant analyzer
pass energy of 25 eV. The binding energy was estimated to be accu-
rate within 0.2 eV. Co 2p, N 1s and O 1s spectra were acquired, C 1s
was set at 284.6 eV and taken as a reference for binding energy
(BE) calibration. The software XPS PEAK was used to fit the XPS
spectra using a mixture of Gaussian and Lorentzian functions in a
40/60 ratio and a Shirley background.
Electron spin resonance (ESR) signals of radicals, trapped by a
spin-trap reagent DMPO (5,5-dimethyl-1-pyrroline-N-oxide) in
water, were examined on a Bruker model JEOL JES-FA200 spec-
trometer equipped with a Quanta-Ray Nd: YAG laser system as
the irradiation source (k ꢃ 420 nm). To minimize experimental
errors, the same type of quartz capillary tube was used for all
ESR measurements.
2.3. Typical procedure of CO2 hydrogenation
All catalytic tests were performed in a fixed-bed stainless steel
mini-reactor (length of 53 cm and inside diameter of 8 mm). A
mixed feed gas (22.5% CO2, 67.5% H2 and 10% N2) was used without
further purification. The pressure of the reactor was controlled
with
a backpressure regulator. For each experiment, the
catalyst to be tested (0.2 g) was mixed with 0.2 g of silica. The
system was pressurized to 2 MPa by feeding the mixed gas at

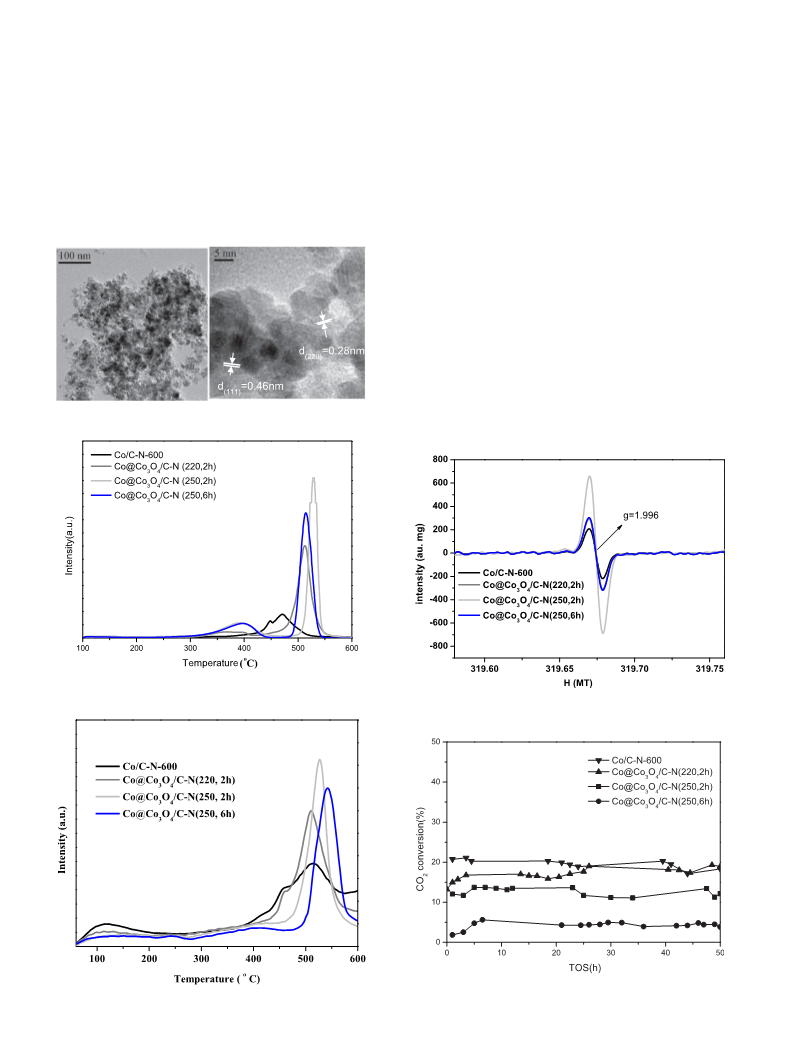

Fig. 2. TEM images and particle distribution of Co/C-N catalysts.
