Isomerization polymerization of 4-alkylcyclopentenes catalyzed by Pd complexes: Hydrocarbon polymers with isotactic-type stereochemistry and liquid-crystalline properties

Article abstract of DOI:10.1021/ja904150w

(Chemical Equation Presented) Isomerization polymerization of 4-alkylcyclopentenes catalyzed by Pd-diimine complexes produces the polymers with trans-1,3-disubstituted cyclopentane rings located regularly along the polymer chain. The polymers with isotact

Full text of DOI:10.1021/ja904150w

Published on Web 07/15/2009
Isomerization Polymerization of 4-Alkylcyclopentenes Catalyzed by Pd
Complexes: Hydrocarbon Polymers with Isotactic-Type Stereochemistry and
Liquid-Crystalline Properties
Takeshi Okada, Daisuke Takeuchi, Atsushi Shishido, Tomiki Ikeda, and Kohtaro Osakada*
Chemical Resources Laboratory, Tokyo Institute of Technology, 4259 Nagatsuta, Yokohama 226-8503, Japan
Received May 22, 2009; E-mail: kosakada@res.titech.ac.jp
The physical properties of poly(R-olefins) vary to a large degree
depending on the alkyl substituents derived from the monomer and
the relative stereochemistry of the neighboring repeating units
(
tacticity). Polymers with five- or six-membered rings in the
1
monomer units have unique thermal and optical properties. Early
transition-metal complex-catalyzed polymerization of cyclic olefins
and cyclopolymerization of dienes provide these polymers ef-
ficiently, although polymerization with regulated tacticity is rare.
Ni- or Pd-diimine complexes catalyze the polymerization of
2
3
R-olefins and cyclopolymerization of dienes with isotactic selectiv-
4
ity when a C
2
-symmetric ligand is employed. The polymerization
5
reactions, including cyclopolymerization of monoterminal dienes,
involve isomerization of the growing polymer end via a chain-
walking process. In this paper, we report polymerization of
4-alkylcyclopentenes catalyzed by Pd complexes to afford polymers
with 1,3-disubstituted five-membered rings formed via olefin
6,7
insertion and chain walking. The polymer with regulated tacticity
8
exhibited liquid-crystalline properties.
2
Pd-diimine complexes 1a and 1b, with C2V- and C -symmetric
5
ligands, respectively, promote the polymerization of 4-methylcy-
clopentene (I-1) in the presence of NaBARF (BARF ) [{3,5-
-
(
CF
3
)
2
C
6
H
3
}
4
B] ) to produce poly(I-1) (eq 1):

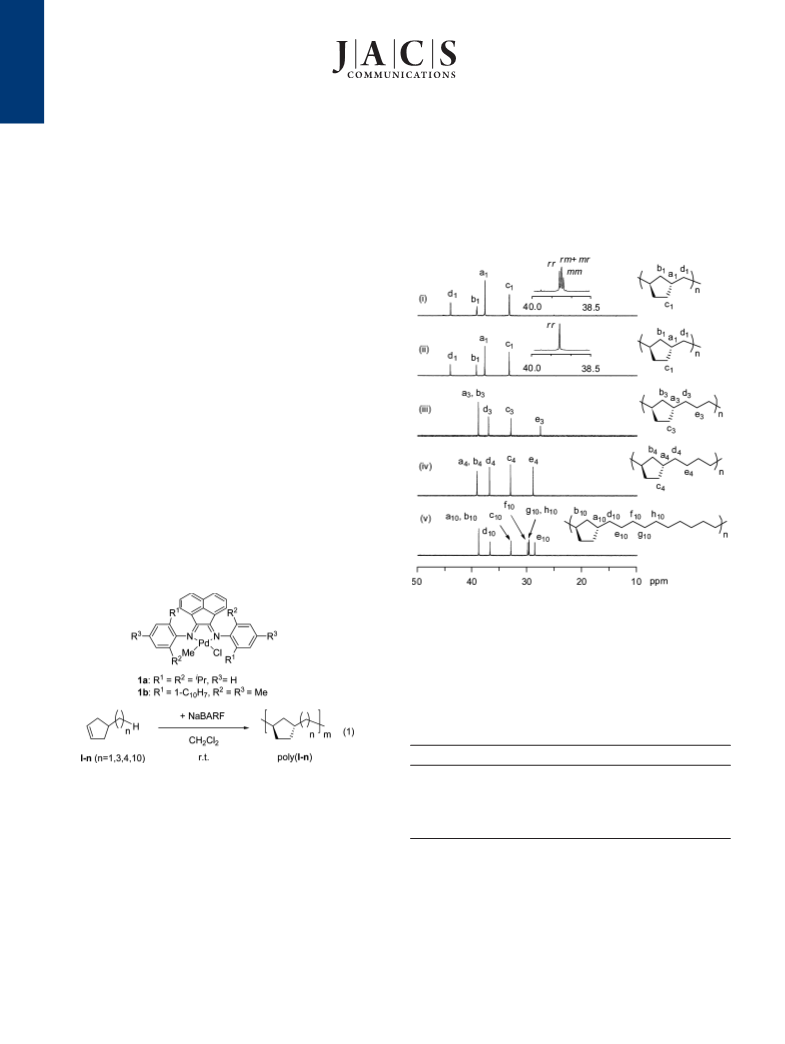

Figure 1. 13C{ H} NMR spectra (125 MHz, CDCl
run 1 in Table 1), (ii) poly(I-1) (run 2), (iii) poly(I-3) (run 3), (iv) poly(I-4)
run 4), and (v) poly(I-10) (run 5).
1
at 50 °C) of (i) poly(I-1)
3
(
(
diffraction peak at 2θ ) 17.92° and a halo pattern, indicating the
coexistence of the crystalline and amorphous domains. The isotactic
polymer obtained using 1b/NaBARF exhibited only a single sharp
diffraction peak at 2θ ) 18.42° and thus contained the crystalline
domain almost exclusively at room temperature.
a
Table 1. Polymerization of 4-Alkylcyclopentenes
run
olefin
Pd
time
conv. (%)
M
n
w n
M /M
b
,
c
b
,
c
1
2
3
4
5
I-1
I-1
I-3
I-4
I-10
1a
1b
1b
1b
1b
3 h
5 min
1 h
1.5 h
36 h
quant.
quant.
quant.
66
10100
1.90
-
The 13C{ H} NMR spectrum of poly(I-1) obtained using 1a/
1
c
e
e
e
,
d
8200
3000
3000
5700
e
e
e
2.18
3.38
2.38
NaBARF [Figure 1(i)] exhibits three peaks (39.32, 39.26, and 39.22
9
2 1
ppm) for the CH (b ) carbon between two CH carbons, which
56
corresponds to the triad structures with respect to the orientation
of three neighboring five-membered rings. The ratio among the
peaks (31:47:22) suggests a random or atactic-type arrangement
of the five-membered rings. Poly(I-1) obtained using 1b/NaBARF,
on the other hand, gives rise primarily to the signal at the lowest
field position (39.32 ppm) [Figure 1(ii)]. It is assigned to three
monomer units with the same stereochemistry, an rr triad, indicating
a highly threo-diisotactic structure of the polymer (rr > 93%).
The different tacticities of poly(I-1) formed by different catalysts
a
Reaction conditions: Pd complex (0.010 mmol), NaBARF (0.012
b
mmol), [monomer]/[Pd] ) 300, CH
GPC (o-dichlorobenzene) measurements on poly(I-1) (runs 1 and 2)
were not conducted because of low solubility. Estimated by H NMR.
GPC (o-dichlorobenzene).
2 2 3
Cl solvent, r.t. GPC (CHCl ).
c
d
1
e
Scheme 1 summarizes a plausible mechanism for the polymer-
ization of I-1. Coordination and insertion of the monomer produce
a cyclopentylpalladium intermediate (A). It does not undergo direct
insertion of the monomer into the Pd-secondary alkyl bond but
causes isomerization via chain walking to produce the cyclopen-
10
affected the crystallographic results. XRD measurements (Cu KR)
on the polymer obtained using 1a/NaBARF showed an intense
1
0852 9 J. AM. CHEM. SOC. 2009, 131, 10852–10853
10.1021/ja904150w CCC: $40.75  2009 American Chemical Society

C O M M U N I C A T I O N S
3
tylmethyl palladium species (B). Insertion of a new monomer into
the Pd-primary alkyl bond leads to further polymer growth.
Formation of a trans five-membered ring in the polymer is explained
by assuming preferential coordination of the monomer to Pd at the
less-hindered side followed by smooth insertion and chain walking.

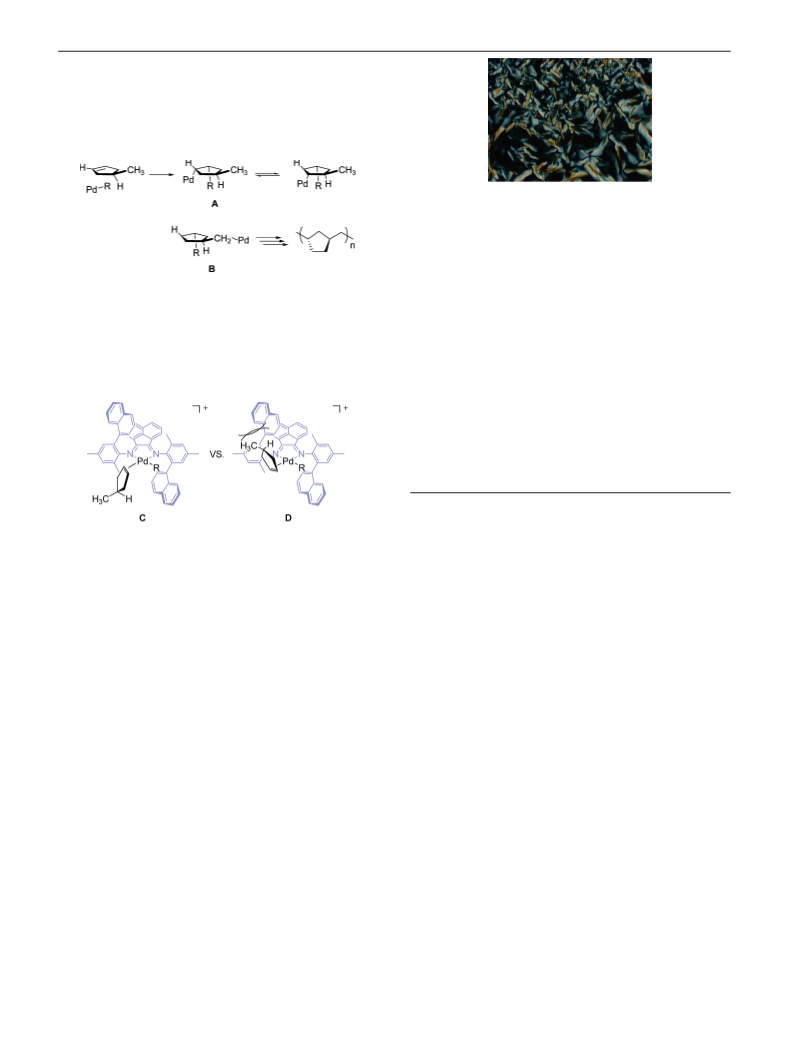

Scheme 1. Proposed Mechanism for the Polymerization of I-1
Figure 2. Polarizing optical micrograph of poly(I-4) (run 4 in Table 1).
In summary, the polymerization of 4-alkylcyclopentenes cata-
lyzed by Pd complexes affords polymers with trans-1,3-disubsti-
tuted cyclopentane rings located at regulated intervals along the
2
linear polymer chain. The C -symmetric catalyst produced polymers
Scheme 2 depicts a possible coordination mode of the monomer
to the Pd center of 1b activated by NaBARF. Steric repulsion
between the bulky naphthyl substituent and the monomer renders
coordination in C more favorable than that in D. Repetitive
coordination in C and insertion of the coordinated monomer would
result in formation of the isotactic polymer.
with an isotactic structure that exhibit high crystallinity at low
temperature and liquid-crystalline properties upon heating.
Acknowledgment. The authors are grateful to the Institute for
Molecular Science for the NMR measurements. This work was
supported by a Grant-in-Aid for Scientific Research on Priority
Areas (18750094) from the Ministry of Education, Science, Sports,
and Culture, Japan. T.O. acknowledges a JSPS Research Fellowship
for a Young Scientist.
Scheme 2. Selective Coordination of I-1
Supporting Information Available: Experimental procedures and
NMR spectra, DSC profiles, polarized optical micrographs, and XRD
data of polymers. This material is available free of charge via the
Internet at http://pubs.acs.org.
References
(
1) (a) Janiak, C.; Lassahn, P. G. Macromol. Rapid Commun. 2001, 22, 479.
(
b) Natori, I.; Imaizumi, K.; Yamagishi, H.; Kazunori, M. J. Polym. Sci.,
Polymerization of 4-alkylcyclopentenes with longer alkyl groups
I-3, I-4, and I-10) catalyzed by 1b/NaBARF afforded the corre-
Part B: Polym. Phys. 1998, 36, 1657. (c) Resconi, L.; Waymouth, R. M.
J. Am. Chem. Soc. 1990, 112, 4953. (d) Ballesteros, O. R.; Venditto, V.;
Auriemma, F.; Guerra, G.; Resconi, L.; Waymouth, R. M.; Mogstad, A.
Macromolecules 1995, 28, 2383.
(
sponding polymers poly(I-3), poly(I-4), and poly(I-10) (eq 1 and
13
1
runs 3-5 in Table 1). On the basis of the C{ H} NMR results
Figure 1(iii)-(v)], the polymers contain trans-fused 1,3-cyclo-
(2) (a) Coates, G. W.; Waymouth, R. M. J. Am. Chem. Soc. 1993, 115, 91. (b)
Lavoie, A. R.; Ho, M. H.; Waymouth, R. M. Chem. Commun. 2003, 864.
[
(
3) (a) Johnson, L. K.; Killian, C. M.; Brookhart, M. J. Am. Chem. Soc. 1995,
117, 6414. (b) Johnson, L. K.; Mecking, S.; Brookhart, M. J. Am. Chem.
Soc. 1996, 118, 267. (c) Ittel, S. D.; Johnson, L. K.; Brookhart, M. Chem.
ReV. 2000, 100, 1169. (d) Leatherman, M. D.; Brookhart, M. Macromol-
ecules 2001, 34, 2748. (e) McCord, E. F.; McLain, S. J.; Nelson, L. T. J.;
Ittel, S. D.; Tempel, D.; Killian, C. M.; Johnson, L. K.; Brookhart, M.
Macromolecules 2007, 40, 410.
pentane rings located at regulated intervals along the linear chain.
The long spacers between the five-membered rings did not allow
estimation of the tacticity of these polymers by NMR analysis. The
polymerization of the monomers with more bulky substituents than
2
I-1 using the C -symmetric catalyst 1b probably yields poly(I-3),
(4) (a) Pappalardo, D.; Mazzeo, M.; Antinucci, S.; Pellecchia, C. Macromol-
ecules 2000, 33, 9483. (b) Cherian, A. E.; Lobkovsky, E. B.; Coates, G. W.
Chem. Commun. 2003, 2566. (c) Cherian, A. E.; Rose, J. M.; Lobkovsky,
E. B.; Coates, G. W. J. Am. Chem. Soc. 2005, 127, 13770. (d) Park, S.;
Takeuchi, D.; Osakada, K. J. Am. Chem. Soc. 2006, 128, 3510. (e) Rose,
J. M.; Deplace, F.; Lynd, N. A.; Wang, Z.; Hotta, A.; Lobkovsky, E. B.;
Kramer, E. J.; Coates, G. W. Macromolecules 2008, 41, 9548. A
poly(I-4), and poly(I-10) with the regulated tacticity.
Differential scanning calorimetry (DSC) measurements on iso-
tactic poly(I-1) and poly(I-3) showed monotropic transitions, while
poly(I-4) and poly(I-10) with longer alkylene spacers undergo
enantiotropic transitions. Increasing the length of the alkyl spacer
2
C -symmetric Ni-diimine complex has been reported to promote polym-
erization of R-olefins with high levels of ω,2-regiochemistry. See: (f) Rose,
J. M.; Cherian, A. E.; Coates, G. W. J. Am. Chem. Soc. 2006, 128, 4186.
5) Okada, T.; Park, S.; Takeuchi, D.; Osakada, K. Angew. Chem., Int. Ed.
10
leads to lower phase-transition temperatures. These polymers are
considered to show liquid-crystalline properties between the transi-
tion temperatures. Direct observation of poly(I-4) by polarizing
optical microscopy also supports the existence of the liquid-
crystalline phase (Figure 2). Poly(I-1) obtained using 1a/NaBARF
(
(
2
007, 46, 6141.
6) For 1,3-polymerization of cyclopentene, see: McLain, S.; Feldman, J.;
McCord, E. F.; Gardner, K. H.; Teasley, M. F.; Coughlin, E. B.; Sweetman,
K. J.; Johnson, L. K.; Brookhart, M. Macromolecules 1998, 31, 6705.
7) Polymerization of 4-methylcyclopentene was reported to show high
stereoselectivity. See: McLain, S. J.; McCord, E. F.; Bennett, A. M. A.;
Ittel, S. D.; Sweetman, K. J.; Teasley, M. F. U.S. Patent 6,258,908, 1999;
WO 9950320, 1999; Chem. Abstr. 1999, 131, 272335w.
(
(
n
M ) 10100 and 4500), however, undergoes only an irreversible
glass transition and does not show liquid-crystalline behavior.
8
Recently, Naga et al. reported the formation of liquid-crystalline
(8) For the report of liquid-crystal polyolefins, see: Naga, N.; Yabe, T.;
Sawaguchi, A.; Sone, M.; Noguchi, K.; Murase, S. Macromolecules 2008,
hydrocarbon polymers having five-membered rings from the
cyclopolymerization of 1,5-hexadiene, although the stereochemical
structure of the polymer has not been clarified and is probably not
regulated.
4
1, 7448.
1
3
1
(9) Determined from the C{ H} NMR spectrum at 230 MHz.
(
10) The Supporting Information contains complete diffraction and DSC data.
JA904150W
J. AM. CHEM. SOC. 9 VOL. 131, NO. 31, 2009 10853
