Substituent Effects and Mechanism in a Mechanochemical Reaction

Article abstract of DOI:10.1021/jacs.8b09263

We report the effect of substituents on the force-induced reactivity of a spiropyran mechanophore. Using single molecule force spectroscopy, force-rate behavior was determined for a series of spiropyran derivatives substituted with H, Br, or NO₂

Full text of DOI:10.1021/jacs.8b09263

Communication
is published by the
SubstitueAnmtericeanffCehecmictasl
Society. 1155 Sixteenth
and mechanism in
Street N.W., Washington,
DC 20036
Published by American
Chemical Society.
Subscriber access provided by University of
Copyright © American
Sunderland
Chemical Society.
However, no copyright

a mechanochemical
reaction
is published by the
American Chemical
Meredith Hyatt Barbee,
Society. 1155 Sixteenth
Street N.W., Washington,
Tatiana B. Kouznetsova,
DC 20036
Published by American
Scott L. Barrett, Gregory R.
Chemical Society.
Subscriber access provided by University of
Gossweiler, YaCnogpyjurighLti©nA,mSehriciavna
Sunderland
Chemical Society.
However, no copyright

Kumar Rastogi, William J.
Brittain, and Stephen L. Craig
is published by the
J. Am. Chem. Soc., Just Accepted
American Chemical
Society. 1155 Sixteenth
Manuscript • DOI: 10.1021/
Street N.W., Washington,
jacs.8b09263 • Publication
DC 20036
Date (Web): 27 Sep 2018
Published by American
Chemical Society.
Subscriber access provided by University of
Copyright © American
Sunderland
Chemical Society.
However, no copyright

Downloaded from http://
pubs.acs.org on September 27, 2018
is published by the
American Chemical
Society. 1155 Sixteenth
Street N.W., Washington,
DC 20036
Published by American
Just Accepted
Chemical Society.
Subscriber access provided by University of
Copyright © American
Sunderland
Chemical Society.
However, no copyright

“Just Accepted” manuscripts have been pe
online prior to technical editing, formatting f
is published by the
American Chemical
Society provides “Just Accepted” as a servic
Society. 1155 Sixteenth
of scientific material as soon as possible
Street N.W., Washington,
full in PDF format accompanied by an HT
DC 20036
Published by American
peer reviewed, but should not be conside
Chemical Society.
Subscriber access provided by University of
Digital Object Identifier (DOI®). “Just Acce
Copyright © American
Sunderland
Chemical Society.
However, no copyright

the “Just Accepted” Web site may not inc
a manuscript is technically edited and form
is published by the
site and published as an ASAP article. N
American Chemical
to the manuscript text and/or graphics w
Society. 1155 Sixteenth
Street N.W., Washington,
ethical guidelines that apply to the journa
DC 20036
consequences arising from the use of info
Published by American
Chemical Society.
Subscriber access provided by University of
Copyright © American
Sunderland
Chemical Society.
However, no copyright

Page J1ooufr1n1al of the American Chemical Society
3
2
force
R
coupled
1
N
O
1
0
R
N
O
rates
SP
MC
2
3
4
5
6
7
-1
0.0
0.5
1.0
para
ACS Paragon Plus Environment
Single Molecule Force Spectroscopy
Hammett Analysis

A
Journal of the American Chemical Society
Page 2 of 11
O
N
O
O
R
N
O
R
1
2
3
4
5
6
7
8
9
O
O
O
O
O
O
Grubbs II
m
O
O
1, R=H
2, R=Br
3, R=NO2
P1, R=H
P2, R=Br
P3, R=NO2
10
11
12
B
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
R
N
O
R
N
O
SP
MC
ACS Paragon Plus Environment

800
Page 3 of 11Journal of the American Chemical Society
P1
P2
P3
600
400
200
0
1
2
3
4
5
6
7
8

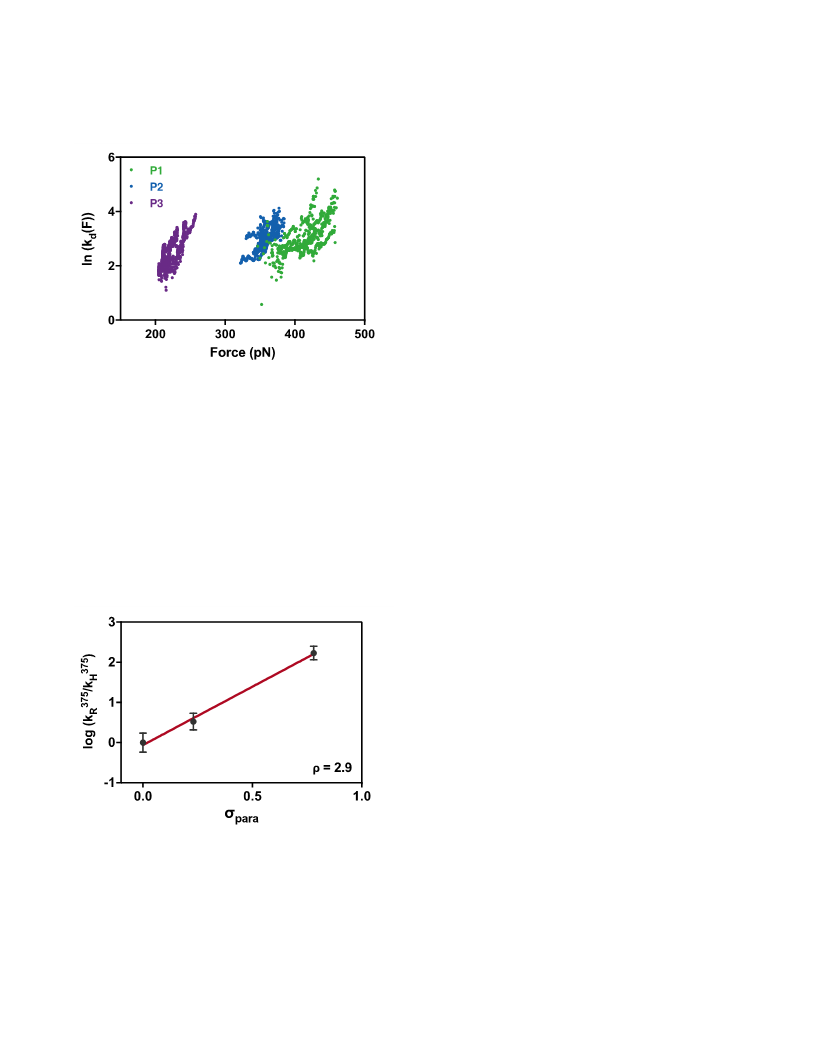

f* ~ 410 ± 17 pN
f* ~ 360 ± 25 pN
f* ~ 240 ± 14 pN
9
10
11
12
13
ACS Paragon Plus Environment
0.8
0.9
1.0
1.1
1.2
1.3
Normalized extension (a.u.)

3
2
Journal of the American Chemical SocietyPage 4 of 11
1
2
3
4
5
1
6
7
0
8
9
10
11
12
13
ρ = 2.9
-1
ACS Paragon Plus Environment
0.0
0.5
1.0
σpara

6
Page 5 of 11Journal of the American Chemical Society
P1
P2
1
2
3
4
5
6
7
8
P3
4
2
0
9
10
11
12
13
ACS Paragon Plus Environment
200
300
400
500
Force (pN)

Journal of the American Chemical Society
Page 6 of 11
1
2
3
4
5
6
7
8
9
Substituent effects and mechanism in a mechanochemical reaction
†
†
x
†
†
Meredith H. Barbee
, Tatiana Kouznetsova , Scott L. Barrett , Gregory R. Gossweiler , Yangju Lin ,
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
x
x
†
Shiva K. Rastogi , William J. Brittain , and Stephen L. Craig*
†
Department of Chemistry, Duke University, Durham, NC 27708
x
Department of Chemistry and Biochemistry, Texas State University, San Marcos, TX 78666
Supporting Information Placeholder
ABSTRACT: We report the effect of substituents on the
force-induced reactivity of a spiropyran mechanophore.
Using single molecule force spectroscopy, force-rate
behavior was determined for a series of spiropyran de-
rivatives substituted with H, Br, or NO2 para to the
breaking spirocyclic C-O bond. The force required to
achieve the rate constants of ~ 10 s-1 necessary to ob-
serve transitions in the force spectroscopy experiments
depends on the substituent, with the more electron with-
drawing substituent requiring less force. Rate constants
at 375 pN were determined for all three derivatives, and
the force-coupled rate dependence on substituent identi-
ty is well explained by a Hammett linear free energy
relationship with a value of ; = 2.9, consistent with a
highly polar transition state with heterolytic, dissociative
character. The methodology paves the way for further
Figure 1. (A) Multi-mechanophore polymers with substitu-
tions as indicated by R synthesized for this study. (B) A
schematic of the single molecule force spectroscopy
(SMFS) experiment and ring-opening of spiropyran (SP) to
merocyananine (MC).
application of linear free energy relationships and physi-
cal organic methodologies to mechanochemical reac-
tions, and the characterization of new force probes
should enable additional, quantitative studies of force-
coupled molecular behavior in polymeric materials.
The precision with which mechanophores can be predic-
tively designed has increased as quantitative experi-
mental and computational studies have provided insights
into structure-activity relationships.2e For example, it has
been shown that even reactions with very similar force-
free activation barriers can have very different force-
coupled reactivities as a result of the polymer structure
and attachment point through which force is delivered.1c,
10Additional benefits will be realized as these emerging
quantitative relationships are mapped onto existing, intu-
itive physical organic frameworks. Here, we report the
effect of substituent on the tension-driven ring-opening
reaction of the classic mechanophore spiropyran (SP) to
the (longer) merocyanine (MC).11 Single molecule force
spectroscopy is used to quantify force-rate relationships
for three spiropyran derivatives with the same attach-
ment points, and the qualitative and quantitative reactivi-
The potential to use mechanochemistry, either in isolated
polymers or in polymeric materials, to trigger a pro-
grammed, desirable covalent molecular response was
first revealed only a decade or so ago. Since that time,
covalent polymer mechanochemistry1 has undergone a
renaissance in which it has been extensively explored by
a number of research groups and for a variety of purpos-
es, including (but not limited to): biasing and probing
reaction pathways,1b, 2 trapping transition states and in-
termediates,3 catalysis,4 release of small molecules and
protons,5 stress reporting,6 stress strengthening,6d, 7 and
soft materials and devices.8 Increasingly creative mech-
anophore designs and new properties continue to emerge
at an ever-accelerating pace.9
ACS Paragon Plus Environment

Page 7 of 11
Journal of the American Chemical Society
ty trends are well explained by Hammett linear free en- measurement variation in the contour length of the de-
1
2
3
4
5
6
7
8
ergy relationships.
tected polymer. The nature of the (force-free) SP-to-MC
reaction has been the subject of prior work that suggests
that relative contributions of a less polar electrocyclic
reaction and more polar, heterolytic mechanism depend
on solvent and substituent.16 The nature of the mechano-
chemical reaction has not been previously addressed
experimentally, and the trend in f* (H > Br > NO2) is
consistent with a transition state that is largely heterolyt-
ic and polar in character, as electron withdrawing groups
para to the spirocyclic O atom should stabilize the de-
veloping negative charge separation at that position as
the spirocyclic C-O bond is broken.16

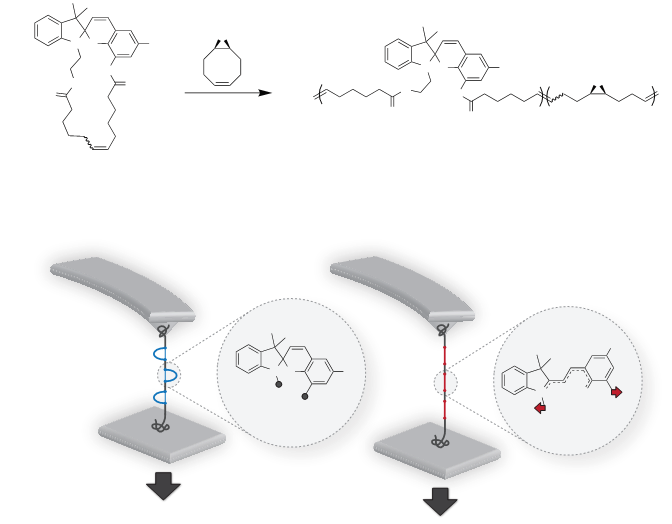

Our approach is described in Figure 1. Multi-
mechanophore polymers of the three SP derivatives were
synthesized through previously established entropy driv-
en ring-opening metathesis co-polymerization.12 Epox-
idized cylcooctadiene is used as a co-monomer for better
adhesion to the cantilever tip.10a Polymers were deposit-
ed in dilute solution of tetrahydrofuran and dried after
drop casting onto a silicon surface. Toluene was placed
onto the surface, then constant velocity (300 nm s-1) sin-
gle molecule force spectroscopy measurements were
conducted to measure force as a function of tip-surface
separation.13
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
To confirm that the reaction is under kinetic, not ther-
modynamic control on the timescale of the SMFS exper-
iment,17 we conducted a —retracing“ experiment using
P1, which is the fastest derivative to close back to SP.
The cantilever, with polymer still attached after being
pulled through the SP-to-MC transition, was returned to
just above the surface. The approach curves obtained
showed no evidence of a plateau, and they instead were
fully hysteretic (Figure S14, ESI) with no evidence of
ring closing. Even after waiting 2 s (in comparison to
forward transition time scales of ~0.1 s) at the surface
following re-approach, a second extension of the same
polymer shows only partial recovery of the SP (56%)
under effectively force-free (< 5 pN) conditions. The
back reaction of MC to SP therefore does not need to be
considered when analyzing the chain extension kinetics.
The ring-opening of SP to MC releases stored length,
which results in a characteristic plateau in the force-
distance curves (Figure 2). Following previously pub-
lished procedures,14 the change in contour length of the
polymer is determined by fitting to the extended freely
jointed chain model of polymer elasticity. The experi-
mental results (Table 1) are consistent with extension
ratios based on the polymer‘s mechanophore content and
calculated contour length before and after ring-opening
from SP to the possible MC isomers.13, 15 Similarity in
the contour lengths of the MC isomers precludes an ex-
act assignment of MC geometry (Table S4).
Quantitative kinetic information is extracted from the
force curves of each polymer by fitting the transitions to
the Bell18 and Cusp19 models of force-modified chemical
13-14
reactivity, as done previously.10a,
The force-free
activation energy of each SP derivative is obtained from
its force-free reverse rate constant and equilibrium con-
stant (Tables S6 and S7). The fits give Dxfl, the change
in length of the stretched polymer as an embedded SP
moves from the ground to transition state. The Dxfl val-
ues of the three SPs are effectively indistinguishable,
given the uncertainties associated predominantly with
the force-free equilibrium constants. This homology
between reaction mechanism and force sensitivity is
consistent with accepted models of mechanochemical
coupling1e and is reminiscent of an earlier study of
mechanistically similar ligand displacement reactions.20
Figure 2. Representative SMFS curves for P1-3. The
plateau corresponds to an extension of polymer contour
length upon ring-opening of SP to MC. The transition
force f* is the midpoint of each plateau and is calculated
as an average from multiple force curves collected at a
pulling rate of 300 nm s-1.
A more direct kinetic analysis of the force-coupled reac-
tions is possible without independent characterization of
the force-free pathways, by extracting the rate constant
of the ring-opening reaction as a function of force direct-
ly from the single molecule force curve (Figure 3),
where the inferred force-rate relationship is independent
of the velocity of the SMFS experiment.21 For example,
at a force of 375 pN, rate constants of 9 s-1 and 32 s-1 can
be obtained directly for 1 and 2, respectively (Figures
S20 and S21). In the constant velocity experiments, SP 3
The force-distance curves of all three polymers show
identical extension as a function of SP content, as ex-
pected since each of the substituted monomers have the
same end to end length in the extended MC. Each SP
derivative, however, shows a different critical force f*,
of around 410 pN, 360 pN, and 240 pN for P1, P2, and
P3. Actual rate constant calculations (see below) are not
derived from f*, however, but are based on fits to the
force curves that account for measurement-to-
ACS Paragon Plus Environment

Journal of the American Chemical Society
has already fully ring-opened by the time the force
reaches 375 pN, and so we extracted rate constant as a
function of force for P3 over a range from 205 to 257
pN, and extrapolated up to 375 pN to get a force-
coupled rate constant of 1600 s-1 (Figure S22).
Page 8 of 11
product MC has a contributing resonance structure that
is a phenoxide, and so it is noteworthy that here is
roughly half the value = 5.3 for phenol acidity in di-
methyl sulfoxide.23 We expect that
for phenol activity
in toluene would be slightly higher, given its calculated
value in a vacuum (
=14.3),23 and estimates based on
1
2
3
4
5
6
7
8
r
r
r
r
solvent descriptors (Q, Z, and ET(30), see Figure S23-25)
range from ~7.3 to ~13.3. This finding is therefore con-
sistent with a transition state that is intermediate to reac-
tant and product phenoxide structure.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Substituent effects on the spiropyran ring-opening reac-
tion have been well studied,16b, 24 and our measured val-
ue of
r also correlates well to trends in r seen in similar
spiropyran racemization reactions, which also proceed
through a transition state where the C(sp3-O) bond is
cleaving.16a Racemization rates from Swansburg et al.16a
for spiropyrans with the same substituents as in P1-3 in
acetonitrile and 90:10 hexanes/isopropanol give
r = 2.2
and = 1.5. The larger value obtained in our SMFS
r
r
Figure 3. The rate constant as a function of force for P1-
3, extracted directly from multiple single molecule force
curves for each derivative. For P1 and P2, rate constants
at 375 pN can be obtained directly. For P3, the data is fit
to a log-linear regression and extrapolated to 375 pN.
experiments can again largely be attributed to the less
polar medium (toluene) employed, although for force-
free racemizations in cyclohexane,
r is negative over a
large series of compounds, and for the spiropyrans cor-
responding to P1-3 there is weak correlation. The pre-
sent SMFS analysis is limited in that there are only 3 SP
derivatives, and so this study may not fully capture sub-
tle aspects of the structure-property relationships.
Substituent effects on a wide range of conventional,
force-free reactions have been successfully interpreted
through linear free energy relationships. Of these,
Hammett equations are perhaps the most pervasive and
useful.22 The rate constants obtained at 375 pN (k375
)
Beyond the mechanistic insights into the mechanochem-
ical reaction mechanism, the quantitative linear free en-
ergy relationship will guide the choice of spiropyran
derivatives as a function the desired force and time re-
gimes of various material applications. For example, the
quantitative data on this series of spiropyrans, which
have different force-rate behaviors, will allow us to use
them as probes to correlate SMFS and bulk response
(e.g., to quantify the fraction of polymer chains experi-
encing certain forces within polymer networks) as a
function of material composition, including polarity.
Additionally, differences in decoloration rate for these
SPs allow us to select the derivative with a specific ap-
plication in mind. These H- and Br- substituted mech-
anophores have an additional advantage in that the SP
form is not photoactive and has negligible background
color relative to the NO2- analog, which might provide
advantages in some situations. Comparative applications
using these mechanophores will be facilitated by the fact
that for this series of spiropyrans, the attachment points
are held constant, but the intrinsic reactivity is modified
with local substituent effects.
provide an opportunity to apply the Hammett methodol-
ogy to a force-coupled reaction for the first time. As
shown in Figure 4, the Hammett plot of k375 vs. ꢀpara for
these spiropyrans returns a value of
r = 2.9.
375
Figure 4. Hammett plot of log (kR375/ kH
3, where ꢀpara is 0, 0.23, and 0.78.
) vs. ꢀpara for P1-
The small data set of three substituents precludes a de-
tailed evaluation of potentially subtle contributions;
nonetheless, some insights are possible. The positive
slope is consistent with the expected increase in rate as
electron withdrawing substituents stabilize the develop-
ing negative charge on the spirocyclic oxygen.16a The
To the best of our knowledge, this analysis is the first
application of linear free energy relationships to mecha-
nochemical processes. The results of the Hammett anal-
ysis are consistent with a force-coupled reaction mecha-
nism and evolution in electronic structure that is polar in
ACS Paragon Plus Environment

Page 9 of 11
Journal of the American Chemical Society
Chemical Society 2010, 132, 10609-10614; (g) Makarov, D. E.
Perspective: Mechanochemistry of Biological and Synthetic Molecules.
The Journal of Chemical Physics 2016, 144, 030901.
3. (a) Klukovich, H. M.; Kean, Z. S.; Ramirez, A. L. B.; Lenhardt, J. M.;
Lin, J.; Hu, X.; Craig, S. L. Tension Trapping of Carbonyl Ylides
Facilitated by a Change in Polymer Backbone. J. Am. Chem. Soc. 2012,
134, 9577-9580; (b) Makarov, D. E. Shapes of Dominant Transition Paths
from Single-Molecule Force Spectroscopy. The Journal of Chemical
Physics 2015, 143, 194103.
nature, as suggested by prior studies of the force-free
1
2
3
4
reaction. The methodology reported here should be
broadly applicable in a manner that serves the increasing
desire to apply physical organic insights and chemical
intuition to mechanophore design.
5
6
7
8
9
4. (a) Jakobs, R. T. M.; Sijbesma, R. P. Mechanical Activation of a Latent
Olefin Metathesis Catalyst and Persistence of Its Active Species in Romp.
Organometallics 2012, 31, 2476-2481; (b) Kean, Z. S.; Akbulatov, S.;
Tian, Y.; Widenhoefer, R. A.; Boulatov, R.; Craig, S. L. Photomechanical
Actuation of Ligand Geometry in Enantioselective Catalysis. Angew.
Chem. Int. Ed. Engl. 2014, 53, 14508-14511; (c) Michael, P.; Binder, W.
ASSOCIATED CONTENT
Supporting Information. Synthetic details, additional
SMFS curves and fitting. The Supporting Information is
available free of charge on the ACS Publications website.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
H.
A Mechanochemically Triggered —Click“ Catalyst. Angewandte
Chemie International Edition 2015, 54, 13918-13922.
AUTHOR INFORMATION
Corresponding Author
5. (a) Diesendruck, C. E.; Steinberg, B. D.; Sugai, N.; Silberstein, M. N.;
Sottos, N. R.; White, S. R.; Braun, P. V.; Moore, J. S. Proton-Coupled
Mechanochemical Transduction: A Mechanogenerated Acid. J. Am.
Chem. Soc. 2012, 134, 12446-12449; (b) Larsen, M. B.; Boydston, A. J.
—Flex-Activated“ Mechanophores: Using Polymer Mechanochemistry to
Direct Bond Bending Activation. J. Am. Chem. Soc. 2013, 135, 8189-
8192.
6. (a) Davis, D. A.; Hamilton, A.; Yang, J.; Cremar, L. D.; Van Gough,
D.; Potisek, S. L.; Ong, M. T.; Braun, P. V.; Martinez, T. J.; White, S. R.;
Moore, J. S.; Sottos, N. R. Force-Induced Activation of Covalent Bonds in
Mechanoresponsive Polymeric Materials. Nature 2009, 459, 68-72; (b)
Chen, Y.; Spiering, A. J. H.; KarthikeyanS; Peters, G. W. M.; Meijer, E.
W.; Sijbesma, R. P. Mechanically Induced Chemiluminescence from
Polymers Incorporating a 1,2-Dioxetane Unit in the Main Chain. Nat.
Chem. 2012, 4, 559-562; (c) Ducrot, E.; Chen, Y.; Bulters, M.; Sijbesma,
R. P.; Creton, C. Toughening Elastomers with Sacrificial Bonds and
Watching Them Break. Science 2014, 344, 186-189; (d) Verstraeten, F.;
Gostl, R.; Sijbesma, R. P. Stress-Induced Colouration and Crosslinking of
*stephen.craig@duke.edu
Notes
The authors declare no competing financial interest.
ACKNOWLEDGMENT
We thank Will Trautman and Anthony DiLauro for helpful
discussions and Dr. Peter Silinski and Dr. George Dubay
for assistance with mass spectrometry. This work is sup-
ported by the National Science Foundation (CHE-1808518
to S.L.C. and DMR-1205670 to W.J.B). M.H.B. acknowl-
edges fellowship support from DoD (Air Force Office of
Scientific Research, NDSEG Fellowship, 32 CFR 168A).
This work was performed in part at the Duke University
Shared Materials Instrumentation Facility (SMIF), a mem-
ber of the North Carolina Research Triangle Nanotechnolo-
gy Network (RTNN), supported by the National Science
Foundation (Grant ECCS-1542015) as part of the National
Nanotechnology Coordinated Infrastructure (NNCI).
Polymeric
Materials
by
Mechanochemical
Formation
of
Triphenylimidazolyl Radicals. Chemical Communications 2016, 52, 8608-
8611; (e) Sagara, Y.; Karman, M.; Verde-Sesto, E.; Matsuo, K.; Kim, Y.;
Tamaoki, N.; Weder, C. Rotaxanes as Mechanochromic Fluorescent Force
Transducers in Polymers. Journal of the American Chemical Society 2018,
140, 1584-1587; (f) Imato, K.; Kanehara, T.; Ohishi, T.; Nishihara, M.;
Yajima, H.; Ito, M.; Takahara, A.; Otsuka, H. Mechanochromic Dynamic
Covalent Elastomers: Quantitative Stress Evaluation and Autonomous
Recovery. ACS Macro Letters 2015, 4, 1307-1311.
7. (a) Wang, J.; Piskun, I.; Craig, S. L. Mechanochemical Strengthening of
a Multi-Mechanophore Benzocyclobutene Polymer. ACS Macro Lett.
2015, 4, 834-837; (b) Zhang, H.; Gao, F.; Cao, X. D.; Li, Y. Q.; Xu, Y. Z.;
Weng, W. G.; Boulatov, R. Mechanochromism and Mechanical-Force-
Triggered Cross-Linking from a Single Reactive Moiety Incorporated into
Polymer Chains. Angew Chem Int Edit 2016, 55, 3040-3044; (c)
Diesendruck, C. E.; Sottos, N. R.; Moore, J. S.; White, S. R. Biomimetic
Self-Healing. Angewandte Chemie International Edition 2015, 54, 10428-
10447.
8. (a) Wang, Q.; Gossweiler, G. R.; Craig, S. L.; Zhao, X. Cephalopod-
Inspired Design of Electro-Mechano-Chemically Responsive Elastomers
for on-Demand Fluorescent Patterning. Nat. Commun. 2014, 5, 4899; (b)
Gossweiler, G. R.; Brown, C. L.; Hewage, G. B.; Sapiro-Gheiler, E.;
Trautman, W. J.; Welshofer, G. W.; Craig, S. L. Mechanochemically
Active Soft Robots. ACS Appl. Mater. Interfaces 2015, 7, 22431-22435;
(c) Barbee, M. H.; Mondal, K.; Deng, J. Z.; Bharambe, V.; Neumann, T.
V.; Adams, J. J.; Boechler, N.; Dickey, M. D.; Craig, S. L.
Mechanochromic Stretchable Electronics. ACS Applied Materials &
Interfaces 2018, 10, 29918-29924; (d) Adhikari, R.; Makarov, D. E.
Mechanochemical Kinetics in Elastomeric Polymer Networks:
Heterogeneity of Local Forces Results in Nonexponential Kinetics. The
Journal of Physical Chemistry B 2017, 121, 2359-2365.
9. (a) Larsen, M. B.; Boydston, A. J. Investigations in Fundamental and
Applied Polymer Mechanochemistry. Macromolecular Chemistry and
Physics 2015, 217, 354-364; (b) Chen, Z.; Mercer, J. A. M.; Zhu, X.;
Romaniuk, J. A. H.; Pfattner, R.; Cegelski, L.; Martinez, T. J.; Burns, N.
Z.; Xia, Y. Mechanochemical Unzipping of Insulating Polyladderene to
Semiconducting Polyacetylene. Science 2017, 357, 475; (c) De Bo, G.
Mechanochemistry of the Mechanical Bond. Chemical Science 2018, 9,
15-21; (d) Di Giannantonio, M.; Ayer, M. A.; Verde-Sesto, E.; Lattuada,
M.; Weder, C.; Fromm, K. M. Triggered Metal Ion Release and
REFERENCES
1. (a) Caruso, M. M.; Davis, D. A.; Shen, Q.; Odom, S. A.; Sottos, N. R.;
White, S. R.; Moore, J. S. Mechanically-Induced Chemical Changes in
Polymeric Materials. Chem. Rev. 2009, 109, 5755-5798; (b) Ribas-Arino,
J.; Marx, D. Covalent Mechanochemistry: Theoretical Concepts and
Computational Tools with Applications to Molecular Nanomechanics.
Chem. Rev. 2012, 112, 5412-5487; (c) Brown, C. L.; Craig, S. L.
Molecular Engineering of Mechanophore Activity for Stress-Responsive
Polymeric Materials. Chem. Sci. 2015, 6, 2158-2165; (d) Li, J.; Nagamani,
C.; Moore, J. S. Polymer Mechanochemistry: From Destructive to
Productive. Accounts of Chemical Research 2015, 48, 2181-2190; (e)
Huang, Z.; Boulatov, R. Chemomechanics: Chemical Kinetics for
Multiscale Phenomena. Chem. Soc. Rev. 2011, 40, 2359-2384.
2. (a) Hickenboth, C. R.; Moore, J. S.; White, S. R.; Sottos, N. R.; Baudry,
J.; Wilson, S. R. Biasing Reaction Pathways with Mechanical Force.
Nature 2007, 446, 423-427; (b) Wang, J.; Kouznetsova, T. B.; Niu, Z.;
Ong, M. T.; Klukovich, H. M.; Rheingold, A. L.; Martinez, T. J.; Craig, S.
L. Inducing and Quantifying Forbidden Reactivity with Single-Molecule
Polymer Mechanochemistry. Nat. Chem. 2015, 7, 323-327; (c)
Wollenhaupt, M.; Krupićka, M.; Marx, D. Should the Woodwardœ
Hoffmann Rules Be Applied to Mechanochemical Reactions?
ChemPhysChem 2015, 16, 1593-1597; (d) Akbulatov, S.; Tian, Y.; Huang,
Z.; Kucharski, T. J.; Yang, Q.-Z.; Boulatov, R. Experimentally Realized
Mechanochemistry Distinct from Force-Accelerated Scission of Loaded
Bonds. Science 2017, 357, 299; (e) Ong, M. T.; Leiding, J.; Tao, H.;
Virshup, A. M.; Martínez, T. J. First Principles Dynamics and Minimum
Energy Pathways for Mechanochemical Ring Opening of Cyclobutene.
Journal of the American Chemical Society 2009, 131, 6377-6379; (f)
Ribas-Arino, J.; Shiga, M.; Marx, D. Mechanochemical Transduction of
Externally Applied Forces to Mechanophores. Journal of the American
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 10 of 11
Oxidation: Ferrocene as a Mechanophore in Polymers. Angewandte
First Principles Dynamics and Minimum Energy Pathways. Dissertation,
Chemie International Edition 2018, 57, 11445-11450; (e) Zhang, H.; Li,
X.; Lin, Y.; Gao, F.; Tang, Z.; Su, P.; Zhang, W.; Xu, Y.; Weng, W.;
Boulatov, R. Multi-Modal Mechanophores Based on Cinnamate Dimers.
Nature Communications 2017, 8, 1147.
University of Illinois at Urbana-Champaign, 2012.
1
2
3
4
5
6
7
8
16. (a) Swansburg, S.; Buncel, E.; Lemieux, R. P. Thermal Racemization
of Substituted Indolinobenzospiropyrans:Y Evidence of Competing Polar
and Nonpolar Mechanisms. Journal of the American Chemical Society
2000, 122, 6594-6600; (b) Sheng, Y.; Leszczynski, J.; Garcia, A. A.;
Rosario, R.; Gust, D.; Springer, J. Comprehensive Theoretical Study of
the Conversion Reactions of Spiropyrans:Y Substituent and Solvent
Effects. The Journal of Physical Chemistry B 2004, 108, 16233-16243.
17. Lee, C. K.; Davis, D. A.; White, S. R.; Moore, J. S.; Sottos, N. R.;
Braun, P. V. Force-Induced Redistribution of a Chemical Equilibrium.
Journal of the American Chemical Society 2010, 132, 16107-16111.
18. Bell, G. I. Models for the Specific Adhesion of Cells to Cells. Science
1978, 200, 618.
19. Dudko, O. K.; Hummer, G.; Szabo, A. Intrinsic Rates and Activation
Free Energies from Single-Molecule Pulling Experiments. Physical
Review Letters 2006, 96, 108101.
20. Kersey, F. R.; Yount, W. C.; Craig, S. L. Single-Molecule Force
Spectroscopy of Bimolecular Reactions:Y System Homology in the
Mechanical Activation of Ligand Substitution Reactions. Journal of the
American Chemical Society 2006, 128, 3886-3887.
10. (a) Klukovich, H. M.; Kouznetsova, T. B.; Kean, Z. S.; Lenhardt, J.
M.; Craig, S. L. A Backbone Lever-Arm Effect Enhances Polymer
Mechanochemistry. Nat. Chem. 2013, 5, 110-114; (b) Wang, J.;
Kouznetsova, T. B.; Kean, Z. S.; Fan, L.; Mar, B. D.; Martínez, T. J.;
Craig, S. L. A Remote Stereochemical Lever Arm Effect in Polymer
Mechanochemistry. J. Am. Chem. Soc. 2014, 136, 15162-15165; (c)
Wang, J.; Kouznetsova, T. B.; Niu, Z.; Rheingold, A. L.; Craig, S. L.
Accelerating a Mechanically Driven Anti-WoodwardœHoffmann Ring
Opening with a Polymer Lever Arm Effect. J. Org. Chem. 2015, 80,
11895-11898; (d) Tian, Y.; Boulatov, R. QuantumꢀChemical Validation of
the Local Assumption of Chemomechanics for a Unimolecular Reaction.
ChemPhysChem 2012, 13, 2277-2281; (e) Robb, M. J.; Kim, T. A.;
Halmes, A. J.; White, S. R.; Sottos, N. R.; Moore, J. S. Regioisomer-
Specific Mechanochromism of Naphthopyran in Polymeric Materials.
Journal of the American Chemical Society 2016, 138, 12328-12331; (f)
Stevenson, R.; De Bo, G. Controlling Reactivity by Geometry in Retro-
DielsœAlder Reactions under Tension. Journal of the American Chemical
Society 2017, 139, 16768-16771.
11. Davis, D. A. H., A.; Yang, J.; Cremar, L. D.; Van Gough, D.; Potisek,
S. L.; Ong, M. T.; Braun, P. V.; Martinez, T. J.; White, S. R.; Moore, J. S.;
Sottos, N. R. Force-Induced Activation of Covalent Bonds in
Mechanoresponsive Polymeric Materials. Nature 2009, 459, 68-72.
12. (a) Bowser, B. H.; Craig, S. L. Empowering Mechanochemistry with
Multi-Mechanophore Polymer Architectures. Polymer Chemistry 2018, 9,
3583-3593; (b) Hodge, P. Entropically Driven Ring-Opening
Polymerization of Strainless Organic Macrocycles. Chemical Reviews
2014, 114, 2278-2312.
13. Gossweiler, G. R.; Kouznetsova, T. B.; Craig, S. L. Force-Rate
Characterization of Two Spiropyran-Based Molecular Force Probes.
Journal of the American Chemical Society 2015, 137, 6148-6151.
14. Wu, D.; Lenhardt, J. M.; Black, A. L.; Akhremitchev, B. B.; Craig, S.
L. Molecular Stress Relief through a Force-Induced Irreversible Extension
in Polymer Contour Length. Journal of the American Chemical Society
2010, 132, 15936-15938.
15. (a) Rogers, R. A.; Rodier, A. R.; Stanley, J. A.; Douglas, N. A.; Li, X.;
Brittain, W. J. A Study of the SpiropyranœMerocyanine System Using Ion
Mobility-Mass Spectrometry: Experimental Support for the Cisoid
Conformation. Chemical Communications 2014, 50, 3424-3426; (b)
Cremar, L. D. Insights for Designing Mechanochromic Spiropyrans from
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
21. Kouznetsova, T. B.; Wang, J.; Craig Stephen, L. Combined Constant-
Force and Constant-Velocity Single-Molecule Force Spectroscopy of the
Conrotatory
Ring
Opening
Reaction
of
Benzocyclobutene.
ChemPhysChem 2016, 18, 1486-1489.
22. (a) Hammett, L. P. The Effect of Structure Upon the Reactions of
Organic Compounds. Benzene Derivatives. Journal of the American
Chemical Society 1937, 59, 96-103; (b) Hansch, C.; Leo, A.; Taft, R. W.
A Survey of Hammett Substituent Constants and Resonance and Field
Parameters. Chemical Reviews 1991, 91, 165-195.
23. Bordwell, F. G.; McCallum, R. J.; Olmstead, W. N. Acidities and
Hydrogen Bonding of Phenols in Dimethyl Sulfoxide. The Journal of
Organic Chemistry 1984, 49, 1424-1427.
24. (a) Brügner, O.; Reichenbach, T.; Sommer, M.; Walter, M. Substituent
Correlations Characterized by Hammett Constants in the Spiropyranœ
Merocyanine Transition. The Journal of Physical Chemistry A 2017, 121,
2683-2687; (b) Keum, S.-R.; Lee, K.-B.; Kazmaier, P. M.; Buncel, E. A
Novel Method for Measurement of the Merocyanine-Spiropyran
Interconversion in Non-Activated 1, 3, 3-Trimethylspiro- (2h-1-
Benzopyran-2, 2[-Indoline) Derivatives. Tetrahedron Letters 1994, 35,
1015-1018; (c) Schmidt, S. B.; Kempe, F.; Brügner, O.; Walter, M.;
Sommer, M. Alkyl-Substituted Spiropyrans: Electronic Effects, Model
Compounds and Synthesis of Aliphatic Main-Chain Copolymers. Polymer
Chemistry 2017, 8, 5407-5414; (d) Minkin, V. I. Photo-, Thermo-,
Solvato-, and Electrochromic Spiroheterocyclic Compounds. Chemical
Reviews 2004, 104, 2751-2776.
Table 1. Polymer Characterization and Force Curve Fitting
a. Determined from previously published data.13
b. Mole fraction by 1H NMR.
SP contentb Lf/Li (calc) Lf/Li (calc) Lf/Li (obs)
f*
Dxfl (BE), Dxfl
Polymer
(CTC)
(TTT)
nm
(Cusp), nm
1
0.46
0.48
0.45
1.11
1.17
1.15±0.0 410±17
3
0.19±0.0 0.22±0.0
06
009
2
1.11
1.11
1.17
1.13
1.15±0.0 358±25
4
0.22±0.0 0.25±0.0
08 09
3a
1.15±0.0 240±14
2
0.19±0.0 0.21±0.0
12 13
ACS Paragon Plus Environment

Page 11 of 11
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
6
ACS Paragon Plus Environment
