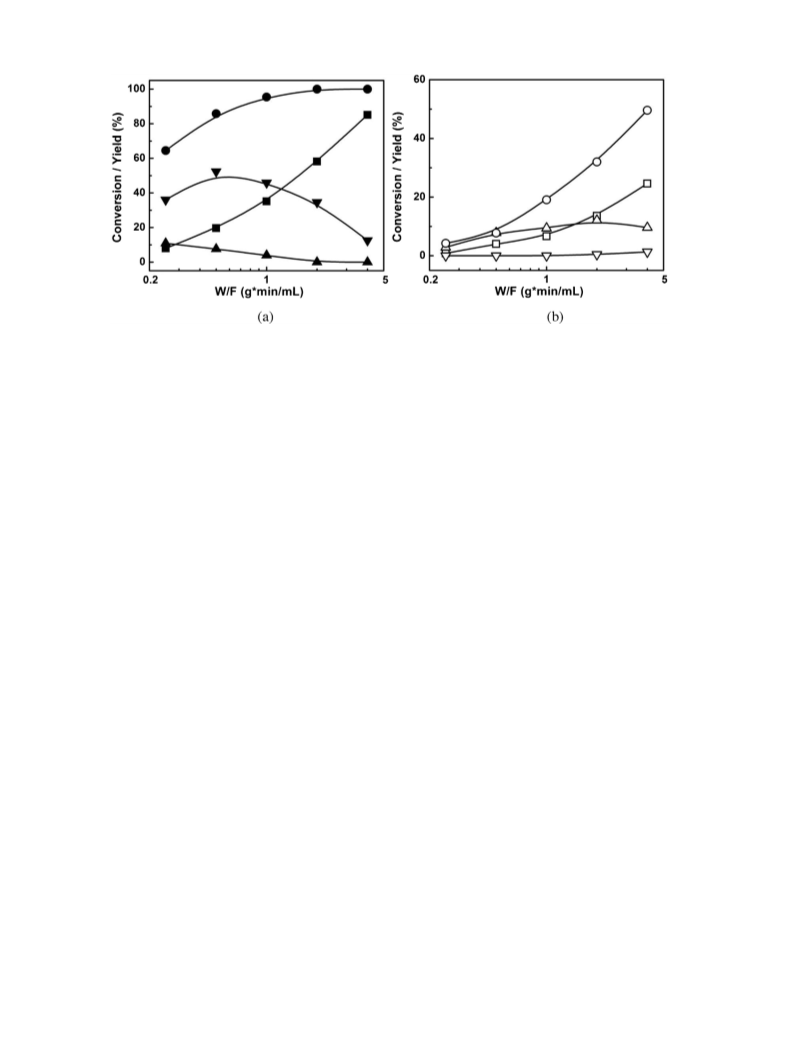

Fig. 2. Conversion and product distribution for the HDO reaction of HMF over a 10-wt% Ir/C catalyst as a function of reactor space time. The overall product distribution
is given in (a) while a more detailed description of the over-hydrogenated products (product group D) is shown in (b). Reaction conditions: 33 bar and 180 ◦C. (᭹) HMF
conversion, (ꢀ) product group B, (ꢁ) DMF, () product group D, (ᮀ) DMTHF, (ꢂ) 2-hexanone, (ꢀ) 2,5-hexandione, (ꢃ) 2-propoxyhexane, (ꢁ) 2,5-dipropoxyhexane.
The metals were added to the support by impregnation, using a
water/ethanol (5:1) solution of tetraammineplatinum (II) nitrate
(Pt(NH3)4(NO3)2, 99.99%, Alfa Aesar), tetraamminepalladium(II)
nitrate solution, (Pd(NH3)4(NO3)2, 99.9%, Alfa Aesar), cobalt(II)
nitrate hexahydrate (Co(NO3)2·6H2O, 99%, Aldrich), ruthenium(III)
nitrosylnitrate solution, (N4O10Ru, Alfa Aesar), or iridium(III) chlo-
ride hydrate (Cl3Ir·xH2O, Aldrich). The dried powders were reduced
by flowing a 5% H2/He mixture over the catalysts while ramping
the temperature at 2 ◦C min−1 to 400 ◦C, followed by heating to
500 ◦C with heating ramp of 1 ◦C min−1. The catalysts were then
the flow reactor. We attempted to measure metal dispersions by
selective chemisorption but found the results to be unreliable, in
agreement with another recent report for carbon-supported metals
[10]; therefore, TEM measurements were performed on each of the
catalysts used in this study, with results shown in the Supplemental
materials section, Figs. S1–S6.
The reaction of HMF with H2 was carried out in the high-
pressure, flow reactor that has been described in detail elsewhere
[9]. The tubular reactor was a 20-cm long, stainless-steel tube with
a 4.6-mm ID and ¼-inch OD, passed through a tube furnace. The
liquid feed, a mixture of 1 g HMF (99%, Sigma–Aldrich) and 100 mL
1-propanol (99.9%, Fisher Scientific), was introduced into the reac-
tor by an HPLC pump (Series I+, Scientific System Inc.), which could
also monitor the total pressure in the reactor. The pressure within
the reactor was controlled by a back pressure regulator (KPB series,
Swagelok) that was connected at the outlet of reactor. The reactor
pressure was fixed at 33 bar for all the experiments performed in
this study. Pure H2 (Airgas, UHP grade) was supplied from a high
delivery pressure regulator (Airgas) to the reactor through 8 feet
of capillary tubing (0.002-inch ID, Valco Instrument, Inc.). The H2
flow rate was calibrated in separate experiments as a function of the
cylinder outlet pressure and pressure drop across the capillary tube.
For a typical experiment, the liquid flow rate was set as 0.2 mL/min,
while the H2 flow rate was 20 mL/min (STP). The ratio of liquid and
gas flow rates was kept constant. A bubble meter at the reactor exit
was used to check that the H2 flow rates were maintained.
measurements, each catalyst was pretreated by heating to 250 ◦C
in 1 bar of flowing H2 for 30 min. Fresh samples were used for each
experiment at a specified reaction condition.
The reaction products were collected at room temperature
and immediately injected into a GC–MS (QP-5000, Shimadzu) for
analysis using a syringe. The GC–MS was equipped with an HP-
Innowax capillary column (Agilent Technologies). Both liquid-and
gas-phase products were examined, but the gas-phase prod-
ucts were found to consist of only H2 and solvent vapor under
the conditions of this study. Product selectivities were quanti-
fied using solutions with known concentrations of HMF, DMF,
dimethyl-tetrahydrofuran (DMTHF), 2-hexanone, 2-hexanol, and
2,5-hexandione (all purchased from Sigma–Aldrich). For quan-
tification of other furan-based, intermediate products, the GC
sensitivity was assumed to be the same as that for HMF. For open-
ring, ether products, the GC sensitivity was assumed to be the same
as 2-hexanone or 2,5-hexandione. The typical run time for each
experiment was 3 h, and each GC sample analysis time was 30 min.
Because all of the catalysts underwent deactivation to some extent,
the data which we refer to as “initial performance” were typically
chosen from the second or third measurement (40–60 min after
starting the reaction).
In order to further characterize the DMF reaction kinetics and
the distribution of products formed from DMF, experiments were
also performed with a mixture of 0.76 g DMF and 100 mL of 1-
propanol as the feed. The molar concentration of DMF in this case
is the same as that used in the HMF experiments. No reaction was
observed in the absence of a catalyst under the conditions of this
study.
3. Results
In the previous HDO study of HMF over Pt/C in 1-propanol,
the reaction network was shown to be sequential [9], as indi-
cated in Scheme 1. In this scheme, the HMF (A) first reacts
to a group of partially hydrogenated compounds and propyl
ether products formed from those compounds (B). Specific prod-
ucts that were formed include 5-propoxymethyl-2-furanmethanol,
5-propoxymethyl-2-methylfuran (ether-methyl furan), 5-methyl
furfural (MF), 5-methyl-2-furanmethanol (methyl furfuryl alcohol),
and 2,5-bis(hydroxymethyl) furan (BHMF). All of these react further
to form DMF (C), which was then converted to over-hydrogenated
The catalyst samples (between 0.025 and 0.24 g, depending on
the desired range of space velocities to be tested) were packed into
the middle portion of the reactor and held in place by glass wool.
An inert glass tube was placed downstream from the catalyst in
order to prevent the catalyst bed from moving due to the reactant
flow and to minimize the open volume of the reactor. Prior to rate
