Self-assembly and anion-response of azobenzene-based
L-valinamide derivative
Kechang Li,a, Pengchong Xueb
a College of Chemistry, Jilin University, No. 2699, Qianjin Street, Changchun, 130012, P. R. China
b Tianjin Key Laboratory of Structure and Performance for Functional Molecules, Key Laboratory
of Inorganic-Organic Hybrid Functional Material Chemistry, Ministry of Education, College of
Chemistry, Tianjin Normal University, No. 393, Bin Shui West Road, Tianjin, 300387, P.R. China.
Abstract: An azobenzene-based L-valinamide derivative was synthesized, and its
gelation ability and self-assembly in organic solvents were investigated. Results
suggested that it is an excellent gelator and formed organogels in many solvents, such
as 3-pentanone, aniline, o-dichlorobenzene (ODCB), CH2Cl2, THF, ethanol, DMSO,
and DMF. Its self-assembly in ODCB gel was studied. Transmission electron
microscopic observation suggested that the gelator can self-assemble into
one-dimensional nanofibers in the gel, and this phenomenon is driven by hydrogen
bonding between amide units and π-π interaction between azobenzene moieties. With
the increase in gelator concentration, the gel-to-sol phase transition temperature
increased and the gelation time of the solvent shortened. Moreover, the gel exhibit
anion response. A gel-to-sol phase transition was found after fluoride anion was added,
exhibiting selective response to F‒.
Keywords: gelator; self-assembly; anion; stimulus-response
1. Introduction
Supramolecular organogels formed by a low-molecular weight gelator recently
attracted a growing attention because of their unique self-assemblies and wide
applications. Different functional groups are appended to the molecular
structures of gelators to impart specific applications, such as sensors (including
gas,5-8 anion,9-10 cation11-12 and neutral molecules13), drug releases systems,14-15
medical treatments,16-17 stimuli-responsive soft materials,18-20 solar cell,21
molecular recognition,22 field effect transistors,23 enantioselective sensing24 and
Corresponding author: likc@jlu.edu.cn

ACCEPTED MANUSCRIPT
dyes absorbing.25-26 Gelators form various assemblies, such as nanofibers,
nanotubes, nanoribbons, nanorods, and plate-like structures, and the formation
of these assemblies is driven by weak intermolecular interactions (van der
Waals force, π-π interaction, hydrogen bonding, coordination, halogen bonding,
and charge transfer interactions). These assemblies form a three-dimensional
(3D) network to prevent solvent from flowing, resulting in gel formation.
Generally, chiral carbon, hydrogen bonding moiety, and long alkyl chain are
important factors that induce a gelator to self-assemble into a 3D network in
different solvents.27 A chiral center prevents molecules from orderly stacking
and then forming large aggregation or deposition.28 The hydrogen bonding
groups may help a gelator to self-assemble into a 1D superstructure.29-30 The
long alkyl chain not only can adjust the solubility but also promotes
crosslinking of 1D aggregate through nodes in coordination with the chiral
center.31
In this work, based on the above designed principle, an L-valinamide derivative
with dodecyl group as long alkyl chain, amide moieties as hydrogen bonding
units and chiral center (1) was designed and synthesized. Its gelation ability and
anion response were investigated. It was found to be an excellent gelator in
many kinds of organic solvents, including aromatic hydrocarbon, ketone,
aromatic amine, aromatic ketone, alcohol, chloroform, THF, and polar DMF,
and DMSO. Moreover, its self-assembly in gel was investigated too. The results
indicated that the gelator formed 1D nanofibers in gel. FT-IR and UV

ACCEPTED MANUSCRIPT
absorption spectra revealed that the main driving forces of gel formation were
hydrogen bonding and π-π interaction. Gelator concentration determined the
gel-to-sol phase transition temperature (Tgel) and the gelation speed. Moreover,
a gel-to-sol phase transition was observed upon the addition of fluoride anion.
2. Results and discussion
2.1 Synthesis of gelator 1
Compound
The reaction of
yielded compound
compound with a moderate yield (78%). Compound
obtained through an amidation reaction of with succinic anhydride at a yield
of 93%. Compound was prepared via a condensation reaction of and 6,
2
was synthesized in an aqueous solution as previously described.32
and laurylamine in the presence of EDC·HCl in dry CH2Cl2
. A deprotection process of by diethylamine provided
could be easily
2
3
3
4
6
5
1
4
producing a moderate yield (66%).
2.2 Gelation ability
Through a standard heating and cooling method,33 the gelation ability of
investigated, and the results are listed in Table 1. Compound is insoluble or
1 was
1
has a low solubility in measured solvents at room temperature and poorly
soluble in nonpolar alkane (such as hexane and cyclohexane), petroleum ether,
acetone, benzene, and toluene even upon heating. Although
1 dissolves in ethyl
acetate upon heating, only yellowish deposition was observed when the
solution was cooled to room temperature. Fortunately, the gel phases in other

ACCEPTED MANUSCRIPT
solvents were formed while the hot solution cools. The gelation solvents
include aromatic solvents, for instance mesitylene and
(ODCB), aromatic amines, and aromatic ketone. Stable gels formed in CH2Cl2,
CHCl3, THF, and ethanol with low boiling points. Moreover, can gelate
DMSO and DMF. The above results clearly indicated that the long alkyl chain
o-dichlorobenzene
1
and chiral amino acid indeed rendered
solvents.
1 an excellent gelator of many organic
Table 1. Gel properties of 1 in organic solvents.a
Solvent
Statusb
Solvent
Status
TG
Hexane
I
Aniline
Cyclohexane
Petroleum ether
Ethyl acetate
Acetone
I
N-Methylaniline
TG
I
N-Dimethylaniline TG
I
CH2Cl2
TG
TG
TG
OG
TG
OG
TG
TG
P
CHCl3
3-Pentanone
OG
THF
2,4-Dimethylpentanone OG
Ethanol
Acetophenone
DMF
Benzene
I
Toluene
I
Mesitylene
o-Dichlorobenzene
TG
TG
DMSO
Benzyl alcohol
a TG : transplant gel; OG: opaque gel; S: soluble; I: insoluble; P:
precipitate. b Gelator = 5.0 mg/mL.
2.3 Gel-to-sol phase transition temperature
When the formed gels were heated to a given temperature and transformed into
a sol, this temperature was defined as Tgel.34 While the hot sol was cooled to
room temperature, a gel phase reappeared, demonstrating thermal reversibility.
Here, the influence of gelator concentration on Tgel was examined. Fig. 1a
shows the relationship between Tgel and gelator concentration. Tgel values
increase nonlinearly with increasing gelator concentration. Tgel reaches 78 ºC

ACCEPTED MANUSCRIPT
when concentration is 1.0 mg/mL. The system with a concentration of 2.5
mg/mL did not maintain a gel phase when the temperature increased to 94 °C.
If the gel-to-sol transition is comparable to the melting of crystals, the phase
transition enthalpy can be estimated by the following equation:
ꢅꢆꢇ ∆ꢉ
1
= ꢄ
+
ꢃ
Tꢀꢁꢂ
∆ꢈ ∆ꢈ

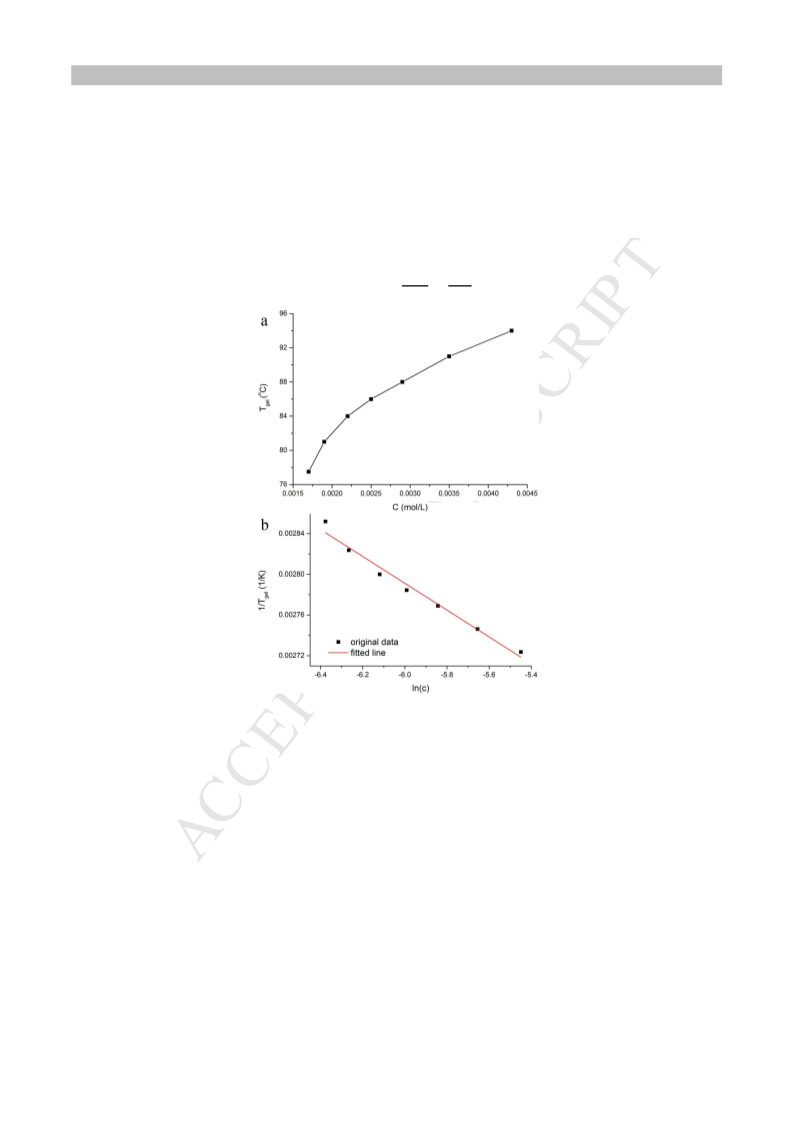

Fig. 1. Plots of (a) Tgel versus concentration of 1 and (b) 1/Tgel versus the natural
logarithm of the concentration of 1 in ODCB.
where C is the molar gel concentration, ∆H and ∆S are the standard enthalpy
and entropy for the sol–gel transition, respectively, and R is the gas
constant.35-37 The reciprocal melting temperature was linearly dependent on the
natural logarithm of the concentration (Fig. 1b). Based on the fitted linear
equation, ∆H and ∆S were ‒6.31
×
104 J mol-1 (‒109.4 J g-1) and -126.2 J mol-1

ACCEPTED MANUSCRIPT
K-1. The Gibbs free-energy change ꢀG and the aggregation constant K at room
temperature were ‒25.5 kJ mol-1 and 2.89
×
104 M-1, respectively. Such a
moderate aggregation constant is possibly responsible for the good gelation
in many solvents.38
abilities of
1
2.4 Morphological observation

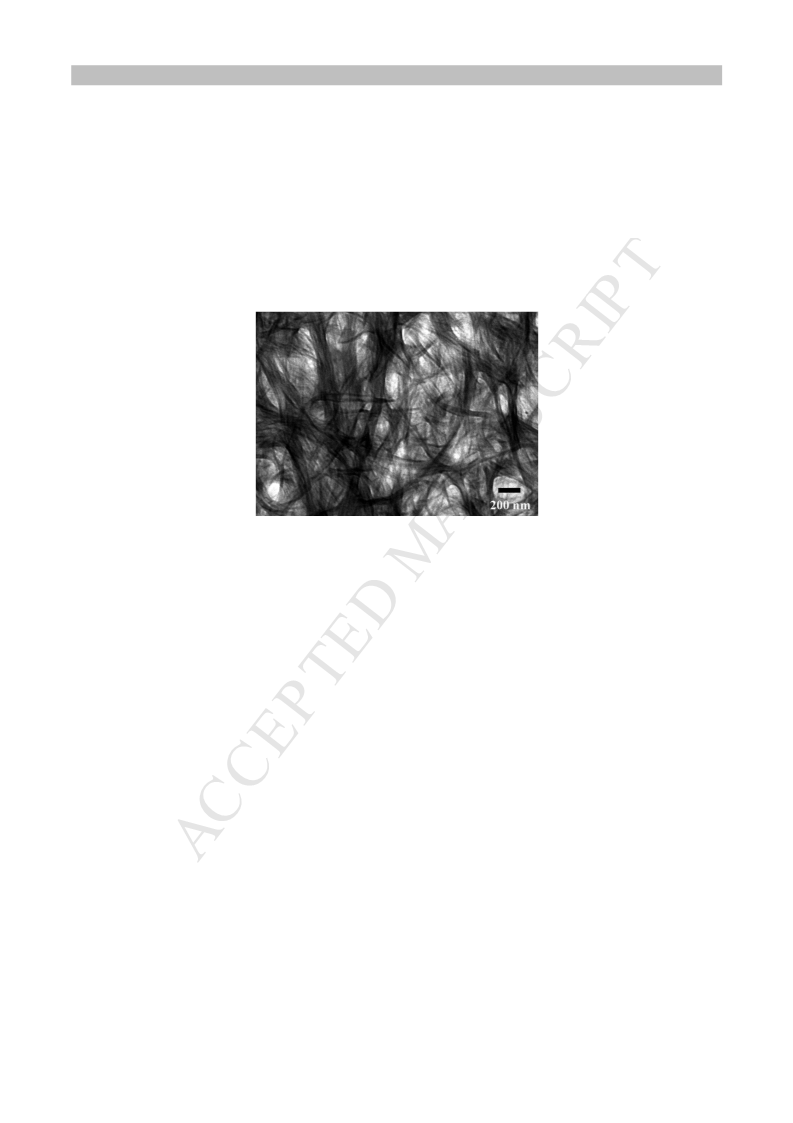

Fig. 2. TEM image of ODCB xerogel.
To observe the morphology of self-assemblies of the gel phases of 1, we
obtained a transmission electron microscopic (TEM) image of the xerogel film.
Fig. 2 shows the TEM image of ODCB xerogel, in which long nanofibers with
widths of 25-100 nm are observed. Moreover, wide fibers consist of thin fibers.
This result suggests that 1 tends to self-assemble to from 1D aggregate in the
gel phase.39
2.5 FT-IR and 1H NMR spectra
As discussed above, amide moieties may promote the formation of 1D aggregate
through intermolecular hydrogen bonding; we thus obtained the FT-IR spectrum of
xerogel film. As shown in Fig. 3, the stretching vibrational peak of N-H is located at
3288 cm-1. The vibration peaks at 1664 and 1635 cm-1 are assigned to the aromatic

ACCEPTED MANUSCRIPT

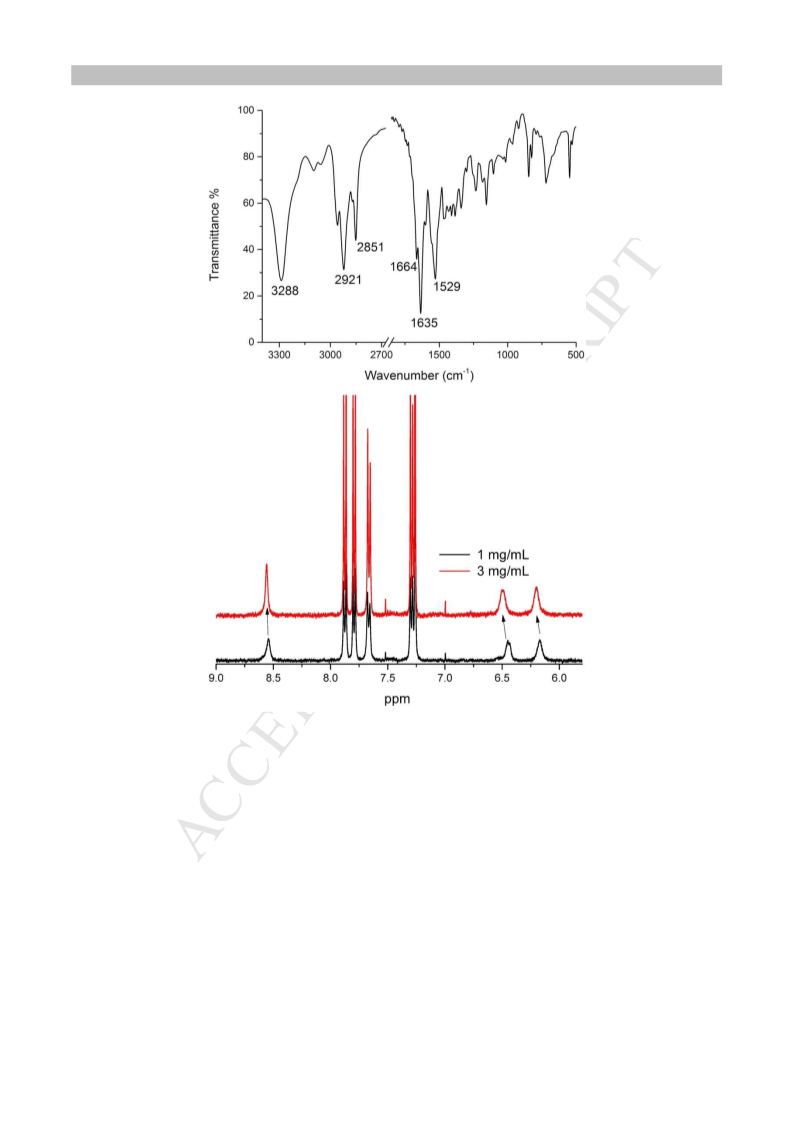

Fig. 3. (a) FT-IR spectrum of ODCB xerogel film, and (b) concentration-dependent
NMR spectra in CDCl3.
and aliphatic C=O vibrational peaks, respectively.40 The locations of these vibrational
peaks indicate that all of the amide groups are involved in hydrogen bonding.41 In
addition, the antisymmetric and symmetric stretching vibrational bands of CH2 in
xerogel film are located at 2921 and 2851 cm-1, respectively, implying that the alkyl
chains adopt an all-trans extended conformation,42 and the van der Waals interaction
among the alkyl chains plays an important role in the self-assembly of 1. IR spectral

ACCEPTED MANUSCRIPT
results also reveal that intermolecular hydrogen bonding is a major driving force in
gel formation. In addition, the IR spectrum of the as-synthesized solid was measured
and found to be the same as that of gel, indicating that there is intermolecular
hydrogen bonding in as-synthesized solid. Fig. 3b shows the concentration-dependent
NMR spectra in CDCl3. It is clear that the peaks ascribed to three N-H groups in
higher concentration shifted to low field. This result suggests that hydrogen bonding
in higher concentration became stronger relative to those in low concentration.
2.6 UV-Vis spectral change during gelation.
To monitor the interaction between azobenzene moieties during gelation, we
investigated the UV-Vis absorption spectral change of

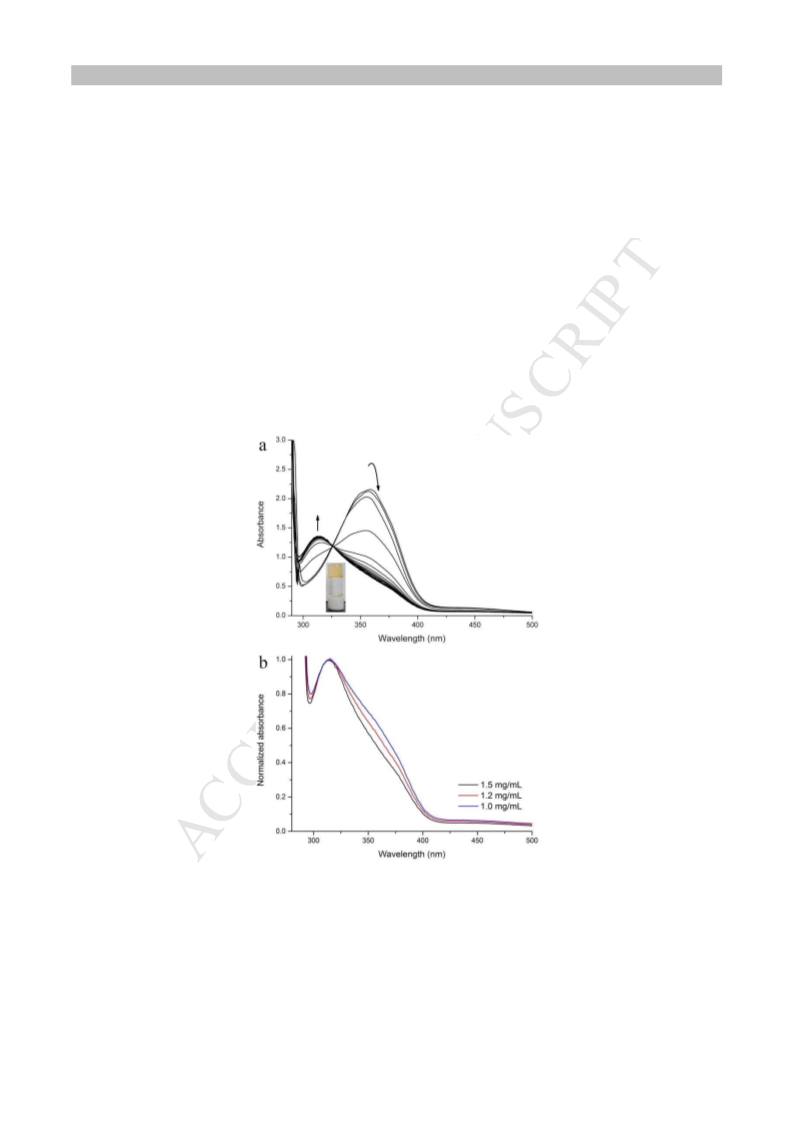

gelation. As shown in Fig. 4a, the maximal absorption peak in the hot solution
is located at 355 nm and slightly increased and red-shifted to 357 nm after
1 in ODCB during
1
min; this phenomenon is ascribed to planarization of azobenzene moiety.43 This
peak rapidly decreased with time and remained nearly unchanged after 10 min.
Moreover, a new peak at 314 nm, which is ascribed to aggregates, appeared and
gradually increased during gelation. An isoabsorptive point at 326 nm was
observed, suggesting an equilibrium reaction of the two components. The
disappearance of the peak at 357 nm and the appearance of a new peak at 314
nm clearly revealed a large blueshift of 43 nm, suggesting that the gelators
stack together in a face-to-face H-aggregate.44 Moreover, absorption spectral
shift of 41 nm illustrates that strong π-π interactions exist between azobenzene
moieties, which is a main driving force for molecular aggregation in organic

ACCEPTED MANUSCRIPT
solvents. Based on these results, a suggested packing process for
1 during
gelation is shown in Fig. 5. Molecules as monomers exist in hot solution.
During gelation molecules stack together in a parallel fashion and all three
amide groups are involved in intermolecular hydrogen bonding. A gelator
forms six hydrogen bonds with two adjacent gelators. Moreover, azobenzene
moieties form H-aggregates through hydrogen bonding. In addition, XRD
spectrum was measured, but no obvious diffraction peaks were observed. So,
stacking model in the long-distance period is unknown.
Fig. 4. (a) UV/Vis absorption spectral changes during gelation in ODCB (1.5 mg/mL)
with an interval of 1 min as the hot solution was cooled from 100 °C to 20 °C. Inset is
the photo of ODCB gel. (b) Normalized absorption spectra of 1 in gels with different
concentrations.

ACCEPTED MANUSCRIPT

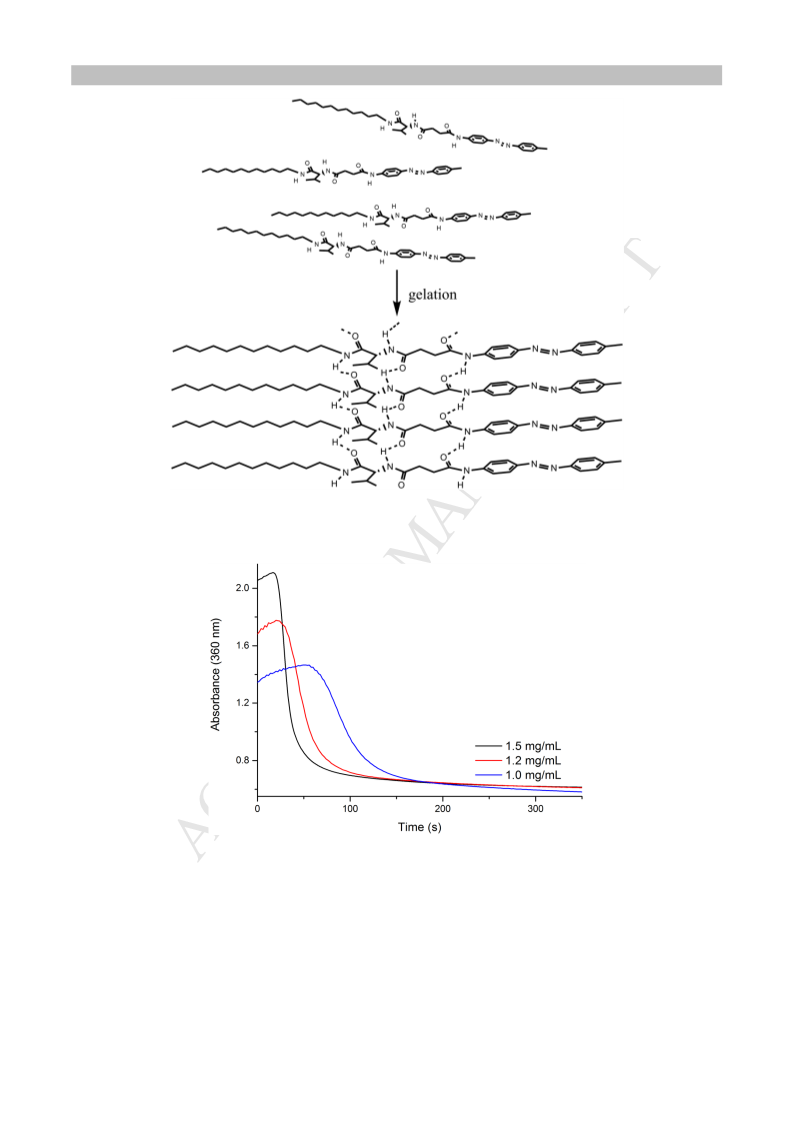

Fig. 5. Schematic of possible packing of 1 during gelation.
Fig. 6. Dynamic changes of absorbance of 1 at 360 nm during gelation at different
concentrations. The sample firstly was heated to 120 ºC and then cooled naturally to
room temperature.

ACCEPTED MANUSCRIPT
Fig. 4b shows the normalized absorption spectra of gels in different ODCB
concentrations. The absorbance at around 350 nm from monomeric molecules
gradually weakened with increasing concentration. This result suggests that the
proportion of monomeric molecules relative to that of aggregates decreases
under increased concentration. Furthermore, the gelation speed of
1 in ODCB
was dependent on the concentration of the compound. As shown in Fig. 6, the
absorbance at 360 nm at a concentration of 1.5 mg/mL increases first within 18
s and then rapidly decreases. When the concentration decreases to 1.2 mg/mL,
the arising time in absorbance extends to 20 s, and the descending rate of the
absorbance slows down, indicating a slow gelation process. If the concentration
further decreases to 1.0 mg/mL, the absorbance slowly starts down after 52 s.
These results imply that a low gelator concentration requires a low temperature
to form gel, resulting in a slow gelation speed.

ACCEPTED MANUSCRIPT

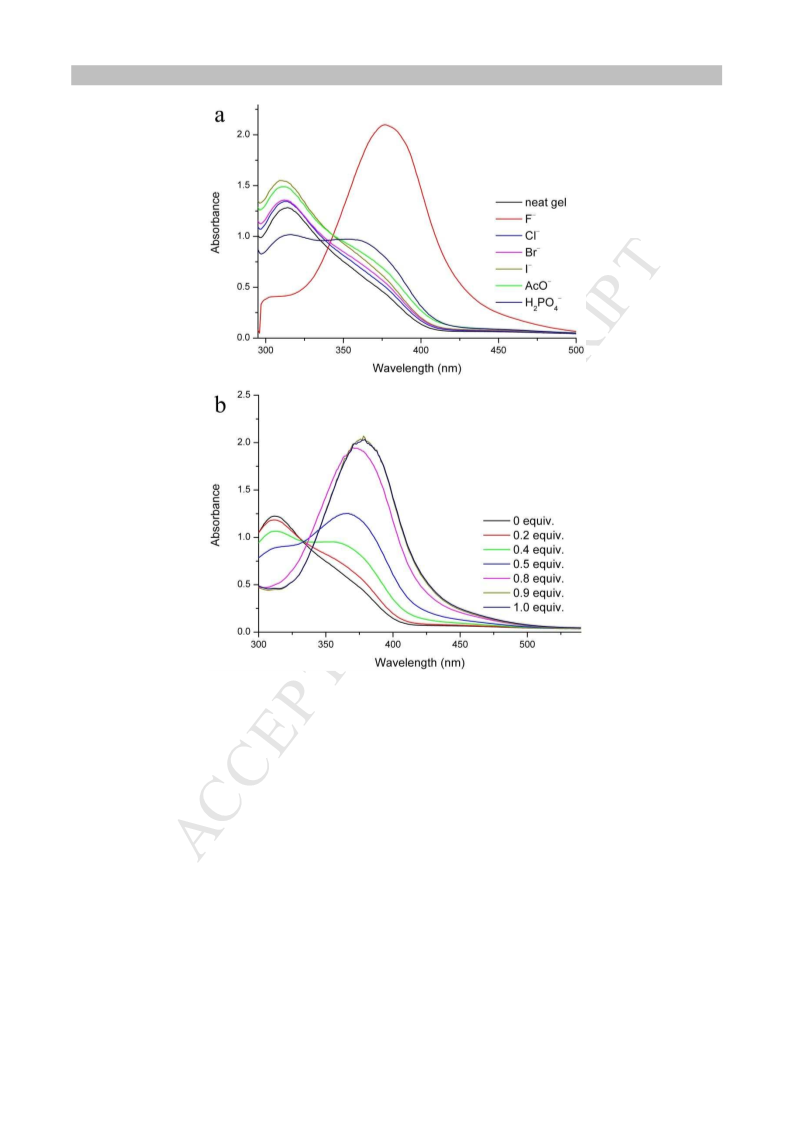

Fig. 7. Absorption spectra of 1 in ODCB (1.0 mg/mL) upon addition of (a) 1 equiv.
different anions and (b) in presence of fluoride anions with different concentrations.

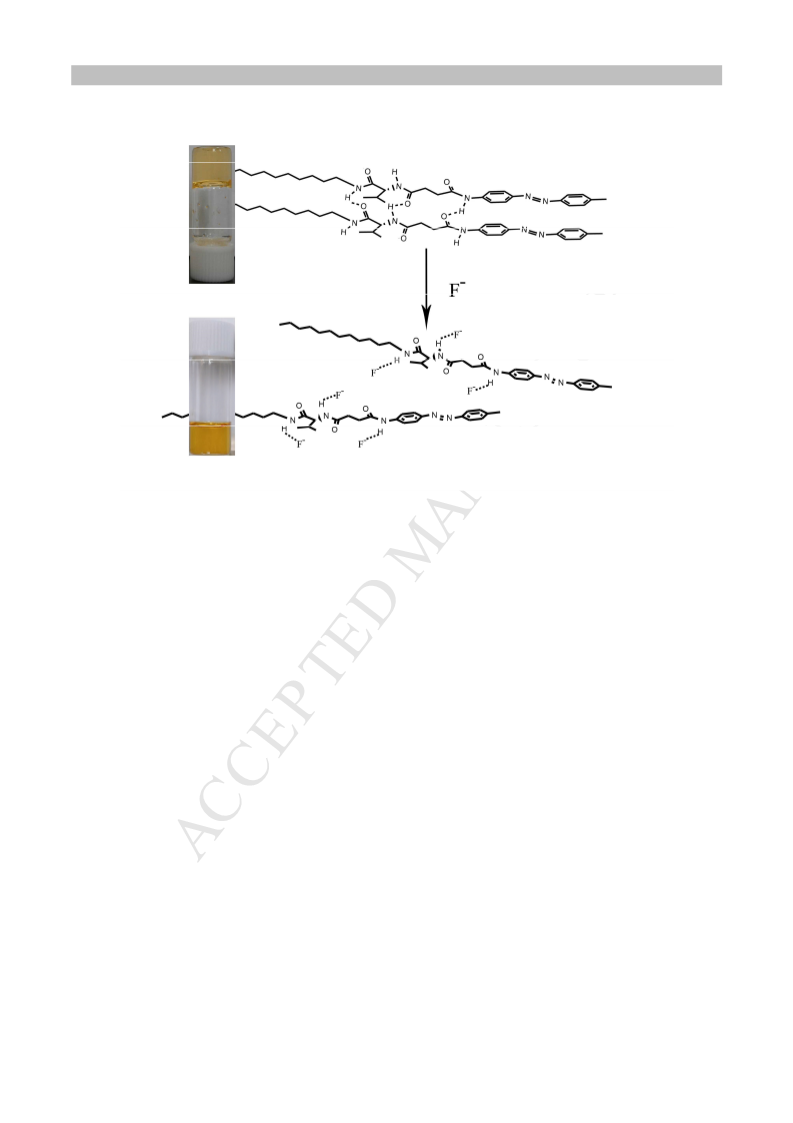

2.7 Anion response of gel
The anion responsive properties of
1
gel toward different anions (F‒, Cl‒, Br‒,
‒
I‒, AcO‒ and H2PO4 as tetrabutylammonium (TBA) salts) were examined in
DMSO. It was found that the gel was destroyed and changed into a sol when
the TBAF solution was added on surface of gel and stayed for 1 h. However,
other TBA salts did not induce such phase transition. Moreover, fluoride anion

ACCEPTED MANUSCRIPT
can prevent the gel formation. The hot solution of
could not be changed into a gel upon the addition of 1 equiv. TBAF even when
the solution was left over one day. The gel state of in ODCB could be
1
(1.0 mg/mL) in ODCB
1
maintained after adding the same amount of other halide anions. It suggests that
the anions, not the TBA cation, should be responsible for the phase transition
from a gel to a sol.10b Absorption spectra were further used to investigate this
phenomenon. As shown in Fig. 7a, the absorption spectra in the presence of Cl‒,
Br‒, I‒, AcO‒ are similar to that of the neat gel. The absorption peak at 314 nm,
ascribing to H-aggregate, disappeared in the presence of 1.0 equiv F‒ , and a
new peak at 378 nm emerged. This result suggests that F‒ may destroy the
molecular aggregate.46 The absorption peak at 314 nm decreased and the
‒
absorption at 360 nm emerged while 1.0 equiv. H2PO4 existed, indicating that
‒
H2PO4 could partly destroy aggregate. In addition, it was found that a sol
‒
‒
phase was observed when 5.0 equiv. H2PO4 existed, suggesting that H2PO4
may destroy a gel phase in higher concentration. Because the absorption peak
located at 357 nm in hot solution, meaning a small red-shift of 21 nm, the
hydrogen bonding between amide and F‒ should be responsible for the
dissociation of gelator’s aggregate. The reason of selective response to fluoride
anion is due to weaker ability of other anions to form hydrogen bond with
amide group. Furthermore, the F‒ concentration strongly impacted the phase
transition. When the ratio of F‒ to
1 was lower than 0.5, a gel phase could be
still kept. Fig. 7b shows the concentration-dependent absorption spectra. The

ACCEPTED MANUSCRIPT
absorption band at 314 nm gradually decreased and the absorbance at more than
365 nm gradually increased upon the addition of TBAF. While the ratio of F‒ to
1
reached 0.5, the peak intensity at 366 nm was stronger than that at 314 nm. At
the moment, there were enough fibrous aggregates to hold a gel phase. As a
result, only a sol was observed.
Conclusions
An azobenzene-based L-valinamide derivative bearing a long alkyl chain, chiral
carbon, and amide moieties was synthesized, and the self-assembly of this
compound into a gel was investigated. The results indicate that the synthesized
compound is an excellent gelator and can form gels in various organic solvents,
such as, aromatic solvents, ketone, alcohols, halohydrocarbons, THF, DMF,
and DMSO. The gelator may self-assemble into nanofiber in gels, and this
process is driven by multiple hydrogen bonds and π-π interactions. Tgel and gel
speed are strongly dependent on gelator concentration. Moreover, the gel
exhibited selective response to fluoride anion. The addition of fluoride anion
could result in a gel-to-sol phase transition. Our findings suggest that
introduction of long alkyl chain, chiral carbon, and amide groups render a
compound to be an excellent gelator and the existence of amide group may
promote a gel to response anions.
Experiment section

ACCEPTED MANUSCRIPT
Instruments and experimental methods: All the raw materials were used
without further purification. All the solvents as analytical reagents were
purchased from Beijing Chemical Works (Beijing, China), and were used
without further purification. Infrared spectra were measured with a Nicolet- 360
Fourier transform infrared (FT-IR) spectrometer by incorporating the samples
in KBr disks. The UV-vis spectra were determined on a Mapada UV-1800pc
spectrophotometer. C, H, and N elemental analyses were performed on a
1
Perkin-Elmer 240C elemental analyzer. H NMR spectra were recorded on
Mercury plus 500 MHz.
TEM investigation: A piece of the gels was placed on a carbon-coated copper
grid (400 mesh) followed by naturally evaporating the solvent. The TEM
specimens were examined with a Hitachi mode H600 A-2 apparatus with an
accelerating voltage of 100 kV.
Gelation test of organic fluids: The solution of gelator (pre-weighed) in
organic solvent was heated in a sealed test tube (diameter = 1 cm) in an oil bath
until the solid was dissolved. The solution was allowed to stand at room
temperature for 6 h, and the state of the mixture was evaluated by the “stable to
inversion of a test tube” method.
Light response of gel: The gel at a concentration of 1.0 mg/mL was prepared
in a cell with 1 mm optical path, aged for 6 h and inverted, and then exposed to
a high pressure mercury lamp (500 W) with a 365 nm filter. UV-vis absorption
spectra of the gels before and after illumination were measured.

ACCEPTED MANUSCRIPT
Gelator synthesis:
Scheme 1. Synthesis route of 1.
were synthesized by the reported procedure.45,46
(S)-(9H-fluoren-9-yl)methyl-1-(dodecylamino)-3-methyl-1-oxobutan-2-ylca
rbamate
N-Fmoc-L-valine (2) and 5
(3)
N-Fmoc-L-valine (2.79 g), DMAP (0.2 g) and laurylamine (1.58 g) were
dissolved in 100 mL dried CH2Cl2. EDC·HCl (2.0 g) was added into the above
solution at 0 ºC. The mixture was stirred at room temperature for 24 h. After the
solvent was removed, ethanol (100 mL) was added and the mixture was treated
for 5 min in an ultrasonic cleaner. The compound was obtained by filtration and
washing with ethanol. Yield = 71%. mp = 146-148 ºC. FT-IR (cm-1): 3219,
1
3065, 2956, 2920, 2851, 1692, 1648, 1549, 1250, 740. H NMR (500 MHz,
CDCl3): δ 7.76 (d, J = 7.5 Hz, 2H), 7.59 (d, J = 7.5 Hz, 2H), 7.40 (t, J = 7.5 Hz,
2H), 7.31 (td, J = 7.5, 1.1 Hz, 2H), 5.77 (s, 1H), 5.37 (d, J = 8.9 Hz, 1H), 4.40
(dt, J = 17.6, 10.4 Hz, 2H), 4.22 (t, J = 6.9 Hz, 1H), 3.88 (t, J = 7.8 Hz, 1H),
3.45 – 3.04 (m, 2H), 2.21 – 2.01 (m, 1H), 1.49 (t, J = 7.3 Hz, 2H), 1.34–1.18

ACCEPTED MANUSCRIPT
(m, 18H), 0.95 (t, J = 7.2 Hz, 6H), 0.88 (t, J = 7.0 Hz, 3H). Element analysis for
C32H46N2O3: C, 75.85; H, 9.15; N, 5.53; found: C, 75.82; H, 9.19; N, 5.51.
(S)-2-amino-N-dodecyl-3-methylbutanamide
(4)
3
(2.0 g) and diethylamine (5 mL) was dissolved in CH2Cl2 (20 mL) and the
mixture was heated for 1 h at 50 ºC. After the solvent was removed and the
residues was treated by column chromatography (silica, CH2Cl2/methanol =
10/1 (V/V)). Yield = 78 %. mp = 44-46 ºC. FT-IR (cm-1): 3372, 3297, 3087,
1
2954, 2850, 1642, 1556, 1463. H NMR (500 MHz, CDCl3): δ 3.24 (m, 3H),
2.31 (m, 1H), 1.50 (p, J = 7.2 Hz), 1.35-1.21 (m, 18H), 0.99 (d, J = 7.0 Hz, 3H),
0.88 (t, J = 6.8 Hz, 3H), 0.83 (d, J = 6.9 Hz, 3H). Element analysis for
C17H35N2O: C, 72.03; H, 12.44; N, 9.88; found: C, 72.07; H, 12.41; N, 9.89.
(E)-4-oxo-4-(4-(p-tolyldiazenyl)phenylamino)butanoic acid
(6)
5
(0.5 g, 2.4 mmol) and succinic anhydride (0.5 g, 5.0 mmol) were dissolved
in dried THF (10 mL) and the mixture were refluxed 24 h. The solvent was
removed, 10 ml CHCl3 was added and the mixture was treated for 5 min in an
ultrasonic cleaner. The solid was obtained by filtration. Yield: 93%. mp =
205-206 ºC. FT-IR (cm-1): 3430, 3309, 3042, 2925, 1718, 1668, 1594, 1533,
1
844. H NMR (500 MHz, DMSO-d6): δ 12.15 (s, 1H), 10.31 (s, 1H), 7.85 (d, J
= 7.6 Hz, 2H), 7.80 (d, J = 8.6 Hz, 2H), 7.76 (d, J = 6.8 Hz, 2H), 7.38 (d, J =
7.7 Hz, 2H), 3.32 (s, 2H), 2.62 (t, J = 6.5 Hz, 3H), 2.55 (t, J = 6.5 Hz, 3H), 2.40
(s, 4H). Element analysis for C17H17N3O3：C, 65.58; H, 5.50; N, 13.50; found:
C, 65.50; H, 5.55; N, 13.49.

ACCEPTED MANUSCRIPT
(E)-N1-(1-(dodecylamino)-3-methyl-1-oxobutan-2-yl)-N4-(4-(p-tolyldiazeny
l)phenyl)succinamide
(1)
4
(0.23 g，0.8 mmol), 6 (0.26 g，0.84 mmol) and a small amount of DMAP
were dissolved in 20 mL dried THF. EDC·HCl (0.2 g) was added into the
above solution at 0 ºC. The mixture was stirred at room temperature for 48 h.
The compound was obtained by filtration and then washing with ethanol. Yield
= 66%. mp = 237-239 ºC. FT-IR (cm-1): 3288, 3098, 2958, 2921, 2851, 1664,
1635, 1528, 845. 1H NMR (500 MHz, DMSO-d6): δ 10.31 (d, 1H) , 7.91 (d, J =
8.9 Hz, 1H), 7.85 (d, J = 8.6 Hz, 2H), 7.80 (d, J = 8.7 Hz, 3H), 7.77 (d, J = 8.1
Hz, 2H), 7.39 (d, J = 8.0 Hz, 2H), 4.09 (t, J = 7.9 Hz, 1H), 3.17 – 2.91 (m, 2H),
2.63 (m, 2H), 2.54 (m, 2H), 2.41 (s, 3H), 1.99 (m, 1H), 1.37 (m, 2H), 1.32-1.14
(m, 18H), 0.84 (m, 9H). Element analysis for C34H51N5O3：C, 70.68; H, 8.90;
N, 12.12; found: C, 70.73; H, 8.78; N, 12.17.
Acknowledgements
This work was financially supported by the National Natural Science
Foundation of China (21103067), the Youth Science Foundation of Jilin
Province (20130522134JH).
Notes and references
1. Jones CD, Steed JW. Gels with sense: supramolecular materials that respond to
heat, light and sound. Chem Soc Rev 2016;45:6546–96.

ACCEPTED MANUSCRIPT
2. Babu SS, Praveenn VK, Ajayaghosh, A. Functional π-gelators and their
applications. Chem Rev 2014;114:1973–2129
3. Praveen VK, Ranjith C, Bandini E, Ajayaghosh A, Armaroli N, Oligo
(phenylenevinylene) hybrids and self-assemblies: versatile materials for excitation
energy transfer. Chem Soc Rev 2014;43:4222–42.
4. Jintoku H, Yamaguchi M, Takafuji M, Ihara H. Molecular gelation–induced
functional phase separation in polymer film for energy transfer spectral
conversion. Adv Funct Mater 2014;24:4105–12.
5. Xue P, Sun J, Yao B, Gong P, Zhang Z, Qian C et al. Strong emissive nanofibers
of organogels for the detection of volatile acid vapors. Chem Eur J 2015;21:4712–
20.
6. Fan J, Chang X, He M, Shang C, Wang G, Yin S et al. Functionality-oriented
derivatization of naphthalene diimide: a molecular gel strategy-based fluorescent
film for aniline vapor detection. ACS Appl Mater Interfaces 2016;8:18584–92.
7. Xue P, Yao B, Sun J, Zhang Z, Lu R. Emission enhancement of a coplanar
p-conjugated gelator without any auxiliary substituents. Chem Commun
2014;50:10284–6.
8. Sun Y, Wang Y, Wu M, Yuan W, Chen Y. p-Quaterphenylene as an
aggregation-induced emission fluorogen in supramolecular organogels and
fluorescent sensors. Chem Asia J 2017;12:52–9.
9. Xu Y, Li C, Cao Q, Wang B, Xie Y. A pyrenyl-appended organogel for
fluorescence sensing of anions. Dyes Pigm 2017;139:681–7.

ACCEPTED MANUSCRIPT
10. (a) Sarma RJ, Devia K. Cystine-derived bis-naphthalimides as stimuli-responsive
fluorescent gelators. New J Chem, 2015;39:4375–83; (b) Bai B, Zhang M, Wei J,
Yan H, Wang H, Wu Y, Li M. Stimuli-responsive organogels based on a gelator
of hydrazide and azobenzene units connected via a flexible central spacer.
Tetrahedron 2016;72:5363-8.
11. Yao H, Wu H, Chang J, Lin Q, Wei T, Zhang Y. A carboxylic acid functionalized
benzimidazole-based supramolecular gel with multi-stimuli responsive properties.
New J Chem, 2016;40:4940–4.
12. Wang Y, Wang Z, Xu Z, Yu X, Zhao K, Li Y, Pang X. Ultrasound-accelerated
organogel: application for visual discrimination of Hg2+ from Ag+. Org Biomol
Chem 2016;14:2218–22.
13. Zhang L, Jin Q, Liu M. Enantioselective recognition by chiral supramolecular gels.
Chem Asian J 2017;11:2642-9.
14. Basu K, Baral A, Basak S, Dehsorkhi A, Nanda J, Bhunia D, et al. Peptide based
hydrogels for cancer drug release: modulation of stiffness, drug release and
proteolytic stability of hydrogels by incorporating D-amino acid residue(s). Chem
Commun 2016;52:5045-8
15. Martin C, Oyen E, Wanseele YV, Haddou TB, Schmidhammer H, Andrade J et al.
Injectable peptide-based hydrogel formulations for the extended in vivo release of
opioids. Mater Today Chem, 2017;3:49-59.
16. (a) Du X, Zhou J, Shi J, Xu B. Supramolecular hydrogelators and hydrogels: from
soft matter to molecular biomaterials. Chem Rev 2015;115:13165-307;

ACCEPTED MANUSCRIPT
(b) Shigemitsu H, Hamachi I. Design strategies of stimuli-responsive
supramolecular hydrogels relying on structural analyses and cell-mimicking
approaches. Acc Chem Res 2017;50:740-50.
17. (a) Vargiu AV, Iglesias D, Styan KE, Waddington LJ, Eastonc CD, Marchesan S.
Design of a hydrophobic tripeptide that self-assembles into amphiphilic
superstructures forming a hydrogel biomaterial. Chem Commun, 2016;52:5912-5;
(b) Feng Z, Wang H, Zhou R, Li J, Xu B. Enzyme-instructed assembly and
disassembly processes for targeting downregulation in cancer cells. J Am Chem
Soc 2017;139:3950-3; (c) Wang Z, Zhang F, Wang Z, Liu Y, Fu X, Jin A et al.
Hierarchical assembly of bioactive amphiphilic molecule pairs into
supramolecular nanofibril self-supportive scaffolds for stem cell differentiation. J
Am Chem Soc 2016;138:15027-34; (d) Zhan J, Cai Y, Ji S, He S, Cao Y, Ding D,
et al. Spatiotemporal control of supramolecular self-assembly and function. ACS
Appl Mater Interfaces 2017;9:10012-8.
18. Chen C, Chen J, Wang T, Liu M. Fabrication of helical nanoribbon
polydiacetylene via supramolecular gelation: circularly polarized luminescence
and novel diagnostic chiroptical signals for sensing. ACS Appl Mater Interfaces
2016;8:30608-15.
19. Yu X, Chen L, Zhang M, Yi T. Low-molecular-mass gels responding to
ultrasound and mechanical stress: towards self-healing materials. Chem Soc Rev,
2014;43:5346-71.

ACCEPTED MANUSCRIPT
20. (a) Gao S, Wang S, Ma J, Wu Y, Fu X, Marella RK, et al. Salt tunable rheology of
thixotropic supramolecular organogels and their applications for crystallization of
organic semiconductors. Langmuir 2016;32:12805-13;
(b) Lee JH, Jung SH, Lee SS, Kwon K, Sakurai K, Jaworski J et al. Ultraviolet
patterned calixarene-derived supramolecular gels and films with spatially resolved
mechanical and fluorescent properties. ACS Nano 2017;11:4155-64.
21. (a) Tevis ID, Tsai W, Palmer LC, Aytun T, Stupp SI. Grooved nanowires from
self-assembling hairpin molecules for solar cells. ACS Nano 2012;6:2032–40; (b)
Yu Z, Qin D, Zhang Y, Sun H, Luo Y, Meng Q et al. Quasi-solid-state
dye-sensitized solar cell fabricated with poly (β-hydroxyethyl methacrylate) based
organogel electrolyte. Energy Environ Sci 2011;4:1298-305; (c) Park S, Song IY,
Lim J, Kwon YS, Choi J, Song S et al. A novel quasi-solid state dye-sensitized
solar cell fabricated using a multifunctional network polymer membrane
electrolyte. Energy Environ Sci 2013;6:1559-64; (d) Xue P, Xu Q, Gong P, Qian
C, Zhang Z, Jia J et al. Two-component gel of a D–π–A–π–D carbazole donor and
a fullerene acceptor. RSC Adv 2013;3:26403-11; (e) Xue P, Lu R, Zhao L, Xu D,
Zhang X, Li K et al. Hybrid self-assembly of a π gelator and fullerene derivative
with photoinduced electron transfer for photocurrent generation. Langmuir 2010;
26:6669-75; (f) Xue P, Wang P, Yao B, Sun J, Gong P, Zhang Z et al. Nanofibers
of hydrogen-bonded two-component gel with closely connected p- and n-channels
and photoinduced electron transfer. ACS Appl Mater Interfaces 2014;6:21426-34.

ACCEPTED MANUSCRIPT
22. (a) Mukhopadhyay P, Iwashita Y, Shirakawa M, Kawano S, Fujita N, Shinkai S.
Spontaneous colorimetric sensing of the positional isomers of
dihydroxynaphthalene in a 1d organogel matrix. Angew Chem Int Ed
2006;45:1592-5 (b) Jin Q, Zhang L, Zhu X, Duan P, Liu M, Amphiphilic schiff
base organogels: metal-ion-mediated chiral twists and chiral recognition. Chem
Eur J 2012;18:4916-22.
23. (a) Hong JP, Um MC, Nam SR, Hong JI, Lee S. Organic single-nanofiber
transistors from organogels. Chem Commun 2009;310-2; (b) Tsai WW, Tevis ID,
Tayi AS, Cui H, Stupp SI. Semiconducting nanowires from hairpin-shaped
self-assembling sexithiophenes. J Phys Chem B, 2010, 114, 14778-86; (c) Stone
DA, Tayi AS, Goldberger JE, Palmera LC, Stupp SI, Self-assembly and
conductivity of hydrogen-bonded oligothiophene nanofiber networks. Chem
Commun 2011;47:5702-4; (d) Xu J, Wang Y, Shan H, Lin Y, Chen Q, L Roy VA
et al. Ultrasound-induced organogel formation followed by thin film fabrication
via simple doctor blading technique for field-effect transistor applications. ACS
Appl Mater Interfaces 2016;8:18991-7; (e) Marty R, Nigon R, Leite D, Frauenrath
H. Two-fold odd–even effect in self-assembled nanowires from
oligopeptide-polymer-substituted perylene bisimides.
2014;136:3919-27.
J
Am Chem Soc
24. (a) Rizkov D, Mizrahi S, Cohen S, Lev O, β-Amino alcohol selectors for
enantioselective separation of amino acids by ligand-exchange capillary zone
electrophoresis in a low molecular weight organogel. Electrophoresis

ACCEPTED MANUSCRIPT
2010;31:3921–7; (b) Jintoku H, Takafuji M, Oda R, Ihara H. Enantioselective
recognition by a highly ordered porphyrin-assembly on a chiral molecular gel.
Chem Commun 2012;48:4881–3.
25. Cheng N, Hu Q, Guo Y, Wang Y, Yu L. Efficient and selective removal of dyes
using imidazolium-based supramolecular gels. ACS Appl Mater Interfaces
2015;7:10258-65.
26. Okesola BO, Smith DK. Applying low-molecular weight supramolecular gelators
in an environmental setting – self-assembled gels as smart materials for pollutant
removal. Chem Soc Rev 2016;45:4226-51.
27. George M, Weiss RG. Molecular organogels. soft matter comprised of
low-molecular-mass organic gelators and organic liquids. Acc Chem Res
2006:39:489-97.
28. Liu Y, Chen C, Wang T, Liu M. Supramolecular chirality of the two-component
supramolecular copolymer gels: who determines the handedness? Langmuir
2016;32:322-8.
29. Shirakawa M, Kawano S, Fujita N, Sada K, Shinkai S, Hydrogen-bond-assisted
control of H versus J aggregation mode of porphyrins stacks in an organogel
system. J Org Chem 2003;68:5037-44.
30. (a) Suzuki M, Nakajima Y, Yumoto M, Kimura M, Shirai H, Hanabusa K. Effects
of hydrogen bonding and van der waals interactions on organogelation using
designed low-molecular-weight gelators and gel formation at room temperature.
Langmuir 2003;19:8622-4; (b) Daisaku I, Masahiro S, Hirofusa S, Kenji H. Novel

ACCEPTED MANUSCRIPT
Low-Molecular-Weight Gelators Based on Azobenzene Containing L-Amino
Acids. Bull Chem Soc Jpn 2005;78:721–6; (c) Marchesan S, Styan KE, Easton
CD, Waddington L, Vargiu AV. Higher and lower supramolecular orders for the
design of self-assembled heterochiral tripeptide hydrogel biomaterials. J. Mater.
Chem. B 2015;3:8123-32.
31. (a) Ajayaghosh A, Praveen VK. π-Organogels of self-assembled
p-phenylenevinylenes: soft materials with distinct size, shape, and functions. Acc
Chem Res 2007;40:644-56; (b) Suzuki M, Hanabusa K. L-Lysine-based
low-molecular-weight gelators. Chem Soc Rev 2009;38:967-75.
32. Diosdado S, López R, Palomo C. Ureidopeptide-based brønsted bases: design,
synthesis and application to the catalytic enantioselective synthesis of β-amino
nitriles from (arylsulfonyl)acetonitriles. Chem Eur J 2014;20:6526-31.
33. Terech P, Weiss RG. Low molecular mass gelators of organic liquids and the
properties of their gels. Chem Rev 1997;97:3133-60.
34. Weiss R G, Terech P. Molecular gels: materials with self-assembled fibrillar
networks, 233–44, 2005, Springer Printed in the Netherlands.
35. Hirst AR, Coates IA, Boucheteau TR, Miravet JF, Escuder B, Castelletto V et al.
Low-molecular-weight gelators: elucidating the principles of gelation based on
gelator solubility and a cooperative self-assembly model. J Am Chem Soc
2008;130:9113-21.
36. Xue P, Lu R, Yang X, Zhao L, Xu D, Liu Y et al. Self-assembly of a chiral lipid
gelator controlled by solvent and speed of gelation. Chem Eur J 2009;15:9824-35.

ACCEPTED MANUSCRIPT
37. Zhang Y, Xue P, Yao B, Sun J. Self-assembly of azobenzene-based
two-component gels. New J Chem 2014;38:5747-53.
38. Kawano S, Fujita N, Shinkai S. Quater-, quinque-, and sexithiophene
organogelators: unique thermochromism and heating-free sol–gel phase transition.
Chem Eur J 2005;11:4735-42.
39. (a) Weiss RG. The past, present, and future of molecular gels. what is the status of
the field, and where is it going? J Am Chem Soc 2014;136:7519-30; (b) Zurcher
D M, McNeil AJ. Tools for Identifying Gelator Scaffolds and Solvents. J Org
Chem 2015;80:2473-9.
40. (a) Huang X, Zhao Y, Han B. Supramolecular organic network assembled from
quadruple hydrogen-bonding motifs. Chem Commun, 2016, 52, 6597-600; (b) Liu
X, Fei J, Wang A, Cui W, Zhu P, Li J. Transformation of dipeptide-based
organogels into chiral crystals by cryogenic treatment. Angew Chem Int Ed
2017;56:2660-3; (c) Yao H, Qi M, Liu Y, Tian W. Host–guest
binding-site-tunable self-assembly of stimuli-responsive supramolecular polymers.
Chem Eur J 2016;22:8508-19.
41. Xue P, Wang P, Yao B, Sun J, Gong P, Zhang Z et al. Photocurrent generation of
nanofibers constructed using a complex of a gelator and a fullerene derivative.
RSC Adv 2015;5:75425-33.
42. Rahman M M, Czaun M, Takafuji M, Ihara H. Synthesis, Self-assembling
properties, and atom transfer radical polymerization of an alkylated
L-phenylalanine-derived monomeric organogel from silica: a new approach to

ACCEPTED MANUSCRIPT
prepare packing materials for high-performance liquid chromatography. Chem
Eur J 2008;14:1312-21.
43. Iwahara H, Kushida T, Yamaguchi S. A planarized 9-phenylanthracene: a simple
electron-donating building block for fluorescent materials. Chem Commun
2016;52:1124-7.
44. (a) Wu H, Xue L, Shi Y, Chen Y, Li X, Organogels based on J- and H-type
aggregates of amphiphilic perylenetetracarboxylic diimides. Langmuir
2011;27:3074-82; (b) Li X, Zhang X, Ghosh S, Würthner F. Highly fluorescent
lyotropic mesophases and organogels based on j-aggregates of core-twisted
perylene bisimide dyes. Chem Eur J 2008;14:8074-8.
45. (a) Yagai S, Nakajima T, Kishikawa K, Kohmoto S, Karatsu T, Kitamura A.
Hierarchical organization of photoresponsive hydrogen-bonded rosettes. J Am
Chem Soc 2005;127:11134-9; (b) Qiu Z, Yu H, Li J, Wang Y, Zhang Y.
Spiropyran-linked dipeptide forms supramolecular hydrogel with dual responses
to light and to ligand–receptor interaction. Chem Commun 2009;3342-4; (c) Borré
E, Stumbé J, Bellemin-Laponnaz S, Maur M. Light-powered self-healable
metallosupramolecular soft actuators. Angew Chem Int Ed, 2016, 55, 1313-7.
46. Xue P, Zhang Y, Jia J, Xu D, Zhang X, Liu X, Zhou H, Zhang P, Lu R, Takafuji
M. Ihara H. Solvent-dependent photophysical and anion responsive properties of
one glutamide gelator. Soft Matter 2011;7:8296–304.

ACCEPTED MANUSCRIPT
1. An azobenzene-based L-valinamide derivative was found to form gels in various
solvents.
2. The hydrogen bonding between amide units and π-π interaction between
azobenzene moieties were confirmed to be driving force of gel formation.
3. The gel exhibits selective response to fluoride anion.
