Molecules 2019, 24, 2696
14 of 21
spectrometer (Bruker BioSpin GmbH, Rheinstetten, Germany) using DMSO-d6 as solvent. Chemical
shifts are expressed in ppm with TMS as an internal reference. Accurate mass data were obtained
using a Waters model LCT Premiere time-of-flight (TOF) mass spectrometer (Waltham, MA, US).
Absorbance was measured at different wavelength on a Multi-Mode Microplate Reader Synergy H1
(Biotek, VT, US) or HT BioTek spectrophotometer (Biotek, VT, US). Reactions were monitored by TLC
on pre-coated silica gel aluminum plates, Kieselgel 60 F254 from Merck (Darmstadt,Germany) using
ethyl acetate/hexane mixtures as a solvent and compounds were visualized by UV lamp (UVP,
Upland, CA, US). The reported yields are for the purified material and are not optimized. The IC50
values were calculated in GraphPad Prism 7.02 (GraphPad Software, San Diego, US) The results are
given as a mean ± standard deviation (SD) of experiments done in triplicate.
4.2. Synthesis of Schiff Base Derivatives (3a–j, 4, 5)
The synthesis of the Schiff base derivatives 3a–j was adapted from a procedure reported by Alam
and coworkers [14]. To an ethanol solution (10 mL) of 4-amino-1,5-dimethyl-2-phenylpyrazol-3-one
(1) (1.0 g, 4.92 mmol) was added an ethanol solution (10 mL) of substituted benzaldehyde (4.92 mmol),
and the mixture was refluxed for 6 h. The progress of the reaction was monitored by TLC. The
precipitates formed were collected by filtration, purified by recrystallization with ethanol, and then
dried under vacuum to produce the pure compounds. Spectra analyses can be consulted in the
Supplementary Materials (Figures S1–S15).
4-Benzylideneamino-1,5-dimethyl-2-phenyl-1H-pyrazol-3(2H)-one (3a): yield 77% as white
1
crystals; m.p. 176.8–177.2 °C (Lit [14] 178.3 °C); H-NMR (300 MHz, DMSO-d6) δ 9.59 (s, 1 H), 7.81 (dd,
J = 7.3, 2.1 Hz, 2 H), 7.49–7.57 (m, 2 H), 7.41–7.48 (m, 3 H), 7.34–7.41 (m, 3 H), 3.18 (s, 3 H), 2.46 (s, 3
H).
4-(2-Hydroxybenzylideneamino)-1,5-dimethyl-2-phenyl-1H-pyrazol-3(2H)-one (3b): yield 94%
1
as yellow crystals; m.p. 201.0-201.5 °C (Lit [34] 199 °C); H-NMR (300 MHz, DMSO-d6) δ 12.94 (s, 1 H),
9.70 (s, 1 H), 7.51–7.59 (m, 2 H), 7.45–7.50 (m, 1 H), 7.36–7.44 (m, 3 H), 7.28–7.35 (m, 1 H), 6.88–6.95
(m, 2 H), 3.21 (s, 3 H), 2.41 (s, 3 H).
4-(4-Methoxybenzylideneamino)-1,5-dimethyl-2-phenyl-1H-pyrazol-3(2H)-one (3c): yield 86%
1
as white crystals; m.p. 169.8–170.3 °C (Lit [32] 171–173 °C); H-NMR (300 MHz, DMSO-d6) δ 9.52 (s, 1
H), 7.76 (d, J = 8.8 Hz, 2 H), 7.57–7.49 (m, 2 H), 7.41–7.33 (m, 3 H), 7.02 (d, J = 8.8 Hz, 2 H), 3.81 (s, 3
H), 3.15 (s, 3 H), 2.44 (s, 3 H).

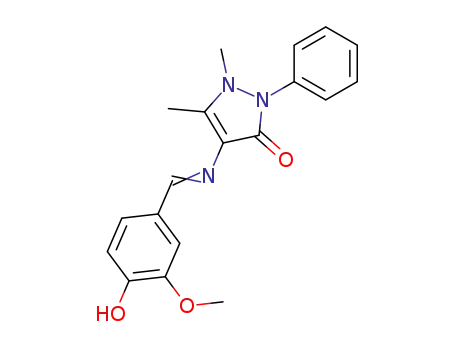

4-(4-Hydroxy-3-methoxybenzylideneamino)-1,5-dimethyl-2-phenyl-1H-pyrazol-3(2H)-one (3d):
1
yield 94% as white crystals; m.p. 210.6–210.9 °C (Lit [32] 208–210 °C); H-NMR (300 MHz, DMSO-d6)
δ 9.46 (s, 1 H), 7.48–7.57 (m, 2 H), 7.32–7.44 (m, 4 H), 7.19 (dd, J = 8.2, 1.7 Hz, 1 H), 6.84 (d, J = 8.2 Hz,
1 H), 3.84 (s, 3 H), 3.14 (s, 3 H), 2.44 (s, 3 H).
4-(3-Hydroxy-4-methoxybenzylideneamino)-1,5-dimethyl-2-phenyl-1H-pyrazol-3(2H)-one (3e):
1
yield: 93.4% as white crystals; m.p. 246.8–247.2 °C; H-NMR (500 MHz, CDCl3) δ 9.66 (s, 1 H), 7.61 (d,
J = 1.3 Hz, 1 H), 7.48 (dd, J = 8.2, 7.7 Hz, 2 H), 7.42 (dd, J = 8.5, 1.4 Hz, 2 H), 7.32 (tt, J = 7.2, 1.2 Hz, 1
H), 7.29 (dd, J = 8.2, 1.7 Hz, 1 H), 6.89 (d, J = 8.2 Hz, 1 H), 5.71 (br. s, 1 H), 3.94 (s, 3 H), 3.14 (s, 3 H),
13
2.49 (s, 3 H); C NMR (126 MHz, CDCl3) δ 161.0, 156.9, 151.7, 145.8, 134.9, 129.2, 129.0, 126.8, 125.9,
−1
124.3, 122.8, 114.1, 112.1, 110.2, 56.0, 35.9, 10.2; IR (cm ) (KBr discs) 3096.15, 2958.95, 1608.34, 1573.63,
+
1257.36, 1020.16, 776.21; HRMS (TOF ES+) m/z calcd for C19H20N3O3 (M+H) : 338.1505; found: 338.1506.
4-(2-Hydroxy-5-nitrobenzylideneamino)-1,5-dimethyl-2-phenyl-1H-pyrazol-3(2H)-one
(3f):
1
yield 84.6% as yellow crystals; m.p. 204.9–205.6 °C (Lit [36] 205.3–205.9 °C); H-NMR (300 MHz,
DMSO-d6) δ 13.73 (br. s., 1 H), 9.79 (s, 1 H), 8.52–8.58 (m, 1 H), 8.18 (dd, J = 9.0, 2.8 Hz, 1 H), 7.56 (t, J
= 7.7 Hz , 2 H), 7.35–7.46 (m, 3 H), 7.10 (d, J = 9.2 Hz, 1 H), 3.26 (s, 3 H), 2.45 (s, 3 H).
4-(3-Nitrobenzylideneamino)-1,5-dimethyl-2-phenyl-1H-pyrazol-3(2H)-one (3g): yield 95.4% as
1
light orange crystals; m.p. 219.7–220.1 °C (Lit [30] 218–219 °C); H-NMR (300 MHz, DMSO-d6) δ 9.68
(s, 1 H), 8.59–8.63 (m, 1 H), 8.19–8.28 (m, 2 H), 7.74 (t, J = 8.0 Hz, 1 H), 7.51–7.59 (m, 2 H), 7.35–7.44 (m,
3 H), 3.24 (s, 3 H).
4-(4-Dimethylaminobenzylideneamino)-1,5-dimethyl-2-phenyl-1H-pyrazol-3(2H)-one
yield 94.5% as yellow crystals; m.p. 220.4–221.4 °C (Lit [37] 223–224 °C); H-NMR (300 MHz, DMSO-
(3h):
1
