Effects of nitrogen in the (Fe1-xNix)4N compounds (0≤x≤0.6)

Article abstract of DOI:10.1002/pssa.2211530202

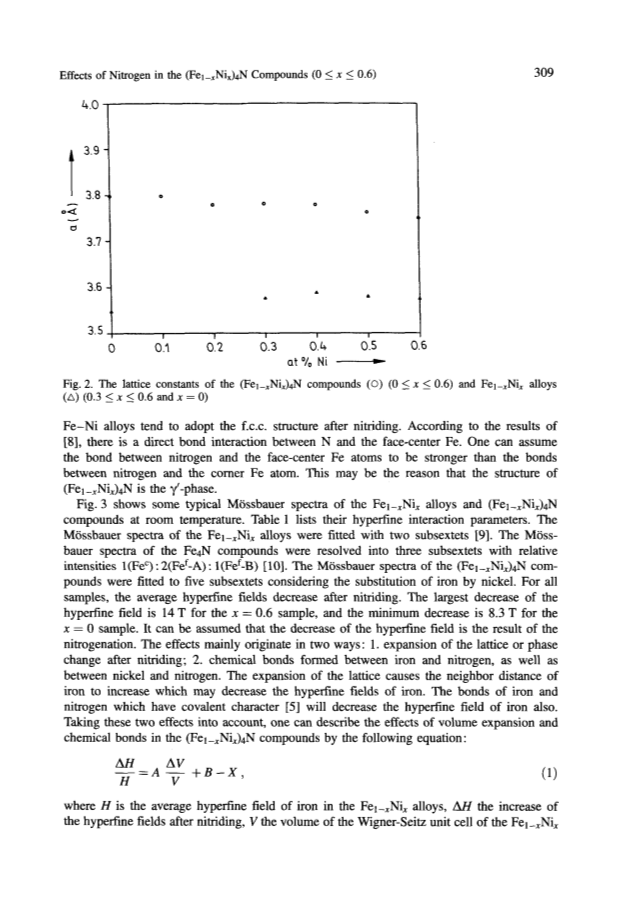

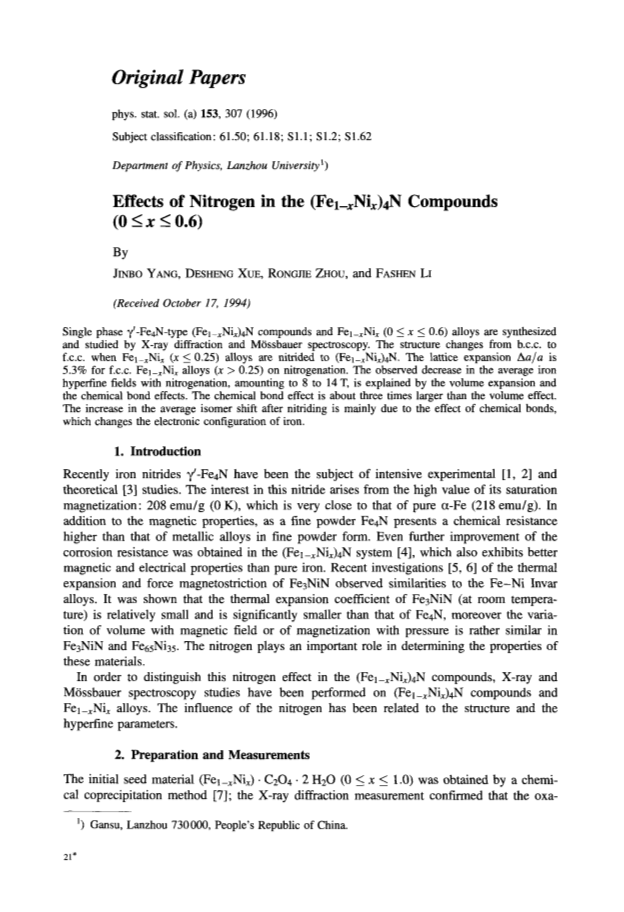

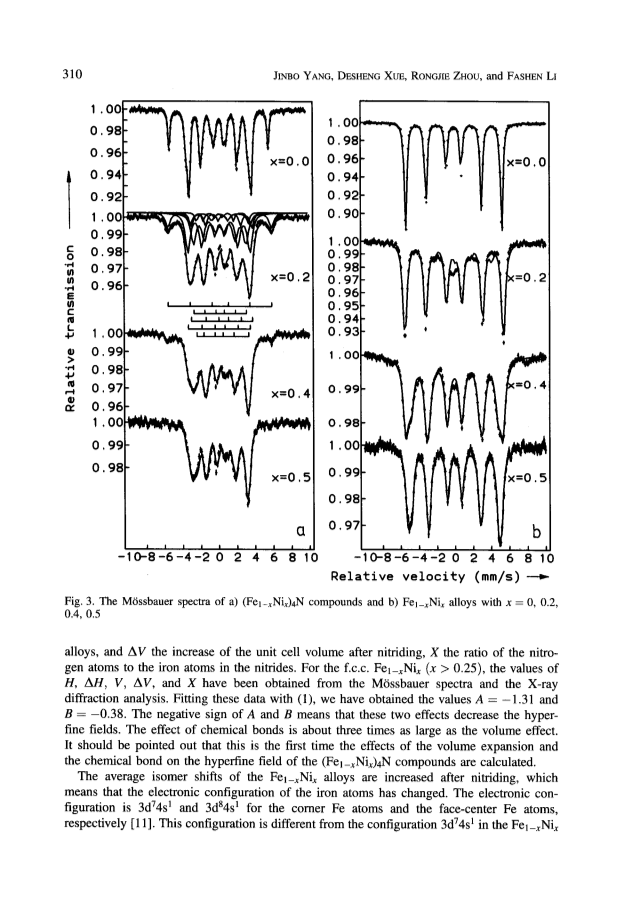

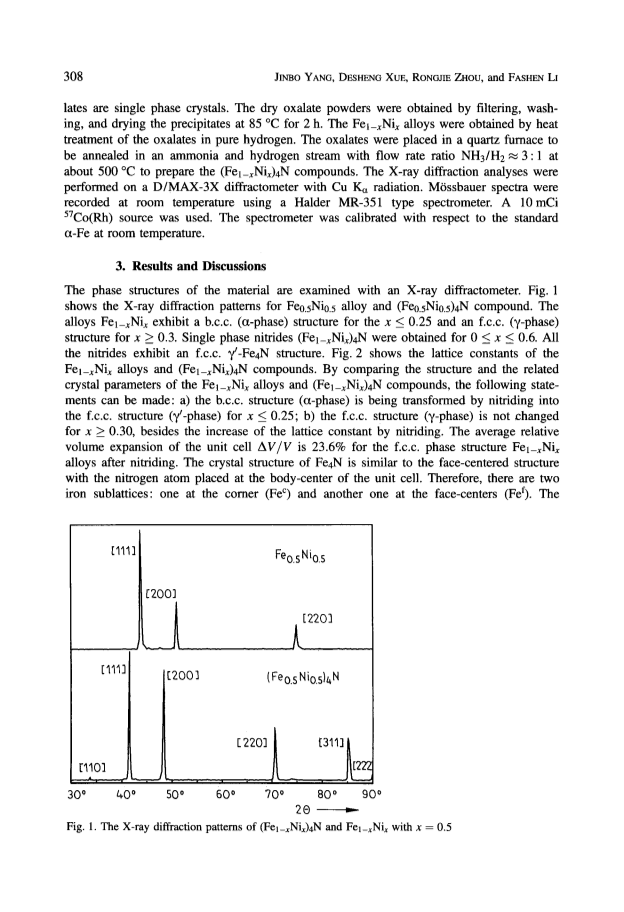

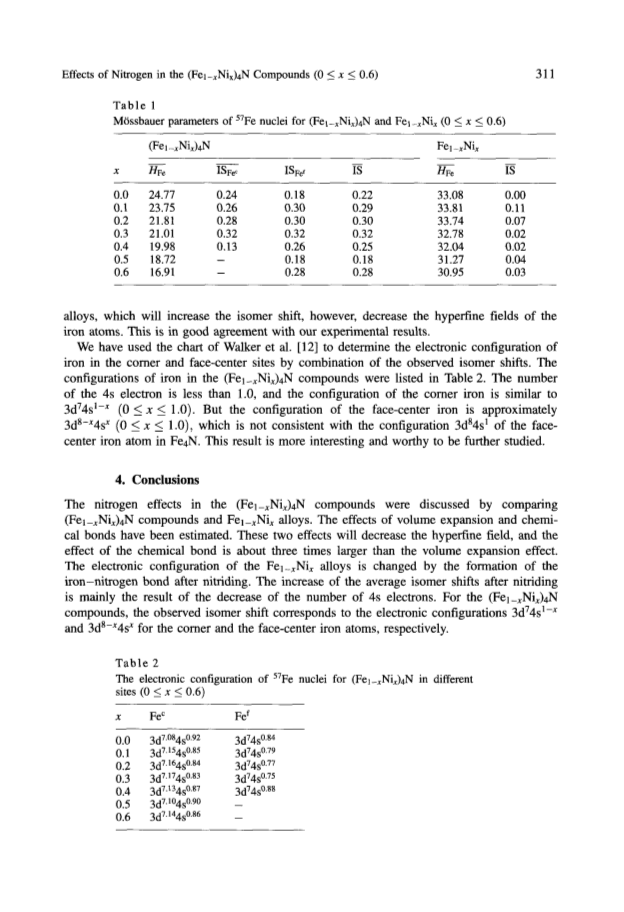

Single phase γ′-Fe₄N-type (Fe_1-xNi_x)₄N compounds and Fe_1-xNi_x (0≤x≤0.6) alloys are synthesized and studied by X-ray diffraction and Moessbauer spectroscopy. The structure changes from b.c.c. to f.c.c. when Fe_1-xNi_x(x≤0.25) alloys are nitrided to (Fe_1-xNi_x)₄N. The lattice expansion Δa/a is 5.3% for f.c.c. Fe_1-xNi_x alloys (x≥0.25) on nitrogenation. The observed decrease in the average iron hyperfine fields with nitrogenation, amounting to 8 to 14 T, is explained by the volume expansion and the chemical bond effects. The chemical bond effect is about three times larger than the volume effect. The increase in the average isomer shift after nitriding is mainly due to the effect of chemical bonds, which changes the electronic configuration of iron.
