High quality Ge on Si by epitaxial necking

Article abstract of DOI:10.1063/1.126754

We show that pure Ge grown selectively on SiO₂/Si substrates in 100 nm holes is highly perfect at the top surface compared to conventional Ge lattice-mismatched growth on planar Si substrates. This result is achieved through a combination of interferometric lithography SiO₂/Si substrate patterning and ultrahigh vacuum chemical vapor deposition Ge selective epitaxial growth. This epitaxial necking, in which threading dislocations are blocked at oxide sidewalls, shows promise for dislocation filtering and the fabrication of low-defect density Ge on Si. Defects at the Ge film surface only arise at the merging of epitaxial lateral overgrowth fronts from neighboring holes. These results confirm that epitaxial necking can be used to reduce threading dislocation density in lattice-mismatched systems.

Full text of DOI:10.1063/1.126754

High quality Ge on Si by epitaxial necking
T. A. Langdo, C. W. Leitz, M. T. Currie, E. A. Fitzgerald, A. Lochtefeld et al.
Citation: Appl. Phys. Lett. 76, 3700 (2000); doi: 10.1063/1.126754
View online: http://dx.doi.org/10.1063/1.126754
View Table of Contents: http://apl.aip.org/resource/1/APPLAB/v76/i25
Published by the American Institute of Physics.
Additional information on Appl. Phys. Lett.
Journal Homepage: http://apl.aip.org/
Journal Information: http://apl.aip.org/about/about_the_journal
Top downloads: http://apl.aip.org/features/most_downloaded
Information for Authors: http://apl.aip.org/authors
Downloaded 12 May 2013 to 198.91.37.2. This article is copyrighted as indicated in the abstract. Reuse of AIP content is subject to the terms at: http://apl.aip.org/about/rights_and_permissions

APPLIED PHYSICS LETTERS
VOLUME 76, NUMBER 25
19 JUNE 2000
High quality Ge on Si by epitaxial necking
T. A. Langdo,a) C. W. Leitz, M. T. Currie, and E. A. Fitzgerald
Department of Materials Science and Engineering, Massachusetts Institute of Technology, Cambridge,
Massachusetts 02139
A. Lochtefeld and D. A. Antoniadis
Department of Electrical Engineering and Computer Science, Massachusetts Institute of Technology,
Cambridge, Massachusetts 02139
͑Received 28 January 2000; accepted for publication 19 April 2000͒
We show that pure Ge grown selectively on SiO2 /Si substrates in 100 nm holes is highly perfect at
the top surface compared to conventional Ge lattice-mismatched growth on planar Si substrates.
This result is achieved through a combination of interferometric lithography SiO2 /Si substrate
patterning and ultrahigh vacuum chemical vapor deposition Ge selective epitaxial growth. This
‘‘epitaxial necking,’’ in which threading dislocations are blocked at oxide sidewalls, shows promise
for dislocation filtering and the fabrication of low-defect density Ge on Si. Defects at the Ge film
surface only arise at the merging of epitaxial lateral overgrowth fronts from neighboring holes.
These results confirm that epitaxial necking can be used to reduce threading dislocation density in
lattice-mismatched systems. © 2000 American Institute of Physics. ͓S0003-6951͑00͒01425-X͔
Heteroepitaxial growth can be used to fabricate many
modern semiconductor devices where lattice-matched sub-
strates are not commercially available or to potentially
seed window and ELO regions without relying on increased
lateral growth rates. This result is achieved through a com-
bination of selective epitaxial growth and defect crystallog-
raphy to force defects to the oxide sidewall, resulting in a
perfect top film.6 In the ͑111͒͗110͘ diamond cubic slip sys-
tem misfit dislocations lie along ͗110͘ directions in the ͑100͒
growth plane while the threading segments rise up on ͑111͒
planes in ͗110͘ directions. Threading segments in ͗110͘ di-
rections on the ͑111͒ plane make a 45° angle to the underly-
ing Si͑100͒ substrate. Thus, if the aspect ratio of the holes in
the oxide mask is greater than 1, crystallography dictates that
threading segments will be blocked by the oxide sidewall
resulting in a defect-free top Ge surface on Si as shown in
Fig. 1.6 This process is analogous to bulk Si Czochralski
crystal growth where the seed crystal is first necked to elimi-
nate defects before the boule is pulled.7 Furthermore, epitax-
ial necking can be used to eliminate defects in any lattice-
mismatched materials system in which threading dislocations
are not parallel to the growth directions. Submicron lithog-
raphy offers the possibility of achieving this goal in a rea-
sonably small film thickness, thus minimizing thermal mis-
match and cracking problems between the film and substrate.
achieve
monolithic
integration
with
silicon
microelectronics.1 For heteroepitaxial layers grown beyond a
critical thickness, misfit dislocations are formed at the
substrate/film interface and typically terminate at the film
surface as threading dislocations. The threading dislocation
segments can degrade physical and electrical properties of
device material and can lead to premature device failure and
poor performance. As a result there has been much effort to
eliminate threading dislocations in lattice-mismatched epi-
taxy, most notably in the recent development of GaN de-
vices. Defect densities have been greatly reduced in GaN
growth by a combination of substrate patterning and epitax-
ial lateral overgrowth ͑ELO͒ techniques2,3 leading to fabrica-
tion of laser diodes with record lifetimes.4 This process
eliminates defects in ELO regions but highly defective seed
windows remain, necessitating repetition of the lithography
and epitaxial steps to eliminate all substrate defects. In a
competing scheme, pendeo-epitaxy eliminates all substrate
interface defects but requires one lithography and two epi-
taxial growth steps.5 Furthermore, both techniques require
the increased lateral growth rate of GaN, which has not been
demonstrated in all heteroepitaxial systems.3,5 A general
defect-reduction process utilizing a minimum of lithography/
epitaxy steps that does not rely on increased lateral growth
rates would be very advantageous. Such a process would
both minimize process complexity and allow application to
many materials systems.
We present experimental demonstration of defect block-
ing by epitaxial necking resulting in a defect-free top Ge
surface on Si. Epitaxial necking offers process simplicity by
eliminating all defects from the substrate interface in one
substrate lithography and epitaxial growth step over both the
FIG. 1. Cross-section diagram demonstrating the principles of epitaxial
necking showing zero threading dislocations at the Ge film surface.
a͒
Electronic mail: tlangdo@mit.edu
0003-6951/2000/76(25)/3700/3/$17.00
3700
© 2000 American Institute of Physics
Downloaded 12 May 2013 to 198.91.37.2. This article is copyrighted as indicated in the abstract. Reuse of AIP content is subject to the terms at: http://apl.aip.org/about/rights_and_permissions

Appl. Phys. Lett., Vol. 76, No. 25, 19 June 2000
Langdo et al.
3701
Finally, an additional benefit of using submicron lithography
is that defects have an extremely high energy in small
volumes.8 Therefore, small volumes tend to be perfect crys-
tals. Results on relaxed films in slightly larger patterns from
microns to hundreds of microns show that through disloca-
tion travel and escape at pattern edges, misfit and threading
dislocation densities can be controlled.9–13 In terms of selec-
tive growth, several groups have demonstrated selective
growth of Si and SiGe in submicron features by chemical
14,15
vapor deposition ͑CVD͒
and gas source molecular beam
epitaxy.16,17 However, there has been no previous motivation
for combining selective growth and threading dislocation
control at these dimensions.
The substrates in this experiment were 4 in. p-type
10–20 ⍀ cm Si ͑100͒ wafers with 120 nm thermal oxide.
Substrate patterning was performed by a 351 nm interfero-
metric lithography trilevel resist process and subsequent re-
active ion etching to form wafer scale coverage of 100 nm
holes.18 The patterned substrates were cleaned with a 10 min
piranha etch (3 H2SO4:1 H2O2͒, 30 s 50 H2O:1 HF dip, and
de-ionized water rinse/spin dry immediately before loading
in the ultrahigh vacuum CVD ͑UHVCVD͒ loadlock. Selec-
tive growth was carried out in a turbo pumped hot-walled
UHVCVD reactor with UHV loadlock with an 850 °C base
pressure of 1ϫ10Ϫ9 Torr. Prior to growth, substrates were
desorbed for 10 min at 850 °C under UHV to remove any
remaining native oxide from the substrate surface. A 25 nm
selective Si buffer was grown at 650 °C with SiH4 /H2 at a
pressure of 0.8 mTorr to obtain a clean surface for Ge growth
and improve Ge quality by minimizing stacking fault and
twin formation. Ge was then selectively grown at 650 °C
with GeH4 /H2 at a pressure of 1 mTorr until coalescence of
ELO fronts from neighboring holes. ͗110͘ oriented cross-
section transmission electron microscopy ͑TEM͒ samples
were prepared by mechanical polishing and Ar ion milling.
TEM images were taken on a JEOL 2000FX microscope
operating at 200 kV. Triple axis x-ray diffraction scans were
preformed on a Bede D3 x-ray diffractometer with a Rigaku
rotating anode source.
FIG. 2. Cross-section TEM image showing stacking fault blocked by the
oxide sidewall and defect free Ge seed and ELO regions.
pillar ‘‘seeds’’ lack propagating threading dislocations. Fur-
thermore, since only half of the ELO boundaries exhibit de-
fects, these are encouraging results for potentially creating
defect-free blanket Ge on Si. There are several possible
causes of the observed defects upon coalescence. Defects
similar to these in Si ELO have been attributed to insufficient
time for adatoms to reach stable atomic arrangements be-
cause of complex faceting20,21 or oxide surface roughness
resulting in lattice misregistry at the merging fronts.21,22 An-
other possible explanation is that defects between growth
fronts are caused by stresses from superposition of the Ge
lattice on the underlying Si lattice. Once growth fronts from
neighboring holes coalesce, the Ge lattice must bridge the
distance between holes over the SiO2 /Si substrate. However,
the distance between holes in the SiO2 /Si substrate is not
necessarily an integral number of Ge unit cells. The lattices
could differ by a Ge unit cell resulting in a strain measured

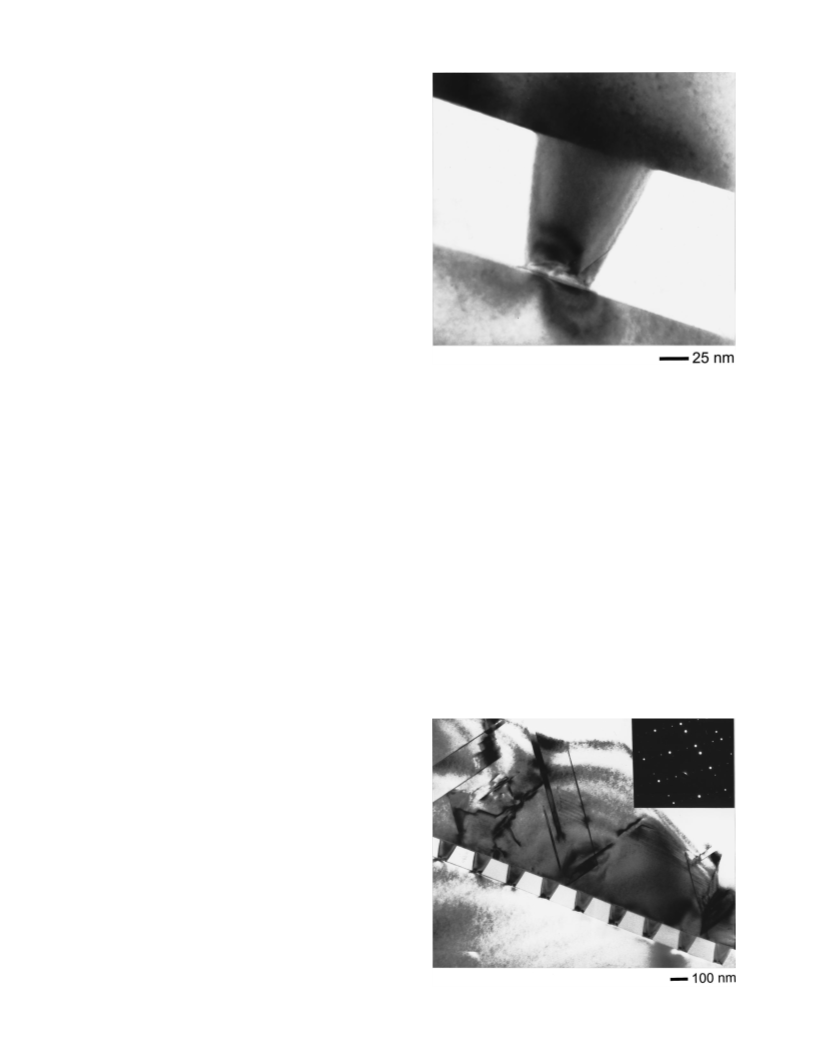

Figure 2 shows termination of a stacking fault from the
Si/Ge substrate interface at the SiO2 sidewall resulting in a
perfect top Ge surface on Si. There is no defect generation at
the oxide sidewall or by merging of ELO fronts. Further-
more, there is no evidence of defect interactions causing sub-
strate defects to be deflected and thus zigzag out of the hole.
The observed defect reduction could occur by other mecha-
nisms in addition to epitaxial necking. The stress state of the
Ge in the small holes can be altered due to edge effects6 or
image forces could force defects to glide to the sidewall
where they are removed.8 However, at this point it is unclear
which mechanism is dominant.
Figure 3 shows the film morphology arising from coa-
lescence of multiple Ge ELO fronts and the selected area
diffraction pattern. The extra diffraction twin spots show the
predominance of microtwin defects that have been com-
monly found in ELO fronts in Si.19 Defects propagating into
the coalesced Ge film only occur sporadically at the merging
of ELO fronts as twins and stacking faults, not as threading
segments from the lattice-mismatched interface with the Si
substrate or from the oxide sidewall. Note that all the Ge
FIG. 3. Cross-section TEM image showing Ge film morphology and se-
lected area diffraction pattern. All Ge seeds lack propagating defects; the
defects in the image originate from ELO coalescence.
Downloaded 12 May 2013 to 198.91.37.2. This article is copyrighted as indicated in the abstract. Reuse of AIP content is subject to the terms at: http://apl.aip.org/about/rights_and_permissions

3702
Appl. Phys. Lett., Vol. 76, No. 25, 19 June 2000
Langdo et al.
Also, we observe that the Ge film on unpatterned Si has a
defective interface region about 250 nm thick. In contrast,
Ge grown in nanoholes exhibits a much simpler defect mor-
phology resulting in a 25 nm thick region containing all mis-
fit dislocations. The improved defect morphology shows that
an interface array that locally relieves the mismatch is gen-
erated very soon upon Ge growth in the nanoholes.
We have demonstrated the feasibility of low defect den-
sity Ge on Si via epitaxial necking on SiO2 /Si substrates
patterned by interferometric lithography. All defects viewed
in cross-section TEM that originate from the Si substrate/Ge
film interface are blocked by the oxide sidewalls. Disloca-
tions are occasionally observed at the merged ELO interfaces
between highly perfect Ge seeds. Investigations into the ori-
gins of ELO Ge defects are ongoing with hopes of realizing
high quality Ge on Si. This approach allows the elimination
of all substrate interface defects in one lithography and se-
lective epitaxial growth step and shows promise for defect
engineering in any lattice-mismatched materials system.
This work made use of the MRSEC Shared Facilities
supported by the National Science Foundation under Award
No. DMR-9400334. Additional funding was supplied by
DARPA Contract No. N66001-97-1-8909 and the MRSEC
Nanostructures IRG. Helpful discussions with Professor Ya-
Hong Xie of UCLA are acknowledged.
1 E. Fitzgerald, Mater. Sci. Rep. 7, 87 ͑1991͒.
2 A. Usui, H. Sunakawa, A. Sakai, and A. A. Yamaguchi, Jpn. J. Appl.
Phys., Part 2 36, L899 ͑1997͒.
3 O. Nam, M. Bremser, T. Zheleva, and R. Davis, Appl. Phys. Lett. 71,
2638 ͑1997͒.
4 S. Nakamura, M. Senoh, S. Nagahama, N. Iwasa, T. Yamada, T. Mat-
sushita, H. Kiyoku, Y. Sugimoto, T. Kozaki, H. Umemoto, M. Sano, and
K. Chocho, Jpn. J. Appl. Phys., Part 2 36, L1568 ͑1997͒.
5 K. Linthicum, T. Gehrke, D. Thomson, E. Carlson, P. Rajagopal, T.
Smith, D. Batchelor, and R. Davis, Appl. Phys. Lett. 75, 196 ͑1999͒.
6 E. Fitzgerald and N. Chand, J. Electron. Mater. 20, 839 ͑1991͒.
7 W. C. Dash, J. Appl. Phys. 30, 459 ͑1959͒.
8 F. R. N. Nabarro, Theory of Crystal Dislocations ͑Oxford, New York,
1967͒.
9 E. A. Fitzgerald, P. D. Kirchner, R. Proano, G. D. Pettit, J. M. Woodall,
and D. G. Ast, Appl. Phys. Lett. 52, 1496 ͑1988͒.
10 E. Fitzgerald, G. Watson, R. Praono, D. Ast, P. Kirchner, G. Pettit, and J.
Woodall, J. Appl. Phys. 65, 2220 ͑1989͒.

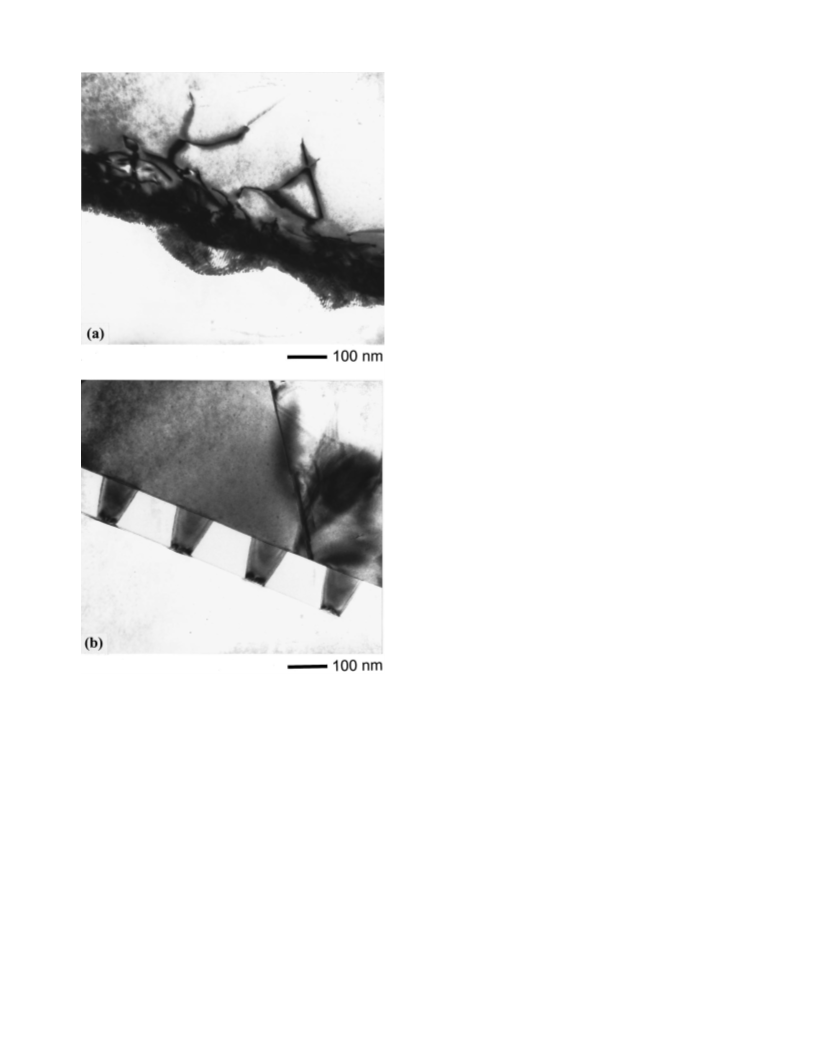

FIG. 4. ͑a͒ Control Ge/Si substrate interface on unpatterned Si. ͑b͒ Ge/Si
substrate interface on interferometric lithography patterned substrates,
shown at the same magnification as the control sample image in Fig. 4͑a͒.
Note the lack of a thick interfacial dislocation region as in Fig. 4͑a͒.
11 E. A. Fitzgerald, J. Vac. Sci. Technol. B 7, 782 ͑1989͒.
12 D. Noble, J. Hoyt, C. King, J. Gibbons, T. Kamins, and M. Scott, Appl.
Phys. Lett. 56, 51 ͑1990͒.
13 T. Stoica and L. Vescan, J. Cryst. Growth 131, 32 ͑1993͒.
14 L. Vescan, C. Dieker, A. Hartmann, and A. V. D. Hart, Semicond. Sci.
Technol. 9, 387 ͑1994͒.
as ⌬L/L on the order of 0.5% causing defect formation
͑where ⌬L is a Ge unit cell and L is the 100 nm spacing
between holes͒. Growing in similarly sized holes with a
wider hole spacing increases L, thus decreasing the strain,
⌬L/L. If this mechanism is responsible, sufficiently increas-
ing the hole spacing should eliminate these defects.
Figures 4͑a͒ and 4͑b͒ compare the defect morphology
between identical Ge growth on unpatterned Si and Ge
growth in 100 nm features. Triple axis x-ray diffraction in-
dicates that both Ge films are fully relaxed. By cross-
sectional TEM the Ge film on unpatterned Si has a threading
dislocation density greater than 108/cm2, whereas substrate
related defects are eliminated by growth in the nanoholes.
15 G. Schmidt, R. Tuzinski, and K. Heime, J. Cryst. Growth 154, 189 ͑1995͒.
16 Q. Xiang, S. Li, D. Wang, K. Wang, J. Couillard, and H. Craighead, J.
Vac. Sci. Technol. B 14, 2381 ͑1996͒.
17 E. Kim, N. Usami, and Y. Shiraki, Semicond. Sci. Technol. 14, 257
͑1999͒.
18 M. Schattenburg, R. Aucoin, and R. Fleming, J. Vac. Sci. Technol. B 13,
3007 ͑1995͒.
19 M. R. Goulding, Mater. Sci. Eng., B 17, 47 ͑1993͒.
20 M. Arst, K. Ritz, S. Redkar, J. Borland, J. Hann, and J. Chen, J. Mater.
Res. 6, 784 ͑1991͒.
21 Y. Shin, J. Lou, and W. Oldham, Appl. Phys. Lett. 65, 1638 ͑1994͒.
22 H. Kitajima, Y. Fujimoto, N. Kasai, A. Ishitani, and N. Endo, J. Cryst.
Growth 98, 264 ͑1989͒.
Downloaded 12 May 2013 to 198.91.37.2. This article is copyrighted as indicated in the abstract. Reuse of AIP content is subject to the terms at: http://apl.aip.org/about/rights_and_permissions
