SYNTHESIS OF MIXED CERIUM ZIRCONIUM OXIDES
1469
1
5 deg min . The phase composition of the powders
It should be noted that xerogels produced by drying
of concentrated hydrosols retain capacity for spontane-
ous dispersion in distilled water with pH adjusted to
1.0 4.5. The xerogels were produced by drying of
hydrosols in air at 25 C.
was studied by X-ray phase analysis on a DRON-3
diffractometer with CuK radiation.
Mixed hydrosols with various Ce/Zr molar ratios
were produced by peptization. In this method, water-
insoluble hydroxides are obtained from a salt solution
and then are peptized in the presence of a strong acid.
The OH/M molar ratio in the precipitation of hy-
droxides was 25. Ammonium hydroxide served as
a precipitating agent. Then the precipitate obtained
was washed with distilled water to pH 9 in order to
remove residual electrolytes and then was peptized
in the presence of nitric acid and treated with ultra-
sound for 2 min. As shown by these experiments,
mixed hydrosols can be synthesized in a rather wide

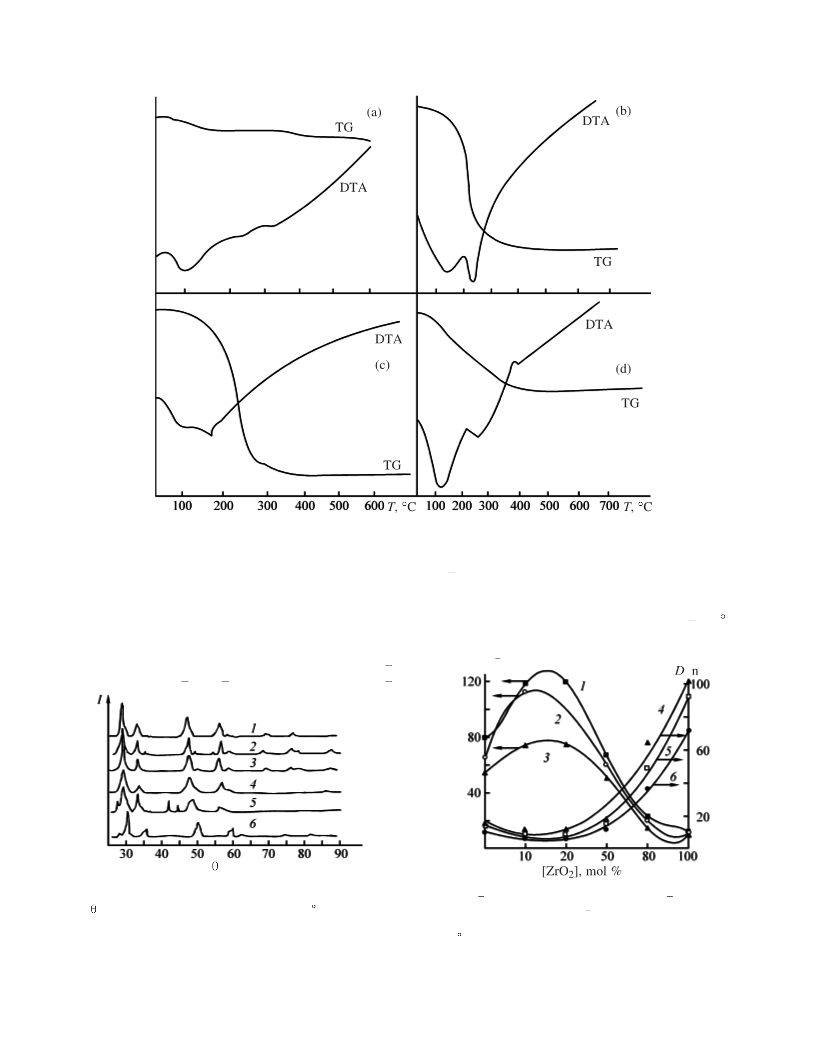

A thermogravimetric analysis of these xerogels
(Fig. 1) demonstrates that, for all the samples, a sharp
weight loss is observed at 250 C, with the following
two endothermic effects observed. Below 100 C,
capillary and weakly bound water is removed, and
the peak at 220 280 C is associated with the decom-
position of nitrates. The exothermic effect associated
with crystallization of zirconium dioxide is recorded
at 380 C (below this temperature, zirconium dioxide
is X-ray-amorphous) only for the Ce Zr O sam-
0.2 0.8
2
+
range of [H ]/[M] molar ratios.
ple. For other CeO /ZrO molar ratios, a broad exo-
2
2
thermic peak is observed in the temperature range
The procedure developed can yield mixed CeO
ZrO hydrosols with an initial concentration of 1.8 to
6.8 wt %, which can be then concentrated by evapora-
tion or ultrafiltration to 13 43 wt %.
2
4+
300 800 C. This is due to incorporation of Zr into
2
the crystal lattice of cerium dioxide.
The data obtained are in good agreement with
the results of the X-ray phase analysis (Fig. 2). An
analysis of the X-ray diffraction patterns of powders
The resulting hydrosols are stable in acidic media
at pH 1.0 4.5. Particles of the dispersed phase of
the hydrosols are spherical, with an average hydro-
dynamic radius of 18 to 80 nm, depending on the
CeO /ZrO molar ratio.
calcined at 600 C demonstrated that CeZrO solid
2
solutions are present in a wide range of CeO /ZrO
2
2
molar ratios. However, reflections characteristic of
t-ZrO are observed in some cases (Ce Zr O ,
2
2
An important factor in fabrication of supported
catalysts is the adhesion of hydrosol particles to the
support surface. This adhesion is largely determined
by the charge on the surface of hydrosol particles.
Measurements of the electrophoretic mobility demon-
strated that hydrosol particles are positively charged
and the -potential, evaluated using the Helmholtz
Smoluchowski equation, is 11 to 32 mV at pH 1.0
4.5.
2
0.9 0.1 2
Ce Zr O , Ce Zr O ).
0.8 0.2
2
0.2 0.8 2
This may occur because the procedure suggested
here for synthesis of hydrosols cannot provide full
transition of ions into insoluble CeO ZrO com-
2
2
pounds. Therefore, the hydrosols contain a certain
amount of Ce and Zr in the ionic form, which can lead
in further thermal treatment to formation of individual
phases. This can be prevented by washing of xerogels
with distilled water to complete removal of the ions.
When sols are used as a basis of various formula-
tions, it becomes necessary to introduce salts of vari-
ous metals. The basic condition for a high-quality
product to be obtained is the aggregative stability of
the resulting formulation. To determine the maximum
amount of an electrolyte, at which the hydrosols retain
aggregative stability, their coagulation thresholds were
measured in the presence of various electrolytes. It was
found that mixed hydrosols are stable against 1 1 and
2 1 electrolytes. In the presence of NaNO , KNO ,
To obtain information about the thermal stability of
the mixed oxides synthesized, the specific surface
areas of CeO ZrO powders calcined at various tem-
2
2
peratures were found. Figure 3 shows the specific sur-
face areas S and particles sizes D as functions of
sp
calcination temperature and the ZrO content of the
2
system. The average particle size D was evaluated by
the formula D = 6/( S ), where is the density of
sp
3
3
a powder, and S , its specific surface area.
sp
and Ni(NO ) , coagulation is not observed even in
3 2
high-concentration solutions of these electrolytes.
As can be seen from these dependences, the largest
2
1
specific surface area (118 m g ) after calcination at
450 C is observed for the system Ce Zr O . How-
The stability of the hydrosols against electrolytes
of the 1 1 and 2 1 types allows introduction of
required amounts of metal nitrates into the hydrosols,
which enables significant modification of the com-
position of catalytically active formulations.
0.9 0.1
2
ever, it exhibits the strongest decrease in the specific
surface area as the calcination temperature is raised.
An insignificant decrease in the specific surface area
RUSSIAN JOURNAL OF APPLIED CHEMISTRY Vol. 80 No. 9 2007
