Laser CVD of nanodisperse Ge-Sn alloys obtained by dielectric breakdown of SnH4/GeH4 mixtures

Article abstract of DOI:10.1002/ejic.200801172

TEA CO₂ laser-induced dielectric breakdown of an equi-molar mixture of gaseous stannane and germane in Ar allows decomposition of both metal hydrides and chemical vapour deposition of the nanostructured Ge/Sn films. Analysis of the films by FTI

Full text of DOI:10.1002/ejic.200801172

SHORT COMMUNICATION
DOI: 10.1002/ejic.200801172
Laser CVD of Nanodisperse Ge–Sn Alloys Obtained by Dielectric Breakdown
of SnH /GeH Mixtures
4
4
Tomá sˇ K rˇ enek,[a,b] Petr Bezdi cˇ ka, Nataliya Murafa, Jan Subrt, and Josef Pola*
[c]
[c]
ˇ
[c]
[a]
Keywords: Germanium / Tin / Stannanes / Nanostructures / Alloys / Metastable compounds
TEA CO
2
laser-induced dielectric breakdown of an equi-
amorphous Ge/Sn phase. The crystalline Ge/Sn nanoalloys
molar mixture of gaseous stannane and germane in Ar allows
decomposition of both metal hydrides and chemical vapour
deposition of the nanostructured Ge/Sn films. Analysis of the
films by FTIR and Raman spectroscopy, X-ray diffraction
analysis and electron microscopy revealed nanoregions of
crystalline Sn and Sn-rich Ge/Sn alloys surrounded by an
contain different amounts of Sn incorporated into the Ge lat-
tice and undergo changes in composition at temperatures as
low as 200 °C.
(© Wiley-VCH Verlag GmbH & Co. KGaA, 69451 Weinheim,
Germany, 2009)
MBE yielded[15] crystalline d-c films (x = 0.3–0.34) on Ge,
Introduction
ultrahigh-vacuum chemical vapour deposition from Ge H6
2
Search for novel alloys, especially their metastable forms
and multiphase micro- and nanostructures, their formation,
growth and morphological changes represents an active sci-
entific area of advanced materials[1] and is expected to lead
to new discoveries in fundamental and highly applied
topics.
and SnD precursors allowed synthesis of crystalline strain-
4
[
16–18]
free films (x Յ 0.20) on silicon substrates
and, finally,
pulsed laser annealing of amorphous Ge/Sn films resulted
in the formation of metastable crystalline features with x =
[
5]
[19]
0
.22 on glass and even x = 0.55 on Ge substrates.
Another laser technique enabling kinetic rather than
The formation of bulk Sn Ge
alloys[2] with the solid
x
1–x
thermodynamic control of the process is IR laser-induced
gas-phase codecomposition of two different molecules,[
which is capable of simultaneously generating clusters of
several (two or more different) metals that will interact in
the gas phase to yield “mixed nanosized systems” and de-
posit as such from the gas phase. This process experiences
solubility limit of Ge in Sn diamond-cubic structure Ͼ1%
is difficult due to (i) large lattice mismatch (15%) between
Ge and α-Sn and (ii) instability of d-c α-Sn phase at ambi-
ent temperature. There is, however, great interest in the
20,21]
Sn Ge
alloys with nonequilibrium composition of both
x
1–x
elements (higher Ge content in the solid phase), because
these alloys have a great potential (e.g., see ref.[3–5]) of a
tunable direct energy gap. Such alloys can be fabricated
only as metastable nanosized films by using special tech-
niques allowing nonequilibrium growth.
[
22,23]
very high heating and cooling rates,
occurs within the
order of microseconds and is feasible for the formation of
metastable structures.
Here we report on a novel approach to chemical vapour
deposition of Sn/Ge metastable alloys through gas-phase
Up to now, coevaporation of Sn and Ge and deposition
codecomposition of SnH and GeH by IR laser-induced
to substrates kept at 100 K allowed[6] formation of amorph-
4
4
dielectric breakdown and show that this technique is a suit-
able method to obtain nanostructured films composed of
crystalline Sn and Ge/Sn alloy nanoobjects in the amorph-
ous Ge/Sn phase.
ous single phase (x Յ 0.15) films, sputtering resulted in de-
position of amorphous[ and single-crystal or poly-
crystalline films (x Յ 0.15),[8] molecular beam epitaxy
7]
(
MBE) enabled the growth of homogeneous crystalline
[
9–11]
[12]
(x = 0.2–0.5)
and fully strained (x Յ 0.26) films on
[
13]
[14]
Ge, InSb
(x Յ 0.1) and CdTe
substrates, ion-assisted
Results and Discussion
[
a] Laboratory of Laser Chemistry, Institute of Chemical Process
Fundamentals, Academy of Sciences of the Czech Republic,
The unfocused transversely excited atmospheric (TEA)
CO laser irradiation of SnH and GeH (both 5 Torr) in
1
6502 Prague, Czech Republic
2
4
4
E-mail:pola@icpf.cas.cz
[
[
b] University of West Bohemia,
Ar (total pressure 110 Torr) does not lead to direct
multiphoton excitation and decomposition of these com-
pounds, as both molecules do not possess absorption bands
in the laser emission region (Figure 1).
30614 Plzen, Czech Republic
c] Institute of Inorganic Chemistry, Academy of Sciences of the
Czech Republic,
ˇ
2
5068 Re zˇ , Czech Republic
1464
© 2009 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Eur. J. Inorg. Chem. 2009, 1464–1467

Laser CVD of Nanodisperse Ge–Sn Alloys
the (Si–Si)* and (Ge–Ge)* bands (Figure 3) thus indirectly
reveal the presence of Si/M (M = Sn, Ge) and Ge/Sn alloys,
although Si–Ge, Si–Sn and Ge–Sn Raman modes are not
observed.

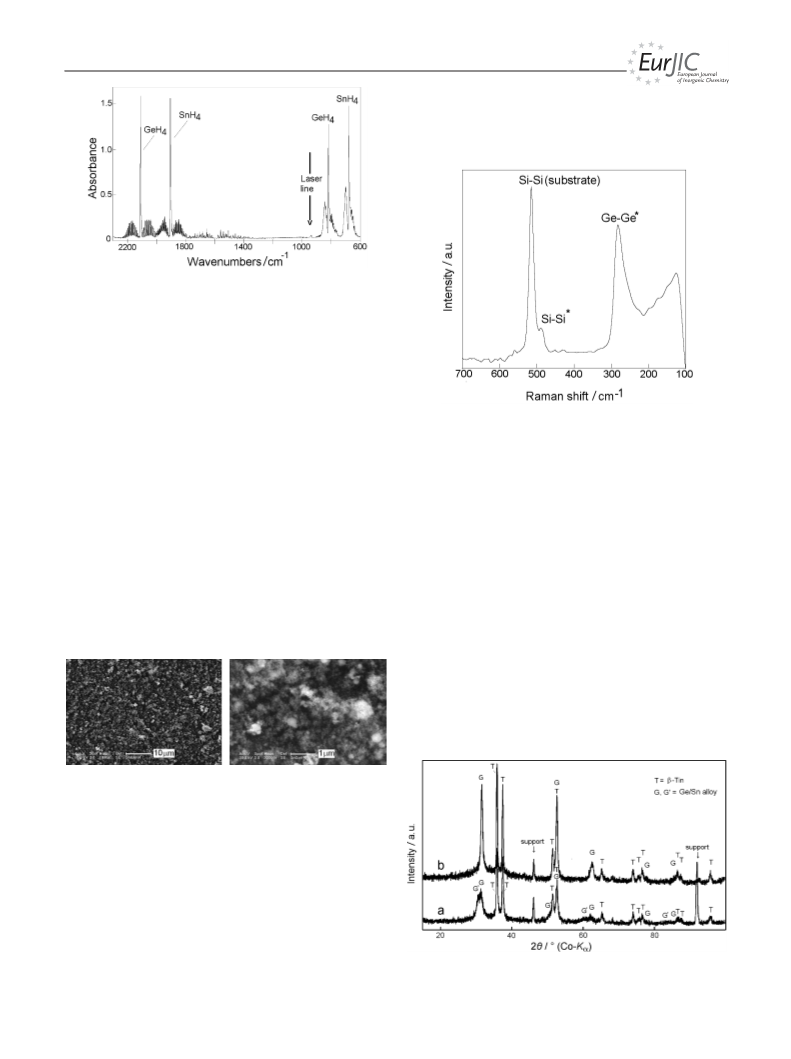

Figure 1. FTIR spectrum of SnH
total pressure 110 Torr).
4 4
and GeH (both 5 Torr) in Ar
(
However, the highly focused radiation induces nonreso-
nant interaction leading to dielectric breakdown[
24,25]
(a vis-
ible spark) and results in decomposition of both SnH and
4
GeH , yielding elemental metals in the gas phase and al-
4
lowing deposition of ultrafine solid particles on the Si sub-
strate. The absorption bands of the Ge and Sn precursors
diminish at a similar rate and, respectively, deplete by 35
Figure 3. Typical Raman spectrum of the deposit. [The bands des-
ignated as (Si–Si)* and (Ge–Ge)*, respectively, occur in Si/M (M
and 45% with 50 pulses, which indicates similar consump- = Sn, Ge) and Ge/Sn alloys.].
tion of GeH and SnH for the formation of the solid de-
posit.
SEM images of the deposit (Figure 2) reveal fluffy mor-
phology with submicrometre-sized bodies merging into sev-
eral micrometre-large agglomerates. EDX-SEM analyses
indicate small contamination by O and C elements and
4
4
Both vibrational spectra do not indicate the presence of
interstitial hydrogen. [Although this species has not yet
been detected for Sn and Ge/Sn, it is infrared active in Ge
–1
[29]
at 700 and 1880 cm (ref. ) and Raman active at 745,
1
794 and 3630 cm–1 (refs.[29,30])].
µ-XRD analysis (Figure 4a) reveals the presence of two
reveal stoichiometries (Sn1.00Ge0.95Si10.60C4,50O1,94 for
2
crystalline phases, one with the unit cell parameters a =
.5831 nm and c = 0.3182 nm, which corresponds to tetrag-
3
00 µm area and Sn1.00Ge0.88Si0.15 C0,51O0,89 for several
0
micrometre-sized particles) that agree with the relative de-
composition of both metal hydrides as determined by FTIR
spectra. The analyses also show that Sn/Ge particles do not
cover the Si substrate completely.
onal β-Sn (designated as T and existing at temperatures
Ͼ13.25 °C) and another corresponding to the Ge/Sn alloy
(designated as G and GЈ). The bifurcated signal of the alloy
can be deconvoluted to two peaks corresponding to the unit
cell parameter a = 0.57552 and 0.59181 nm. These values
are significantly higher than the unit cell parameter of pure
diamond-type cubic Ge (a = 0.5657 nm) and they reflect,
[
27]
in agreement with the literature, approximately 10% and
far more (above 25%) incorporation of Sn atoms into the
Figure 2. Typical SEM images of the deposit.
FTIR spectroscopy of the deposited film does not give
[
26]
any evidence on Sn–H and Ge–H bonds typical
for
Sn Ge1–x:H films and confirms complete elimination of H
x
from both precursors.
The Raman spectrum of the deposit (Figure 3) shows a
–
1
broad band at 282–288 cm and a sharp band at 518–
–
1
–1
5
20 cm with a shoulder at 490 cm , which are, respec-
[
11]
tively, assigned to the Ge–Ge bond in a Sn/Ge alloy, the
Si–Si bond in the silicon substrate and the Si–Si bond in Si/
M (M = Sn,
[
27]
[28]
Ge ) alloys. The Ge–Ge band being
–
1
[11]
shifted from that of pure Ge (ca. 300 cm ) corresponds
Figure 4. µ-XRD analysis of the deposit before (a) and after (b)
to the Sn Ge alloy with x = 0.17–0.25. The positions of heating to 200 °C.
x
1–x
Eur. J. Inorg. Chem. 2009, 1464–1467
© 2009 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
www.eurjic.org
1465

ˇ
T. K rˇ enek, P. Bezdi cˇ ka, N. Murafa, J. Subrt, J. Pola
SHORT COMMUNICATION
Ge lattice. The bifurcated signal becomes single after heat- fore and after heating to 200 °C is consistent with moderate
ing to 200 °C (Figure 4b), in which case the peak corre- temperature relaxation of nanoalloy structures and compo-
sponds to the unit cell parameter a = 0.57201 nm and ap- sition changes leading to separation of both alloy constitu-
proximately 7% incorporation of Sn atoms into the Ge lat- ents, which occur rather as surface than bulk process.[
tice. We note that weight fractions of the crystalline Sn (ca.
31,32]
30%) and Ge/Sn alloy (ca. 50%), as well as amorphous con-
tent (ca. 20%), estimated by Rietveld refinement procedure Conclusions
before and after heating are virtually the same. These results
are supported by analysis by transmission electron micro-
scopy.
In conclusion, we have demonstrated that IR laser dielec-
tric breakdown in an equimolar gaseous mixture of SnH4/
GeH in Ar allows gas-phase deposition of nanoparticles
4

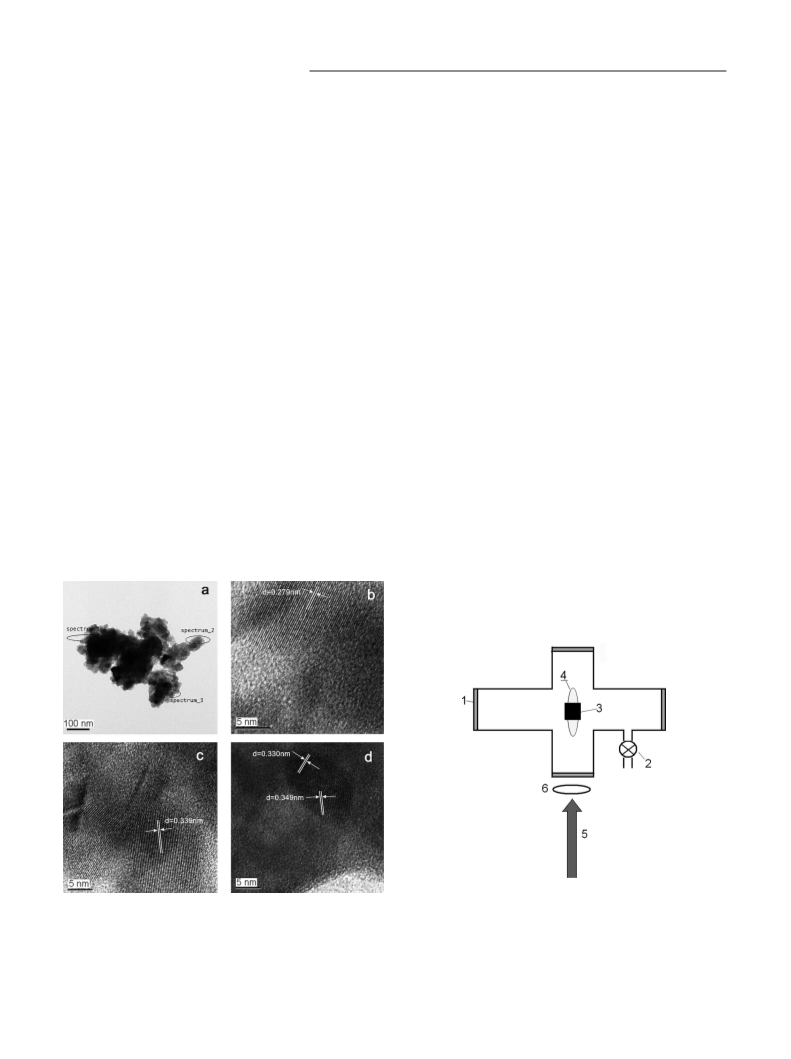

The TEM image (Figure 5a) reveals irregular agglomer-
ates consisting of uniform plate-like crystalline nanopar-
ticles (10–50 nm). The marked places are point-out areas
from which the EDS analyses, indicating great amounts of
Ge and Sn elements and small contaminations of O and C,
were carried out. The HRTEM images (Figure 5b–d) are
consistent with a blend of crystalline and amorphous phase.
Figure 5b shows the HRTEM micrograph of a crystalline
nanoparticle with the interlayer spacing of d = 0.279 nm,
the value corresponding to tetragonal Sn (PDF 04-0673).
Figure 5c shows the HRTEM micrograph of a crystalline
nanoparticle with the interlayer spacing of d = 0.339 nm,
containing crystalline Sn and metastable Sn-rich Ge/Sn al-
loys along with a Sn/Ge amorphous phase. These nanopar-
ticles have to be formed upon decomposition of both metal
hydrides and intermixing/clustering of extruded metal
atoms in the gas phase. The Ge/Sn nanoalloys possess dif-
ferent contents of Sn incorporated in the Ge lattice and are
modified in composition at temperatures as low as 200 °C.
Experimental Section
4 4
Laser irradiation of an equimolar mixture of SnH /GeH (both
which corresponds to cubic Ge with d = 0.326 nm (PDF 04- 5 Torr) in Ar (total pressure 110 Torr) leading to dielectric break-
545). As agreed with µ-XRD analysis, the slight increase in down in this mixture was accomplished with a TEA CO2 laser
the interlayer spacing can be explained by the Sn atoms (Plovdiv University, model 1300 M) operating with a repetition fre-
0
0
0
quency of 1 Hz at the P(20) line of the 00 1Ǟ10 0 transition
(
incorporated into the Ge lattice. A very interesting
HRTEM micrograph (Figure 5d) reveals the occurrence of
a crystalline nanoparticle with two different values of inter-
layer spacing (d = 0.330 nm and d = 0.349 nm) and it is
in line with different extents of Sn incorporation in the Ge
lattice.
–
1
944.19 cm ) and pulse energy 1.8 J. The gaseous mixture was irra-
diated in a Pyrex reactor (520 mL in volume, Figure 6) that con-
sisted of two orthogonally positioned Pyrex tubes (both 3 cm in
diameter, one 9 cm and the other 13 cm long) fitted with KBr win-
dows and furnished with a PTFE valve connected to a vacuum
manifold and pressure transducer. The laser pulse was focused with
a NaCl lens (f.l. 15 cm) to generate a spark in the centre of the
tube, above which was accommodated a silicon substrate. The mix-
ture was irradiated with 45 pulses, and the thin film on the Si sub-
strate was deposited through 3 cycles.
1
2
Figure 6. Top view of the irradiated Pyrex reactor: (1) KBr window;
(2) PTFE valve; (3) substrate; (4) spark; (5) laser pulse; (6) lens.
Figure 5. TEM (a) and HRTEM (b–d) micrographs of the deposit.
We assume that the presence of different Ge/Sn alloys
is in keeping with a nonuniform temperature and possible
transient (both neutral and charged) particles profiles in di- using absorption bands at 677 cm and 1902 cm (SnH ) and
The progress of codecomposition of SnH
4 4
and GeH was moni-
tored by FTIR spectroscopy (Nicolet Impact spectrometer) by
–
1
–1
4
–
1
–1
electric breakdown. The µ-XRD analysis of the deposit be- 816 cm and 2108 cm (GeH
4
). Thereafter, the reactor was evacu-
1466
www.eurjic.org
© 2009 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Eur. J. Inorg. Chem. 2009, 1464–1467

Laser CVD of Nanodisperse Ge–Sn Alloys
ated and the Si substrate was transferred in sealed vials under Ar
to prevent its oxidation for the measurements of its properties by
different physical methods.
[2] SGTE Alloy Phase Diagrams Databases, 2004.
[3] D. V. Jenkins, J. D. Dow, Phys. Rev. B 1987, 36, 7994–8000.
[4] G. He, H. A. Atwater, Phys. Rev. Lett. 1997, 79, 1937–1940.
[5] S. Oguz, W. Paul, T. F. Deutsch, B. Y. Tsaur, D. V. Murphy,
Appl. Phys. Lett. 1984, 43, 848–850.
SEM analyses were carried out with a Philips XL30 CP scanning
electron microscope and energy dispersive X-ray (EDX) analyses
were conducted with a Philips XL30 CP instrument equipped with
an EDX detector PV 9760 by using an accelerating voltage of 5–
[
[
6] J. C. Bennet, R. F. Egerton, Vacuum 1996, 47, 1419–1422.
7] H. Fukumoto, H. Myoren, T. Nakashita, T. Imura, Y. Osaka,
Jpn. J. Appl. Phys. 1986, 25, 1312–1346.
30 kV.
[8] S. I. Shah, J. E. Greene, L. L. Abels, Q. Yao, P. M. Raccah, J.
Cryst. Growth 1987, 83, 3–10.
TEM (transmission electron microscopy) and HRTEM (high-reso-
lution transmission electron microscopy) micrographs were carried
[
[
[
9] H. Höchst, M. A. Engelhardt, I. Hérnandey-Calderón, Phys.
Rev. B 1989, 40, 9703–9708.
out with a JEOL JEM 3010 microscope operated at 300 kV (LaB
6
10] R. R. Pukite, A. Harwit, S. S. Iyer, Appl. Phys. Lett. 1989, 54,
cathode, point resolution 1.7 Å) with an EDX (energy dispersive
X-ray) detector attached. A copper grid coated with a holey carbon
film was used to prepare the samples. A fine powder of deposit was
transferred onto a grid and used for the TEM observation.
2142–2144.
11] M. Rojas-López, H. Navarro-Contreras, P. Desjardins, O. Gur-
dal, N. Taylor, J. R. A. Carlsson, J. E. Grene, J. Appl. Phys.
1998, 84, 2219–2223.
[
12] O. Gurdal, P. Desjardins, J. R. A. Carsson, N. Taylor, H. H.
Radamson, J.-E. Sundgren, J. E. Greene, J. Appl. Phys. 1998,
Raman spectra were measured with a dispersive Raman instrument
Nicolet Almega XR with the excitation wavelength 473 nm and
power 10 mW. Spectra were collected in 32 expositions with a reso-
83, 162–170.
[13] M. T. Asom, E. A. Fitzgerald, A. R. Kortan, B. Spear, L. C.
–1
lution of 2 cm .
Kimerling, Appl. Phys. Lett. 1989, 55, 578–579.
Diffraction patterns were collected with a PANalytical XЈPert PRO
[14] R. C. Bowman, P. M. Adams, M. A. Engelhardt, H. Höchst, J.
Vac. Sci. Technol. A 1990, 8, 1577–1581.
diffractometer equipped with a conventional X-ray tube (Co-K
α
[
[
15] G. He, H. A. Atwater, Appl. Phys. Lett. 1996, 68, 664–666.
16] M. R. Bauer, J. Tolle, A. V. G. Chizmeshya, S. Zollner, J.
Menendez, J. Kouvetakis, Mater. Res. Symp. Proc. 2003, 744,
radiation, 40 kV, 30 mA, point focus), an X-ray monocapillary with
a diameter of 0.1 mm and a multichannel detector XЈCelerator with
an antiscatter shield. A sample holder for single-crystal XRD mea-
surement was adopted by adding z (vertical) axis adjustments
49–54.
[17] M. R. Bauer, J. Tolle, C. Bungay, A. V. G. Chizmeshya, D. J.
(Huber 1005 goniometer head). The angle of the incident beam (ω)
Smith, J. Menendez, J. Kouvetakis, Solid State Commun. 2003,
was fixed to 2° to suppress the penetration depth and enhance the
signal of the assumed thin layer. XRD patterns were taken between
127, 355–359.
[18] C. J. Cook, S. Zollner, M. R. Bauer, P. Aella, J. Kouvetakis, J.
15 and 100° 2θ with 0.0167° step and 2100 s counting time per step
Menendez, Thin Solid Films 2004, 455–456, 217–221.
that produces the total counting time of about 24 h. XRD patterns
were not pretreated before interpretation, as no background correc-
tion was needed.
[19] I. T. H. Chang, B. Cantor, Thin Solid Films 1993, 230, 167–
178.
[
20] J. Pola, D. Pokorná, M. J. Diánez, M. J. Sazagués, Z. Bastl, V.
Vorlí cˇ ek, Appl. Organomet. Chem. 2005, 19, 854–858.
Qualitative analysis was performed with HighScore software pack-
age (PANalytical, The Netherlands, version 1.0d), Diffrac-Plus
software package (Bruker AXS, Germany, version 8.0) and JCPDS
ˇ
[
21] D. Pokorná, J. Bohá cˇ ek, V. Vorlí cˇ ek, J. Subrt, Z. Bastl, E. A.
Volnina, J. Pola, J. Anal. Appl. Pyrol. 2006, 75, 65–68.
[22] D. F. McMillen, K. E. Lewis, G. P. Smith, D. M. Golden, J.
Phys. Chem. 1982, 86, 709–718.
[
33]
PDF-2 database. These analytical methods were also applied to
the deposited films heated for 1 h at 200 °C in an evacuated am-
poule.
[23] D. K. Russell, Chem. Soc. Rev. 1990, 19, 407–437.
[
[
24] A. M. Ronn, Chem. Phys. Lett. 1976, 42, 202–204.
25] A. H. Schwebel, A. M. Ronn, Chem. Phys. Lett. 1983, 100,
For quantitative analysis of the XRD patterns, we used Diffrac-
Plus Topas (Bruker AXS, Germany, version 4.1) with structural
models based on the ICSD database.[ This program permits the
unit cell parameters to be determined, allows the weight fractions
of crystalline phases to be estimated and also allows the amorph-
ous content (the “degree of crystallinity” procedure) to be esti-
mated by the Rietveld refinement procedure.
178–182.
[
26] E. Chin-Prado, R. S. Katiyar, W. Muñoz, O. Resto, S. Z. Weisz,
34]
Phys. Rev. B 1994, 50, 11653–11660.
[27] M. Bauer, C. Ritter, D. A. Crozier, J. Ren, J. Menendez, G.
Wolf, J. Kouvetakis, Appl. Phys. Lett. 2003, 83, 2163–2165.
28] J. Olivares, P. Martin, A. Rodriguez, J. Sangrador, J. Jimenez,
T. Rodríguez, Thin Solid Films 2000, 358, 56–61.
29] M. Budde, B. B. Nielsen, C. P. Cheney, N. H. Tolk, L. C. Feld-
man, Phys. Rev. Lett. 2000, 85, 2965–2968.
[
[
Stannane was prepared by treating tin tetrachloride with lithium
[
35]
aluminium hydride
and germane was obtained by reaction be-
[30] J. Weber, M. Hiller, E. V. Lavrov, Phys. B: Condensed Matter.
2007, 401–402, 91–96.
[36]
tween germanium dioxide and potassium tetrahydroborate. Both
gases were distilled on vacuum line and checked for purity by FTIR
spectroscopy.
[31] K. A. Mäder, A. Baldereschi, H. von Känel, Solid State Com-
mun. 1989, 69, 1123.
[32] A. Roland, J. Bernardini, G. Moya, C. Girardeaux, Surf. Sci.
2004, 566–568, 1163.
Acknowledgments
[33] JCPDS PDF-2 Database, release 54, International Centre for
Diffraction Data, Newton Square, PA, USA, 2004.
[
[
34] ICSD Database FIZ Karlsruhe, release 2008/1, Germany, 2008.
35] G. H. Reifenberg, W. J. Considine, Organometallics 1993, 12,
015.
36] W. I. Jolly, J. E. Drake, Inorg. Synthesis 1963, 7, 34–44.
Received: December 2, 2008
Published Online: March 12, 2009
This work was supported by Ministry of Education, Youth and
Sports of the Czech Republic (Grant no. LC523).
3
[
[
1] For example: J. K. Wessel (Ed.), Handbook of Advanced Mate-
rials, Wiley-Interscience, Hoboken, 2004.
Eur. J. Inorg. Chem. 2009, 1464–1467
© 2009 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
www.eurjic.org
1467
