Transformation of Brushite (CaHPO4·2H2O) to Whitlockite (Ca9Mg(HPO4)(PO4)6) or Other CaPs in Physiologically Relevant Solutions

Article abstract of DOI:10.1111/jace.14069

Brushite (dicalcium phosphate dihydrate, DCPD, CaHPO₄·2H₂O) and whitlockite [WH, Ca₉Mg(HPO₄)(PO₄)₆] are usually found in the mammalian metabolism in the form of diverse pathological calcifi

Full text of DOI:10.1111/jace.14069

J. Am. Ceram. Soc., 99 [4] 1200–1206 (2016)
DOI: 10.1111/jace.14069
© 2016 The American Ceramic Society
ournal
J
Transformation of Brushite (CaHPO4Á2H2O) to Whitlockite
(Ca9Mg(HPO4)(PO4)6) or Other CaPs in Physiologically Relevant Solutions
A. Cuneyt Tas†,*
Department of Materials Science and Engineering, University of Illinois, Urbana, Illinois 61802
Brushite
(dicalcium
phosphate
dihydrate,
DCPD,
formed in the synthesis solutions (e.g., 1 h residence time in
solutions) exhibited the crystal structure and characteristic
X-ray diffraction pattern of ICDD PDF 9-0077, but these
crystals had a Ca/P molar ratio of only 0.8 in opposition to
the stoichiometric ratio of 1.0.5 Crystals soaked in the same
synthesis solution for 24 h reached a Ca/P molar ratio of
0.97.5 On the other hand, the in vivo and in vitro maturation
of apatitic calcium phosphate (Ap-CaP) was studied by
Cazalbou et al.6
CaHPO4Á2H2O) and whitlockite [WH, Ca9Mg(HPO4)(PO4)6]
are usually found in the mammalian metabolism in the form of
diverse pathological calcifications, dental calculi, urinary tract
stones, salivary gland deposits, cardiovascular or pulmonary
calcified deposits, and even as prostate or cartilage calcifica-
tions. The hydrothermal transformation of synthetic brushite
crystals into single-phase whitlockite, octacalcium phosphate,
or apatitic calcium phosphate was observed over the time per-
iod of 1 to 21 d and at 37°C, 70°C, and 115°C in nonstirred
physiologically relevant solutions developed for this work. The
Brushite is found in the human metabolism in the form of
pathological calcifications; such as, dental calculi (or tartar),7
urinary stones 8, and in chondrocalcinosis (together with
strong influence of the physiologically relevant ions such as
on hydrothermal transformations is
Mg2+ and HCO3
Ca2P2O7Á2H2O (CPPD) crystals ). Brushite has a high solu-
–
9

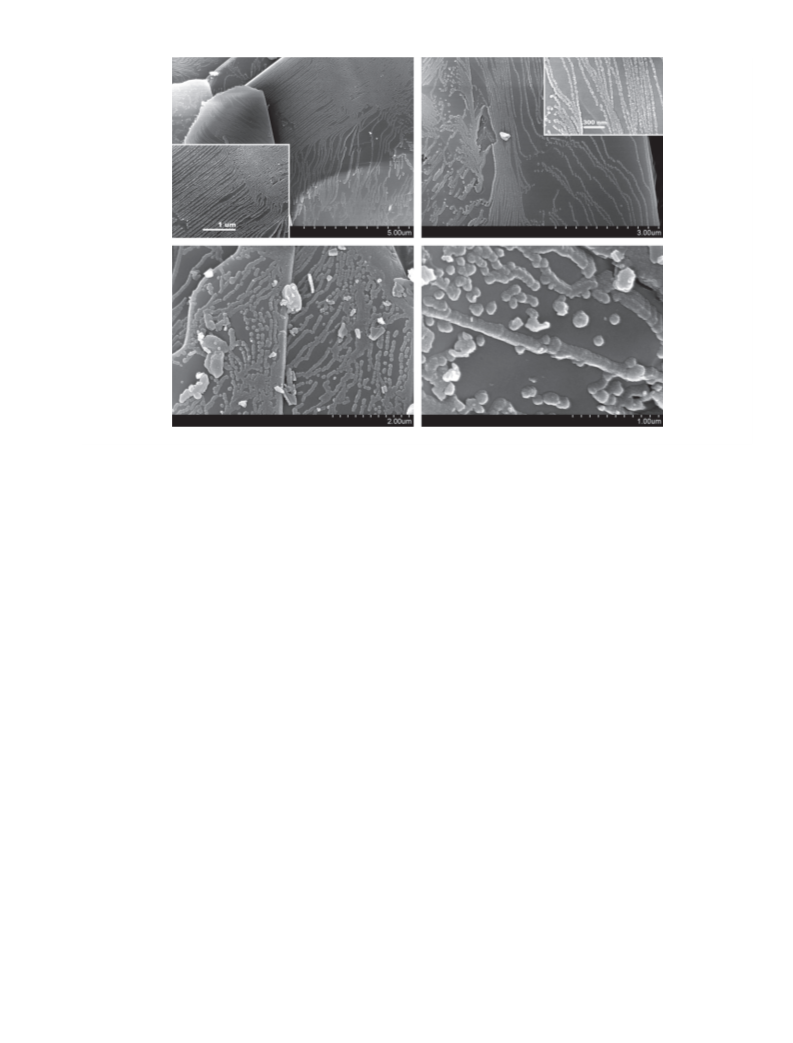

exposed. The formation of the nanoglobules and nanofibrils of
X-ray amorphous calcium phosphate or Mg-doped calcium
phosphate on the surfaces of brushite crystals are observed for
the first time in biomimetic solutions containing 10 mM Mg2+
and/or 27 mM HCO3 – . The experimental conditions leading to
the formation of such nanofibrils on brushite crystal surfaces
are also found to stop the further transformation of brushite
into any other calcium phosphate (CaP) phases even at high
solution temperatures. Samples were characterized by scanning
electron microscopy and powder X-ray diffraction.
bility (pKSP of 6.59 at 25°C) in comparison to stoichiometric
hydroxyapatite (pKSP of 116.8 at 25°C).10 The solubility of
brushite is also significantly higher than that of octacalcium
phosphate, OCP, Ca8(HPO4)2(PO4)4Á5H2O (with a pKSP of
96.6 at 25°C).10 Tang et al.11 experimentally measured the
dissolution rate of brushite in water at RT as
4.26 9 10À4 mol/m2/min. High solubility of brushite, in com-
parison to hydroxyapatite, led to the development of inject-
able orthopedic or dental paste formulations based on
brushite12–14 with b-TCP (b-tricalcium phosphate, b-
Ca3(PO4)2) and MCPM [monocalcium phosphate monohy-
drate, Ca(H2PO4)2ÁH2O] as the starting materials. Apelt
et al.15 reported in a comparative in vivo study that such
nonapatitic cements, with microstructures comprised of
coarse b-TCP granules embedded in a brushite matrix, were
rapidly biodegraded by macrophage activity and showed fas-
ter new bone formation compared to commercially available
hydroxyapatite cements.
I. Introduction
RUSHITE (DCPD, dicalcium phosphate dihydrate, CaH-
B
PO4Á2H2O), named after the mineralogist George Jarvis
Brush (1831–1912), is the predominant mildly acidic phase of
the Ca(OH)2–H3PO4–H2O system to precipitate between pH
2 and 6.5,1–3 when Ca2+ and HPO4 ions are simultane-
2À
ously present in an aqueous solution of the stated pH range.
When Ca-chloride (or Ca-nitrate or Ca-acetate) solutions are
mixed with those of basic Na-(or K- or ammonium-) phos-
phate at room temperature (RT, 22°C Æ 1°C), monoclinic
(ICDD PDF 9-0077) brushite crystals instantly form. The
crystal structure of brushite was ascertained by Curry and
Jones4 via neutron diffraction.
Brushite, as a mildly acidic CaP, is known to be not stable
in aqueous solutions of neutral pH and rapidly transforms to
apatitic calcium phosphate (Ap-CaP) in basic media contain-
ing dissolved NaOH, KOH, or NH4OH.16 Similarly, brushite
slowly transforms into carbonated Ap-CaP when soaked in
Tris [tris(hydroxymethyl)aminomethane, (HOCH2)3CNH2]-
and into
17
buffered SBF (synthetic body fluid) solutions
Brushite synthesis, if performed in the way outlined above,
does not require any strict pH control in stark contrast to
stoichiometric Ca-hydroxyapatite [HA, Ca10(PO4)6(OH)2 or
3Ca3(PO4)2ÁCa(OH)2] synthesis since the latter necessitates
the solution pH to be maintained above 12 at all times. For
instance, if the pH during stoichiometric Ca-hydroxyapatite
synthesis falls below 12, then Ca- and OH-deficient, apatite-
like (apatitic) calcium phosphates would precipitate. Precipi-
tated brushite crystals were recently shown to go through a
maturation process5 in their mother liquors. The maturation
of brushite revealed itself as follows. The very first crystals
OCP when immersed in Hepes [4-(2-hydroxyethyl)-1-piperazi-
neethanesulfonic acid, C8H18N2O4S]-buffered DMEM solu-
tion (Dulbecco’s Modified Eagle Medium) at the human
body temperature of 37°C and at the blood pH of 7.4 for
about 48 h.18 SBF and DMEM solutions contain Mg2+ ions
at the concentrations of 1.517 and 0.814 mM,18 respectively.
High solubility brushite, therefore, has the unique ability of
acting (in vitro) like a precursor to calcium phosphates of
lower solubility, such as HA or OCP, especially in solutions
mimicking the inorganic ion concentrations of blood plasma.
Brushite can be deposited on titanium19,20 or Mg-alloy21 sub-
strates at ambient temperatures in aqueous solutions.
Mechanically stable millimeter-sized brushite granules devel-
oped for use in orthopedic and oral surgery were also shown
to be suitable for high throughput production.22 Therefore,
the close monitoring of the hydrothermal transformations of
brushite, into other benign CaP phases, in physiologically rel-
J. McKittrick—contributing editor
evant abiotic solutions (containing Mg2+
,
Na+, ClÀ,
Manuscript No. 37068. Received June 18, 2015; approved November 10, 2015.
*Member, The American Ceramic Society
2À
2À
HCO3À, HPO4 and SO4 ions at concentrations equal to
†Author to whom correspondence should be addressed. e-mail: c_tas@hotmail.com
1200

April 2016
Brushite to Whitlockite
1201
those of the human blood) would be useful to future devel-
opment work on brushite cements, brushite coatings, and
brushite granules.
II. Experimental Procedure
The synthesis of brushite powders consisted of preparing two
solutions, as described elsewhere.18, 45 Solution A was pre-
pared as follows: 1.650 g of KH2PO4 (≥99.9%, Cat. No:
1.04873; Merck KGaA, Darmstadt, Germany) was dissolved
in 1400 mL of deionized water, in a 2L-capacity glass beaker,
followed by the addition of 6.026 g of Na2HPO4 (≥99.9%,
Cat. No: 1.06586; Merck), which resulted in a clear solution
of pH (Orion Star 215 pH-meter; Thermo Scientific,
Dreieich, Germany) 7.5 at RT. The pH meter was calibrated
by using solutions having standard pH values of 4.01 and 7
(Solutions PHA-4-CAL-PH and PHA-7-CAL-PH; Omega
Engineering Ltd., Manchester, UK).
Solution B (of pH 6.4) was prepared by dissolving 8.028 g
of CaCl2Á2H2O in (≥99.9%, Cat. No: 1.02382; Merck)
400 mL of deionized water. Solution B was then rapidly
added to solution A under stirring and the crystals formed
were aged in solution for 24 h at RT, while stirring at
500 rpm (final solution pH 5.3). Solids recovered by filtration
(and washing) from their mother liquors were dried at 35°C
(24 h) to obtain approximately 7 g of flat plate-shaped,18
optically transparent brushite crystals. Only these crystals
were used in the hydrothermal transformation experiments.
The hydrothermal reaction solutions were prepared, as
detailed in Table II of the next chapter, by dissolving appro-
priate amounts of NaCl (>99%, Cat. No: 106400, Merck),
MgCl2Á6H2O (>99%, Cat. No: 105833, Merck), KCl (>99%,
Cat. No: PX-1405, Merck), NaHCO3 (>99%, Cat. No: SX-
0320, Merck), Na2SO4 (>99%, Cat. No: SX-0761, Merck), or
NaH2PO4ÁH2O (>99%, Cat. No: 106349, Merck) in preboiled
(an essential step to eliminate dissolved bicarbonate ions in
water) deionized water. All of the hydrothermal transforma-
tion solutions were optically transparent and were free of
any turbidity prior to the reaction(s).
Brushite crystals (0.35 g) were placed in 100 mL aliquots
of the specific hydrothermal reaction solutions, and the solu-
tions were contained in 100 mL-capacity sterile glass media
bottles having plastic screw caps with O-rings. The brushite
suspensions were first ultrasonicated for 1 min by dipping
the sealed glass media bottles in an ordinary ultrasonic clean-
ing bath. The bottles were then placed in a microprocessor-
controlled oven for durations (and temperatures) specified in
Table II. The bottle contents were not stirred or agitated
during the course of hydrothermal transformation reactions.
Biological mineralization processes do never employ stir bars,
stir rods, stir plates, etc. The solids were finally separated
from the solutions by filtration (and washing with deionized
water), followed by drying at 35°C (24 h). All experiments
were repeated three times and the XRD and SEM analyses
were also repeated on such samples of reproduction.
The particle/crystal morphology analyses of the samples
were performed by scanning electron microscopy (SEM;
Neon 40-EsB, Zeiss, Jena, Germany). The samples for the
SEM analyses were sputter coated with a 5 nm-thick layer of
Au–Pd alloy prior to imaging at 5 kV. The samples for
energy-dispersive X-ray spectroscopy (EDXS) analyses were
not sputter coated. Samples for X-ray diffraction (XRD; D8
Advance, Bruker, Karlsruhe, Germany) runs were first
ground in an agate mortar with an agate pestle. All XRD
scans (k = 0.15406 nm) were performed at 40 kV and 40 mA
Rowles23 reported that brushite powders soaked in dis-
tilled water containing only 1 mM Mg2+, at 37°C for 24 d,
led to the formation of whitlockite [WH, Ca9Mg(HPO4)
(PO4)6 or 3Ca3(PO4)2ÁMgHPO4] at the expense of brushite.
The natural mineral whitlockite is named after Herbert Percy
Whitlock (1868-1948) and the trigonal (rhombic symmetry)
crystal structure (ICDD PDF 04-09-3397) of whitlockite is
similar to that of b-TCP (ICDD PDF 55-0898). The powder
X-ray diffraction spectra of WH and b-TCP look somewhat
similar to one another. Nevertheless, WH and b-TCP are not
isostructural due to the difference between their space
groups, as shown in Table I. This structural similarity caused
some researchers to inadvertently name Mg- and HPO4-free
b-TCP [i.e., b-Ca3(PO4)2] as whitlockite.24–30 Although the
crystallographic unit cell of WH was recently compared to
that of b-TCP by Jang et al.,31 a more comprehensive analy-
sis of the crystal structure of Mg-containing WH single crys-
tals was provided earlier by Gopal et al.32 The crystal
structure of Mg-free b-TCP, on the other hand, has been
described by Dickens et al.33
Whitlockite [Ca9Mg(HPO4)(PO4)6] was reported to be
present in human tooth enamel,34 in the knees of arthritic
35
patients
and in the calcifications of the articular carti-
lage,36 in the human supragingival calculus7 and dental pla-
que,37 as pathological calcification spots on aorta,38, 39 in the
pulmonary calcified deposits of tuberculosis patients,40 in
human prostate calculi,41 in urinary tract stones,42, 43 and
even in the stones of the parotid (salivary) glands.44
Although brushite and whitlockite both are phases of diverse
pathological calcifications in the human metabolism, the lit-
erature on the in vitro inorganic transformation of synthetic
brushite powders into whitlockite in Mg- and HCO3-contain-
ing saline solutions remained scarce, and this provided the
impetus for this study.
This study is designed to examine, for the first time, the
hydrothermal transformation of synthetic brushite (the start-
ing phase) to whitlockite in solutions, free of any organics,
such as Tris or Hepes, mimicking the inorganic ion concen-
trations of physiological fluids. Throughout this study, the
temperature of hydrothermal reaction solutions were varied
between 37°C and 115°C, whereas the same solutions con-
tained Mg2+ (from 1.5 to 10 mM) and Na+, K+, ClÀ,
2À
SO42À, HCO3À, or HPO4 ions in physiologically relevant
concentrations. The simple inorganic solutions and experi-
mental conditions reported here might be of interest to read-
ers who wish to further study
1. The transformation of brushite into whitlockite (WH),
or
2. The transformation of brushite into OCP, or
3. The transformation of brushite into apatitic CaP (Ap-
CaP), or
4. The transformation of brushite into whitlockite-apati-
tic CaP or whitlockite-OCP biphasic mixtures, or
5. The inhibition of the transformation of brushite to
monetite (DCPA, CaHPO4) or to any other calcium
phosphates in aqueous or alcoholic solutions heated
above 37°C.
Table I. Structural Similarity Between b-TCP and Whitlockite (WH)
Compound
Crystal structure
Lattice parameters
Space group
ICDD-PDF†
b-Ca3(PO4)2 (b-TCP)
Trigonal
Trigonal
a = 1.0418 nm
R-3c (167)
R3c (161)
00-55-0898
c = 3.7346 nm
a = 1.035 nm
c = 3.7085 nm
Ca9Mg(HPO4)(PO4)6 (WH)
04-09-3397
†ICDD-PDF = International Centre for Diffraction Data–Powder Diffraction File.

1202
Journal of the American Ceramic Society—Cuneyt Tas
Vol. 99, No. 4
Table II. Experimental Conditions and XRD Data of Products
Salt concentration in 100 mL aqueous solution (mM)
Experiment
Brushite (g)
MgCl2
NaCl
KCl
NaHCO3
Na2SO4
NaH2PO4
Temp. (°C)
Time (d)
Final pH†
Phase(s) by XRD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
—
—
—
—
—
—
—
—
—
—
95
95
95
—
95
—
—
—
—
—
—
—
—
5
5
5
—
5
—
27
—
—
—
—
—
—
27
27
—
—
27
—
—
—
—
—
—
—
—
0.5
0.5
—
—
0.5
—
—
—
—
—
—
—
1
1
1
—
—
1
70
70
70
37
37
37
115
37
37
70
37
70
70
70
1
1
1
2
7
21
1
21
21
1
21
1
1
6.3
6.4
4.5
7.4
5.9
5.2
5.3
5.5
7.0
7.0
5.4
6.4
6.8
N/A
DCPA
OCP
WH
DCPD
DCPD + OCP
WH
WH
WH + OCP
Ap-CaP
WH + Ap-CaP
WH + Ap-CaP
DCPD
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
10
10
DCPD
DCPD
1.5 mM MgCl2Á6H2O in pure ethanol
1
†All pH values reported here showed the maximum variability of Æ0.1.
hydrogen bonds, but these hydrogen bonds are broken when
the bilayers of water molecules were interrupted by the crys-
tal surface termination, and the presence of such broken
hydrogen bonds explains the instability of brushite crystals
to heating (either dry or wet) at temperatures even below
50°C.
(2) Brushite to OCP
Experiment 2 provides, perhaps, the simplest and the most
economical method of OCP synthesis performed at 70°C.
The aqueous solution of Exp. 2, with an initial pH of
-
7.8 Æ 0.1, only contains 27 mM HCO3 (i.e., the bicarbonate
ion concentration of the human blood plasma) and the pro-
cedure of Exp. 2 does not involve any stirring and pH con-
trol during synthesis in contrast to more tedious yet popular
OCP synthesis techniques.48, 49 The XRD data of experi-
ments 1 and 2 are given in Fig. 1. Although the final solution
pH measured in Exps. 1 and 2, at the end of 24 h at 70°C,
were close to one another (Table II), the solution pH alone
Fig. 1. XRD traces of the samples of experiments 1 through 3 of
Table II.
does not strongly dictate which CaP phase will form. The
solution of Exp.
À
2
matched the HCO3 concentration
(27 mM) of blood plasma, while its Na+ concentration was
only 19% of that of blood.
with a step size of 0.02° and a 5 s preset time while using a
rotating specimen holder.
2À
The positive effect of CO3 ion in enhancing the forma-
tion of OCP was previously reported by Iijima et al.,50
although their synthesis experiments did not utilize DCPD as
the starting material. The carbonate content, if any, of the
powder samples of Exp. 2 were not measured.
III. Results and Discussion
The select experiments and their qualitative XRD phase anal-
ysis results are shown in Table II together with the solution
preparation details for each experiment. The presentation
and the discussion of the experimental findings are, therefore,
directly based on Table II.
(3) Brushite to Whitlockite
In order to form whitlockite (WH), out of brushite crystals,
the aging solution must have Mg2+ ions. The Mg2+ concen-
tration of 1.5 mM was selected, since it is the [Mg2+] of the
human blood plasma.51 Experiment 3 resulted in the forma-
tion of single-phase whitlockite crystals at a final solution
pH of 4.5 at the end of 24 h at 70°C. Figure 1 shows the
XRD trace of the Exp. 3 sample and all peaks present in that
trace do match with those listed in the ICDD PDF 04-09-
3397 of WH. Figure 2(a) shows the morphology of the start-
ing brushite flat plate-shaped crystals, whose XRD data were
previously reported elsewhere.45 Figures 2(b) and (c) depict
the particle morphology of hexahedral WH crystals (of about
200 nm in the largest dimension) formed in Exp. 3, from the
brushite crystals of Fig. 2(a), at two different magnifications.
The flat plates (looking like brushite crystals) seen in the
right half of Fig. 2(b) did not produce any brushite peaks in
the XRD data of Exp. 3 (Fig. 1). Stulajterova and Med-
(1) Brushite to Monetite
Brushite (CaHPO4Á2H2O) decomposes in dry air into mon-
etite (DCPA; dicalcium phosphate anhydrous, CaHPO4)
when heated to temperatures at or above 45°C17 and also
starts its decomposition to DCPA when it is heated in deion-
ized or distilled water at or above 40°C.46 Experiment 1
showed that 0.35 g of brushite crystals of this study (having
the characteristic crystal morphology and XRD pattern
reported previously5,17) completely transformed into DCPA
upon heating in 100 mL of deionized water at 70°C for 1 d.
Water is incorporated into the crystal structure of brushite
and the water layers of brushite appear as bilayers parallel to
the (020) faces of crystals.4, 47 Water molecules inside the
2À
crystal structure are linked to the HPO4 groups by bulk

April 2016
Brushite to Whitlockite
1203
(a)
(b)
(c)
(d)
Fig. 2. (a) flat plate morphology of starting brushite crystals, (b) and (c) hexahedral whitlockite crystals formed in experiment 3, (d) EDXS
spectrum of the whitlockite crystals of experiment 3.
vecky52 reported that brushite hydrolyzed for long times in
Ca2+ ion-containing aqueous solutions at elevated tempera-
tures (as we did; however, in our case the source of aqueous
Ca2+ was the dissolving brushite platelets themselves) may
cause the drastic loss of brushite reflections from the XRD
data of such samples while the particles still maintaining
their plate-like shapes, in strong confirmation of our observa-
tions in this study. The morphology of the synthetic, hexahe-
dral whitlockite crystals of this study [Fig. 3(c)] resemble
those found and reported in the human tooth enamel,34
human dental calculus,43, 53 calculi of human prostate,41 and
human articular cartilage.36 The mineralized sections of
mature bones do not contain whitlockite in opposition to
what is claimed by Jang et al.31, 54 The characteristic EDXS
data for the Exp. 3 sample is given in Fig. 2(d) and the semi-
quantitative EDXS analysis indicated the presence of
2.2 Æ 0.1 wt% Mg. The theoretical Mg wt% of WH is 2.31.
Would it be possible to synthesize WH, from brushite, at
37°C in less than 1 d in a nonstirred solution? The answer
was not affirmative. Increasing the aging time at 37°C, in the
1.5 mM Mg2+ solution of Exp. 4, to 2 d did not cause the
formation of any CaP phase other than DCPD. However,
one week of aging at 37°C in the 1.5 mM Mg2+ solution of
Exp. 5 resulted in the formation of the secondary phase of
OCP. In confirmation of the early yet inspirational contribu-
tion of Rowles,23 brushite crystals aged in a 1.5 mM Mg2+
solution at 37°C for 21 d (Exp. 6) resulted in the complete
disappearance of brushite in favor of the formation of single-
needs to consult two different solubility diagrams to compare
the solubilities of CaPs with one another, one diagram with
the axes of log [Ca] and pH, and the other with log [P] and
pH. Two such diagrams have previously been provided by
Chow and Takagi55 and they indicate higher rates for Ca
release in comparison to that of phosphate ions. The recently
reported Ca-deficiency in brushite crystals,5 and the associ-
ated phenomenon of the maturation of brushite during its
synthesis, actually helps the above discussion. When DCPA
(formed upon the initial conversion of DCPD into DCPA)
undergoes its dissolution in aqueous solutions, the solution
became progressively enriched in [Ca2+] and this by itself
explains the transition from DCPD/DCPA to OCP to WH
(in the presence of Mg2+), which represents a continuous
increase in the Ca/P molar ratio of the reprecipitating
phases.
(4) Brushite to Whitlockite + OCP Biphasics
Experiment 6, as mentioned previously, is a slow but sure
way of transforming brushite (DCPD) into single-phase whit-
lockite (WH) at the human body temperature of 37°C in
21 d in a simple aqueous solution only containing 1.5 mM
Mg2+. In accord with the above discussion, if brushite disso-
lution continuously increases the Ca2+ concentration of the
solution, one way to slowdown or to counter this [Ca2+
]
enrichment would be to add 1 mM phosphate ions to the
same solution and repeat the experiment with the new solu-
tion at 37°C for 21 d. The human blood plasma contains
1 mM phosphate ions. This physiologically relevant solution
initially containing 1.5 mM Mg2+ and 1 mM phosphate ions
was tested in experiment 8 and it resulted in the formation of
WH + OCP biphasics in lieu of single-phase WH. Since the
formulations of Exp. 6 and 8 were tested at the same temper-
ature for the same aging time, they thus provide a direct
comparison for the influence of 1 mM phosphate ions (in the
solution of Exp. 8) on the phase constitution of solids recov-
ered. The XRD traces of the samples of experiments 6 and 8
are given in Fig. 3(a). The characteristic morphology of a
phase WH. The message received from experiments
3
through 6 was: WH formation, taking place at the expense
of brushite crystals, proceeds in 1.5 mM Mg2+ solutions via a
dissolution–reprecipitation process, and the kinetics of which
is enhanced by an increase in the aging temperature from the
human body temperature of 37°C to 70°C. Increasing the
temperature of aging to 115°C (Exp. 7 of Table II) did again
result in the formation of single-phase WH.
Calcium phosphate dissolution has a unique character; cal-
cium and orthophosphate ions do not leach out, from any
CaP phase, at exactly the same rate, and this is why one
